Lexus GS250 2014 Owner's Manual

4215-5. Other interior features
5
Interior features
GS350_250_OM_OM30E16E_(EE)

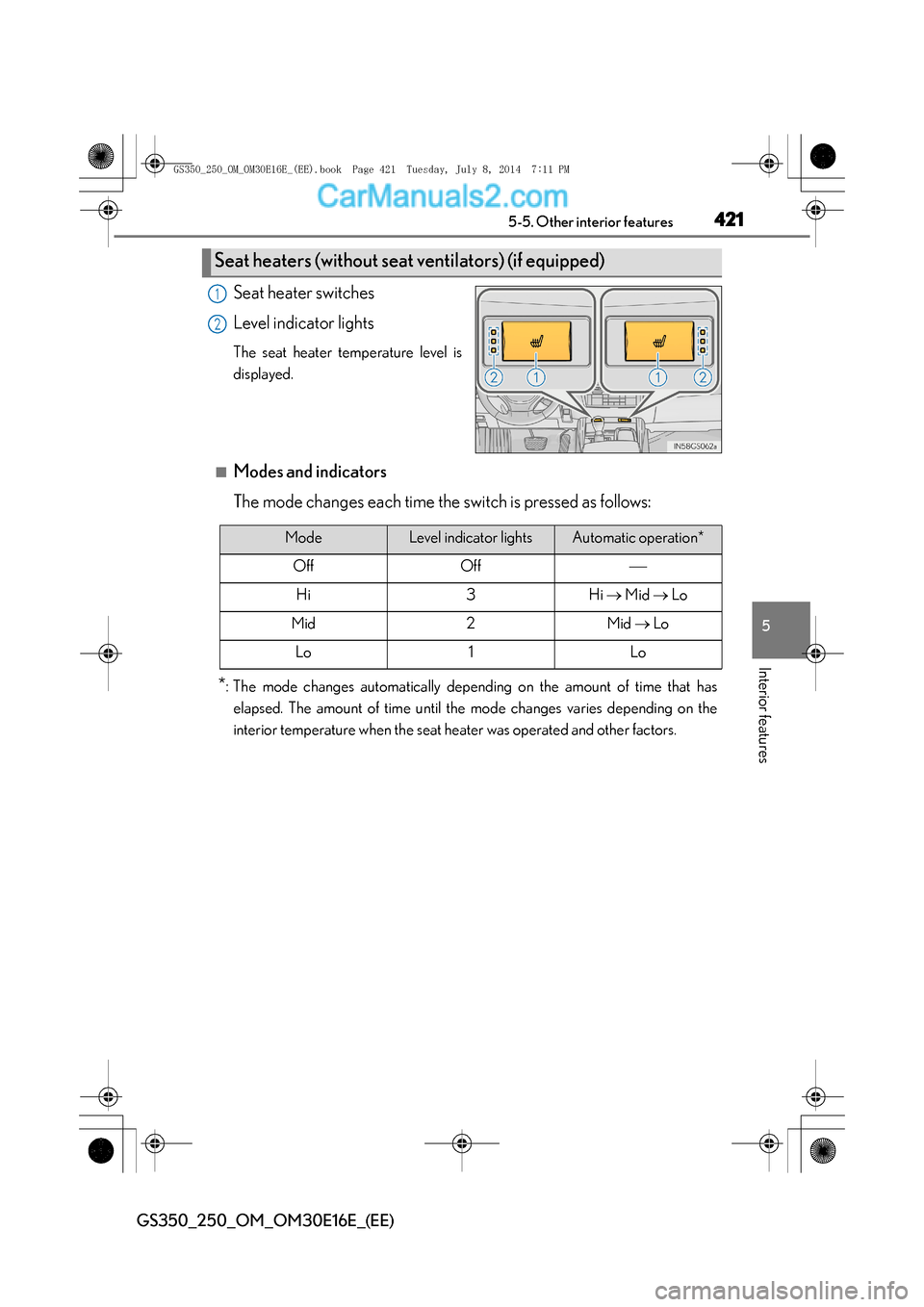

Seat heater switches
Level indicator lights
The seat heater temperature level is
displayed.
■Modes and indicators
The mode changes each time the switch is pressed as follows:
*: The mode changes automatically depending on the amount of time that haselapsed. The amount of time until the mode changes varies depending on the
interior temperature when the seat heater was operated and other factors.
Seat heaters (without seat ventilators) (if equipped)
1
2
ModeLevel indicator lightsAutomatic operation*
OffOff
Hi3Hi → Mid → Lo
Mid2Mid → Lo
Lo1Lo
GS350_250_OM_OM30E16E_(EE).book Page 421 Tuesday, July 8, 201 4 7:11 PM

4225-5. Other interior features
GS350_250_OM_OM30E16E_(EE)

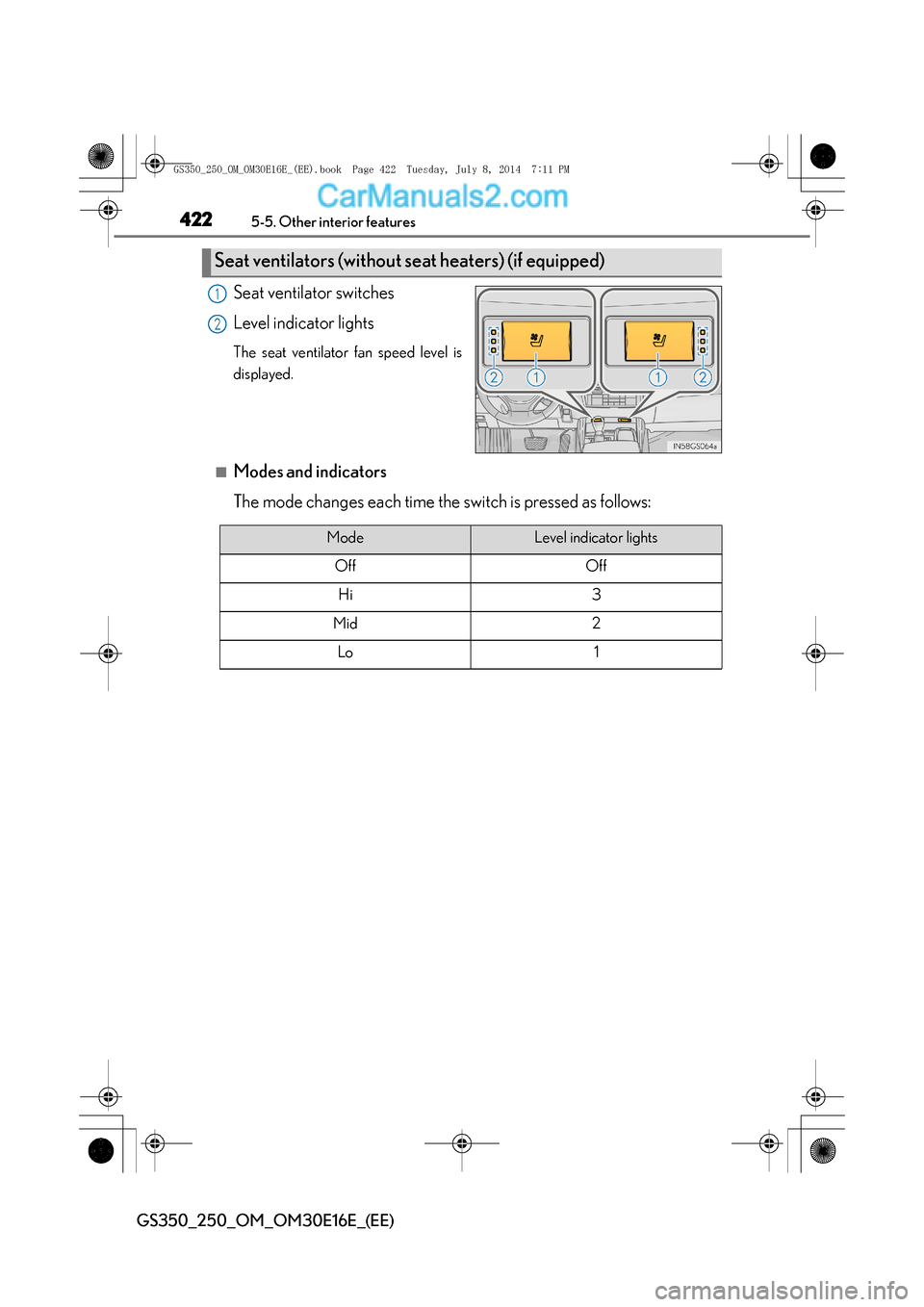

Seat ventilator switches
Level indicator lights
The seat ventilator fan speed level is
displayed.
■Modes and indicators
The mode changes each time the switch is pressed as follows:
Seat ventilators (without seat heaters) (if equipped)
1
2
ModeLevel indicator lights
OffOff
Hi3
Mid2
Lo1
GS350_250_OM_OM30E16E_(EE).book Page 422 Tuesday, July 8, 2014 7:11 PM

4235-5. Other interior features
5
Interior features
GS350_250_OM_OM30E16E_(EE)

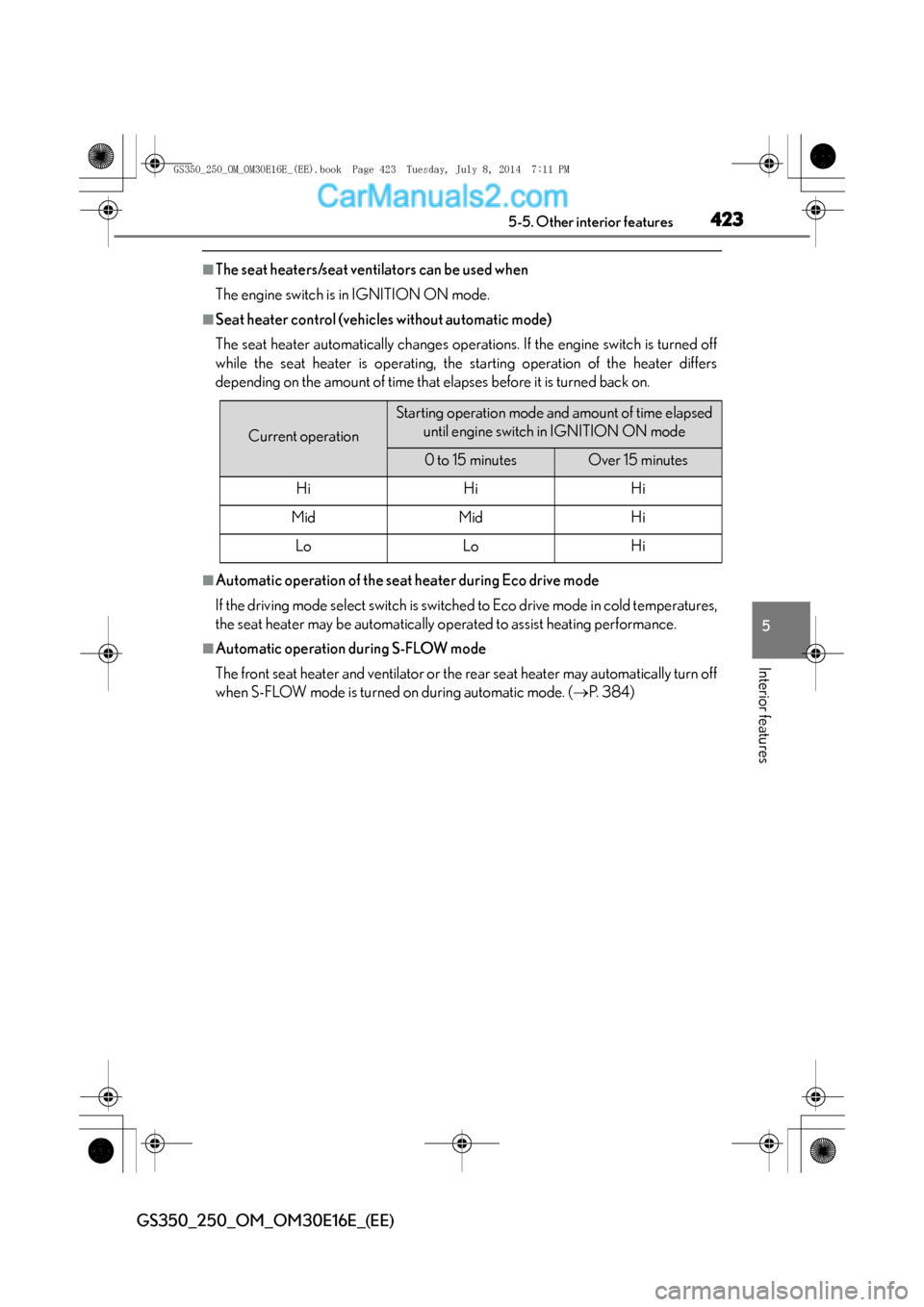

■The seat heaters/seat ventilators can be used when
The engine switch is in IGNITION ON mode.
■Seat heater control (vehicles without automatic mode)
The seat heater automatically changes operations. If the engine switch is turned off
while the seat heater is operating, the starting operation of the heater differs
depending on the amount of time that elapses before it is turned back on.
■Automatic operation of the seat heater during Eco drive mode
If the driving mode select switch is switched to Eco drive mode in cold temperatures,
the seat heater may be automatically operated to assist heating performance.
■Automatic operation during S-FLOW mode
The front seat heater and ventilator or the rear seat heater may automatically turn off
when S-FLOW mode is turned on during automatic mode. (→P. 3 8 4 )
Current operation
Starting operation mode and amount of time elapsed
until engine switch in IGNITION ON mode
0 to 15 minutesOver 15 minutes
HiHiHi
MidMidHi
LoLoHi
GS350_250_OM_OM30E16E_(EE).book Page 423 Tuesday, July 8, 201 4 7:11 PM

4245-5. Other interior features
GS350_250_OM_OM30E16E_(EE)
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 3 9 5 )
■When the switch is disabled (vehicles with rear control panel)
When the rear control panel switch cannot be operated even though the button lock
function is released, check whether the switch is disabled due to selecting
on Remote Touch screen. ( →P. 383)
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the rear armrest can be turned off. ( →P. 3 9 5 )
■Customization
The automatic operation of the front seat heaters (without seat ventilators) and the
automatic mode settings for the front seat heaters and ventilators or the rear seat
heaters can be changed. (Customizable features: →P. 6 5 7 )
CAUTION
■Burns (vehicles with seat heaters)
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use seat heater more than necessary. Doing so may cause minor burns or
overheating.
GS350_250_OM_OM30E16E_(EE).book Page 424 Tuesday, July 8, 201 4 7:11 PM

4255-5. Other interior features
5
Interior features
GS350_250_OM_OM30E16E_(EE)

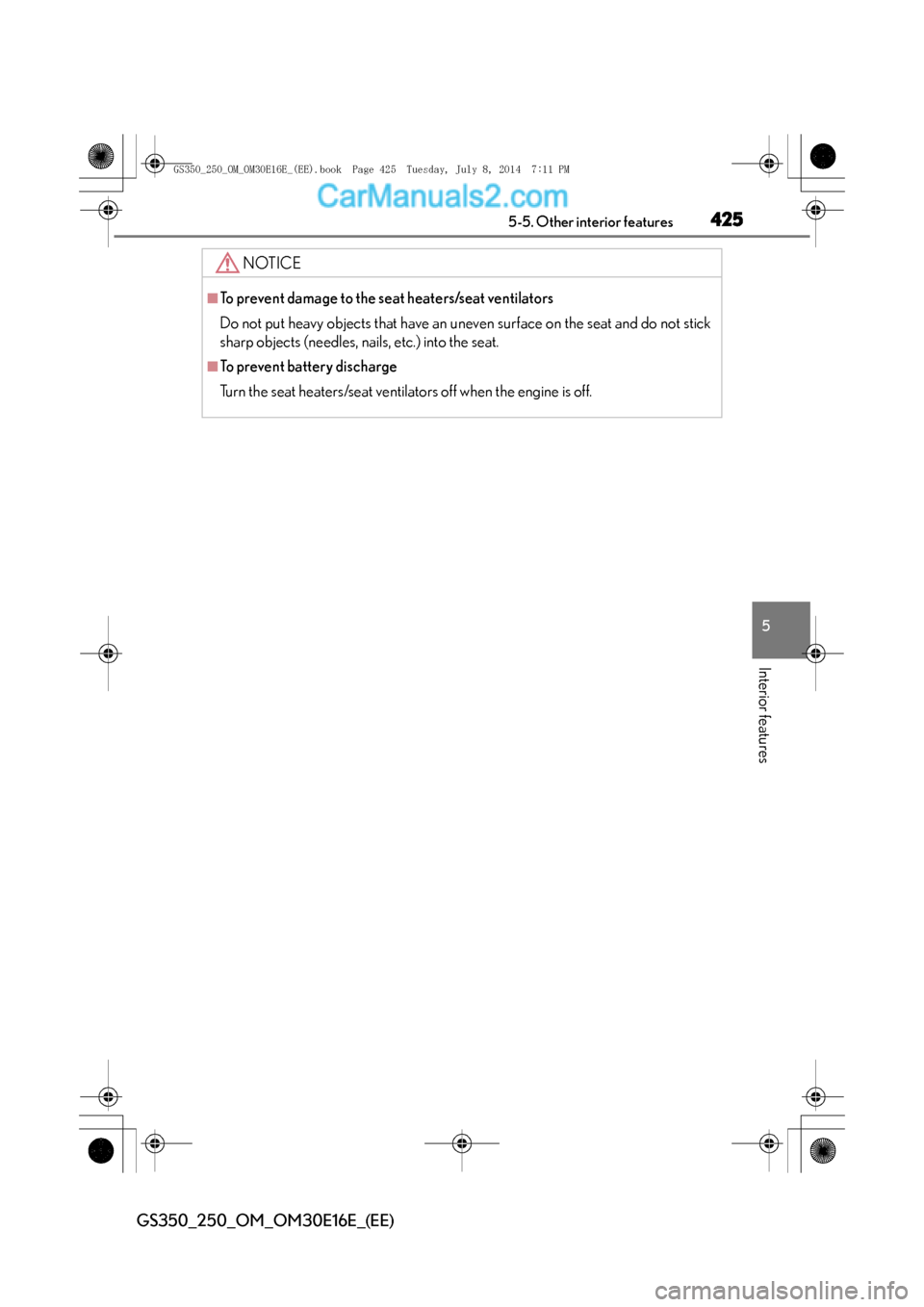

NOTICE
■To prevent damage to the seat heaters/seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the seat heaters/seat ventilators off when the engine is off.
GS350_250_OM_OM30E16E_(EE).book Page 425 Tuesday, July 8, 2014 7:11 PM

4265-5. Other interior features
GS350_250_OM_OM30E16E_(EE)

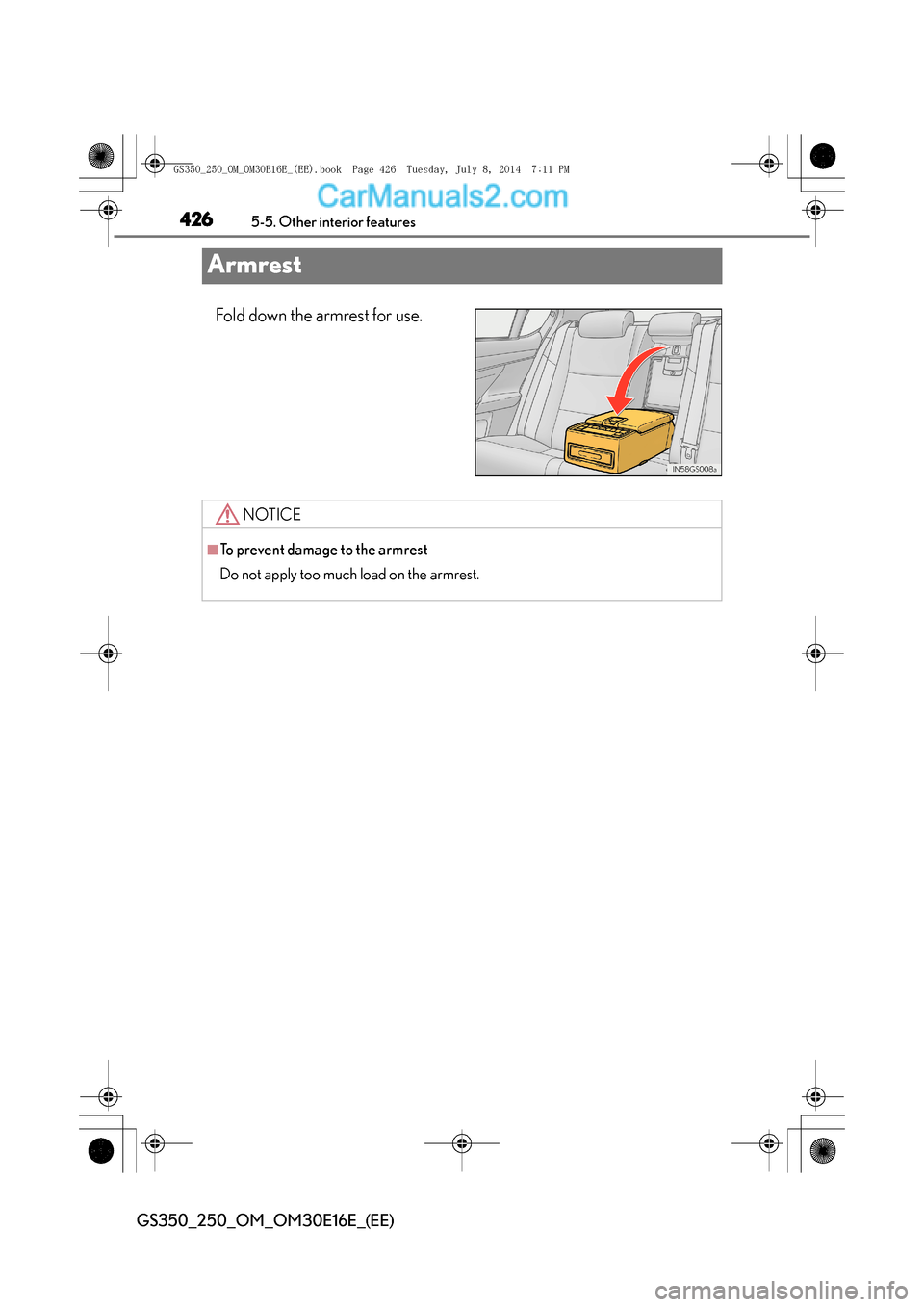

Armrest
Fold down the armrest for use.
NOTICE
■To prevent damage to the armrest
Do not apply too much load on the armrest.
GS350_250_OM_OM30E16E_(EE).book Page 426 Tuesday, July 8, 2014 7:11 PM

427
5
5-5. Other interior features
Interior features
GS350_250_OM_OM30E16E_(EE)
Rear sunshade∗/rear door sunshades∗
The rear sunshade can be raised and lowered by operating the button
shown below.
■From the front seats
Pull up the lever to release the
lock.
Slide the armrest.
Raise/lower
■From the rear seats (if equipped)
Raise/lower
∗
: If equipped
Rear sunshade
1
2
13
GS350_250_OM_OM30E16E_(EE).book Page 427 Tuesday, July 8, 201 4 7:11 PM

4285-5. Other interior features
GS350_250_OM_OM30E16E_(EE)

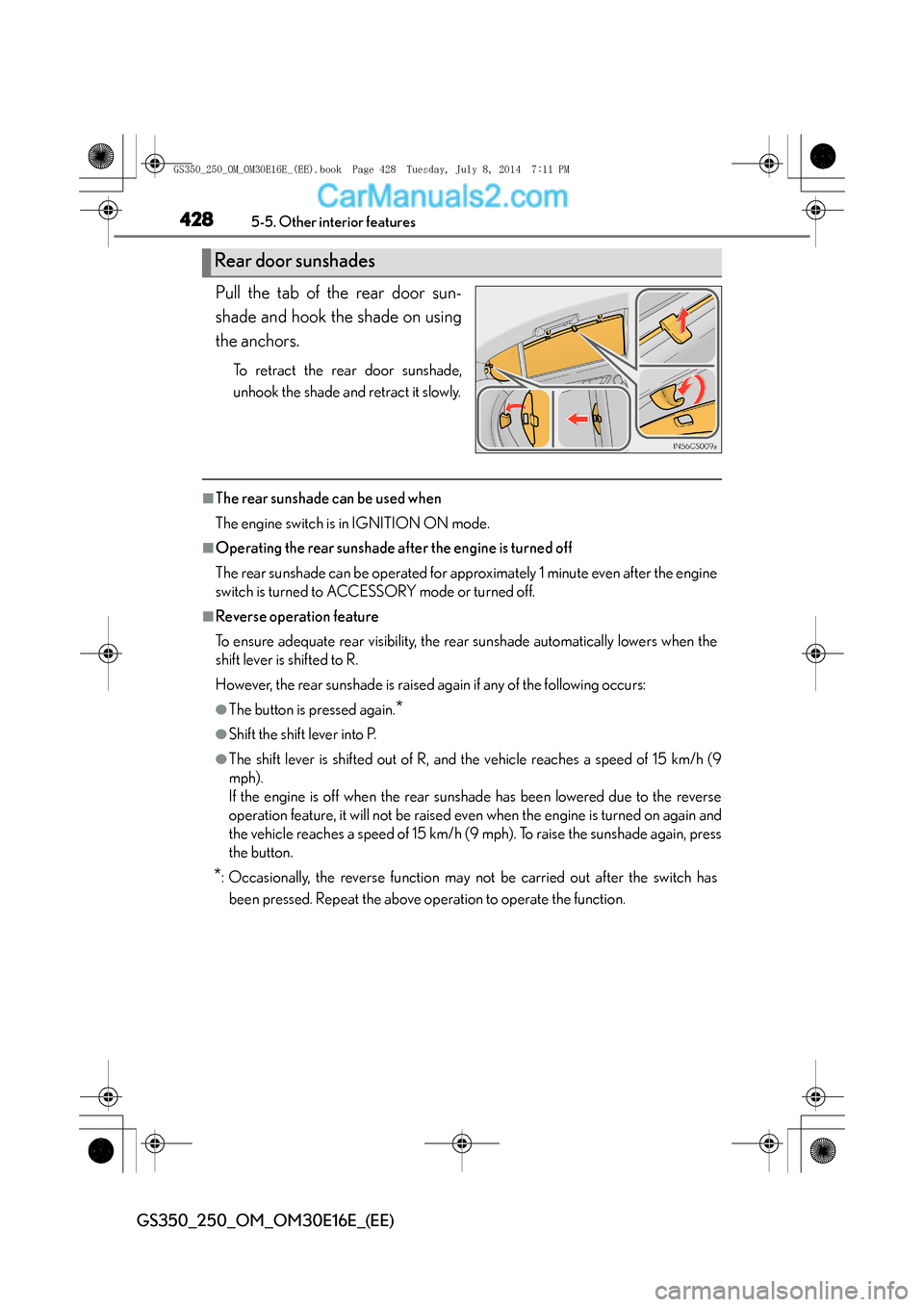

Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it slowly.
■The rear sunshade can be used when
The engine switch is in IGNITION ON mode.
■Operating the rear sunshade after the engine is turned off
The rear sunshade can be operated for approximately 1 minute even after the engine
switch is turned to ACCESSORY mode or turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.*
●Shift the shift lever into P.
●The shift lever is shifted out of R, and the vehicle reaches a speed of 15 km/h (9
mph).
If the engine is off when the rear sunshade has been lowered due to the reverse
operation feature, it will not be raised even when the engine is turned on again and
the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade again, press
the button.
*: Occasionally, the reverse function may not be carried out after the switch has been pressed. Repeat the above operation to operate the function.
Rear door sunshades
GS350_250_OM_OM30E16E_(EE).book Page 428 Tuesday, July 8, 201 4 7:11 PM

4295-5. Other interior features
5
Interior features
GS350_250_OM_OM30E16E_(EE)
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 3 9 5 )
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the rear armrest can be turned off. ( →P. 3 9 5 )
■Customization
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features: →P. 650)
CAUTION
■When the rear sunshade is being operated
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
■To prevent battery discharge
Do not operate the rear sunshade when the engine is off.
■To ensure normal operation of the rear sunshade and rear door sunshades
Observe the following precautions.
●Do not place excessive load on the motor or other components of the rear sun-
shade.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade and rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously for long periods of time.
GS350_250_OM_OM30E16E_(EE).book Page 429 Tuesday, July 8, 201 4 7:11 PM

4305-5. Other interior features
GS350_250_OM_OM30E16E_(EE)

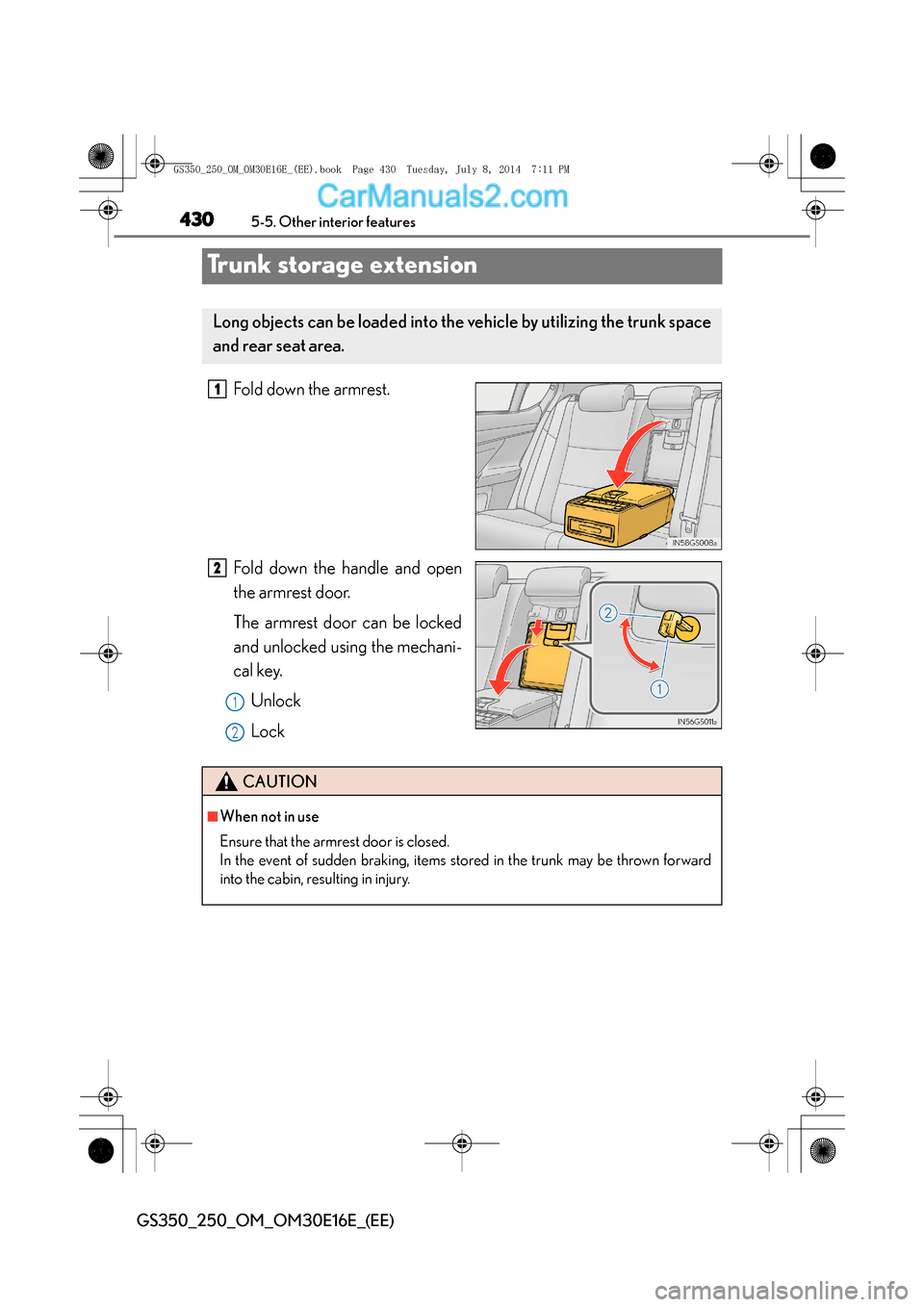

Trunk storage extension
Fold down the armrest.
Fold down the handle and open
the armrest door.
The armrest door can be locked
and unlocked using the mechani-
cal key.Unlock
Lock
Long objects can be loaded into the vehicle by utilizing the trunk space
and rear seat area.
1
2
1
2
CAUTION
■When not in use
Ensure that the armrest door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward
into the cabin, resulting in injury.
GS350_250_OM_OM30E16E_(EE).book Page 430 Tuesday, July 8, 201 4 7:11 PM
