key Lexus GS250 2014 Owner's Manual

TABLE OF CONTENTS2
GS350_250_OM_OM30E16E_(EE)
For your information ...................................8
Reading this manual .................................. 12
How to search.............................................. 13
Pictorial index .............................................. 14
1-1. For safe useBefore driving .................................34
For safety drive ............................... 36
Seat belts ..........................................38
SRS airbags ..................................... 44
Airbag manual on-off system .............................................56
Safety information for children................................... 58
Child restraint systems................ 59
Installing child restraints ............. 70
Exhaust gas precautions ............ 79

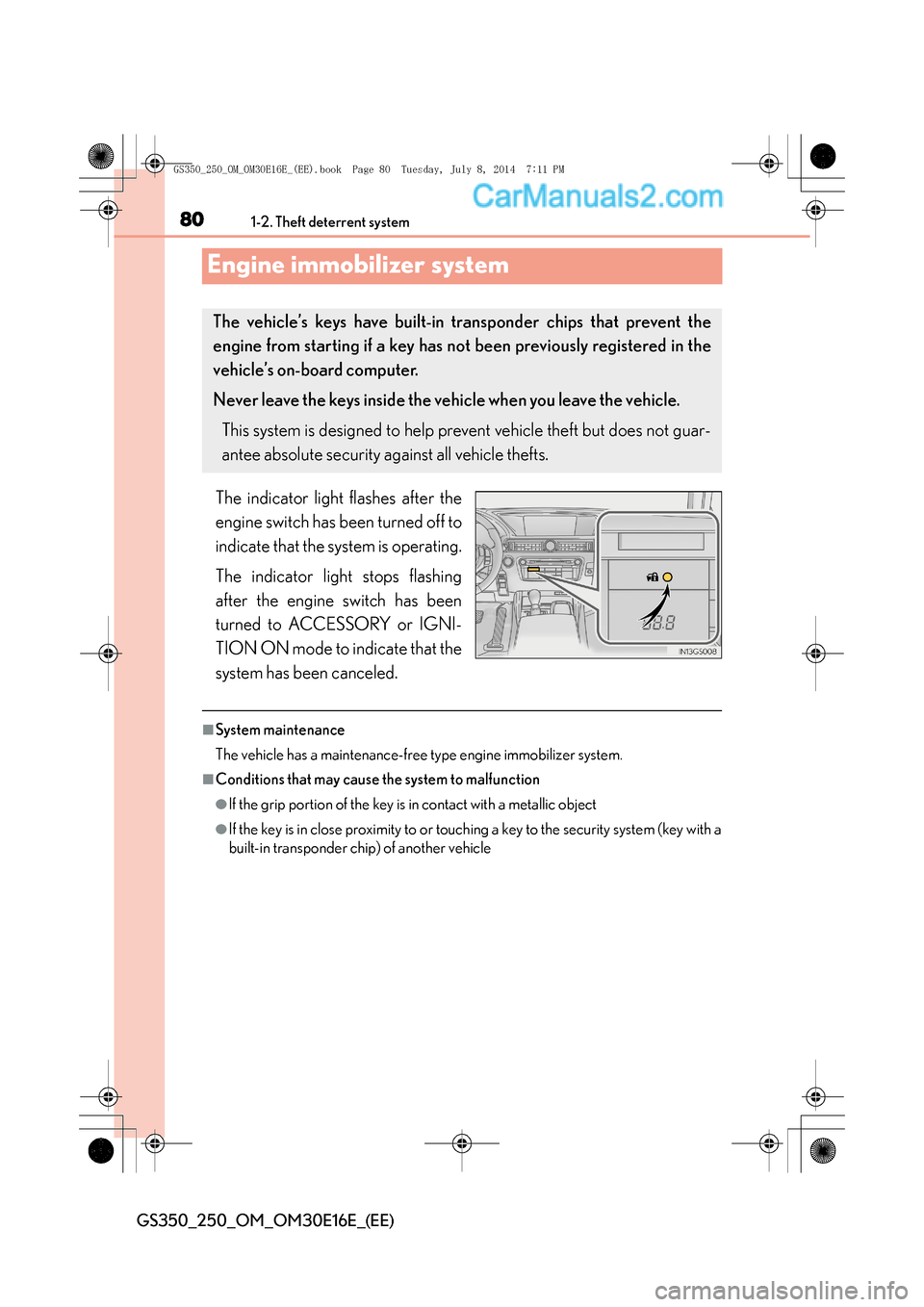

1-2. Theft deterrent system Engine immobilizer system ...... 80
Double locking system............... 85
Alarm .................................................86 2. Instrument cluster
Warning lights and indicators .............................. 94
Gauges and meters ..................... 99
Multi-information display......... 102
Head-up display ........................... 110
Fuel consumption information.................................... 117
3-1. Key information Keys................................................... 122
3-2. Opening, closing and locking the doors and trunk
Smart entry & start system .......127
Wireless remote control .......... 155
Doors ................................................. 171
Trunk ..................................................175
3-3. Adjusting the seats Front seats ...................................... 182
Driving position memory ......... 186
Head restraints............................. 192
1For safety and security
2Instrument cluster
3Operation of each
component
GS350_250_OM_OM30E16E_(EE).book Page 2 Tuesday, July 8, 2014 7:11 PM

5
1
8 7
6
5
4
3
2
GS350_250_OM_OM30E16E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior .................436
Cleaning and protecting the vehicle interior ..................440
6-2. Maintenance Maintenance requirements .............................444
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................ 447
Hood ...............................................450
Positioning a floor jack .............. 451
Engine compartment................ 454
Tires ..................................................466
Tire inflation pressure............... 483
Wheels........................................... 485
Air conditioning filter................ 487
Electronic key battery ..............489
Checking and replacing fuses .............................................. 492
Light bulbs ...................................... 514 7-1. Essential information
Emergency flashers...................534
If your vehicle has to be stopped
in an emergency ......................535
6Maintenance and care7When trouble arises
GS350_250_OM_OM30E16E_(EE).book Page 5 Tuesday, July 8, 2014 7:11 PM

TABLE OF CONTENTS6
GS350_250_OM_OM30E16E_(EE)
7-2. Steps to take in an emergencyIf your vehicle needs to be towed ................................536
If you think something is wrong ....................................... 542
Fuel pump shut off system ......543
If a warning light turns on or a warning buzzer sounds .....544
If a warning message is displayed................................. 552
If you have a flat tire (vehicles with a spare tire) ...................... 577
If you have a flat tire (vehicles without a spare tire)................ 592
If the engine will not start ..........612
If the shift lever cannot be shifted from P ..............................614
If the parking brake cannot be released .................. 615
If the electronic key does not operate properly ...................... 618
If the vehicle battery is discharged .............................. 621
If your vehicle overheats ......... 625
If the vehicle becomes stuck ......................... 628 8-1. Specifications
Maintenance data (fuel, oil level, etc.)................... 632
Fuel information ..........................648
8-2. Customization Customizable features............ 650
8-3. Initialization Item to initialize .............................661
What to do if... (Troubleshooting) ................................ 664
Alphabetical index ................................. 6728Vehicle specifications
Index
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”
• Audio system
• Lexus parking assist-sensor• Navigation system
• Lexus parking assist monitor
GS350_250_OM_OM30E16E_(EE).book Page 6 Tuesday, July 8, 2014 7:11 PM

11
GS350_250_OM_OM30E16E_(EE)
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the windows, the
moon roof, or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
GS350_250_OM_OM30E16E_(EE).book Page 11 Tuesday, July 8, 2014 7:11 PM

14Pictorial index
GS350_250_OM_OM30E16E_(EE)
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. (→P. 5 1 4 )
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 171
Locking/unlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 128, 155
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . .P. 618
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 547, 559
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 128, 155
Opening by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 619
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 547, 560
Outside rear view mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 199
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 199
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 186
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 14 Tuesday, July 8, 2014 7:11 PM

571-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)

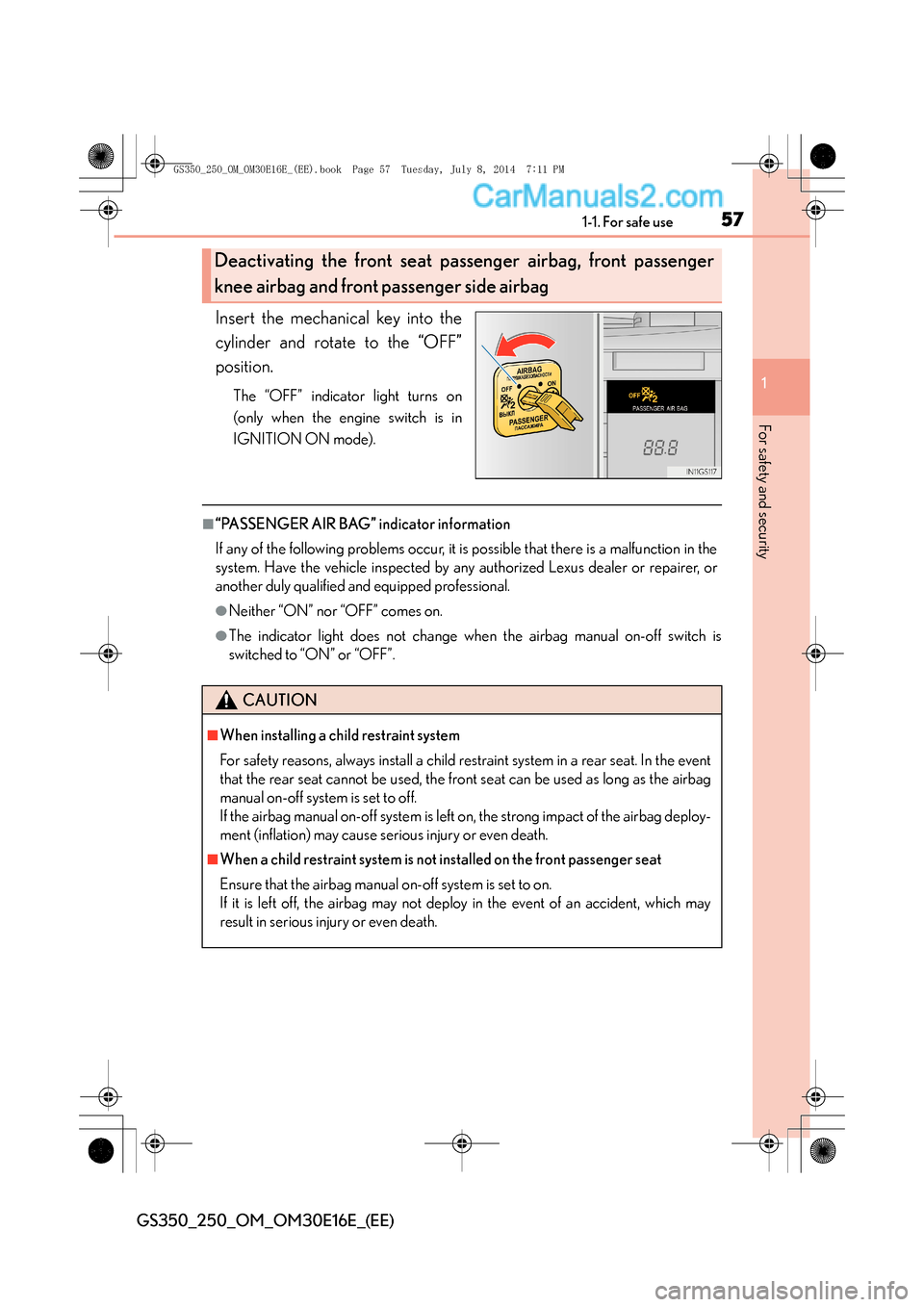

Insert the mechanical key into the
cylinder and rotate to the “OFF”
position.
The “OFF” indicator light turns on
(only when the engine switch is in
IGNITION ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the
system. Have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag, front passenger
knee airbag and front passenger side airbag
CAUTION
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In the event
that the rear seat cannot be used, the front seat can be used as long as the airbag
manual on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag deploy-
ment (inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may
result in serious injury or even death.
GS350_250_OM_OM30E16E_(EE).book Page 57 Tuesday, July 8, 2014 7:11 PM

581-1. For safe use
GS350_250_OM_OM30E16E_(EE)

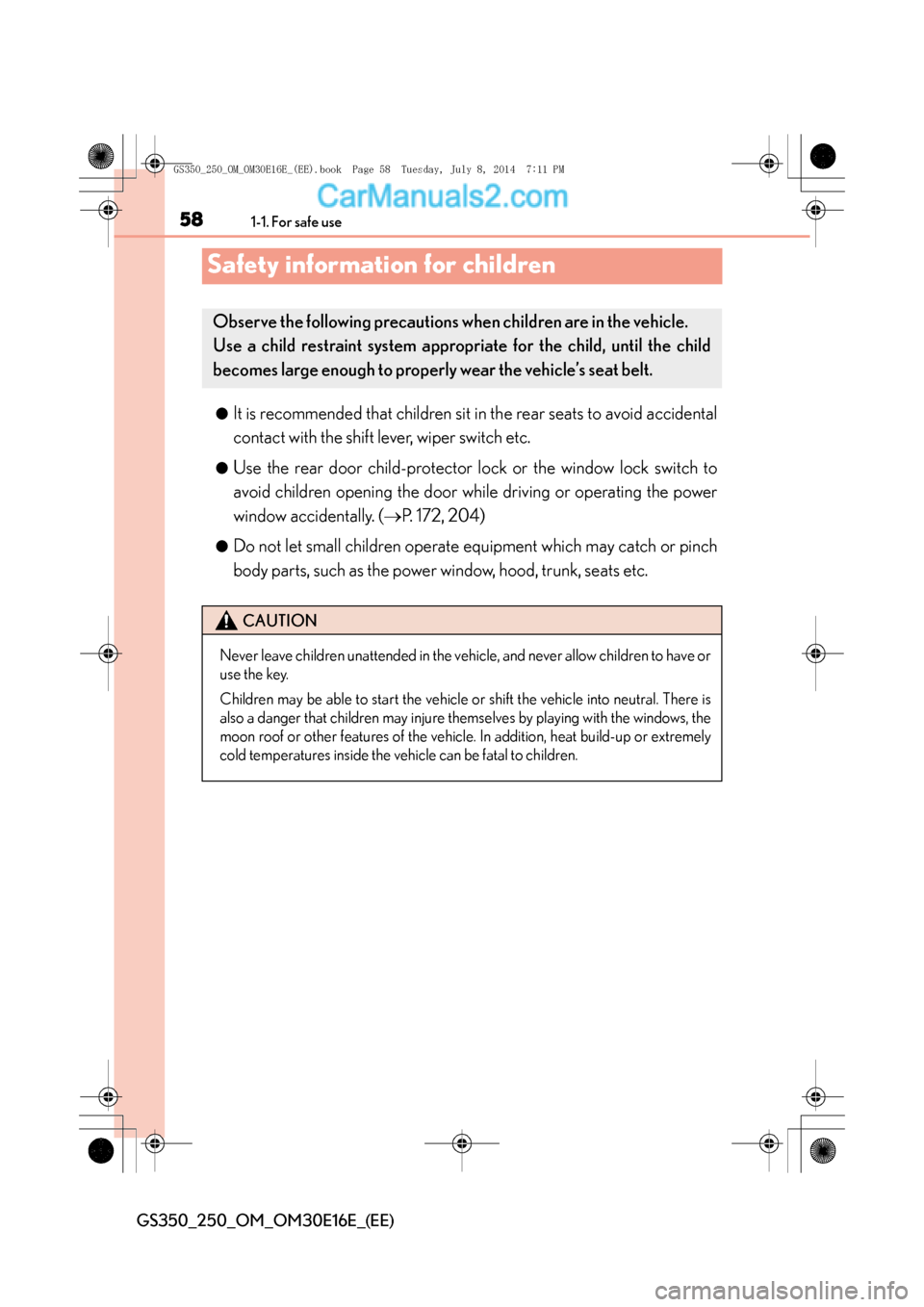

Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental
contact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the power
window accidentally. ( →P. 172, 204)
●Do not let small children operate equipment which may catch or pinch
body parts, such as the power window, hood, trunk, seats etc.
Observe the following precautions wh en children are in the vehicle.
Use a child restraint system appropri ate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the windows, the
moon roof or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
GS350_250_OM_OM30E16E_(EE).book Page 58 Tuesday, July 8, 2014 7:11 PM

621-1. For safe use
GS350_250_OM_OM30E16E_(EE)

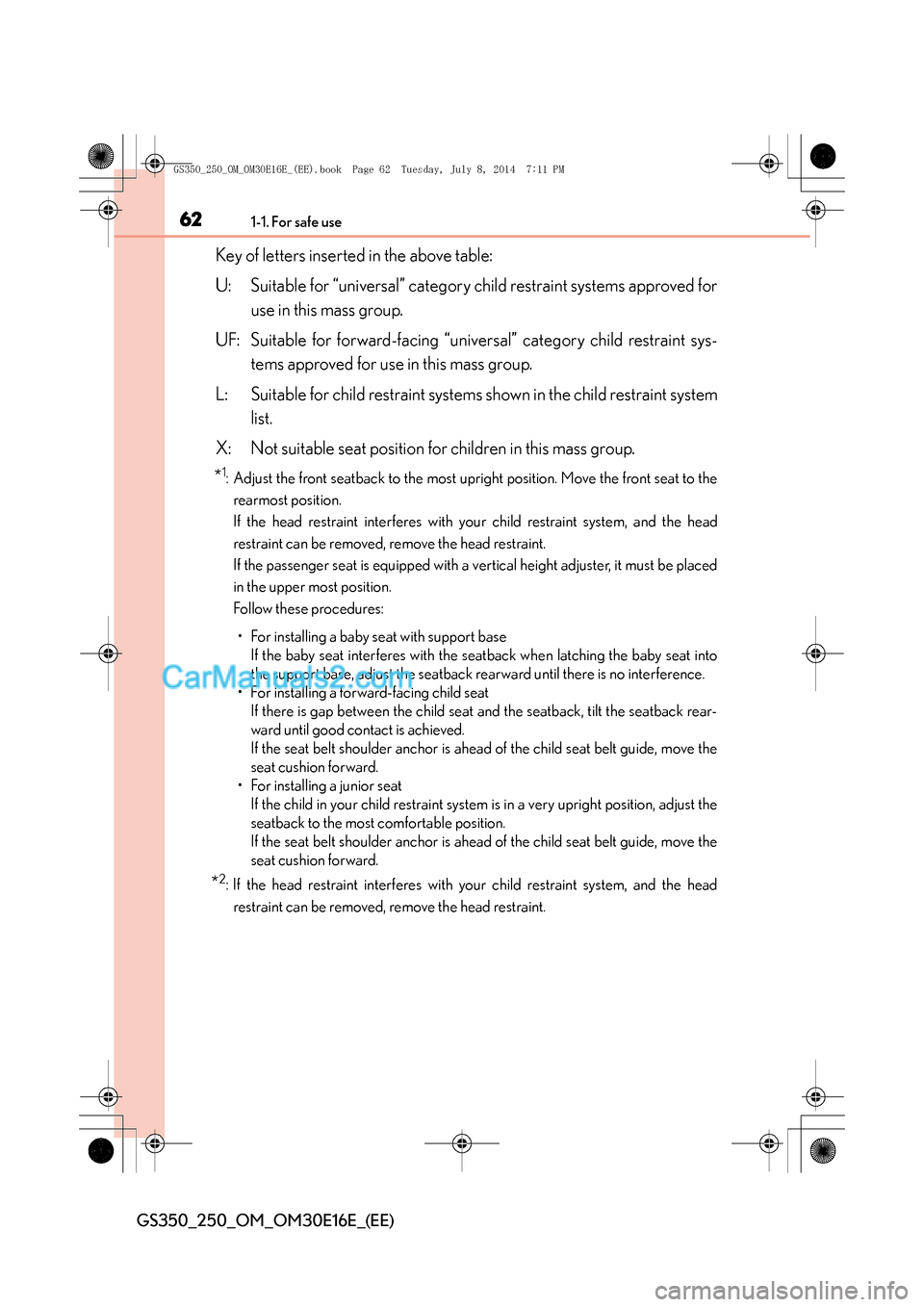

Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for
use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys- tems approved for use in this mass group.
L: Suitable for child restraint systems shown in the child restraint system list.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position. Move the front seat to the rearmost position.
If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
If the passenger seat is equipped with a vertical height adjuster, it must be placed
in the upper most position.
Follow these procedures:
• For installing a baby seat with support base If the baby seat interferes with the seatback when latching the baby seat into
the support base, adjust the seatback rearward until there is no interference.
• For installing a forward-facing child seat If there is gap between the child seat and the seatback, tilt the seatback rear-
ward until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.
• For installing a junior seat If the child in your child restraint system is in a very upright position, adjust the
seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
GS350_250_OM_OM30E16E_(EE).book Page 62 Tuesday, July 8, 2014 7:11 PM

651-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)

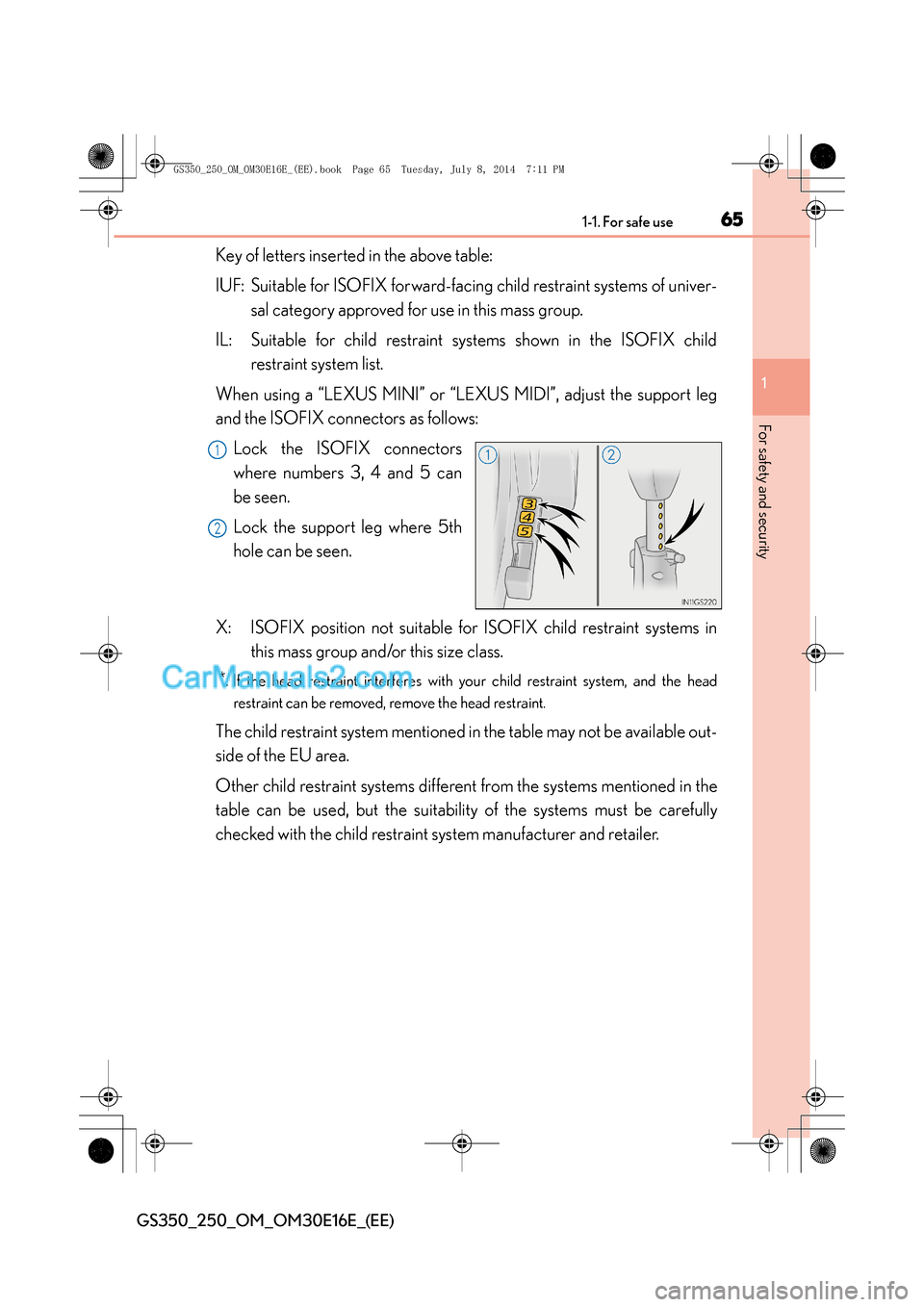

Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of univer-sal category approved for use in this mass group.
IL: Suitable for child restraint systems shown in the ISOFIX child restraint system list.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg
and the ISOFIX connectors as follows: Lock the ISOFIX connectors
where numbers 3, 4 and 5 can
be seen.
Lock the support leg where 5th
hole can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
The child restraint system mentioned in the table may not be available out-
side of the EU area.
Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer and retailer.
1
2
GS350_250_OM_OM30E16E_(EE).book Page 65 Tuesday, July 8, 2014 7:11 PM

801-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that the
system has been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the ve hicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guar-
antee absolute security against all vehicle thefts.
GS350_250_OM_OM30E16E_(EE).book Page 80 Tuesday, July 8, 2014 7:11 PM
