Page 1 of 11

Lexus GS300 1995  Chassis SECTION   6 – 3
185
SERVICE PROCEDURES AND
SPECIFICATIONS
Chassis
Specifications186 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid188 . .

Page 2 of 11

Lexus GS300 1995  Chassis CHASSIS
186

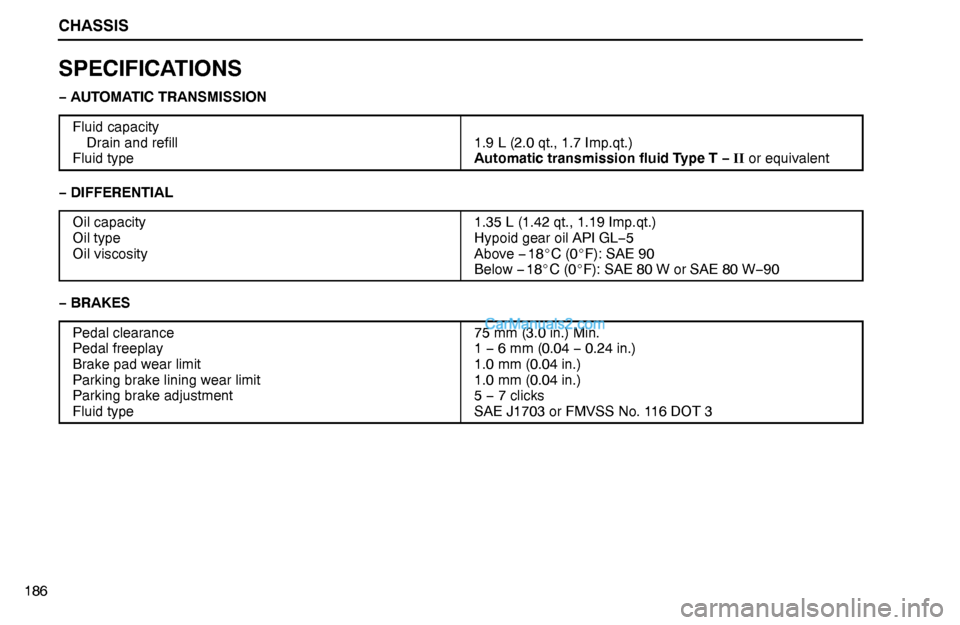

SPECIFICATIONS
− AUTOMATIC TRANSMISSION
Fluid capacity
Drain and refill
Fluid type
1.9 L (2.0 qt., 1.7 Imp.qt.)
Automatic transmission fluid Type T − II or equivalent
− DIFFERENTIAL

Page 3 of 11

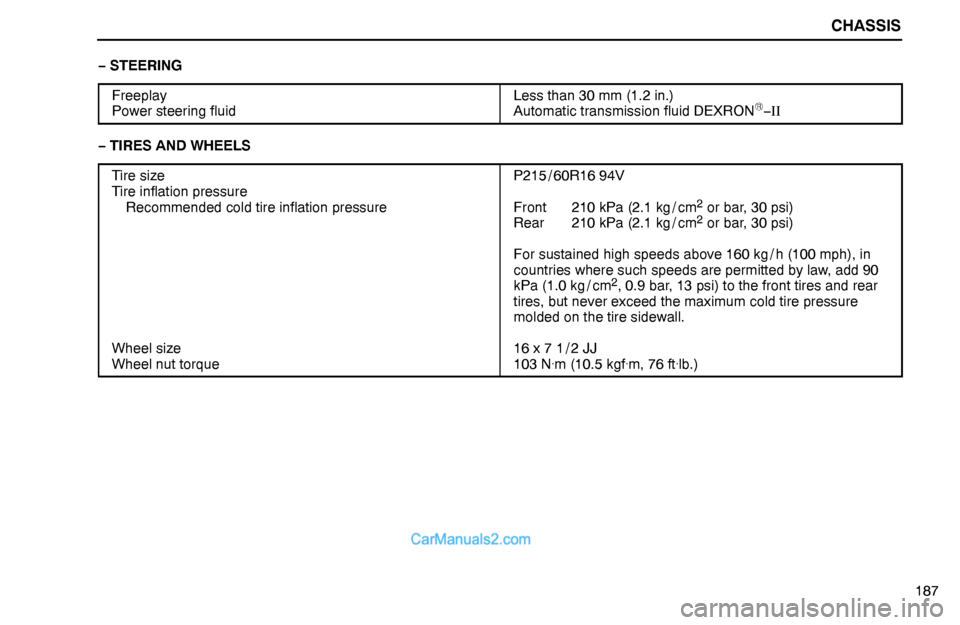

Lexus GS300 1995  Chassis CHASSIS
187 − STEERING
Freeplay
Power steering fluid
Less than 30 mm (1.2 in.)
Automatic transmission fluid DEXRON®−II
− TIRES AND WHEELS
Tire size
Tire inflation pressure
Recommended cold tire

Page 4 of 11

Lexus GS300 1995  Chassis CHASSIS
188

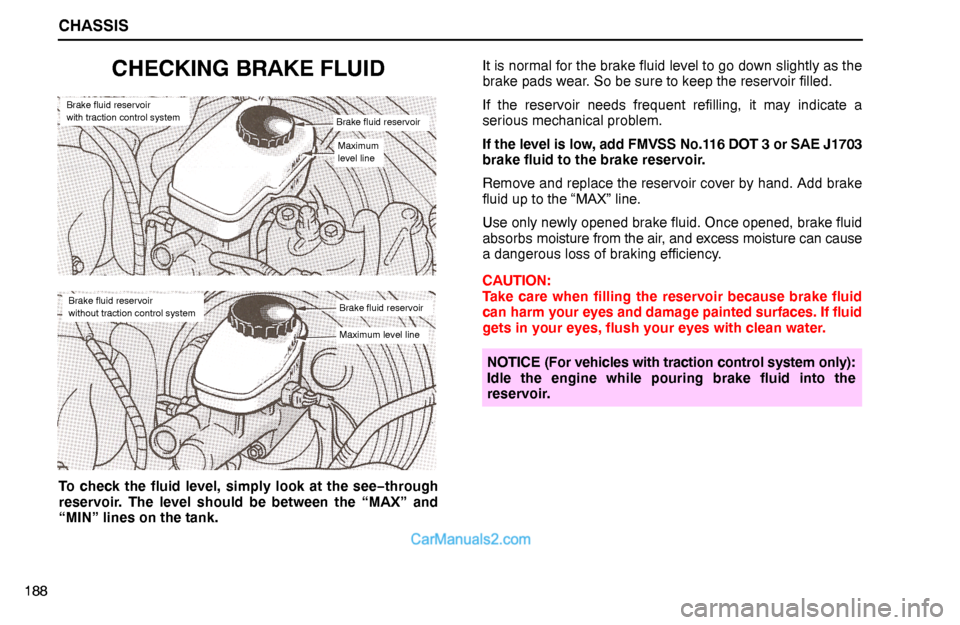

CHECKING BRAKE FLUID
Brake fluid reservoir
with traction control system
Brake fluid reservoir
Maximum
level line
Brake fluid reservoir
Maximum level line
Brake fluid reservoir
without trac

Page 5 of 11

Lexus GS300 1995  Chassis CHASSIS
189

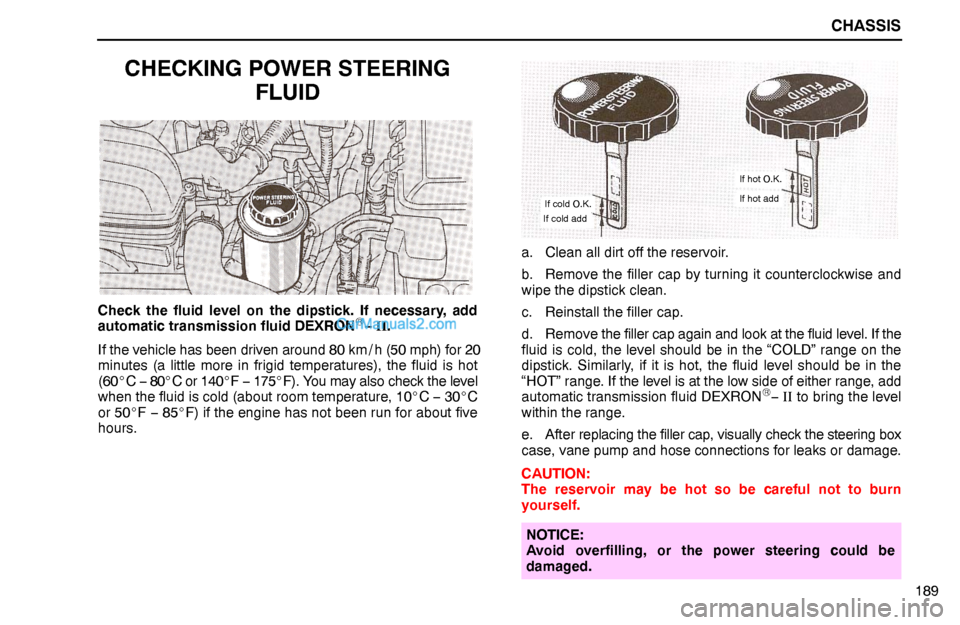

CHECKING POWER STEERING
FLUID
Check the fluid level on the dipstick. If necessary, add
automatic transmission fluid DEXRON®− II.
If the vehicle has been driven around 80 km / h (50 mph)

Page 6 of 11

Lexus GS300 1995  Chassis CHASSIS
190

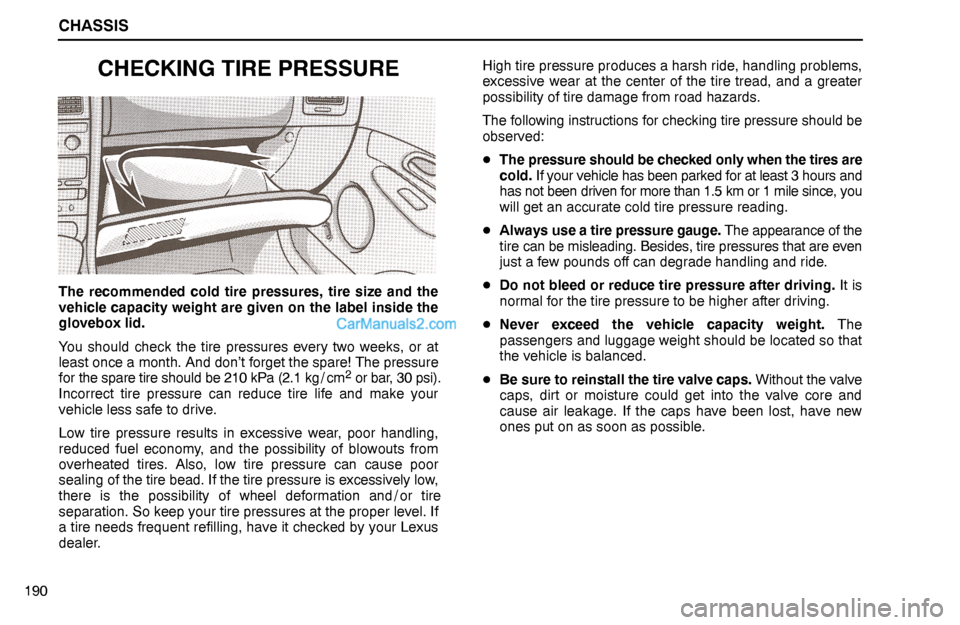

CHECKING TIRE PRESSURE
The recommended cold tire pressures, tire size and the
vehicle capacity weight are given on the label inside the
glovebox lid.
You should check the tire pressures ev

Page 7 of 11

Lexus GS300 1995  Chassis CHASSIS
191

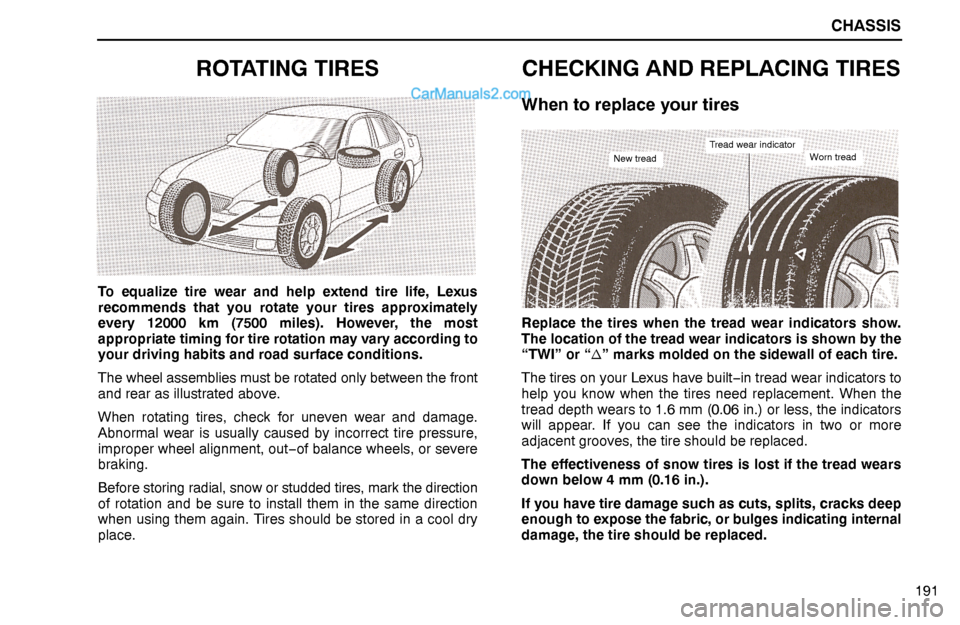

ROTATING TIRES
To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires approximately
every 12000 km (7500 miles). However, the most
appropriate timing

Page 8 of 11

Lexus GS300 1995  Chassis CHASSIS

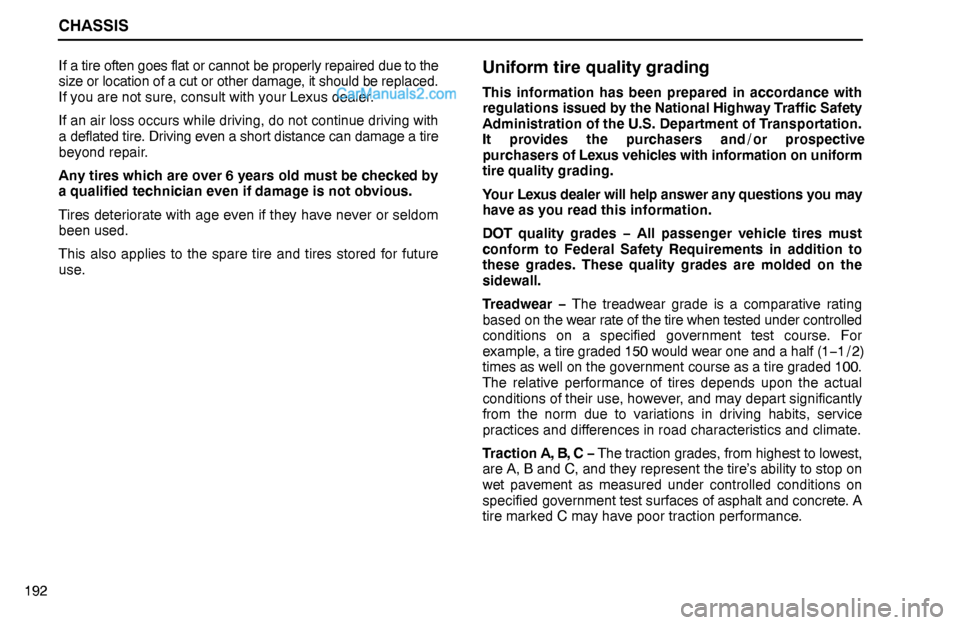

192If a tire often goes flat or cannot be properly repaired due to the
size or location of a cut or other damage, it should be replaced.
If you are not sure, consult with your Lexus dealer.
If

Page 9 of 11

Lexus GS300 1995  Chassis CHASSIS

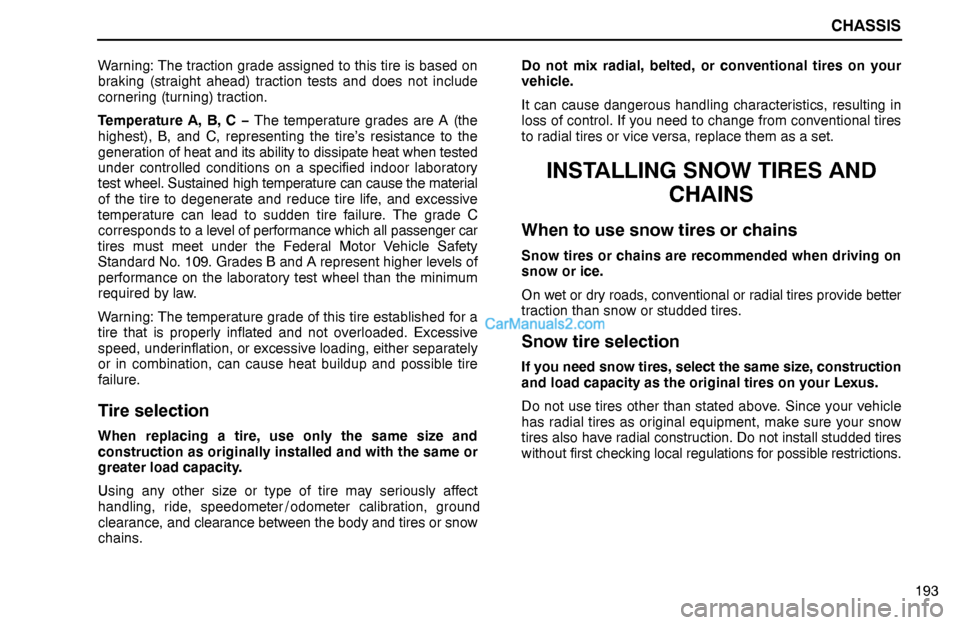

193 Warning: The traction grade assigned to this tire is based on
braking (straight ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, C − The tempera

Page 10 of 11

Lexus GS300 1995  Chassis CHASSIS
194
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the f
Page:   1-10 11-20 next >
