Page 291 of 1014

2814-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

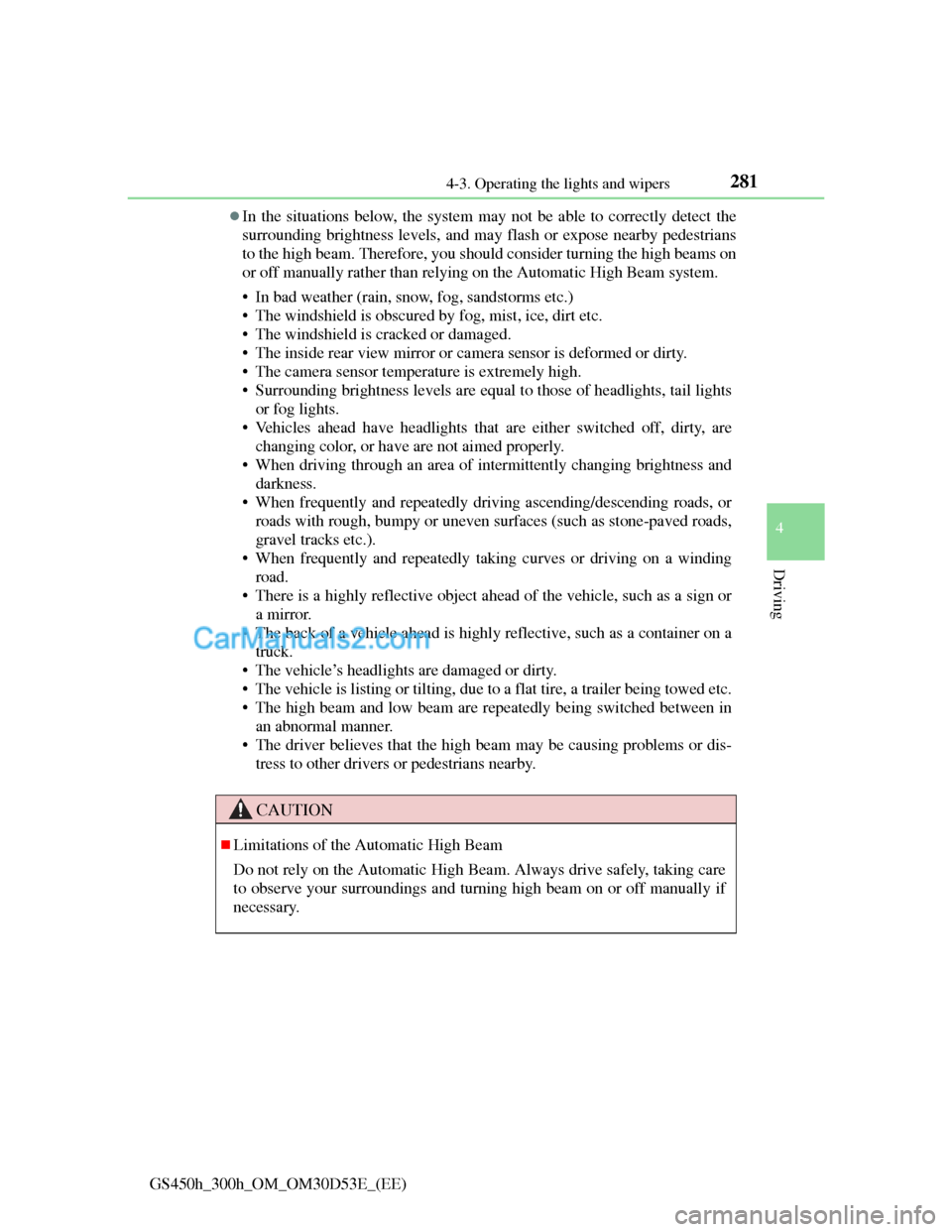

In the situations below, the system may not be able to correctly detect the
surrounding brightness levels, and may flash or expose nearby pedestrians
to the high beam. Therefore, you should consider turning the high beams on
or off manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are
changing color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved roads,
gravel tracks etc.).
• When frequently and repeatedly taking curves or driving on a winding
road.
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a
truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeatedly being switched between in
an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
CAUTION
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care
to observe your surroundings and turning high beam on or off manually if
necessary.
Page 292 of 1014

2824-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

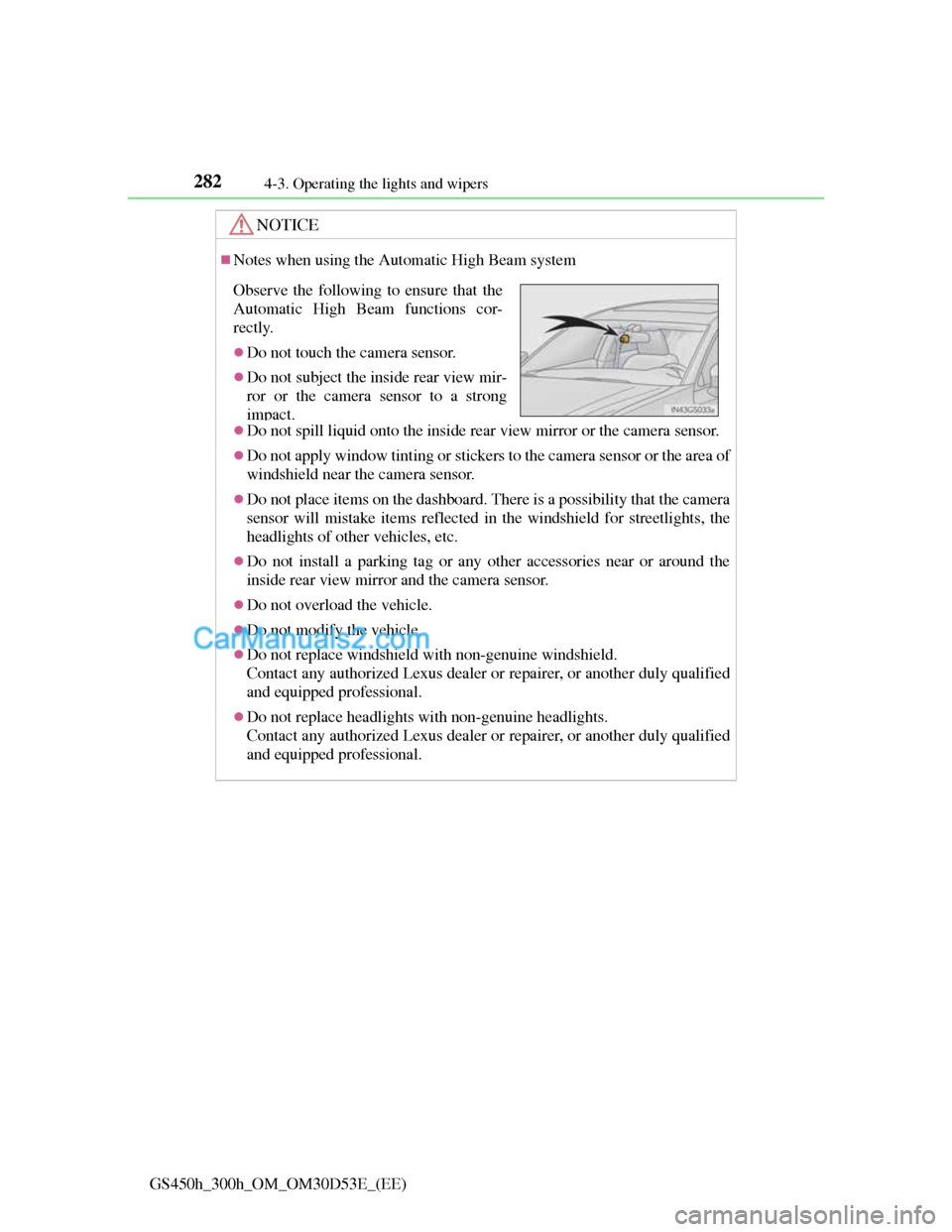

NOTICE
Notes when using the Automatic High Beam system
Do not spill liquid onto the inside rear view mirror or the camera sensor.
Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
Do not place items on the dashboard. There is a possibility that the camera
sensor will mistake items reflected in the windshield for streetlights, the
headlights of other vehicles, etc.
Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
Do not overload the vehicle.
Do not modify the vehicle.
Do not replace windshield with non-genuine windshield.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Do not replace headlights with non-genuine headlights.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Observe the following to ensure that the
Automatic High Beam functions cor-
rectly.
Do not touch the camera sensor.
Do not subject the inside rear view mir-
ror or the camera sensor to a strong
impact.
Page 293 of 1014

283
4 4-3. Operating the lights and wipers
Driving
GS450h_300h_OM_OM30D53E_(EE)

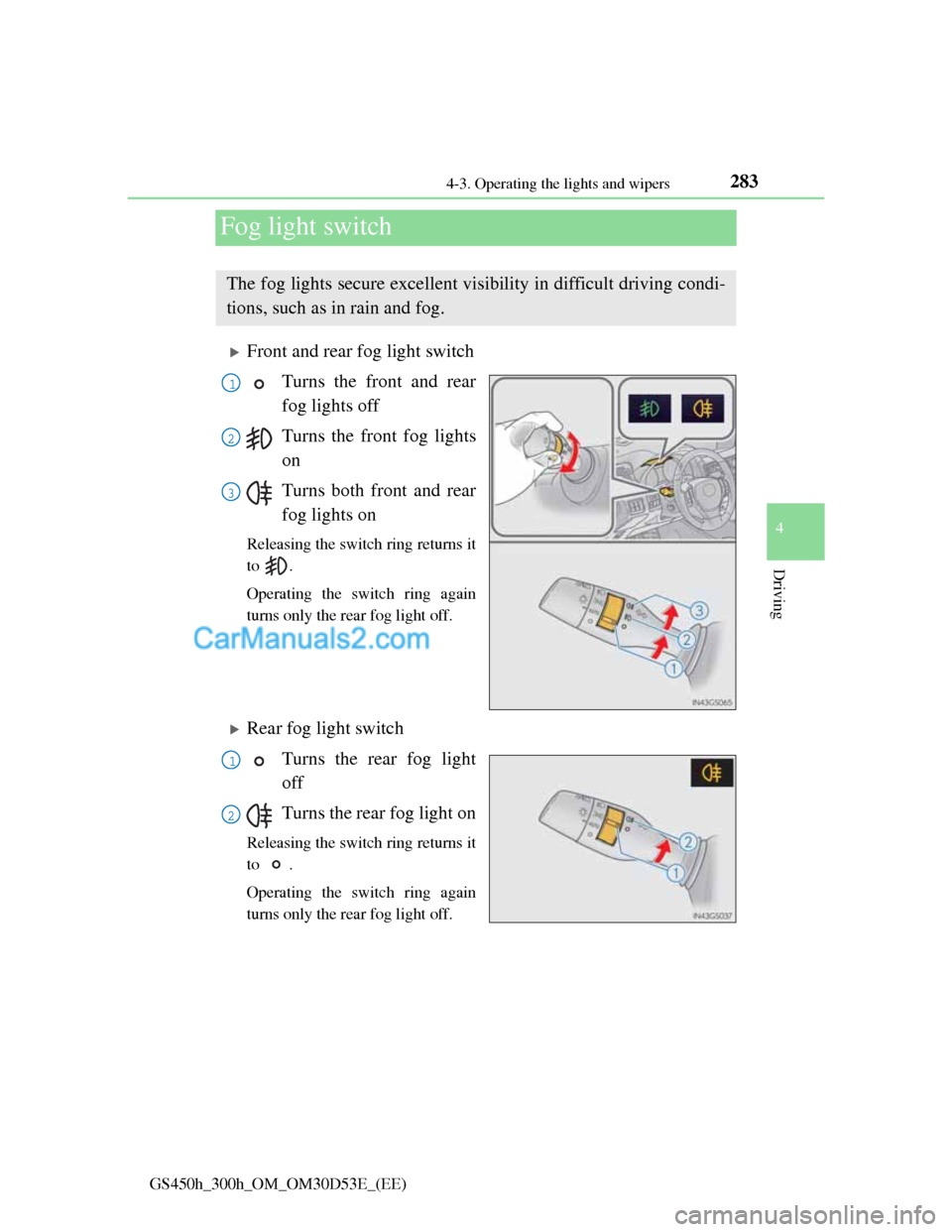

Fog light switch
Front and rear fog light switch
Turns the front and rear
fog lights off
Turns the front fog lights
on
Turns both front and rear
fog lights on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns only the rear fog light off.
Rear fog light switch
Turns the rear fog light
off
Turns the rear fog light on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns only the rear fog light off.
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
1
2
3
1
2
Page 294 of 1014

2844-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

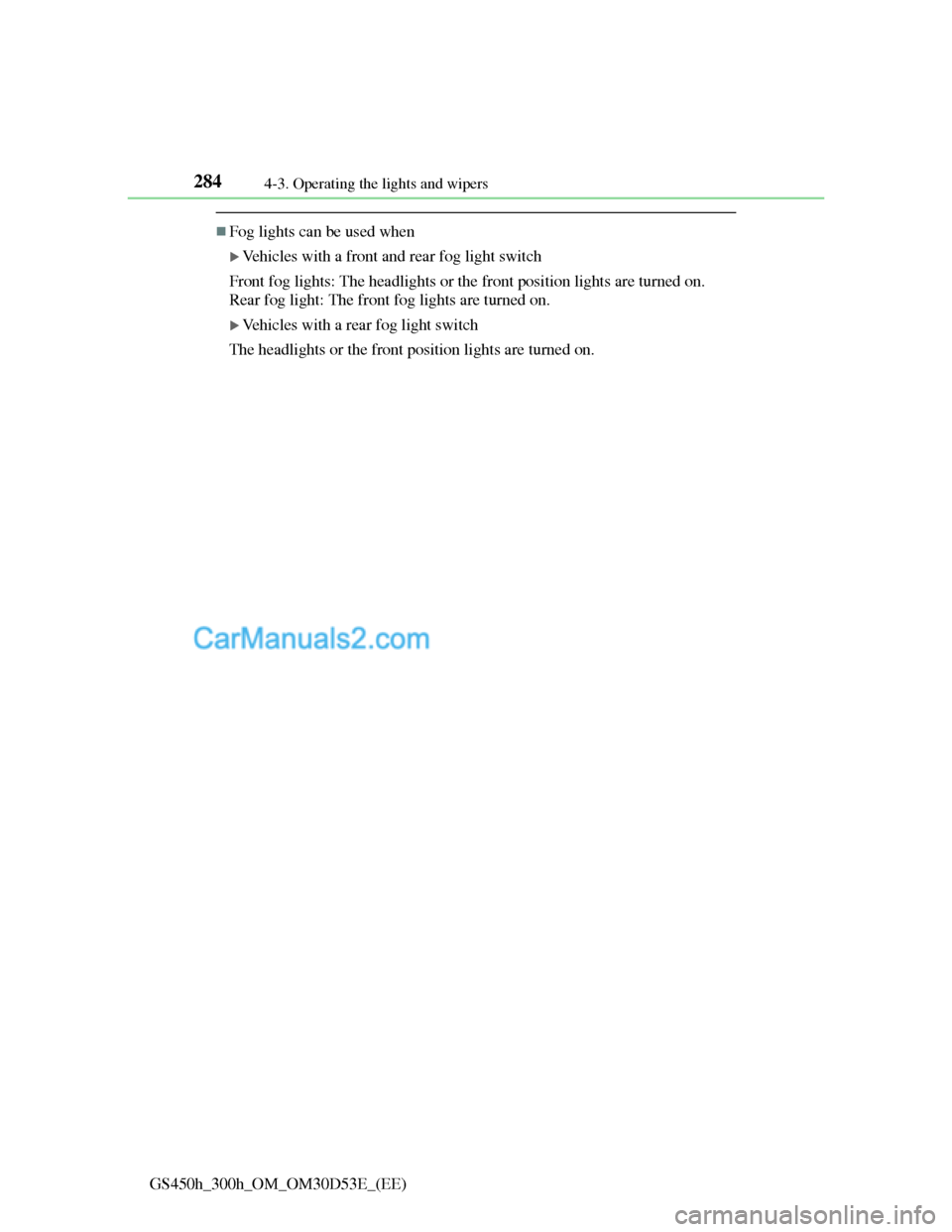

Fog lights can be used when
Vehicles with a front and rear fog light switch
Front fog lights: The headlights or the front position lights are turned on.
Rear fog light: The front fog lights are turned on.
Vehicles with a rear fog light switch
The headlights or the front position lights are turned on.
Page 295 of 1014

285
4 4-3. Operating the lights and wipers
Driving
GS450h_300h_OM_OM30D53E_(EE)

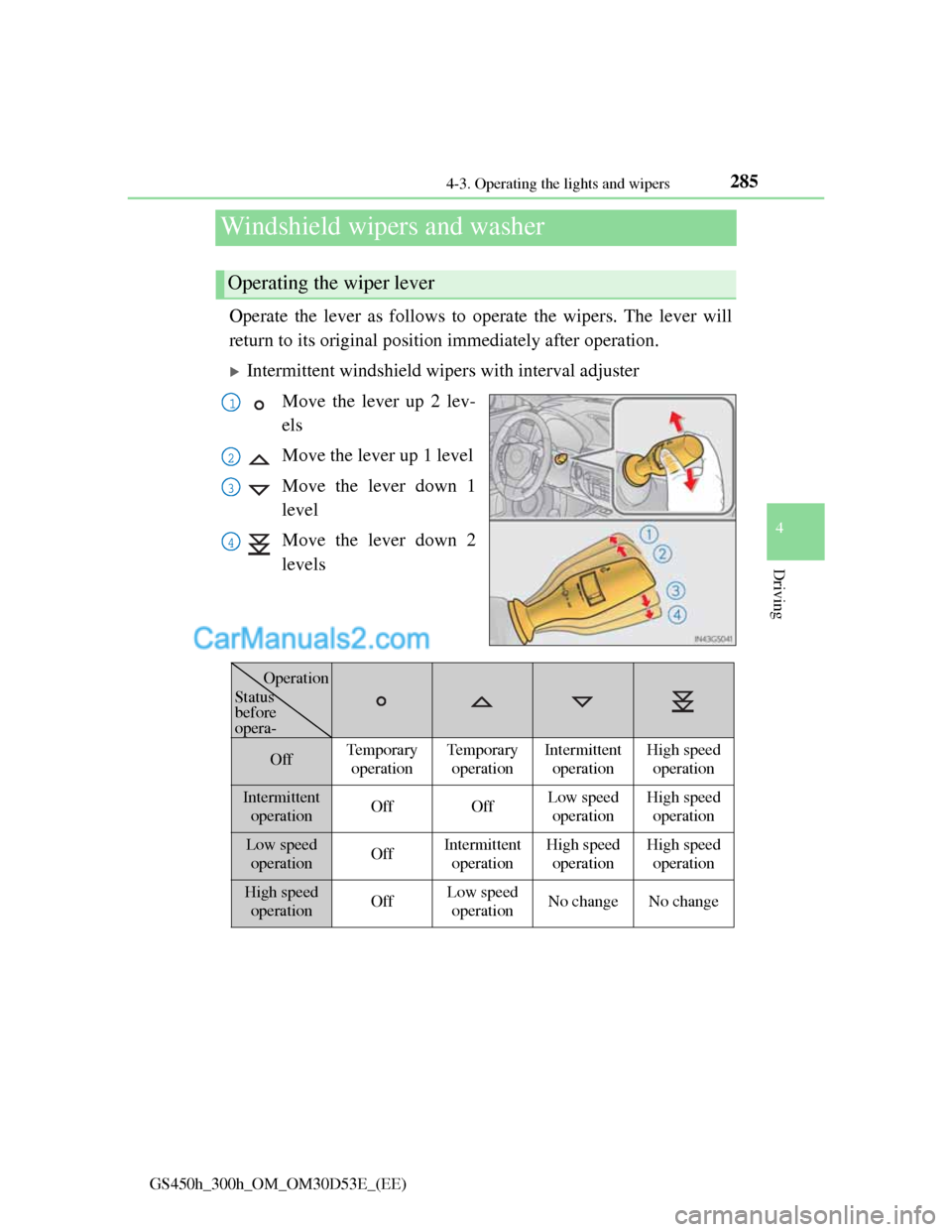

Windshield wipers and washer
Operate the lever as follows to operate the wipers. The lever will
return to its original position immediately after operation.
Intermittent windshield wipers with interval adjuster
Move the lever up 2 lev-
els
Move the lever up 1 level
Move the lever down 1
level
Move the lever down 2
levels
Operating the wiper lever
1
2
3
4
OffTemporary
operationTe m p o r a r y
operationIntermittent
operationHigh speed
operation
Intermittent
operationOffOffLow speed
operationHigh speed
operation
Low speed
operationOffIntermittent
operationHigh speed
operationHigh speed
operation
High speed
operationOffLow speed
operationNo changeNo change
Status
before
opera-
Operation
Page 296 of 1014

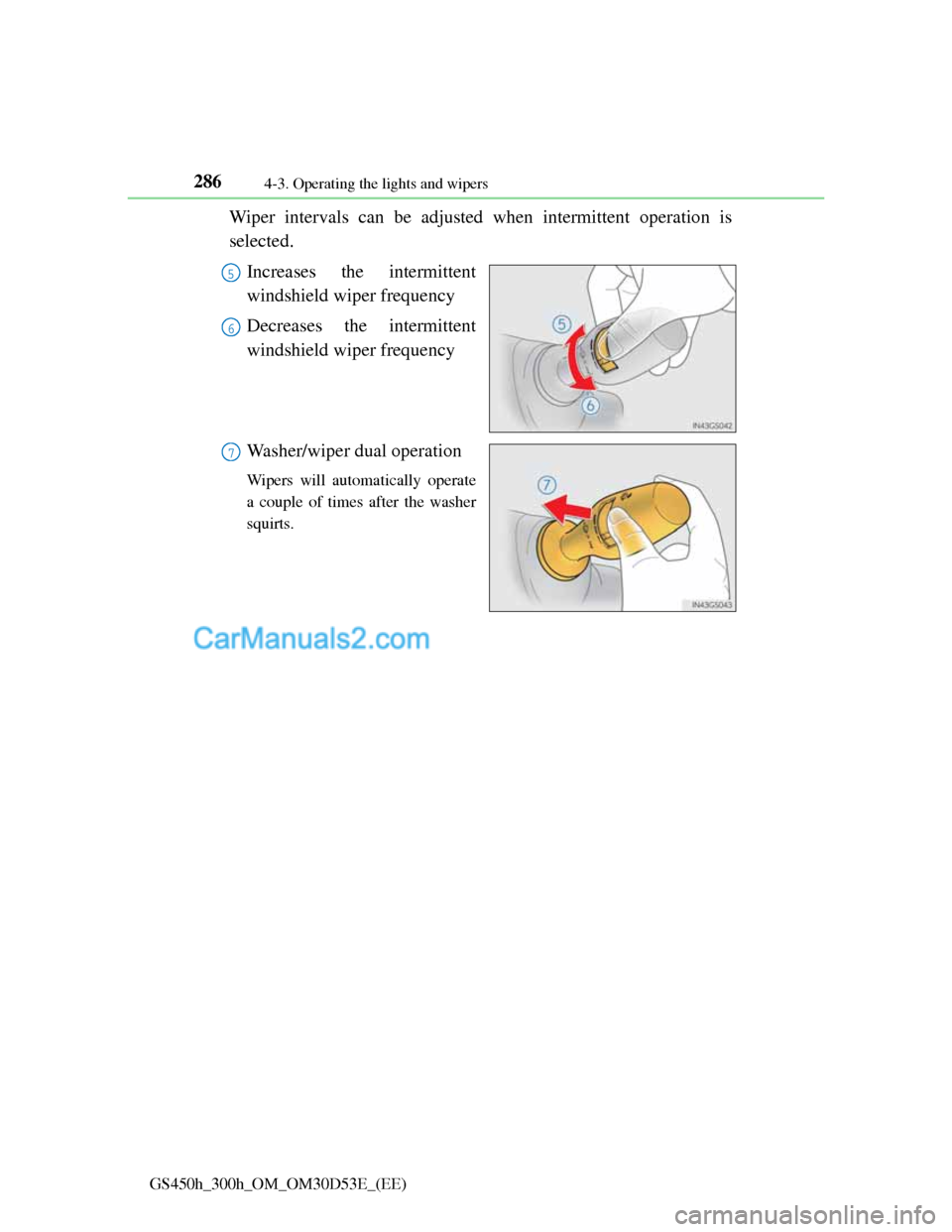

2864-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)
Wiper intervals can be adjusted when intermittent operation is
selected.
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual operation
Wipers will automatically operate
a couple of times after the washer
squirts.
5
6
7
Page 297 of 1014

2874-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

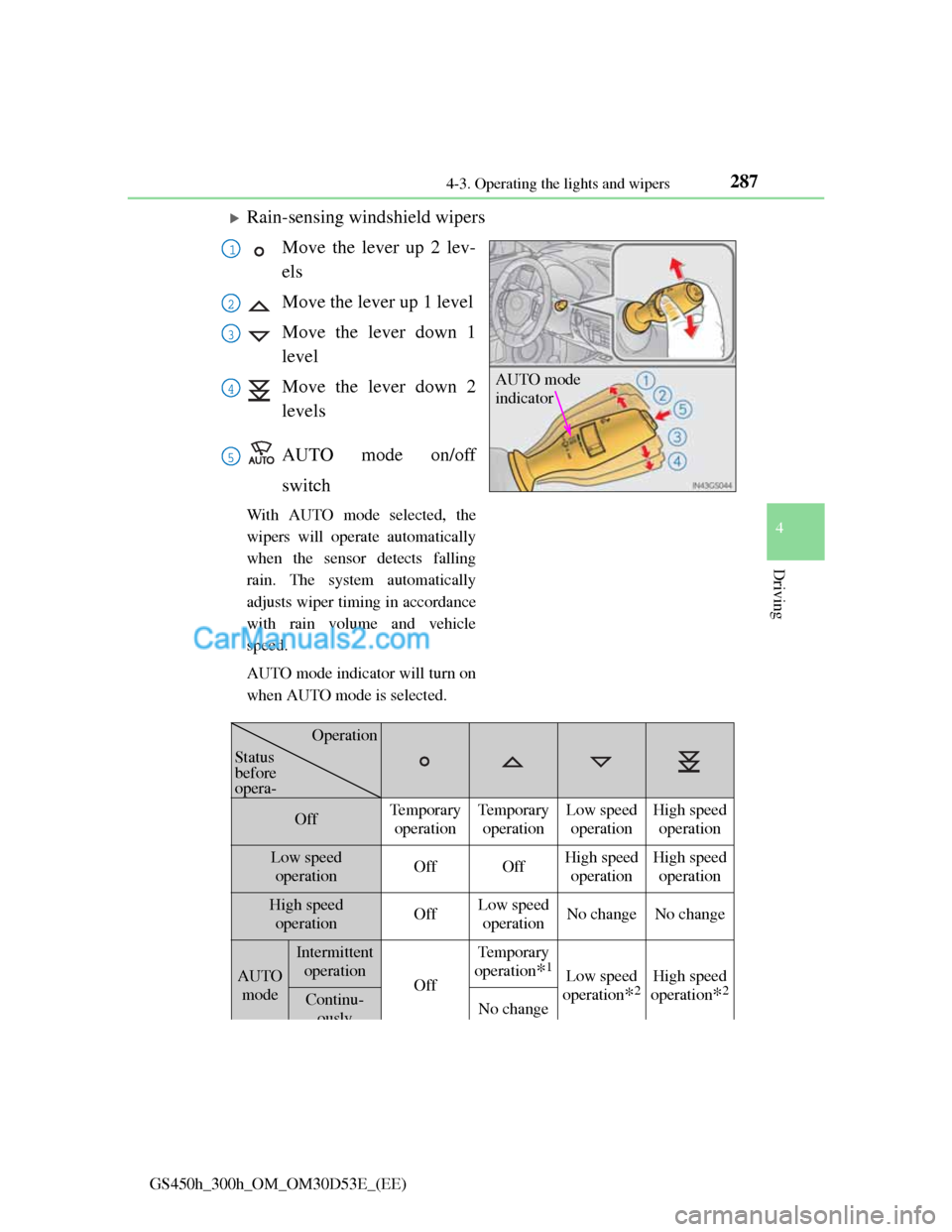

Rain-sensing windshield wipers
Move the lever up 2 lev-
els
Move the lever up 1 level
Move the lever down 1
level
Move the lever down 2
levels
AUTO mode on/off
switch
With AUTO mode selected, the
wipers will operate automatically
when the sensor detects falling
rain. The system automatically
adjusts wiper timing in accordance
with rain volume and vehicle
speed.
AUTO mode indicator will turn on
when AUTO mode is selected.
AUTO mode
indicator
1
2
3
4
5
OffTemporary
operationTe m p o r a r y
operationLow speed
operationHigh speed
operation
Low speed
operationOffOffHigh speed
operationHigh speed
operation
High speed
operationOffLow speed
operationNo changeNo change
AUTO
mode
Intermittent
operation
Off
Te m p o r a r y
operation
*1Low speed
operation
*2High speed
operation
*2Continu-
ouslyNo change
Operation
Status
before
opera-
Page 298 of 1014

2884-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

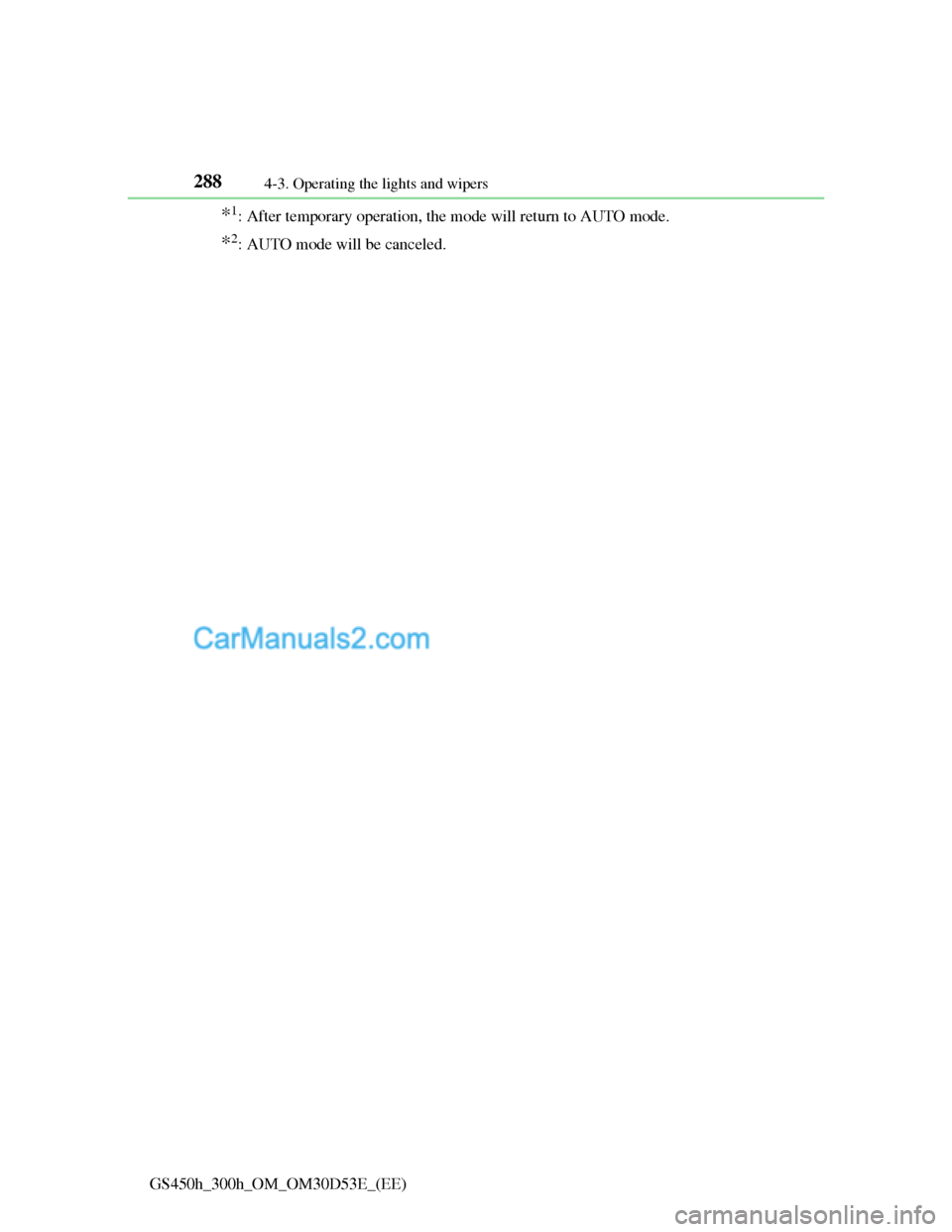

*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
Page 299 of 1014

2894-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

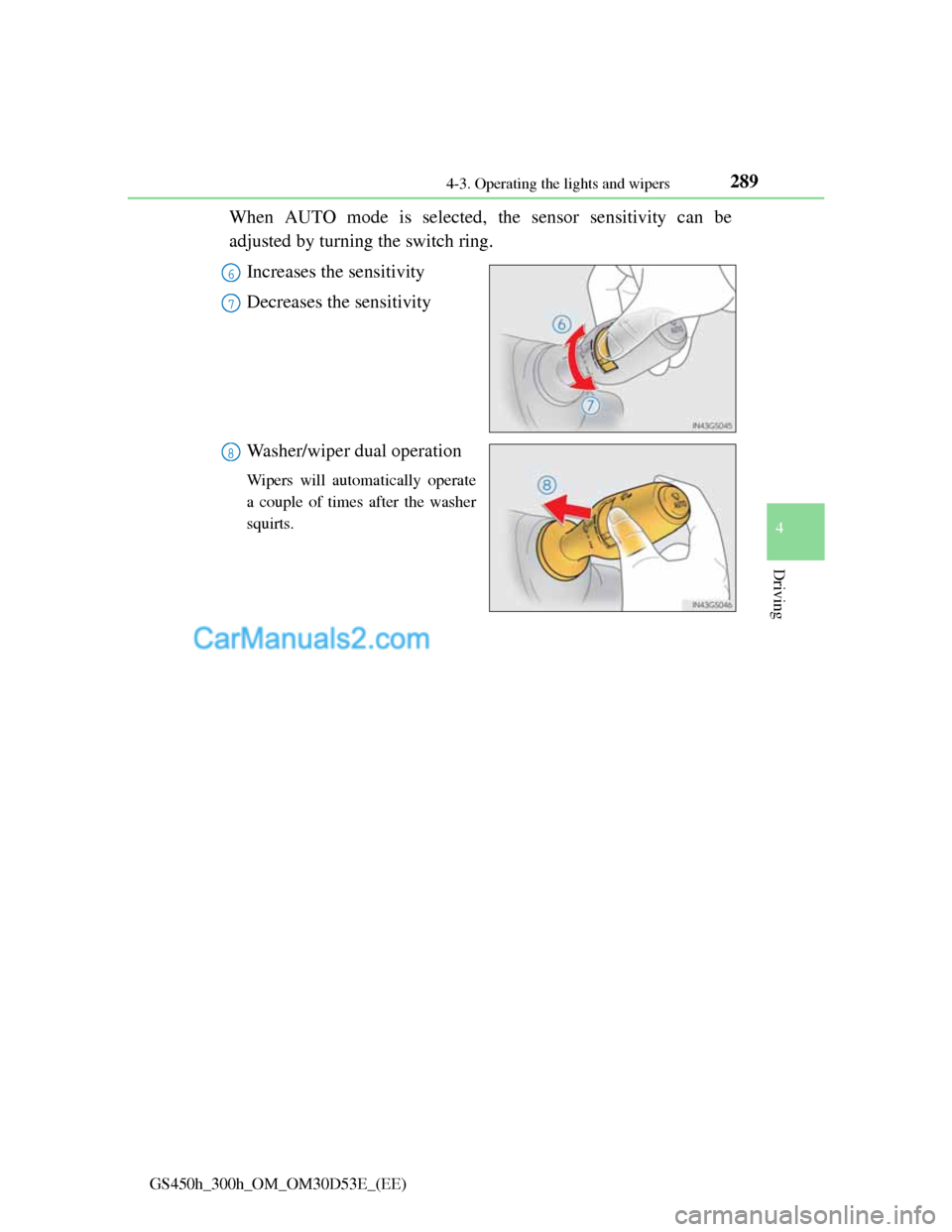

When AUTO mode is selected, the sensor sensitivity can be
adjusted by turning the switch ring.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate
a couple of times after the washer
squirts.
6
7
8
Page 300 of 1014

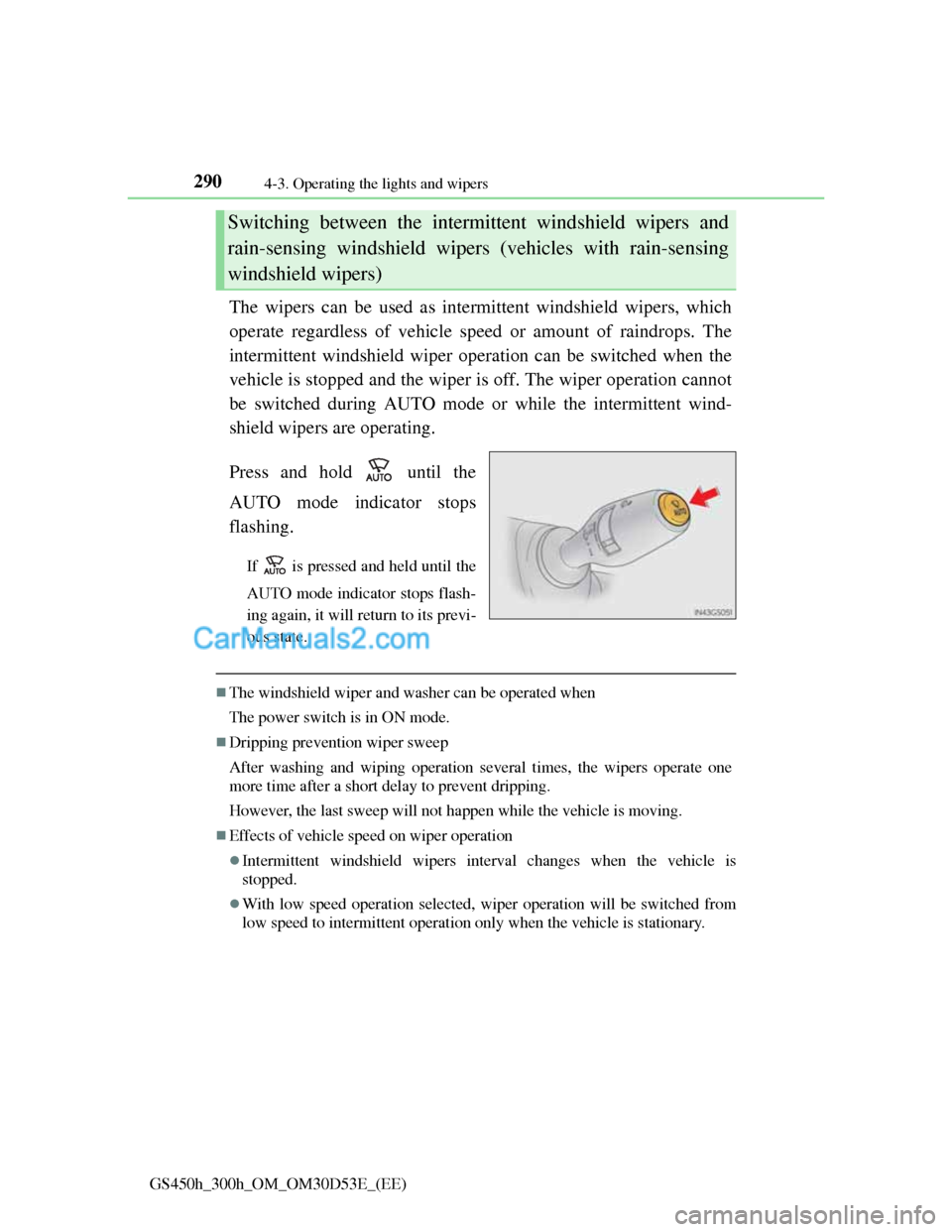

2904-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)
The wipers can be used as intermittent windshield wipers, which
operate regardless of vehicle speed or amount of raindrops. The
intermittent windshield wiper operation can be switched when the
vehicle is stopped and the wiper is off. The wiper operation cannot
be switched during AUTO mode or while the intermittent wind-
shield wipers are operating.
Press and hold until the
AUTO mode indicator stops
flashing.
If is pressed and held until the
AUTO mode indicator stops flash-
ing again, it will return to its previ-
ous state.
The windshield wiper and washer can be operated when
The power switch is in ON mode.
Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one
more time after a short delay to prevent dripping.
However, the last sweep will not happen while the vehicle is moving.
Effects of vehicle speed on wiper operation
Intermittent windshield wipers interval changes when the vehicle is
stopped.
With low speed operation selected, wiper operation will be switched from
low speed to intermittent operation only when the vehicle is stationary.
Switching between the intermittent windshield wipers and
rain-sensing windshield wipers (vehicles with rain-sensing
windshield wipers)
