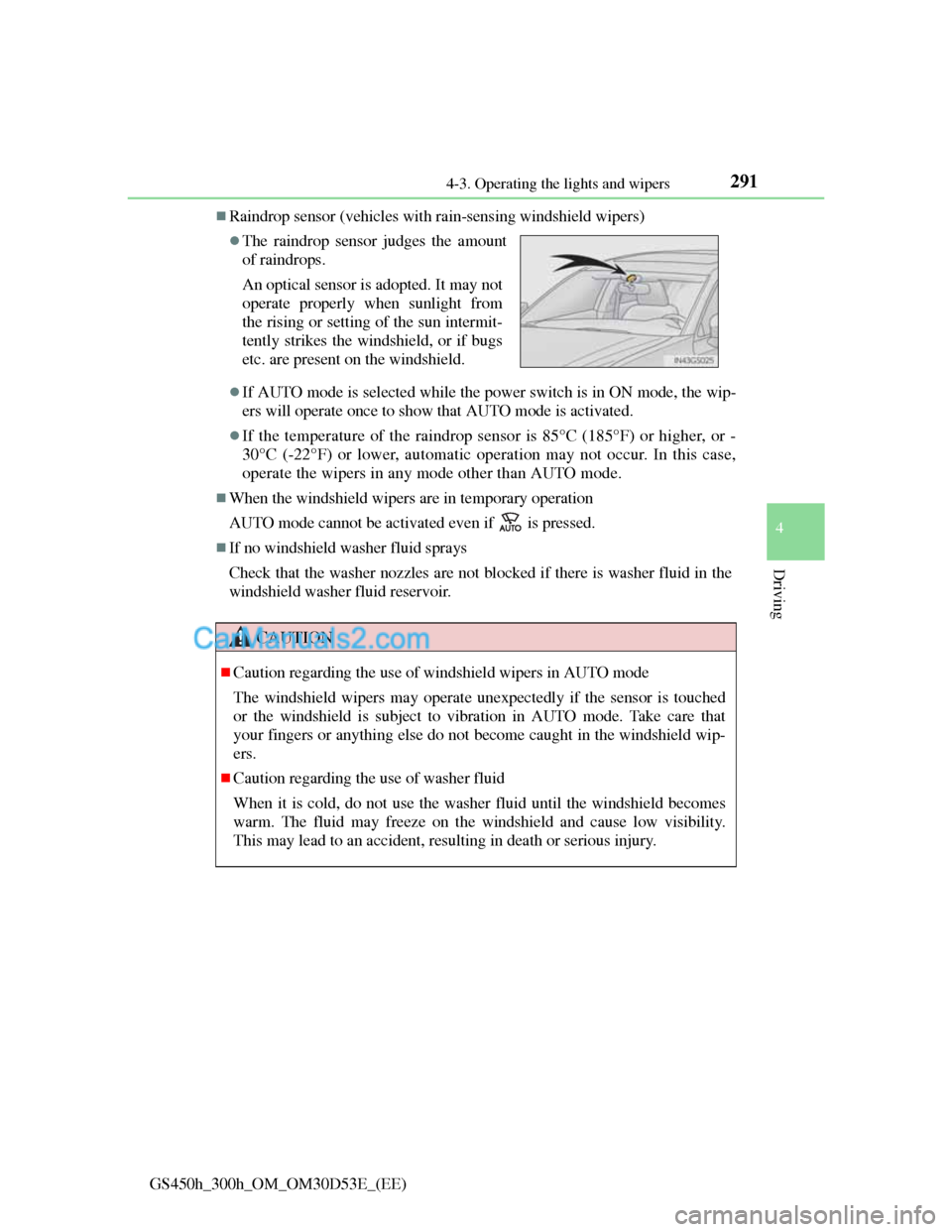

Page 301 of 1014

2914-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)
Raindrop sensor (vehicles with rain-sensing windshield wipers)
If AUTO mode is selected while the power switch is in ON mode, the wip-
ers will operate once to show that AUTO mode is activated.
If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -
30°C (-22°F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than AUTO mode.
When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from
the rising or setting of the sun intermit-
tently strikes the windshield, or if bugs
etc. are present on the windshield.
CAUTION
Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched
or the windshield is subject to vibration in AUTO mode. Take care that
your fingers or anything else do not become caught in the windshield wip-
ers.
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility.
This may lead to an accident, resulting in death or serious injury.
Page 302 of 1014

2924-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

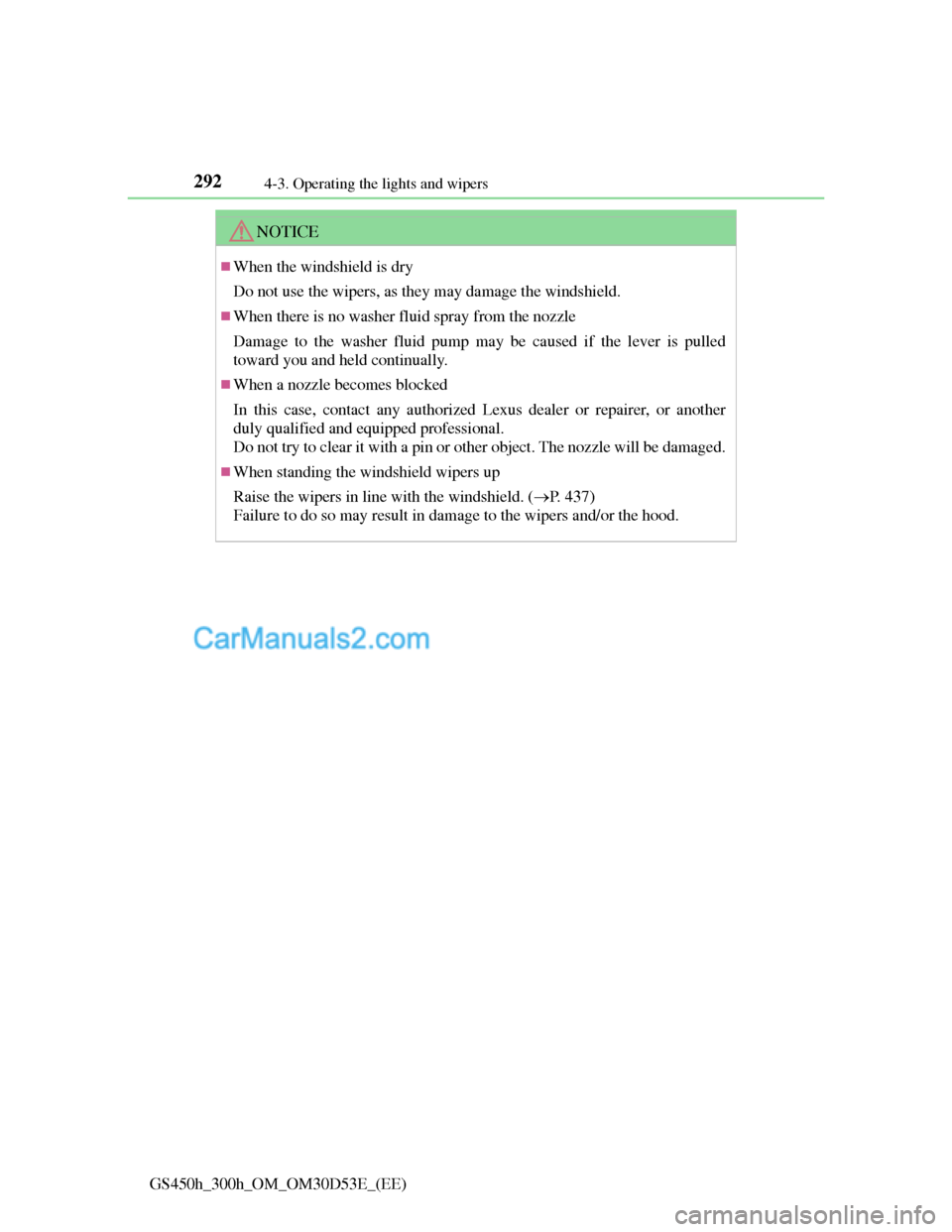

NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
When a nozzle becomes blocked
In this case, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
When standing the windshield wipers up
Raise the wipers in line with the windshield. (P. 437)
Failure to do so may result in damage to the wipers and/or the hood.
Page 303 of 1014

2934-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

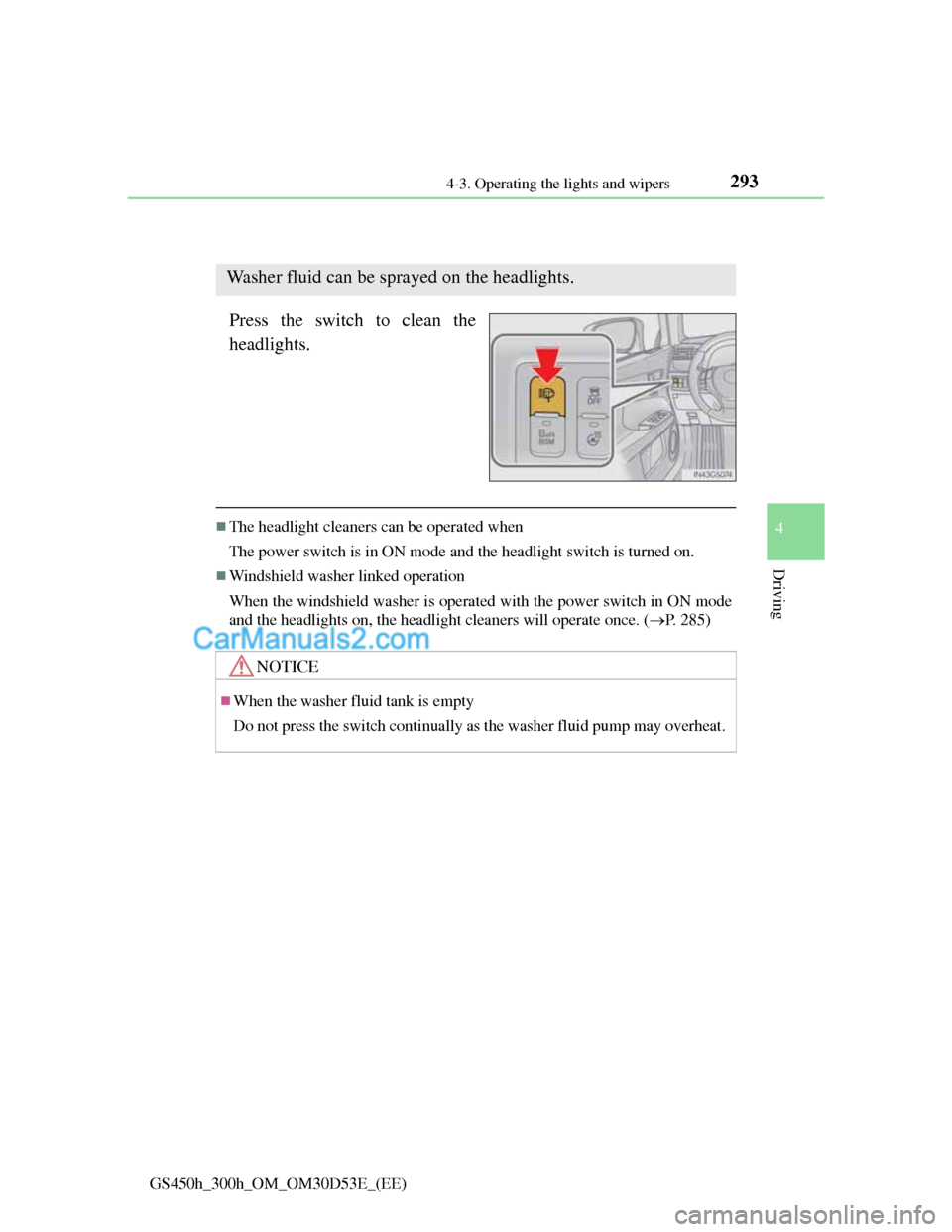

Headlight cleaner switch
Press the switch to clean the
headlights.
The headlight cleaners can be operated when
The power switch is in ON mode and the headlight switch is turned on.
Windshield washer linked operation
When the windshield washer is operated with the power switch in ON mode
and the headlights on, the headlight cleaners will operate once. (P. 285)
Washer fluid can be sprayed on the headlights.
NOTICE
When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
Page 304 of 1014

293
4 4-4. Refueling
Driving
GS450h_300h_OM_OM30D53E_(EE)

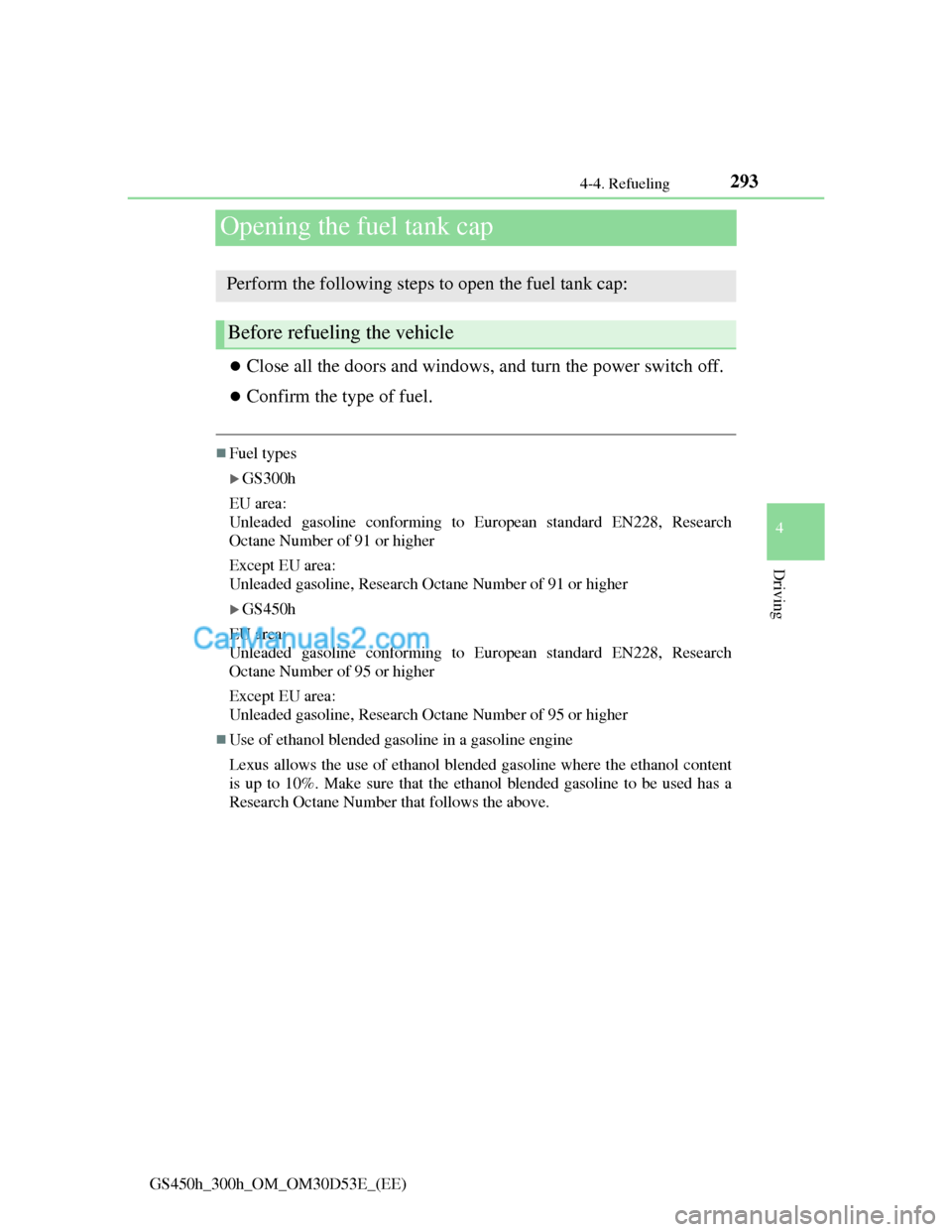

Opening the fuel tank cap
Close all the doors and windows, and turn the power switch off.
Confirm the type of fuel.
Fuel types
GS300h
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 91 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 91 or higher
GS450h
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
Page 305 of 1014

2944-4. Refueling
GS450h_300h_OM_OM30D53E_(EE)
CAUTION
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important
to discharge static electricity before refueling because sparks resulting
from static electricity can cause fuel vapors to ignite while refueling.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible igni-
tion hazard.
When refueling
Observe the following precautions to prevent fuel overflowing from the
fuel tank:
Securely insert the fuel nozzle into the fuel filler neck.
Stop filling the tank after the fuel nozzle automatically clicks off.
Do not top off the fuel tank.
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
Page 306 of 1014

2954-4. Refueling
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

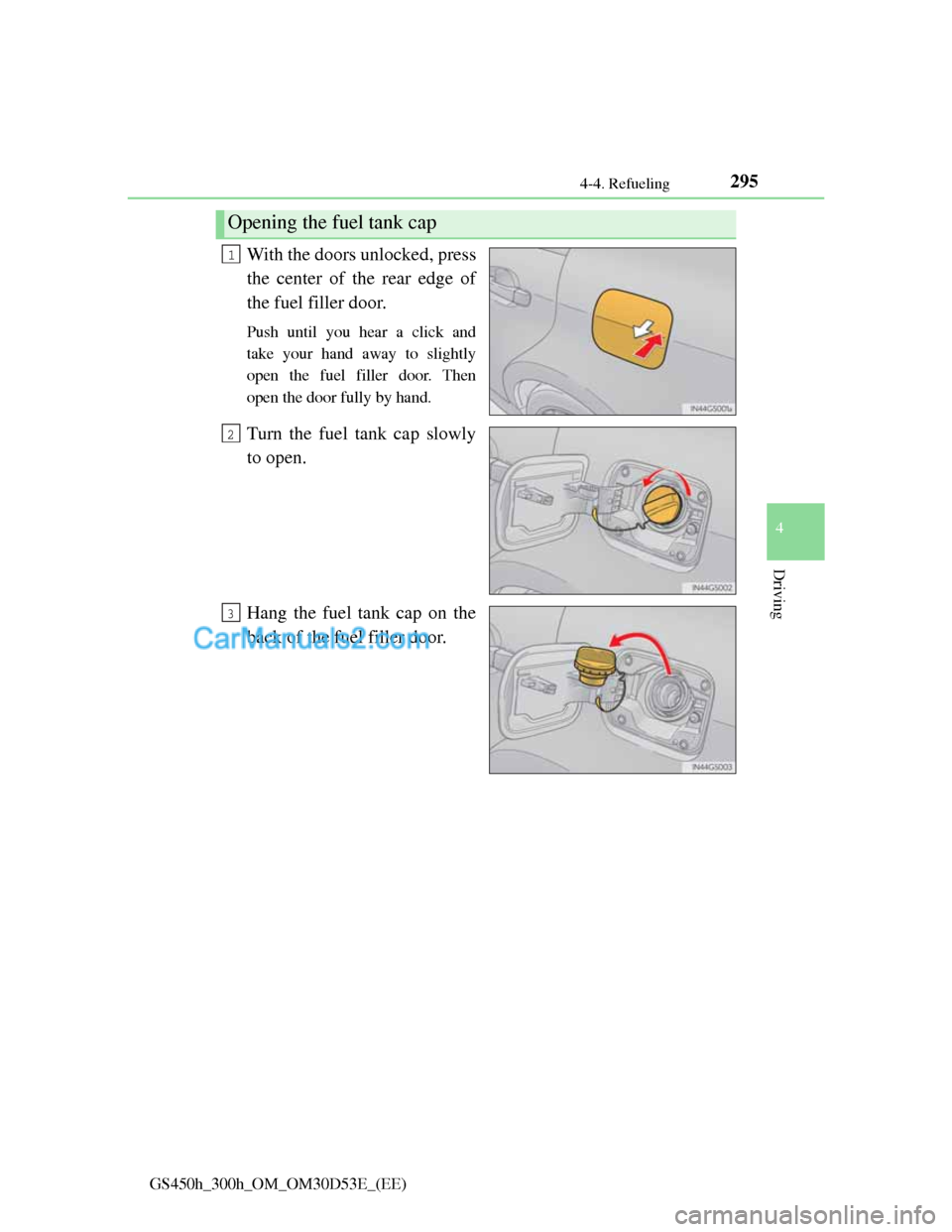

With the doors unlocked, press
the center of the rear edge of
the fuel filler door.
Push until you hear a click and
take your hand away to slightly
open the fuel filler door. Then
open the door fully by hand.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
Opening the fuel tank cap
1
2
3
Page 307 of 1014

2964-4. Refueling
GS450h_300h_OM_OM30D53E_(EE)

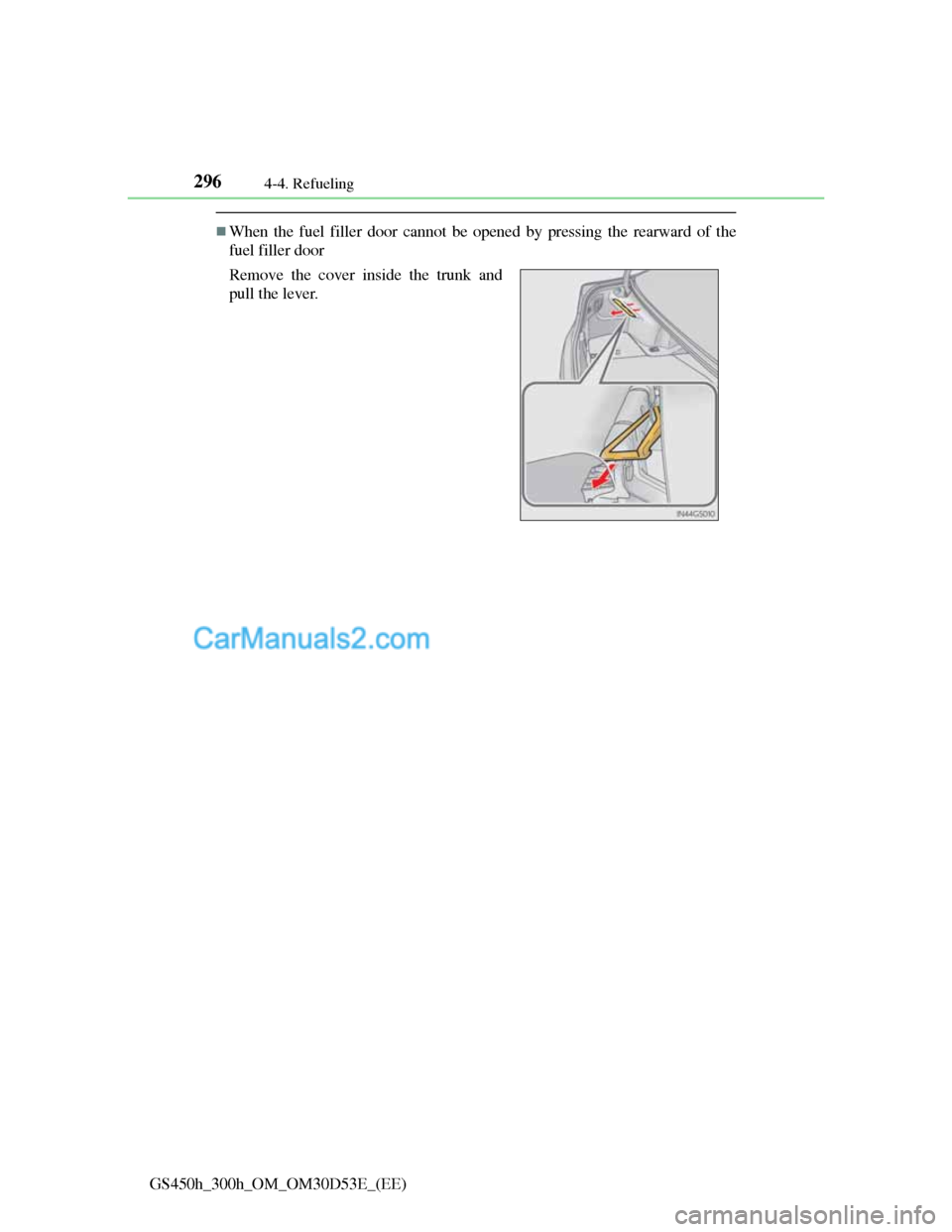

When the fuel filler door cannot be opened by pressing the rearward of the
fuel filler door
Remove the cover inside the trunk and
pull the lever.
Page 308 of 1014

2974-4. Refueling
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

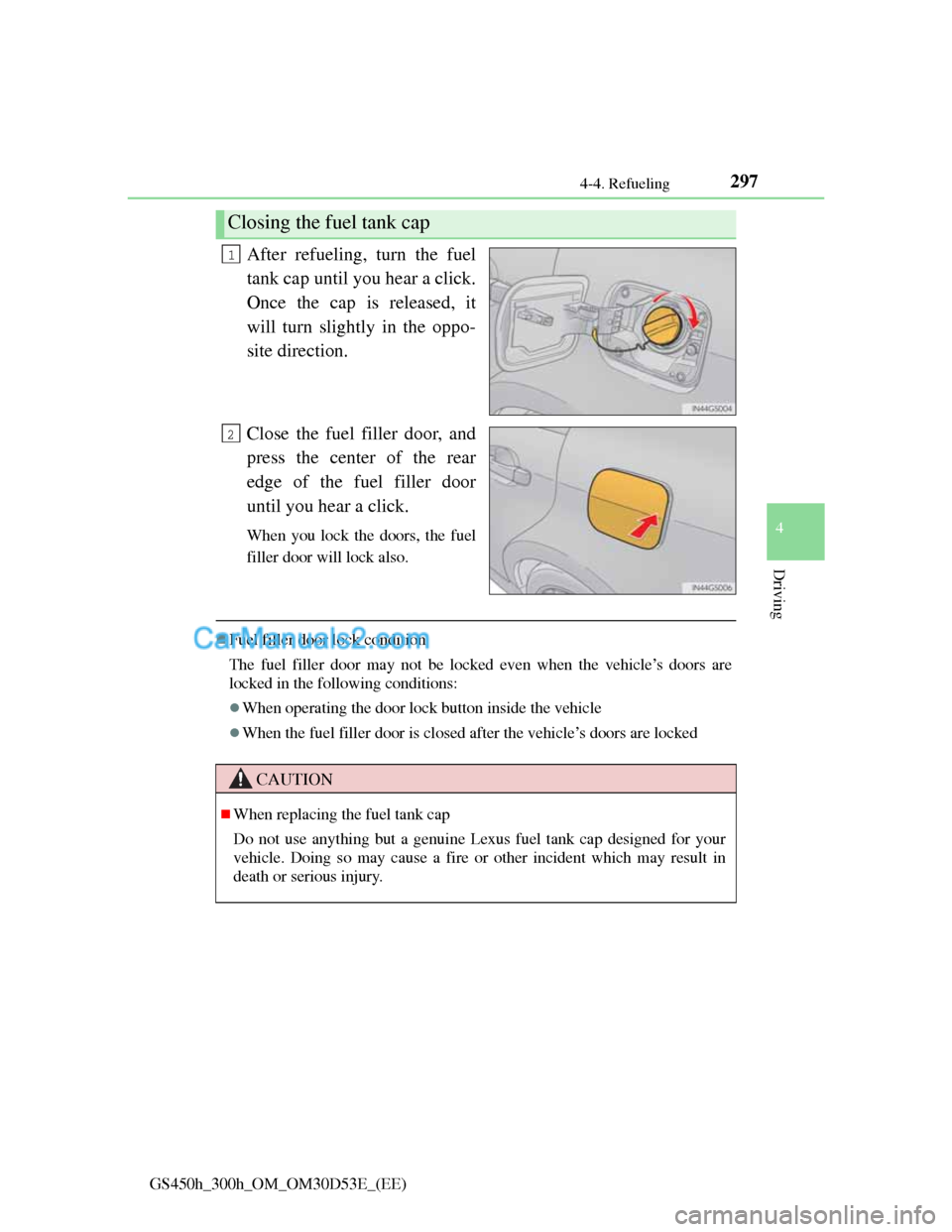

After refueling, turn the fuel
tank cap until you hear a click.
Once the cap is released, it
will turn slightly in the oppo-
site direction.
Close the fuel filler door, and
press the center of the rear
edge of the fuel filler door
until you hear a click.
When you lock the doors, the fuel
filler door will lock also.
Fuel filler door lock condition
The fuel filler door may not be locked even when the vehicle’s doors are
locked in the following conditions:
When operating the door lock button inside the vehicle
When the fuel filler door is closed after the vehicle’s doors are locked
Closing the fuel tank cap
1
2
CAUTION
When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
Page 309 of 1014

2984-5. Using the driving support system
GS450h_300h_OM_OM30D53E_(EE)

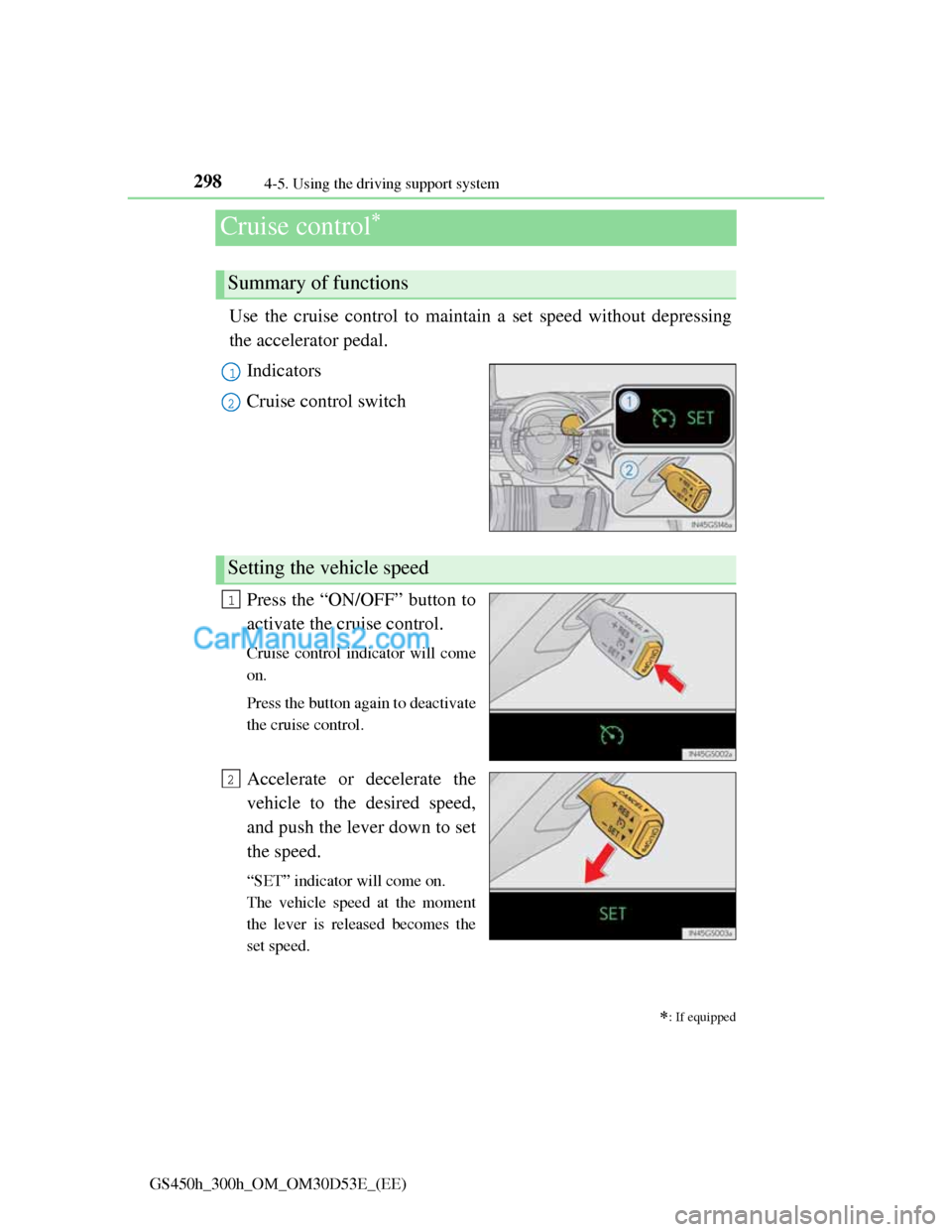

Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
Press the “ON/OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2
Page 310 of 1014

2994-5. Using the driving support system
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

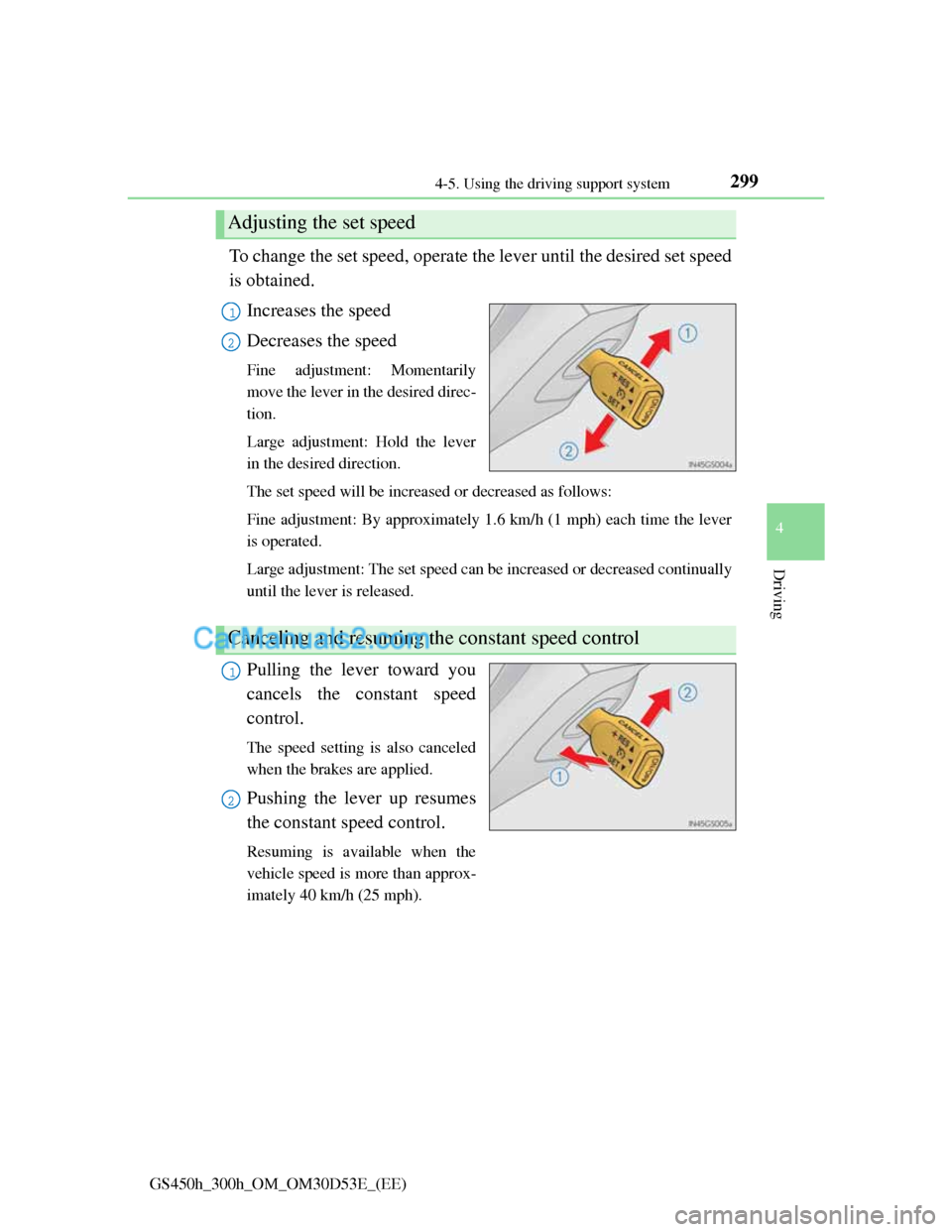

To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the lever
is operated.
Large adjustment: The set speed can be increased or decreased continually
until the lever is released.
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than approx-
imately 40 km/h (25 mph).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2
