Lexus GS300h 2013 Owner's Manual

5515-3. Using the audio system
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

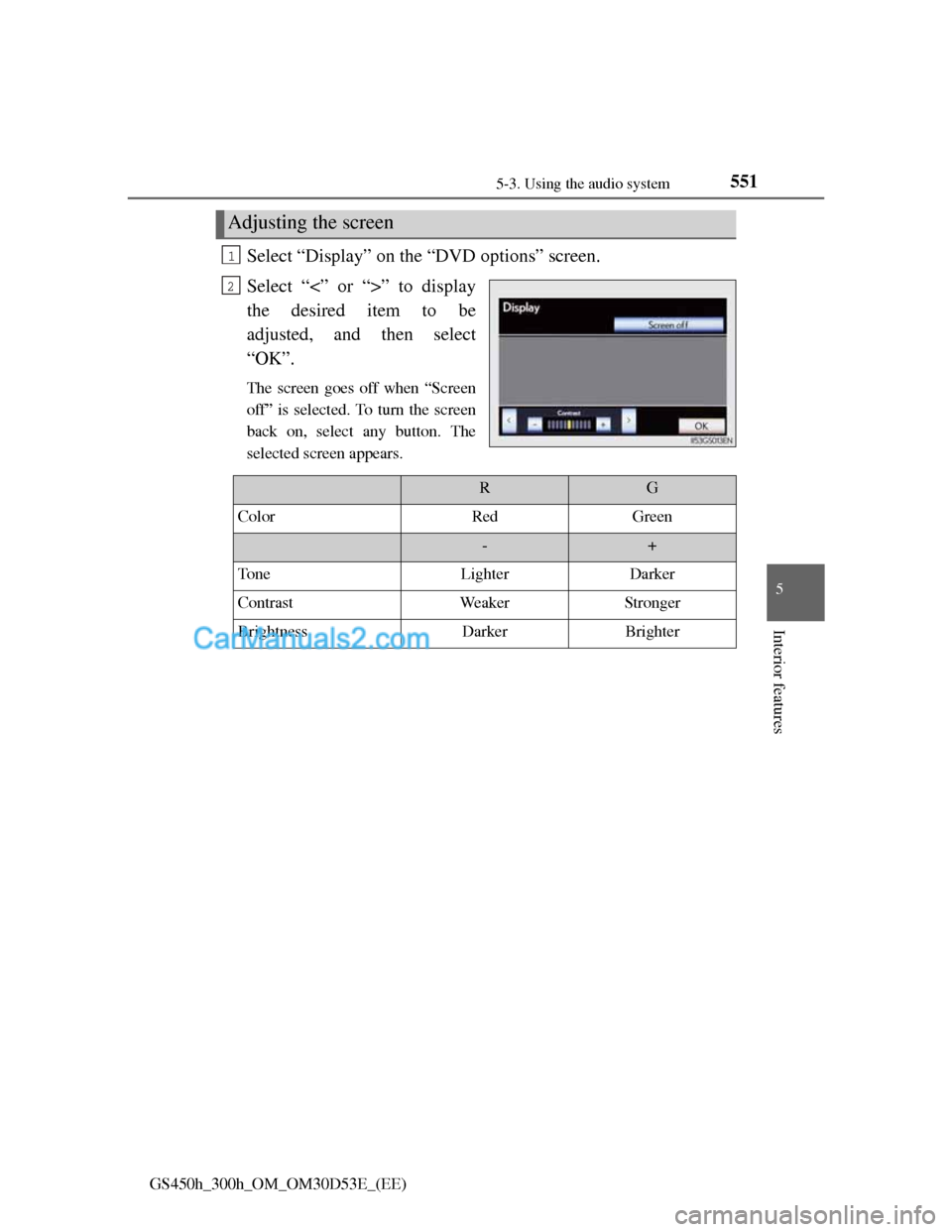

Select “Display” on the “DVD options” screen.
Select “<” or “>” to display
the desired item to be
adjusted, and then select
“OK”.
The screen goes off when “Screen
off” is selected. To turn the screen
back on, select any button. The
selected screen appears.
Adjusting the screen
1
2
RG
ColorRedGreen
-+
To n eLighterDarker
ContrastWeakerStronger
BrightnessDarkerBrighter

5525-3. Using the audio system
GS450h_300h_OM_OM30D53E_(EE)

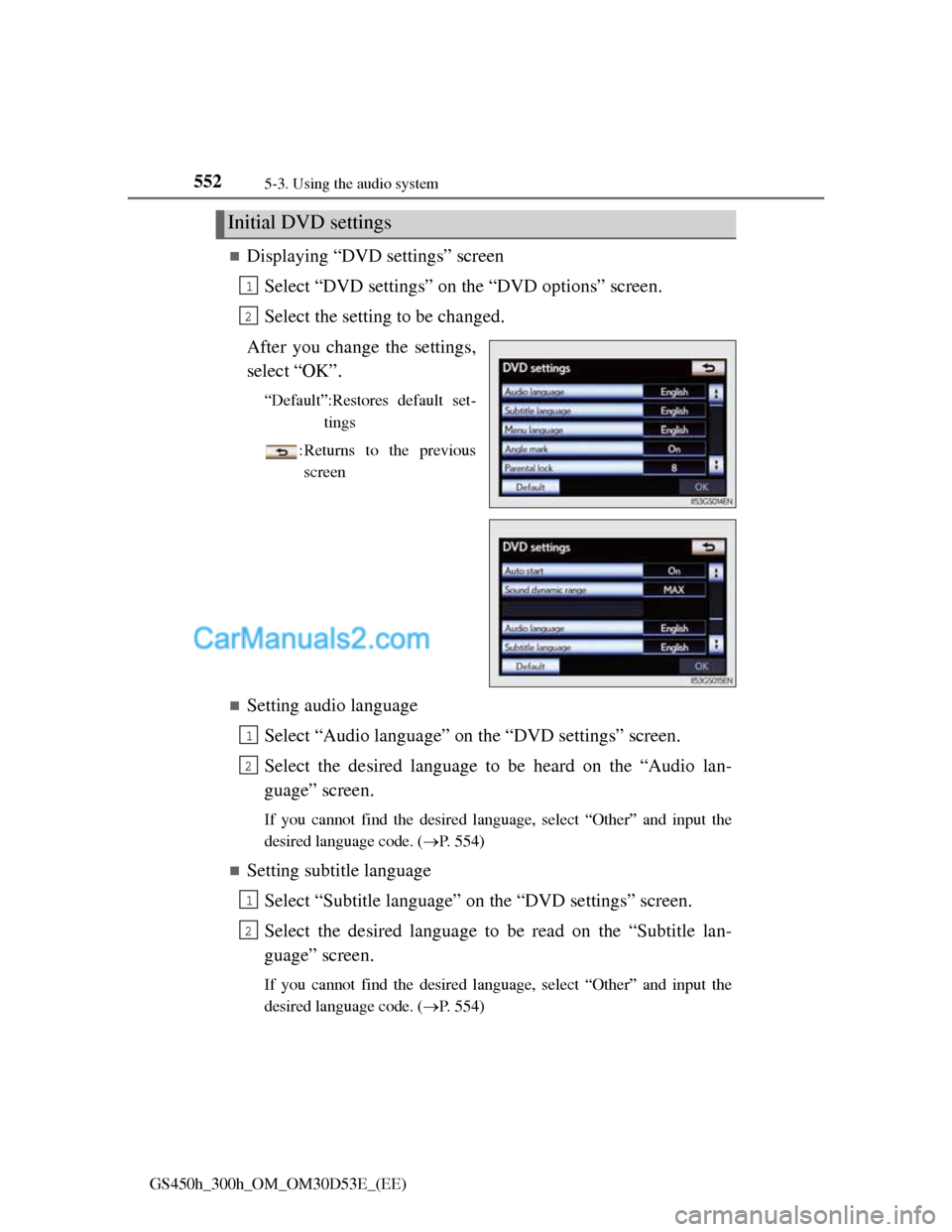

Displaying “DVD settings” screen
Select “DVD settings” on the “DVD options” screen.
Select the setting to be changed.
After you change the settings,
select “OK”.
“Default”:Restores default set-
tings
: Returns to the previous
screen
Setting audio language
Select “Audio language” on the “DVD settings” screen.
Select the desired language to be heard on the “Audio lan-
guage” screen.
If you cannot find the desired language, select “Other” and input the
desired language code. (P. 554)
Setting subtitle language
Select “Subtitle language” on the “DVD settings” screen.
Select the desired language to be read on the “Subtitle lan-
guage” screen.
If you cannot find the desired language, select “Other” and input the
desired language code. (P. 554)
Initial DVD settings
1
2
1
2
1
2

5535-3. Using the audio system
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

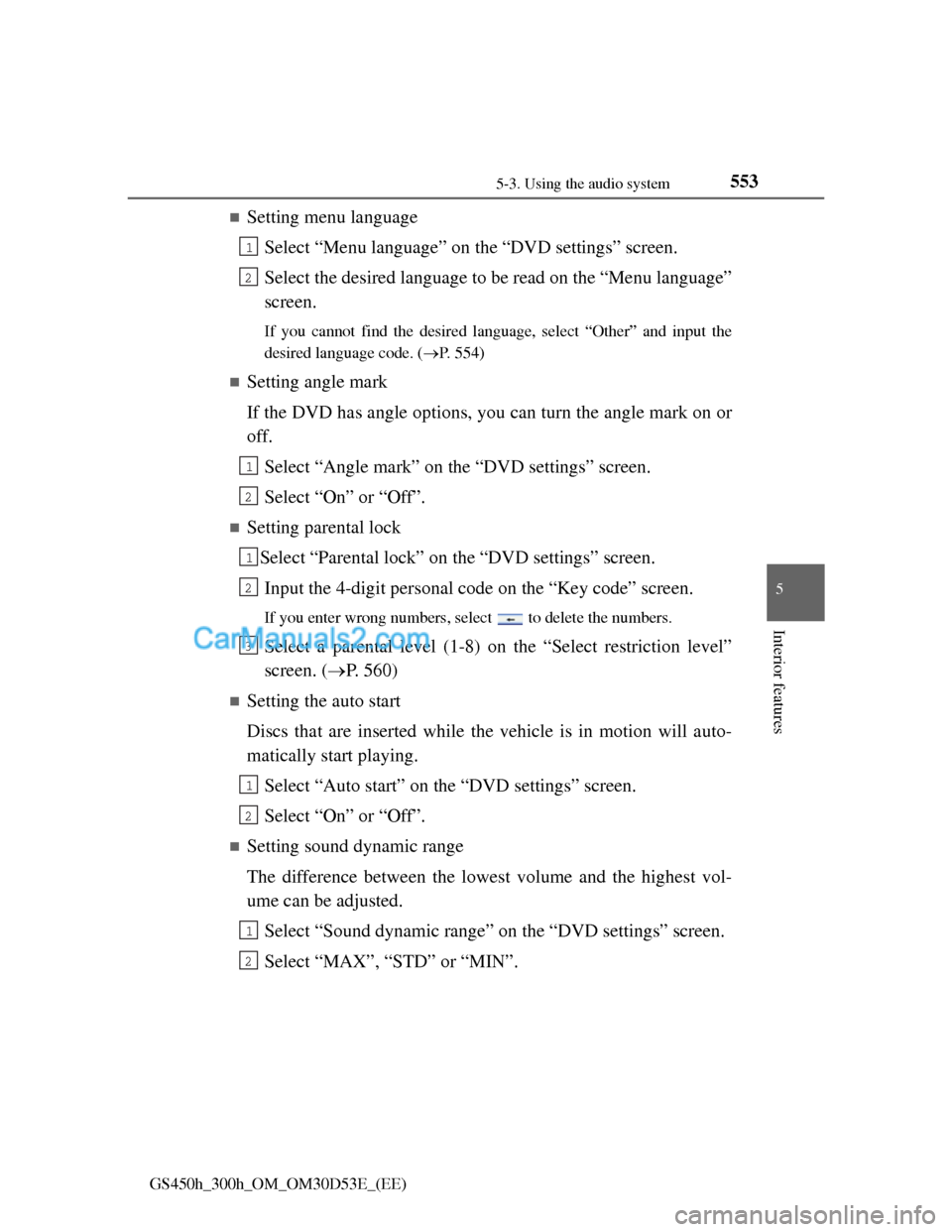

Setting menu language
Select “Menu language” on the “DVD settings” screen.
Select the desired language to be read on the “Menu language”
screen.
If you cannot find the desired language, select “Other” and input the
desired language code. (P. 554)
Setting angle mark
If the DVD has angle options, you can turn the angle mark on or
off.
Select “Angle mark” on the “DVD settings” screen.
Select “On” or “Off”.
Setting parental lock
Select “Parental lock” on the “DVD settings” screen.
Input the 4-digit personal code on the “Key code” screen.
If you enter wrong numbers, select to delete the numbers.
Select a parental level (1-8) on the “Select restriction level”
screen. (P. 560)
Setting the auto start
Discs that are inserted while the vehicle is in motion will auto-
matically start playing.
Select “Auto start” on the “DVD settings” screen.
Select “On” or “Off”.
Setting sound dynamic range
The difference between the lowest volume and the highest vol-
ume can be adjusted.
Select “Sound dynamic range” on the “DVD settings” screen.
Select “MAX”, “STD” or “MIN”.
1
2
1
2
1
2
3
1
2
1
2

5545-3. Using the audio system
GS450h_300h_OM_OM30D53E_(EE)

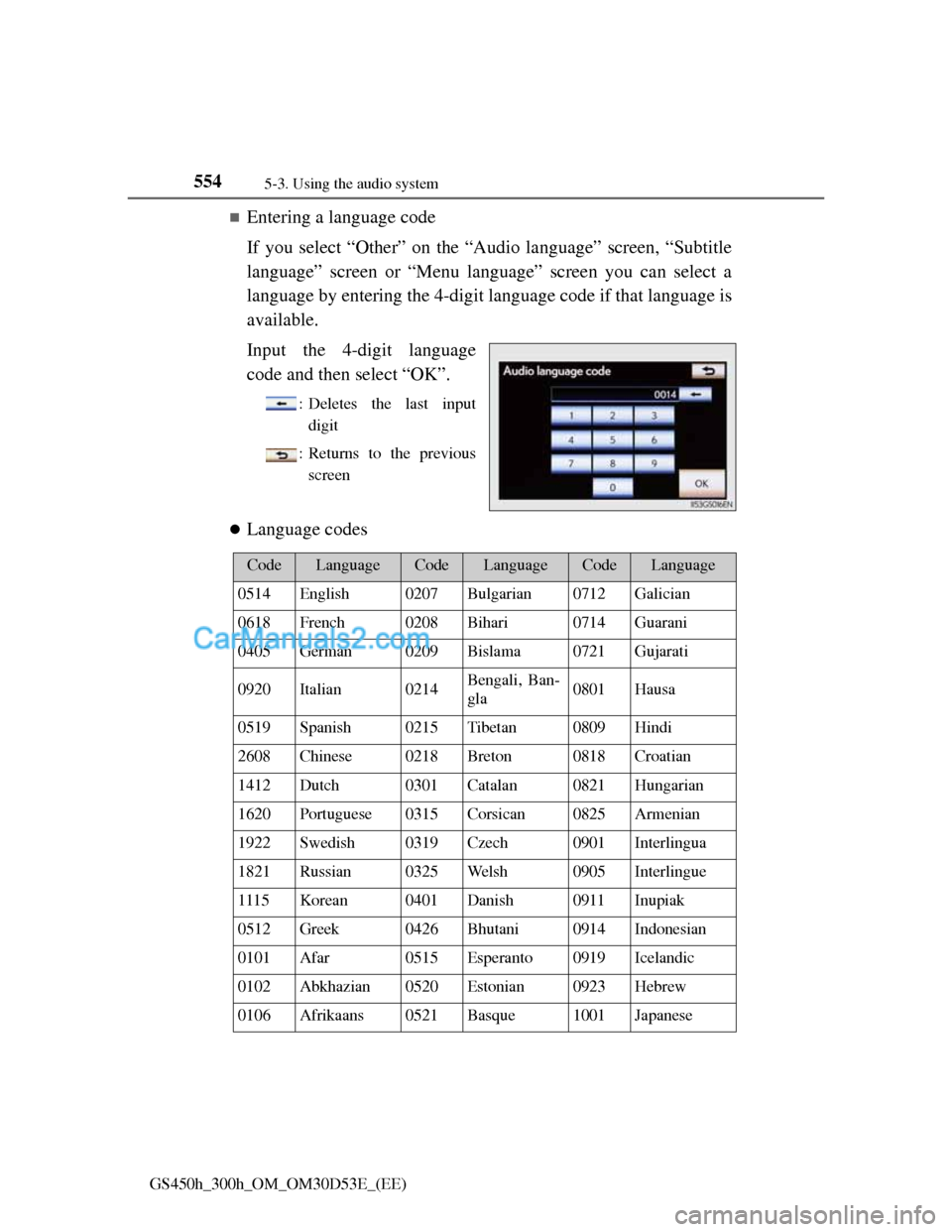

Entering a language code
If you select “Other” on the “Audio language” screen, “Subtitle
language” screen or “Menu language” screen you can select a
language by entering the 4-digit language code if that language is
available.
Input the 4-digit language
code and then select “OK”.
: Deletes the last input
digit
: Returns to the previous
screen

Language codes
CodeLanguageCodeLanguageCodeLanguage
0514English0207Bulgarian0712Galician
0618French0208Bihari0714Guarani
0405German0209Bislama0721Gujarati
0920Italian0214Bengali, Ban-
gla0801Hausa
0519Spanish0215Tibetan0809Hindi
2608Chinese0218Breton0818Croatian
1412Dutch0301Catalan0821Hungarian
1620Portuguese0315Corsican0825Armenian
1922Swedish0319Czech0901Interlingua
1821Russian0325We l s h0905Interlingue
1115Korean0401Danish0911Inupiak
0512Greek0426Bhutani0914Indonesian
0101Afar0515Esperanto0919Icelandic
0102Abkhazian0520Estonian0923Hebrew
0106Afrikaans0521Basque1001Japanese

555
5 5-3. Using the audio system
Interior features
GS450h_300h_OM_OM30D53E_(EE)

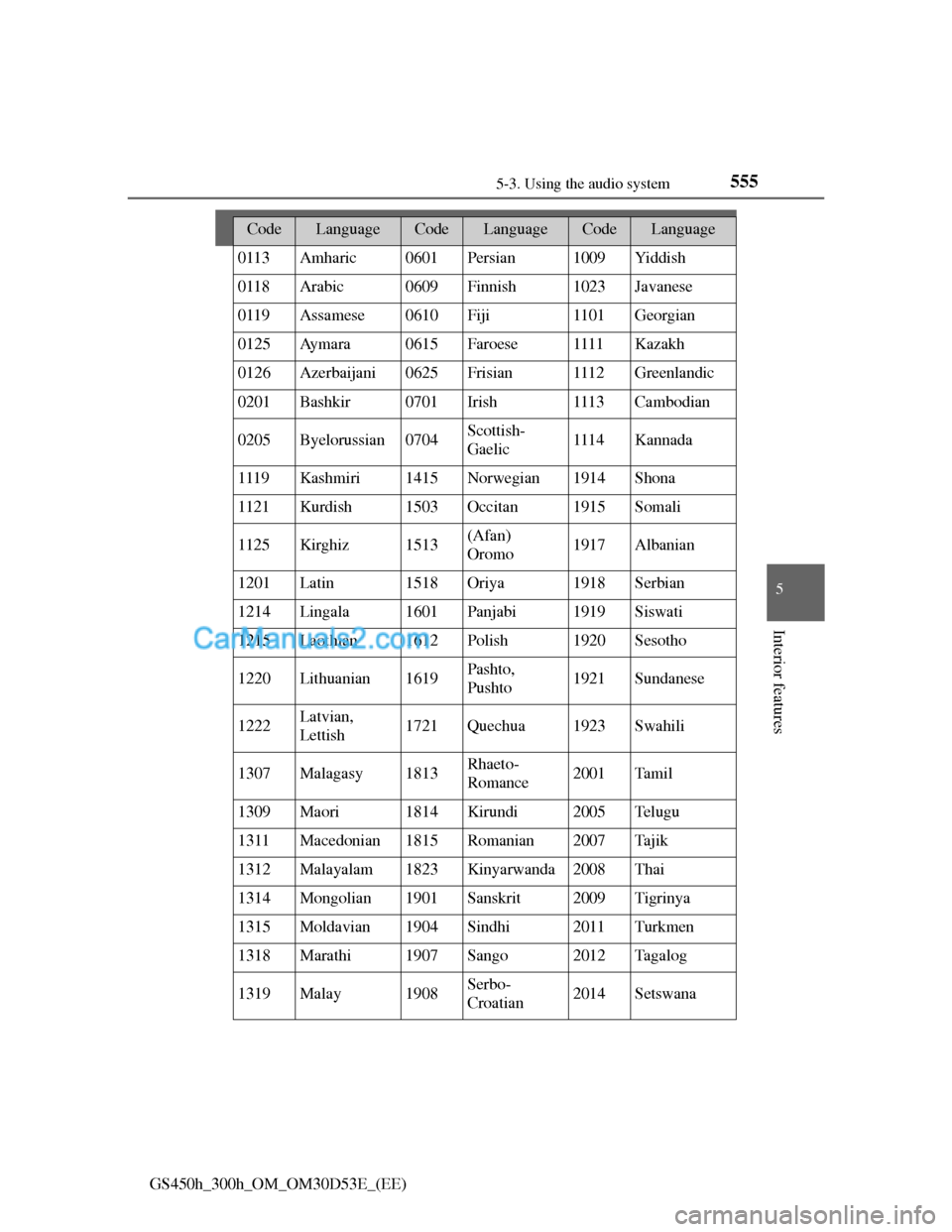

0113Amharic0601Persian1009Yi d d i s h
0118Arabic0609Finnish1023Javanese
0119Assamese0610Fiji1101Georgian
0125Ay m a r a0615Faroese1111Kazakh
0126Azerbaijani0625Frisian1112Greenlandic
0201Bashkir0701Irish1113Cambodian
0205Byelorussian0704Scottish-
Gaelic1114Kannada
1119Kashmiri1415Norwegian1914Shona
1121Kurdish1503Occitan1915Somali
1125Kirghiz1513(Afan)
Oromo1917Albanian
1201Latin1518Oriya1918Serbian
1214Lingala1601Panjabi1919Siswati
1215Laothian1612Polish1920Sesotho
1220Lithuanian1619Pashto,
Pushto1921Sundanese
1222Latvian,
Lettish1721Quechua1923Swahili
1307Malagasy1813Rhaeto-
Romance2001Ta m i l
1309Maori1814Kirundi2005Te l u g u
1311Macedonian1815Romanian2007Ta j i k
1312Malayalam1823Kinyarwanda2008Thai
1314Mongolian1901Sanskrit2009Tigrinya
1315Moldavian1904Sindhi2011Turkmen
1318Marathi1907Sango2012Ta g a l o g
1319Malay1908Serbo-
Croatian2014Setswana
CodeLanguageCodeLanguageCodeLanguage

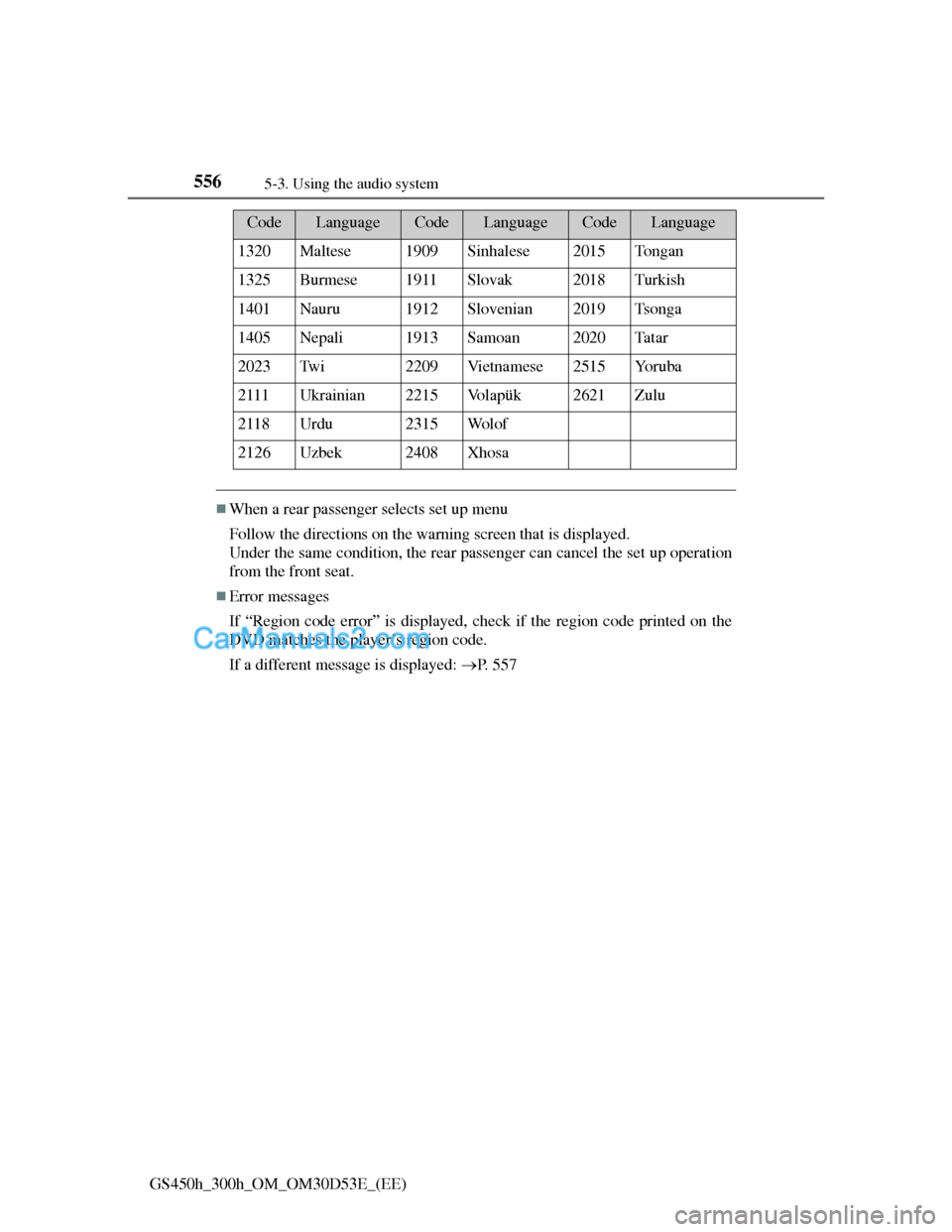

5565-3. Using the audio system
GS450h_300h_OM_OM30D53E_(EE)
When a rear passenger selects set up menu
Follow the directions on the warning screen that is displayed.
Under the same condition, the rear passenger can cancel the set up operation
from the front seat.
Error messages
If “Region code error” is displayed, check if the region code printed on the
DVD matches the player’s region code.
If a different message is displayed: P. 5 5 7
1320Maltese1909Sinhalese2015To n g a n
1325Burmese1911Slovak2018Turkish
1401Nauru1912Slovenian2019Tsonga
1405Nepali1913Samoan2020Ta t a r
2023Tw i2209Vi e t n a m e s e2515Yo r u b a
2111Ukrainian2215Vo l a p ü k2621Zulu
2118Urdu2315Wo l o f
2126Uzbek2408Xhosa
CodeLanguageCodeLanguageCodeLanguage

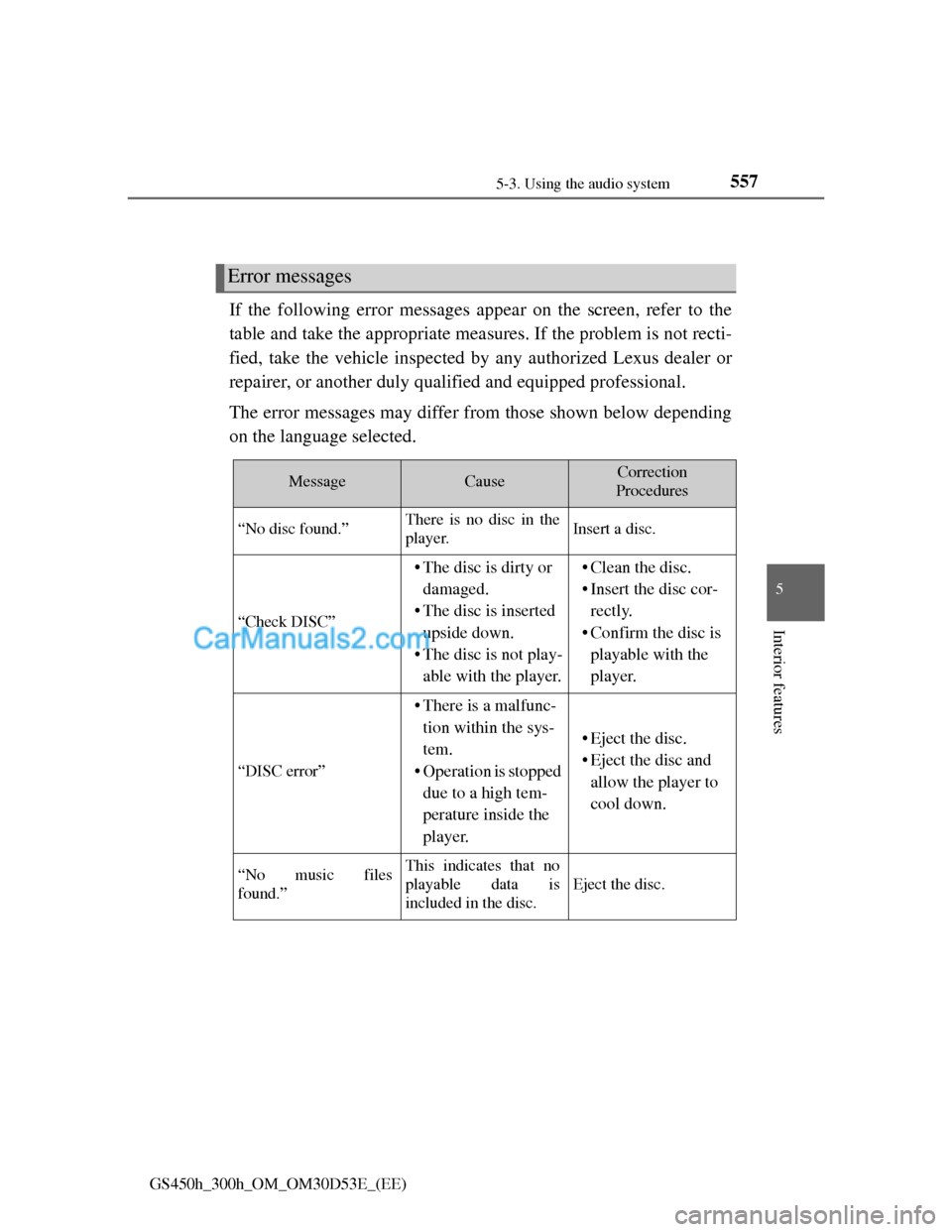

5575-3. Using the audio system
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
CD/DVD player and DVD video disc information
If the following error messages appear on the screen, refer to the
table and take the appropriate measures. If the problem is not recti-
fied, take the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
The error messages may differ from those shown below depending
on the language selected.
Error messages
MessageCauseCorrection
Procedures
“No disc found.”There is no disc in the
player.Insert a disc.
“Check DISC”
• The disc is dirty or
damaged.
• The disc is inserted
upside down.
• The disc is not play-
able with the player.• Clean the disc.
• Insert the disc cor-
rectly.
• Confirm the disc is
playable with the
player.
“DISC error”
• There is a malfunc-
tion within the sys-
tem.
• Operation is stopped
due to a high tem-
perature inside the
player.
• Eject the disc.
• Eject the disc and
allow the player to
cool down.
“No music files
found.”This indicates that no
playable data is
included in the disc.
Eject the disc.

5585-3. Using the audio system
GS450h_300h_OM_OM30D53E_(EE)

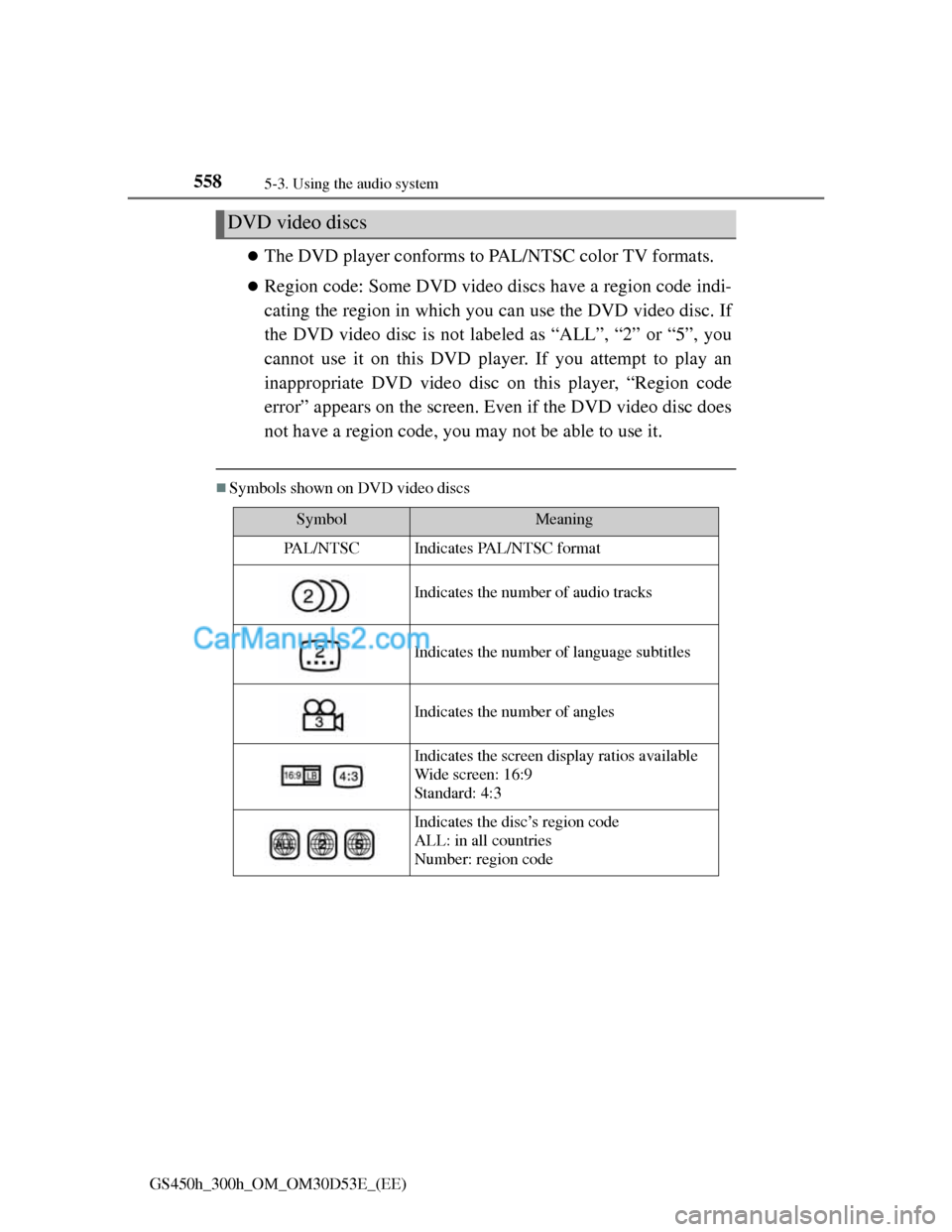

The DVD player conforms to PAL/NTSC color TV formats.
Region code: Some DVD video discs have a region code indi-
cating the region in which you can use the DVD video disc. If
the DVD video disc is not labeled as “ALL”, “2” or “5”, you
cannot use it on this DVD player. If you attempt to play an
inappropriate DVD video disc on this player, “Region code
error” appears on the screen. Even if the DVD video disc does
not have a region code, you may not be able to use it.
Symbols shown on DVD video discs
DVD video discs
SymbolMeaning
PA L / N T S CIndicates PAL/NTSC format
Indicates the number of audio tracks
Indicates the number of language subtitles
Indicates the number of angles
Indicates the screen display ratios available
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code
ALL: in all countries
Number: region code

5595-3. Using the audio system
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

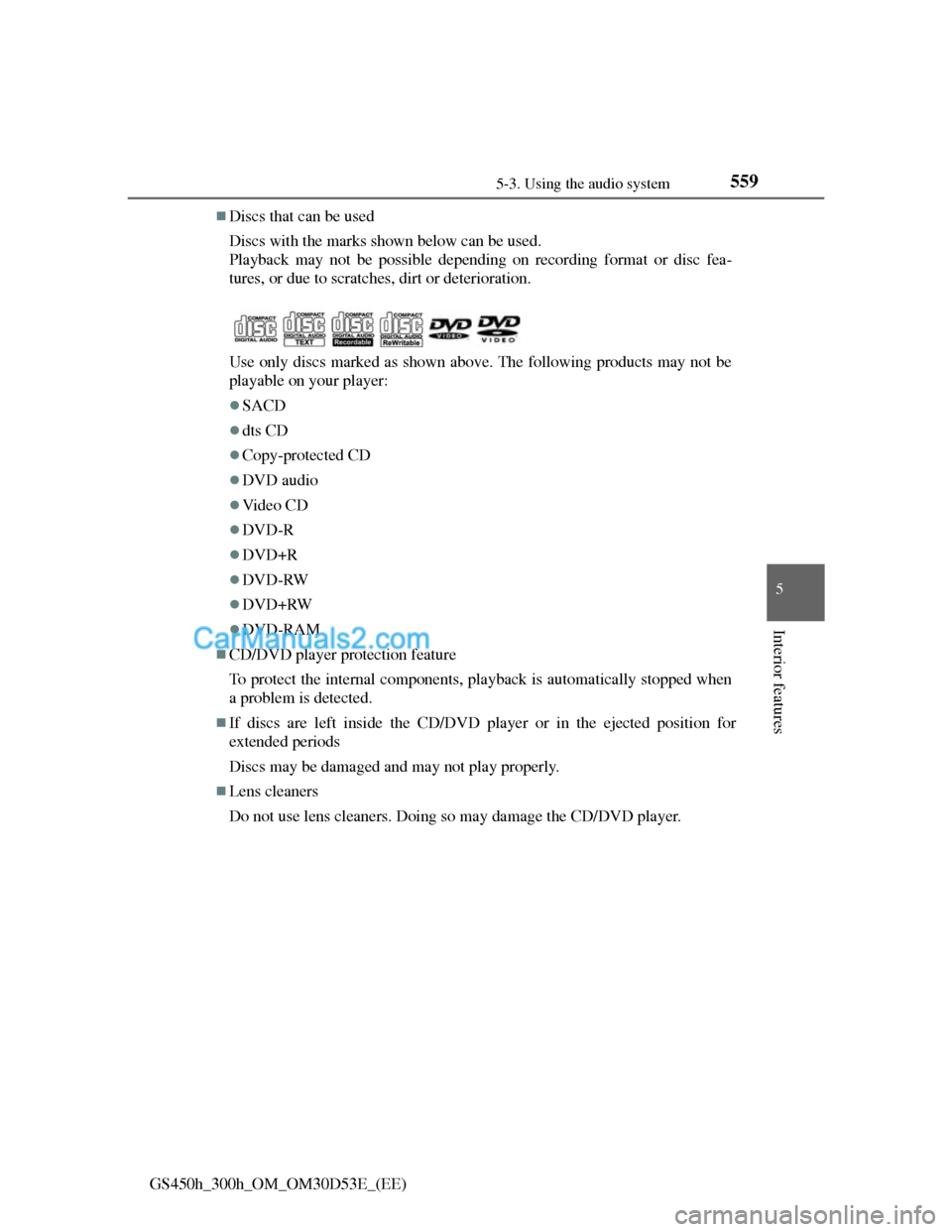

Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
Use only discs marked as shown above. The following products may not be
playable on your player:
SACD
dts CD
Copy-protected CD
DVD audio
Vi d e o C D
DVD-R
DVD+R
DVD-RW
DVD+RW
DVD-RAM
CD/DVD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
If discs are left inside the CD/DVD player or in the ejected position for
extended periods
Discs may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD/DVD player.

5605-3. Using the audio system
GS450h_300h_OM_OM30D53E_(EE)

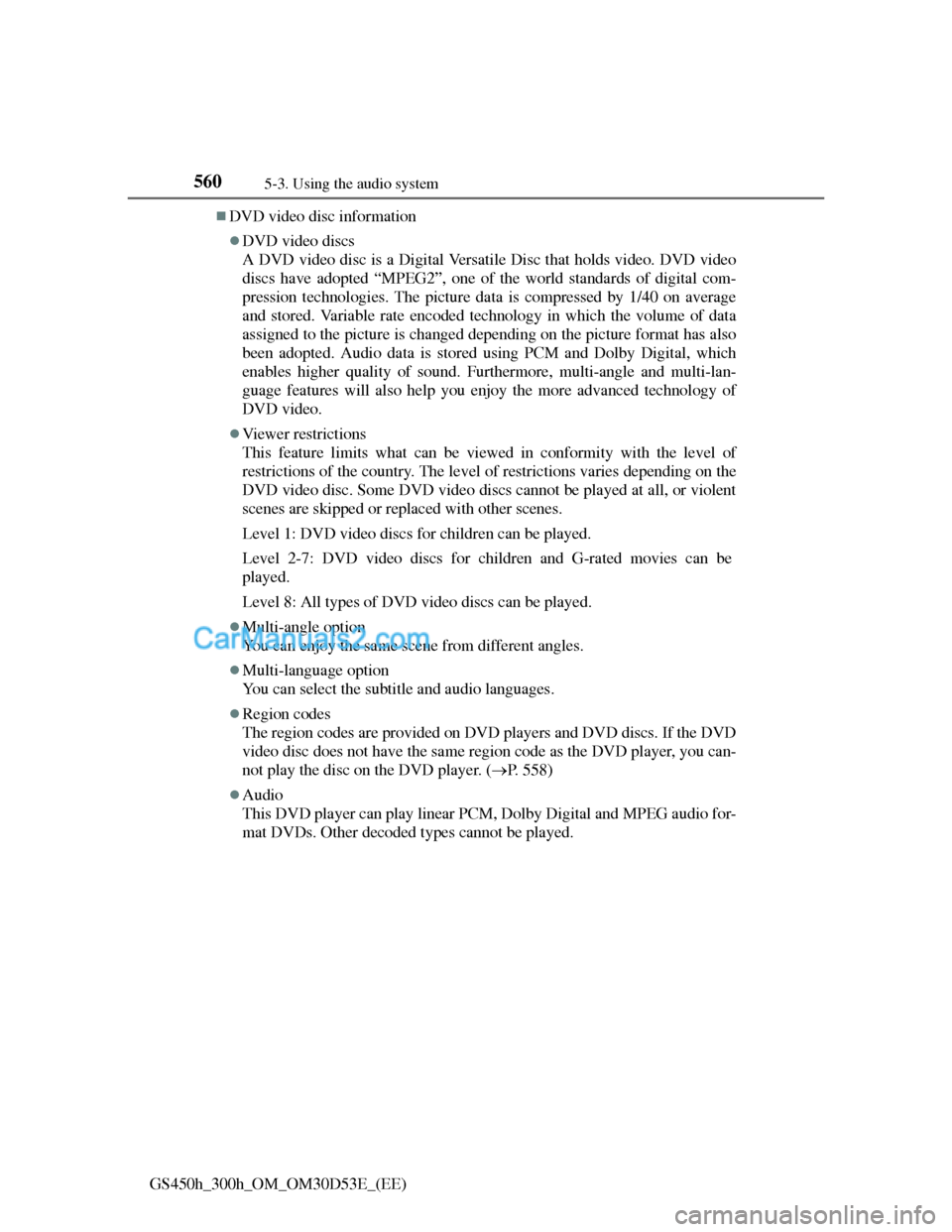

DVD video disc information
DVD video discs
A DVD video disc is a Digital Versatile Disc that holds video. DVD video
discs have adopted “MPEG2”, one of the world standards of digital com-
pression technologies. The picture data is compressed by 1/40 on average
and stored. Variable rate encoded technology in which the volume of data
assigned to the picture is changed depending on the picture format has also
been adopted. Audio data is stored using PCM and Dolby Digital, which
enables higher quality of sound. Furthermore, multi-angle and multi-lan-
guage features will also help you enjoy the more advanced technology of
DVD video.
Viewer restrictions
This feature limits what can be viewed in conformity with the level of
restrictions of the country. The level of restrictions varies depending on the
DVD video disc. Some DVD video discs cannot be played at all, or violent
scenes are skipped or replaced with other scenes.
Level 1: DVD video discs for children can be played.
Level 2-7: DVD video discs for children and G-rated movies can be
played.
Level 8: All types of DVD video discs can be played.
Multi-angle option
You can enjoy the same scene from different angles.
Multi-language option
You can select the subtitle and audio languages.
Region codes
The region codes are provided on DVD players and DVD discs. If the DVD
video disc does not have the same region code as the DVD player, you can-
not play the disc on the DVD player. (P. 558)
Audio
This DVD player can play linear PCM, Dolby Digital and MPEG audio for-
mat DVDs. Other decoded types cannot be played.
