Page 441 of 615

Lexus GS350 2015  Owners Manual GS350_OM_OM30F69U_(U)
4396-3. Do-it-yourself maintenance
6
Maintenance and care

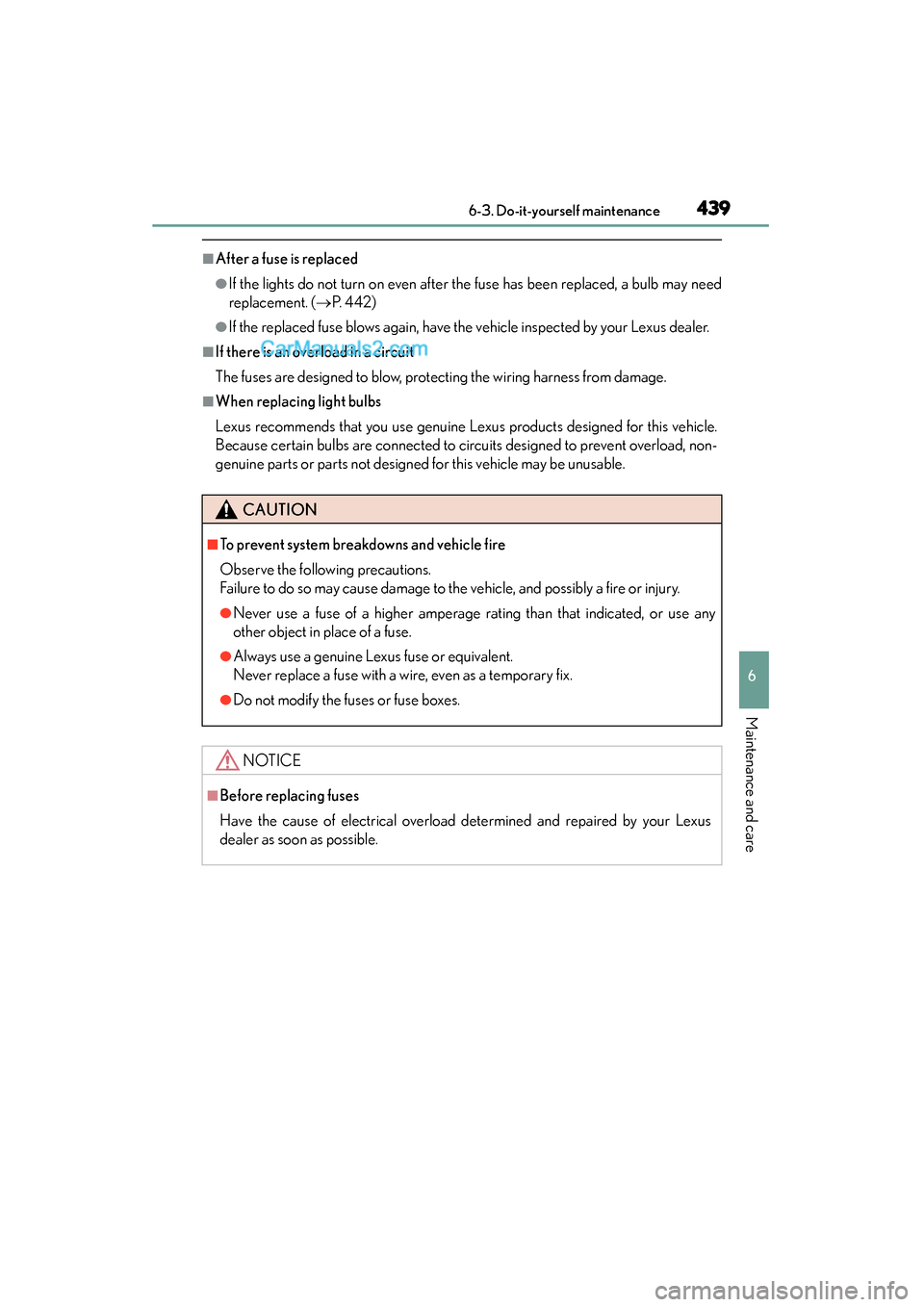

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
repla

Page 442 of 615

Lexus GS350 2015  Owners Manual 440
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

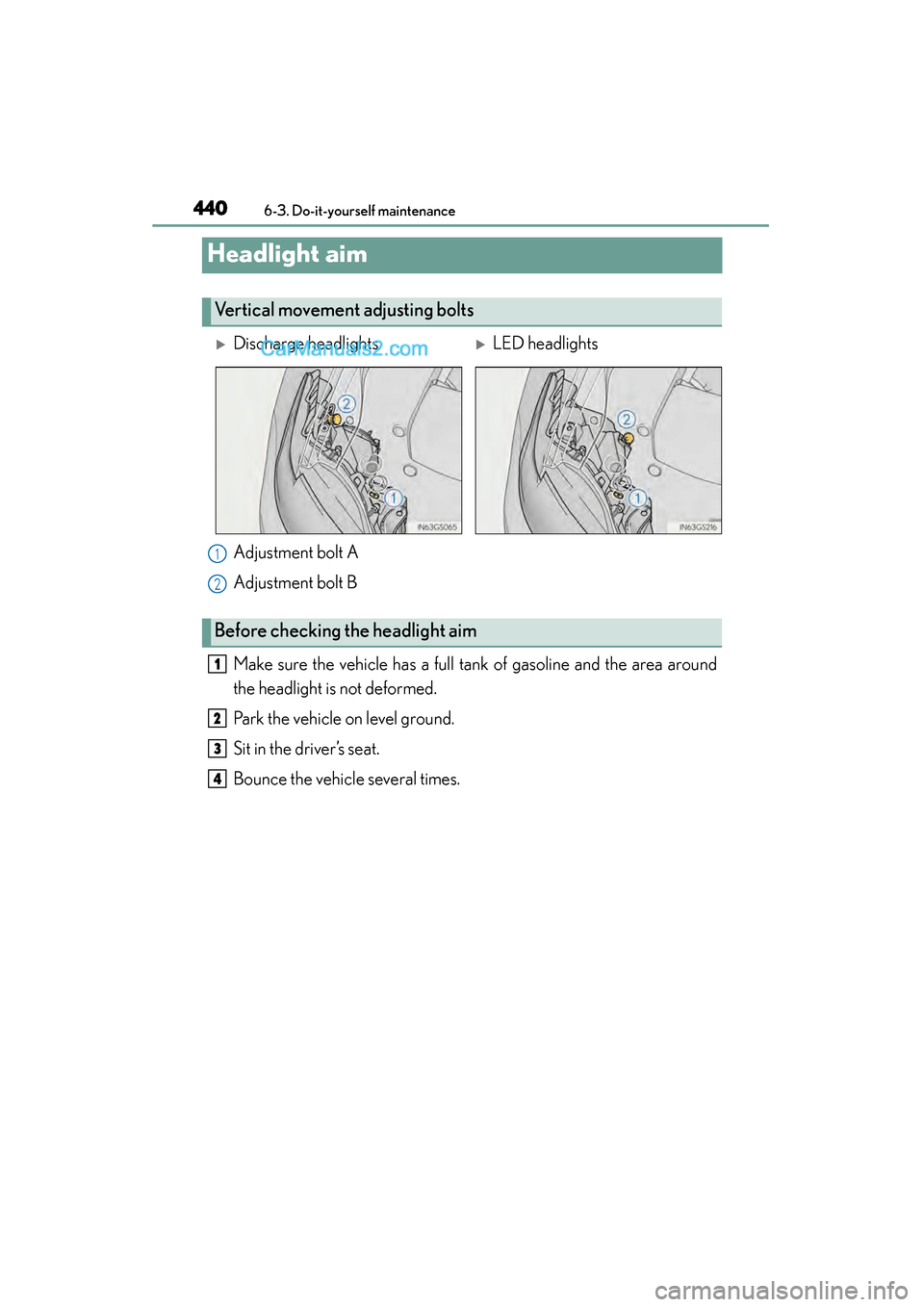

Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around
the headlight is not d

Page 443 of 615

Lexus GS350 2015  Owners Manual GS350_OM_OM30F69U_(U)
4416-3. Do-it-yourself maintenance
6
Maintenance and care

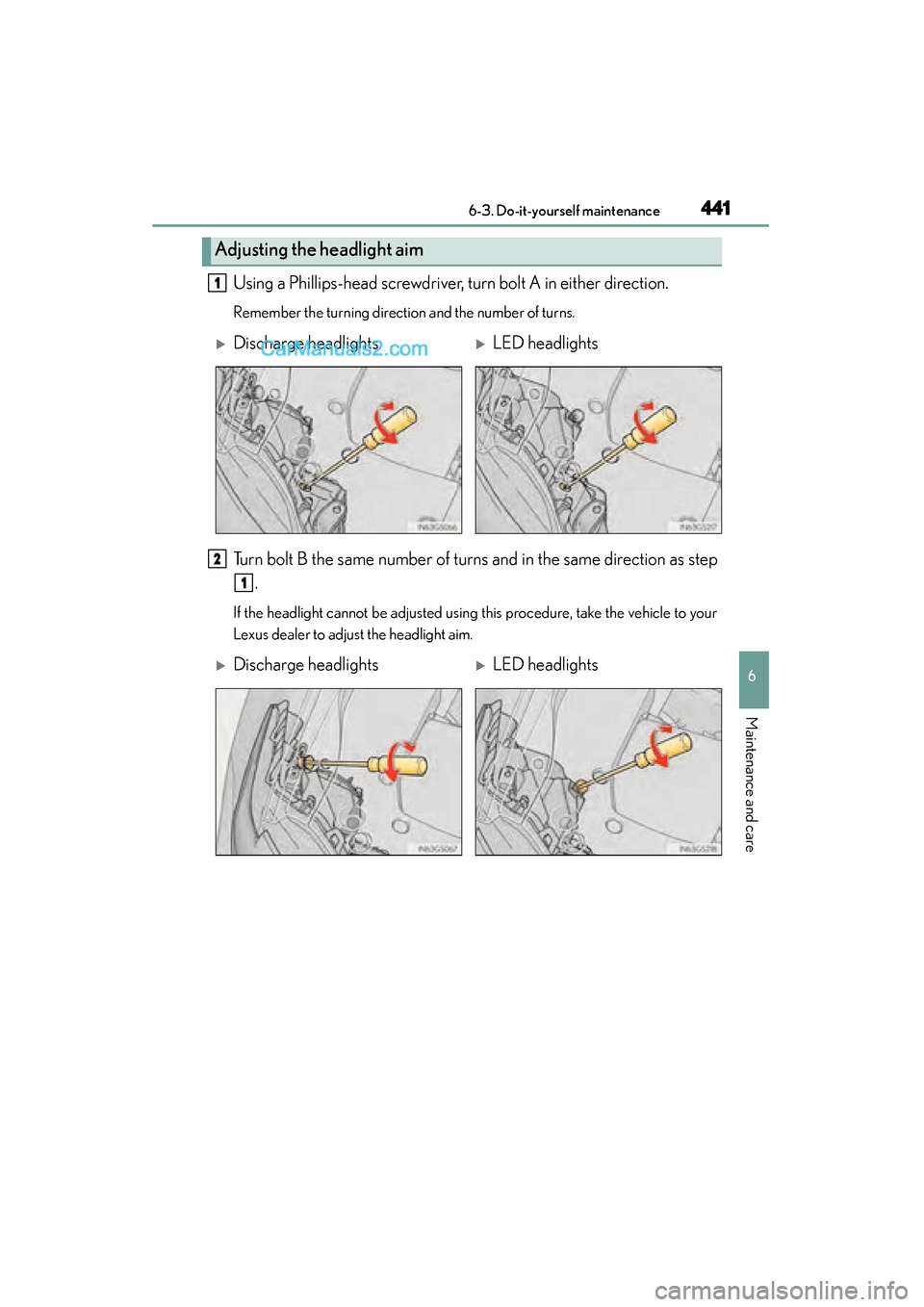

Using a Phillips-head screwdriver, turn bolt A in either direction.
Remember the turning direction and the number of tur

Page 444 of 615

Lexus GS350 2015  Owners Manual 442
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

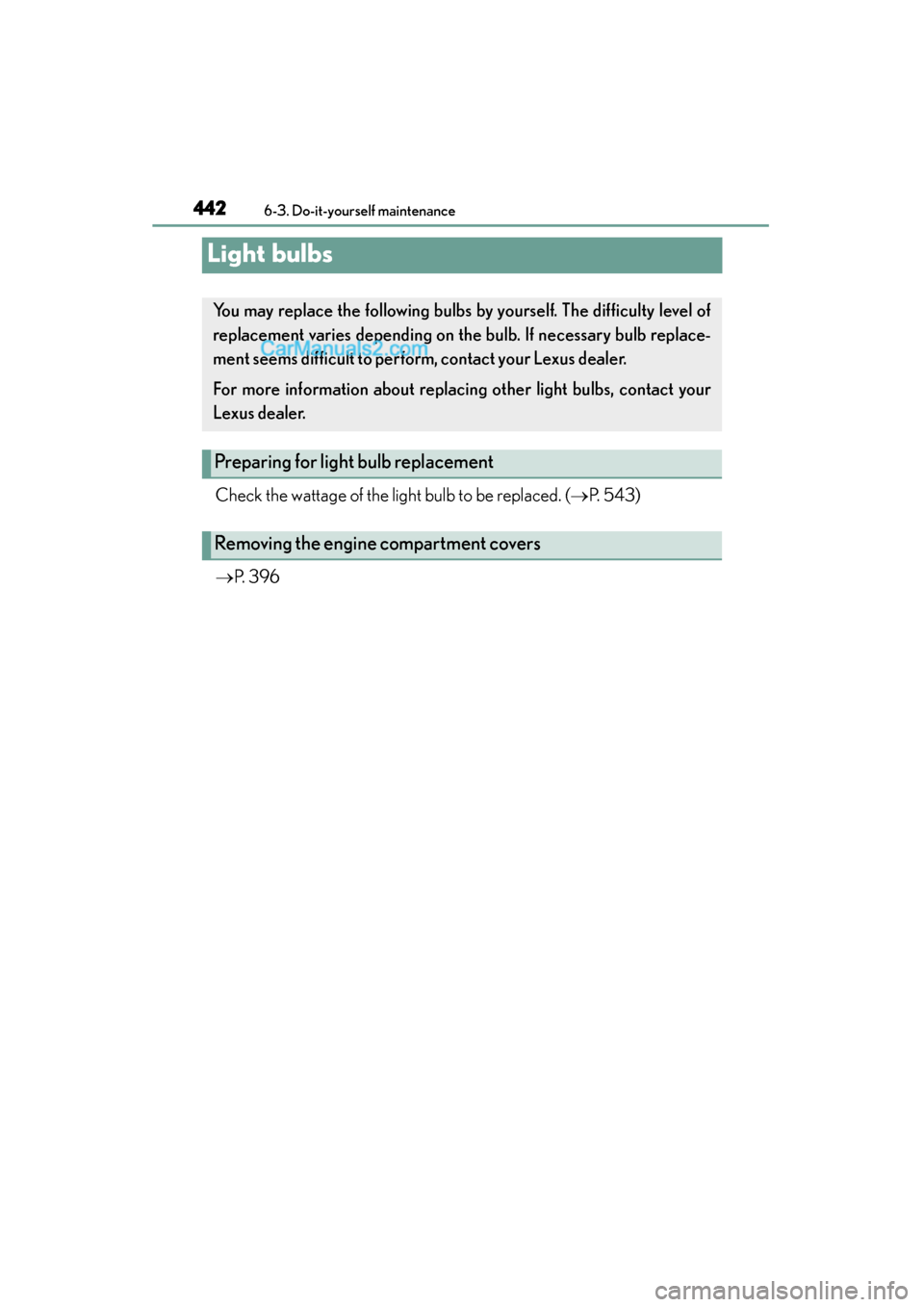

Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 543)
→ P. 396
You may replace the following bulbs by yourself. The di

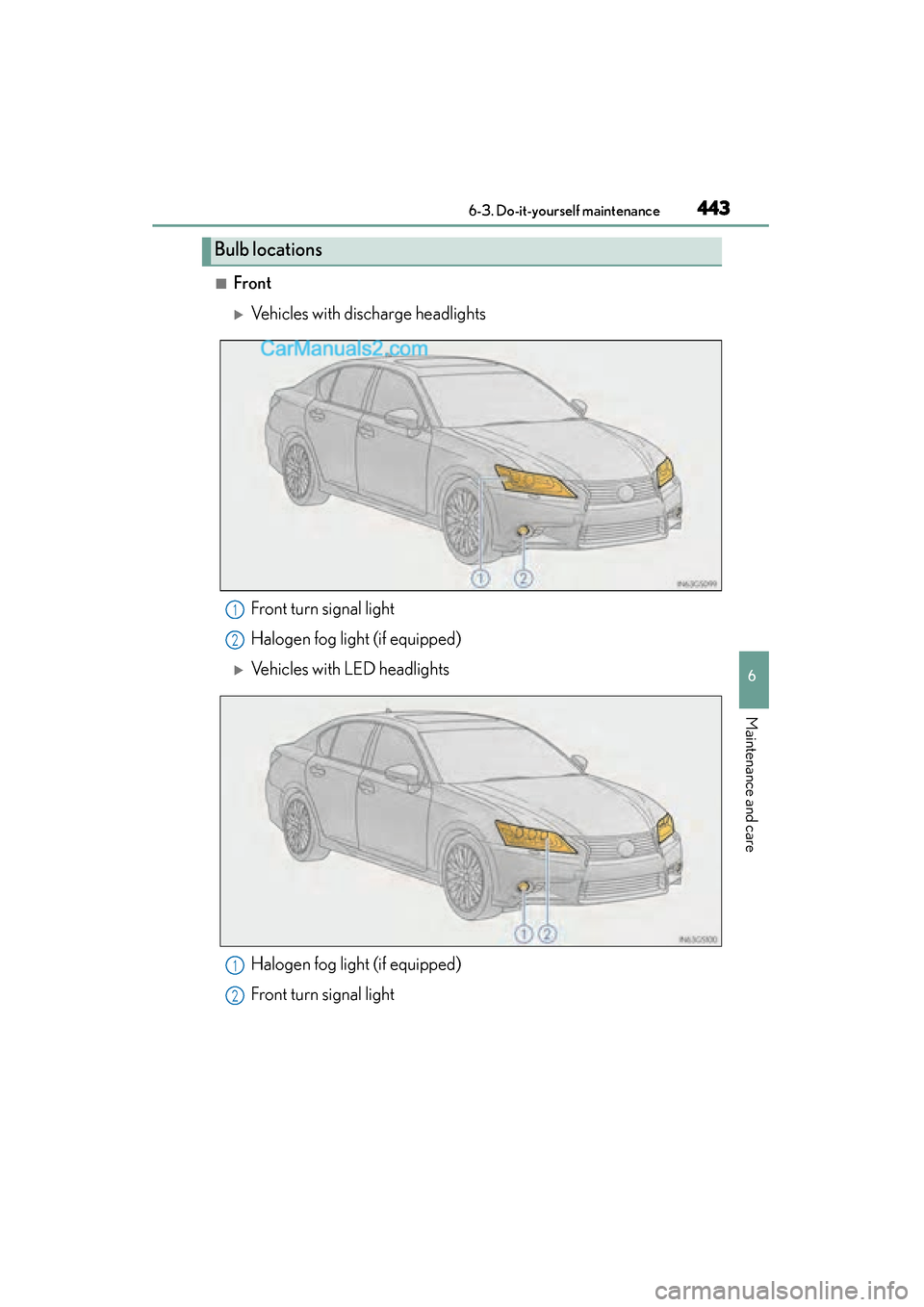

Page 445 of 615

Lexus GS350 2015  Owners Manual GS350_OM_OM30F69U_(U)
4436-3. Do-it-yourself maintenance
6
Maintenance and care
■Front
�XVehicles with discharge headlights
Front turn signal light
Halogen fog light (if equipped)
�XVehicles with LE

Page 446 of 615

Lexus GS350 2015  Owners Manual 444
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

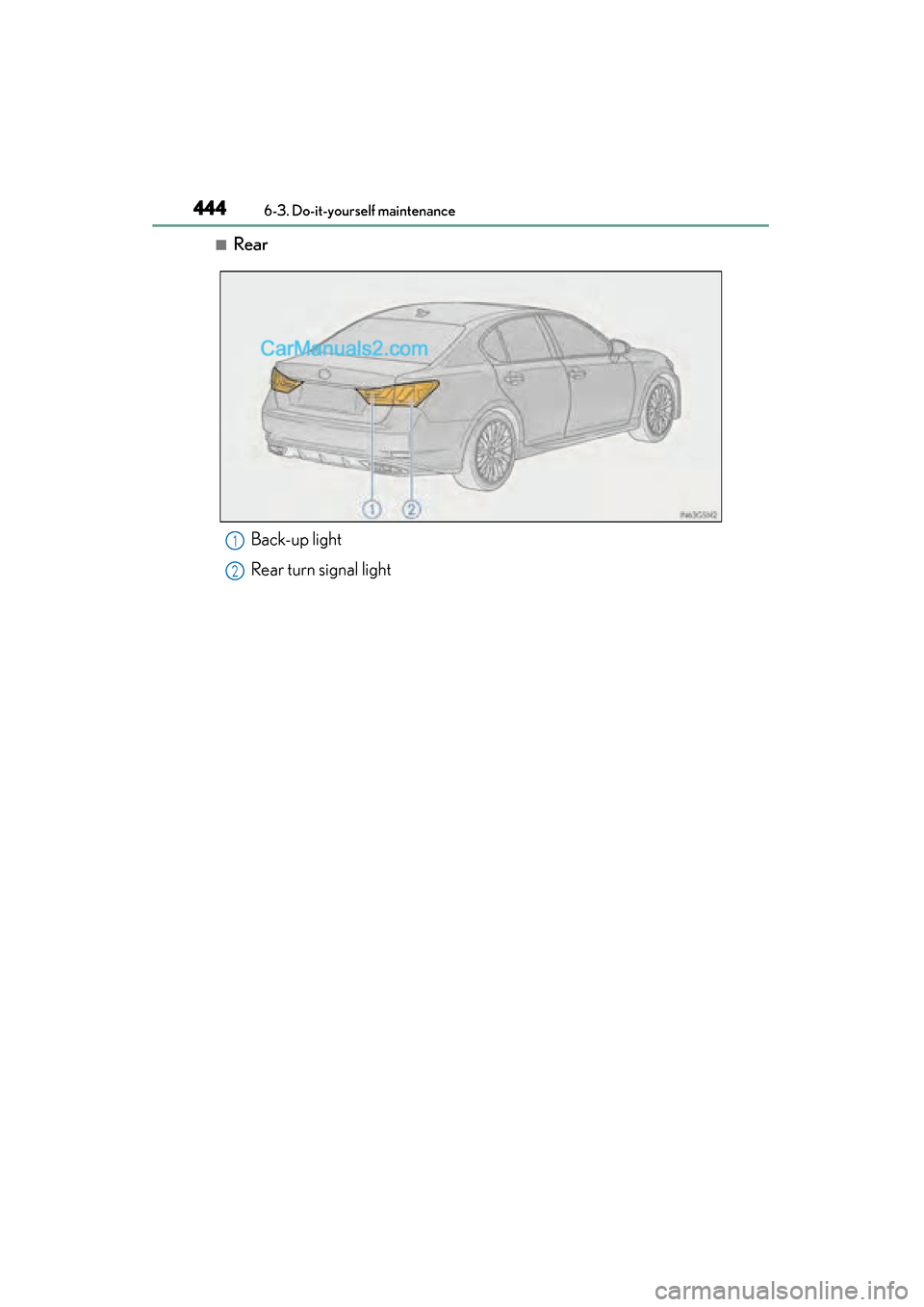

■RearBack-up light
Rear turn signal light
1
2
GS350_OM_OM30F69U_(U).book  Page 444  Monday, January 19, 2015  2:53 PM

Page 447 of 615

Lexus GS350 2015  Owners Manual GS350_OM_OM30F69U_(U)
4456-3. Do-it-yourself maintenance
6
Maintenance and care

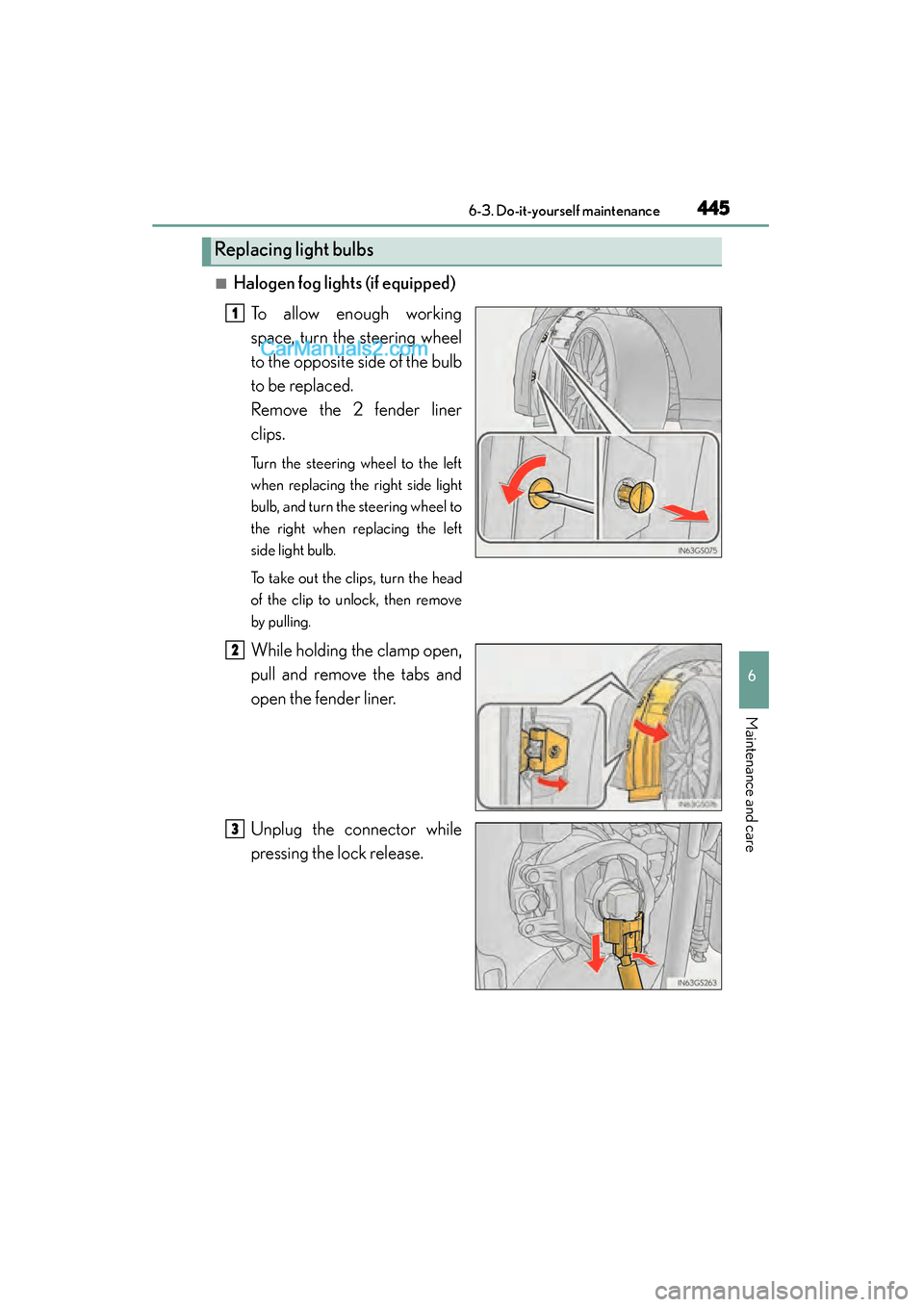

■Halogen fog lights (if equipped)To allow enough working
space, turn the steering wheel
to the opposite side of the bu

Page 448 of 615

Lexus GS350 2015  Owners Manual 446
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

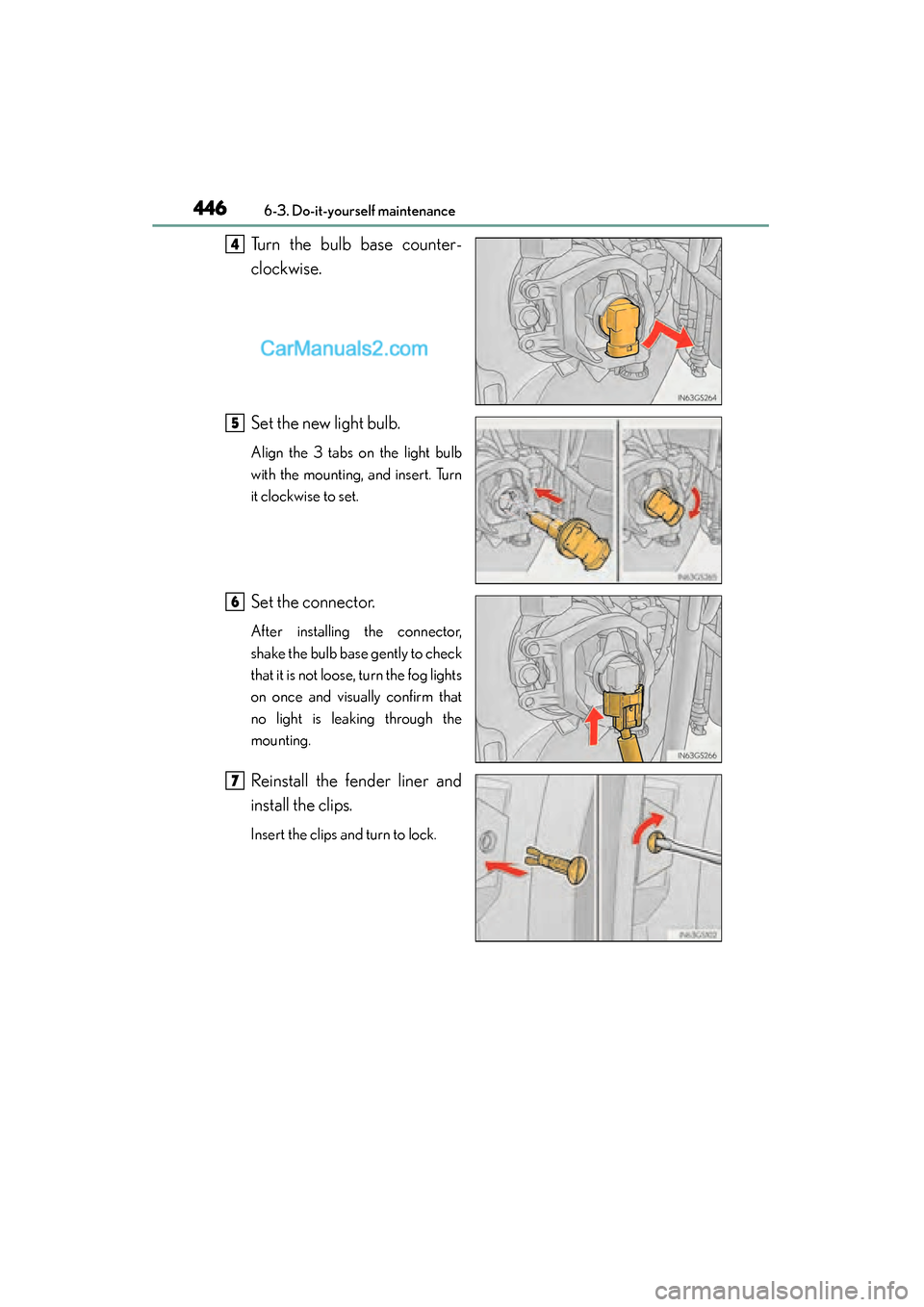

Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clock

Page 449 of 615

Lexus GS350 2015  Owners Manual GS350_OM_OM30F69U_(U)
4476-3. Do-it-yourself maintenance
6
Maintenance and care

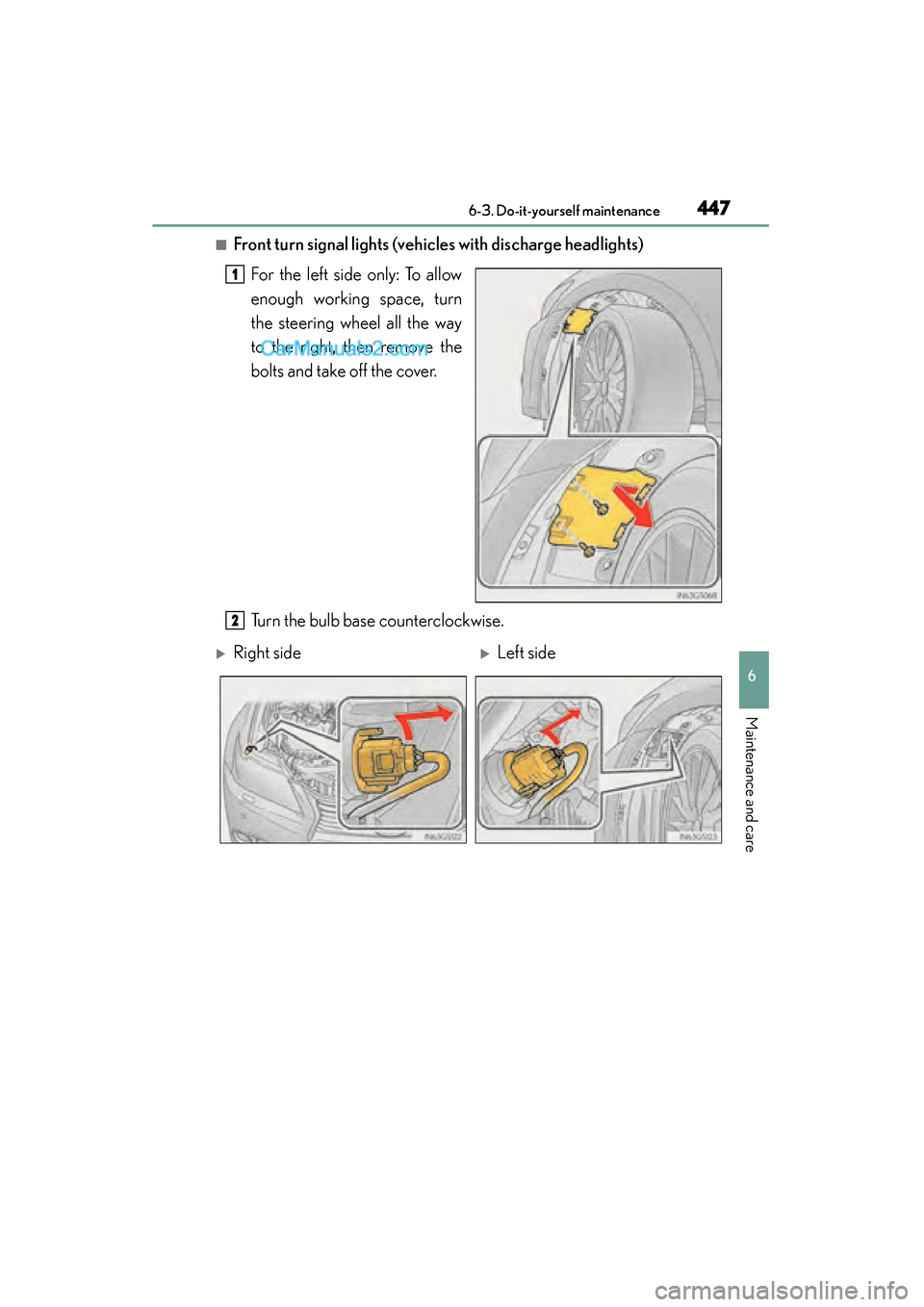

■Front turn signal lights (vehicles with discharge headlights)
For the left side only: To allow
enough working space,

Page 450 of 615

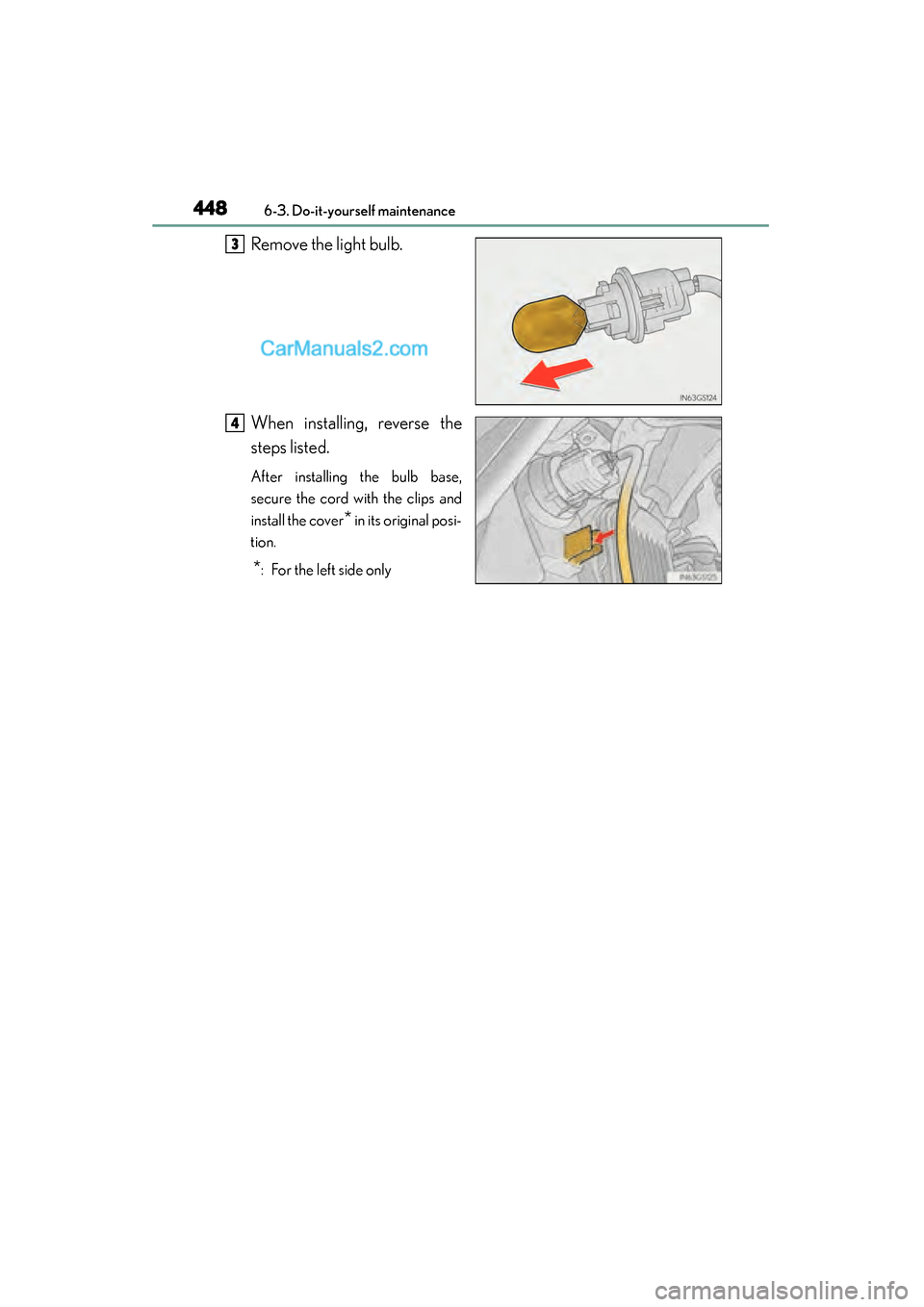

Lexus GS350 2015  Owners Manual 448
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
secure the cord with the clips and
install t
