1. LEXUS PARKING ASSIST MONITOR ............................................. 250
LEXUS PARKING ASSIST MONITOR...... 250
DRIVING PRECAUTIONS .............................. 250
SCREEN DISPLAY ................................................ 252
USING THE SYSTEM.......................................... 253
2. ESTIMATED COURSE LINE DISPLAY MODE ................................. 255
SCREEN DESCRIPTION .................................. 255
PARKING .................................................................. 256
3. PARKING ASSIST GUIDE LINE DISPLAY MODE ................................. 257
SCREEN DESCRIPTION ................................... 257
PARKING .................................................................. 258
4. LEXUS PARKING ASSIST MONITOR PRECAUTIONS .......... 259
AREA DISPLAYED ON SCREEN ................ 259
THE CAMERA ........................................................ 260
DIFFERENCES BETWEEN THE SCREEN
AND THE ACTUAL ROAD ........................... 261
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS.......... 262
5. THINGS YOU SHOULD KNOW..... 264
IF YOU NOTICE ANY SYMPTOMS .......... 264
1. INTUITIVE PARKING ASSIST ........... 266
TYPES OF SENSORS.......................................... 266
INTUITIVE PARKING ASSIST SWITCH .................................................................. 266
DISPLAY ..................................................................... 267
SENSOR DETECTION DISPLAY, OBSTACLE DISTANCE ................................ 269
DETECTION RANGE OF THE SENSORS ............................................................... 272
THE INTUITIVE PARKING ASSIST CAN BE OPERATED WHEN ...................... 273
INTUITIVE PARKING ASSIST DISPLAY.................................................................. 273
SENSOR DETECTION INFORMATION .................................................. 273
INTUITIVE PARKING ASSIST-SENSOR FAILURE WARNING ....................................... 276
2. INTUITIVE PARKING ASSIST SETTING.................................. 277
ALERT VOLUME SETTING.............................. 277
DISPLAY ON/OFF SETTING ......................... 278
ALERT DISTANCE SETTING.......................... 278
1LEXUS PARKING ASSIST
MONITOR2INTUITIVE PARKING ASSIST
PERIPHERAL MONITORING SYSTEM

250
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR
LEXUS PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the view
behind the vehicle while backing up, for
example while parking.
INFORMATION
●
The screen illustrations used in this text
are intended as examples, and may differ
from the image that is actually displayed
on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backin g up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist mon-
itor.
WA R N I N G
●Never depend on the parking assist mon-
itor entirely when backing up. The image
and the position of the guide lines dis-
played on the screen may differ from the
actual state.
Use caution, just as you would when
backing up any vehicle.
●Be sure to back up slowly, depressing the
brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehi-
cle.
●The instructions given are only guidelines.
When and how much to turn the steering
wheel will vary according to traffic condi-
tions, road surface conditions, vehicle
condition, etc. when parking. It is neces-
sary to be fully aware of this before using
the parking assist system.
●When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.

251
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PERIPHERAL MONITORING SYSTEM
7

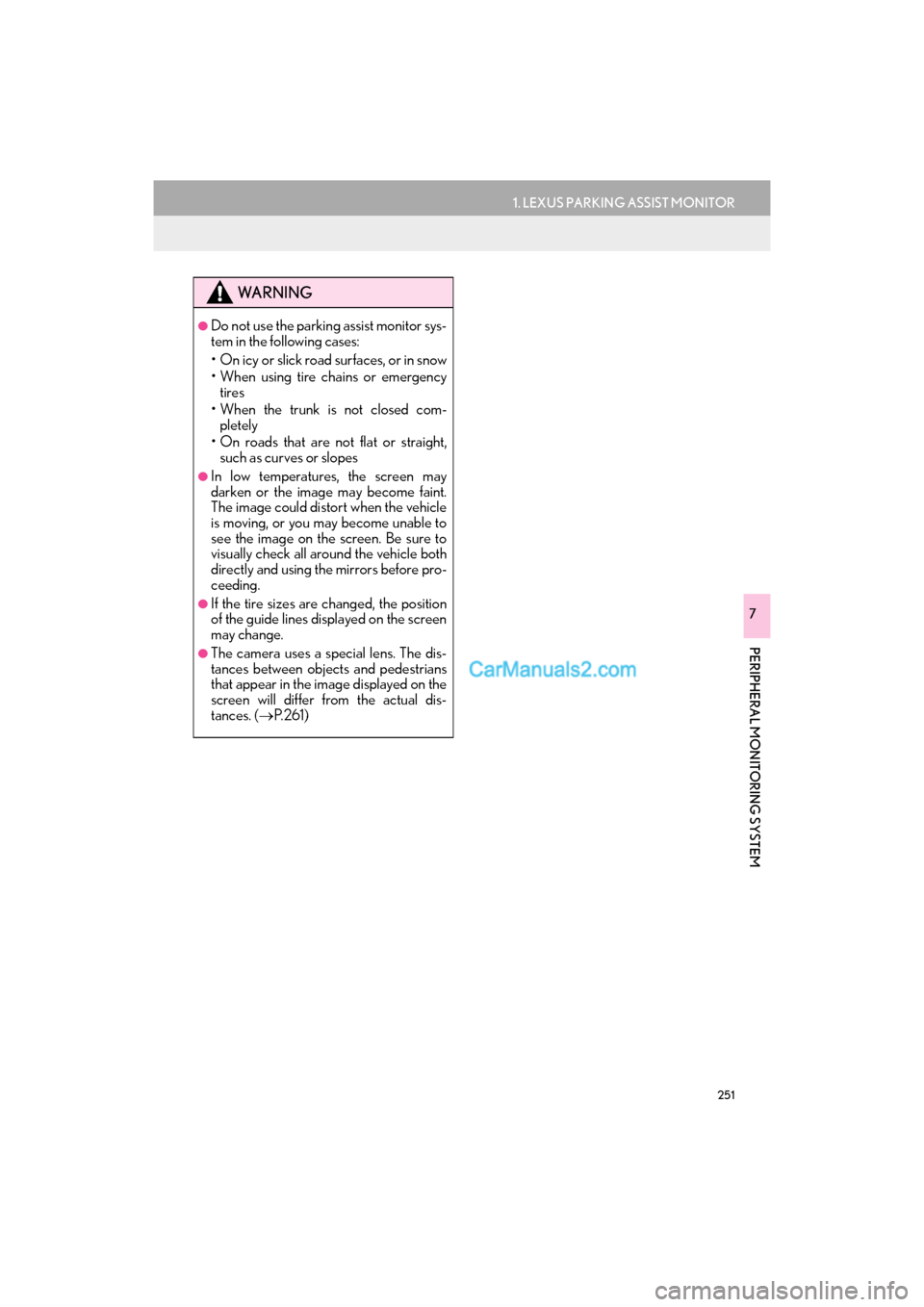

WA R N I N G
●Do not use the parking assist monitor sys-
tem in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or emergencytires
• When the trunk is not closed com- pletely
• On roads that are not flat or straight, such as curves or slopes
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehicle
is moving, or you may become unable to
see the image on the screen. Be sure to
visually check all around the vehicle both
directly and using the mirrors before pro-
ceeding.
●If the tire sizes are changed, the position
of the guide lines displayed on the screen
may change.
●The camera uses a special lens. The dis-
tances between objects and pedestrians
that appear in the image displayed on the
screen will differ from the actual dis-
tances. ( →P. 2 6 1 )

252
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
XIntuitive parking assist*
If an obstacle is detected while the intuitive parking assist is on, a display is shown in the
top right corner of the screen.
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the “R”
position while the engine switch is in IGNITION ON mode.
CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any position
other than the “R” position.
*: With 8-inch display

253
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PERIPHERAL MONITORING SYSTEM
7
XEstimated course line display mode
(→ P.255) X
Parking assist guide line display mode
(→ P.257)
X Distance guide line display mode
USING THE SYSTEM
Use any of the following modes.
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are displayed.

254
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1Press the “MENU” button.
2Select “Setup” .
3Select “Vehicle” .
4Select “Backup Camera Guide Line
Settings” .
5Select the display mode.SWITCHING THE DISPLAY
MODE
When the shift lever is in any position
other than “R”, the display mode can be
changed in the following procedure.
No.NameDetail
Estimated course
line display mode255
Parking assist
guide line display
mode257
Distance guide
line display modeDistance guide
lines only are
displayed.

255
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PERIPHERAL MONITORING SYSTEM
7
2. ESTIMATED COURSE LINE DISPLAY MODE
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
• These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShows an estimated course when the steering wheel is
turned.
Distance guide lines
Shows distance behind the vehicle when the steering
wheel is turned.
•The guide lines move in conjunction with the estimated
course lines.
• The guide lines display points approximately 1.5 ft. (0.5
m) (red) and approximately 3 ft. (1 m) (yellow) from the
center of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 1.5 ft. (0.5 m) (blue)
from the edge of the bumper.
Vehicle center guide lineThis line indicates the estima ted vehicle center on the
ground.
WA R N I N G
●If the steering wheel is straight and the vehicle width guide lines and the estimated course
lines are not in alignment, have the vehicle inspected by your Lexus dealer.

256
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1Shift the shift lever to the “R” position.
2Turn the steering wheel so that the esti-
mated course lines are within the park-
ing space, and back up slowly.
XParking space
Estimated course lines
3When the rear position of the vehicle
has entered the parking space, turn the
steering wheel so that the vehicle width
guide lines are within the left and right
dividing lines of the parking space.
XVehicle width guide line
4Once the vehicle width guide lines and
the parking space lines are parallel,
straighten the steering wheel and back
up slowly until the vehicle has complete-
ly entered the parking space.
5Stop the vehicle in an appropriate place,
and finish parking.
PARKING
When parking in a space which is in the
reverse direction to the space described
in the procedure below, the steering di-
rections will be reversed.

257
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PERIPHERAL MONITORING SYSTEM
7
3. PARKING ASSIST GUIDE LINE DISPLAY MODE
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Parking assist guide lines
Shows the path of the smallest turn possible behind the ve-
hicle.
•Shows the approximate position of the steering wheel
when parking.
Distance guide line
Shows distance behind the vehicle.
•Display points approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Vehicle center guide lineThis line indicates the estima ted vehicle center on the
ground.

258
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1Shift the shift lever to the “R” position.
2Back up until the parking assist guide
line meets the edge of the left-hand di-
viding line of the parking space.
XParking assist guide line
Parking space dividing line
3Turn the steering wheel all the way to
the right, and back up slowly.
4Once the vehicle is parallel with the
parking space, straighten the steering
wheel and back up slowly until the vehi-
cle has completely entered the parking
space.
5Stop the vehicle in an appropriate place,
and finish parking.
PARKING
When parking in a space which is in the
reverse direction to the space described
in the procedure below, the steering di-
rections will be reversed.
