Lexus GS350 2017 Navigation Manual

8
279
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1
2
3 4
5
6
7
8 9
10
1. QUICK REFERENCE ........................... 280
2. SOME BASICS ......................................... 281
REGISTERING/CONNECTING A Bluetooth® PHONE.......................................... 282
USING THE PHONE SWITCH/MICROPHONE ........................... 282
VOICE COMMAND SYSTEM...................... 283
ABOUT THE CONTACTS IN THE CONTACT LIST ................................................. 284
WHEN SELLING OR DISPOSING OF THE VEHICLE ..................................................... 284
3. CALLING ON THE Bluetooth®
PHONE.................................................... 285
BY FAVORITES LIST............................................ 286
BY CALL HISTORY ............................................. 286
BY CONTACTS LIST .......................................... 287
BY DIAL PAD .......................................................... 289
BY OFF HOOK SWITCH ................................. 290
4. RECEIVING ON THE Bluetooth®
PHONE..................................................... 291
INCOMING CALLS .............................................. 291
5. TALKING ON THE Bluetooth®
PHONE.................................................... 292
INCOMING CALL WAITING ....................... 294
6. Bluetooth® PHONE MESSAGE
FUNCTION............................................ 295
RECEIVING A MESSAGE ............................... 296
CHECKING MESSAGES .................................. 297
REPLYING TO A MESSAGE
(QUICK REPLY)................................................. 298
CALLING THE MESSAGE SENDER ......... 299
1. PHONE SETTINGS ................................ 300
“Sounds” SCREEN ................................................... 301
“Contacts/Call History” SCREEN .................. 302
“Messaging” SCREEN .......................................... 309
“Notifications” SCREEN ........................................ 310
1. TROUBLESHOOTING ......................... 312
1
PHONE OPERATION
(HANDS-FREE SYSTEM FOR
CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
PHONE

280
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The phone top screen can be reached by the following methods:
XUsing the steering wheel switches
Press the switch on the steering wheel.
XFrom the “Menu” screen
Press the “MENU” button on the Remote Touch, then select “Phone”.
FunctionPage
Phone operation
Registering/connecting Bluetooth® device44
Calling on the Bluetooth® phone285
Receiving on the Bluetooth® phone291
Talking on the Bluetooth® phone292
Message functionUsing the Bluetooth® phone message function295
Setting up a phonePhone settings300
Bluetooth® settings50

281
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PHONE
8
2. SOME BASICS
The hands-free system enables calls to
be made and received without having to
take your hands off the steering wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone is
explained here.
WA R N I N G
● While driving, do not use a cellular phone
or connect the Bluetooth® phone.
● Your audio unit is fitted with Bluetooth
®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Bluetooth
® antennas.
The radio waves may affect the operation
of such devices.
● Before using Bluetooth
® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves. Radio waves could have unex-
pected effects on the operation of such
medical devices.
NOTICE
● Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
●If your cellular phone does not support
Bluetooth®, this system cannot function.
● In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the com-
munication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
● When using Bluetooth
® audio and
hands-free system at the same time, the
following problems may occur:
• The Bluetooth
® connection may be cut.
• Noise may be heard on the Bluetooth
®
audio playback.

282
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
XGS 450h/GS 350/GS 200t
X GS F
Volume control switch
z Press the “+” switch to increase the volume.
z Press the “-” switch to decrease the vol-
ume.
Off hook switch
On hook switch
REGISTERING/
CONNECTING A Bluetooth®
PHONE
To use the hands-free system for cellular
phones, it is necessary to register a cel-
lular phone with the system. ( →P.44)
Bluetooth® PHONE
CONDITION DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. ( →P.16)
USING THE PHONE SWITCH/
MICROPHONE
STEERING SWITCH
By pressing the phone switch, a call can
be received or ended without taking
your hands off the steering wheel.

283
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PHONE
8XGS 450h/GS 350/GS 200t
X GS F
MICROPHONE
The microphone is used when talking on
the phone.
VOICE COMMAND SYSTEM
Press this switch to operate the voice
command system.
z The voice command system and its list of
commands can be operated. ( →P. 2 2 8 )
INFORMATION
●The other party’s voice will be heard from
the front speakers. The audio/visual sys-
tem will be muted during phone calls or
when hands-free voice commands are
used.
● Talk alternately with the other party on
the phone. If both parties speak at the
same time, the other party may not hear
what has been said. (This is not a malfunc-
tion.)
● Keep call volume down. Otherwise, the
other party’s voice may be audible out-
side the vehicle and voice echo may
increase. When talking on the phone,
speak clearly towards the microphone.
● The other party may not hear you clearly
when:
• Driving on an unpaved road. (Making
excessive traffic noise.)
• Driving at high speeds.
• The roof or windows are open.
• The air conditioning vents are pointed towards the microphone.
• The sound of the air conditioning fan is loud.
•There is a negative effect on sound quality due to the phone and/or network
being used.

284
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
zThe following data is stored for every regis-
tered phone. When an other phone is con-
nected, the following registered data
cannot be read:
• Contact data
• Call history data
•Favorites data
•Image data
• All phone settings
• Message settings z
The following data in the system can be ini-
tialized:
• Contact data
•Call history data
•Favorites data
• Image data
• All phone settings
• Message settings
ABOUT THE CONTACTS IN
THE CONTACT LIST
INFORMATION
●When a phone’s registration is deleted,
the above-mentioned data is also
deleted.
WHEN SELLING OR
DISPOSING OF THE VEHICLE
A lot of personal data is registered when
the hands-free system is used. When
selling or disposing of the vehicle, initial-
ize the data.
(→P. 6 6)
INFORMATION
● Once initialized, the data and settings will
be erased. Pay much attention when ini-
tializing the data.

285
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PHONE
8
3. CALLING ON THE Bluetooth® PHONE
1Press the “MENU” button on the
Remote Touch.
2Select “Phone”.
3Select the desired tab to call from.
zThe phone top screen can be displayed by
pressing the
switch on the steering
wheel.
After a Bluetooth® phone has been reg-
istered, a call can be made using the
hands-free system. There are several
methods by which a call can be made, as
described below.
How to make a call listPage
By favorites list286
By call history286
By contacts list*1287
By dial pad*1289
By e-mail/SMS/MMS299
By POI call*287
By off hook switch290
By LEXUS App Suite338
By voice command system234
By quick dial*2352
*
1: The operation cannot be performed while driving.
*
2: With 12.3-inch display

286
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1Display the phone top screen.
(→ P.285)
2Select the “Favorites” tab and select the
desired contact.
3Select the desired number.
4Check that the “Call” screen is dis-
played.
1Display the phone top screen.
( → P.285)
2Select the “Call History” tab and select
or the desired contact.
z The icons of call type are displayed.
: Missed call
: Incoming call
: Outgoing call
X When is selected
3Check that the “Call” screen is dis-
played.
X When the desired contact is selected
3Select the desired number.
4Check that the “Call” screen is dis-
played.
BY FAVORITES LIST
Calls can be made using registered con-
tacts which can be selected from a con-
tact list. ( →P.307)
BY CALL HISTORY
Up to 30 of the latest call history items
(missed, incoming and outgoing) can be
selected from the “Call History” tab.

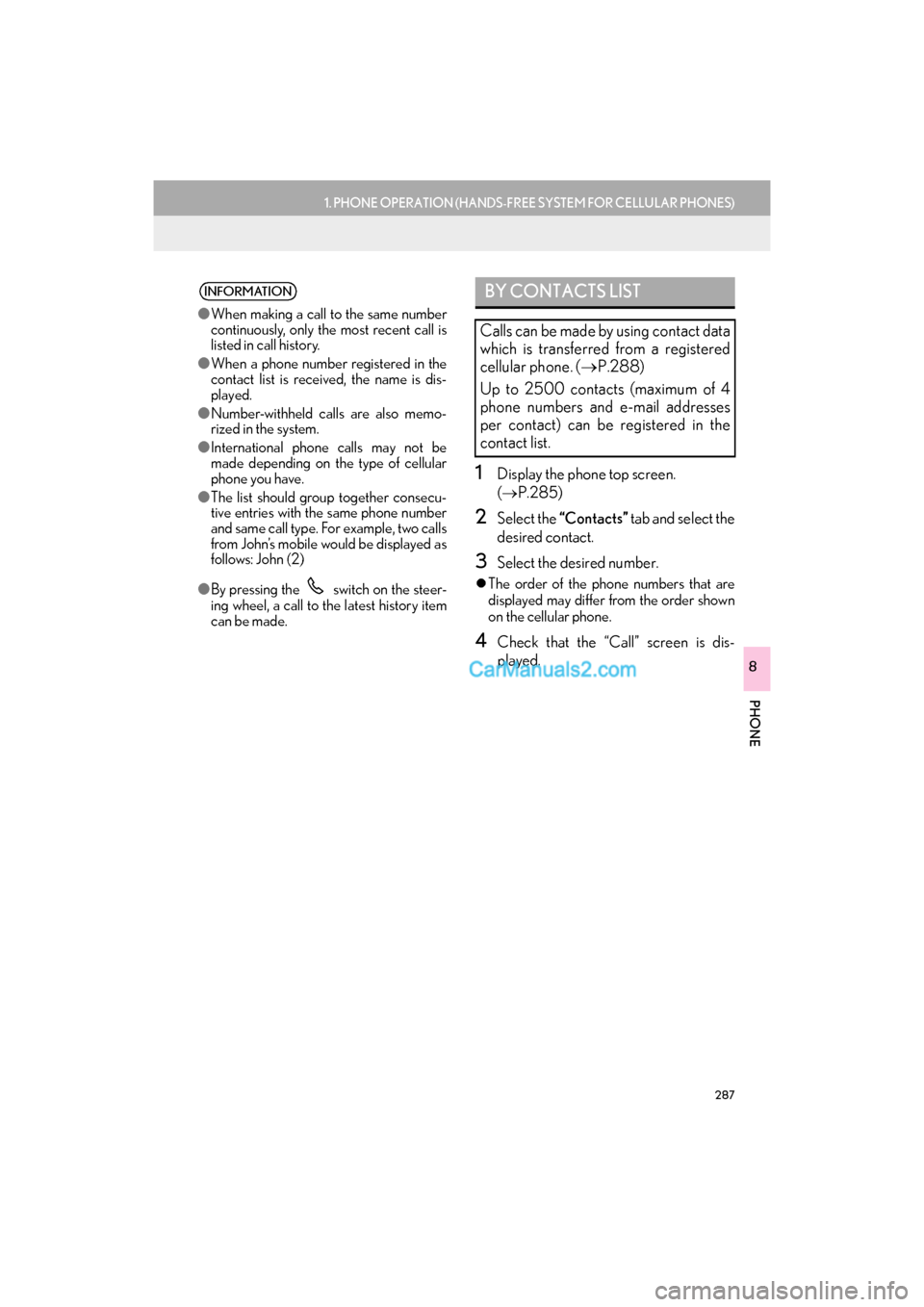

287
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PHONE
8
1Display the phone top screen.
(→ P.285)
2Select the “Contacts” tab and select the
desired contact.
3Select the desired number.
z The order of the phone numbers that are
displayed may differ from the order shown
on the cellular phone.
4Check that the “Call” screen is dis-
played.
INFORMATION
●When making a call to the same number
continuously, only the most recent call is
listed in call history.
● When a phone number registered in the
contact list is received, the name is dis-
played.
● Number-withheld calls are also memo-
rized in the system.
● International phone calls may not be
made depending on the type of cellular
phone you have.
● The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two calls
from John’s mobile would be displayed as
follows: John (2)
● By pressing the switch on the steer-
ing wheel, a call to the latest history item
can be made.
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. ( →P.288)
Up to 2500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.

288
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
■FOR PBAP COMPATIBLE
Bluetooth
® PHONES
X When “Automatic Transfer” is set to on
(→ P.302)
zContacts are transferred automatically.
X When “Automatic Transfer” is set to off
(→ P.302)
1Select the desired item.
2Check that a confirmation screen is dis-
played when the operation is complete.
■FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Select the desired item.
WHEN THE CONTACT IS
EMPTY
No.Function
Select to always transfer all the con-
tacts from a connected cellular
phone automatically.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.
No.Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.
