Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

AUDIO
280
G22004
Radio mode
G22067
Tape mode
G22052
Disc mode
G22062
Disc mode (for a Mark Levinson audio system)
The switches for radio, cassette tape and CD player or
DVD player (if a Mark Levinson audio system is installed)
operation are displayed on the liquid crystal display.
Touch them lightly and directly on the screen.

AUDIO
281
The selected switch is highlighted in green, or the bar on the
upper side is highlighted in yellow.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid
−range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid− range,
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.
G22004
Touching the “SOUND” switch on the screen displays the
sound adjustment screen.
G22007
BASS “+” or “–”: Adjusts low −pitched tones.
MID “+” or “–”: Adjusts mid− pitched tones.
TREB “+” or “–”: Adjusts high −pitched tones.
“FRONT” or “REAR”: Adjusts sound balance between the
front and rear speakers.
“L” or “R”: Adjusts sound balance between the left and right
speakers.
“OK”: The previous screen returns.

AUDIO
282(c) DSP control
G22008
To display the DSP control mode, touch the “DSP” switch
displayed on the audio control mode screen. You can turn
on/off the automatic sound levelizer
, or select the position
on the DSP screen.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to be heard due to
road noise, wind noise, etc. during driving, touch the “ASL”
switch. The system adjusts to the optimum volume and tone
quality according to the noise level.
When the system is on, the sound adjustment level is
displayed on the screen. Positioning selector:
By selecting the listening position, the system controls the
output timing of the speakers to allow sound to be heard
evenly, creating the ideal music environment.
Touching “CHANGE” the position switches in the following
order; all seats, driver’s seat, front seats and rear seats.
The POSITION currently selected is displayed on the screen.

AUDIO
283

If a Mark Levinson brand audio system is installed:
G22066
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to be heard due to
road noise, wind noise, etc. during driving, touch the “ASL”
switch. The system adjusts to the optimum volume and tone
quality according to the noise level.
When the system is on, the sound adjustment level is
displayed on the screen.
SURROUND:
If you touch “SURROUND”, surround sound will be enabled. (d) Your radio antenna
The wire antenna is mounted inside the rear window.
NOTICE

When cleaning the inside of the rear window, be
careful not to scratch or damage the wire antenna.
 Putting a window tint (especially, conductive or
metallic type) on the rear window may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.
(e) Your cassette player
When you insert a cassette, the exposed tape should be to the
right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.

AUDIO
284(f) Your automatic changer
G22046
This
vehicle is equipped with an automatic changer which can
store up to 6 discs, and play selected discs or continuously play
all the discs set in the player.
When you insert discs into the player, make sure their labels
face upward. If the disc is inserted incorrectly, the player will
display “CD CHECK” or “DISC CHECK”.
NOTICE
 Never try to disassemble or oil any part of the CD
player or DVD player. Do not insert anything except
a disc into the slot.
 Do not insert a disc upon another one, or it will
damage to the automatic changer. Insert only one
disc into the slot at a time.
Your CD player or DVD player is intended for use with 12 cm
(4.7 in.) discs only.
Radio operation
(a) Listening to the radio
G22009
Push “AM (AM·SAT)” or “FM” button to choose either an
AM or FM band.
The “AM”, “FM1” or “FM2” screen appears on the display\
.
If your vehicle is equipped with satellite radio broadcast
system, when you push the “AM·SAT” button, “AM”,
“SAT1”, “SAT2” or “SAT3” station appears on the display. For
details about satellite radio broadcast, see “Radio operation
(XM satellite radio broadcast)” on page 289

AUDIO
285
G22010
Turn this knob to step up or down the frequency.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.(b) Presetting a station
G22004
1. Tune in the desired station.
2. Touch one of the station selector switches (16) and
hold it until a beep is heard. This sets the station to the
switch and the frequency appears on the switch.
Each switch can store AM, FM1 and FM2. To change the
preset station to a different one, follow the same procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.

AUDIO
286(c) Selecting a station
Your Lexus has an electronic tuning radio (ETR). Tune in the
desired station using one of the following methods.
G22073
Preset tuning:
Touch the switch (1− 6) or push the “CH DISC
” or “ ” button for the station you want. The switch (1 −6)
is highlighted in green and station frequency appears on the
display.
Manual tuning: Turn the “TUNE” knob briefly. When you turn
the knob, the radio will step up or down to another frequency.
Seek tuning: Push the “SEEK TRACK
” or “ ” button.
The radio will begin seeking up or down for a station of the
nearest frequency and will stop on reception. Each time you
push the button, the stations will be searched out one after
another.
G22021
Scan tuning:Push the “SCAN” button. “SCAN” appears on
the display. The radio will find the next station up or down the
band, stay there for a few seconds, and then scan again. To
select a station, push the “SCAN” button a second time.
Preset scan tuning: Push the “SCAN” button and hold it until
you hear a beep. “P. SCAN” appears on the display. The radio
will tune in the next preset station up or down the band, stay
there for a few seconds, and then move to the next preset
station. To select a station, push the “SCAN” button a second
time.

AUDIO
287

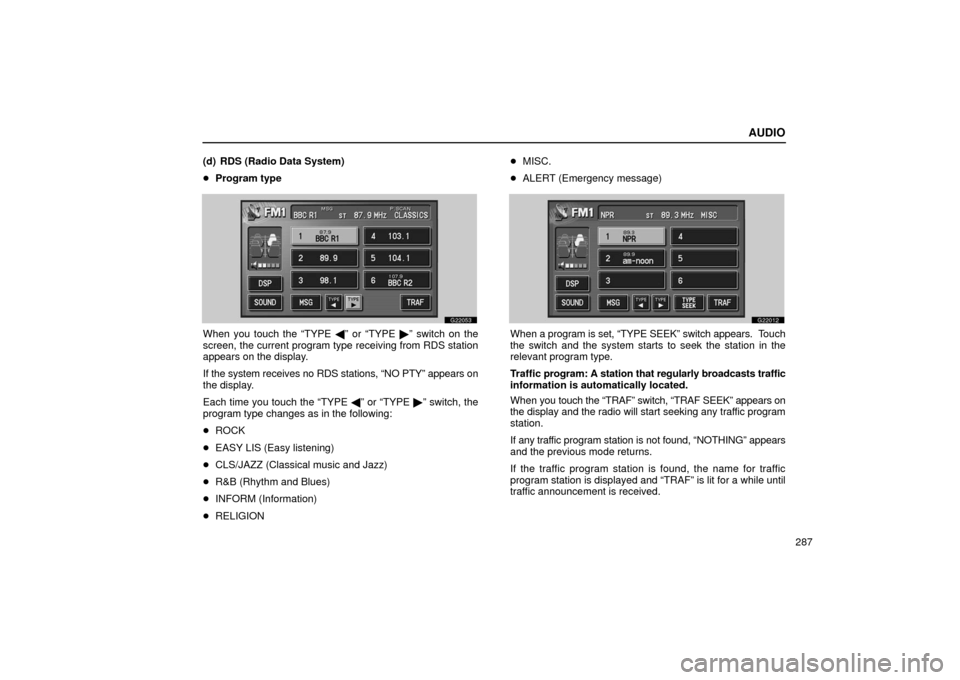

(d) RDS (Radio Data System)

Program type
G22053
When you touch the “TYPE ” or “TYPE ” switch on the
screen, the current program type receiving from RDS station
appears on the display.
If the system receives no RDS stations, “NO PTY” appears on
the display.
Each time you touch the “TYPE ” or “TYPE ” switch, the
program type changes as in the following:
 ROCK
 EASY LIS (Easy listening)
 CLS/JAZZ (Classical music and Jazz)
 R&B (Rhythm and Blues)
 INFORM (Information)
 RELIGION
MISC.
 ALERT (Emergency message)
G22012
When a program is set, “TYPE SEEK” switch appears. Touch
the switch and the system starts to seek the station in the
relevant program type.
Traffic program: A station that regularly broadcasts traffic
information is automatically located.
When you touch the “TRAF” switch, “TRAF SEEK” appears on
the display and the radio will start seeking any traffic program
station.
If any traf fic program station is not found, “NOTHING” appears
and the previous mode returns.
If the traffic program station is found, the name for traffic
program station is displayed and “TRAF” is lit for a while until
traffic announcement is received.

AUDIO
288
Radio text
G22004
If the system receives a radio text from RDS station, “MSG”
appears on the display. Touch the “MSG” switch, and a text
message is displayed on the screen.
G22013
In case a text message is not accepted in a screen, you can
touch the “MSG” switch and hold it to display the rest of the
message.
When the system can show the station name, “RDS” appears
on the display. Each time you touch the “MSG” switch,
indication on the display changes from the band to the station
name, a radio text in this order. After six seconds passes,
indication returns to the band.

AUDIO
289
Radio operation (XM satellite radio broadcast)
To listen to a satellite radio broadcast in your vehicle, an
additional genuine Lexus satellite receiver and antenna must
be purchased and installed, and the subscription to the XM
satellite radio is necessary.
(a) How to subscribe to an XM satellite radio
An XM satellite radio is a tuner designed exclusively to receive
broadcasts provided under a separate subscription.
Availability is limited to the 48 contiguous states.
How to subscribe:
You must enter into a separate service agreement with the XM
radio in order to receive satellite broadcast programming in the
vehicle. Additional activation and service subscription fees
apply that are not included in the purchase price of the vehicle
and optional digital satellite tuner. For complete information on
subscription rates and terms, or to subscribe to the XM radio,
visit XM on the web at www.xmradio.com
or call an XM’s
Listener Care at (800) 852 −9696. The XM radio is solely
responsible for the quality, availability and content of the
satellite radio services provided, which are subject to the terms
and conditions of the XM radio customer service agreement. Customers should have their radio ID ready; the radio ID can
be found by selecting the “channel 000” on the radio. For
details, see the “Displaying the radio ID” that follows.
All fees and programming are the responsibility of the XM
satellite radio and are subject to change.
Satellite tuner technology notice:
Lexus satellite radio tuners are awarded Type Approval
Certificates
from XM Satellite Radio Inc. on “October 14, 2004”
as proof of compatibility with the services offered by the XM
satellite radio.
(b) Displaying the radio ID
Each XM tuner is identified with a unique radio ID. You will
need the radio ID when activating XM service or when
reporting a problem.
If you select the “CH 000” using the “TUNE” knob, the ID code
of 8 alphanumeric characters appears. If you select another
channel, display of the ID code is canceled. The channel (000)
alternates the display between the radio ID and the specific
radio ID code.
