Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

AUDIO
290(c) Listening to the satellite radio

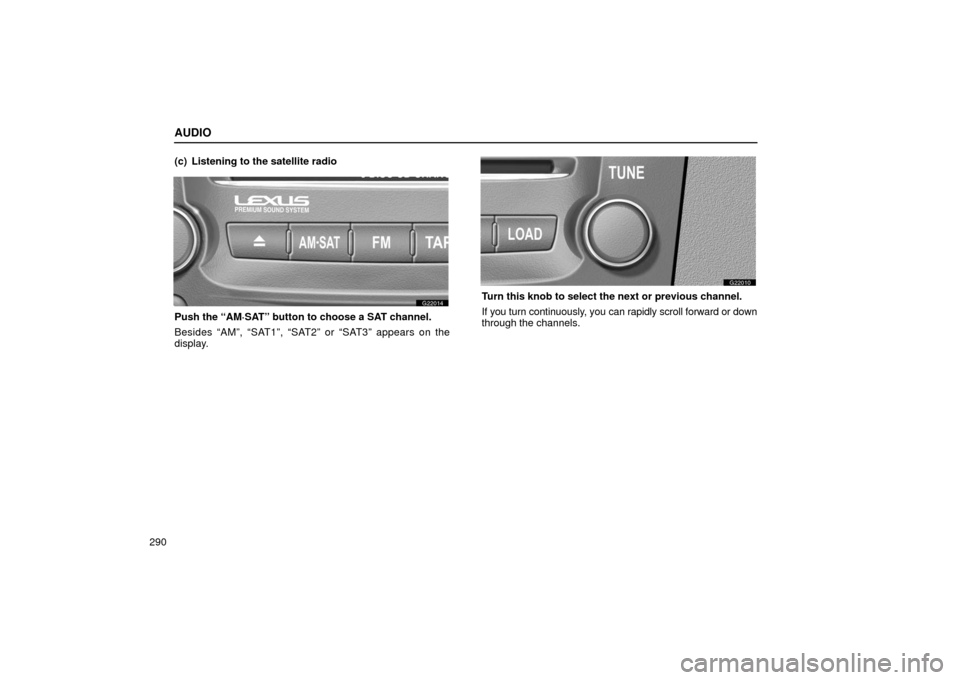

G22014
Push the “AM·SAT” button to choose a SAT channel.
Besides “AM”, “SAT1”, “SAT2” or “SAT3” appears on the
display.
G22010
Turn this knob to select the next or previous channel.
If you
turn continuously, you can rapidly scroll forward or down
through the channels.

AUDIO
291
(d) Presetting a channel

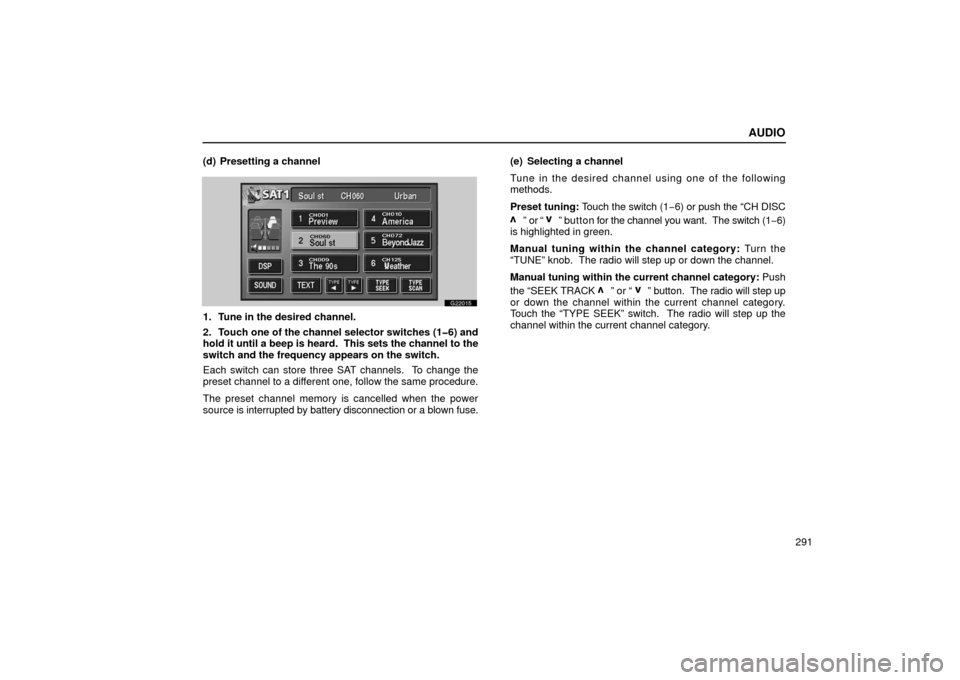

G22015
1. Tune in the desired channel.
2. Touch one of the channel selector switches (16) and
hold it until a beep is heard. This sets the channel to the
switch and the frequency appears on the switch.
Each switch can store three SAT channels. To change the
preset channel to a different one, follow the same procedure.
The preset channel memory is
cancelled when the power
source is interrupted by battery disconnection or a blown fuse. (e) Selecting a channel
Tune in the desired channel using one of the following
methods.
Preset tuning:
Touch the switch (1− 6) or push the “CH DISC
” or “ ” bu t t o n for the channel you want. The switch (1− 6)
is highlighted in green.
Manual tuning within the channel category: Turn the
“TUNE” knob. The radio will step up or down the channel.
Manual tuning within the current channel category: Push
the “SEEK TRACK
” or “ ” button. The radio will step up
or down the channel within the current channel category.
Touch the “TYPE SEEK” switch. The radio will step up the
channel within the current channel category.

AUDIO
292
G22016
To scan the currently selected channel category: Touch the
“TYPE SCAN” switch or push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
channel in the same channel category, stay there for a few
seconds, and then scan again. To select a channel, push the
“SCAN” button a second time.
To scan the preset channels: Touch the “TYPE SCAN”
switch or push the “SCAN” button and hold it until you hear a
beep. “P.SCAN” appears on the dis play. The radio will find the
next preset channel, stay there for a few seconds, and then
move to the next preset channel. To select a channel, push the
“SCAN” button a second time. (f) Channel category
G22017
Touch
either “TYPE” or “TYPE ” switch to switch to the next
or previous category.

AUDIO
293
(g) Displaying the title and name
G22018
When
you touch the “TEXT” switch, the song/program title and
the artist name/feature are displayed.
Up to 10 alphanumeric characters can be displayed. (Some
information will not be fully displayed.)

AUDIO
294(h) If the satellite radio tuner malfunctions
When
problems occur with the XM tuner, a message will appear on the display. Referring to the table below to identify the problem,
take the suggested corrective action.
ANTENNA
The XM antenna is not connected. Check whether the XM antenna cable is \
attached securely.
A short−circuit occurs in the antenna or the surrounding antenna cable. See a L\
exus certified
dealer.
UPDATING
You have not subscribed to the XM satellite radio. The radio is being up\
dated with the latest
encryption code. Contact the XM satellite radio for subscription inform\
ation. When a contact is
canceled, you can choose the “CH000” and all free −to− air channels.
The premium channel you selected is not authorized. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it does not change\
automatically, select another
channel. If you want to listen to the premium channel, contact the XM s\
atellite radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your vehicle reaches a location
with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit has received the
information.
OFF AIRThe channel you selected is not broadcasting any programming. Select an\
other channel.
−−−−−There is no song/program title or artist name/feature associated with th\
e channel at that time.
No action needed.
−−−
The channel you selected is no longer available. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it does not change\
automatically, select another
channel.
The XM Listener Care Center is also available on the phone, please call \
(800) 852 −9696 during the following hours:
Monday – Saturday: 7 a.m. – 1 a.m. Sunday: 12 p.m – 12 a.m.

AUDIO
295
NOTICE
This equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
Information to user
Alternation or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment.

AUDIO
296
NOTICE
This XM tuner supports “Audio Services” (Music and
Talk) of only XM satellite radio and “Text Information”,
linked to the respective “Audio Services”.
*Text Information includes, Station Name, (Artist)
Name, (Song) Title and Category Name.
Cassette tape player operation
(a) Playing a cassette tape

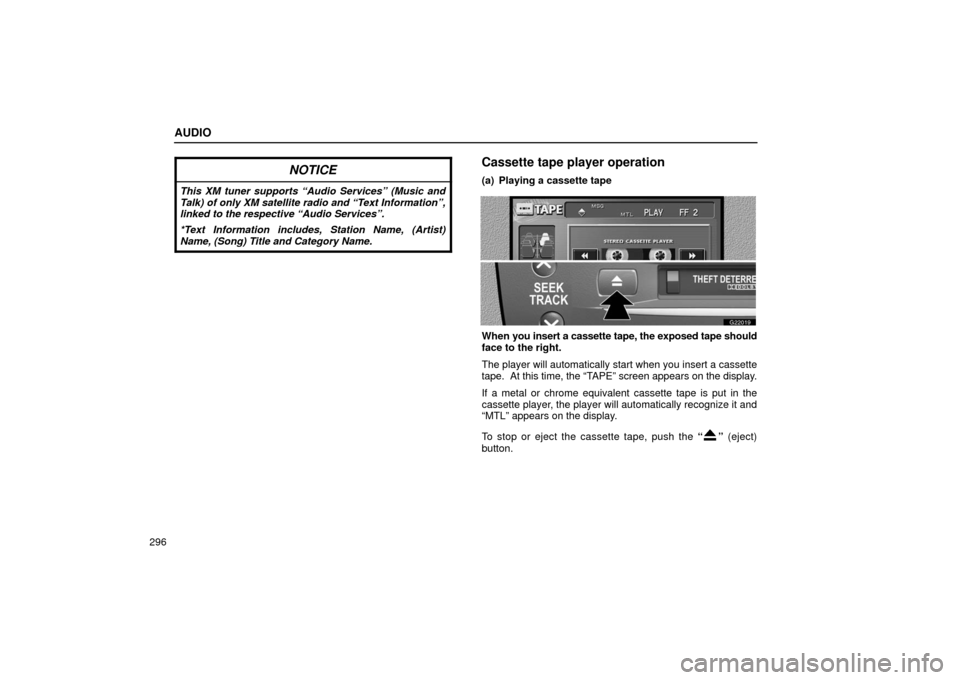

G22019
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, the “TAPE” screen appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
“MTL” appears on the display.
To stop or eject the cassette tape, push the “
” (eject)
button.

AUDIO
297

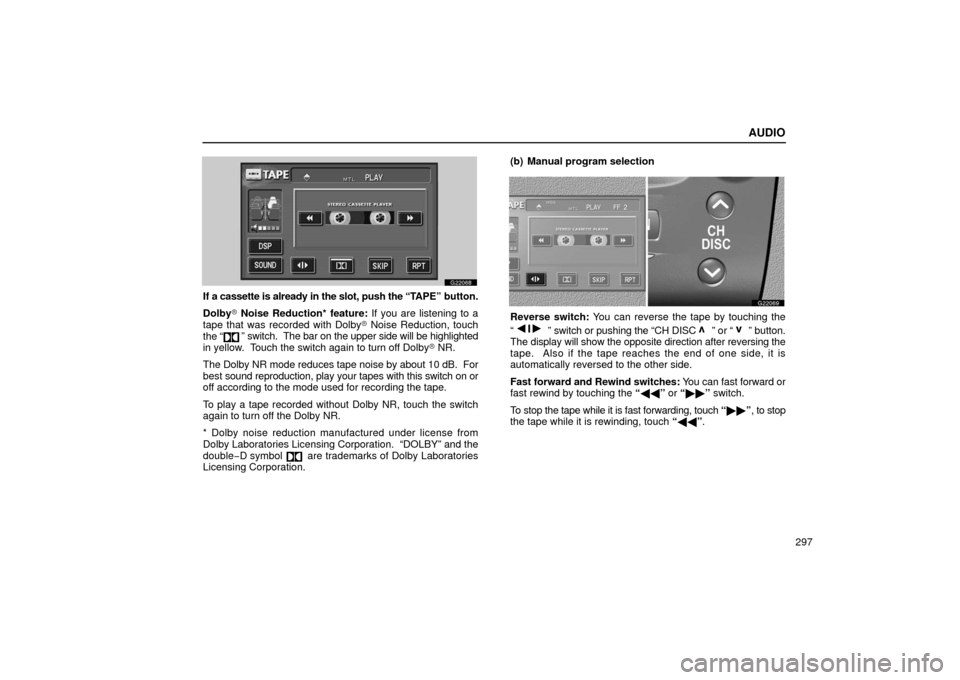

G22068
If a cassette is already in the slot, push the “TAPE” button.
Dolby Noise Reduction* feature: If you are listening to a
tape that was recorded with Dolby  Noise Reduction, touch
the “
” switch. The bar on the upper side will be highlighted
in yellow. Touch the switch again to turn off Dolby  NR.
The Dolby NR mode reduces tape noise by about 10 dB. For
best sound reproduction, play your tapes with this switch on or
off according to the mode used for recording the tape.
To play a tape recorded without Dolby NR, touch the switch
again to turn off the Dolby NR.
* Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double −D symbol
are trademarks of Dolby Laboratories
Licensing Corporation. (b) Manual program selection
G22069
Reverse switch: You can reverse the tape by touching the
“ ” switch or pushing the “CH DISC ” or “ ” button.
The display will show the opposite direction after reversing the
tape. Also if the tape reaches the end of one side, it is
automatically reversed to the other side.
Fast forward and Rewind switches: You can fast forward or
fast rewind by touching the “ ” or “ ” switch.
To stop the tape while it is fast forwarding, touch “ ”, to stop
the tape while it is rewinding, touch “ ”.

AUDIO
298If a tape rewinds completely, the cassette player will stop and
then
play the same side. If a tape fast forwards completely, the
cassette player will play the other side of the tape using the
auto−reverse feature.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding. (c) Automatic program selection
G22070
“RPT” switch: The repeat feature automatically replays the
current program.
Touch
the “RPT” switch while the program is playing. When the
program ends, it will automatically be rewound and replayed.
Touch the switch again to turn off the repeat feature.
There must be at least 3 seconds of blank space between
programs for the repeat feature to work correctly.
“SKIP” switch: The skip feature allows you to fast forward
past long stretches of blank tape. This is especially useful at
the end of cassettes.
Touch the “SKIP” switch. The player will automatically skip any
blank portions of 15 seconds or more and play the next
program. To cancel it, touch the switch once again.

AUDIO
299

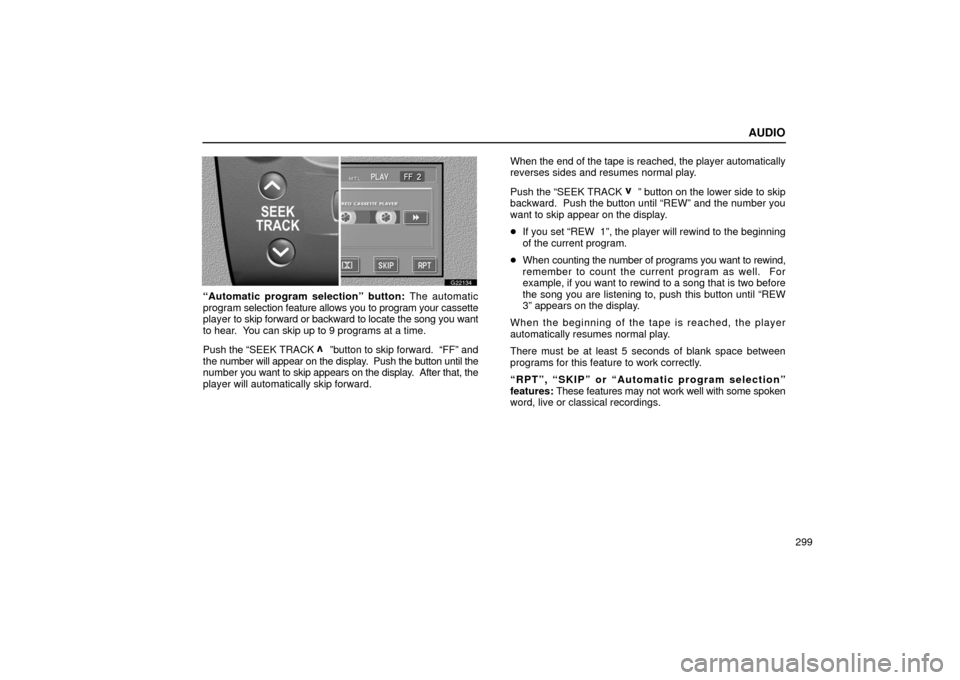

G22134
“Automatic program selection” button: The automatic
program selection feature allows you to program your cassette
player to skip forward or backward to locate the song you want
to hear. You can skip up to 9 programs at a time.
Push the “SEEK TRACK
”button to skip forward. “FF” and
the number will appear on the display . Push the button until the
number you want to skip appears on the display. After that, the
player will automatically skip forward. When the
end of the tape is reached, the player automatically
reverses sides and resumes normal play.
Push the “SEEK TRACK
” button on the lower side to skip
backward. Push the button until “REW” and the number you
want to skip appear on the display.
 If you set “REW 1”, the player will rewind to the beginning
of the current program.
 When counting the number of programs you want to rewind,
remember to count the current program as well. For
example, if you want to rewind to a song that is two before
the song you are listening to, push this button until “REW
3” appears on the display.
When the beginning of the tape is reached, the player
automatically resumes normal play.
There must be at least 5 seconds of blank space between
programs for this feature to work correctly.
“RPT”, “SKIP” or “Automatic program selection”
features: These features may not work well with some spoken
word, live or classical recordings.
