Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

AUDIO
310(b) Playing a disc
G22050
Push the “DISC” button if discs are already loaded in the
player.
The “DVD CHANGER” screen appears on the display.
The discs set in the player are played continuously, starting
with the last disc you inserted. The disc number of the disc
currently
being played, the track number and the time from the
beginning of the program are shown on the display.
When play of one disc ends, the first track of the following disc
starts. When play of the final disc ends, play of the first disc
starts again.
The player will skip any empty disc trays. (c) Selecting a desired disc
G22114
On the screen: Touch the desired disc number.
The selected disc number is highlighted in green.
The player will start playing the selected disc from the first
track.
On the audio panel: Push the
“CH DISC
” o r “ ” button.
When you release the button, the player will start playing the
selected disc from the first track.

AUDIO
311
(d) Operating an audio CD
Playing an audio CD—
G22062
Push the
“AUDIO” button to display this screen. You can
operate the switches and choose the number of the disc
you want to play. The selected disc is automatically
played. Selecting a desired track—
G22112
“SEEK TRACK” button:
Use for direct access to a desired
track.
Push the “SEEK TRACK
” or “ ” button and hold it until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
Fast forward: Touch the “
” switch and hold it to fast forward
the disc. When you release the switch, the player will resume
playing from that position.
Reverse: Touch the “
” switch and hold it to reverse the disc.
When you release the switch, the player will resume playing.

AUDIO
312Searching for a desired track or a disc—
G22061
Touch the “SCAN” switch.
The bar on the upper side will be highlighted in yellow. The
player
will play the next track for 10 seconds, then scan again.
To select a track, touch the “SCAN” switch a second time. If
the player reaches the end of the disc, it will continue scanning
at track 1.
After all the tracks are scanned in one pass, normal play
resumes.
Touch the “DISK SCAN” switch.
The bar on the upper side will be highlighted in yellow. The
program at the beginning of each disc will be played for 10
seconds. To continue listening to the program of your choice,
touch the “DISC SCAN” switch a second time.
After all the audio disc are scanned in one pass, normal play
resumes. Other functions—
G22111
“RPT”
switch: Use it for automatic repeat of the track you are
currently listening to.
Touch the switch while the track is playing. When the track is
finished, the player will automatically go back to the beginning
of the track and play the track again. To cancel it, touch the
switch once again.
“DISC RPT” switch: Use it for automatic repeat of the disc
you are currently listening to.
Touch the switch while the disc is playing. When the disc is
finished, the player will automatically go back to the beginning
of the disc and play the disc again. To cancel it, touch the
switch once again.
“RAND” switch: Use it for automatic and random selection
of the disc which you are currently listening to.

AUDIO
313
When the switch is touched, the system selects a track in the
disc
you are currently listening to. To cancel it, touch the switch
once again.
“DISC RAND” switch: Use it for automatic track selection for
all the audio discs and play by the system.
When the switch is touched, the system selects a track in all
the audio discs which are set and plays it. To cancel it, touch
the switch once again.
“TITLE” switch: Use it for displaying the disc title and track
title while the CD −TEXT disc is playing.
G22079
Up to 29 letters can be displayed. “NO TITLE” is displayed
while the CD− TEXT disc is not playing. To cancel it, touch the
“TITLE OFF” switch.

AUDIO
314(e) Operating a DVD video disc
NOTE: The playback condition of some DVD video discs
may be determined by a DVD video software producer.
This DVD player plays a disc as the software producer
intended. So some functions may not work properly. Be
sure to
read the instruction manual for the DVD video disc
separately provided. For the detailed information about
DVD video discs, see “(h) DVD player and DVD video disc
information”
Precautions on DVD video disc
When recording with a DVD video or video CD, audio tracks
may not record in some cases while the menu is displayed. As
audio will not play in this case, verify that the video tracks are
playing and then activate playback.
When playback of a disc is completed:
If an audio CD is playing, the next CD will be selected and
playback will begin automatically.
If a DVD video or video CD is playing, playback will stop or
the menu screen will be displayed. The next disc will not
play back automatically. (Audio tracks cannot be heard
while the disc is stopped)
The title/chapter number and playback time display may not
appear while playing back certain DVD video discs.
CAUTION
Conversational speech on some DVDs is recorded at a
low volume to emphasize the impact of sound effects.
If you adjust the volume assuming that the
conversations represent the maximum volume level
that the DVD will play, you may be startled by louder
sound effects or when you change to a different audio
source. The louder sounds may have a significant
impact on the human body or pose a driving hazard.
Keep this in mind when you adjust the volume.

AUDIO
315
G22117
The “DVD Hint !” screen appears when the video screen
is first displayed after you select the engine switch in
“ACC” or “IGON” mode.
Touch the “OK” switch when you read the message.Playing a DVD video disc—
G22064
Push the
“AUDIO” button to display this screen. You can
operate the switches and choose the number of the disc
you want to play. The selected disc is automatically
played.
When you touch the “WIDE MODE” switch, the screen mode
can be changed.
When you touch the “PICTURE ” switch, the video screen
returns.

AUDIO
316Displaying operation switches—
G22033
G22034
If you touch a part of the sc
reen, where switches are not
located while you are watching video, DVD video operation
switches will appear. “Page 2” switch: Use this switch to display the operation
switches on the second page.
“Page 1” switch: Use this switch to display the operation
switches on the top page.
“Hide Buttons” switch:
Use this switch to turn off the
operation switches from the display.
If “
” appears on the display when you touch a switch, the
operation relevant to the switch is not permitted.

AUDIO
317
Description of each switch—
Switches on top page
“Menu” and “Top Menu” switches: If you touch any of the
above switches, the menu screen for DVD video appears. (For
the operation, see the manual that come with the DVD video
disc provided separately.)
“
” switch: The menu control key appears on the screen.
(See page 318.)
“
” switch: Use this switch to pause the video screen.
When you touch this switch again, the video screen advances
frame by frame.
“ ” switch: Touch this switch to fast reverse during
playback and reverse slowly during pause.
“  ” switch: Use this switch to resume normal play after stop
or pause.
“  ” switch: Touch this switch to fast forward during
playback and forward slowly during pause.
Switches on second page
“Set Up” switch: The initial setup screen appears. (See page
320.)
“Search” switch: The title search screen appears. (See
page 318.)
“Return” switch: Use this switch to display the
predetermined scene and start playing from there.
“Audio” switch: The audio changing screen appears. (See
page 319.)
“Sub Title” switch: The subtitle changing screen appears.
(See page 319.)
“Angle” switch: The angle selection screen appears. (See
page 320.)

AUDIO
318Selecting a menu item—
G22035
Enter
the menu item using “ \f”, “ ”, “
” or “ ” switches
and touch “Enter”. The p layer starts playing video for that
menu item. (For details, see the manual that comes with
the DVD video disc provided separately.)
Each time you touch“Move Buttons” switch, the switches
on the screen move upward and downward.
When you touch “OFF” switch, the displayed switches are not
displayed. To display them again, touch “ON” switch.
Touch “Back”, and the previous screen returns. Searching by title—
G22036
Enter the title number using “–”, “+” and “+10” swi\
tches
and touch “Enter”. The player starts playing video for that
title number.
When you push “SEEK TRACK
” or “ ” button, you can
select a chapter.
Touch “Back”, and the previous screen returns.

AUDIO
319

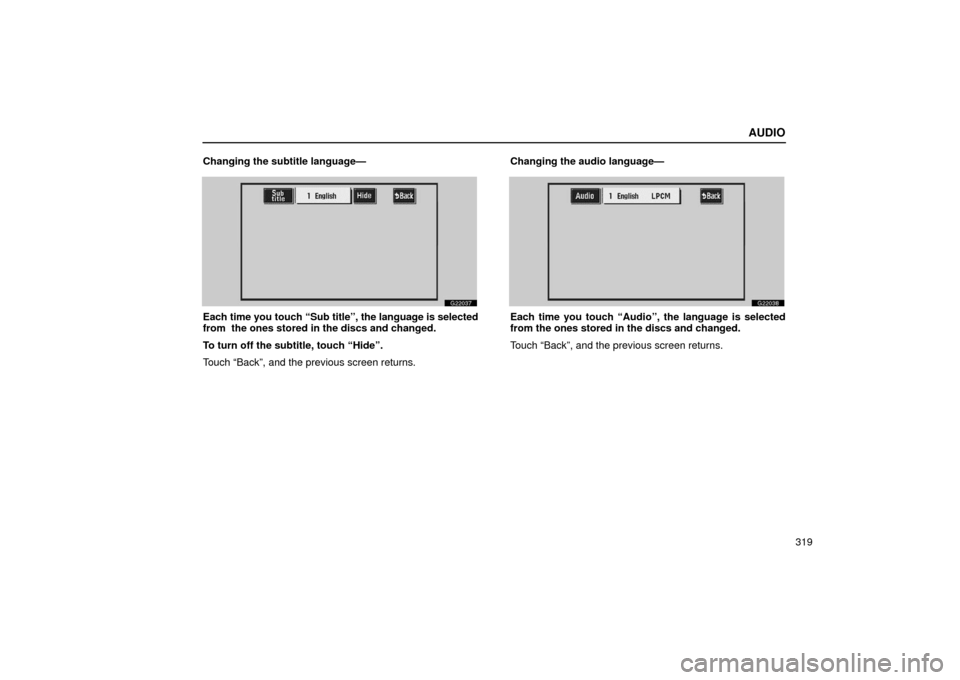

Changing the subtitle language—
G22037
Each time you
touch “Sub title”, the language is selected
from the ones stored in the discs and changed.
To turn off the subtitle, touch “Hide”.
Touch “Back”, and the previous screen returns. Changing the audio language—
G22038
Each time you touch “Audio”, the language is selected
from the ones stored in the discs and changed.
Touch “Back”, and the previous screen returns.
