69
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm

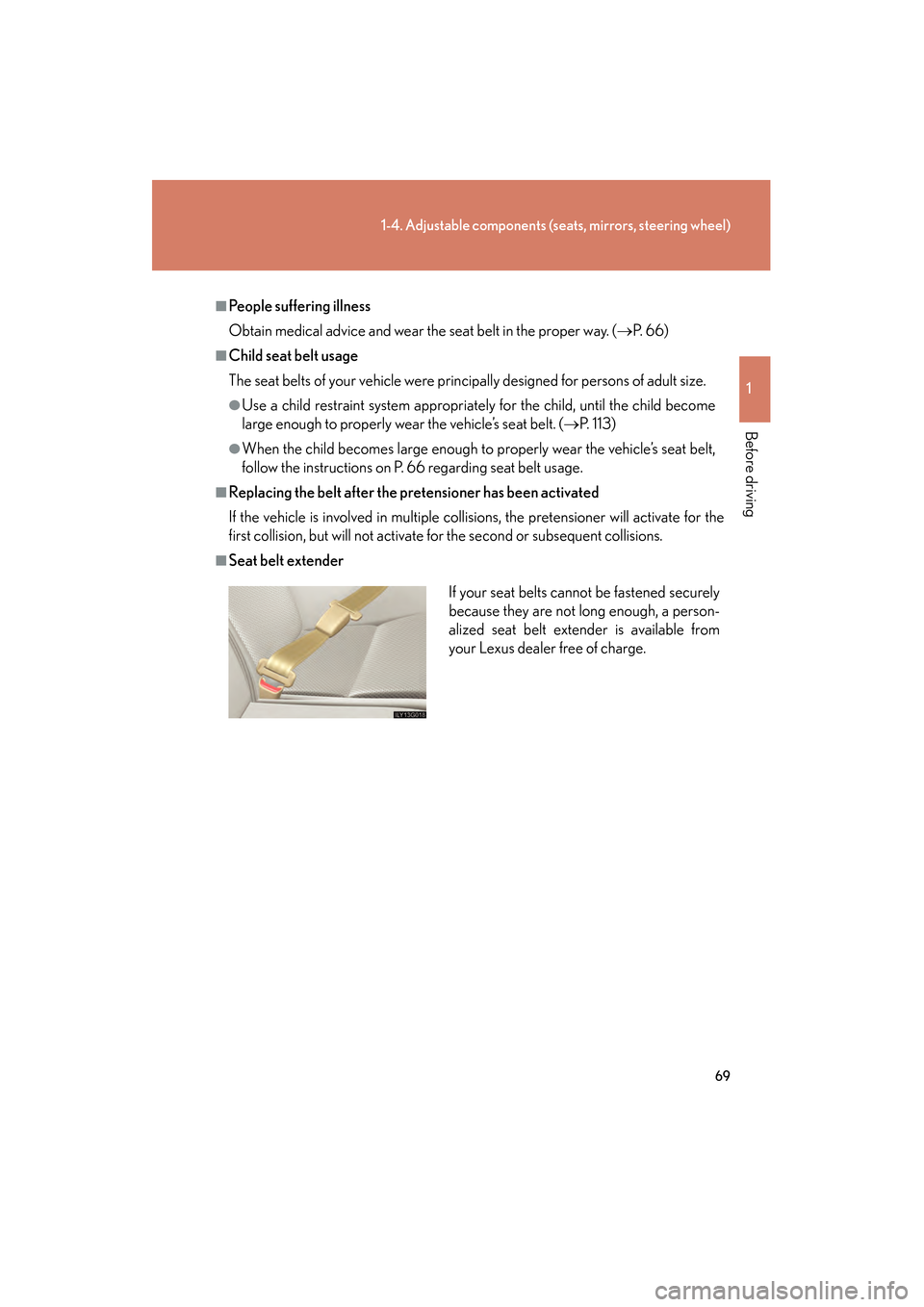

■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 66)
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriately for the child, until the child become
large enough to properly wear the vehicle’s seat belt. ( →P. 113)
●When the child becomes large enough to properly wear the vehicle’s seat belt,
follow the instructions on P. 66 regarding seat belt usage.
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.
GS450h_HV_U.book Page 69 Thursday, June 19, 2008 1:44 PM

70
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking or an accident. Failing to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at the same time, including children.
●Lexus recommends that children should be seated in the rear seat and always use
a seat belt and/or an appropriate child restraint system.
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in a collision. ( →P. 6 7 )
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the seat belt becomes locked: it cannot be fur-
ther extended, nor will it return to the stowed position. The seat belt cannot be
used again and must be replaced at your Lexus dealer.
GS450h_HV_U.book Page 70 Thursday, June 19, 2008 1:44 PM

71
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm

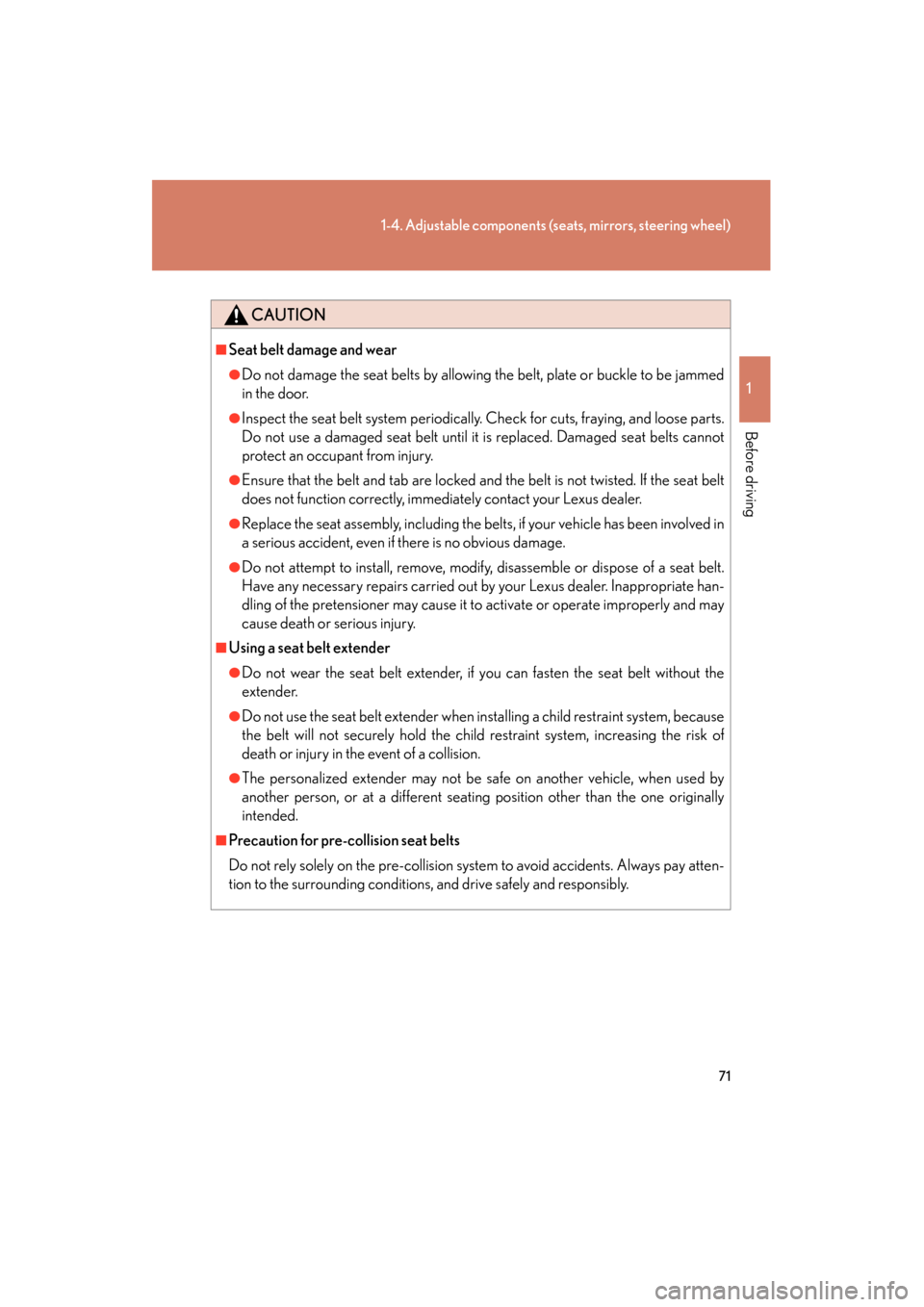

CAUTION
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from injury.
●Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt
does not function correctly, immediately contact your Lexus dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of a seat belt.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may cause it to activate or operate improperly and may
cause death or serious injury.
■Using a seat belt extender
●Do not wear the seat belt extender, if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system, because
the belt will not securely hold the child restraint system, increasing the risk of
death or injury in the event of a collision.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
■Precaution for pre-collision seat belts
Do not rely solely on the pre-collision system to avoid accidents. Always pay atten-
tion to the surrounding conditions, and drive safely and responsibly.
GS450h_HV_U.book Page 71 Thursday, June 19, 2008 1:44 PM

72
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm

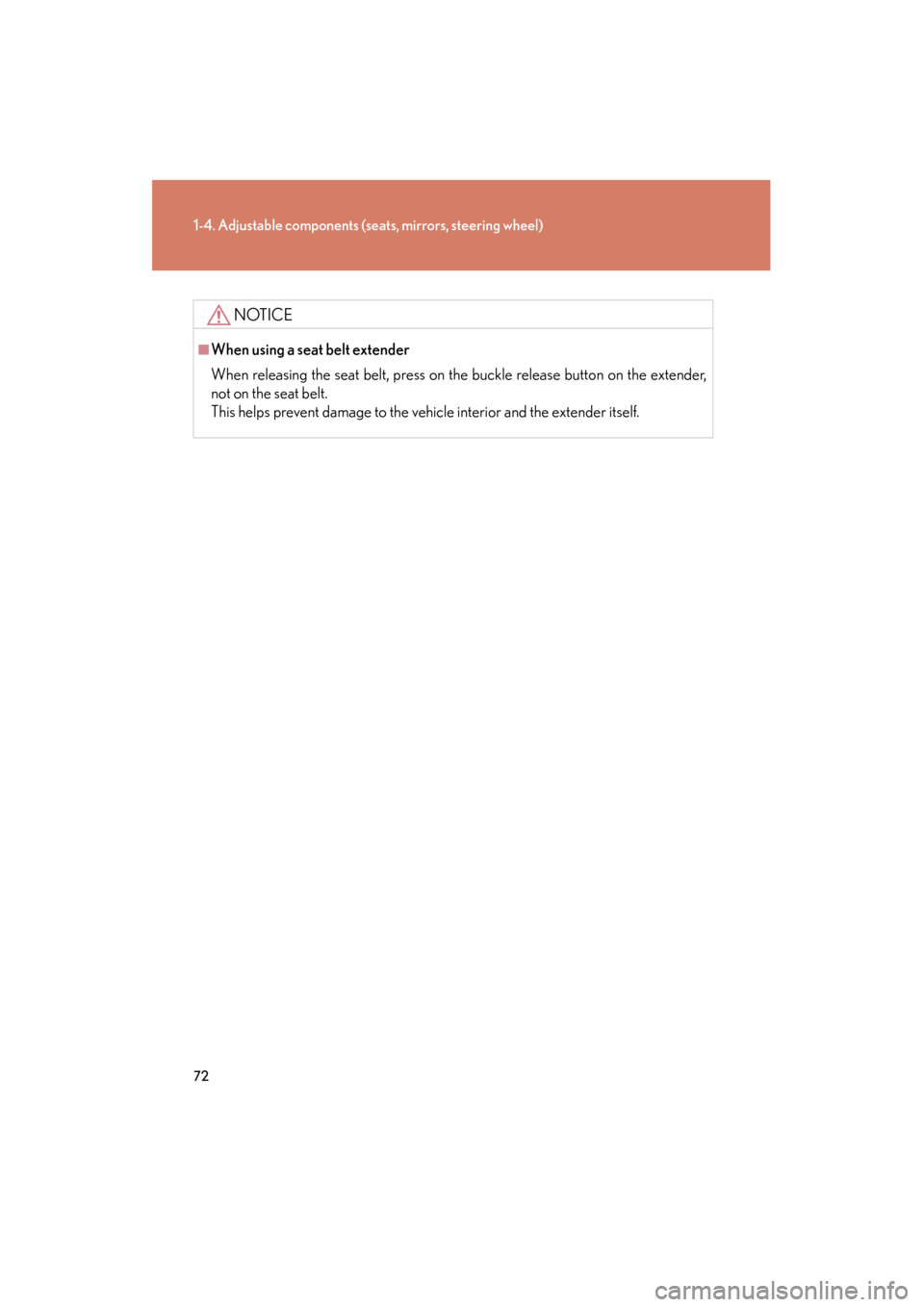

NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
GS450h_HV_U.book Page 72 Thursday, June 19, 2008 1:44 PM

73
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_HV_U
June 19, 2008 1:15 pm

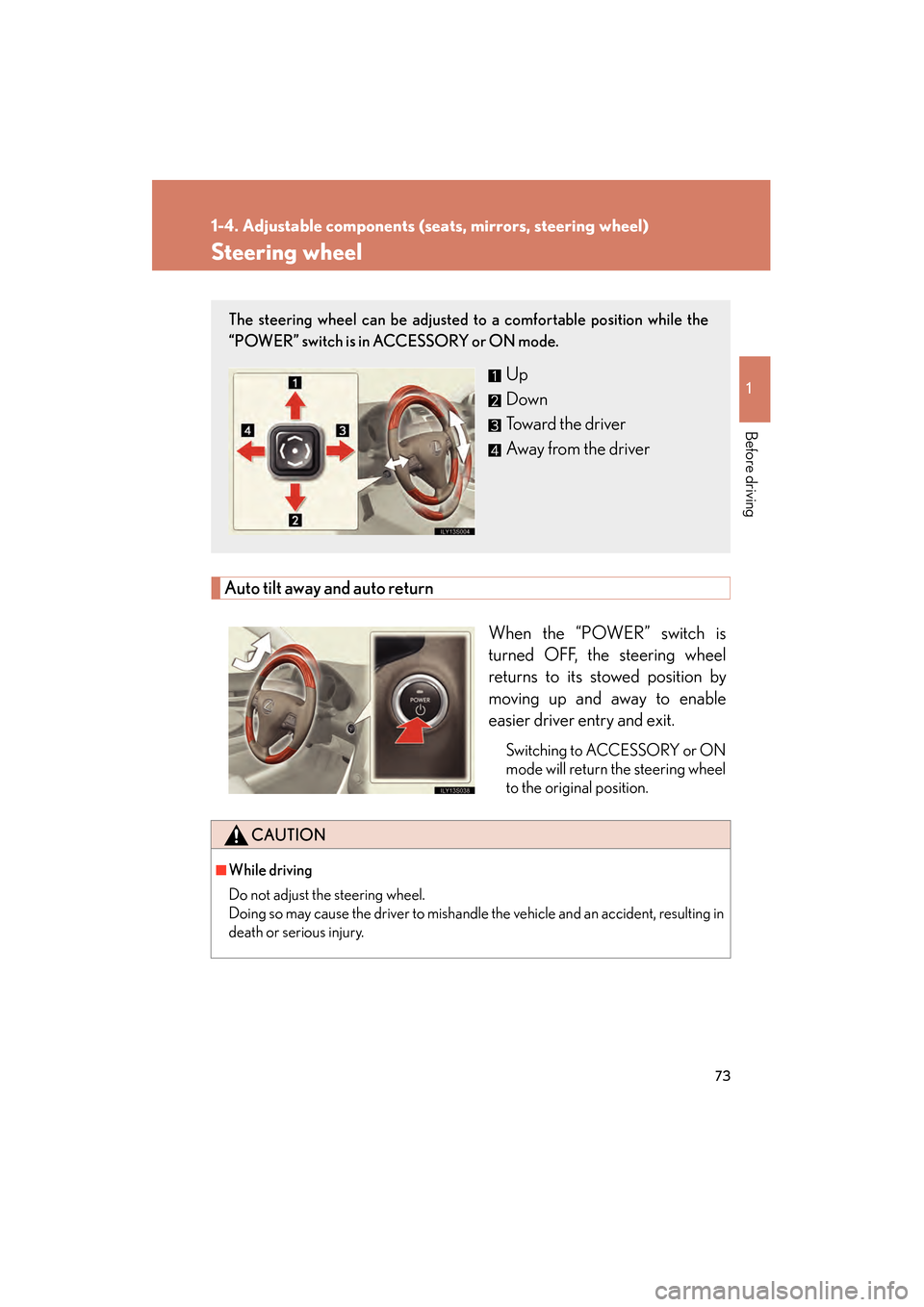

Steering wheel
Auto tilt away and auto returnWhen the “POWER” switch is
turned OFF, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.
Switching to ACCESSORY or ON
mode will return the steering wheel
to the original position.
The steering wheel can be adjusted to a comfortable position while the
“POWER” switch is in ACCESSORY or ON mode.
Up
Down
Toward the driver
Away from the driver
CAUTION
■While driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
GS450h_HV_U.book Page 73 Thursday, June 19, 2008 1:44 PM

74
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
Inside rear view mirror
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or resulting in
death or serious injury.
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set to
auto whenever the “POWER”
switch is turned ON mode.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
GS450h_HV_U.book Page 74 Thursday, June 19, 2008 1:44 PM

75
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_HV_U
June 19, 2008 1:15 pm

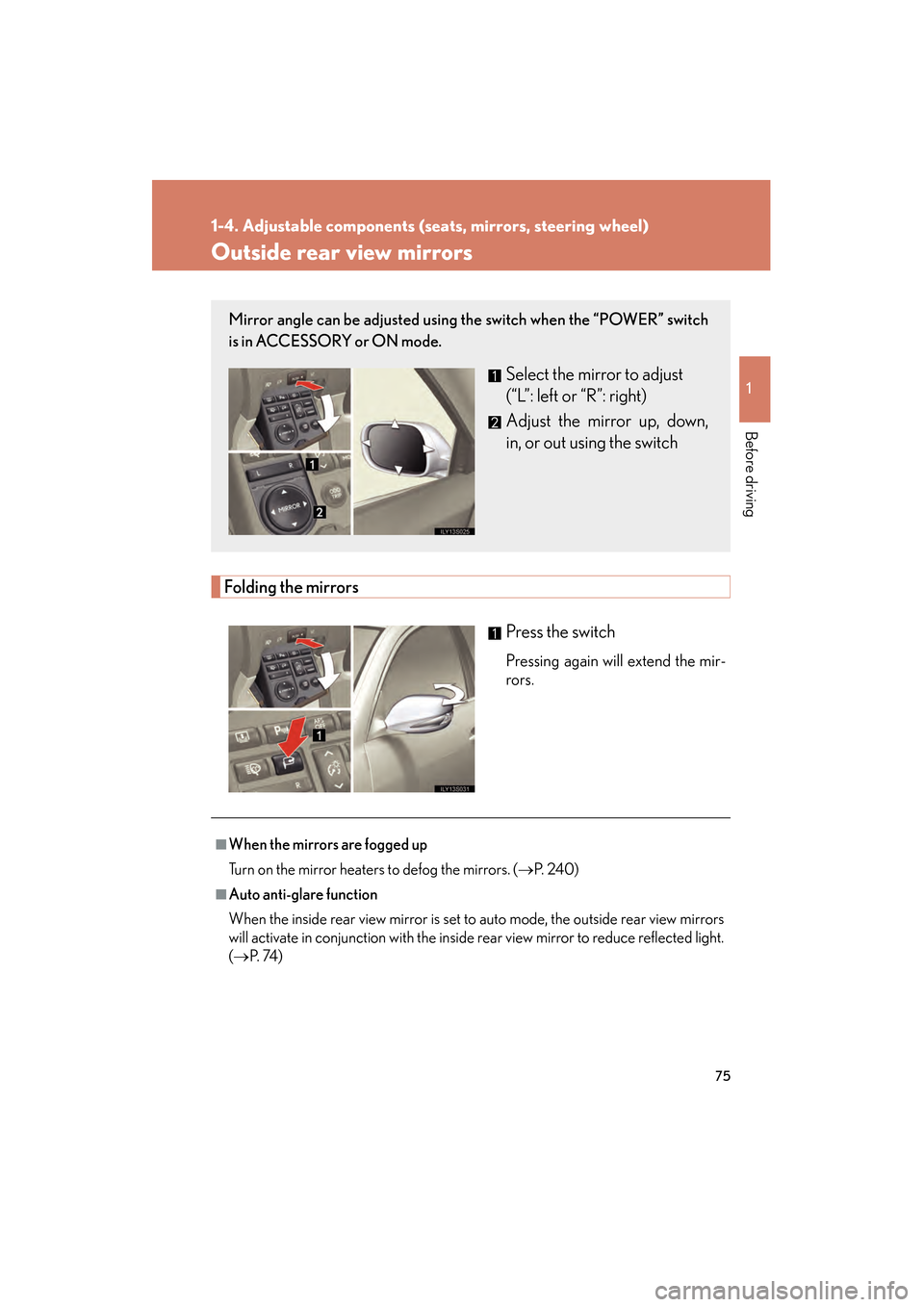

Outside rear view mirrors
Folding the mirrorsPress the switch
Pressing again will extend the mir-
rors.
Mirror angle can be adjusted using the switch when the “POWER” switch
is in ACCESSORY or ON mode.
Select the mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. ( →P. 2 4 0 )
■Auto anti-glare function
When the inside rear view mirror is set to auto mode, the outside rear view mirrors
will activate in conjunction with the inside rear view mirror to reduce reflected light.
(→ P. 74 )
GS450h_HV_U.book Page 75 Thursday, June 19, 2008 1:44 PM

76
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm

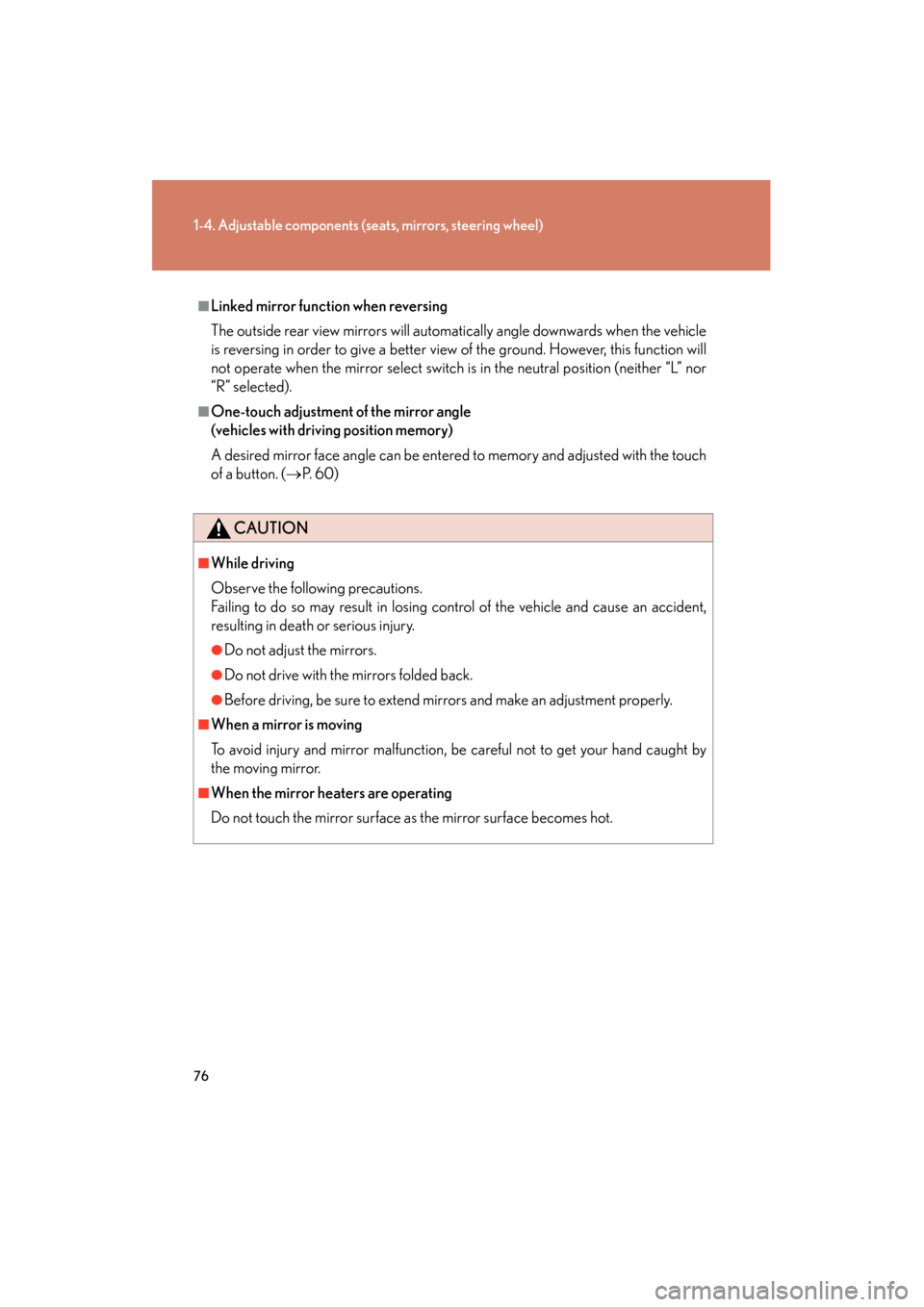

■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (neither “L” nor
“R” selected).
■One-touch adjustment of the mirror angle
(vehicles with driving position memory)
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→P. 60)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors.
●Do not drive with the mirrors folded back.
●Before driving, be sure to extend mirrors and make an adjustment properly.
■When a mirror is moving
To avoid injury and mirror malfunction, be careful not to get your hand caught by
the moving mirror.
■When the mirror heaters are operating
Do not touch the mirror surface as the mirror surface becomes hot.
GS450h_HV_U.book Page 76 Thursday, June 19, 2008 1:44 PM

77
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
1-5. Opening and closing the windows and moon roof

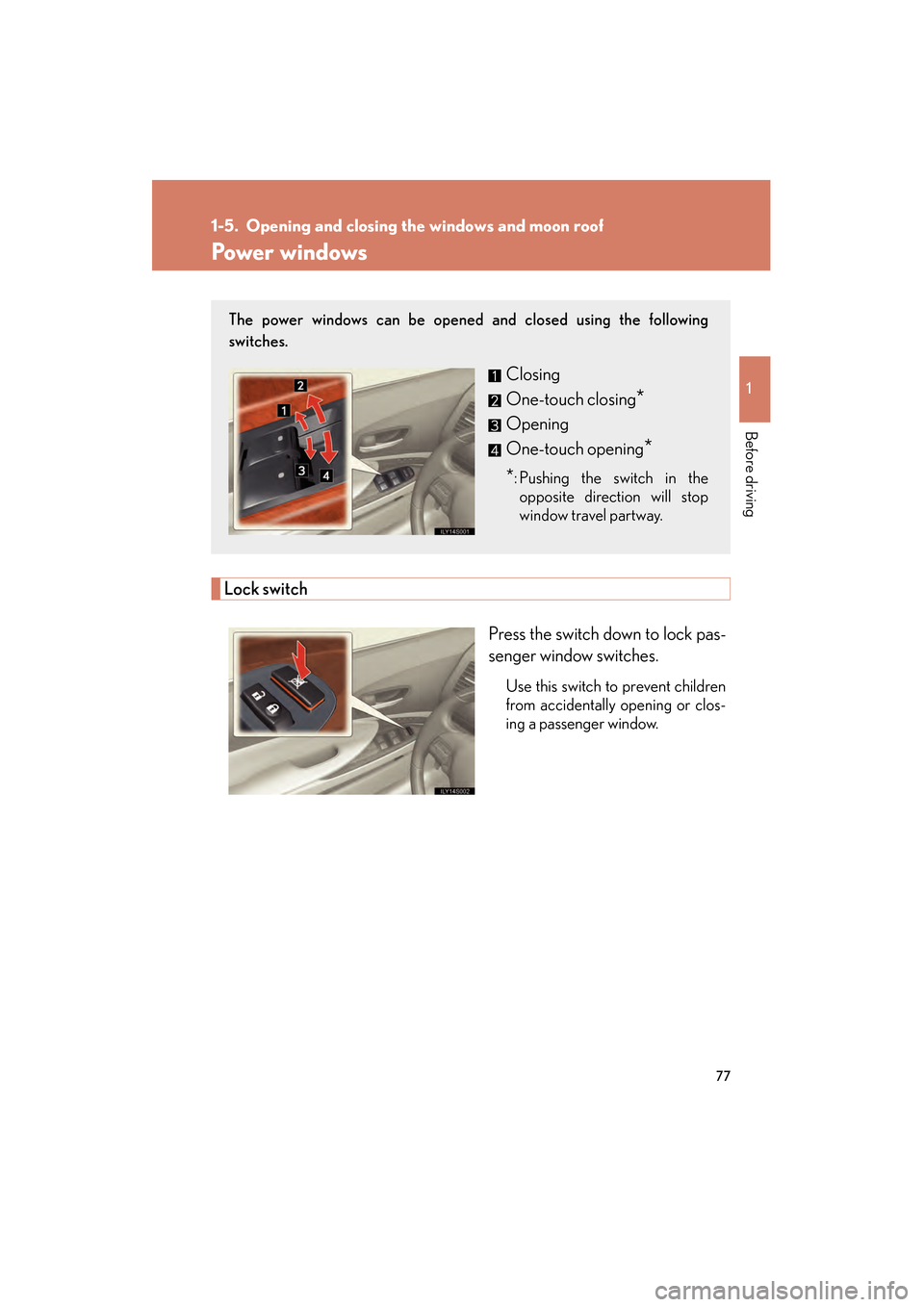

Power windows
Lock switchPress the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in theopposite direction will stop
window travel partway.
GS450h_HV_U.book Page 77 Thursday, June 19, 2008 1:44 PM

78
1-5. Opening and closing the windows and moon roof
GS_HV_U
June 19, 2008 1:15 pm
■The power windows can be operated when
The “POWER” switch is in ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 5 3 1 )
●The power windows can be opened using the wireless remote control.
(→ P. 4 7 )
●The power windows can be closed using the smart access system with push-
button start. ( →P. 3 5 )
■Operating the power windows after turning the “POWER” switch OFF
The power windows can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. They cannot,
however, be operated once the driver’s or front passenger’s door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 7 1 )
GS450h_HV_U.book Page 78 Thursday, June 19, 2008 1:44 PM
