Lexus GS450h 2012 Navigation manual
Manufacturer: LEXUS, Model Year: 2012, Model line: GS450h, Model: Lexus GS450h 2012Pages: 257, PDF Size: 30.79 MB
Page 221 of 257

219
1. 12.3-INCH DISPLAY OPERATION
7
12.3-INCH DISPLAY
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1Select “AUTO”.
The air conditioning system begins to
operate. Air outlets and fan speed are
automatically adjusted according to the
temperature setting.
2Select to increase the
tempera-
ture and to decrease the tem-
perature on temperature control
buttons.
The temperature for the driver and pas-
senger seats can be set separately.
ADJUSTING THE TEMPERA-
TURE SETTINGS
Without rear air conditioning system
1Select to increase the tempera-
ture and to decrease the tem-
perature on temperature control
buttons.With rear air conditioning system
1Select to increase the tempera-
ture and to decrease the tem-
perature on temperature control
buttons.
ADJUSTING THE FAN SPEED
1Select to increase the fan speed
and select to decrease the fan
speed on fan speed control buttons.
CHANGING THE AIR OUTLETS
Without rear air conditioning system
1Select air flow control buttons.
The air outlets used are switched each
time the button is selected.
With rear air conditioning system
1Select air flow control buttons.
Different air outlets for the left-hand
and right-hand front seats can be cho-
sen.
The air outlets used are switched each
time the button is selected.
USING THE AUTOMATIC
MODE
ADJUSTING THE SETTINGS
“DUAL” is used to set the tempera-
tures independently for the driver’s
seat and front passenger seat.
The air conditioning system switches
between dual and simultaneous
modes each time “DUAL” is
selected.
When the “DUAL” indicator is on,
the temperature for the driver’s seat
and front passenger seat can be
adjusted separately.
“3-ZONE” is used to set the tempera-
tures independently for the driver’s,
front passenger’s and rear seats.
The air conditioning system switches
between individual and simultaneous
modes each time “3-ZONE” is
selected.
When the “3-ZONE” indicator is on,
the temperature for the driver’s, front
passenger’s and rear seats can be
adjusted separately.
Page 222 of 257

220
1. 12.3-INCH DISPLAY OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1Select or for select the desired
screen.
CONSUMPTIONPAST RECORD
TRIP INFORMATION
VEHICLE INFORMATION
Vehicle information (the fuel con-
sumption, compass, energy monitor
etc.) can be displayed.
The details of the information, refer
to “Owner’s Manual”.
SWITCHING THE VEHICLE
INFORMATION
Displays the average fuel consump-
tion and regenerated energy (vehi-
cles with hybrid system) for the past
10 minutes in 1 minute intervals, as
well as the cruising range.
Displays the average fuel consump-
tion and highest fuel consumption.
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine
Page 223 of 257

221
1. 12.3-INCH DISPLAY OPERATION
7
12.3-INCH DISPLAY
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
COMPASS
1Select or .
North-up screen
Heading-up screen
ENERGY MONITOR (VEHICLES
WITH HYBRID SYSTEM)
Displays a compass and information
about the current position. The orien-
tation of the compass can be changed
from north-up to heading-up by se-
lecting the orientation symbol.
Displays the hybrid system operation
and energy recovery states.
Page 224 of 257

222
1. 12.3-INCH DISPLAY OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
5. INTERRUPTION SCREENS
For example, when the Lexus parking
assist-sensor is being displayed.
1Select the button for the screen you
want to display at the front.Each of the following screens is dis-
played automatically in accordance
with conditions.
Lexus parking assist-sensor
Telephone
Driving mode
Lexus night view (vehicles with
hybrid system)
For the “Lexus parking assist-sen-
sor”, “Driving mode” and “Lexus
night view”, refer to “Owner’s Man-
ual”.
SWITCHING THE
INTERRUPTION SCREEN
When multiple interruption screens
have been opened, the hidden
screens can be brought forward and
displayed once again. (The driving
mode screen cannot be displayed
again.)
Screen
buttonFunction
To display the Lexus night
view screen
To display the Lexus park as-
sist screen
To display the telephone
screen
HANDS-FREE SYSTEM
(FOR CELLULAR PHONE)
A calling screen will be shown on the
“Side Display” when the following
operations are carried out on the
“Main Display”.
When on the telephone screen
is selected
When the desired number is selected
on the “Speed dial” screen
When
on the mail screen is
selected
Page 225 of 257

223
1. 12.3-INCH DISPLAY OPERATION
7
12.3-INCH DISPLAY
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1Select to talk on the phone.
To refuse to receive the call: Select
.
To adjust the volume of a received
call: Select “-” or “+”.To adjust the volume of the other par-
ty’s voice: Select “-” or “+”.
To hang up the phone: Select .
To mute your voice: Select “Mute”.
To transfer the call: Select “Handset
mode” to change from hands-free call
to cellular phone call.
Select “Handsfree mode” to change
from cellular phone call to hands-free
call.
RECEIVING A CALL
When a call is received, this screen is
displayed with a sound.
INFORMATION
The incoming call screen can also be
set to display on the “Main Display”
when a call is received. (For details,
refer to “Owner’s Manual”.)
SPEAKING ON THE PHONE
While talking on the phone, this
screen is displayed. The operations
outlined below can be performed on
this screen.

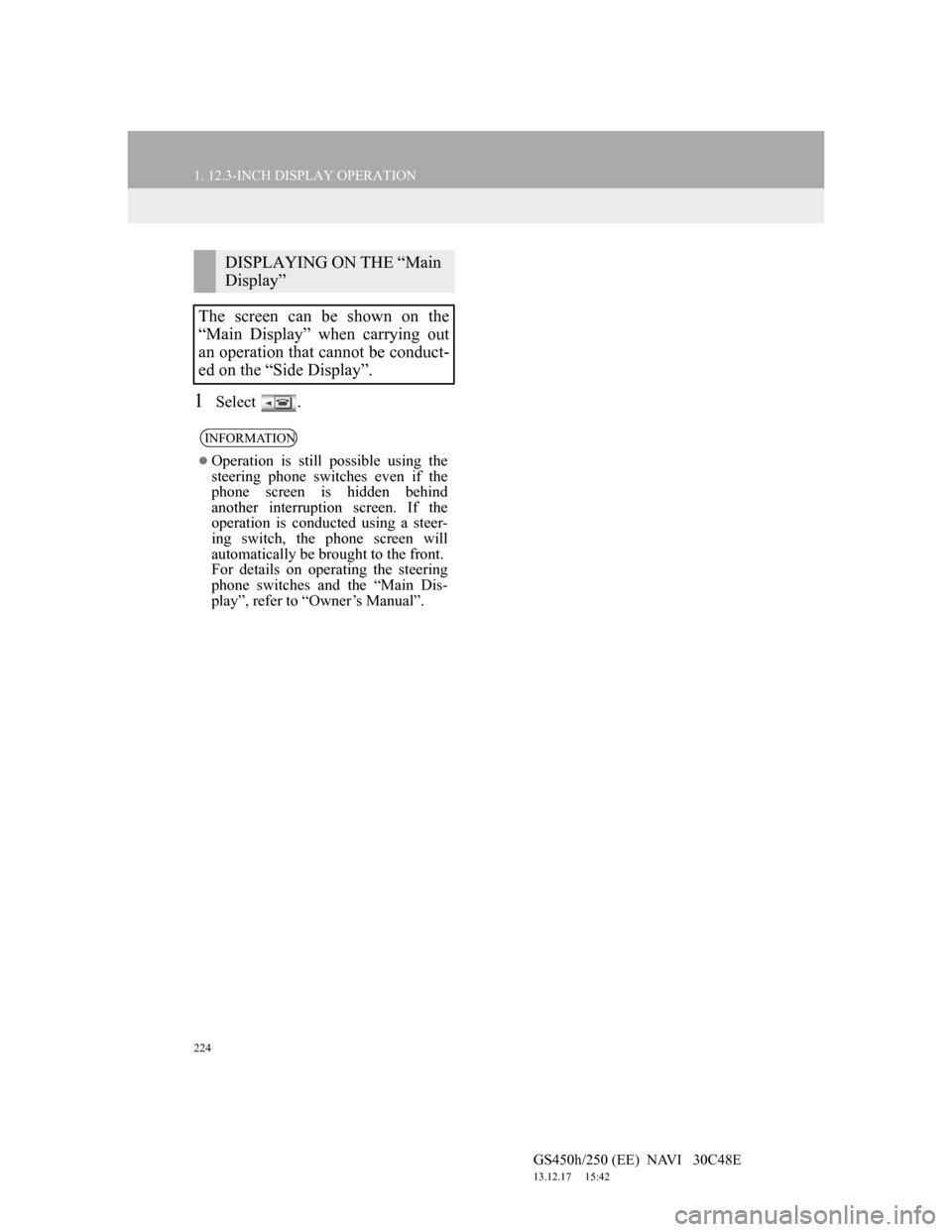

Page 226 of 257

224
1. 12.3-INCH DISPLAY OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1Select .
DISPLAYING ON THE “Main
Display”
The screen can be shown on the
“Main Display” when carrying out
an operation that cannot be conduct-
ed on the “Side Display”.
INFORMATION
Operation is still possible using the
steering phone switches even if the
phone screen is hidden behind
another interruption screen. If the
operation is conducted using a steer-
ing switch, the phone screen will
automatically be brought to the front.
For details on operating the steering
phone switches and the “Main Dis-
play”, refer to “Owner’s Manual”.
Page 227 of 257

225
1
2
3
4
5
6
7
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
INDEX
Page 228 of 257

226
ALPHABETICAL INDEX
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
Numbers/Symbols
“ · ” button............................................ 10
“ ” button.......................................... 10
12.3-Inch display.................................... 209
Air conditioning system ..................... 217
Audio/video system ............................ 216
Bluetooth
® connection status............. 215
Fuel consumption ............................... 220
Switching the basic screen ................. 215
Switching the interruption screen ....... 222
Telephone (Hands-free system
for cellular phone)........................... 222
B
Basic function .......................................... 35
Basic information before operation ......... 36
Basic screens .......................................... 215
Air conditioning system ..................... 217
Audio/video system ............................ 216
Bluetooth
® connection status............. 215
Switching the basic screen ................. 215
To display on the “Main Display”...... 215
Vehicle information............................ 220
C
“Car” button............................................. 28
Command list......................................... 170
Connected services ........................ 185, 186
Connected services overview ................ 186
Before using connected services ........ 188
Current position calibration ................... 148
D
Deleting personal data ............................. 70
Destination search ............................. 76, 78
By “Address” ....................................... 82
By “Coordinates” ................................. 93
By home ............................................... 81
By “Intersection” ................................. 91
By “Map” ............................................. 90
By “Memory”....................................... 90
By “Motorway ent./exit”...................... 92
By “POI” .............................................. 86
By “POI near cursor” ........................... 94
By “Previous” ...................................... 91
By quick access .................................... 81
By “Telephone no.” ............................. 94
By “UK Postal code” ........................... 98
“Display” button .................................. 28
Selecting the search area ...................... 79
Display POI icons .................................. 120
Selecting POI icons to be displayed... 120
Distance and time to destination............ 110
ALPHABETICAL INDEX
Page 229 of 257

227
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
F
Function index ......................................... 22
G
General settings........................................ 59
Screens for general settings .................. 60
GPS (Global Positioning System).......... 157
H
Heading-up screen ................................... 57
Home screen............................................. 12
I
Information ............................................ 173
Information display ................................ 174
“Information” screen................................ 32
Initial screen ..................................... 36, 212
Setting the opening image.................. 212
Inputting letters and numbers/list
screen operation.................................... 39
Interruption screens................................ 222
Hands-free (For cellular phone) ......... 222
Switching the interruption screen ....... 222
L
Language .................................................. 63
Limitations of the navigation system ..... 157
M
Map database version and
covered area ....................................... 160
Map information ................................ 160
Map screen............................................... 24
Map screen operation .............................. 46
Current position display ....................... 46
Map orientation and 3D map mode ..... 57
Map scale ............................................. 56
Screen scroll operation......................... 47
Standard map icons .............................. 58
Switching map configurations ............. 54
“MAP/VOICE” button ............................ 10
Memory point settings ........................... 123
Backup to a USB memory................. 141
Copying from a USB memory ........... 143
Deleting previous destinations ........... 140
Setting up the “Area to avoid” ........... 136
Setting up the “Home” ....................... 124
Setting up the “Memory points” ........ 129
Setting up the “Quick access” ............ 126
Memory points....................................... 123
“MENU” button....................................... 10
“Menu” screen ................................. 28, 214
Page 230 of 257

228
ALPHABETICAL INDEX
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
N
Navigation menu screen........................... 26
Navigation operation................................ 10
Navigation settings................................. 145
Screens for navigation settings ........... 145
Navigation system.................................... 75
Navigation system function index ........... 22
North-up screen........................................ 57
O
Online search settings ............................ 204
Screens for online search settings ...... 204
Operation flow: Guiding the route ........... 18
Q
Quick guide ................................................ 9
Quick reference .................................. 24, 76
R
Registering home ..................................... 14
Registering quick access .......................... 16
Remote Touch .......................................... 10
Remote Touch knob ................................. 10
Remote Touch operation .......................... 37
Route guidance....................................... 103
Route guidance screen ........................... 103
S
Screen adjustment.................................... 44
Screen setting adjustment .................... 44
Setting home as the destination ............... 20
Setting route........................................... 112
Adding destinations ........................... 113
Deleting destinations.......................... 114
Detour setting ..................................... 115
Reordering destinations ..................... 113
Road preference ................................. 116
Route overview .................................. 117
Route trace ......................................... 118
Search condition................................. 114
Settings required for using the service .. 189
Obtaining a portal site account .......... 189
Setting a Bluetooth
® DUN
compatible cellular phone .............. 190
Setting a Bluetooth
® DUN profile ..... 192
Setup ................................ 59, 145, 179, 204
“Setup” button ......................................... 28
“Setup” screen ......................................... 30
Speech command system............... 163, 164
Speech command system operation ... 164
Steering switches for the speech
command system ............................ 164
Starting route guidance ............................ 99
Suspending and resuming guidance ...... 111
