Lexus GS450h 2012 Navigation manual

70
2. SETUP
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1Press the “MENU” button on the Re-
mote Touch, then select “Setup”.
2Select “General” on the “Setup”
screen.
3Select “Delete personal data”.
4Select “Delete”.
5Select “Yes”.
The following personal data can be
deleted or returned to their default set-
tings:
• Maintenance conditions
• Maintenance information off setting
• Memory point
• Password settings for backing up and
copying memory points
• Areas to avoid
• Previous points
• Route guidance
• Route trace
• Phonebook data
• Call history data
• Speed dial data
•Bluetooth
® phone data
• Phone sound settings
• Phone display settings
• Message settings
• Audio setting
•Bluetooth
® audio setting
• Search engine settings
• Opening image data
• Screen off image data
DELETING PERSONAL
DATA
INFORMATION
This function is not available while
driving.

71
2. SETUP
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
2
BASIC FUNCTION
2. VOICE SETTINGS
1Press the “MENU” button on the Re-
mote Touch.
2Select “Setup”.
3Select “Voice”.
4Select the items to be set.
5Select “OK”.
Voice guidance can be set.

72
2. SETUP
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
On this screen, the following functions
can be performed:
To reset all setup items, select
“Default”.
1Press the “MENU” button on the Re-
mote Touch, then select “Setup”.
2Select “Voice” on the “Setup”
screen.
3Select the desired level by selecting
the appropriate number.
If voice guidance is not needed, select
“Off” to disable the feature.
4Select “OK”.
SCREEN FOR VOICE
SETTINGS
No
.Function
The voice guidance volume can be
adjusted or switched off. (See
“VOICE VOLUME” on page 72.)
Voice recognition guidance can be
set to “On” or “Off”. This setting
can also be changed on the “Short-
cuts” screen. (See page 164.)
Voice guidance during audio sys-
tem use can be set to “On” or
“Off”.
Voice guidance during route guid-
ance can be set to “On” or “Off”.
VOICE VOLUME
The voice guidance volume can be
adjusted or switched off.

73
2. SETUP
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
2
BASIC FUNCTION

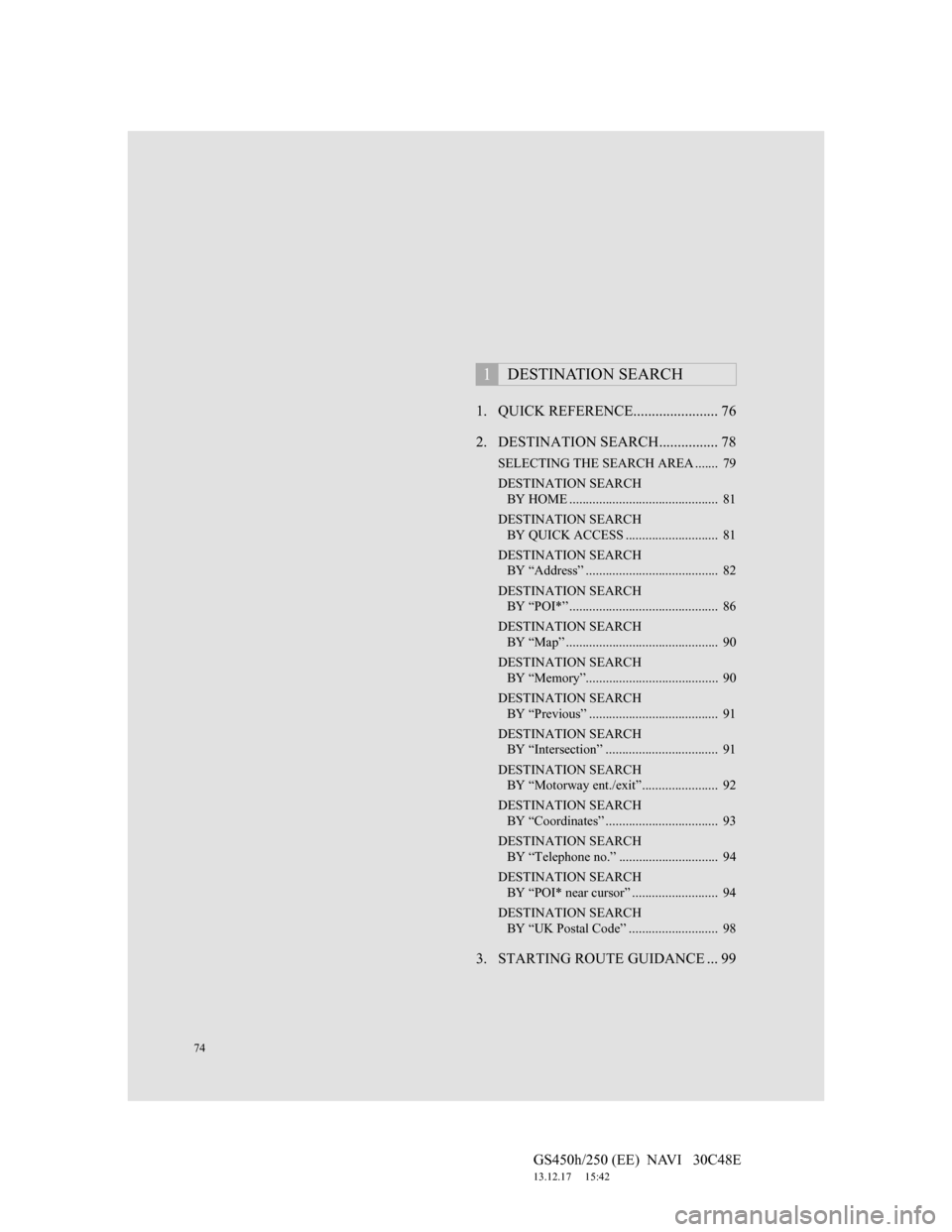

74
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1. QUICK REFERENCE....................... 76
2. DESTINATION SEARCH................ 78
SELECTING THE SEARCH AREA ....... 79
DESTINATION SEARCH
BY HOME ............................................. 81
DESTINATION SEARCH
BY QUICK ACCESS ............................ 81
DESTINATION SEARCH
BY “Address” ........................................ 82
DESTINATION SEARCH
BY “POI*” ............................................. 86
DESTINATION SEARCH
BY “Map” .............................................. 90
DESTINATION SEARCH
BY “Memory”........................................ 90
DESTINATION SEARCH
BY “Previous” ....................................... 91
DESTINATION SEARCH
BY “Intersection” .................................. 91
DESTINATION SEARCH
BY “Motorway ent./exit”....................... 92
DESTINATION SEARCH
BY “Coordinates” .................................. 93
DESTINATION SEARCH
BY “Telephone no.” .............................. 94
DESTINATION SEARCH
BY “POI* near cursor” .......................... 94
DESTINATION SEARCH
BY “UK Postal Code” ........................... 98
3. STARTING ROUTE GUIDANCE ... 99
1DESTINATION SEARCH

3
75
1
2
3
4
5
6
7
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1. ROUTE GUIDANCE SCREEN ...... 103
2. TYPICAL VOICE GUIDANCE
PROMPTS ..................................... 107
3. DISTANCE AND TIME TO
DESTINATION............................. 110
4. SUSPENDING AND RESUMING
GUIDANCE .................................. 111
5. SETTING ROUTE........................... 112
ADDING DESTINATIONS .................. 113
REORDERING DESTINATIONS ........ 113
DELETING DESTINATIONS .............. 114
SEARCH CONDITION ......................... 114
DETOUR SETTING .............................. 115
ROAD PREFERENCE .......................... 116
ROUTE OVERVIEW ............................ 117
ROUTE TRACE .................................... 118
6. DISPLAY POI* ICONS .................. 120
SELECTING POI* ICONS TO BE
DISPLAYED ....................................... 120
1. MEMORY POINT SETTINGS ...... 123
SETTING UP THE “Home”................... 124
SETTING UP THE “Quick access” ....... 126
SETTING UP THE “Memory points” .... 129
SETTING UP THE “Area to avoid”....... 136
DELETING PREVIOUS
DESTINATIONS ................................. 140
BACKUP TO A USB MEMORY .......... 141
COPYING FROM A USB MEMORY... 143
1. NAVIGATION SETTINGS ............ 145
SCREENS FOR NAVIGATION
SETTINGS ........................................... 145
2. VEHICLE SETTINGS .................... 151
MAINTENANCE ................................... 151
VEHICLE CUSTOMIZATION ............. 155
1. LIMITATIONS OF THE
NAVIGATION SYSTEM............. 157
2. MAP DATABASE VERSION
AND COVERED AREA .............. 160
MAP INFORMATION ........................... 160
2ROUTE GUIDANCE3MEMORY POINTS
4SETUP
5GPS (GLOBAL POSITIONING
SYSTEM)
NAVIGATION SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while
driving.

76
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1. DESTINATION SEARCH
1. QUICK REFERENCE
The “Destination” screen enables a destination search. Press the “MENU” but-
ton on the Remote Touch, then select “Setup”, and select “Menu” if the map
screen is displayed, to display the navigation menu screen. Then select “Desti-
nation” to display the “Destination” screen.
No.NameFunctionPage
“Address”Select to input a house number and the street
address using the input keys.82
“POI”To select one of the Points of Interest that
have already been stored in the system’s data-
base.86
“Online search”
The navigation system can use an internet
search engine to set a destination using the
most up to date information.
195
“Previous”
To select a destination from any of the last
100 previously set destinations and from the
previous starting point.
91

77
1. DESTINATION SEARCH
3
NAVIGATION SYSTEM
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
“Memory”
To select the desired location from registered
memory points. (To register memory points,
see “REGISTERING QUICK ACCESS” on
page 127.)
90
“Map”Select to enable setting a destination by se-
lecting a location on the map screen.90
“Intersection”
Select to enter the names of 2 intersecting
streets. This is helpful if only the general vi-
cinity, not the specific address, is known.
91
“Motorway
ent./exit”Select to enter the names of a motorway en-
trance or exit.92
“UK Postal
Code”Destinations in the U.K. can be searched for
using a postal code.98
Search area
screen buttonTo change the search area, select this screen
button.79
“POI near
cursor”Select to set the destination by selecting the
search point and the POI category.94
Quick access
screen button
To select one of the 5 quick access as a desti-
nation. To use this function, it is necessary to
set quick access to the quick access screen
buttons. (To register a quick access, see
“REGISTERING QUICK ACCESS” on page
127.)
81
“Home”
To select your personal home address without
having to enter the address each time. If a
home address has not been registered, a mes-
sage will be displayed and the setting screen
will automatically appear. (To register home,
see “REGISTERING HOME” on page 124.)
81
“Coordinates”Select to enter latitude and longitude coordi-
nates.93
“Telephone
no.”Select to enter a destination using a telephone
number.94
No.NameFunctionPage

78
1. DESTINATION SEARCH
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
2. DESTINATION SEARCH
1Press the “MENU” button on the Re-
mote Touch.
2Select “Navi”, and select “Menu” if
the map screen is displayed.
3Select “Destination”.
4This screen is displayed.
One of 13 (14 when “UK” is selected)
different methods can be used to search
a destination. (See pages 79 through
98.)
INFORMATION
When searching a destination, the
response to the screen button may be
slow.

79
1. DESTINATION SEARCH
3
NAVIGATION SYSTEM
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
1Press the “MENU” button on the Re-
mote Touch. (See “Remote Touch”
on page 10.)
2Select “Navi”, and select “Menu” if
the map screen is displayed.
3Select “Destination” on the naviga-
tion menu screen.
4Select the search area screen button
to display a map of Europe divided
into 37 areas.
5Select the screen button indicating
the area to select a search area.
6Select “OK” and the “Destination”
screen returns.
1Select the search area screen button
on the input screen to display a map
of Europe divided into 37 areas.
2Select the screen button indicating
the area to select a search area.
SELECTING THE SEARCH
AREA
For map database information and
updates, see “MAP DATABASE
VERSION AND COVERED AREA”
on page 160.
SELECTING THE SEARCH
AREA ON THE INPUT
SCREEN
To set a destination from a different
area, change the search area by using
“Address”, “POI”, “Motorway ent./
exit”, “Intersection” or “Telephone
no.”.
For map database information and
updates, see “MAP DATABASE
VERSION AND COVERED AREA”
on page 160.
