Lexus GS450h 2013 Owner's Manual

7507-2. Steps to take in an emergency
GS450h_U (OM30D01U)
Location of the spare tire, jack and tools
Jack handle
Parking brake release tool
Screwdriver
Towing eyeletWheel nut wrench
Spare tire
Jack1
2
3
4
5
6
7
GS450h_U.book Page 750 Monday, January 23, 2012 10:20 AM

7517-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

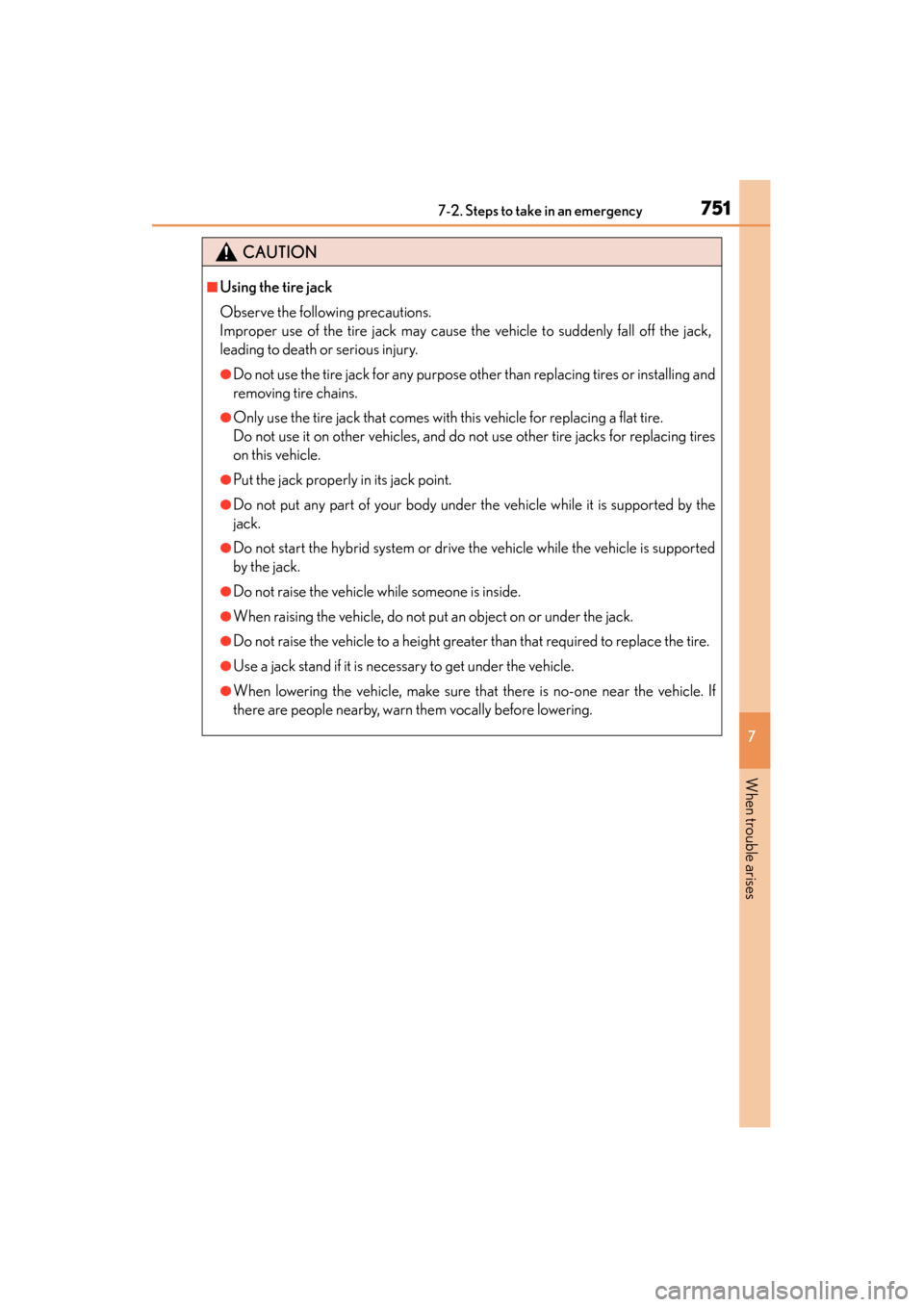

CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is supported
by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.
GS450h_U.book Page 751 Monday, January 23, 2012 10:20 AM

7527-2. Steps to take in an emergency

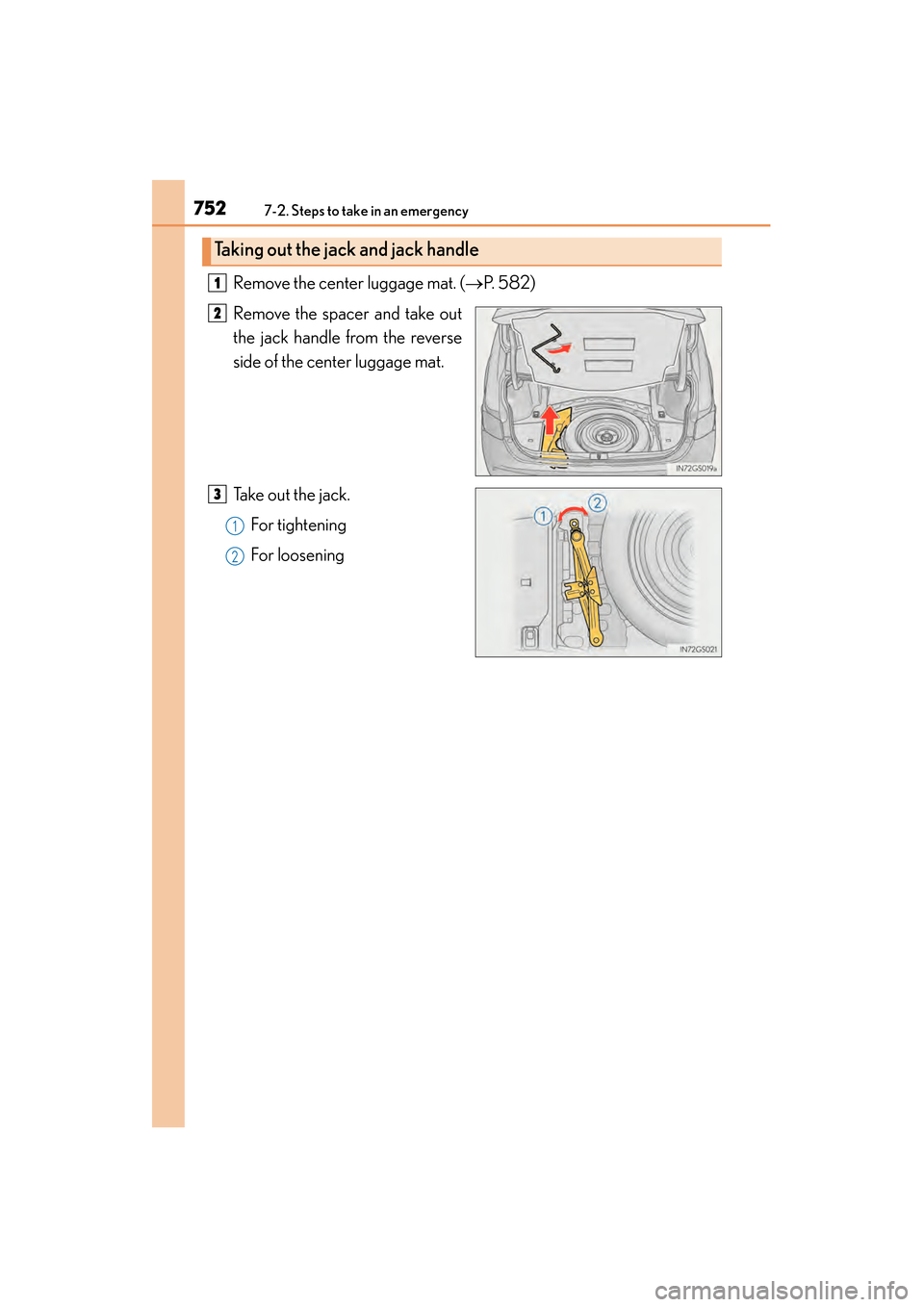

GS450h_U (OM30D01U)Remove the center luggage mat. (
→P. 582)
Remove the spacer and take out
the jack handle from the reverse
side of the center luggage mat.
Take out the jack. For tightening
For loosening
Taking out the jack and jack handle
1
2
3
1
2
GS450h_U.book Page 752 Monday, January 23, 2012 10:20 AM

7537-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

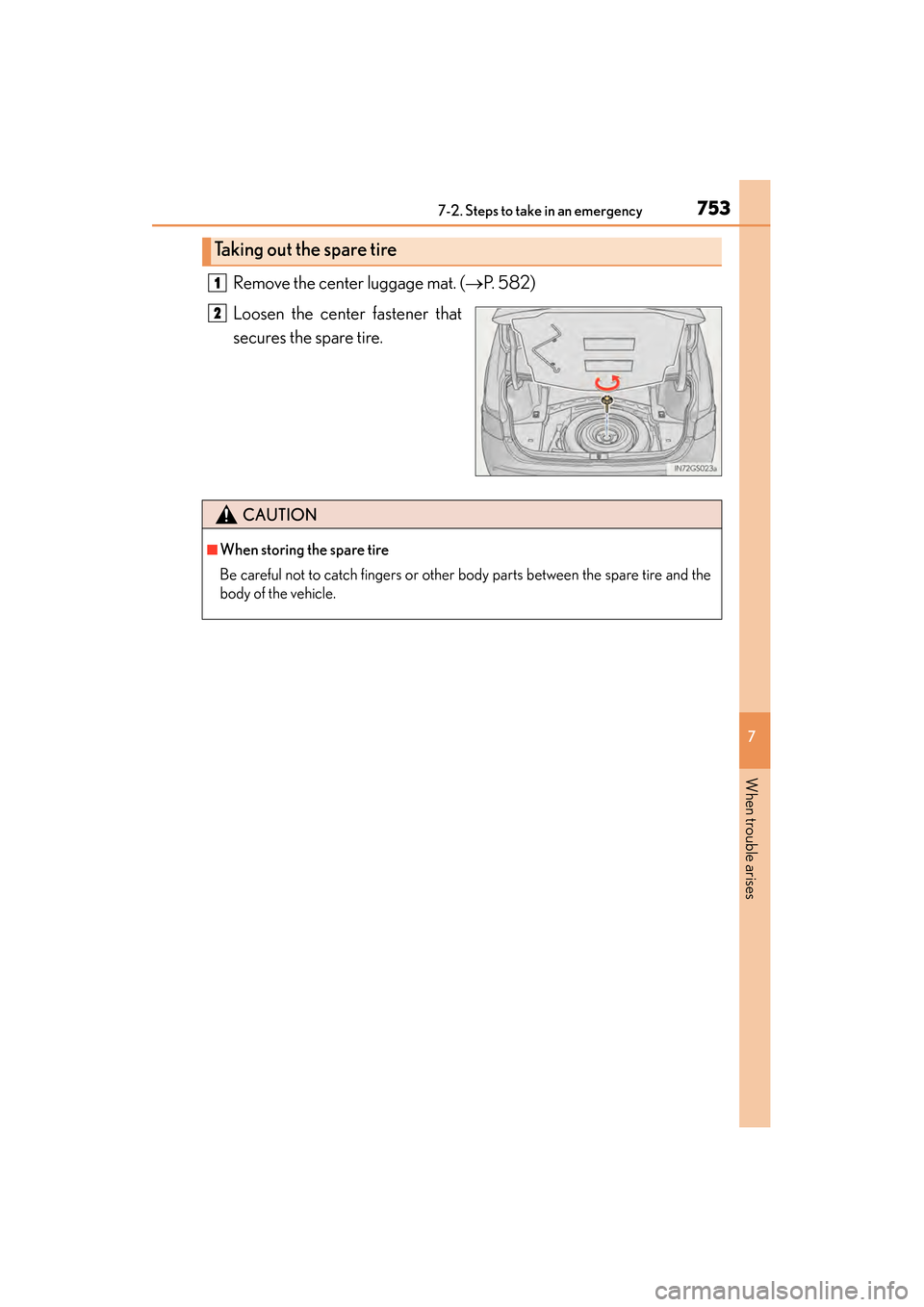

Remove the center luggage mat. (→P. 582)
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
CAUTION
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the
body of the vehicle.
GS450h_U.book Page 753 Monday, January 23, 2012 10:20 AM

7547-2. Steps to take in an emergency

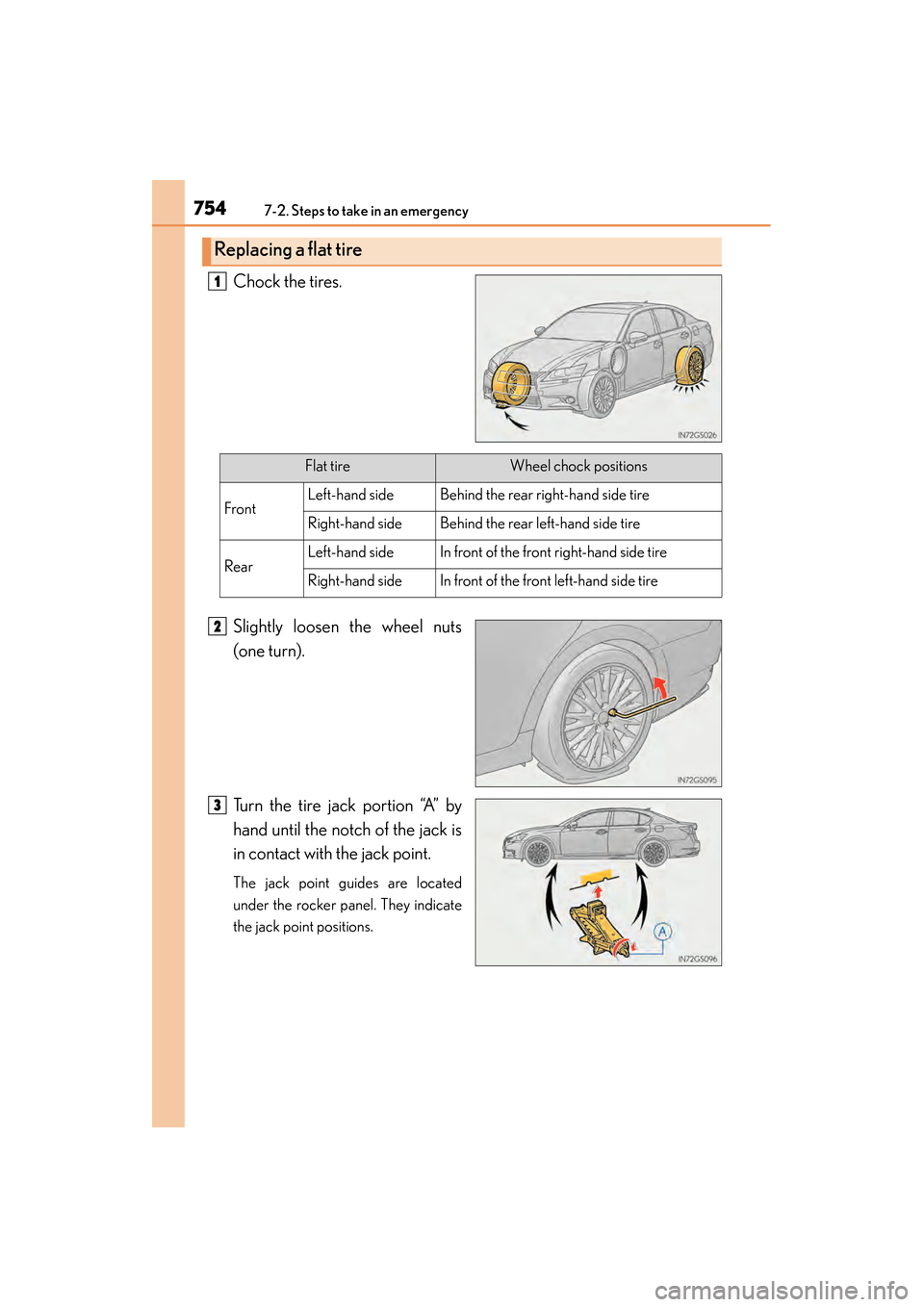

GS450h_U (OM30D01U)Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are located
under the rocker panel. They indicate
the jack point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
GS450h_U.book Page 754 Monday, January 23, 2012 10:20 AM

7557-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

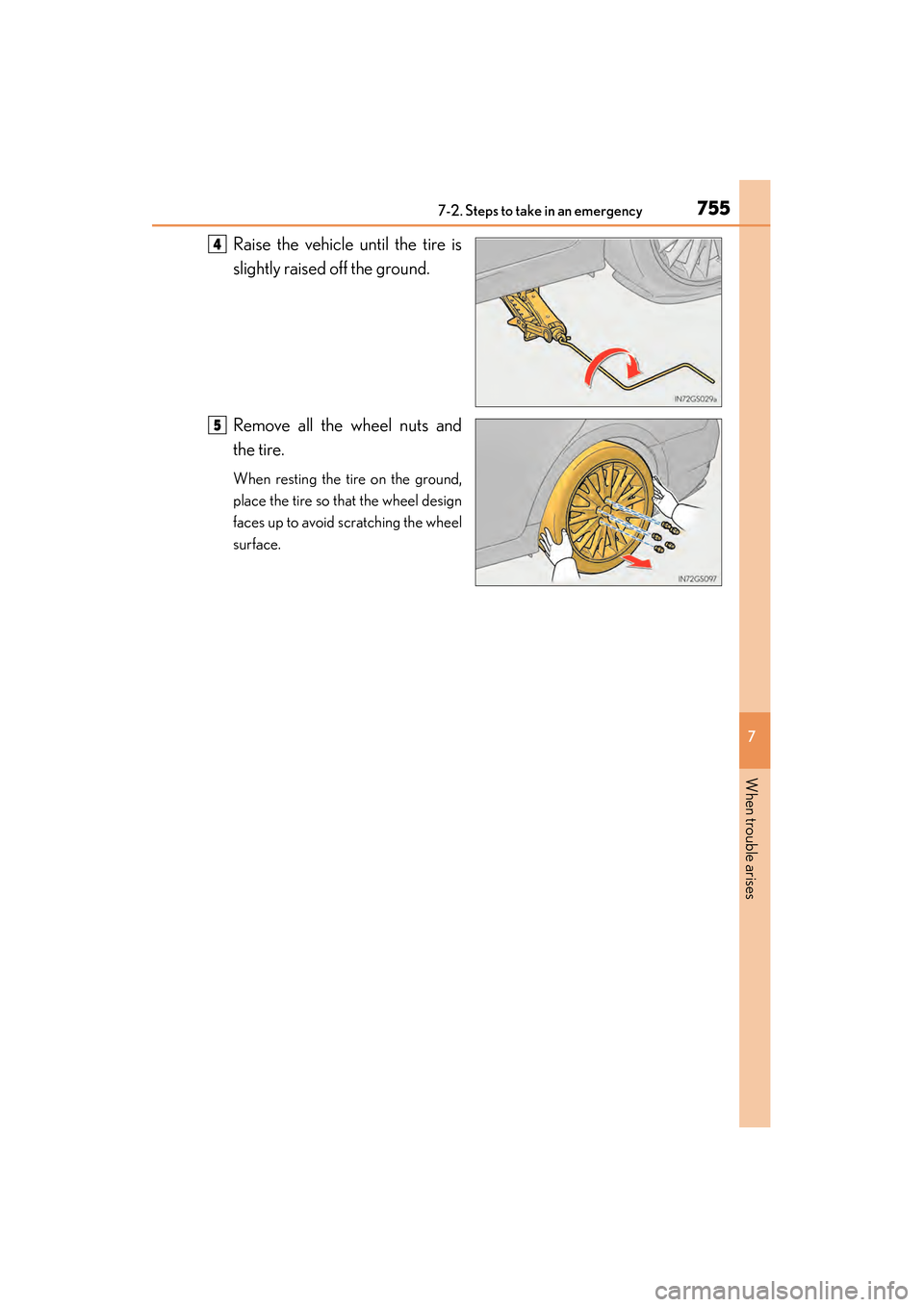

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
4
5
GS450h_U.book Page 755 Monday, January 23, 2012 10:20 AM

7567-2. Steps to take in an emergency
GS450h_U (OM30D01U)

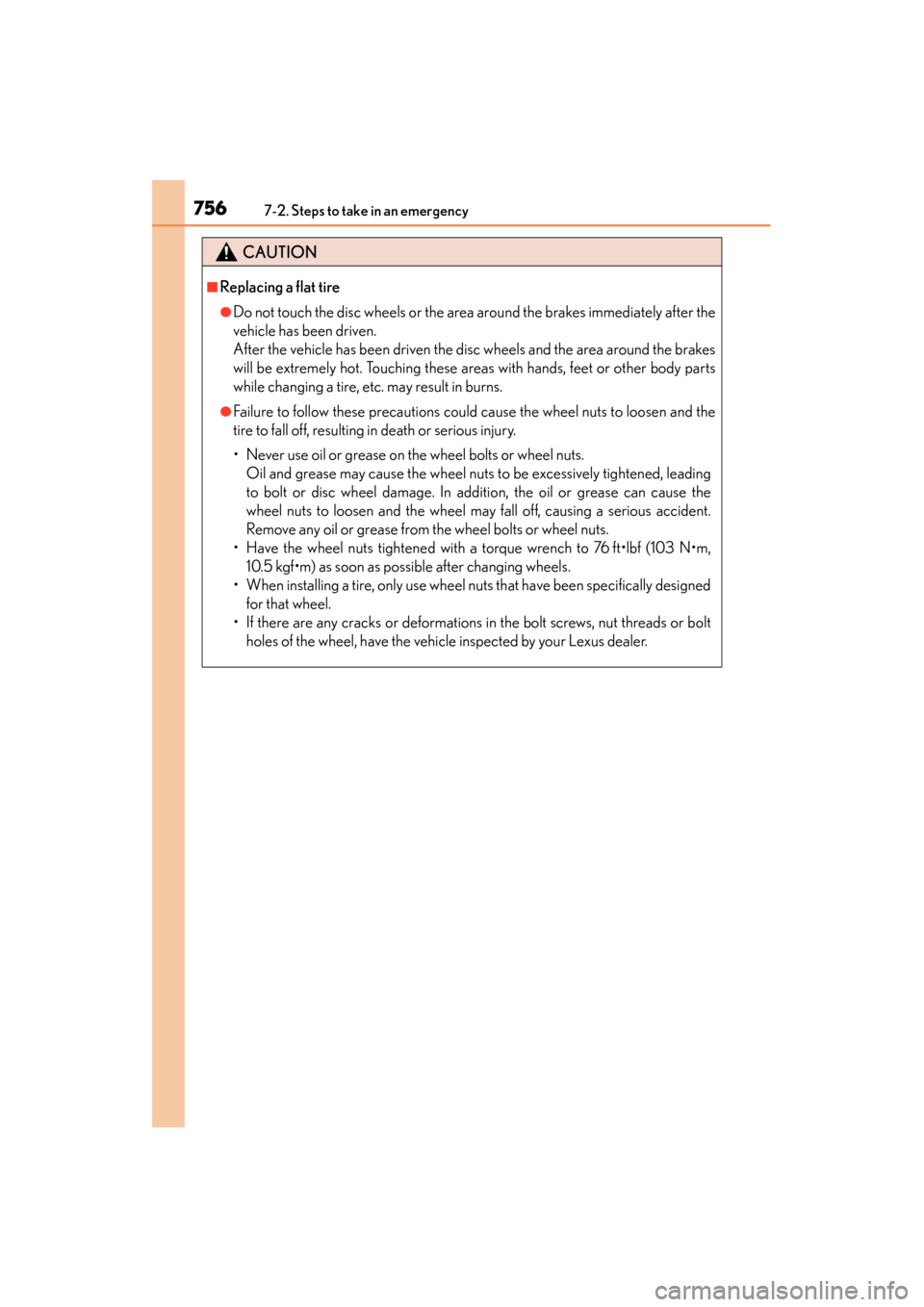

CAUTION
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes
will be extremely hot. Touching these areas with hands, feet or other body parts
while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the
tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.Oil and grease may cause the wheel nuts to be excessively tightened, leading
to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.
GS450h_U.book Page 756 Monday, January 23, 2012 10:20 AM

7577-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

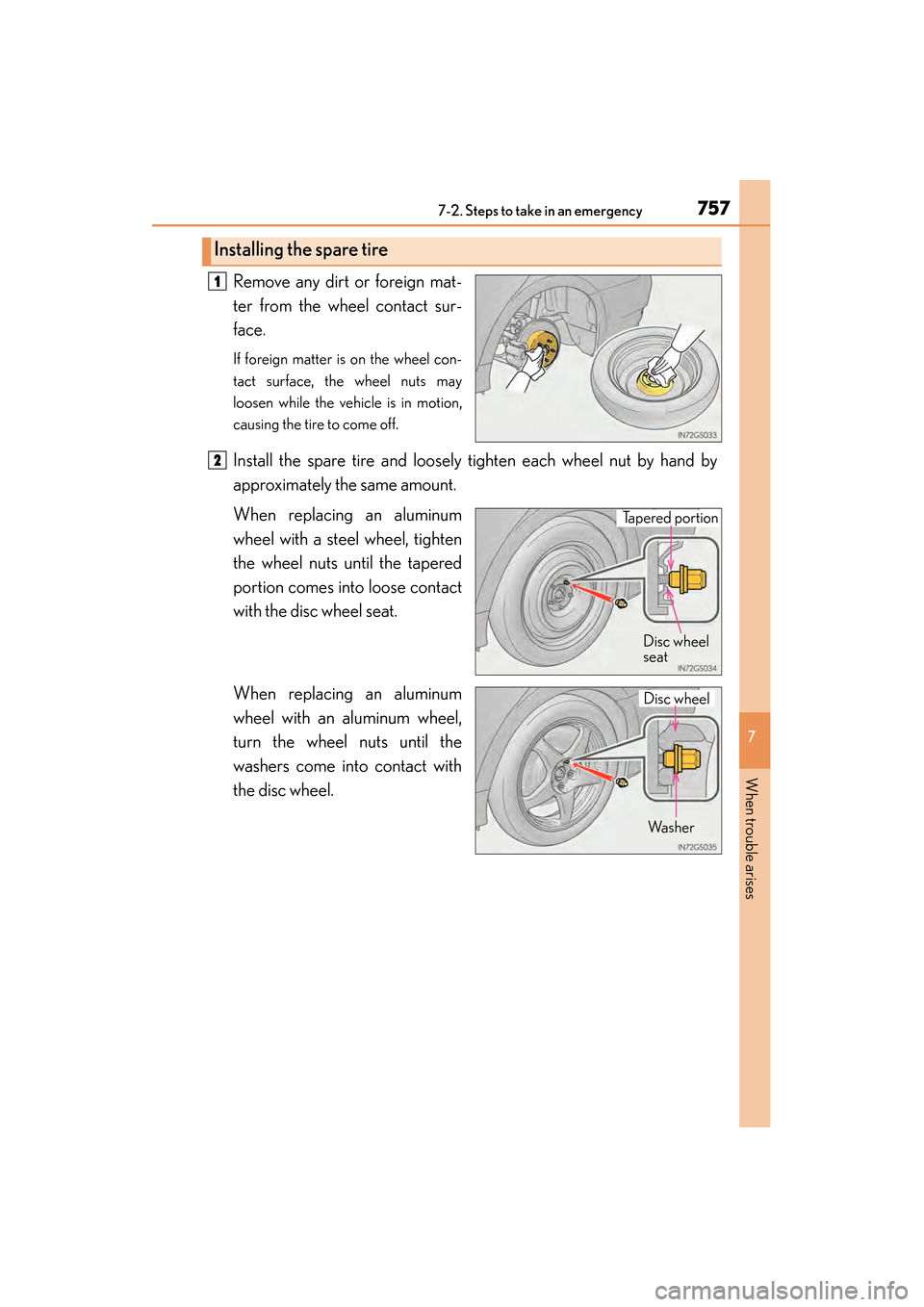

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel con-
tact surface, the wheel nuts may
loosen while the vehicle is in motion,
causing the tire to come off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
wheel with a steel wheel, tighten
the wheel nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Installing the spare tire
1
2
Tapered portionDisc wheel
seat
Wa s h e r
Disc wheel
GS450h_U.book Page 757 Monday, January 23, 2012 10:20 AM

7587-2. Steps to take in an emergency
GS450h_U (OM30D01U)Lower the vehicle.
Firmly tighten each wheel nut two
or three times in the order shown
in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
3
4
5
GS450h_U.book Page 758 Monday, January 23, 2012 10:20 AM

7597-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on
the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(→ P. 7 9 0 )
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace the compact spare tire after the tire
pressure warning light comes on, the light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires.
■If you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on one of the front wheels of the vehicle. Perform the
following steps and fit tire chains to the rear tires:
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
1
2
3
