8-1. Specifications

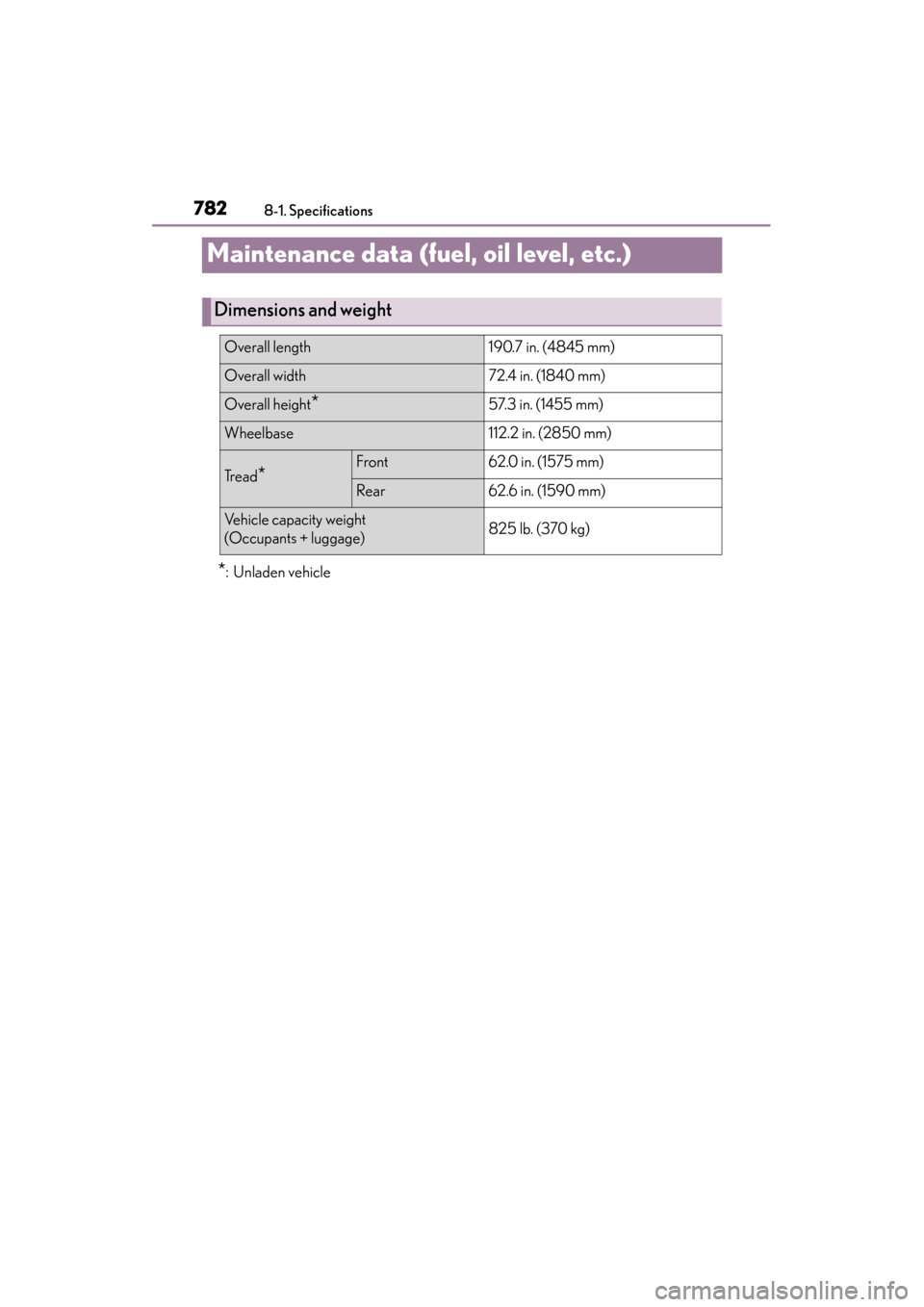

Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weight
Overall length190.7 in. (4845 mm)
Overall width72.4 in. (1840 mm)
Overall height*57.3 in. (1455 mm)
Wheelbase112.2 in. (2850 mm)
Tread*Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
sec_08-01.fm Page 782 Monday, January 30, 2012 10:38 AM

GS450h_U (OM30D01U)
7838-1. Specifications
8
Vehicle specifications

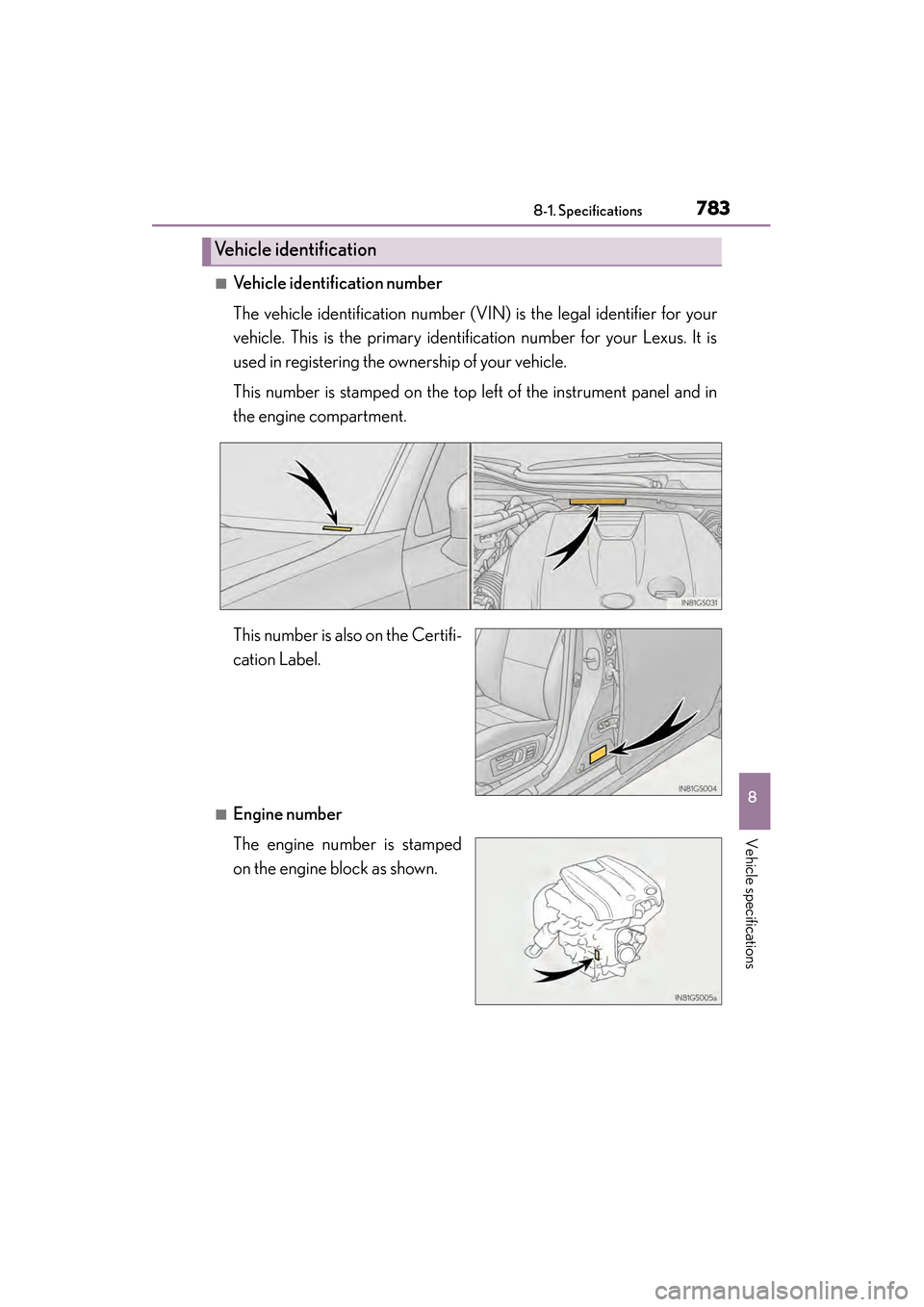

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
GS450h_U.book Page 783 Monday, January 23, 2012 10:20 AM

784
GS450h_U (OM30D01U)
8-1. Specifications
Engine
Model3.5 L 6-cylinder (2GR-FXE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque275 N•m (28.0 kgf•m, 202.8 ft•lbf)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V
GS450h_U.book Page 784 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
7858-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Lubrication system
Oil capacity
Drain and refill (Reference
*)
With filter
Without filter
6.7 qt. (6.3 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)
GS450h_U.book Page 785 Monday, January 23, 2012 10:20 AM

786
GS450h_U (OM30D01U)
8-1. Specifications
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certifica-
tion Mark is added to some oil
containers to help you select the
oil you should use.
Outside temperature
GS450h_U.book Page 786 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
7878-1. Specifications
8
Vehicle specifications

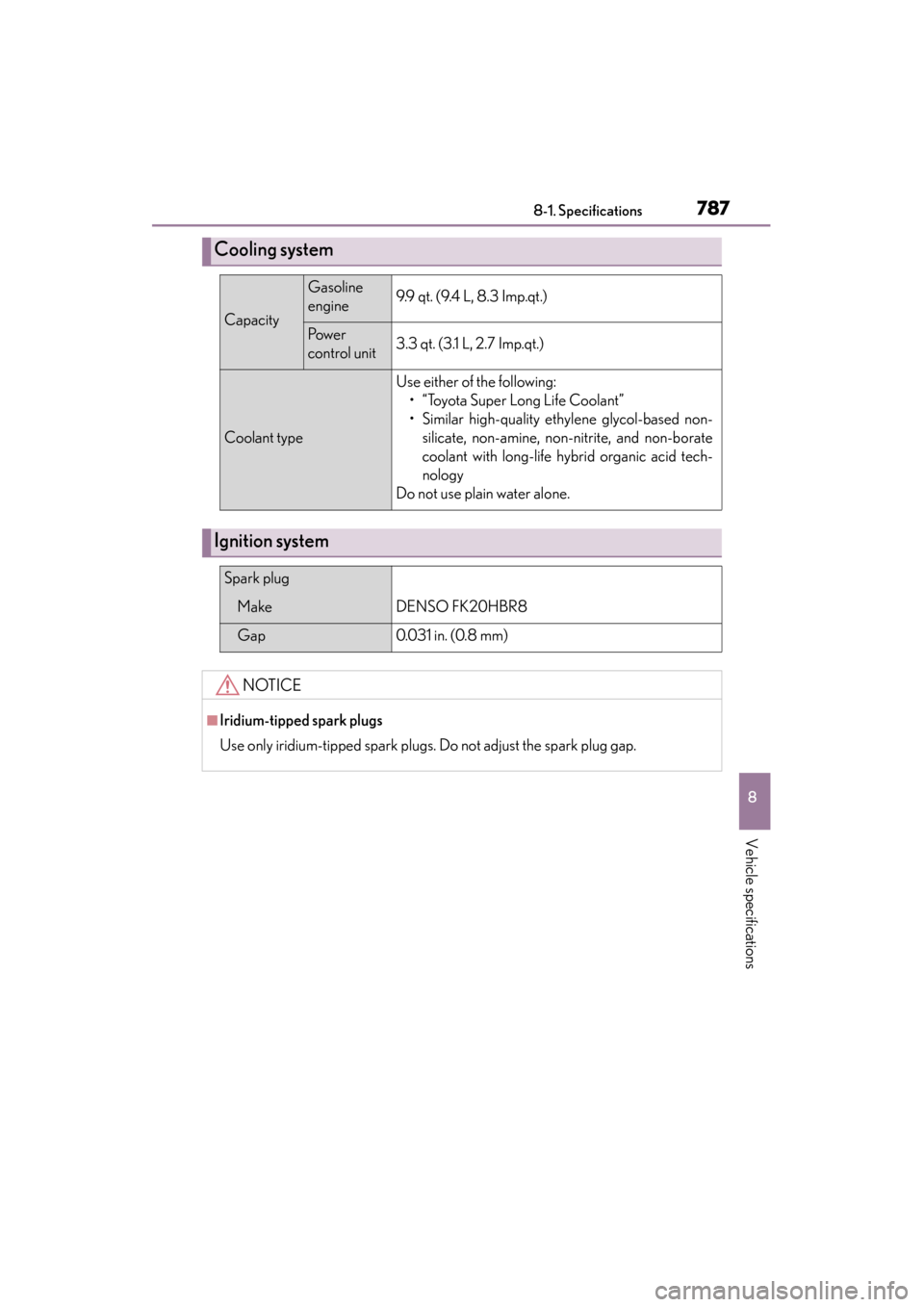

Cooling system
Capacity
Gasoline
engine9.9 qt. (9.4 L, 8.3 Imp.qt.)
Pow e r
control unit3.3 qt. (3.1 L, 2.7 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK20HBR8
Gap0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
GS450h_U.book Page 787 Monday, January 23, 2012 10:20 AM

788
GS450h_U (OM30D01U)
8-1. Specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.

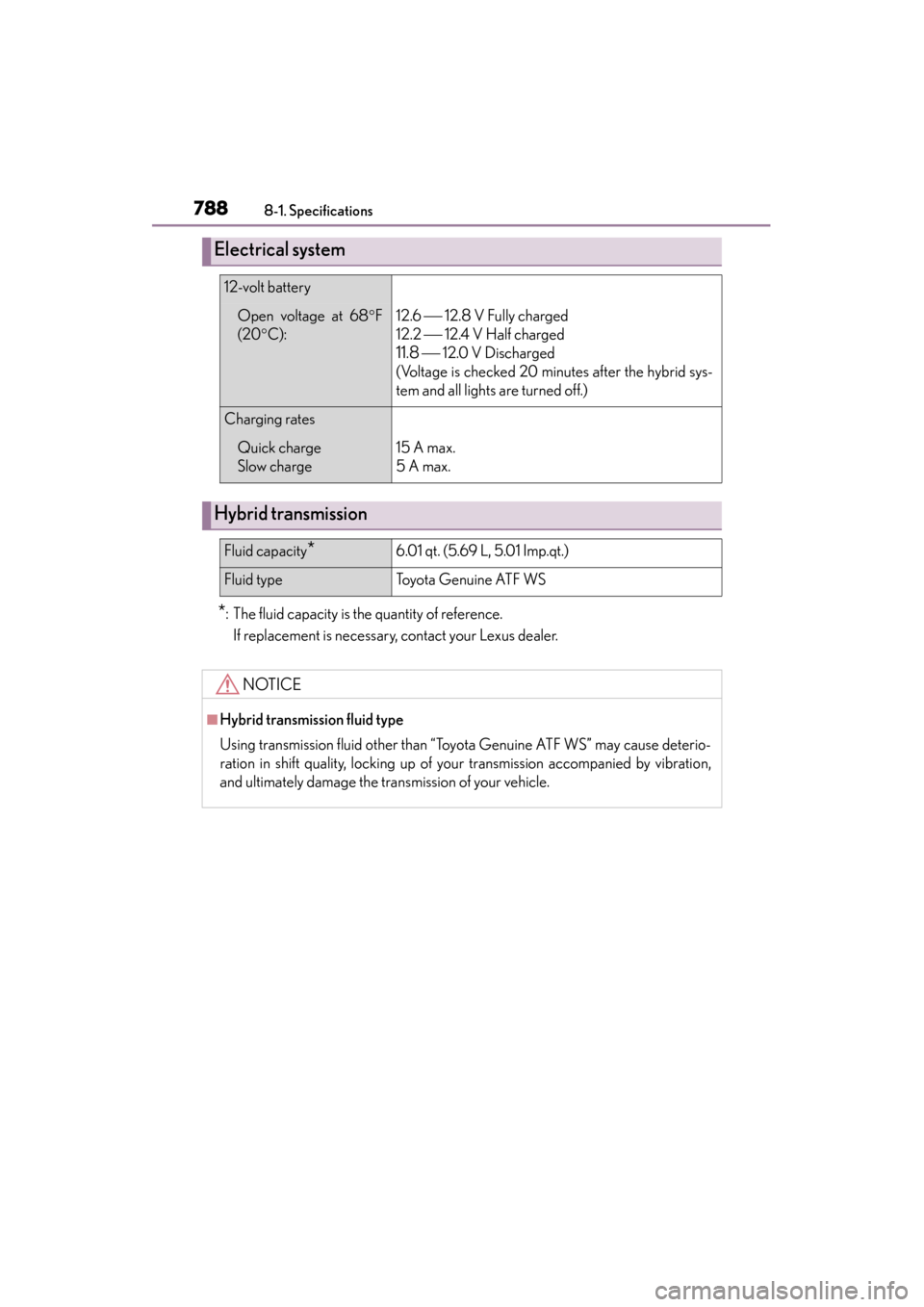

Electrical system
12-volt battery
Open voltage at 68 °F
(20 °C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 minutes after the hybrid sys-
tem and all lights are turned off.)
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Hybrid transmission
Fluid capacity*6.01 qt. (5.69 L, 5.01 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration,
and ultimately damage the transmission of your vehicle.
sec_08-01.fm Page 788 Monday, January 30, 2012 10:38 AM

GS450h_U (OM30D01U)
7898-1. Specifications
8
Vehicle specifications

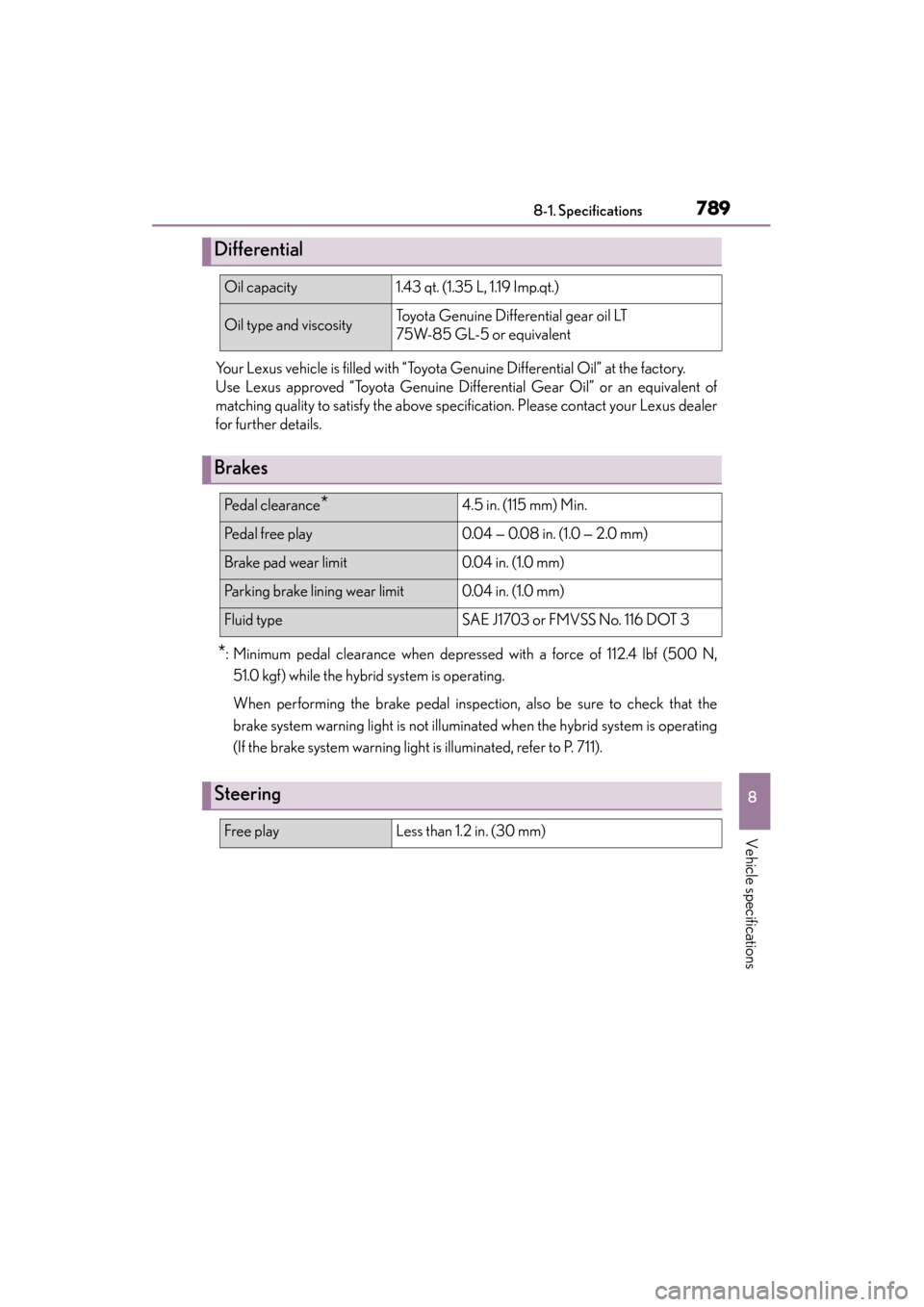

Your Lexus vehicle is filled with “Toyota Genuine Differential Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N,51.0 kgf) while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illuminated when the hybrid system is operating
(If the brake system warning light is illuminated, refer to P. 711).
Differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*4.5 in. (115 mm) Min.
Pe d a l f r e e p l a y0.04 — 0.08 in. (1.0 — 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
GS450h_U.book Page 789 Monday, January 23, 2012 10:20 AM
