7607-2. Steps to take in an emergency
GS450h_U (OM30D01U)

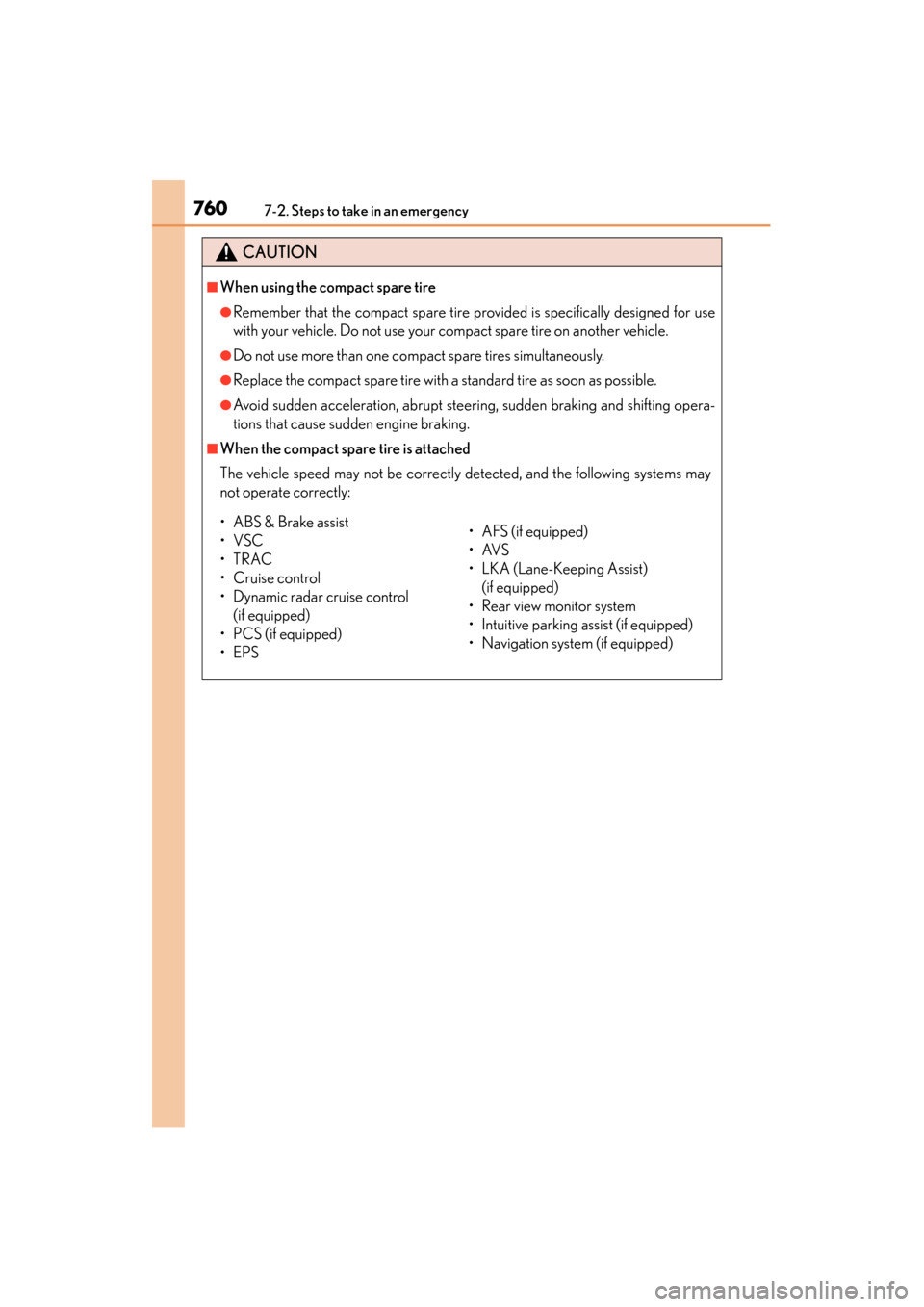

CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting opera-
tions that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
• ABS & Brake assist
•VSC
•TRAC
•Cruise control
• Dynamic radar cruise control (if equipped)
• PCS (if equipped)
•EPS • AFS (if equipped)
•AVS
• LKA (Lane-Keeping Assist)
(if equipped)
• Rear view monitor system
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)
GS450h_U.book Page 760 Monday, January 23, 2012 10:20 AM

7617-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
CAUTION
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire
is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their stor-
age location to reduce the possibility of personal injury during a collision or sudden
braking.
NOTICE
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving perfor-
mance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
GS450h_U.book Page 761 Monday, January 23, 2012 10:20 AM

762
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency

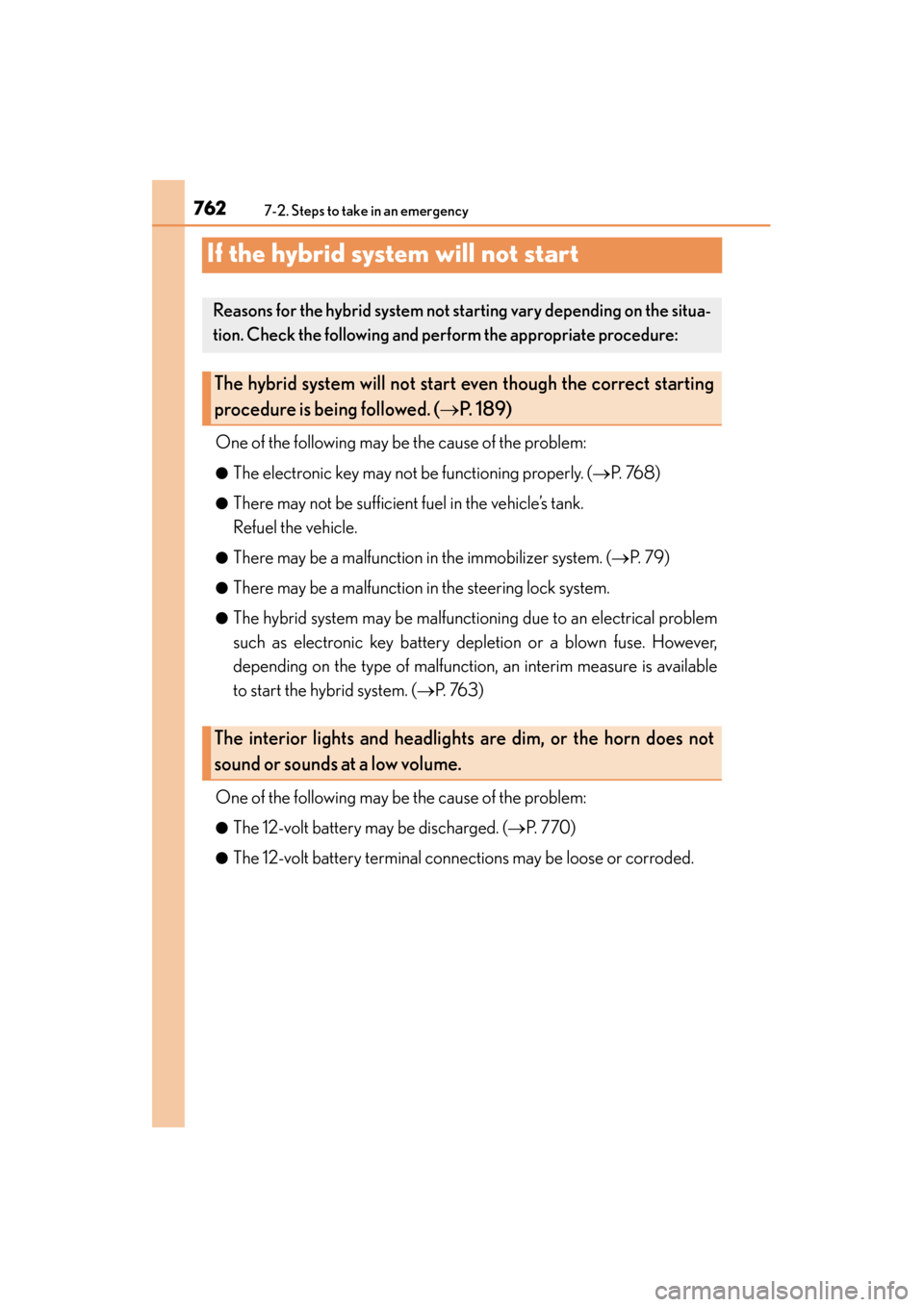

If the hybrid system will not start
One of the following may be the cause of the problem:
●The electronic key may not be functioning properly. (→P. 76 8 )
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●There may be a malfunction in the immobilizer system. ( →P. 7 9 )
●There may be a malfunction in the steering lock system.
●The hybrid system may be malfunctioning due to an electrical problem
such as electronic key battery depletion or a blown fuse. However,
depending on the type of malfunction, an interim measure is available
to start the hybrid system. ( →P. 763)
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( →P. 7 7 0 )
●The 12-volt battery terminal connections may be loose or corroded.
Reasons for the hybrid system not st arting vary depending on the situa-
tion. Check the following and perform the appropriate procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( →P. 1 8 9 )
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
GS450h_U.book Page 762 Monday, January 23, 2012 10:20 AM

7637-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
One of the following may be the cause of the problem:
●One or both of the 12-volt battery terminals may be disconnected.
●The 12-volt battery may be discharged. (→P. 7 7 0 )
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the hybrid system does not start, the following steps can be used as
an interim measure to start the hybrid system if the power switch is func-
tioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while depressing
the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Lexus dealer.

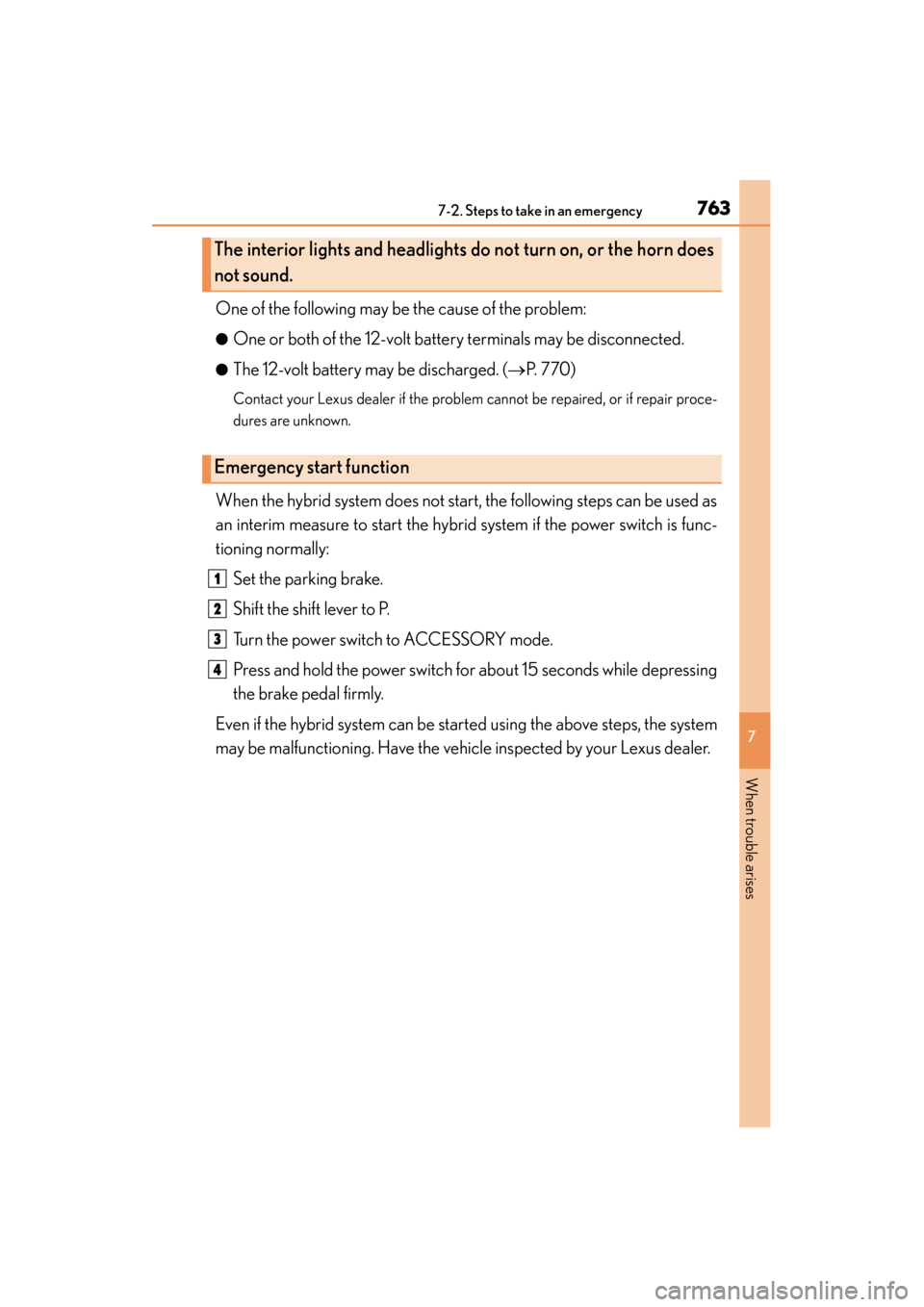

The interior lights and headlights do not turn on, or the horn does
not sound.
Emergency start function
1
2
3
4
GS450h_U.book Page 763 Monday, January 23, 2012 10:20 AM

764
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency
If the shift lever cannot be shifted from P
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override but-
ton.
The shift lever can be shifted while the
button is pressed.
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Lexus dealer immediately.
The following steps may be used as an emergency measure to ensure
that the shift lever can be shifted:
1
2
3
4
5
GS450h_U.book Page 764 Monday, January 23, 2012 10:20 AM

765
GS450h_U (OM30D01U)
7
When trouble arises
7-2. Steps to take in an emergency
If the parking brake cannot be released
●Shift the shift lever to P.
●Turn the power switch off.
●Check that the parking brake indicator is off.
●Chock the tires.
Take out the parking brake
release tool and the screwdriver
from the trunk. (→ P. 7 5 0 )
Fit the parking brake release tool into
the screwdriver handle.
Take out the spare tire. ( →P. 74 9 )
In the event that the 12-volt battery is discharged or switch operation
does not release the parking brake, the parking brake can be released
manually using the procedure below. This procedure should be per-
formed only if necessary, su ch as in an emergency.
If the switch cannot be operated even when the 12-volt battery is nor-
mal, the parking brake system may be malfunctioning. Have the vehicle
inspected by your Lexu s dealer immediately.
Before releasing the parking brake manually
Releasing the parking brake manually
1
2
GS450h_U.book Page 765 Monday, January 23, 2012 10:20 AM

7667-2. Steps to take in an emergency

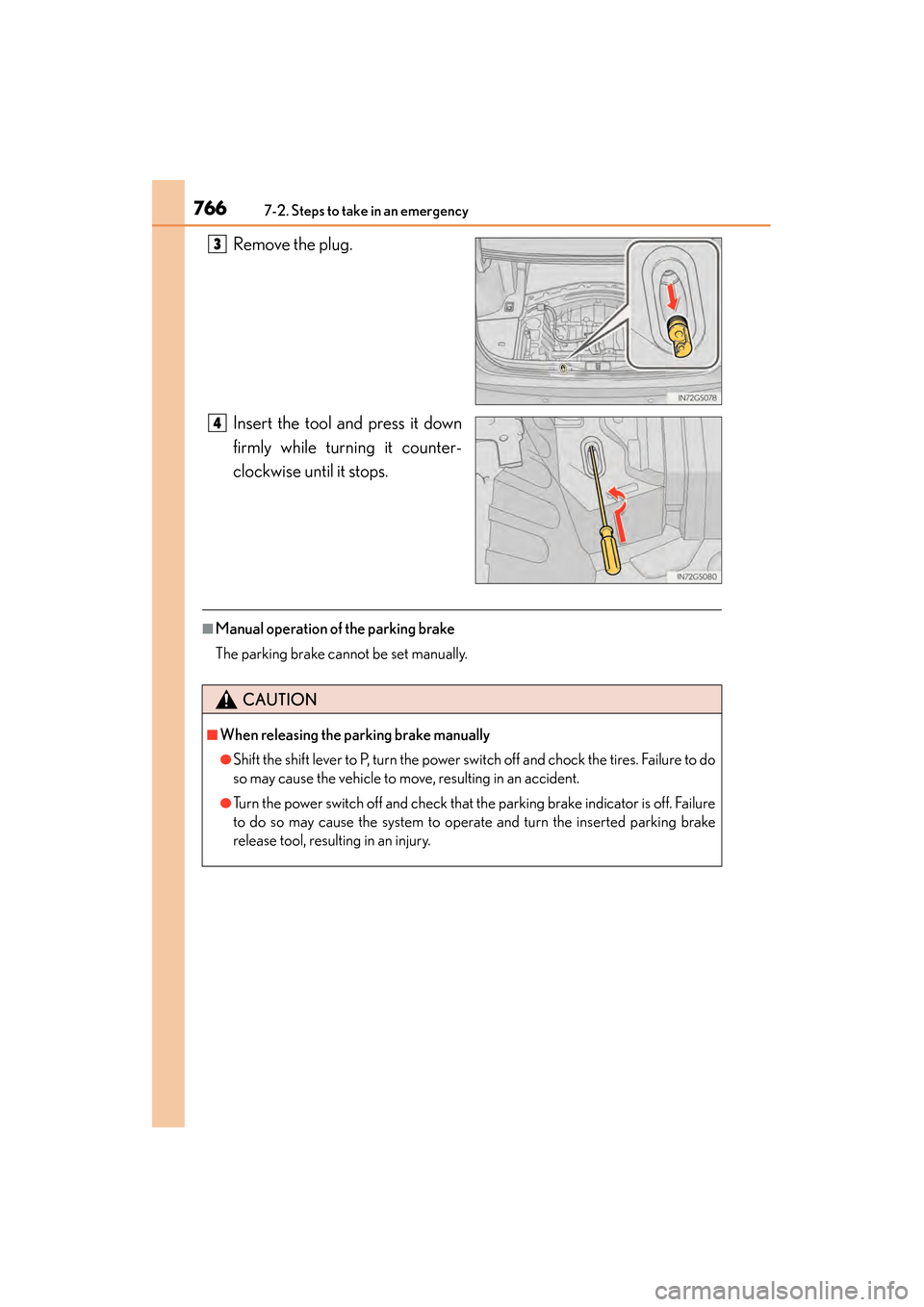

GS450h_U (OM30D01U)Remove the plug.
Insert the tool and press it down
firmly while turning it counter-
clockwise until it stops.
■Manual operation of the parking brake
The parking brake cannot be set manually.
3
4
CAUTION
■When releasing the parking brake manually
●Shift the shift lever to P, turn the power switch off and chock the tires. Failure to do
so may cause the vehicle to move, resulting in an accident.
●Turn the power switch off and check that the parking brake indicator is off. Failure
to do so may cause the system to operate and turn the inserted parking brake
release tool, resulting in an injury.
GS450h_U.book Page 766 Monday, January 23, 2012 10:20 AM

767
GS450h_U (OM30D01U)
7
When trouble arises
7-2. Steps to take in an emergency

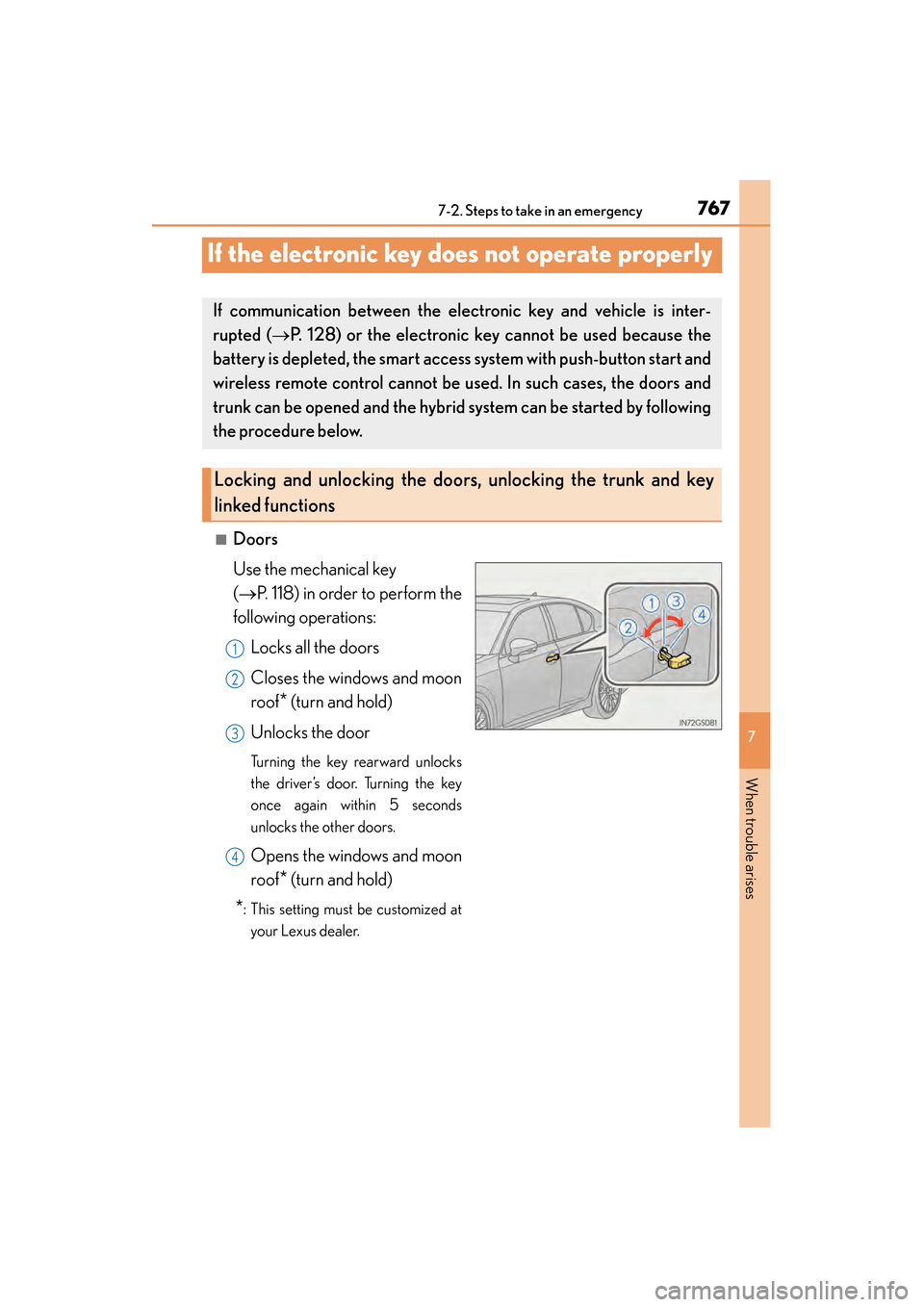

If the electronic key does not operate properly
■Doors
Use the mechanical key
(→ P. 118) in order to perform the
following operations:
Locks all the doors
Closes the windows and moon
roof
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.
Opens the windows and moon
roof
* (turn and hold)
*: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is inter-
rupted ( →P. 128) or the electronic key cannot be used because the
battery is depleted, the smart access system with push-button start and
wireless remote control cannot be used. In such cases, the doors and
trunk can be opened and the hybrid system can be started by following
the procedure below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1
2
3
4
GS450h_U.book Page 767 Monday, January 23, 2012 10:20 AM

7687-2. Steps to take in an emergency
GS450h_U (OM30D01U)

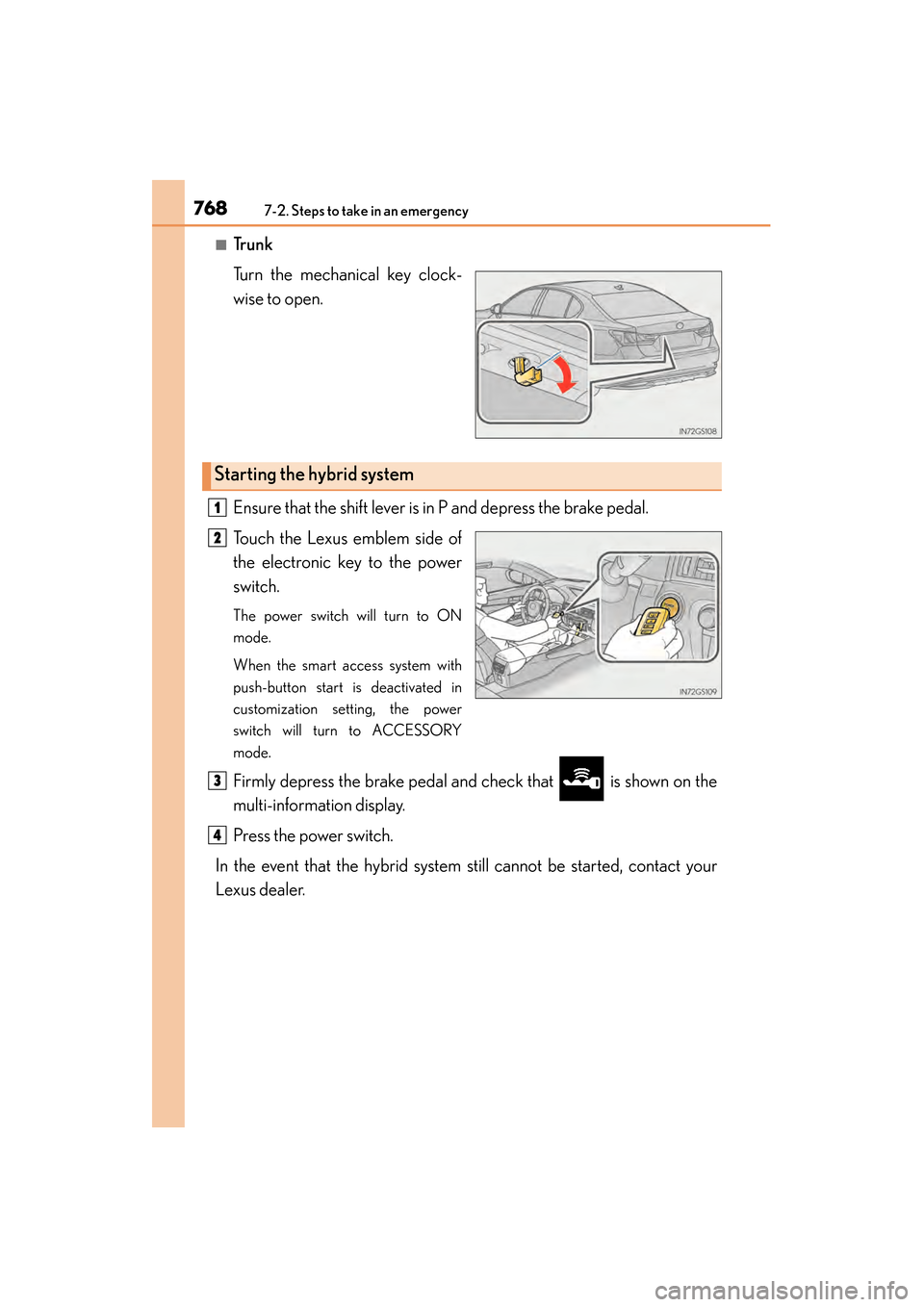

■Tr u n k
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the power
switch.
The power switch will turn to ON
mode.
When the smart access system with
push-button start is deactivated in
customization setting, the power
switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and check that is shown on the
multi-information display.
Press the power switch.
In the event that the hybrid system still cannot be started, contact your
Lexus dealer.
Starting the hybrid system
1
2
3
4
GS450h_U.book Page 768 Monday, January 23, 2012 10:20 AM

7697-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
■Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when stop-
ping the hybrid system.

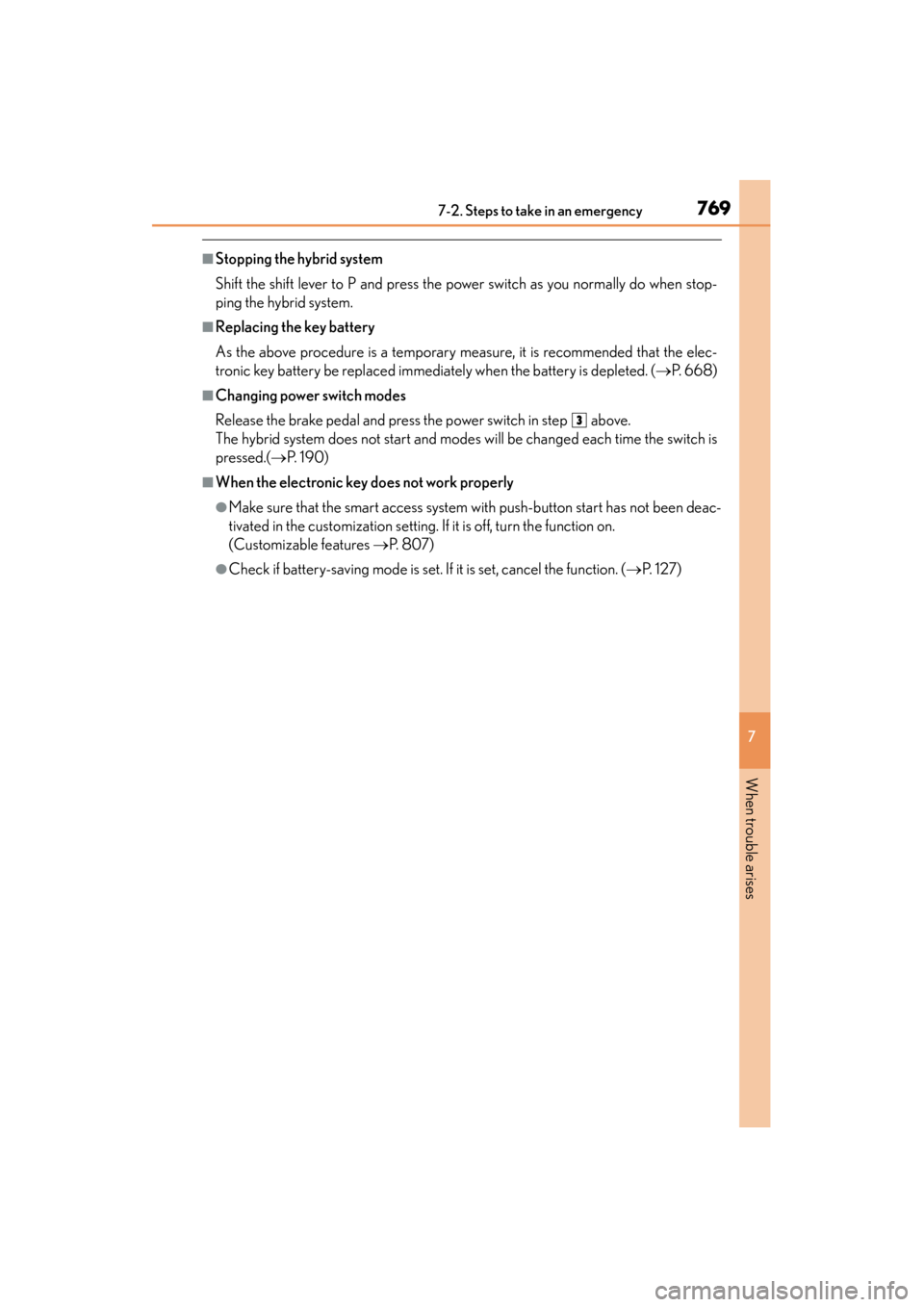

■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted. (→P. 668)
■Changing power switch modes
Release the brake pedal and press the power switch in step above.
The hybrid system does not start and modes will be changed each time the switch is
pressed.( →P. 1 9 0 )
■When the electronic key does not work properly
●Make sure that the smart access system with push-button start has not been deac-
tivated in the customization setting. If it is off, turn the function on.
(Customizable features →P. 807)
●Check if battery-saving mode is set. If it is set, cancel the function. ( →P. 1 2 7 )
3
