7-2. Steps to take in an emergency
If the 12-volt battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle with a
12-volt battery, you can jump start your vehicle by following the steps
below.
Open the trunk lid and remove
the 12-volt battery cover.
In the event that the trunk opener can-
not be used, use the mechanical key to
open the trunk. ( →P. 76 7 )
Connect the jumper cables according to the following procedure:
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Negative (-) battery terminal on your vehicle
The following procedures may be used to start the hybrid system if the
12-volt battery is discharged.
You can also call your Lexus dealer or a qualified repair shop.
1
2
1
2
3
4
GS450h_U.book Page 770 Monday, January 23, 2012 10:20 AM

7717-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Open and close any of the doors of your vehicle with the power switch
off.
Maintain the engine speed of the second vehicle and start the hybrid
system of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator does not
come on, contact your Lexus dealer.
Once the hybrid system has started, remove the jumper cables in the
exact reverse order from which they were connected.
Once the hybrid system starts, have the vehicle inspected at your Lexus
dealer as soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of certain elec-
trical appliances. If the vehicle is left for a long time, the 12-volt battery may dis-
charge, and the hybrid system may be unable to start. (The 12-volt battery recharges
automatically while the hybrid system is operating.)
3
4
5
6
7
GS450h_U.book Page 771 Monday, January 23, 2012 10:20 AM

7727-2. Steps to take in an emergency
GS450h_U (OM30D01U)

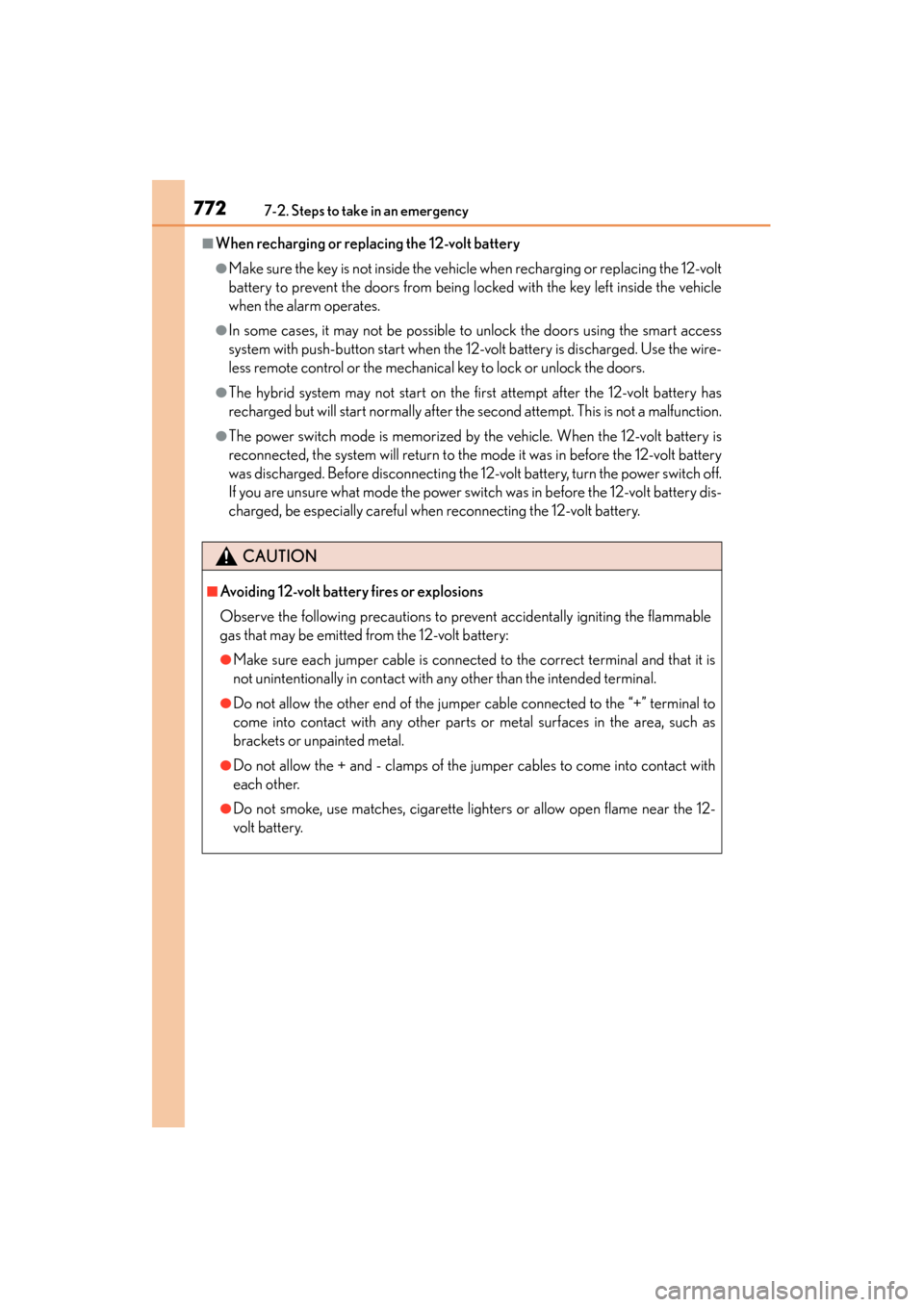

■When recharging or replacing the 12-volt battery
●Make sure the key is not inside the vehicle when recharging or replacing the 12-volt
battery to prevent the doors from being locked with the key left inside the vehicle
when the alarm operates.
●In some cases, it may not be possible to unlock the doors using the smart access
system with push-button start when the 12-volt battery is discharged. Use the wire-
less remote control or the mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt battery is
reconnected, the system will return to the mode it was in before the 12-volt battery
was discharged. Before disconnecting the 12-volt battery, turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt battery dis-
charged, be especially careful when reconnecting the 12-volt battery.
CAUTION
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to
come into contact with any other parts or metal surfaces in the area, such as
brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the 12-
volt battery.
GS450h_U.book Page 772 Monday, January 23, 2012 10:20 AM

7737-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
CAUTION

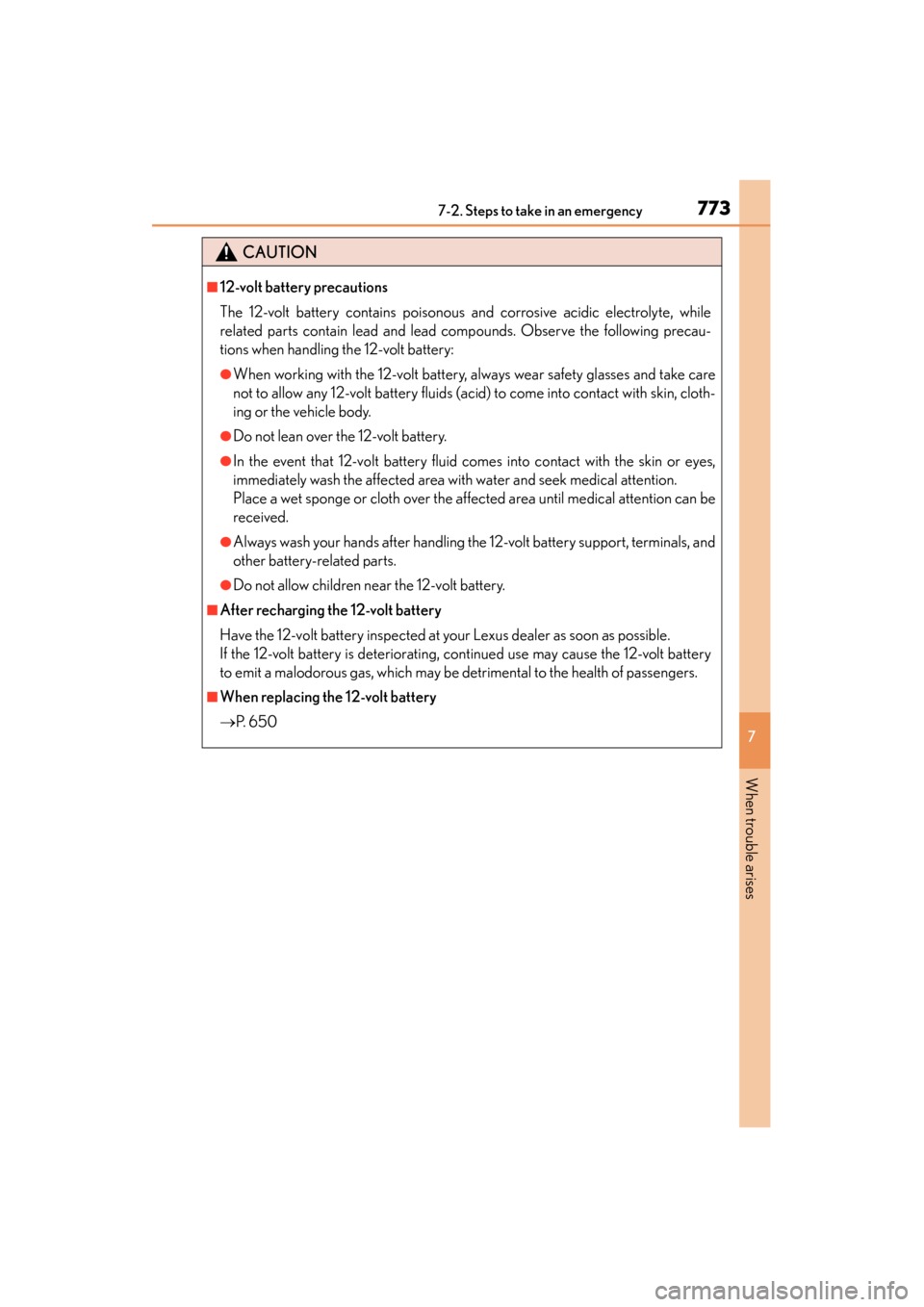

■12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following precau-
tions when handling the 12-volt battery:
●When working with the 12-volt battery, always wear safety glasses and take care
not to allow any 12-volt battery fluids (acid) to come into contact with skin, cloth-
ing or the vehicle body.
●Do not lean over the 12-volt battery.
●In the event that 12-volt battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.
■After recharging the 12-volt battery
Have the 12-volt battery inspected at your Lexus dealer as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery
to emit a malodorous gas, which may be detrimental to the health of passengers.
■When replacing the 12-volt battery
→P. 6 5 0
sec_07-02.fm Page 773 Monday, January 30, 2012 10:37 AM

774
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency

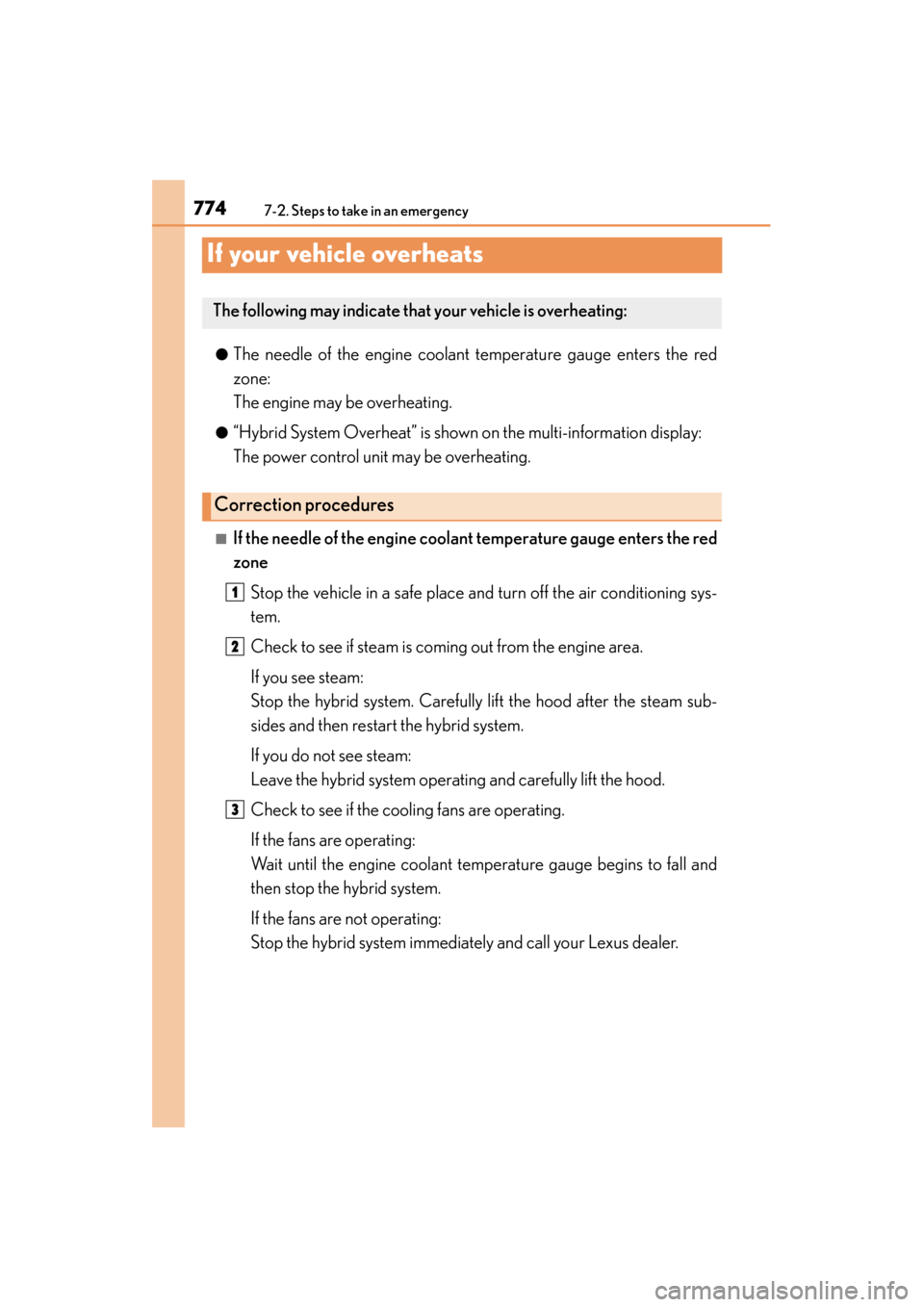

If your vehicle overheats
●The needle of the engine coolant temperature gauge enters the red
zone:
The engine may be overheating.
●“Hybrid System Overheat” is shown on the multi-information display:
The power control unit may be overheating.
■If the needle of the engine coolant temperature gauge enters the red
zone
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem.
Check to see if steam is coming out from the engine area.
If you see steam:
Stop the hybrid system. Carefully lift the hood after the steam sub-
sides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the engine coolant temperature gauge begins to fall and
then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediately and call your Lexus dealer.
The following may indicate that your vehicle is overheating:
Correction procedures
1
2
3
GS450h_U.book Page 774 Monday, January 23, 2012 10:20 AM

7757-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

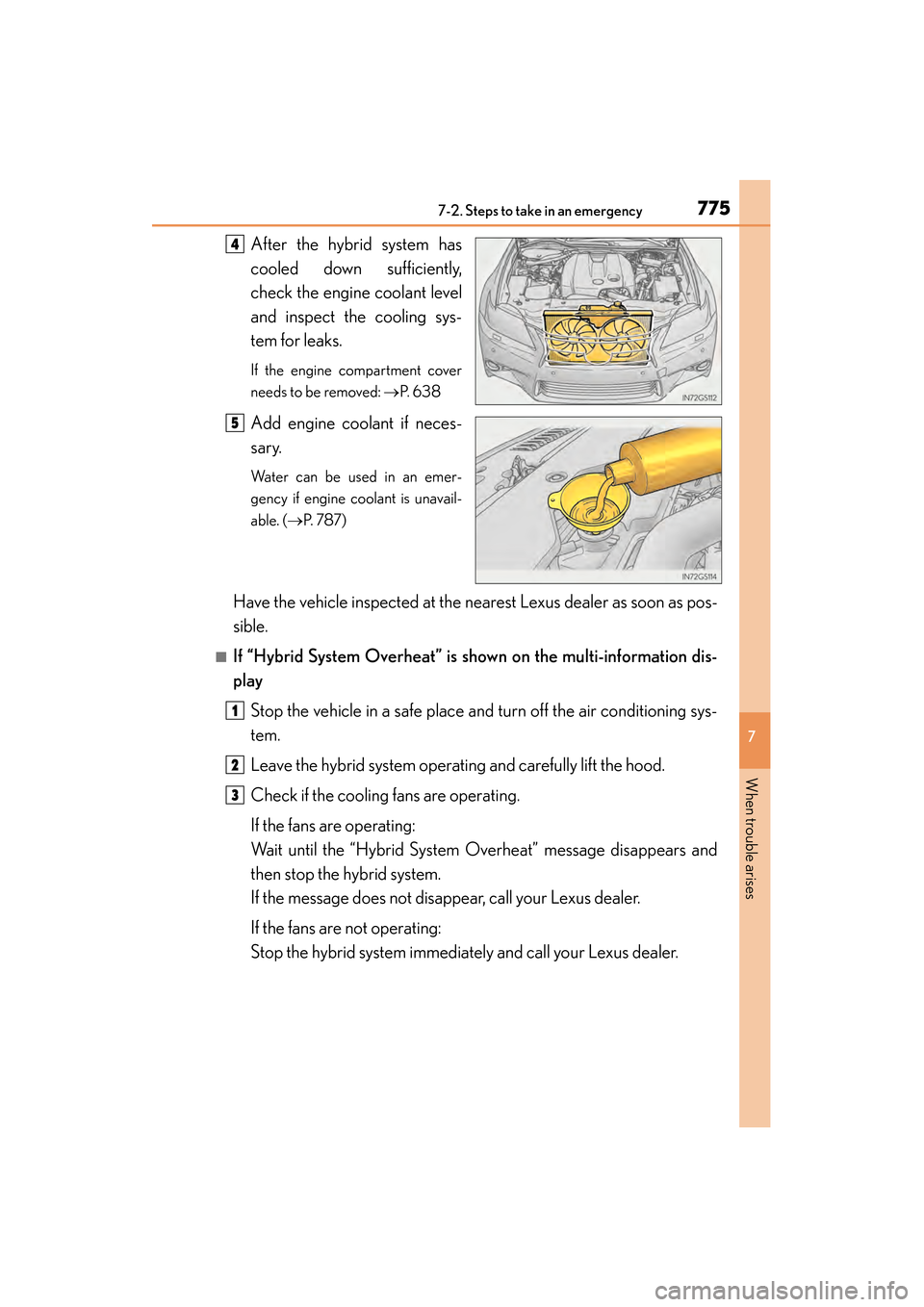

After the hybrid system has
cooled down sufficiently,
check the engine coolant level
and inspect the cooling sys-
tem for leaks.
If the engine compartment cover
needs to be removed: →P. 6 3 8
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able. ( →P. 7 8 7 )
Have the vehicle inspected at the nearest Lexus dealer as soon as pos-
sible.
■If “Hybrid System Overheat” is sh own on the multi-information dis-
play
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem.
Leave the hybrid system operating and carefully lift the hood.
Check if the cooling fans are operating.
If the fans are operating:
Wait until the “Hybrid System Overheat” message disappears and
then stop the hybrid system.
If the message does not disappear, call your Lexus dealer.
If the fans are not operating:
Stop the hybrid system immediately and call your Lexus dealer.
4
5
1
2
3
GS450h_U.book Page 775 Monday, January 23, 2012 10:20 AM

7767-2. Steps to take in an emergency

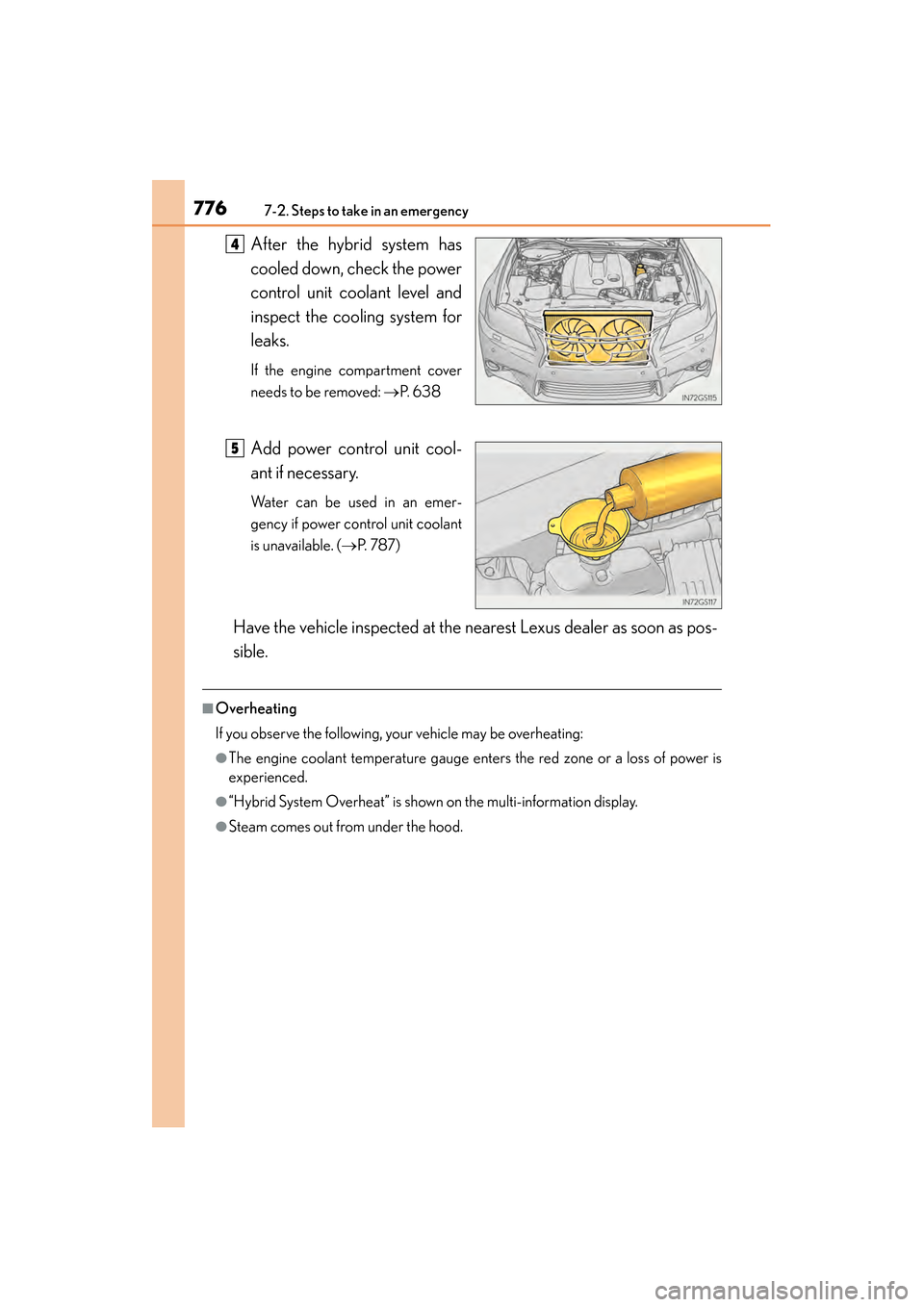

GS450h_U (OM30D01U)After the hybrid system has
cooled down, check the power
control unit coolant level and
inspect the cooling system for
leaks.
If the engine compartment cover
needs to be removed:
→P. 6 3 8
Add power control unit cool-
ant if necessary.
Water can be used in an emer-
gency if power control unit coolant
is unavailable. ( →P. 7 8 7 )
Have the vehicle inspected at the nearest Lexus dealer as soon as pos-
sible.
■Overheating
If you observe the following, your vehicle may be overheating:
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●“Hybrid System Overheat” is shown on the multi-information display.
●Steam comes out from under the hood.
4
5
GS450h_U.book Page 776 Monday, January 23, 2012 10:20 AM

7777-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

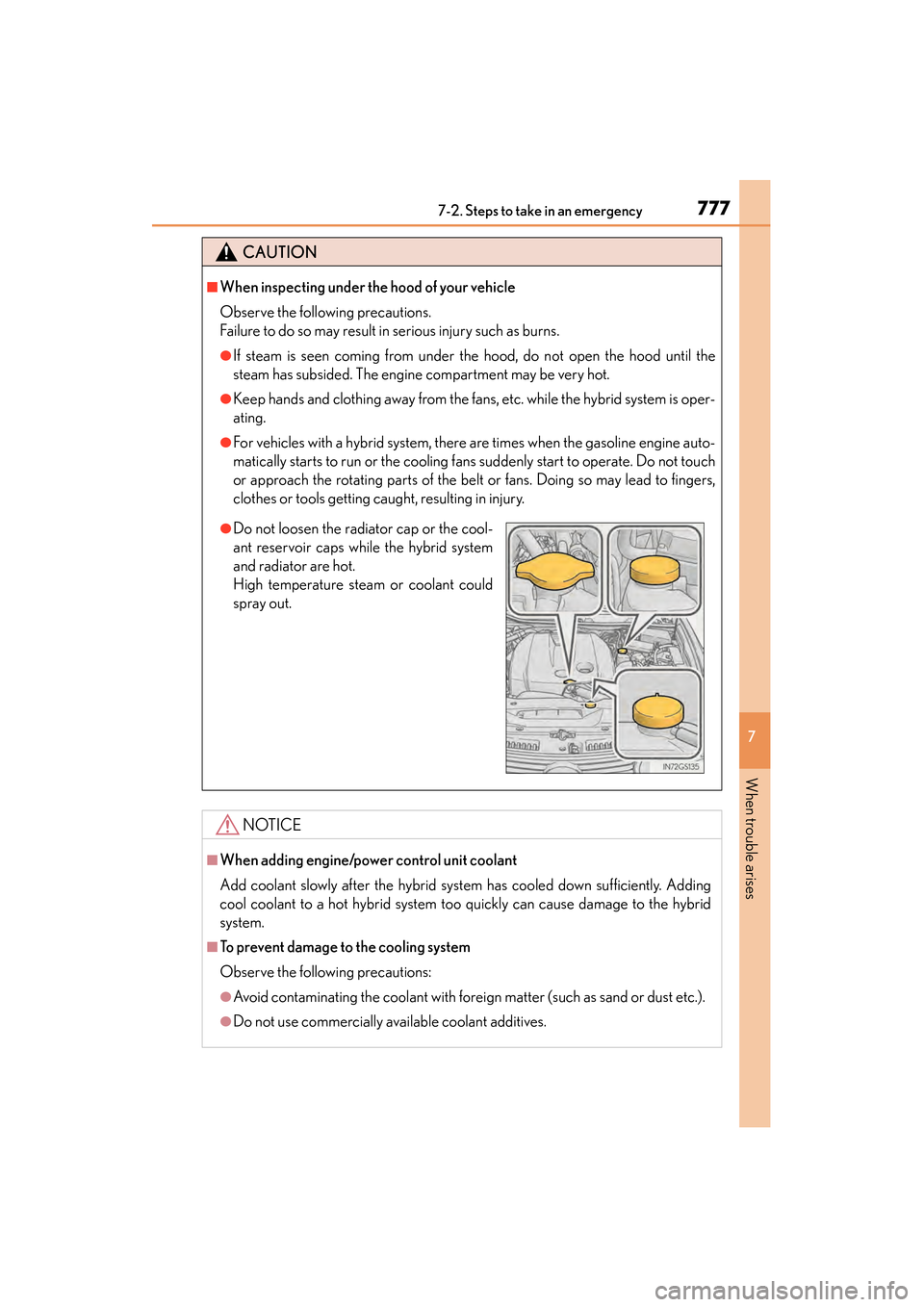

CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing away from the fans, etc. while the hybrid system is oper-
ating.
●For vehicles with a hybrid system, there are times when the gasoline engine auto-
matically starts to run or the cooling fans suddenly start to operate. Do not touch
or approach the rotating parts of the belt or fans. Doing so may lead to fingers,
clothes or tools getting caught, resulting in injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use commercially available coolant additives.
●Do not loosen the radiator cap or the cool-
ant reservoir caps while the hybrid system
and radiator are hot.
High temperature steam or coolant could
spray out.
GS450h_U.book Page 777 Monday, January 23, 2012 10:20 AM

778
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency

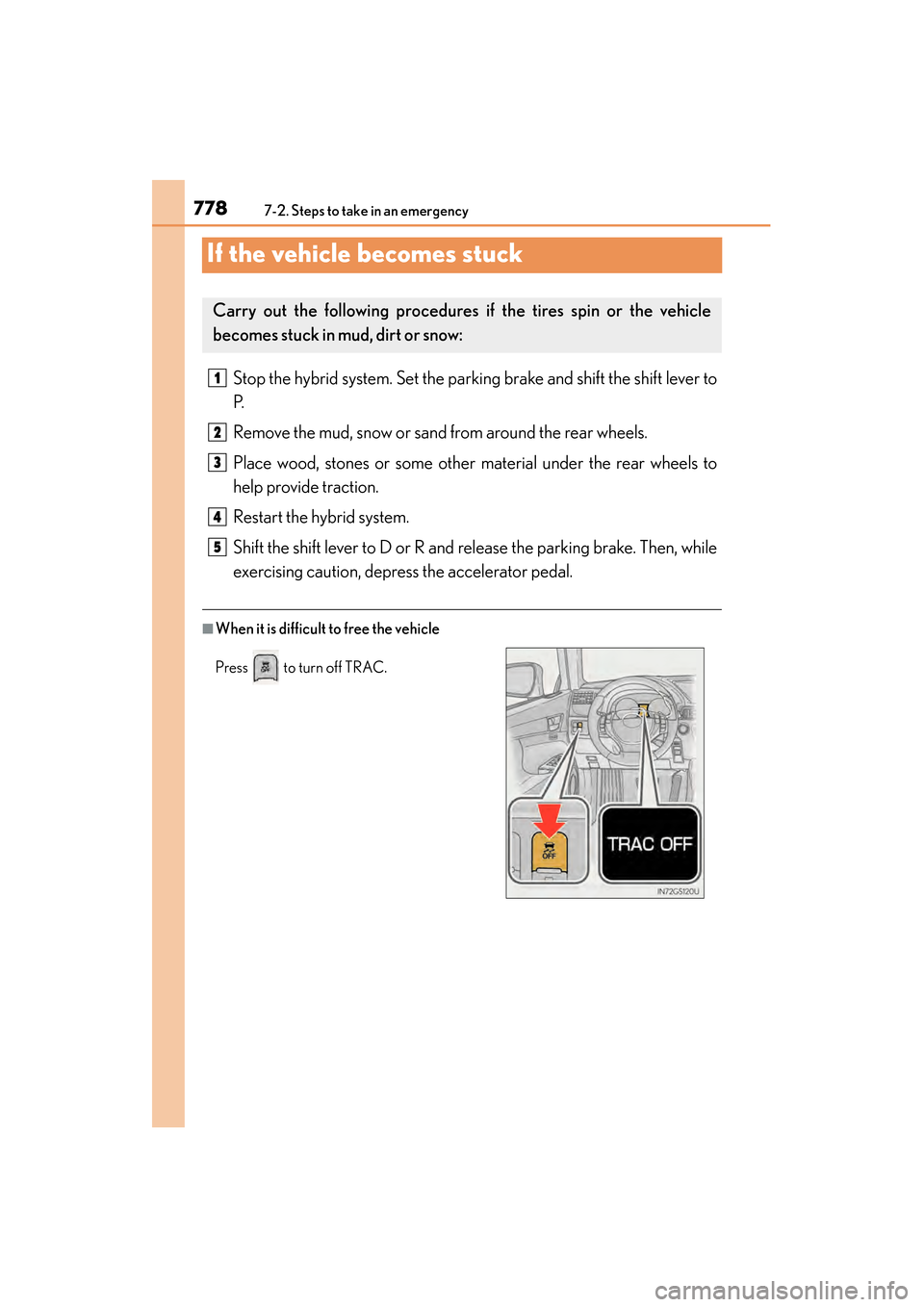

If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift lever to
P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to
help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5
GS450h_U.book Page 778 Monday, January 23, 2012 10:20 AM

7797-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.
GS450h_U.book Page 779 Monday, January 23, 2012 10:20 AM
