20Pictorial index
GS450h_OM_OM30D52U_(U)
■Switches
Headlight cleaner switch* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 310
Instrument panel light control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 93
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . . . . . .P. 93
HUD (Head-up display) switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Heated steering wheel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
BSM (Blind Spot Monitor) main switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Lexus night view switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 21 4
1
2
3
4
5
6
7
8
9
GS450h_OM_OM30D52U_(U).book Page 20 Monday, July 29, 2013 12:07 PM
Page 22 of 890
21Pictorial index
GS450h_OM_OM30D52U_(U)

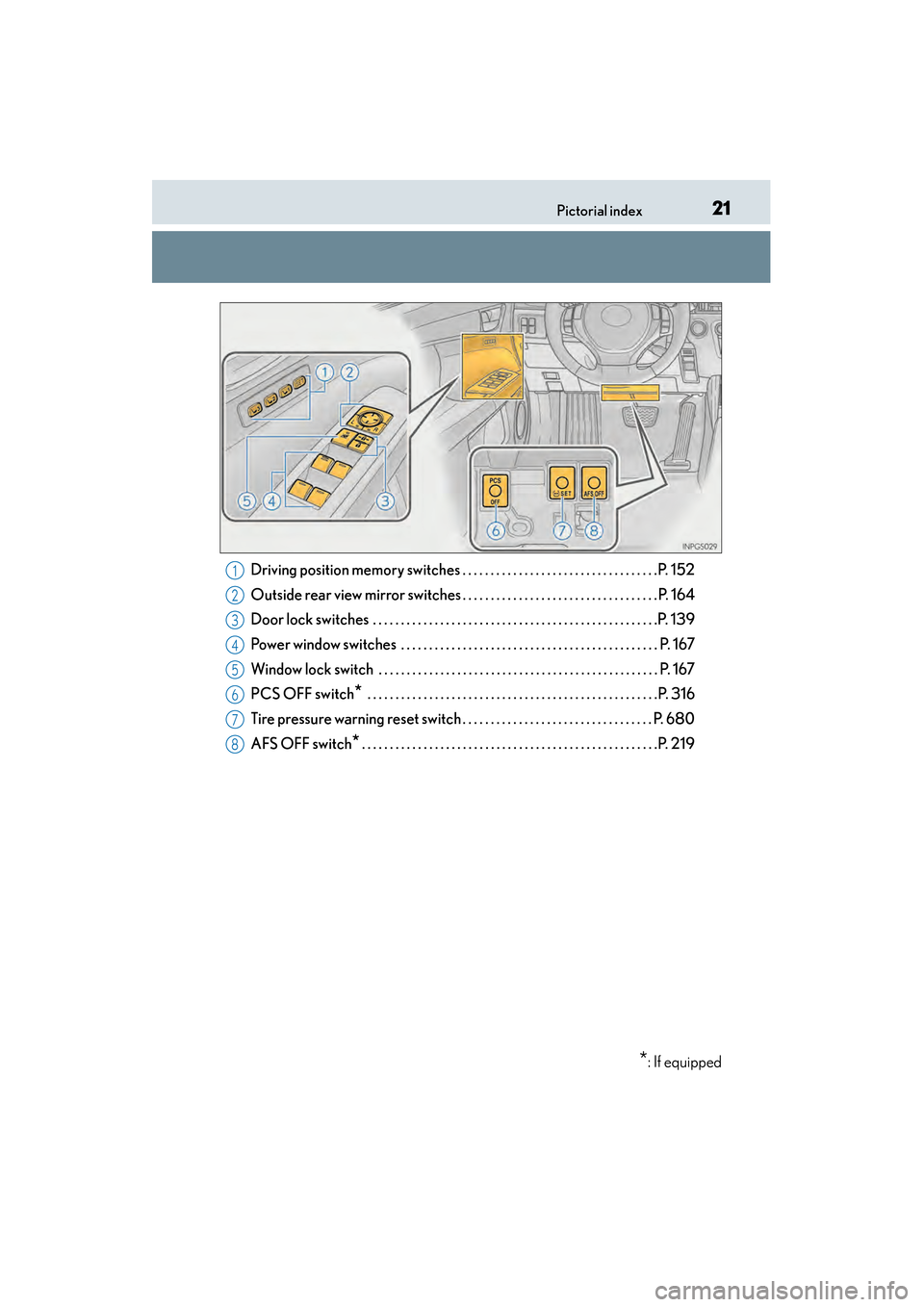

Driving position memory switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 152
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 139
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
PCS OFF switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 316
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 680
AFS OFF switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
*: If equipped
1
2
3
4
5
6
7
8
GS450h_OM_OM30D52U_(U).book Page 21 Monday, July 29, 2013 12:07 PM
Page 23 of 890
22Pictorial index
GS450h_OM_OM30D52U_(U)

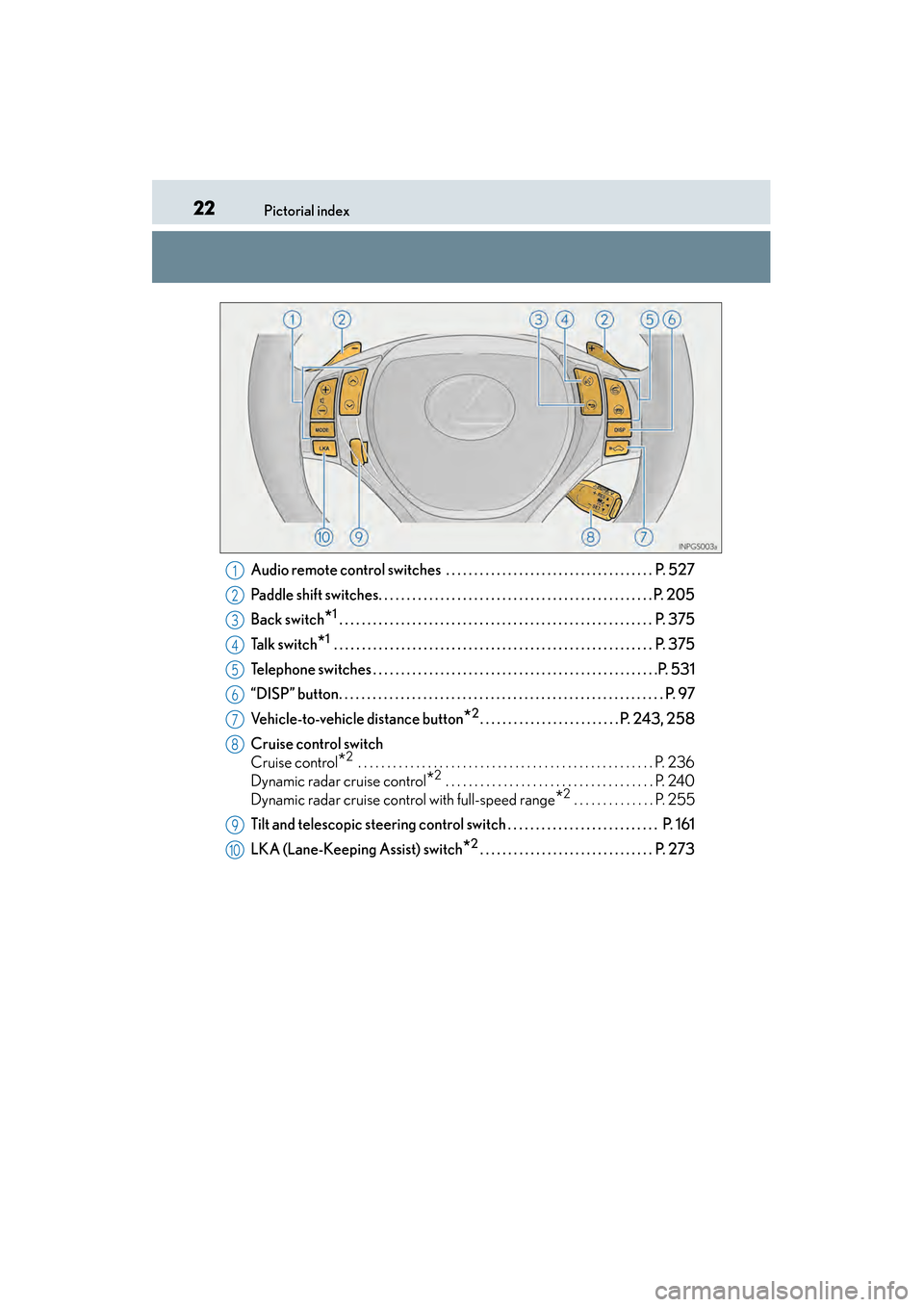

Audio remote control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Paddle shift switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Back switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 375
Talk switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 375
Telephone switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 531
“DISP” button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 97
Vehicle-to-vehicle distance button
*2. . . . . . . . . . . . . . . . . . . . . . . . . P. 243, 258
Cruise control switch
Cruise control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Dynamic radar cruise control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Dynamic radar cruise control with full-speed range
*2 . . . . . . . . . . . . . . P. 255
Tilt and telescopic steering control switch . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
LKA (Lane-Keeping Assist) switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
1
2
3
4
5
6
7
8
9
10
GS450h_OM_OM30D52U_(U).book Page 22 Monday, July 29, 2013 12:07 PM
Page 24 of 890
23Pictorial index
GS450h_OM_OM30D52U_(U)

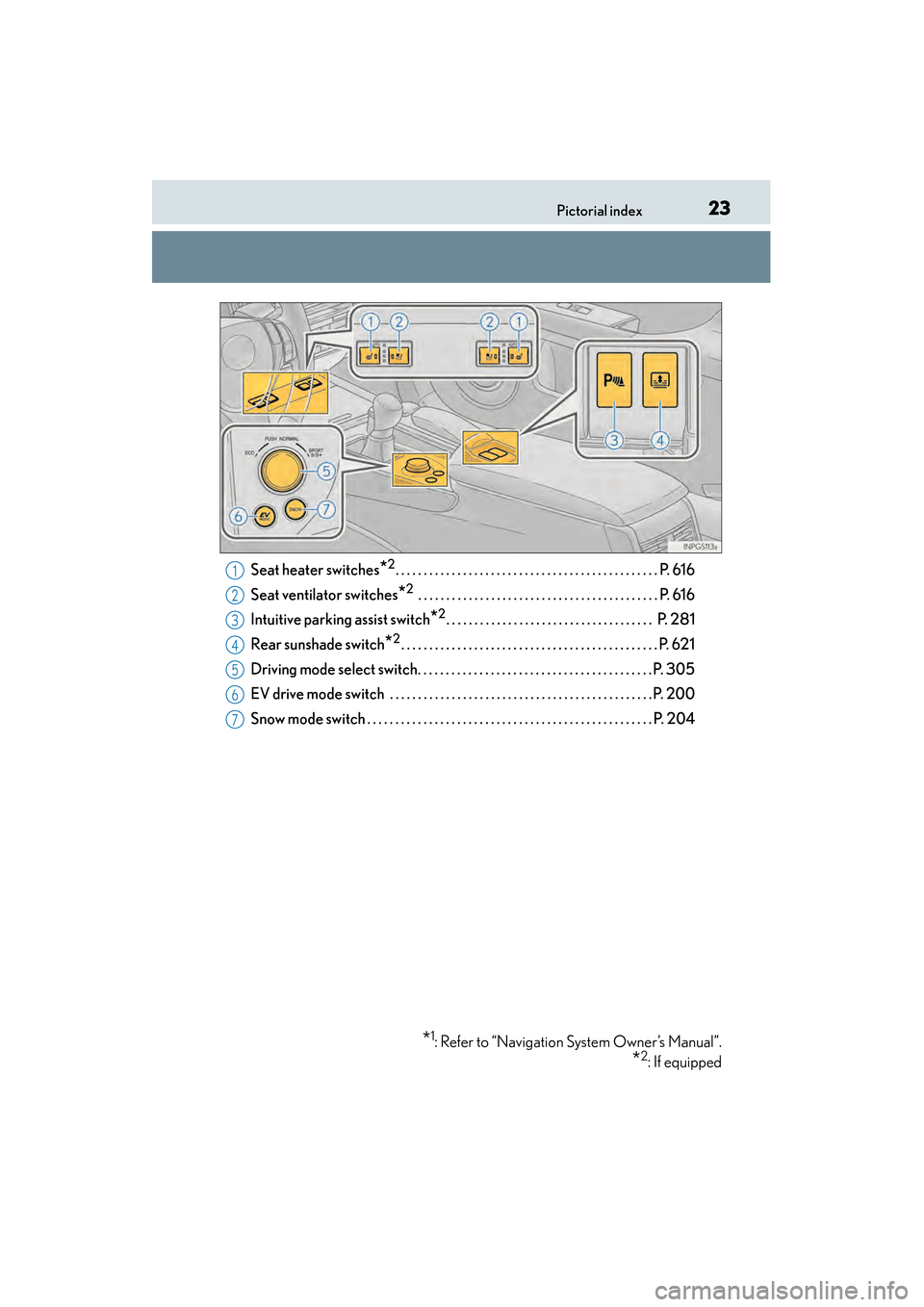

Seat heater switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 616
Seat ventilator switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 616
Intuitive parking assist switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Rear sunshade switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 621
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
*1: Refer to “Navigation System Owner’s Manual”.
*2: If equipped
1
2
3
4
5
6
7
GS450h_OM_OM30D52U_(U).book Page 23 Monday, July 29, 2013 12:07 PM
Page 25 of 890
24Pictorial index
GS450h_OM_OM30D52U_(U)
■Interior

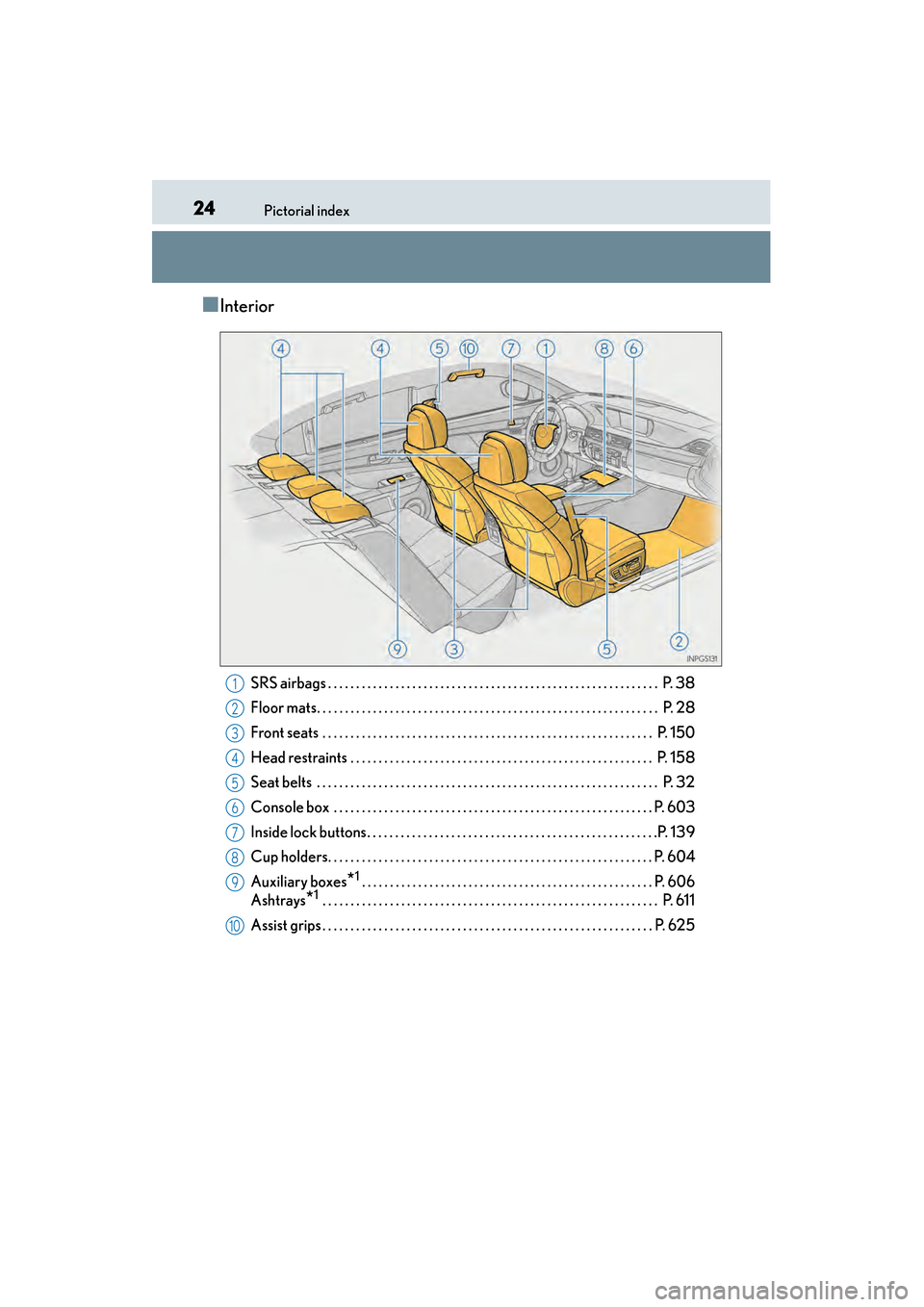

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 603
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 13 9
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 604
Auxiliary boxes
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 606
Ashtrays
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 625
1
2
3
4
5
6
7
8
9
10
GS450h_OM_OM30D52U_(U).book Page 24 Monday, July 29, 2013 12:07 PM
Page 26 of 890
25Pictorial index
GS450h_OM_OM30D52U_(U)

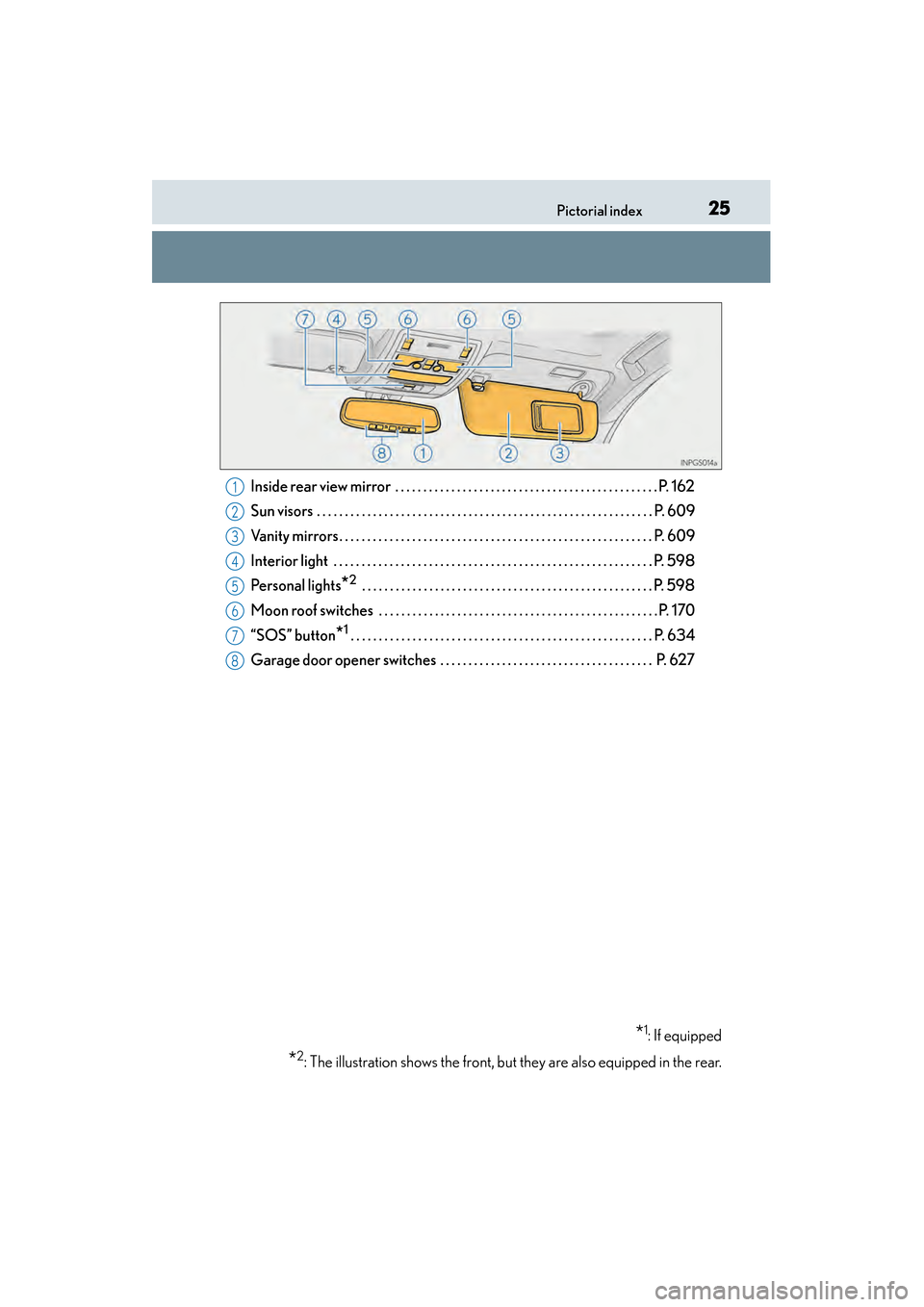

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 598
Personal lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Moon roof switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Garage door opener switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8
GS450h_OM_OM30D52U_(U).book Page 25 Monday, July 29, 2013 12:07 PM
Page 27 of 890
26Pictorial index
GS450h_OM_OM30D52U_(U)
GS450h_OM_OM30D52U_(U).book Page 26 Monday, July 29, 2013 12:07 PM
Page 28 of 890
27
GS450h_OM_OM30D52U_(U)
For safety and security1

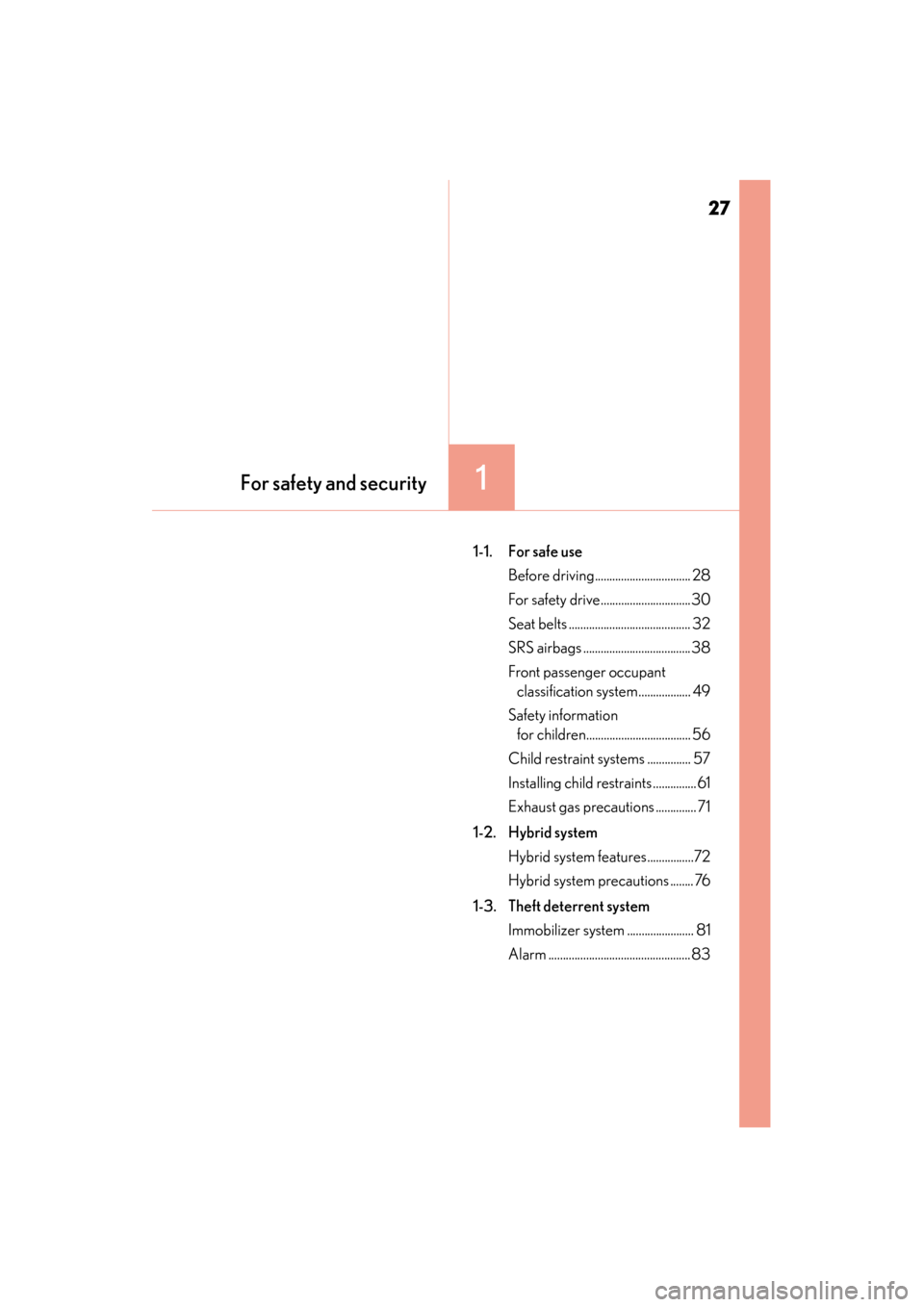

1-1. For safe use Before driving................................. 28
For safety drive...............................30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 49
Safety information for children.................................... 56
Child restraint systems ............... 57
Installing child restraints ............... 61
Exhaust gas precautions .............. 71
1-2. Hybrid system Hybrid system features................72
Hybrid system precautions ........ 76
1-3. Theft deterrent system Immobilizer system ....................... 81
Alarm ................................................. 83
GS450h_OM_OM30D52U_(U).book Page 27 Monday, July 29, 2013 12:07 PM
Page 29 of 890
281-1. For safe use
GS450h_OM_OM30D52U_(U)
Before driving

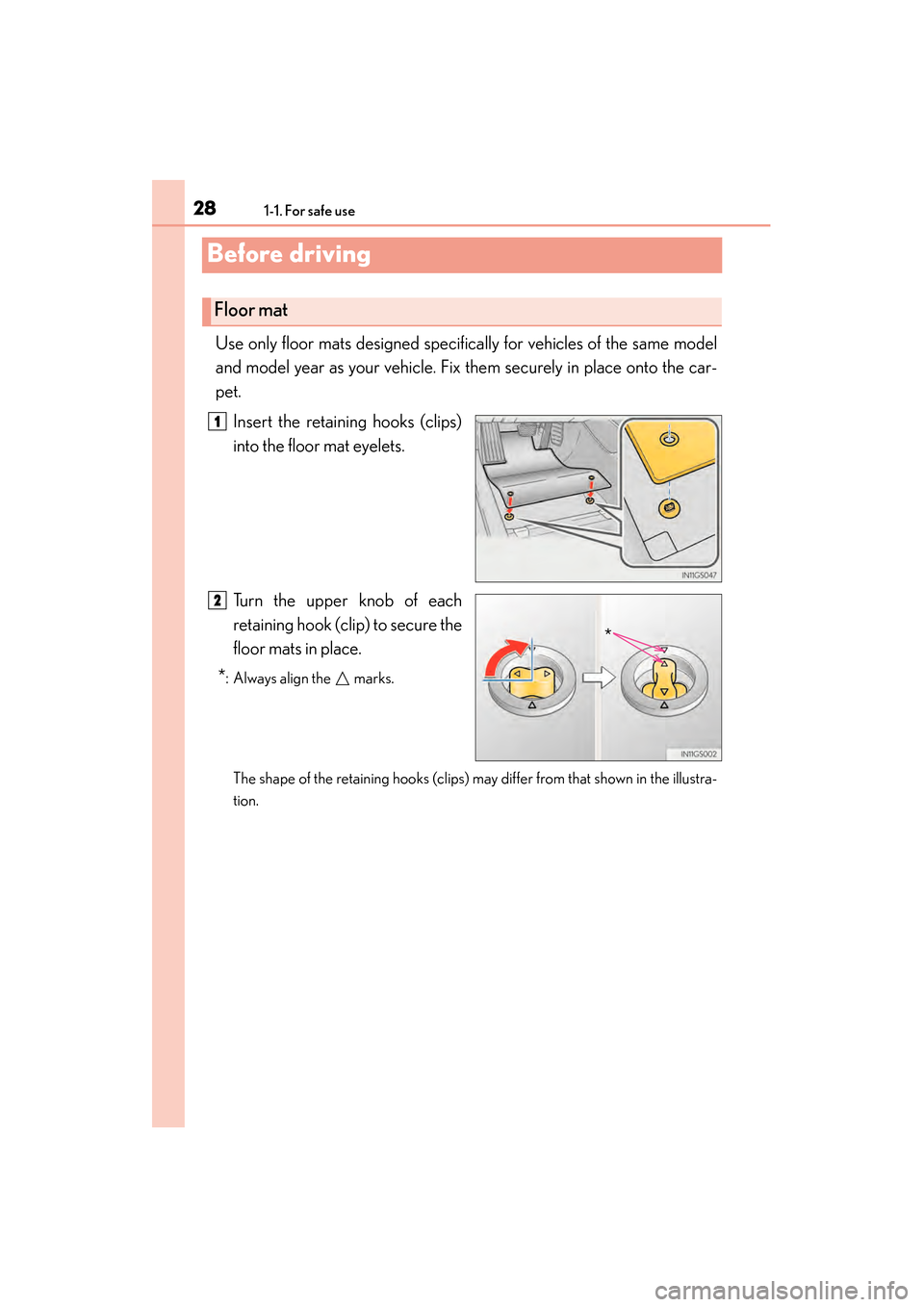

Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix them securely in place onto the car-
pet.Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure the
floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustra-
tion.
Floor mat
1
*
2
GS450h_OM_OM30D52U_(U).book Page 28 Monday, July 29, 2013 12:07 PM
Page 30 of 890
291-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
CAUTION

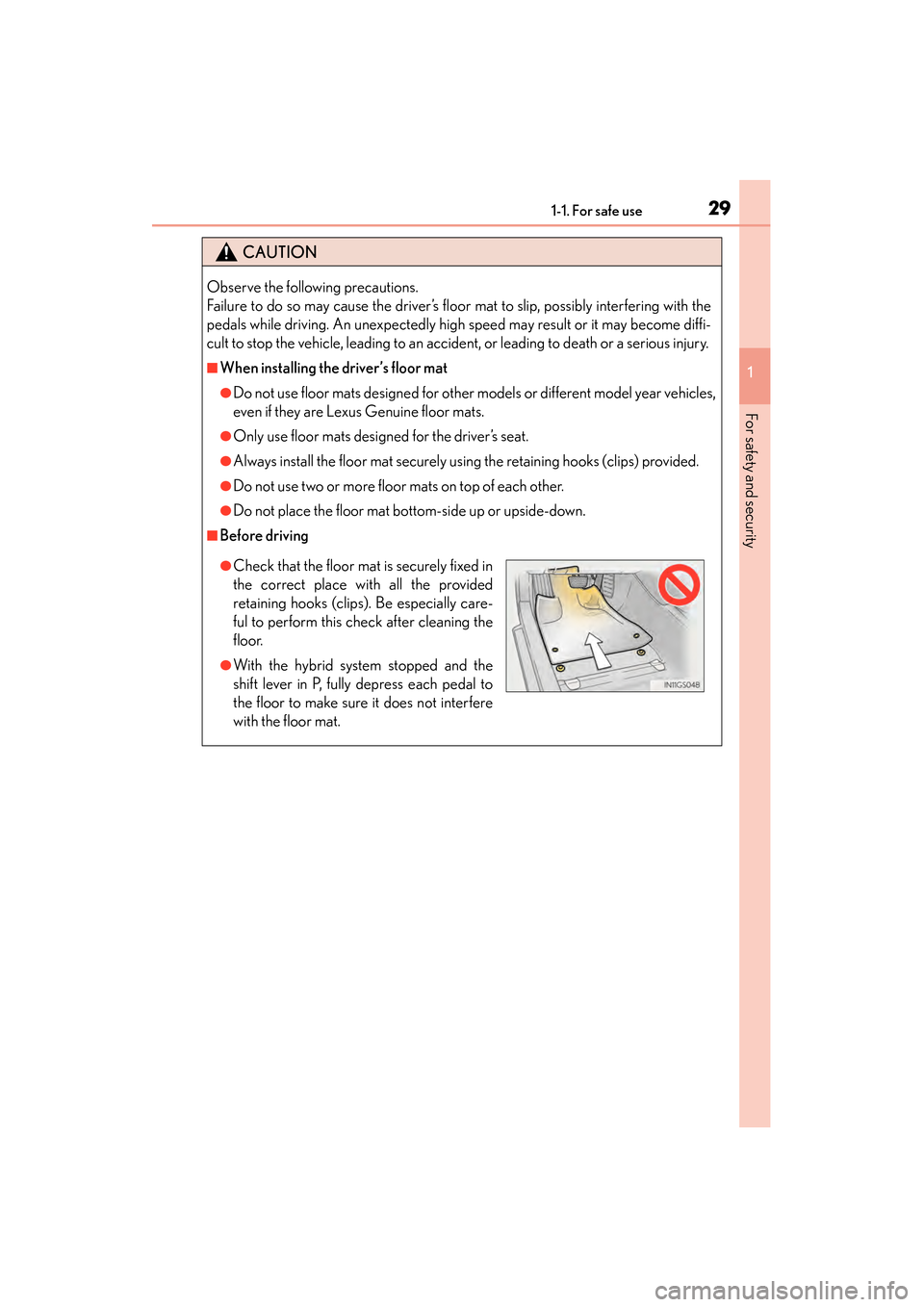

Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle, leading to an accident, or leading to death or a serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor.
●With the hybrid system stopped and the
shift lever in P, fully depress each pedal to
the floor to make sure it does not interfere
with the floor mat.
GS450h_OM_OM30D52U_(U).book Page 29 Monday, July 29, 2013 12:07 PM
