601-1. For safe use
GS450h_OM_OM30D52U_(U)

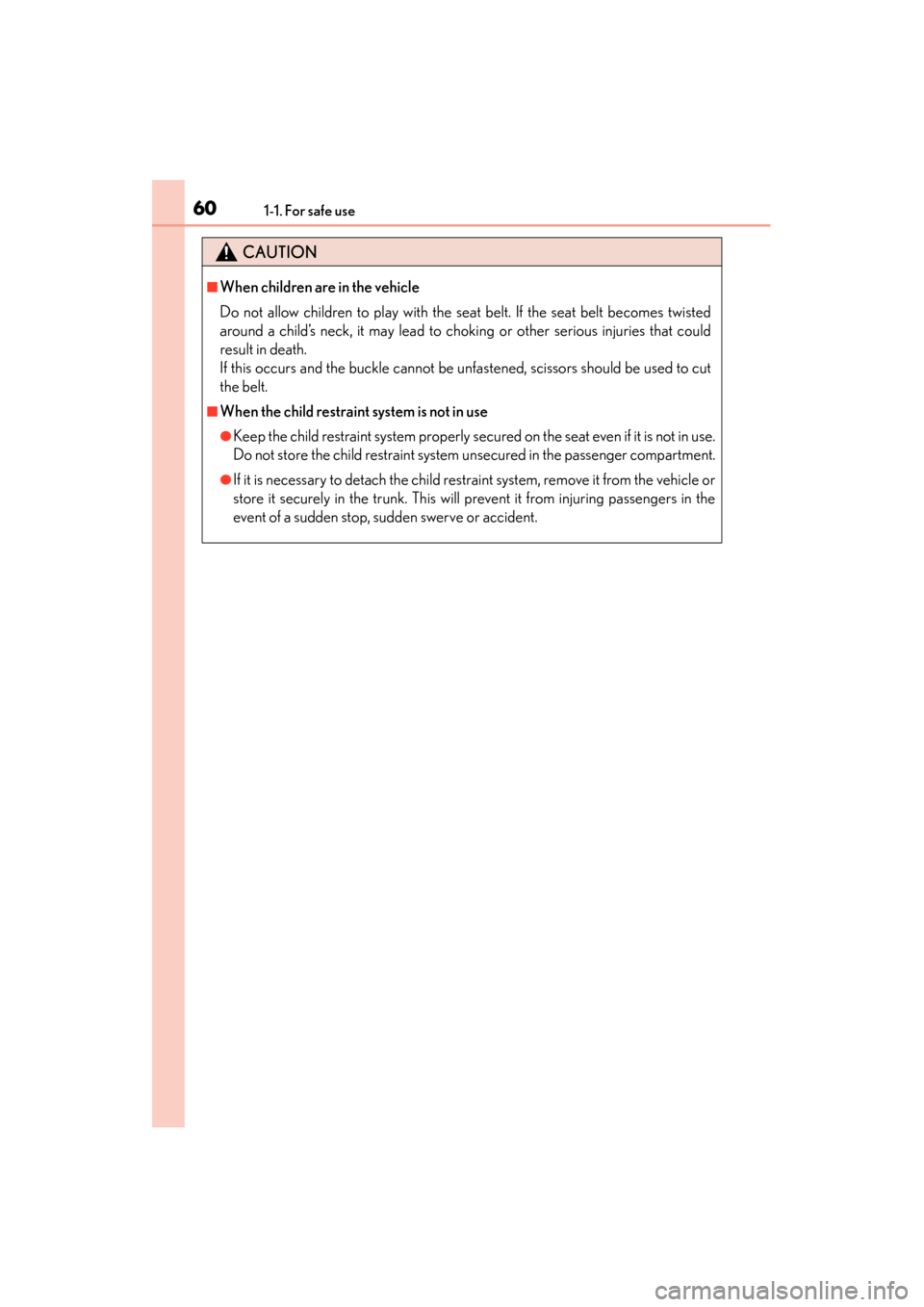

CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop, sudden swerve or accident.
GS450h_OM_OM30D52U_(U).book Page 60 Monday, July 29, 2013 12:07 PM

611-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seats. (Buttons display-
ing the location of the anchors are
attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
(→P. 3 4 )
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat
belt. Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not
compatible with the LATCH (Lower Anchors and Tethe rs for Children)
system.
GS450h_OM_OM30D52U_(U).book Page 61 Monday, July 29, 2013 12:07 PM

621-1. For safe use
GS450h_OM_OM30D52U_(U)Remove the head restraint.
Widen the gap between the seat cushion and seatback slightly.
XTy p e A
Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.

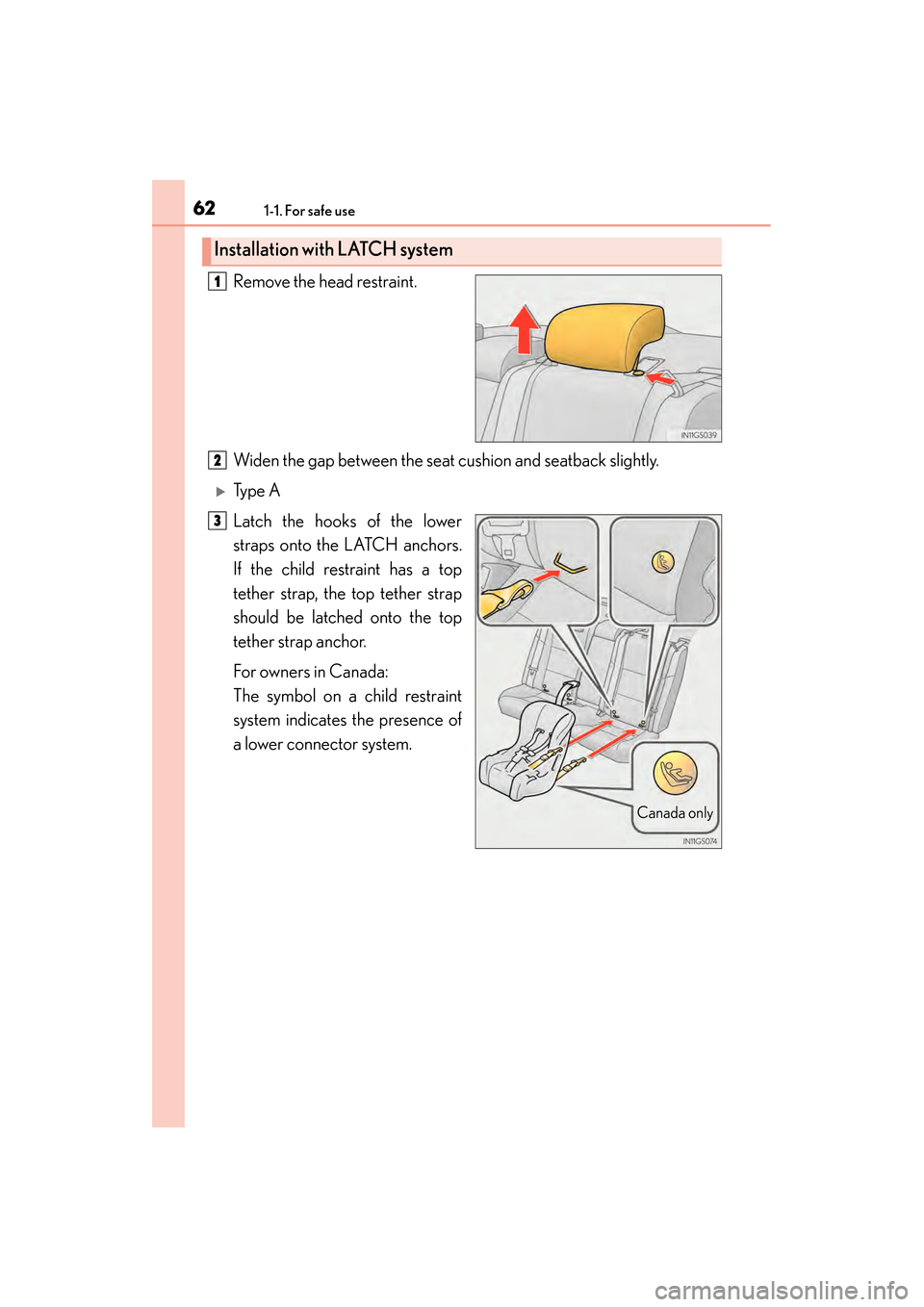

Installation with LATCH system
1
2
Canada only
3
GS450h_OM_OM30D52U_(U).book Page 62 Monday, July 29, 2013 12:07 PM

631-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security

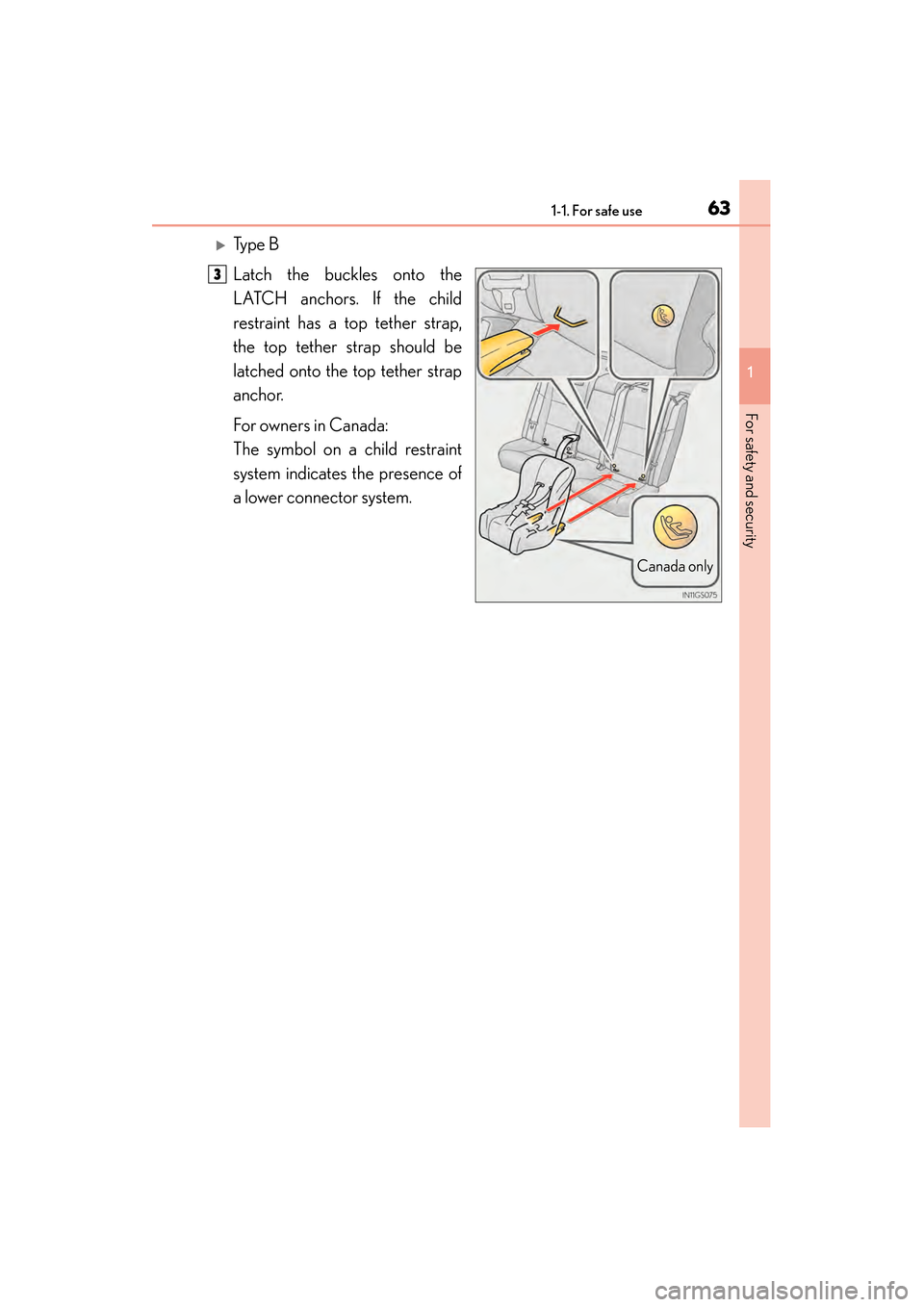

XTy p e B
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
3
GS450h_OM_OM30D52U_(U).book Page 63 Monday, July 29, 2013 12:07 PM

641-1. For safe use
GS450h_OM_OM30D52U_(U)
■Rear-facing  Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode, the
belt cannot be extended.

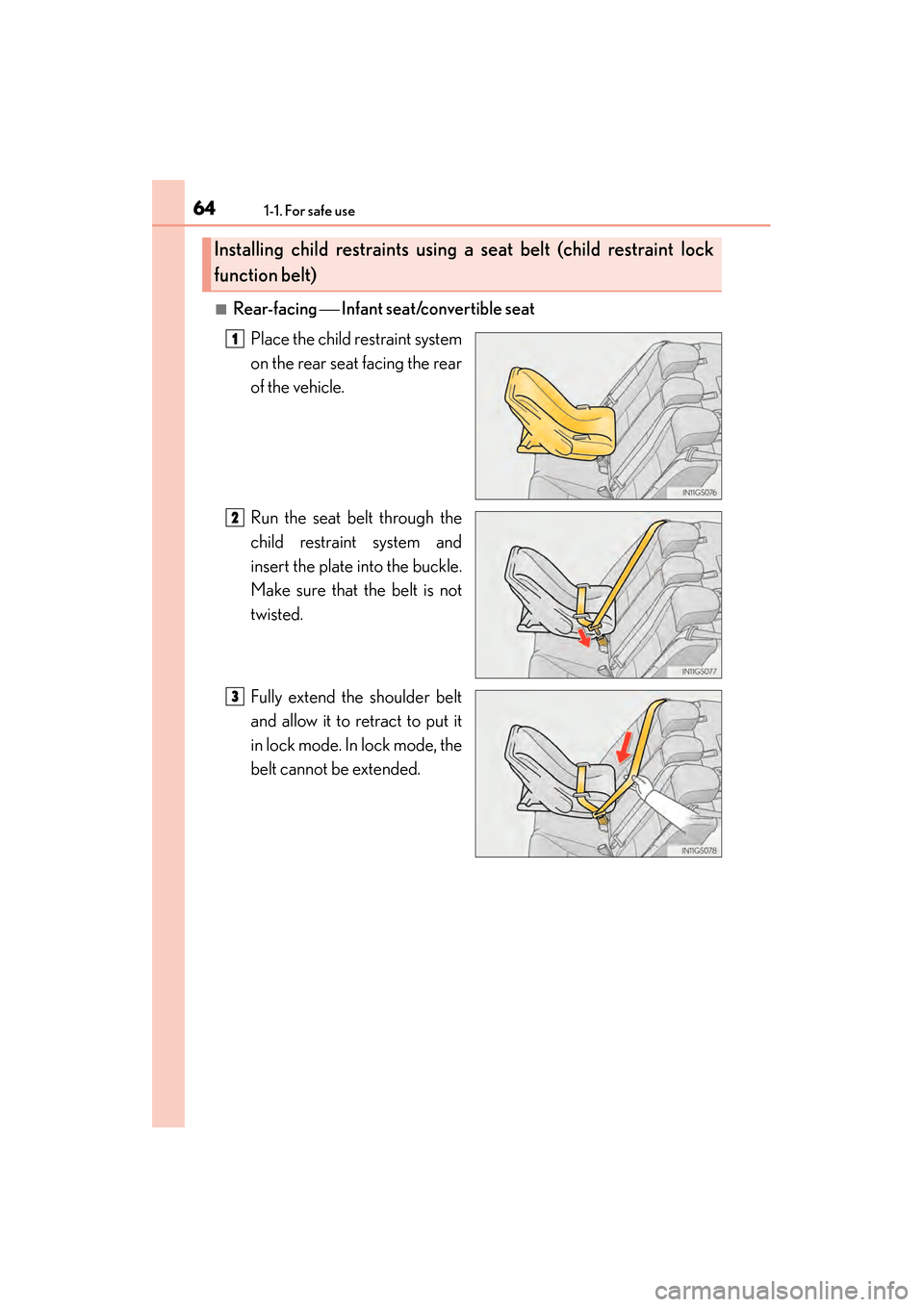

Installing child restraints using a seat belt (child restraint lock
function belt)
1
2
3
GS450h_OM_OM30D52U_(U).book Page 64 Monday, July 29, 2013 12:07 PM

651-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security

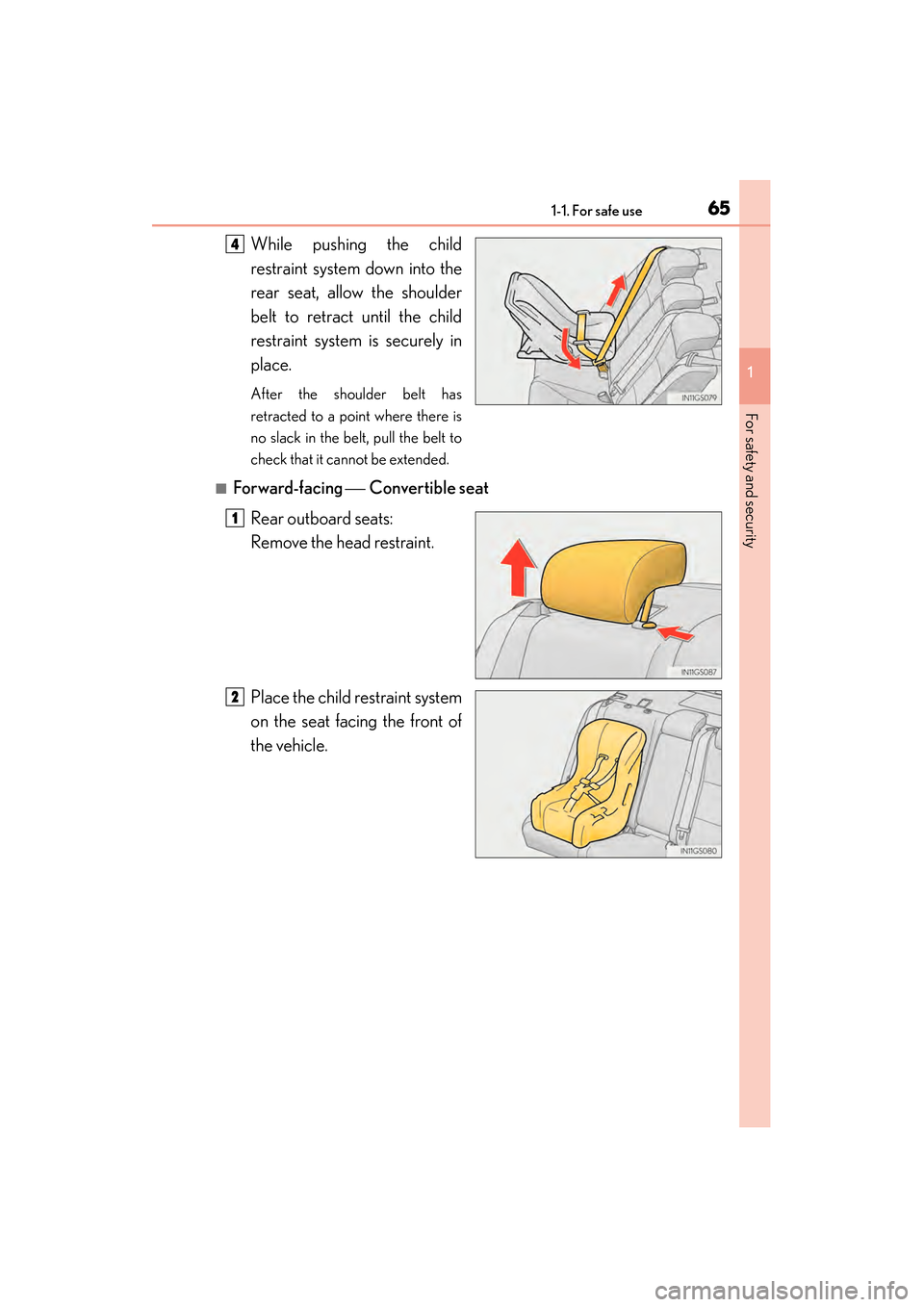

While pushing the child
restraint system down into the
rear seat, allow the shoulder
belt to retract until the child
restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward-facing  Convertible seat
Rear outboard seats:
Remove the head restraint.
Place the child restraint system
on the seat facing the front of
the vehicle.
4
1
2
GS450h_OM_OM30D52U_(U).book Page 65 Monday, July 29, 2013 12:07 PM

661-1. For safe use

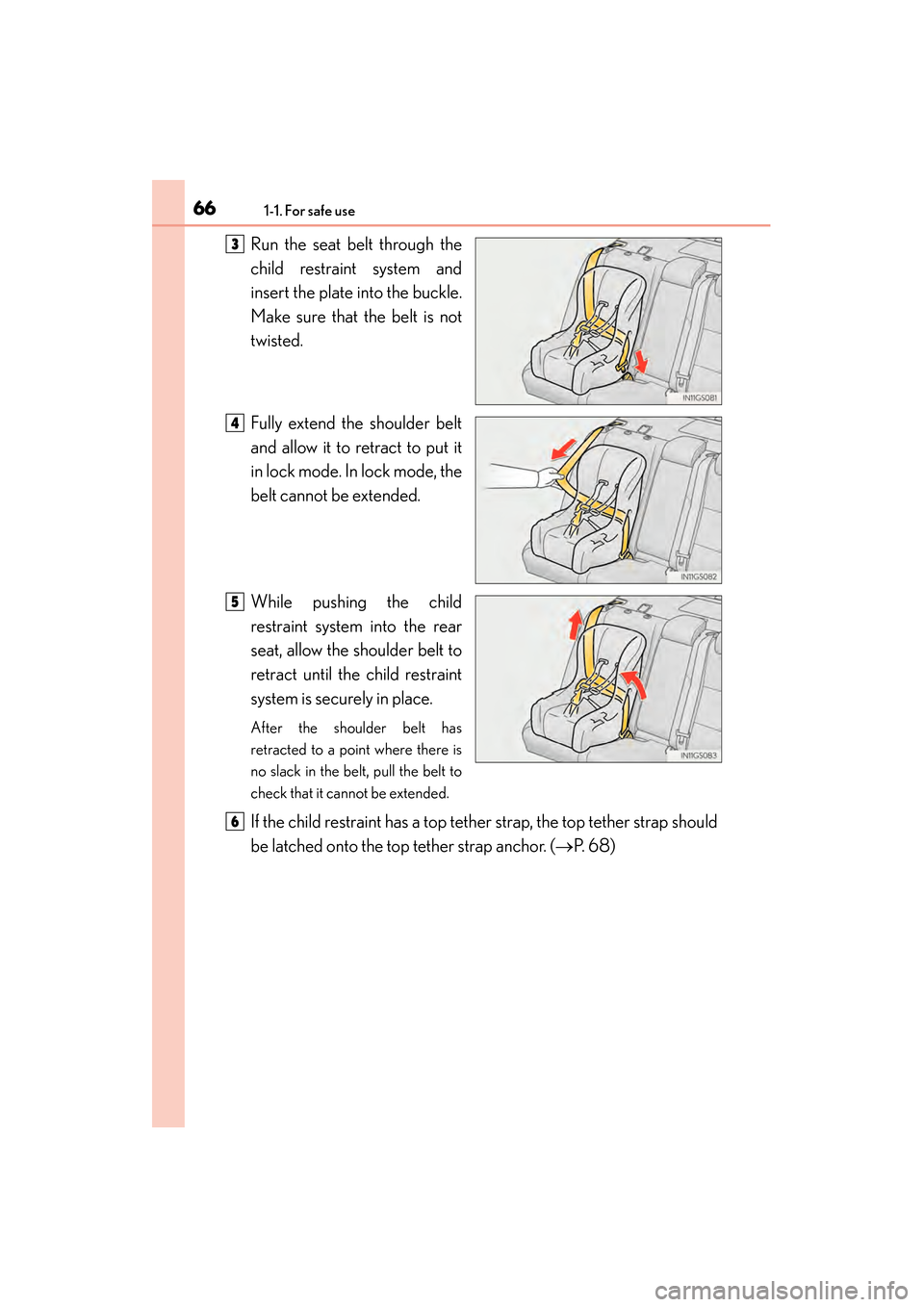

GS450h_OM_OM30D52U_(U)Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode, the
belt cannot be extended.
While pushing the child
restraint system into the rear
seat, allow the shoulder belt to
retract until the child restraint
system is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap should
be latched onto the top tether strap anchor. (
→P. 6 8 )
3
4
5
6
GS450h_OM_OM30D52U_(U).book Page 66 Monday, July 29, 2013 12:07 PM

671-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security

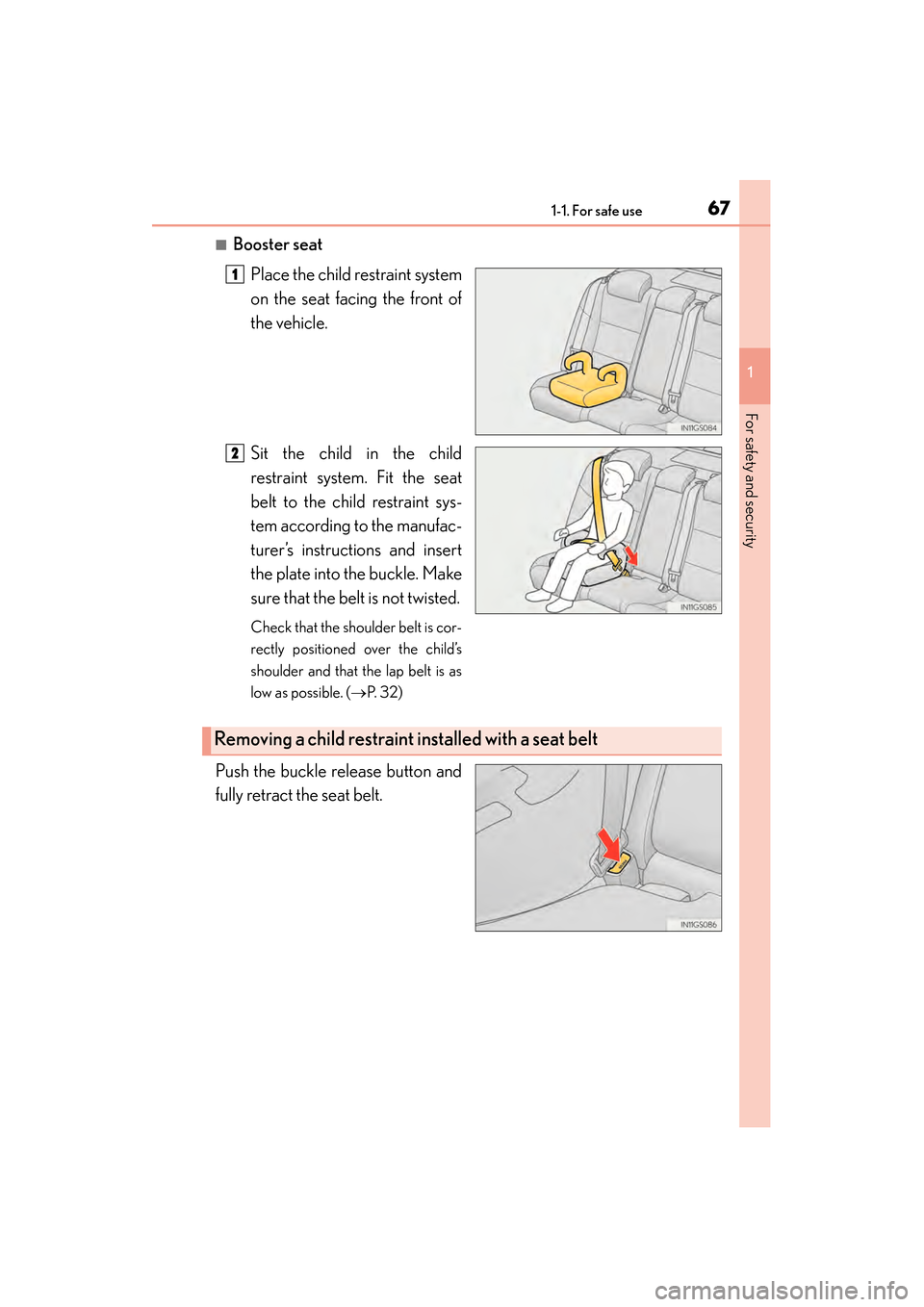

■Booster seatPlace the child restraint system
on the seat facing the front of
the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manufac-
turer’s instructions and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( →P. 3 2 )
Push the buckle release button and
fully retract the seat belt.
1
2
Removing a child restraint installed with a seat belt
GS450h_OM_OM30D52U_(U).book Page 67 Monday, July 29, 2013 12:07 PM

681-1. For safe use
GS450h_OM_OM30D52U_(U)Rear outboard seats:
Remove the head restraint.
Secure the child restraint system
using the seat belt or LATCH
anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
■Laws and regulations pe
rtaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can
be used.
This vehicle is designed to conform to the SAE J1819.

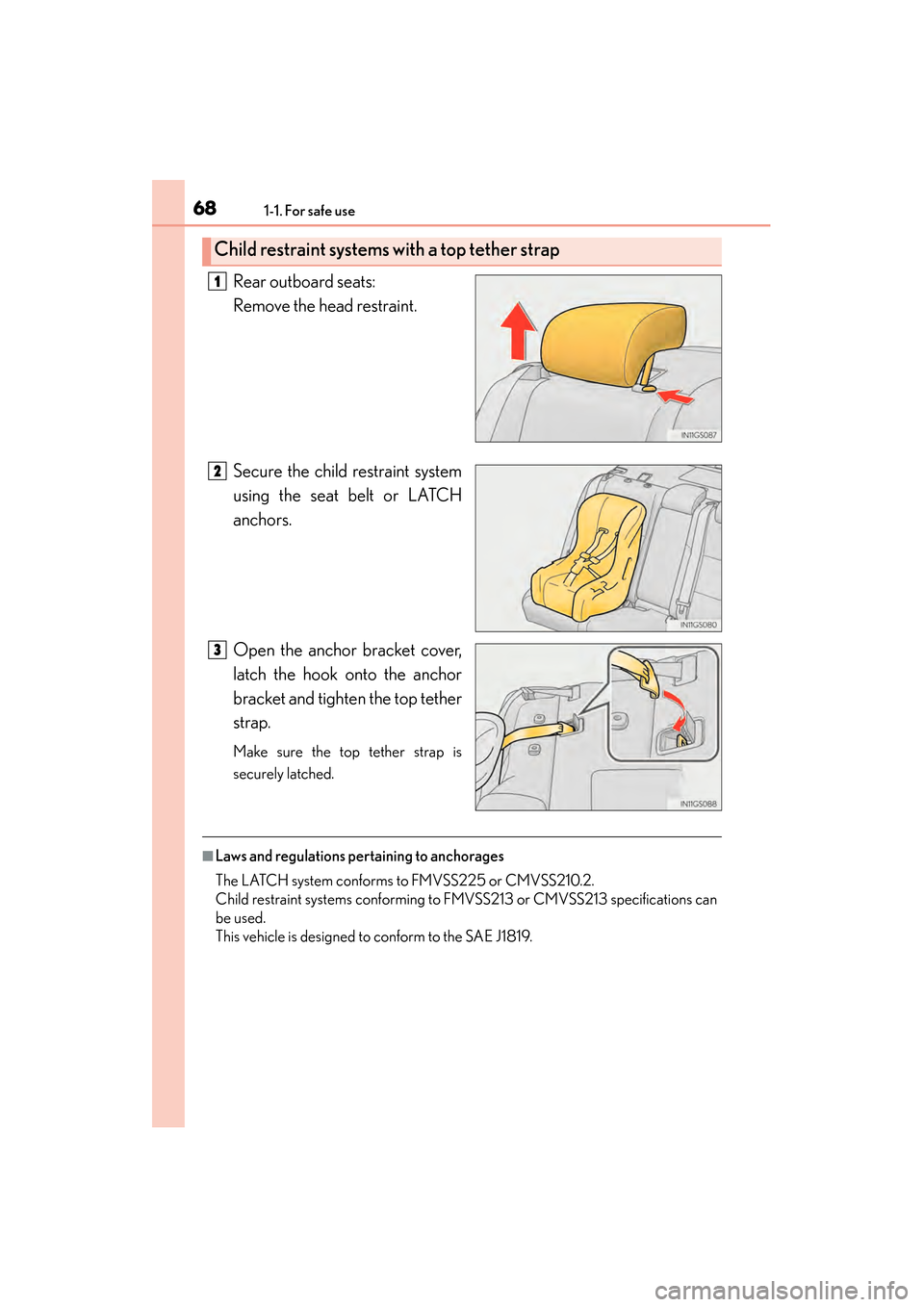

Child restraint systems with a top tether strap
1
2
3
GS450h_OM_OM30D52U_(U).book Page 68 Monday, July 29, 2013 12:07 PM

691-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security

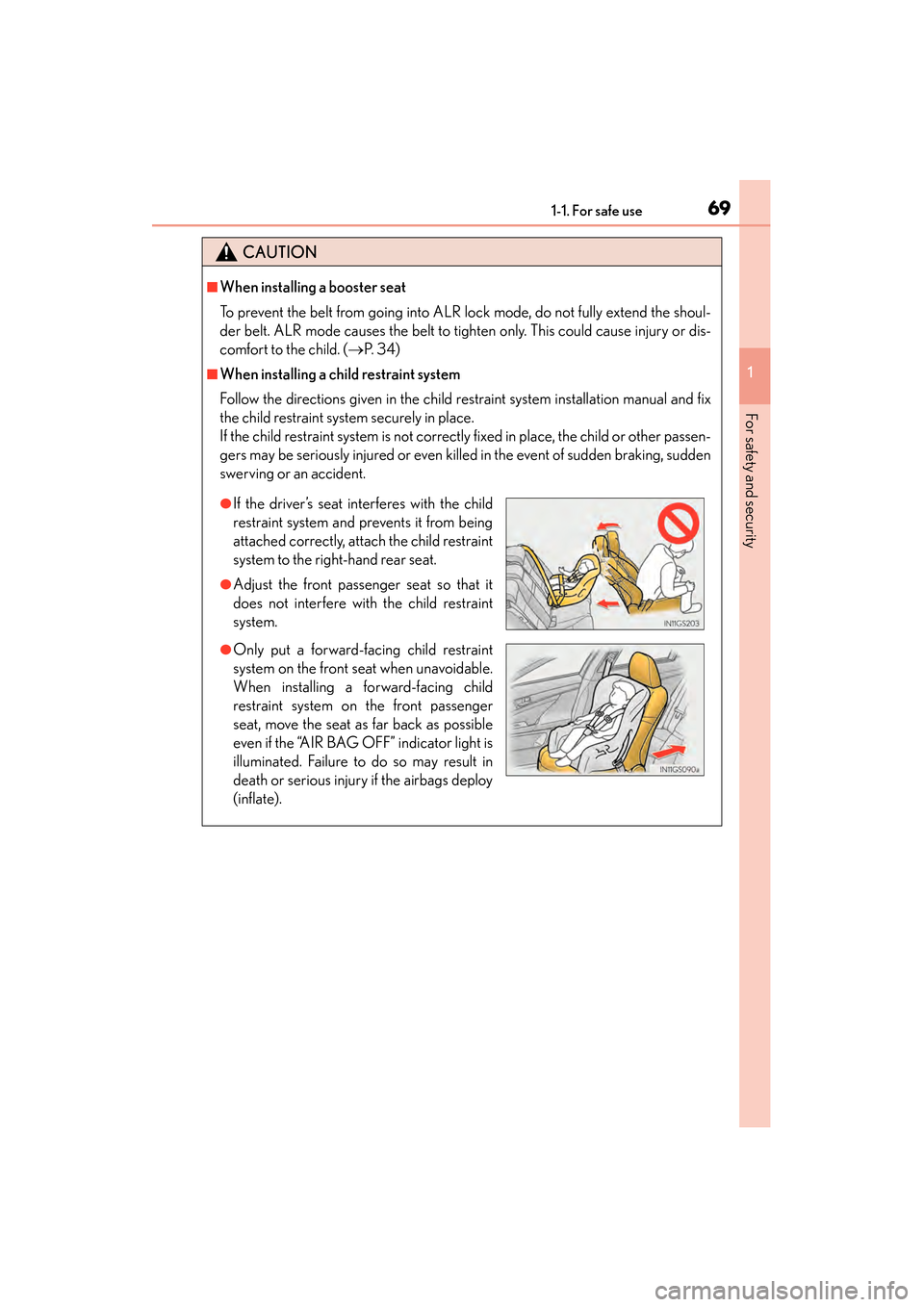

CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoul-
der belt. ALR mode causes the belt to tighten only. This could cause injury or dis-
comfort to the child. (→P. 3 4 )
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking, sudden
swerving or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it
does not interfere with the child restraint
system.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failure to do so may result in
death or serious injury if the airbags deploy
(inflate).
GS450h_OM_OM30D52U_(U).book Page 69 Monday, July 29, 2013 12:07 PM
