Lexus GS450h 2014 Owner's Guide
Manufacturer: LEXUS, Model Year: 2014, Model line: GS450h, Model: Lexus GS450h 2014Pages: 890, PDF Size: 40.62 MB
Page 31 of 890

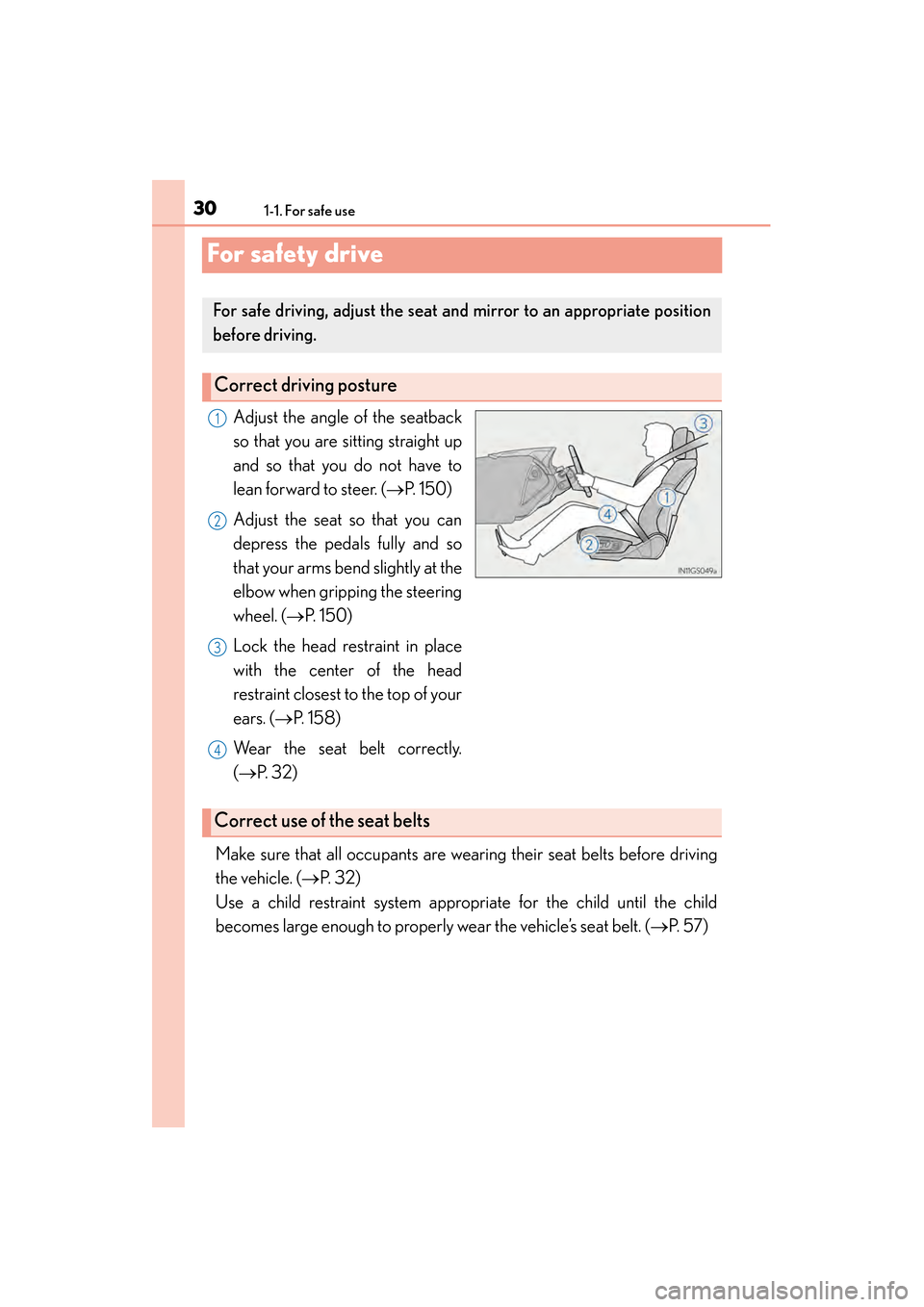

301-1. For safe use
GS450h_OM_OM30D52U_(U)
For safety drive
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. (→P. 1 5 0 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. ( →P. 1 5 0 )
Lock the head restraint in place
with the center of the head
restraint closest to the top of your
ears. ( →P. 1 5 8 )
Wear the seat belt correctly.
(→ P. 32)
Make sure that all occupants are we aring their seat belts before driving
the vehicle. ( →P. 32)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 5 7 )
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts
GS450h_OM_OM30D52U_(U).book Page 30 Monday, July 29, 2013 12:07 PM
Page 32 of 890

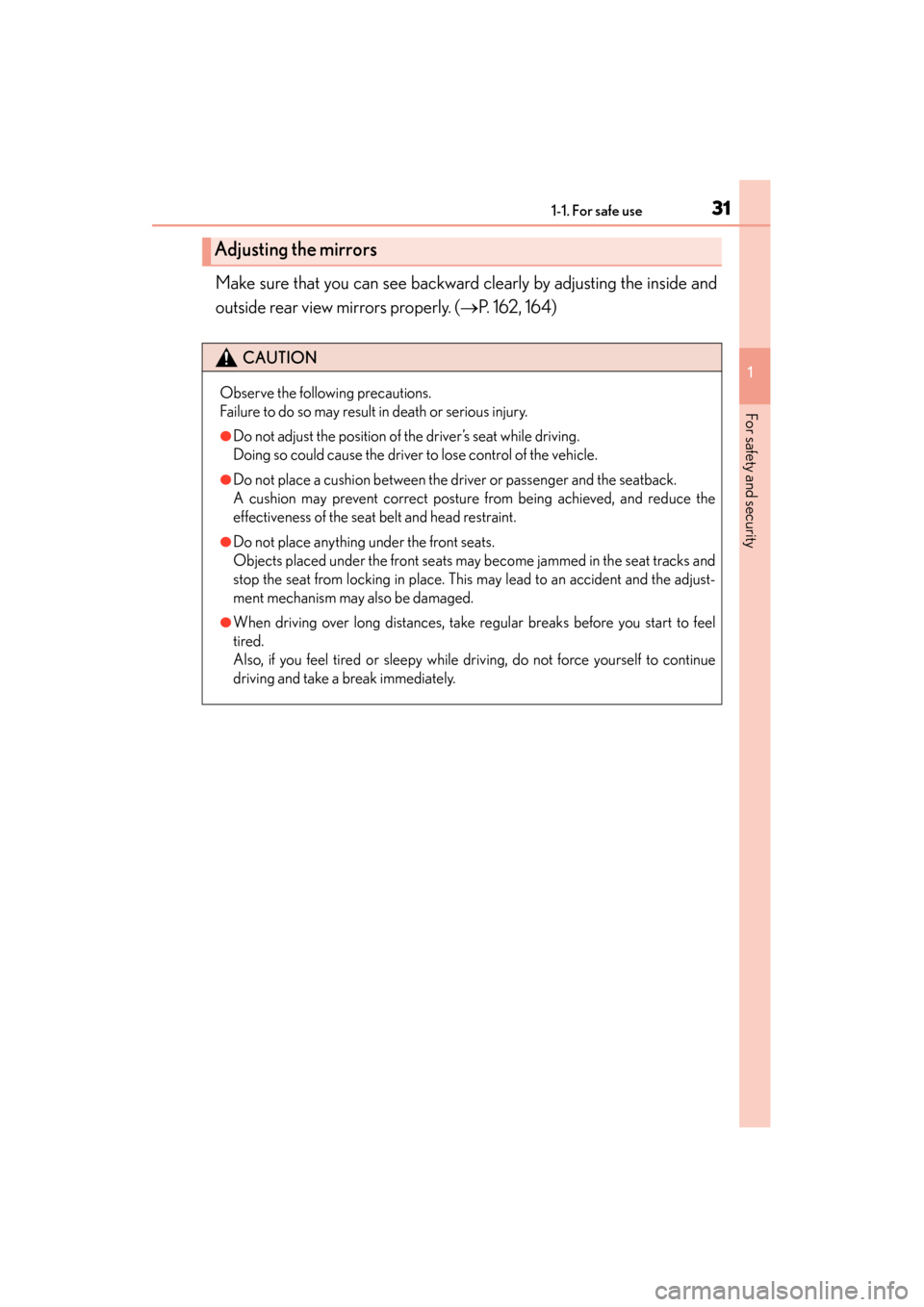

311-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
Make sure that you can see backward clearly by adjusting the inside and
outside rear view mirrors properly. (→P. 162, 164)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident and the adjust-
ment mechanism may also be damaged.
●When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue
driving and take a break immediately.
GS450h_OM_OM30D52U_(U).book Page 31 Monday, July 29, 2013 12:07 PM
Page 33 of 890

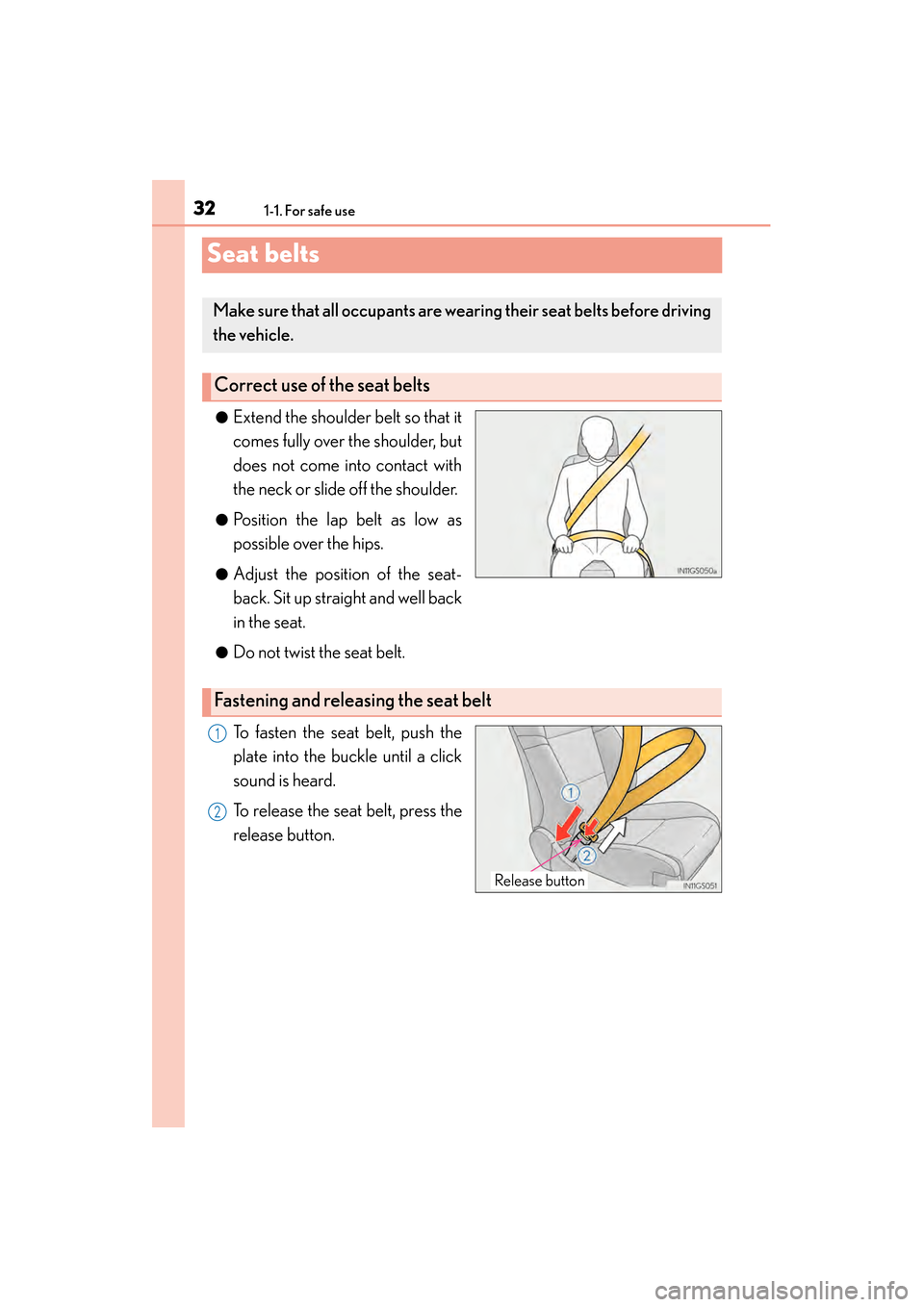

321-1. For safe use
GS450h_OM_OM30D52U_(U)
Seat belts
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with
the neck or slide off the shoulder.
●Position the lap belt as low as
possible over the hips.
●Adjust the position of the seat-
back. Sit up straight and well back
in the seat.
●Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press the
release button.
Make sure that all occupants are wearing their seat belts before driving
the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
GS450h_OM_OM30D52U_(U).book Page 32 Monday, July 29, 2013 12:07 PM
Page 34 of 890
331-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and down
as needed until you hear a click.
For children or smaller-than-aver-
age people, slide the seat belt com-
fort guide forward so that the
shoulder belt does not sit close to
the person’s neck.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt comfort guide (outboard rear seats)
GS450h_OM_OM30D52U_(U).book Page 33 Monday, July 29, 2013 12:07 PM
Page 35 of 890
341-1. For safe use

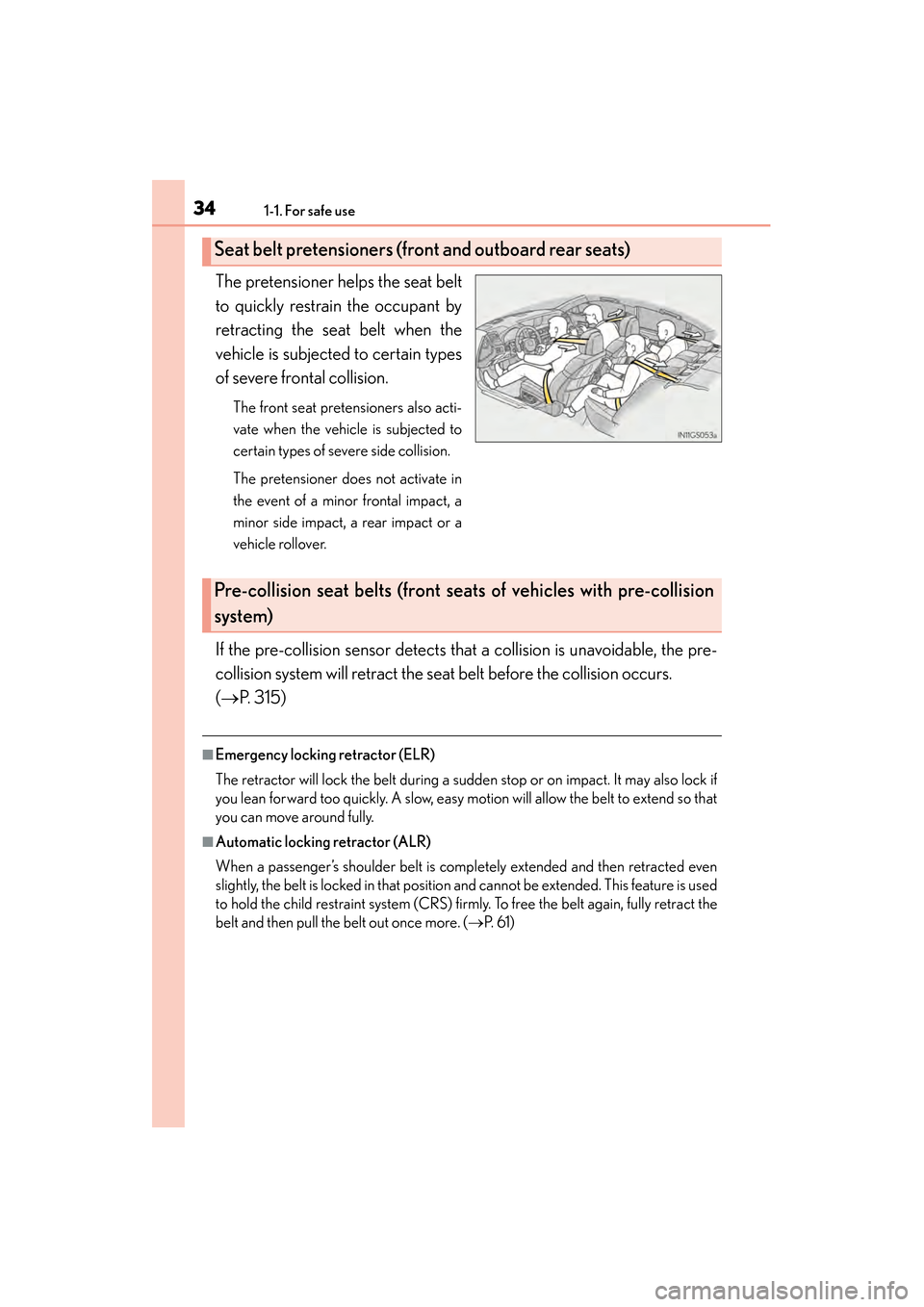

GS450h_OM_OM30D52U_(U)The pretensioner helps the seat belt
to quickly restrain the occupant by
retracting the seat belt when the
vehicle is subjected to certain types
of severe frontal collision.
The front seat pretensioners also acti-
vate when the vehicle is subjected to
certain types of severe side collision.
The pretensioner does not activate in
the event of a minor frontal impact, a
minor side impact, a rear impact or a
vehicle rollover.
If the pre-collision sensor detects that a collision is unavoidable, the pre-
collision system will retract the seat belt before the collision occurs.
(→
P. 315)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used
to hold the child restraint system (CRS) firmly . To free the belt again, fully retract the
belt and then pull the belt out once more. ( →P. 6 1 )
Seat belt pretensioners (front and outboard rear seats)
Pre-collision seat belts (front seat s of vehicles with pre-collision
system)
GS450h_OM_OM30D52U_(U).book Page 34 Monday, July 29, 2013 12:07 PM
Page 36 of 890

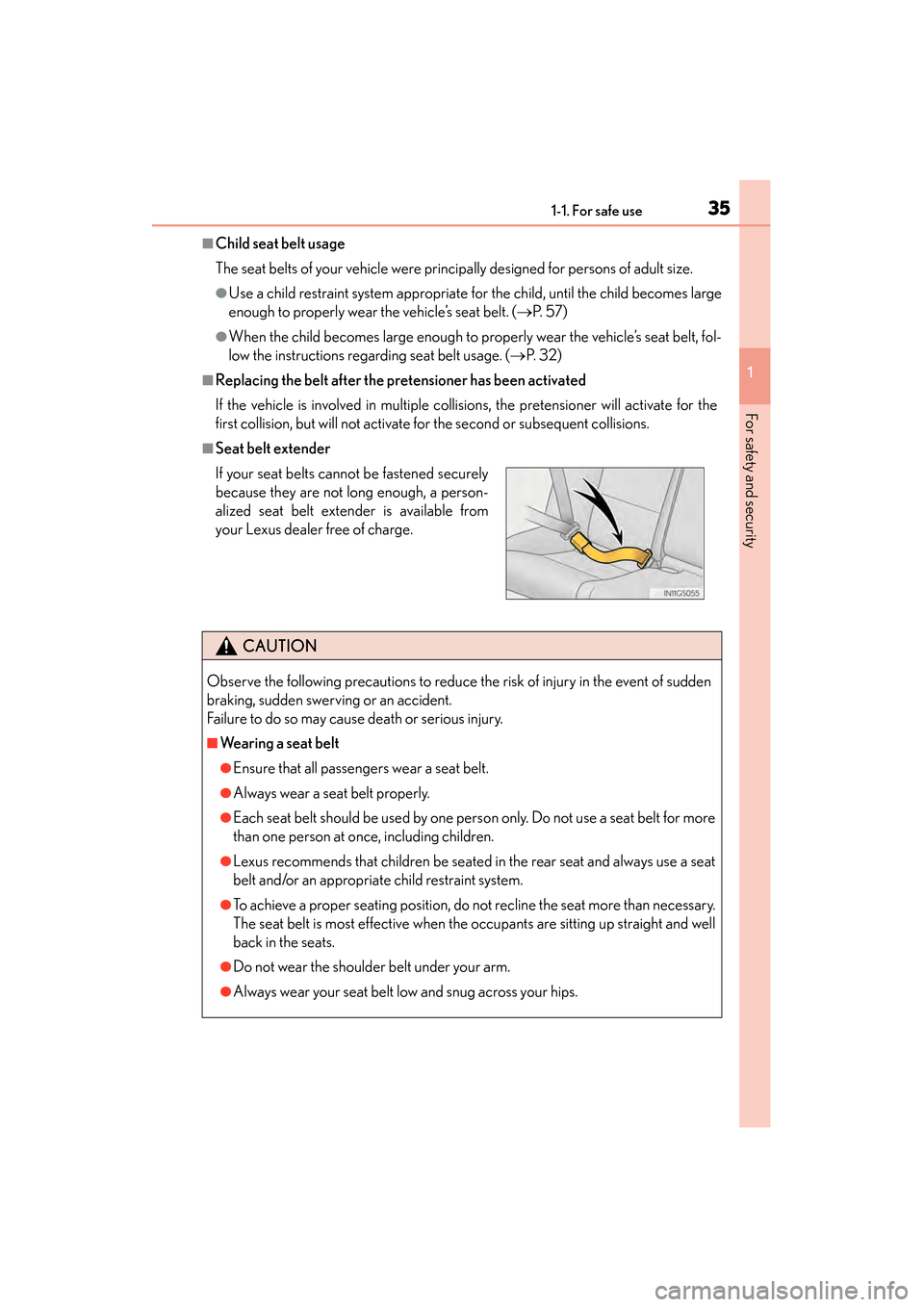

351-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. (→P. 5 7 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt usage. ( →P. 3 2 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary.
The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
GS450h_OM_OM30D52U_(U).book Page 35 Monday, July 29, 2013 12:07 PM
Page 37 of 890

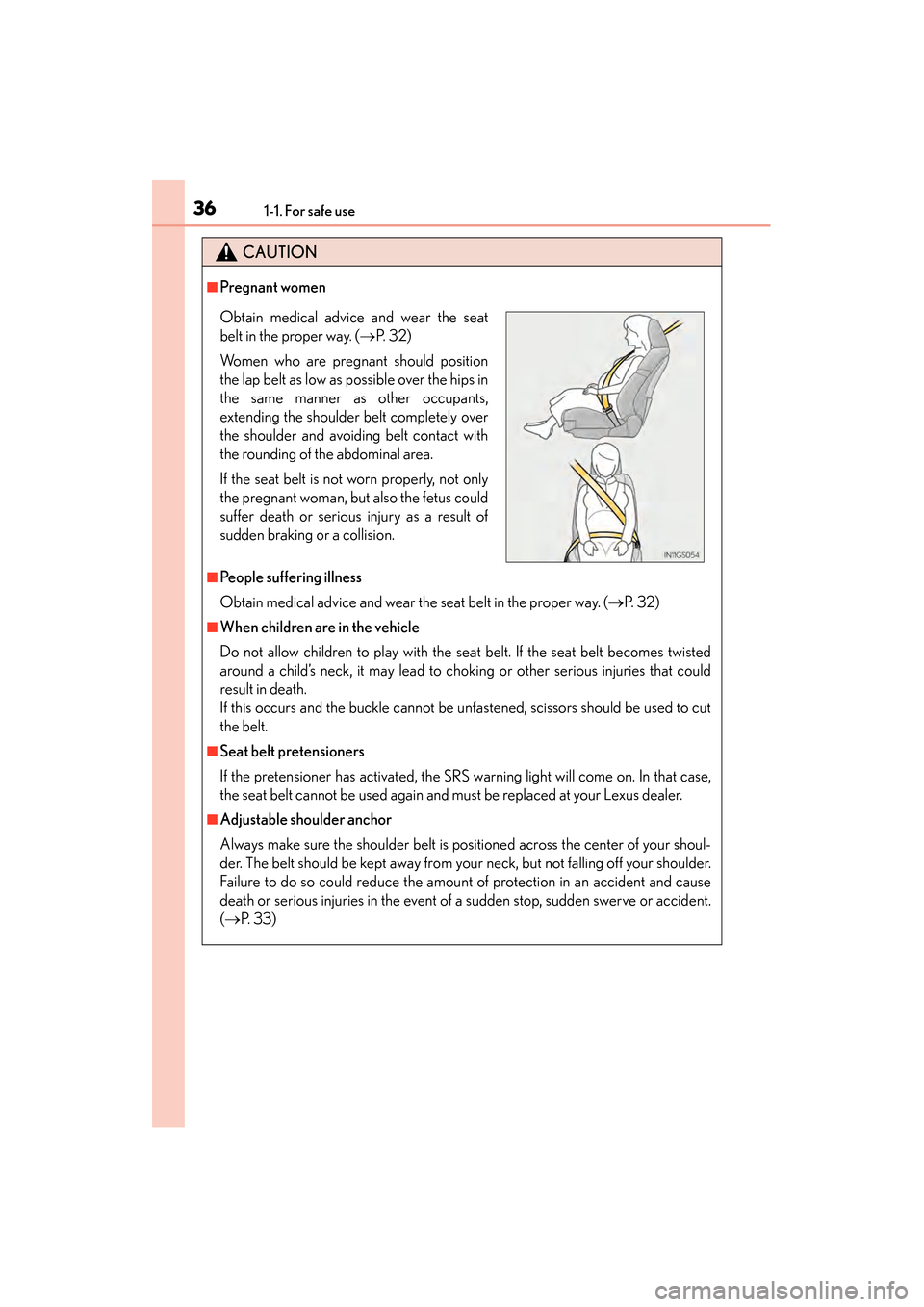

361-1. For safe use
GS450h_OM_OM30D52U_(U)
CAUTION
■Pregnant women
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 3 2 )
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
( → P. 3 3 )
Obtain medical advice and wear the seat
belt in the proper way. ( →P. 3 2 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants,
extending the shoulder belt completely over
the shoulder and avoiding belt contact with
the rounding of the abdominal area.
If the seat belt is not worn properly, not only
the pregnant woman, but also the fetus could
suffer death or serious injury as a result of
sudden braking or a collision.
GS450h_OM_OM30D52U_(U).book Page 36 Monday, July 29, 2013 12:07 PM
Page 38 of 890

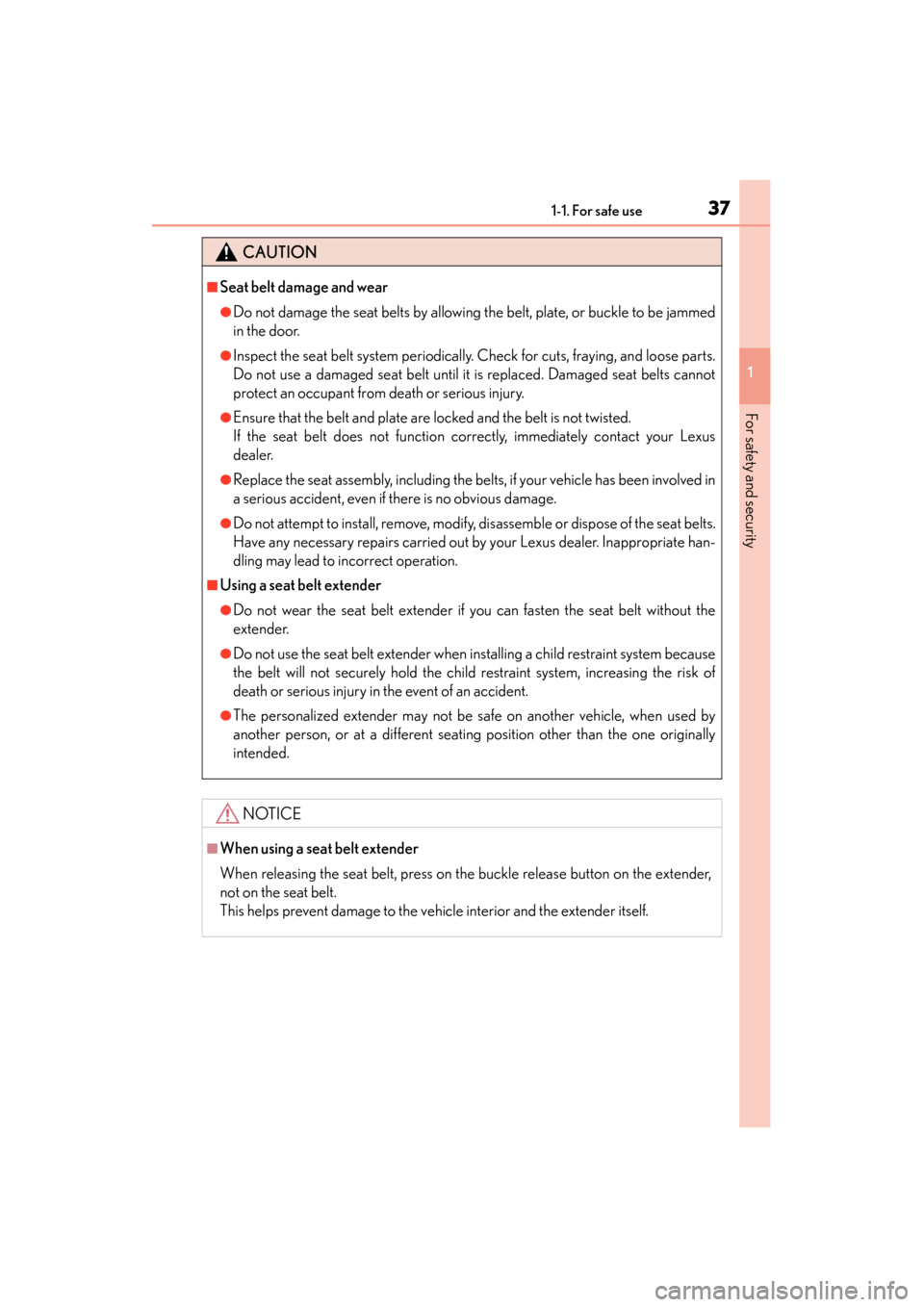

371-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
CAUTION
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling may lead to incorrect operation.
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
GS450h_OM_OM30D52U_(U).book Page 37 Monday, July 29, 2013 12:07 PM
Page 39 of 890

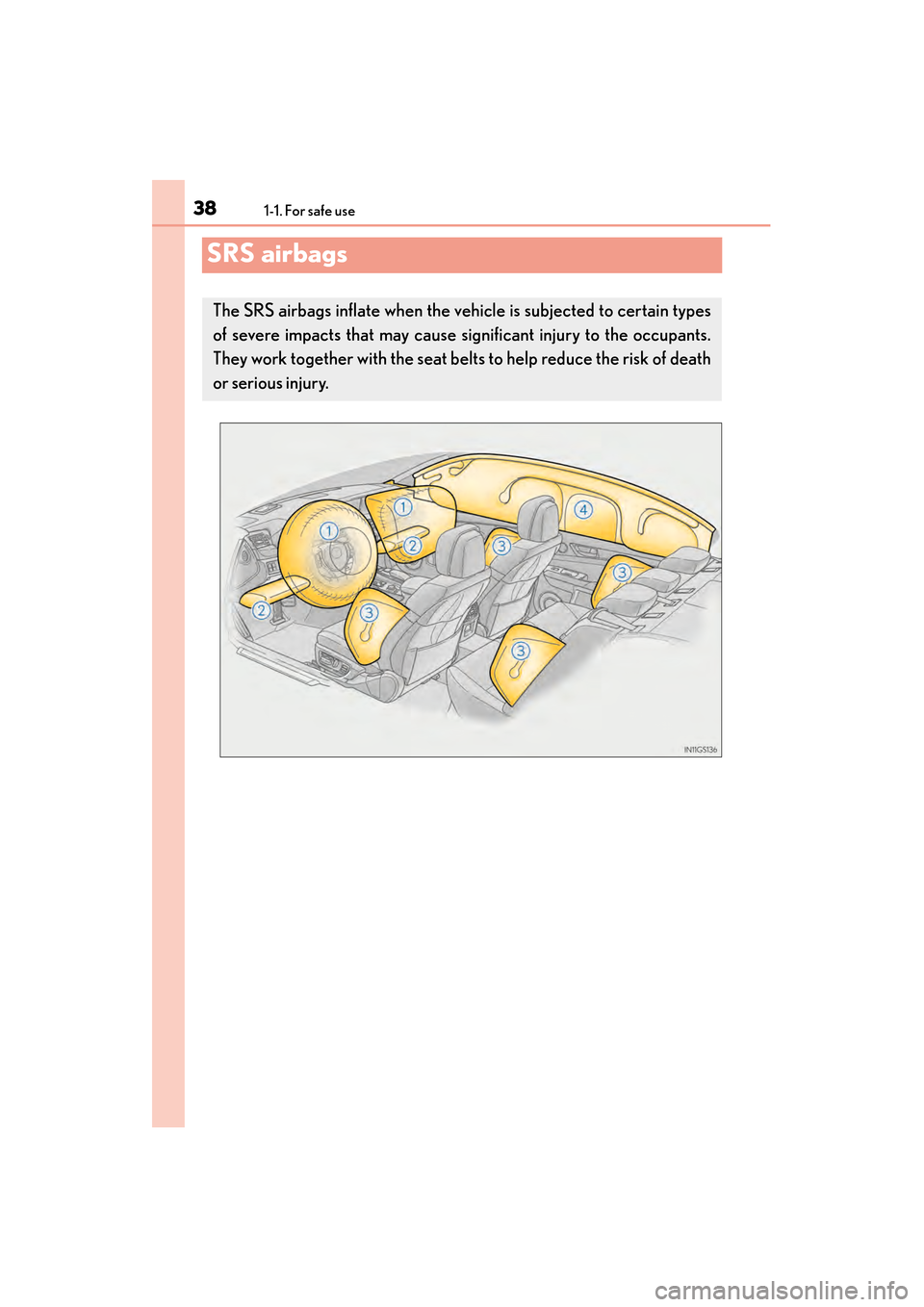

381-1. For safe use
GS450h_OM_OM30D52U_(U)
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types
of severe impacts that may cause significant injury to the occupants.
They work together with the seat belts to help reduce the risk of death
or serious injury.
GS450h_OM_OM30D52U_(U).book Page 38 Monday, July 29, 2013 12:07 PM
Page 40 of 890

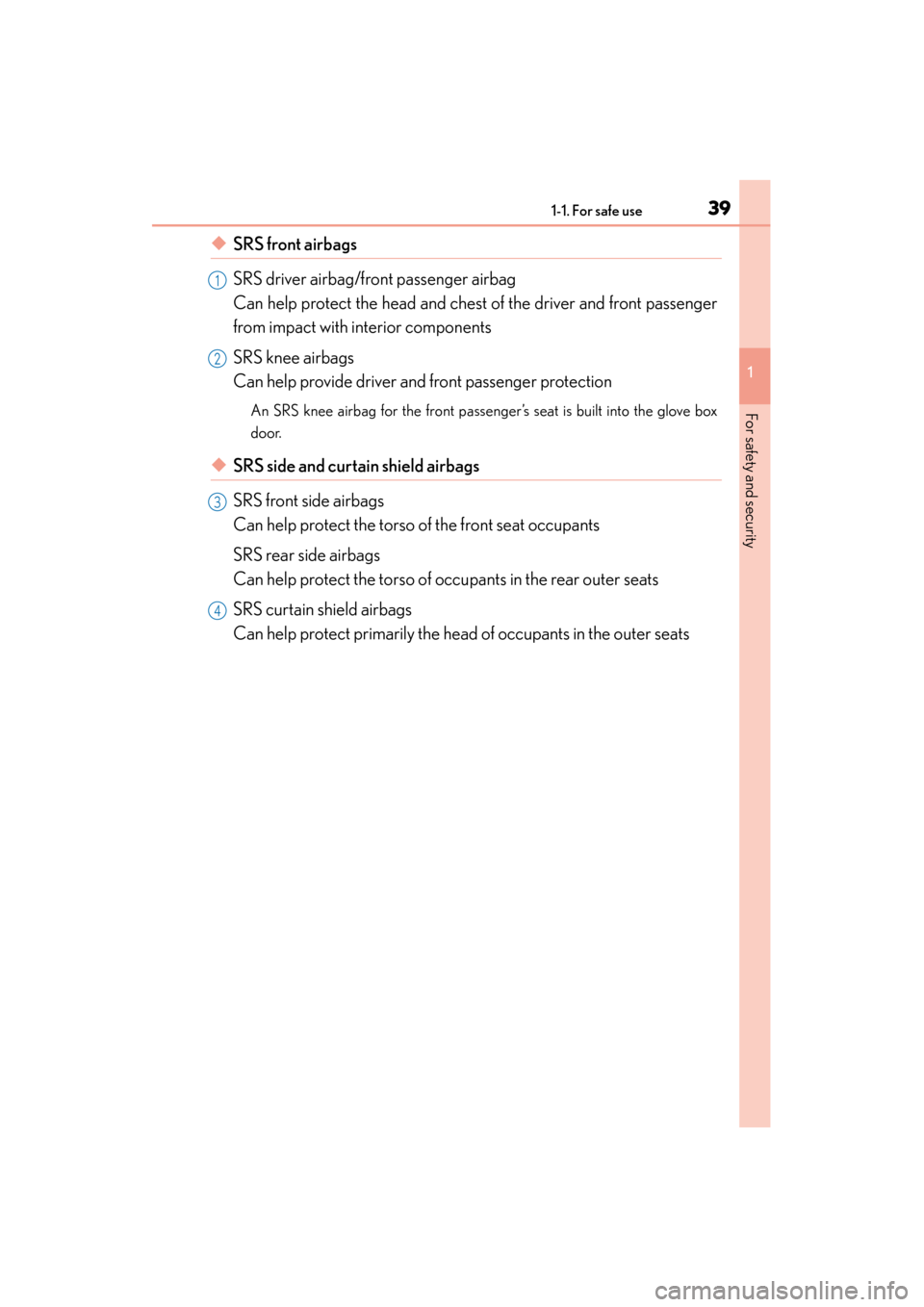

391-1. For safe use
GS450h_OM_OM30D52U_(U)
1
For safety and security
◆SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger
from impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
An SRS knee airbag for the front passenger’s seat is built into the glove box
door.
◆SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer seats
1
2
3
4
