Lexus GS450h 2014 Owner's Manual

610
GS450h_OM_OM30D52U_(U)
5-7. Other interior features

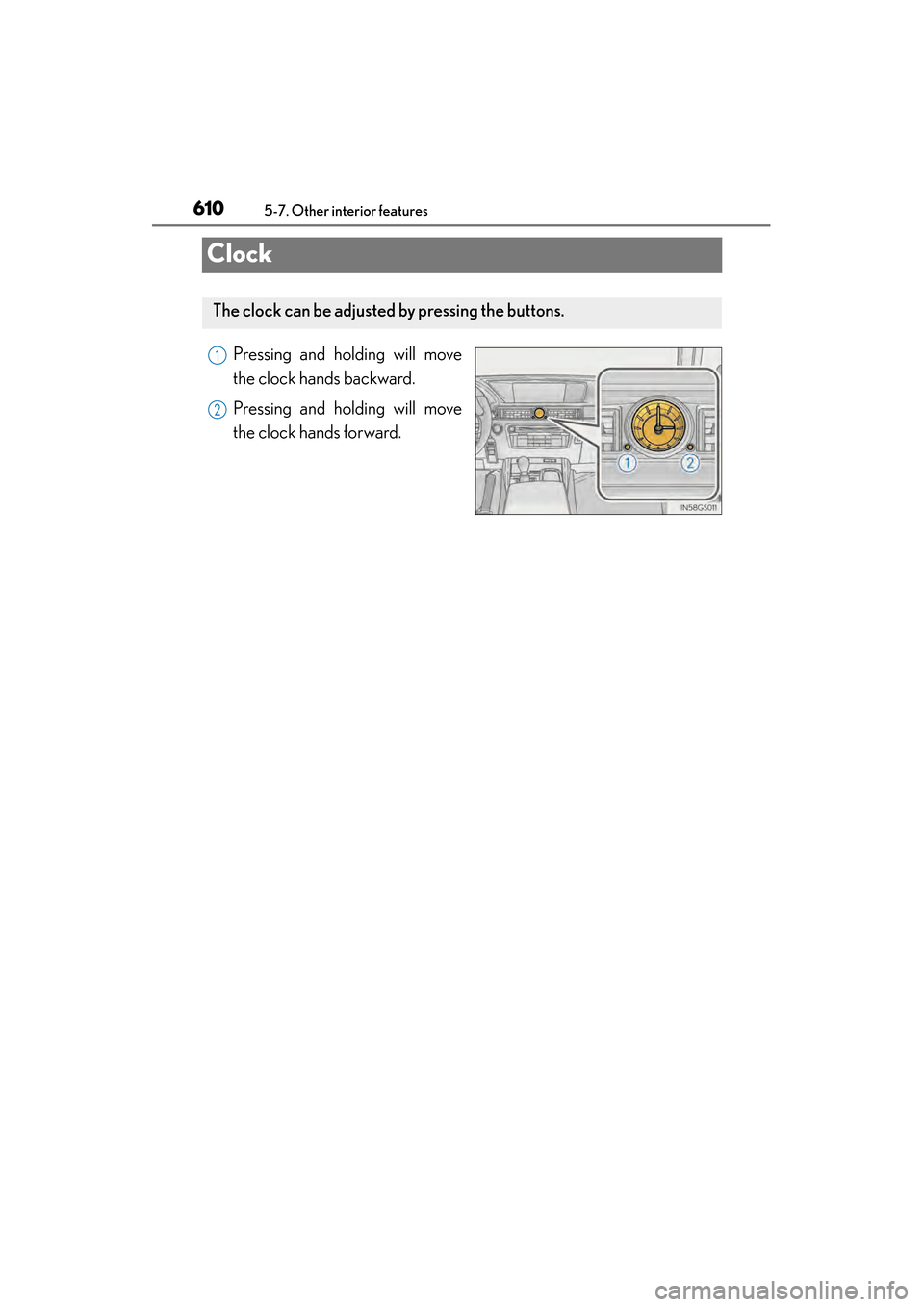

Clock
Pressing and holding will move
the clock hands backward.
Pressing and holding will move
the clock hands forward.
The clock can be adjusted by pressing the buttons.
1
2
GS450h_OM_OM30D52U_(U).book Page 610 Monday, July 29, 2013 12:07 PM

611
GS450h_OM_OM30D52U_(U)5-7. Other interior features
5
Interior features

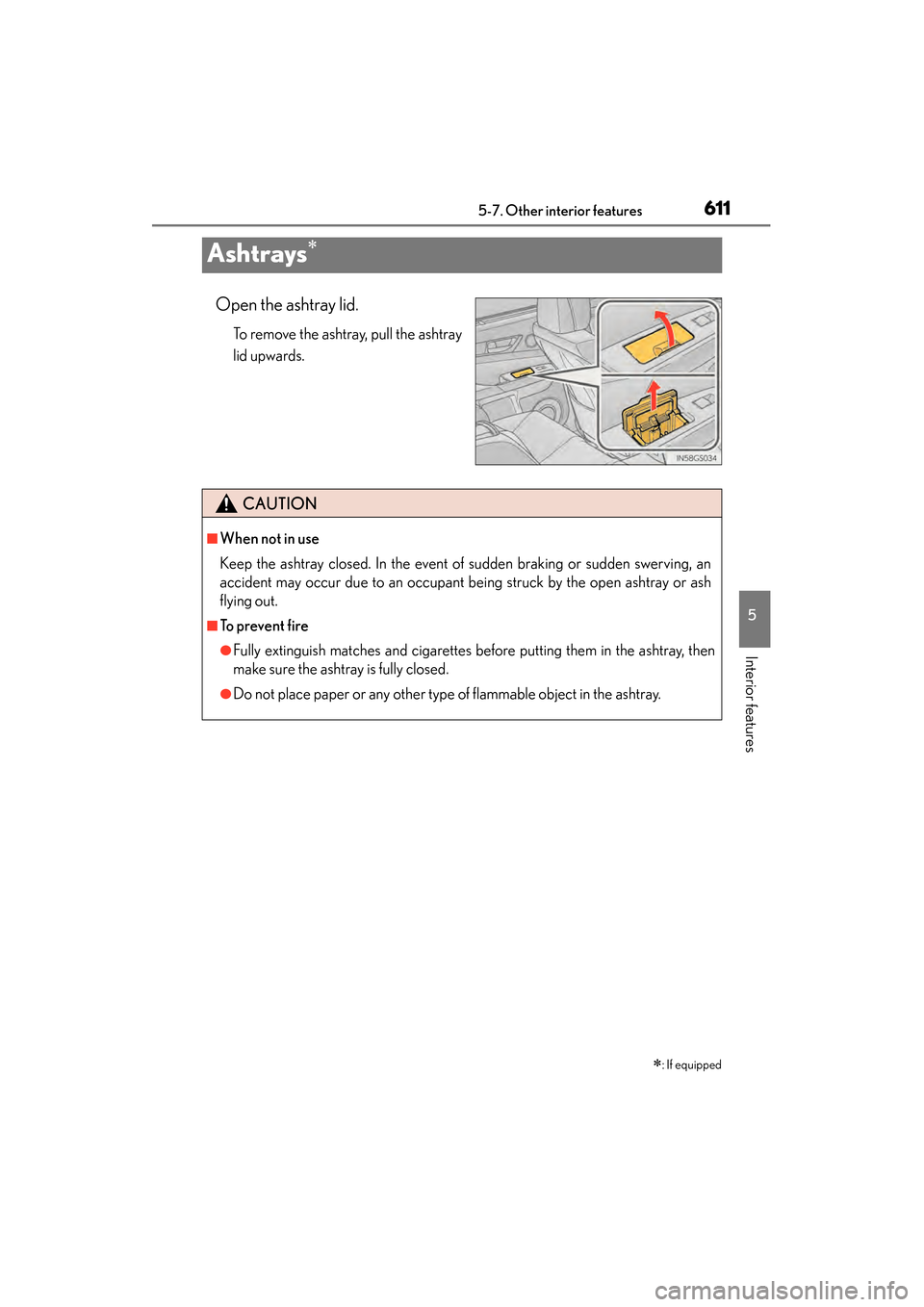

Ashtrays∗
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
∗: If equipped
CAUTION
■When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open ashtray or ash
flying out.
■To p r e v e n t f i r e
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
GS450h_OM_OM30D52U_(U).book Page 611 Monday, July 29, 2013 12:07 PM

612
GS450h_OM_OM30D52U_(U)
5-7. Other interior features

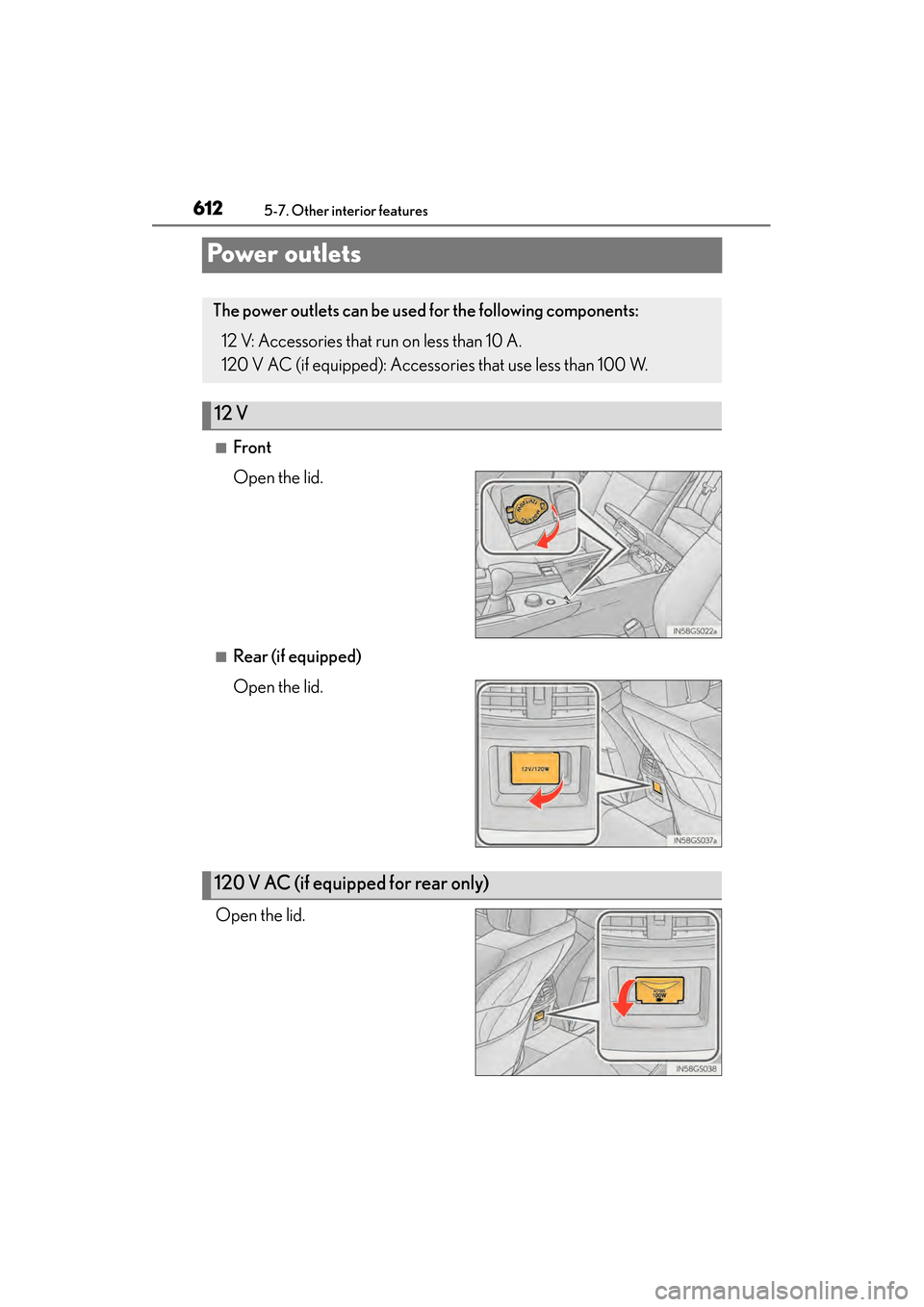

Powe r o u t l e t s
■Front
Open the lid.
■Rear (if equipped)
Open the lid.
Open the lid.
The power outlets can be used for the following components: 12 V: Accessories that run on less than 10 A.
120 V AC (if equipped): Accessories that use less than 100 W.
12 V
120 V AC (if equipped for rear only)
GS450h_OM_OM30D52U_(U).book Page 612 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6135-7. Other interior features
5
Interior features

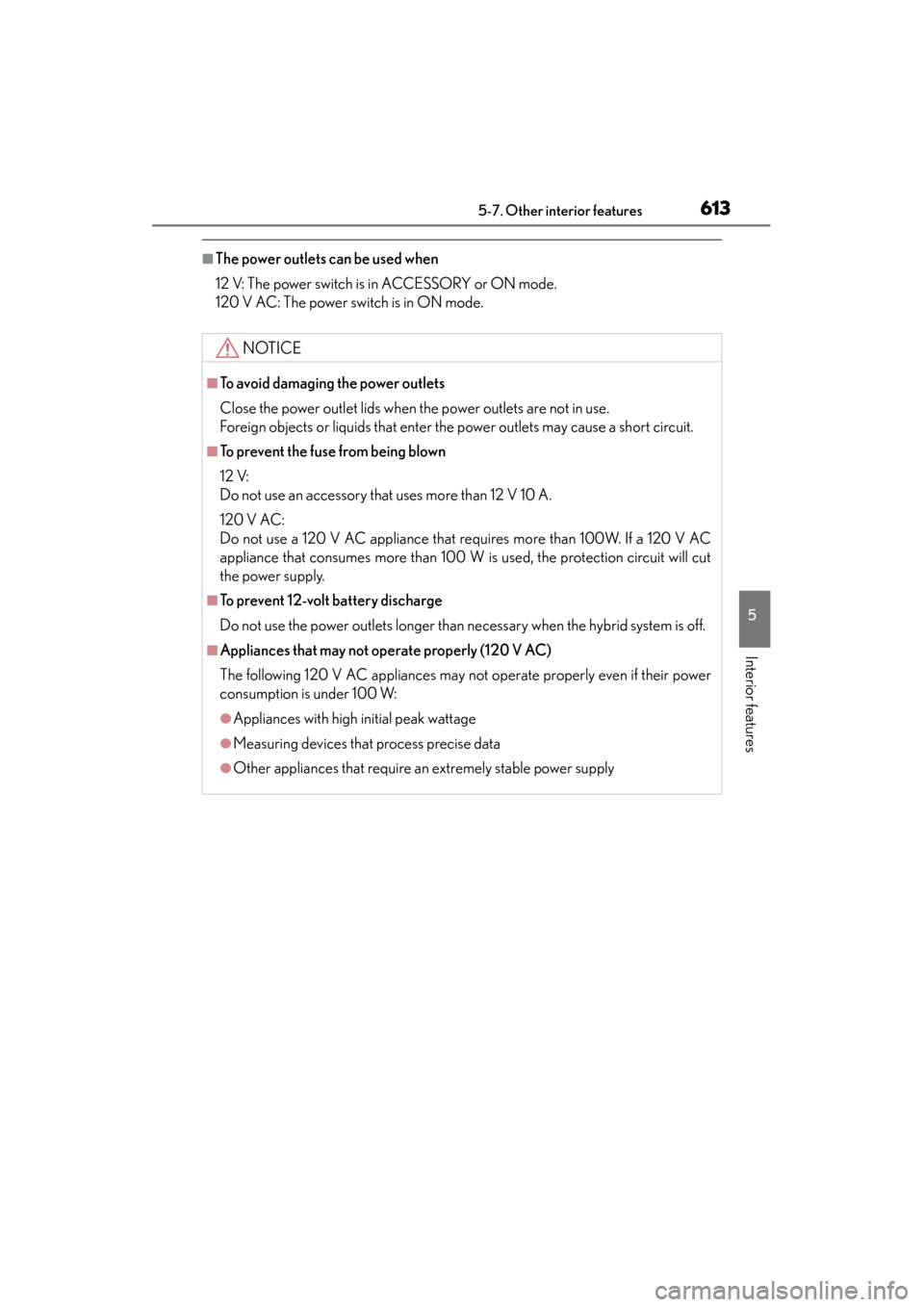

■The power outlets can be used when
12 V: The power switch is in ACCESSORY or ON mode.
120 V AC: The power switch is in ON mode.
NOTICE
■To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
■To prevent the fuse from being blown
12 V:
Do not use an accessory that uses more than 12 V 10 A.
120 V AC:
Do not use a 120 V AC appliance that requires more than 100W. If a 120 V AC
appliance that consumes more than 100 W is used, the protection circuit will cut
the power supply.
■To prevent 12-volt battery discharge
Do not use the power outlets longer than necessary when the hybrid system is off.
■Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate properly even if their power
consumption is under 100 W:
●Appliances with high initial peak wattage
●Measuring devices that process precise data
●Other appliances that require an extremely stable power supply
GS450h_OM_OM30D52U_(U).book Page 613 Monday, July 29, 2013 12:07 PM

614
GS450h_OM_OM30D52U_(U)
5-7. Other interior features
Heated steering wheel∗
Turns the heater on/off
The indicator light comes on when the
heater is operating.
■Operating condition
The power switch is in ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
∗: If equipped
The heated steering wheel heats the side grips of the steering wheel.
GS450h_OM_OM30D52U_(U).book Page 614 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6155-7. Other interior features
5
Interior features

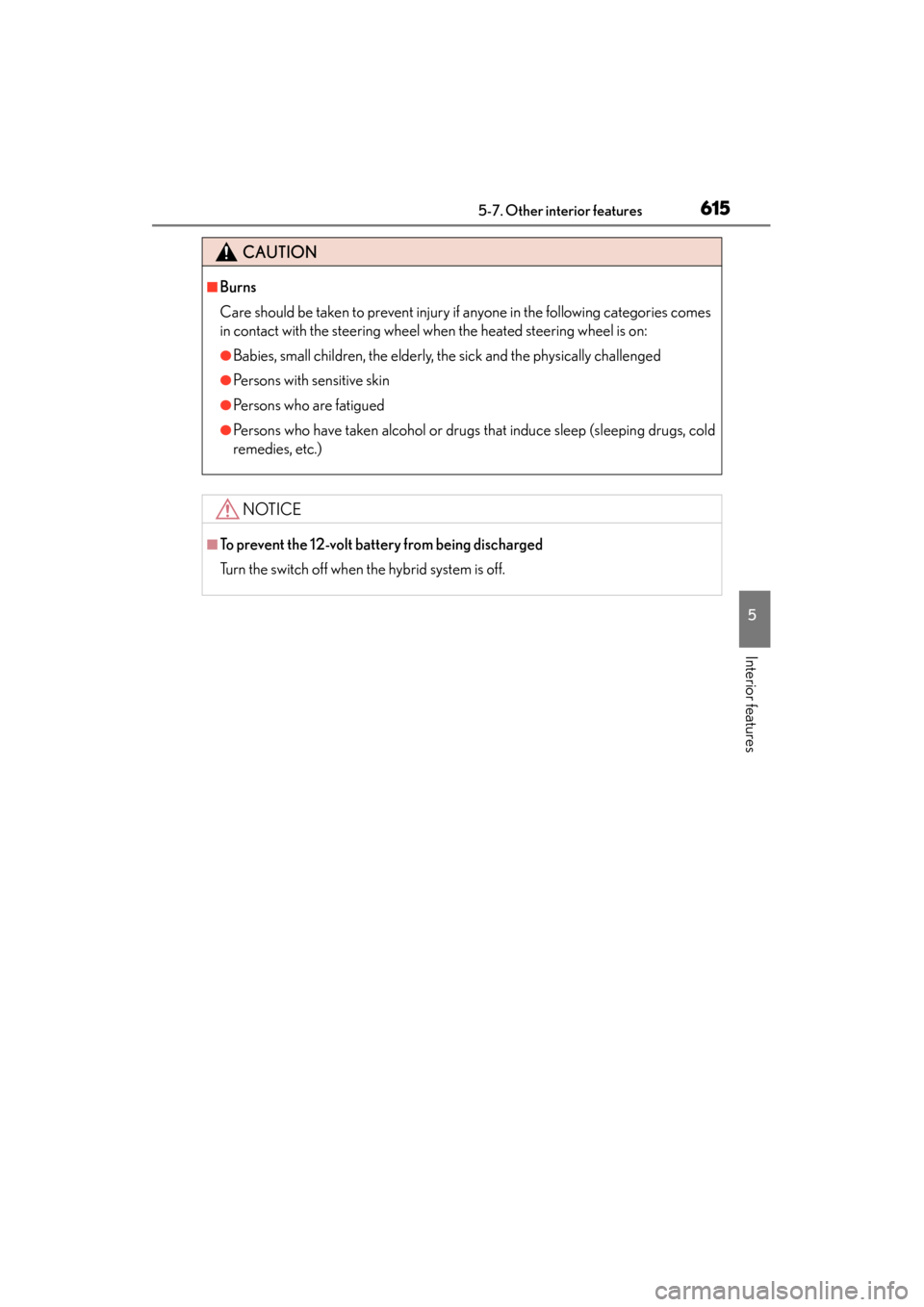

CAUTION
■Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●Babies, small children, the elderly, the sick and the physically challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent the 12-volt battery from being discharged
Turn the switch off when the hybrid system is off.
GS450h_OM_OM30D52U_(U).book Page 615 Monday, July 29, 2013 12:07 PM

616
GS450h_OM_OM30D52U_(U)
5-7. Other interior features

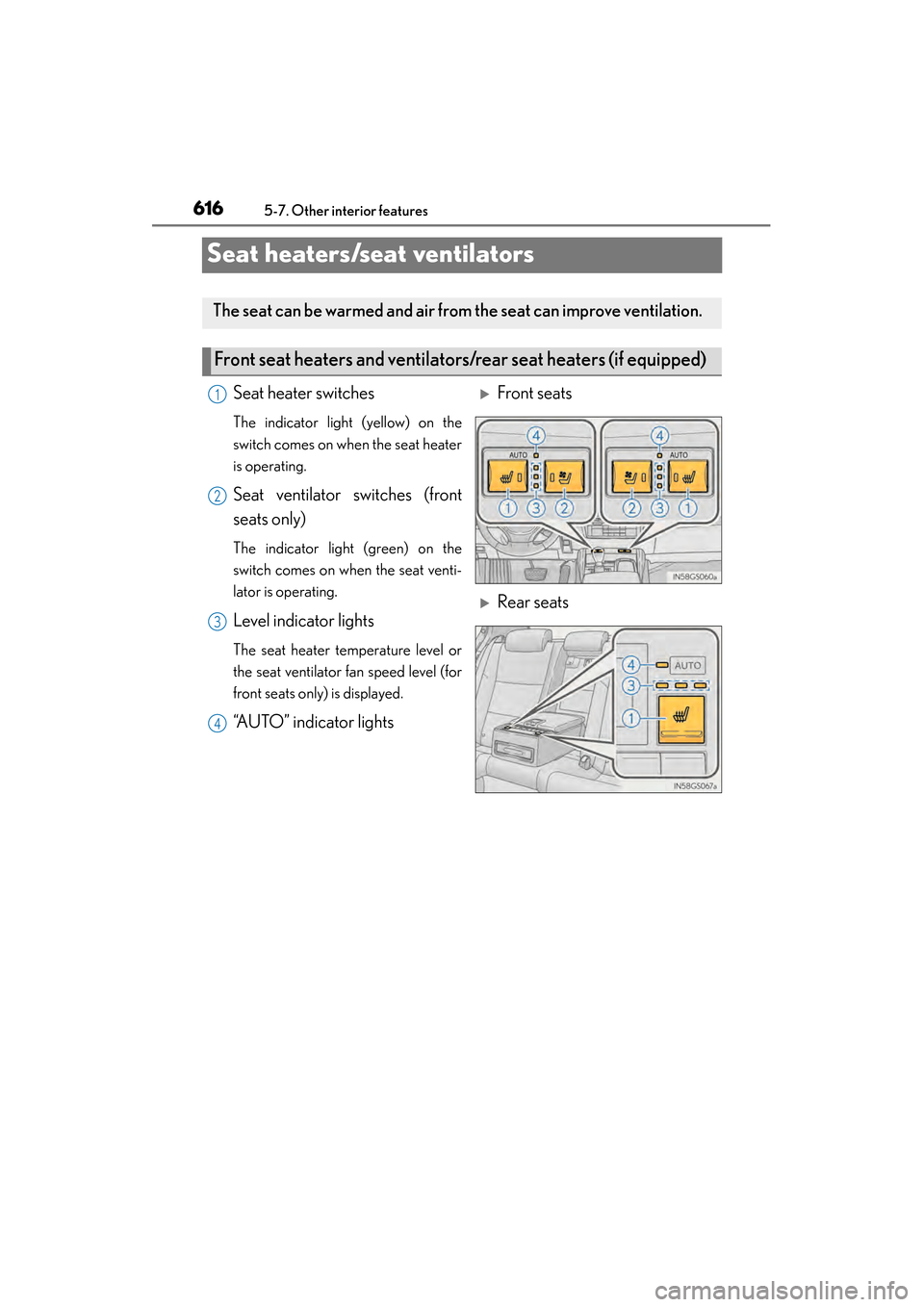

Seat heaters/seat ventilators
The seat can be warmed and air from the seat can improve ventilation.
Front seat heaters and ventilators/rear seat heaters (if equipped)
Seat heater switches
The indicator light (yellow) on the
switch comes on when the seat heater
is operating.
Seat ventilator switches (front
seats only)
The indicator light (green) on the
switch comes on when the seat venti-
lator is operating.
Level indicator lights
The seat heater temperature level or
the seat ventilator fan speed level (for
front seats only) is displayed.
“AUTO” indicator lights
XFront seats
XRear seats
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 616 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6175-7. Other interior features
5
Interior features

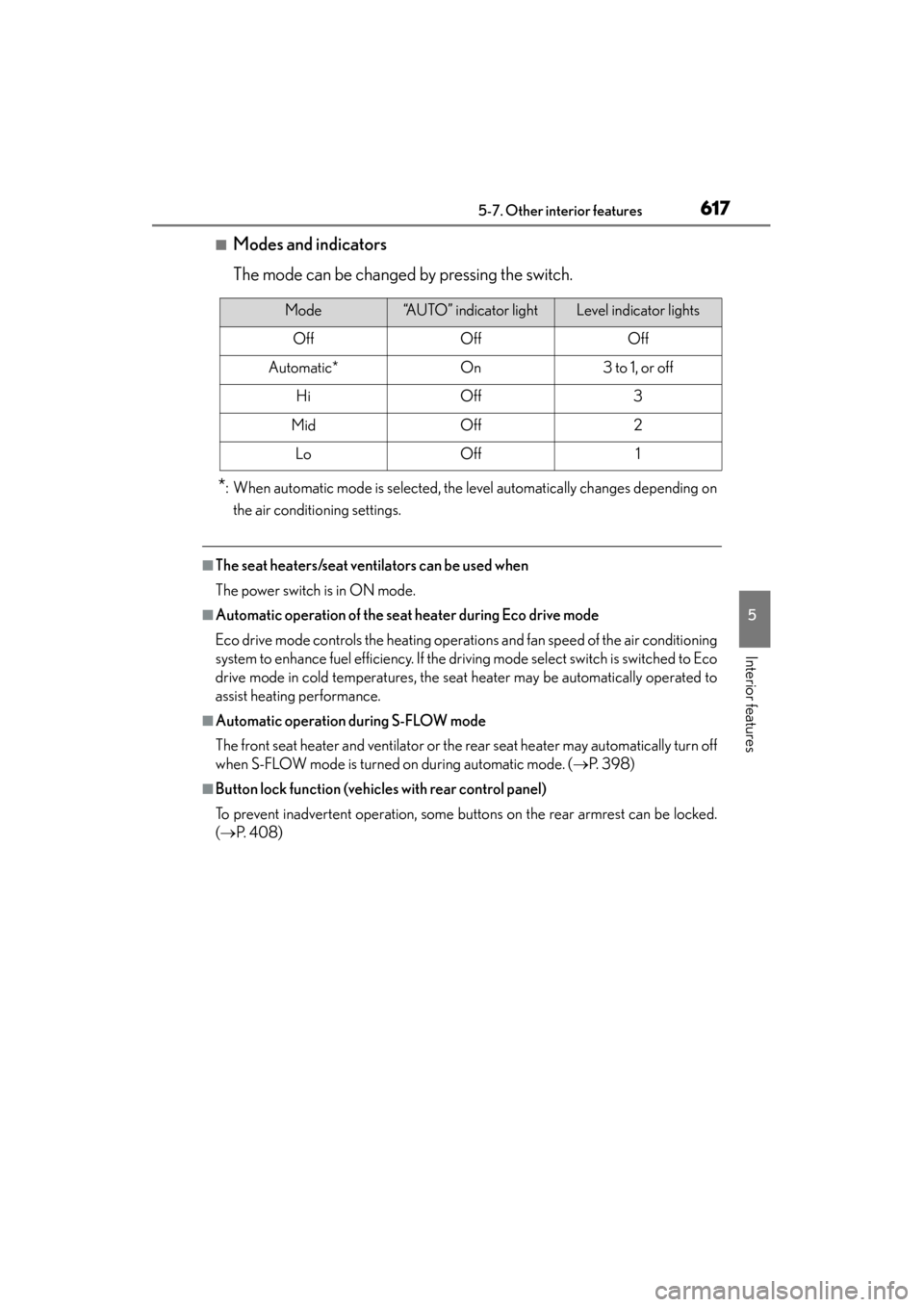

■Modes and indicators
The mode can be changed by pressing the switch.
*: When automatic mode is selected, the level automatically changes depending onthe air conditioning settings.
■The seat heaters/seat ventilators can be used when
The power switch is in ON mode.
■Automatic operation of the seat heater during Eco drive mode
Eco drive mode controls the heating operations and fan speed of the air conditioning
system to enhance fuel efficiency. If the driving mode select switch is switched to Eco
drive mode in cold temperatures, the seat heater may be automatically operated to
assist heating performance.
■Automatic operation during S-FLOW mode
The front seat heater and ventilator or the rear seat heater may automatically turn off
when S-FLOW mode is turned on during automatic mode. ( →P. 3 9 8 )
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 4 0 8 )
Mode“AUTO” indicator lightLevel indicator lights
OffOffOff
Automatic*On3 to 1, or off
HiOff3
MidOff2
LoOff1
GS450h_OM_OM30D52U_(U).book Page 617 Monday, July 29, 2013 12:07 PM

618
GS450h_OM_OM30D52U_(U)
5-7. Other interior features

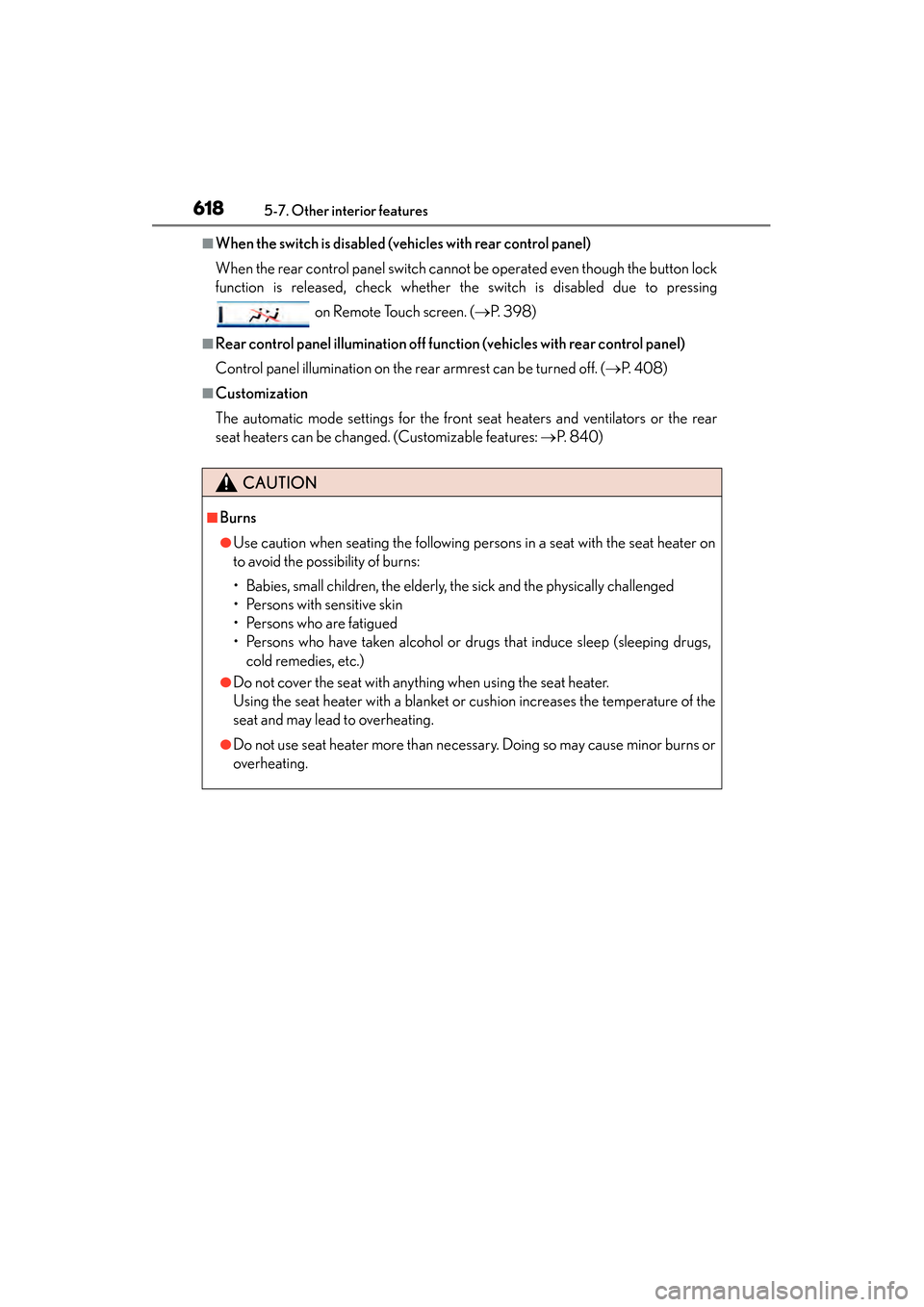

■When the switch is disabled (vehicles with rear control panel)
When the rear control panel switch cannot be operated even though the button lock
function is released, check whether the switch is disabled due to pressing on Remote Touch screen. ( →P. 3 9 8 )
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the rear armrest can be turned off. ( →P. 4 0 8 )
■Customization
The automatic mode settings for the front seat heaters and ventilators or the rear
seat heaters can be changed. (Customizable features: →P. 8 4 0 )
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use seat heater more than necessary. Doing so may cause minor burns or
overheating.
GS450h_OM_OM30D52U_(U).book Page 618 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6195-7. Other interior features
5
Interior features

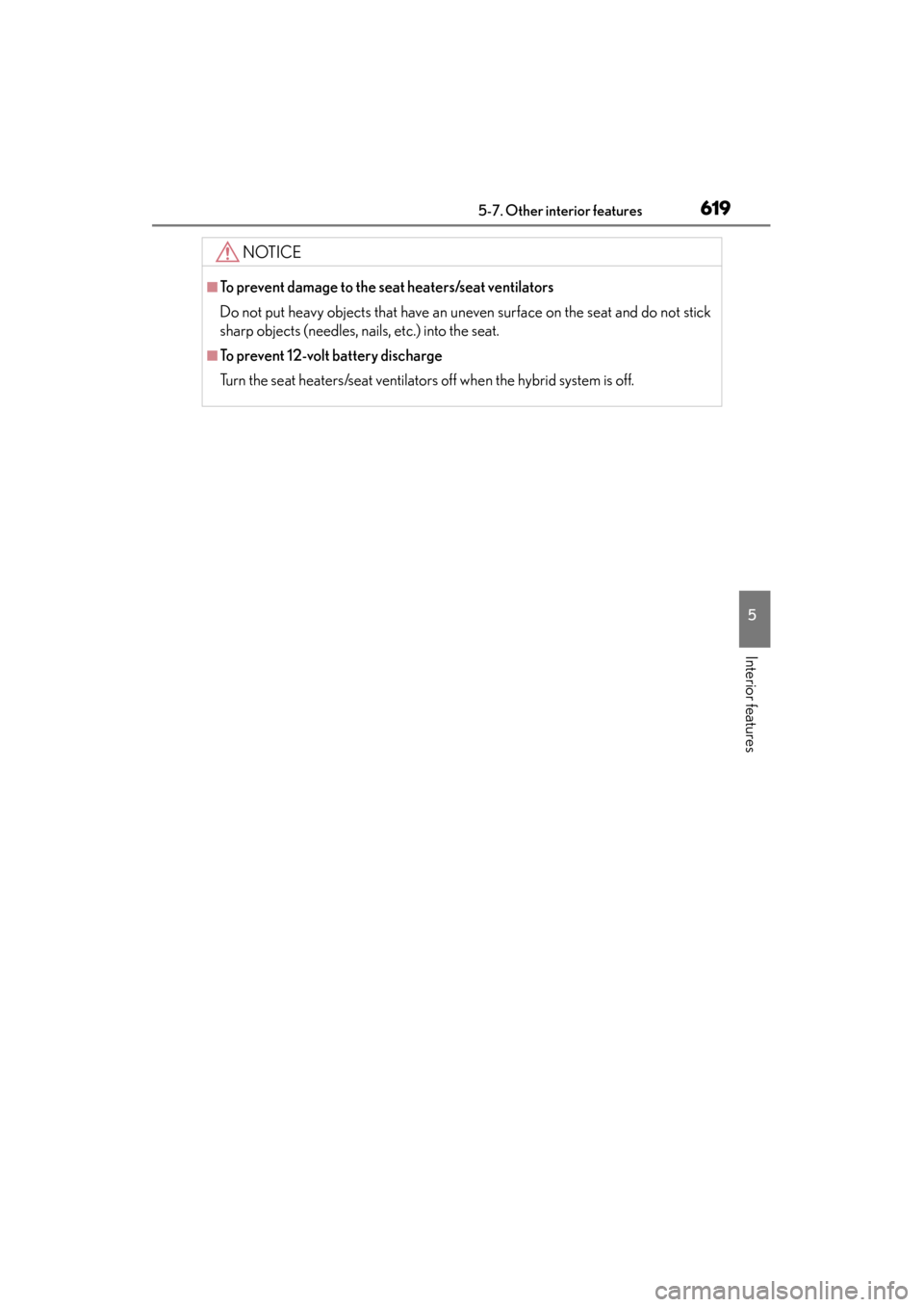

NOTICE
■To prevent damage to the seat heaters/seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
■To prevent 12-volt battery discharge
Turn the seat heaters/seat ventilators off when the hybrid system is off.
GS450h_OM_OM30D52U_(U).book Page 619 Monday, July 29, 2013 12:07 PM
