Lexus GS450h 2014 Owner's Manual

590
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

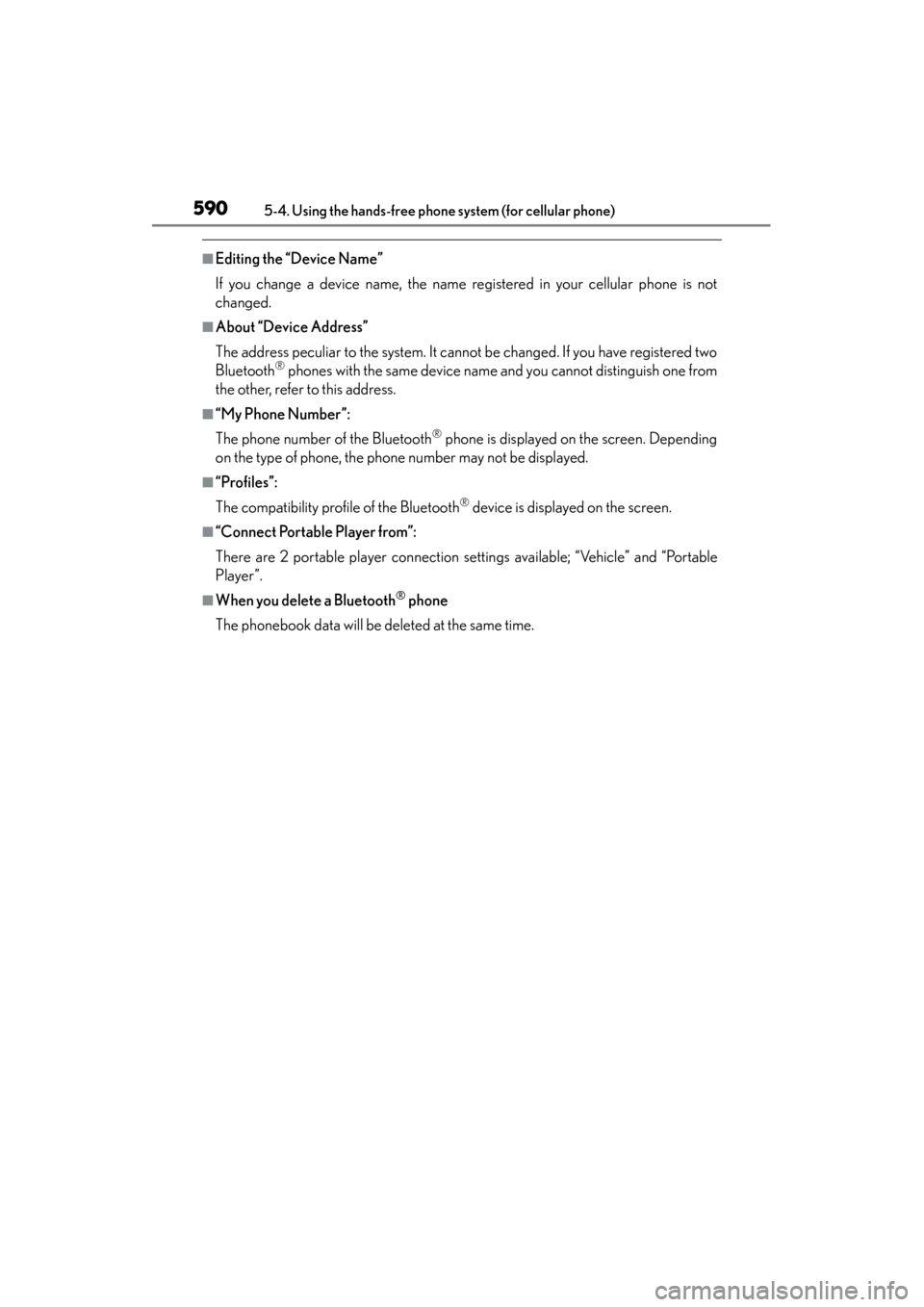

■Editing the “Device Name”
If you change a device name, the name registered in your cellular phone is not
changed.
■About “Device Address”
The address peculiar to the system. It cannot be changed. If you have registered two
Bluetooth
® phones with the same device name and you cannot distinguish one from
the other, refer to this address.
■“My Phone Number”:
The phone number of the Bluetooth
® phone is displayed on the screen. Depending
on the type of phone, the phone number may not be displayed.
■“Profiles”:
The compatibility profile of the Bluetooth
® device is displayed on the screen.
■“Connect Portable Player from”:
There are 2 portable player connection settings available; “Vehicle” and “Portable
Player”.
■When you delete a Bluetooth® phone
The phonebook data will be deleted at the same time.
GS450h_OM_OM30D52U_(U).book Page 590 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5915-4. Using the hands-free phone system (for cellular phone)
5
Interior features

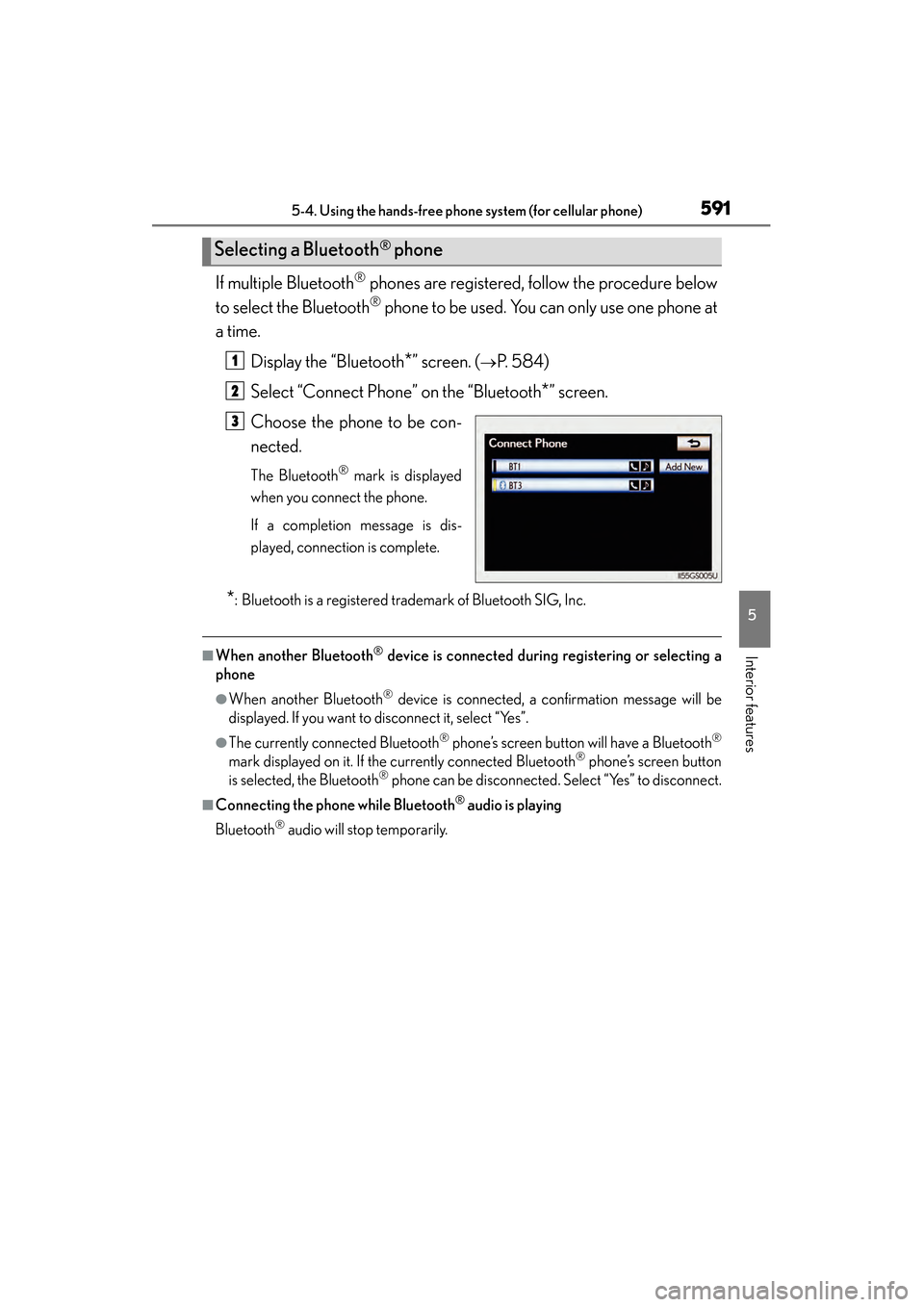

If multiple Bluetooth® phones are registered, follow the procedure below
to select the Bluetooth
® phone to be used. You can only use one phone at
a time.
Display the “Bluetooth
*” screen. (→P. 584)
Select “Connect Phone” on the “Bluetooth
*” screen.
Choose the phone to be con-
nected.
The Bluetooth® mark is displayed
when you connect the phone.
If a completion message is dis-
played, connection is complete.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
■When another Bluetooth® device is connected during registering or selecting a
phone
●When another Bluetooth® device is connected, a confirmation message will be
displayed. If you want to disconnect it, select “Yes”.
●The currently connected Bluetooth® phone’s screen button will have a Bluetooth®
mark displayed on it. If the currently connected Bluetooth® phone’s screen button
is selected, the Bluetooth® phone can be disconnected. Select “Yes” to disconnect.
■Connecting the phone while Bluetooth® audio is playing
Bluetooth
® audio will stop temporarily.
Selecting a Bluetooth® phone
1
2
3
GS450h_OM_OM30D52U_(U).book Page 591 Monday, July 29, 2013 12:07 PM

592
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

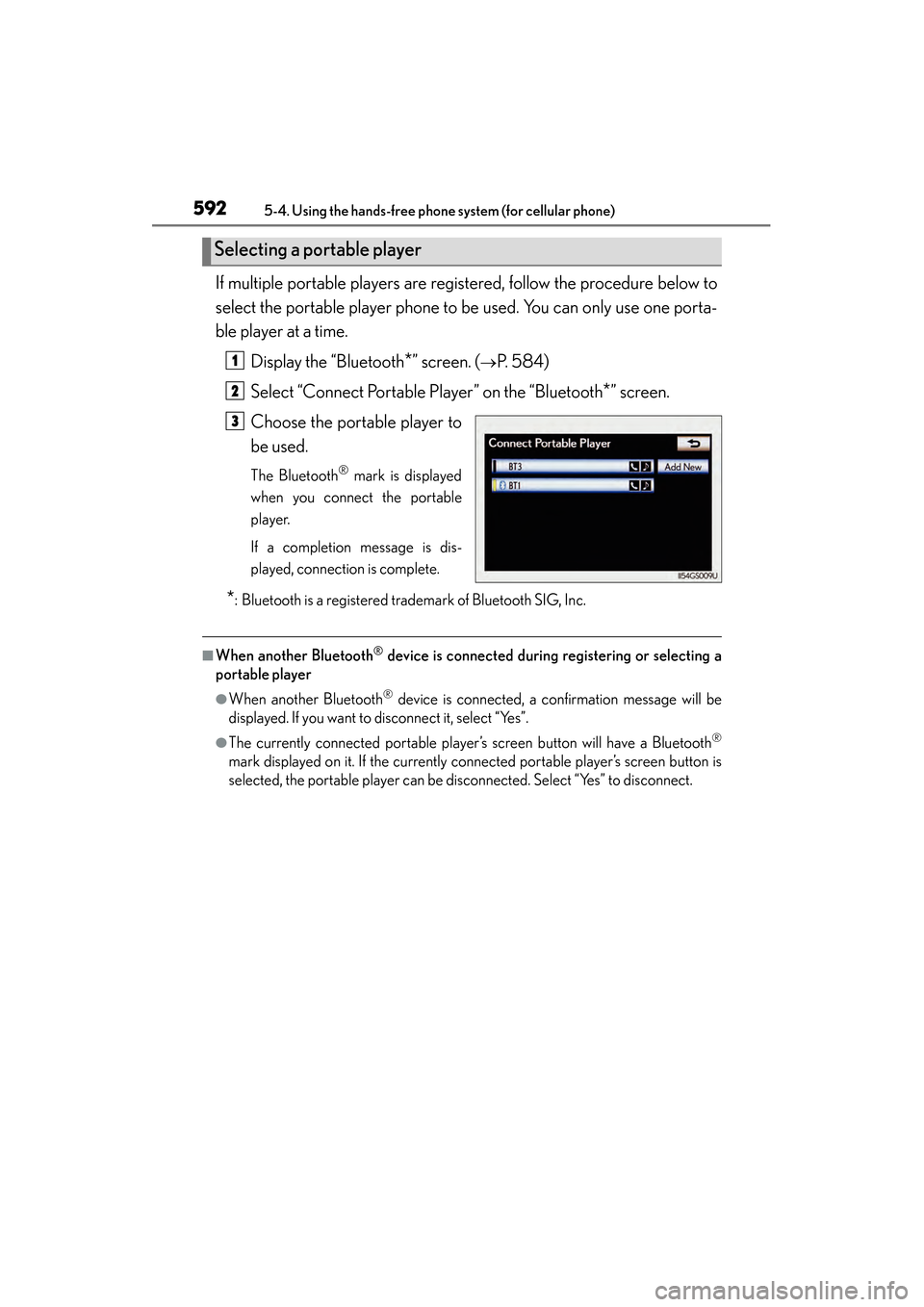

If multiple portable players are registered, follow the procedure below to
select the portable player phone to be used. You can only use one porta-
ble player at a time.Display the “Bluetooth
*” screen. (→P. 584)
Select “Connect Portable Player” on the “Bluetooth
*” screen.
Choose the portable player to
be used.
The Bluetooth® mark is displayed
when you connect the portable
player.
If a completion message is dis-
played, connection is complete.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
■When another Bluetooth® device is connected during registering or selecting a
portable player
●When another Bluetooth® device is connected, a confirmation message will be
displayed. If you want to disconnect it, select “Yes”.
●The currently connected portable player’s screen button will have a Bluetooth®
mark displayed on it. If the currently connected portable player’s screen button is
selected, the portable player can be disconnected. Select “Yes” to disconnect.
Selecting a portable player
1
2
3
GS450h_OM_OM30D52U_(U).book Page 592 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5935-4. Using the hands-free phone system (for cellular phone)
5
Interior features

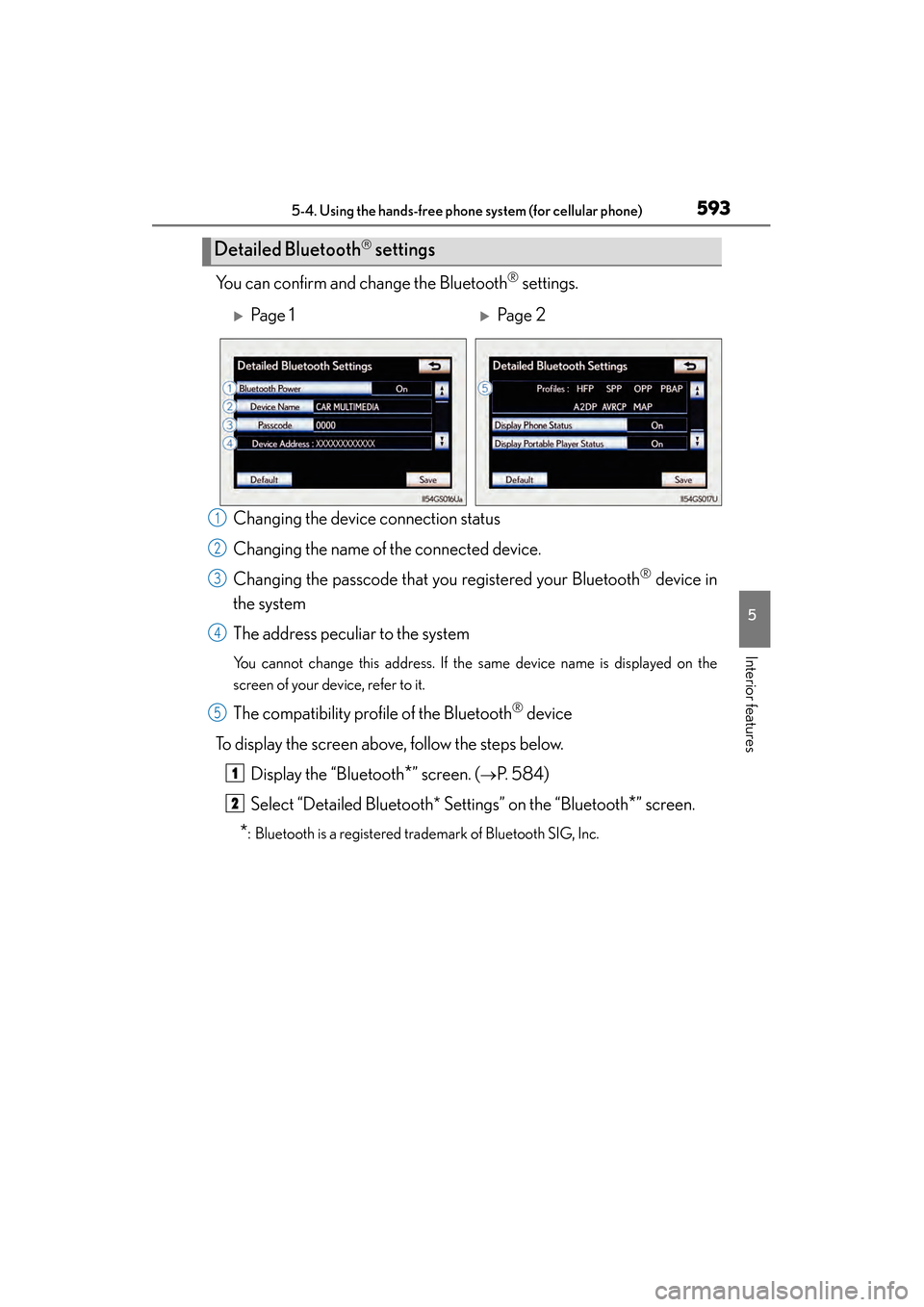

You can confirm and change the Bluetooth® settings.
Changing the device connection status
Changing the name of the connected device.
Changing the passcode that you registered your Bluetooth
® device in
the system
The address peculiar to the system
You cannot change this address. If the same device name is displayed on the
screen of your device, refer to it.
The compatibility profile of the Bluetooth® device
To display the screen above, follow the steps below. Display the “Bluetooth
*” screen. (→P. 584)
Select “Detailed Bluetooth* Settings” on the “Bluetooth
*” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Detailed Bluetooth settings
XPa g e 1XPa g e 2
1
2
3
4
5
1
2
GS450h_OM_OM30D52U_(U).book Page 593 Monday, July 29, 2013 12:07 PM

594
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

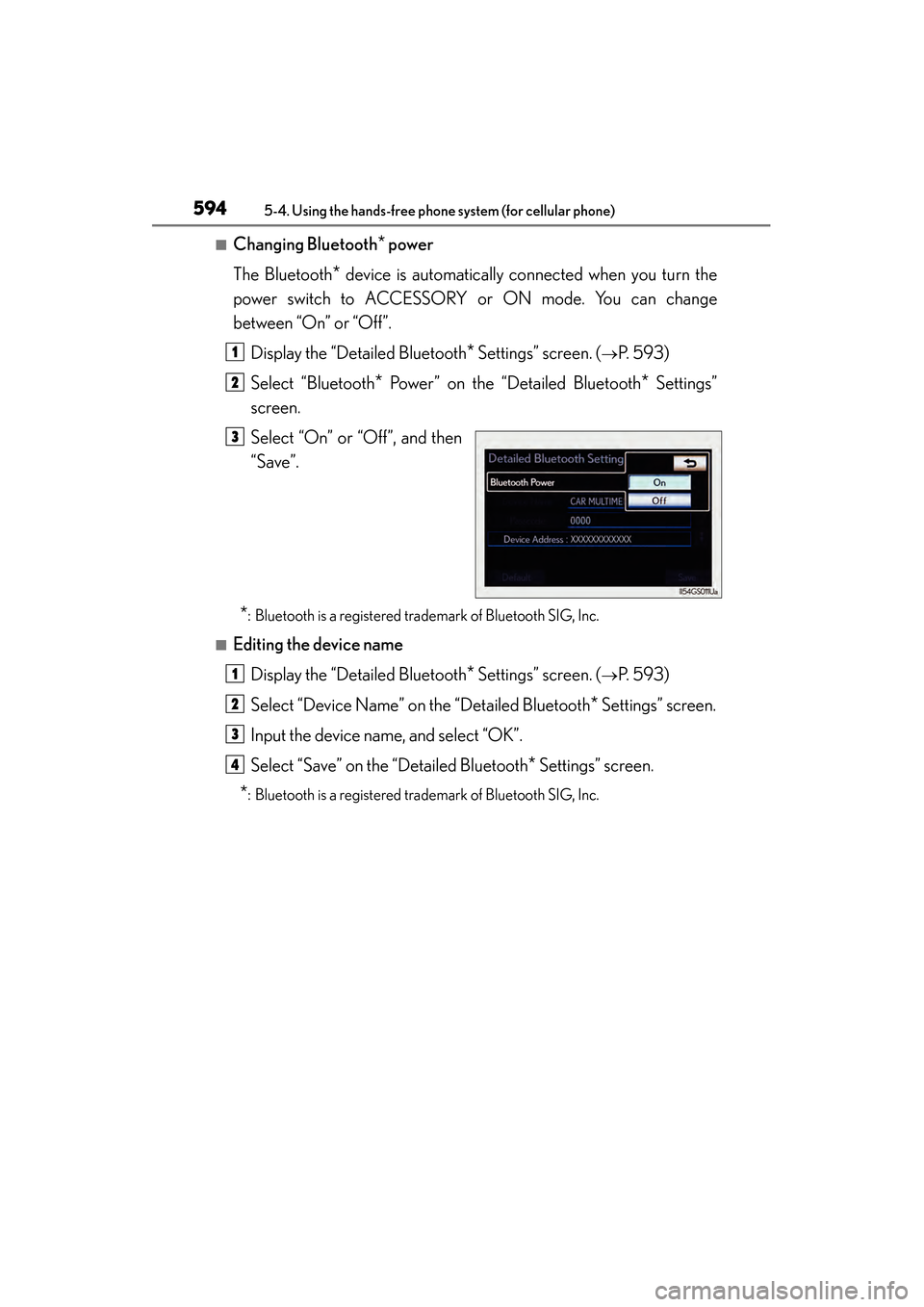

■Changing Bluetooth* power
The Bluetooth
* device is automatically connected when you turn the
power switch to ACCESSORY or ON mode. You can change
between “On” or “Off”.
Display the “Detailed Bluetooth
* Settings” screen. (→P. 593)
Select “Bluetooth
* Power” on the “Detailed Bluetooth* Settings”
screen.
Select “On” or “Off”, and then
“Save”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
■Editing the device name
Display the “Detailed Bluetooth
* Settings” screen. (→P. 593)
Select “Device Name” on the “Detailed Bluetooth
* Settings” screen.
Input the device name, and select “OK”.
Select “Save” on the “Detailed Bluetooth
* Settings” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1
2
3
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 594 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5955-4. Using the hands-free phone system (for cellular phone)
5
Interior features

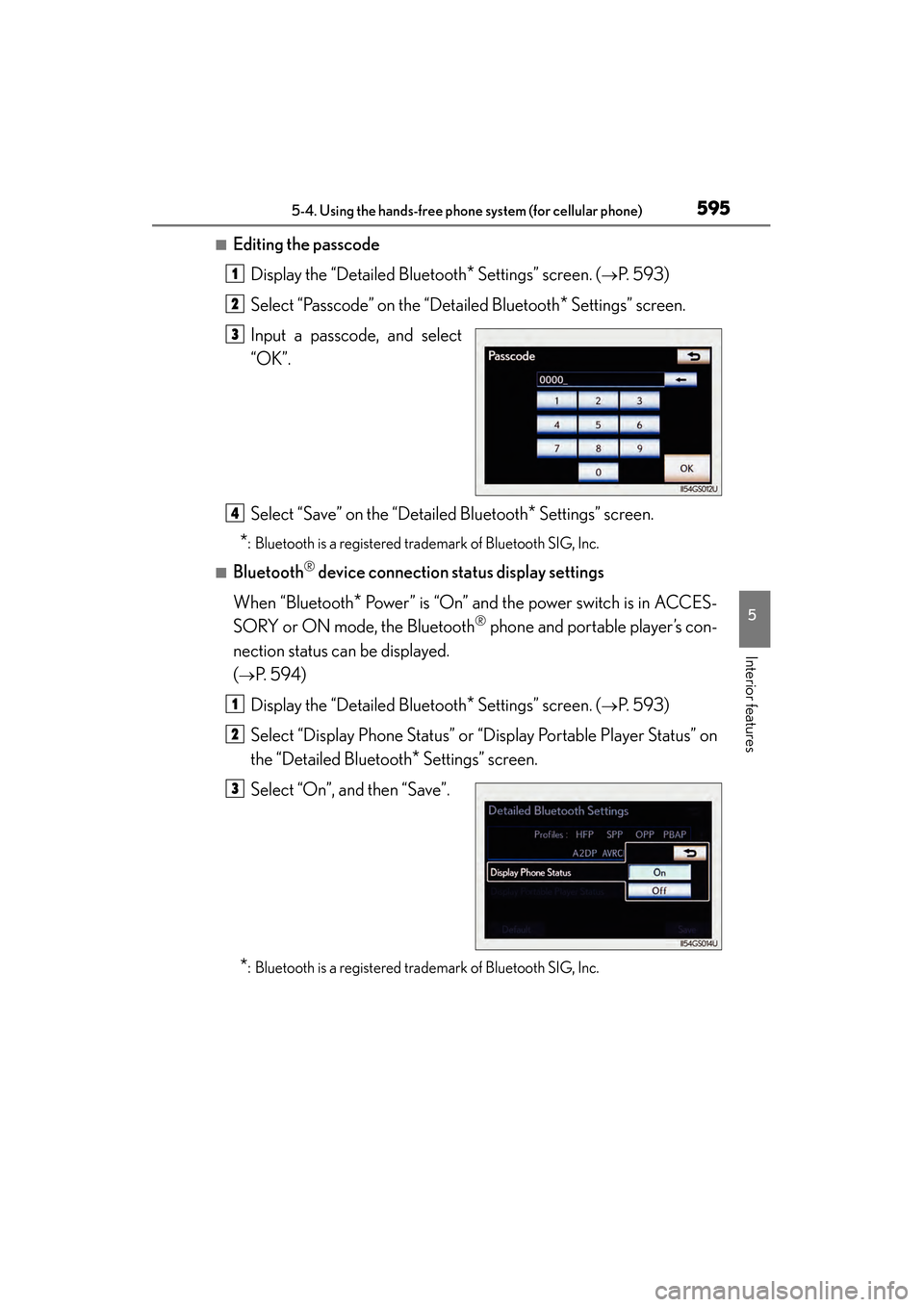

■Editing the passcodeDisplay the “Detailed Bluetooth
* Settings” screen. (→P. 593)
Select “Passcode” on the “Detailed Bluetooth
* Settings” screen.
Input a passcode, and select
“OK”.
Select “Save” on the “Detailed Bluetooth
* Settings” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
■Bluetooth® device connection status display settings
When “Bluetooth
* Power” is “On” and the power switch is in ACCES-
SORY or ON mode, the Bluetooth
® phone and portable player’s con-
nection status can be displayed.
(
→P. 5 9 4 )
Display the “Detailed Bluetooth
* Settings” screen. (→P. 593)
Select “Display Phone Status” or “Display Portable Player Status” on
the “Detailed Bluetooth
* Settings” screen.
Select “On”, and then “Save”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1
2
3
4
1
2
3
GS450h_OM_OM30D52U_(U).book Page 595 Monday, July 29, 2013 12:07 PM

596
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

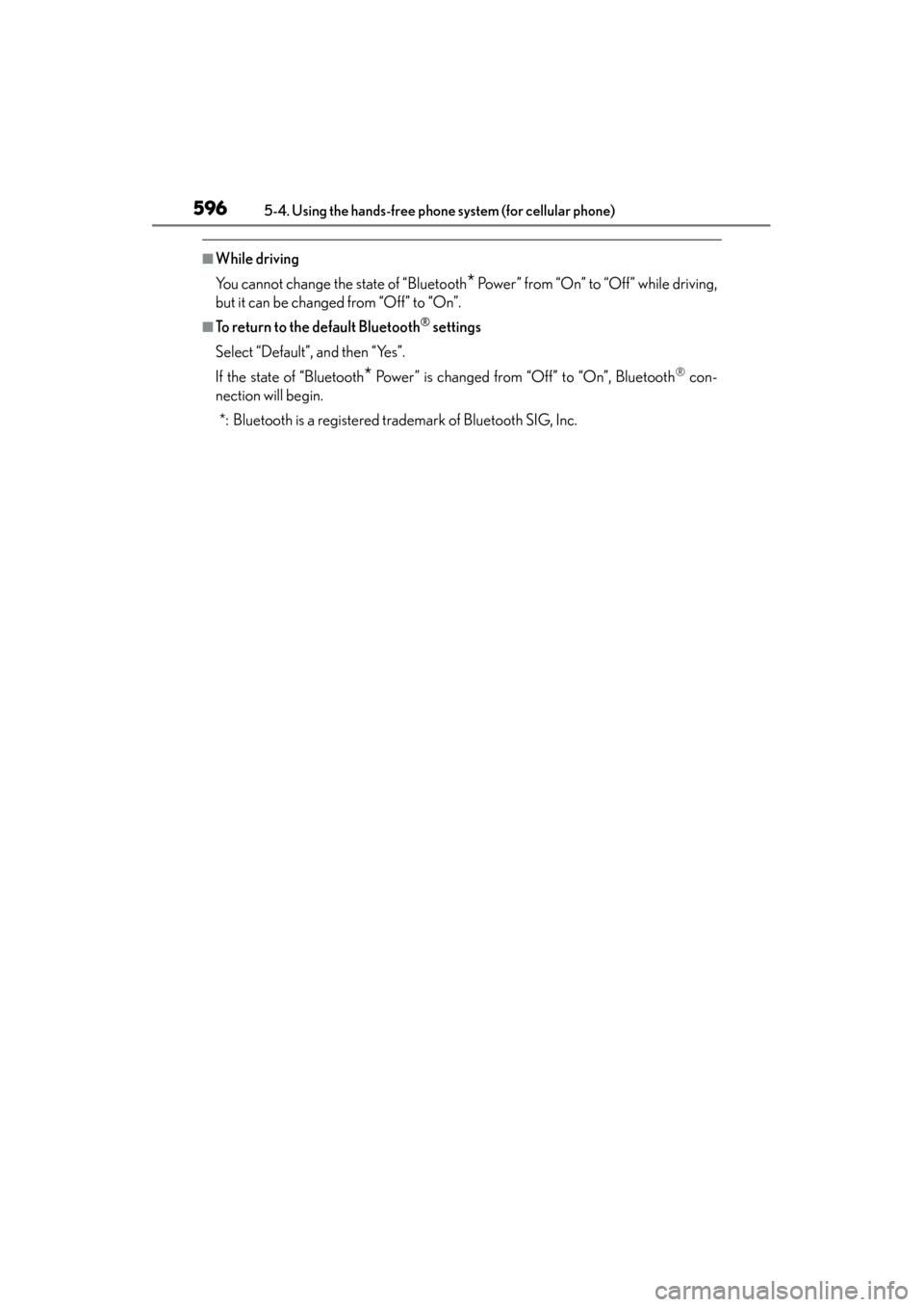

■While driving
You cannot change the state of “Bluetooth
* Power ” from “On” to “Off” while driving,
but it can be changed from “Off” to “On”.
■To return to the default Bluetooth® settings
Select “Default”, and then “Yes”.
If the state of “Bluetooth
* Power” is changed from “Off” to “On”, Bluetooth® con-
nection will begin.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
GS450h_OM_OM30D52U_(U).book Page 596 Monday, July 29, 2013 12:07 PM

597
GS450h_OM_OM30D52U_(U)5-5. Using the interior lights
5
Interior features

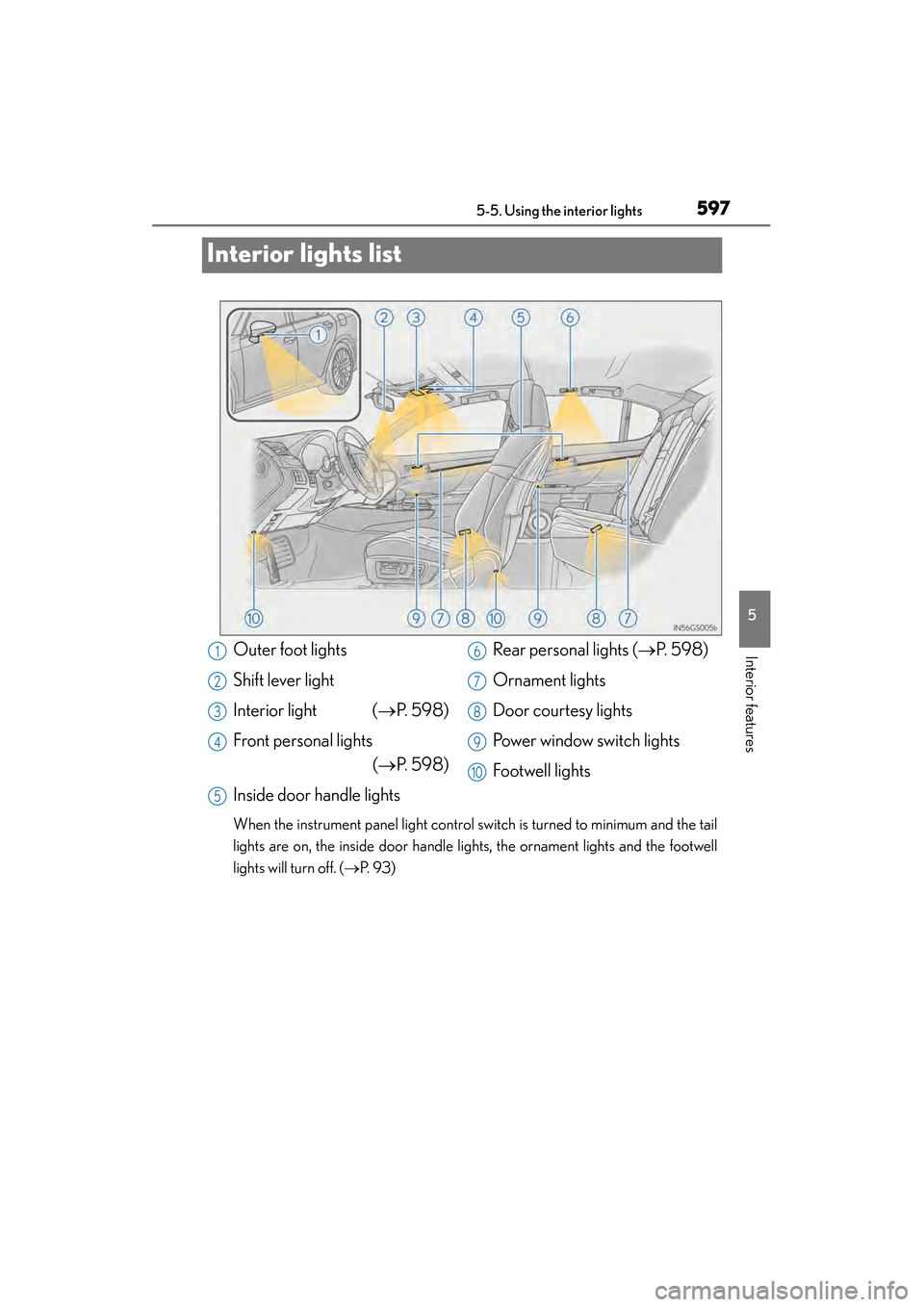

Interior lights list
When the instrument panel light control switch is turned to minimum and the tail
lights are on, the inside door handle lights, the ornament lights and the footwell
lights will turn off. ( →P. 9 3 )
Outer foot lights
Shift lever light
Interior light ( →P. 5 9 8 )
Front personal lights (→P. 5 9 8 )
Inside door handle lights Rear personal lights (
→P. 5 9 8 )
Ornament lights
Door courtesy lights
Power window switch lights
Footwell lights1
2
3
4
5
6
7
8
9
10
GS450h_OM_OM30D52U_(U).book Page 597 Monday, July 29, 2013 12:07 PM

598
GS450h_OM_OM30D52U_(U)
5-5. Using the interior lights

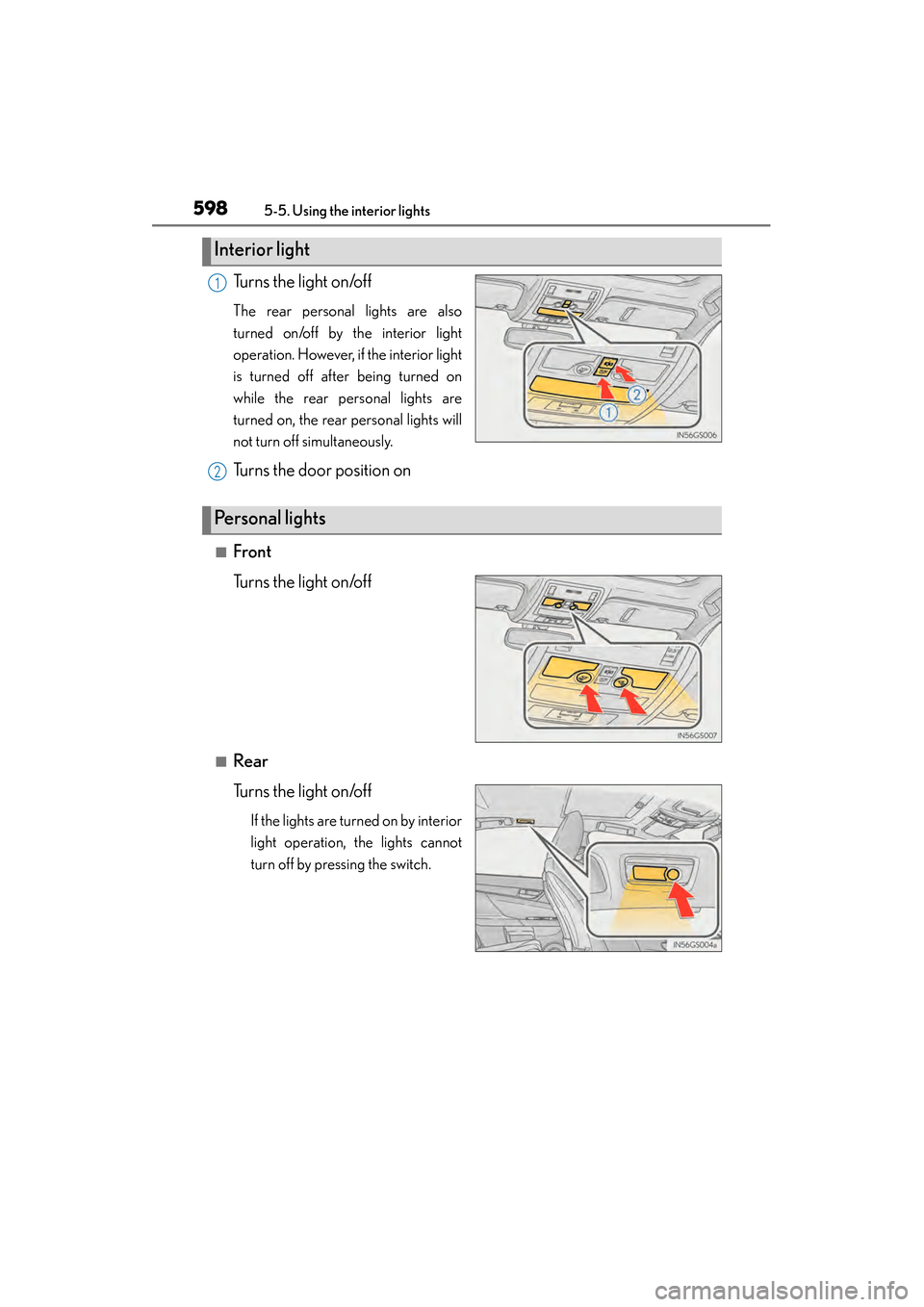

Turns the light on/off
The rear personal lights are also
turned on/off by the interior light
operation. However, if the interior light
is turned off after being turned on
while the rear personal lights are
turned on, the rear personal lights will
not turn off simultaneously.
Turns the door position on
■Front
Turns the light on/off
■Rear
Turns the light on/off
If the lights are turned on by interior
light operation, the lights cannot
turn off by pressing the switch.
Interior light
1
2
Personal lights
GS450h_OM_OM30D52U_(U).book Page 598 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5995-5. Using the interior lights
5
Interior features

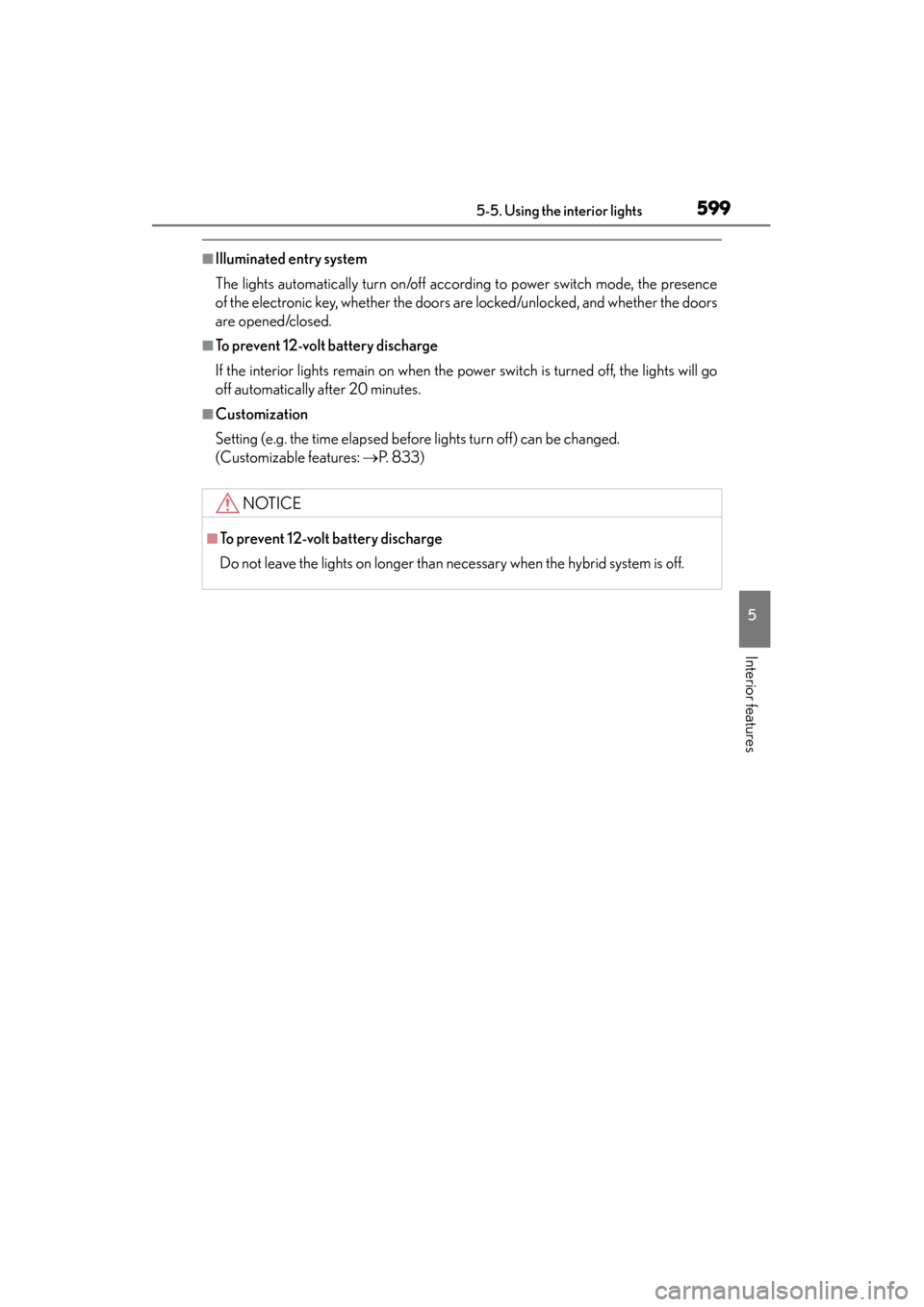

■Illuminated entry system
The lights automatically turn on/off according to power switch mode, the presence
of the electronic key, whether the doors are locked/unlocked, and whether the doors
are opened/closed.
■To prevent 12-volt battery discharge
If the interior lights remain on when the power switch is turned off, the lights will go
off automatically after 20 minutes.
■Customization
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 8 3 3 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.
