Lexus GS450h 2014 Owner's Manual

570
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

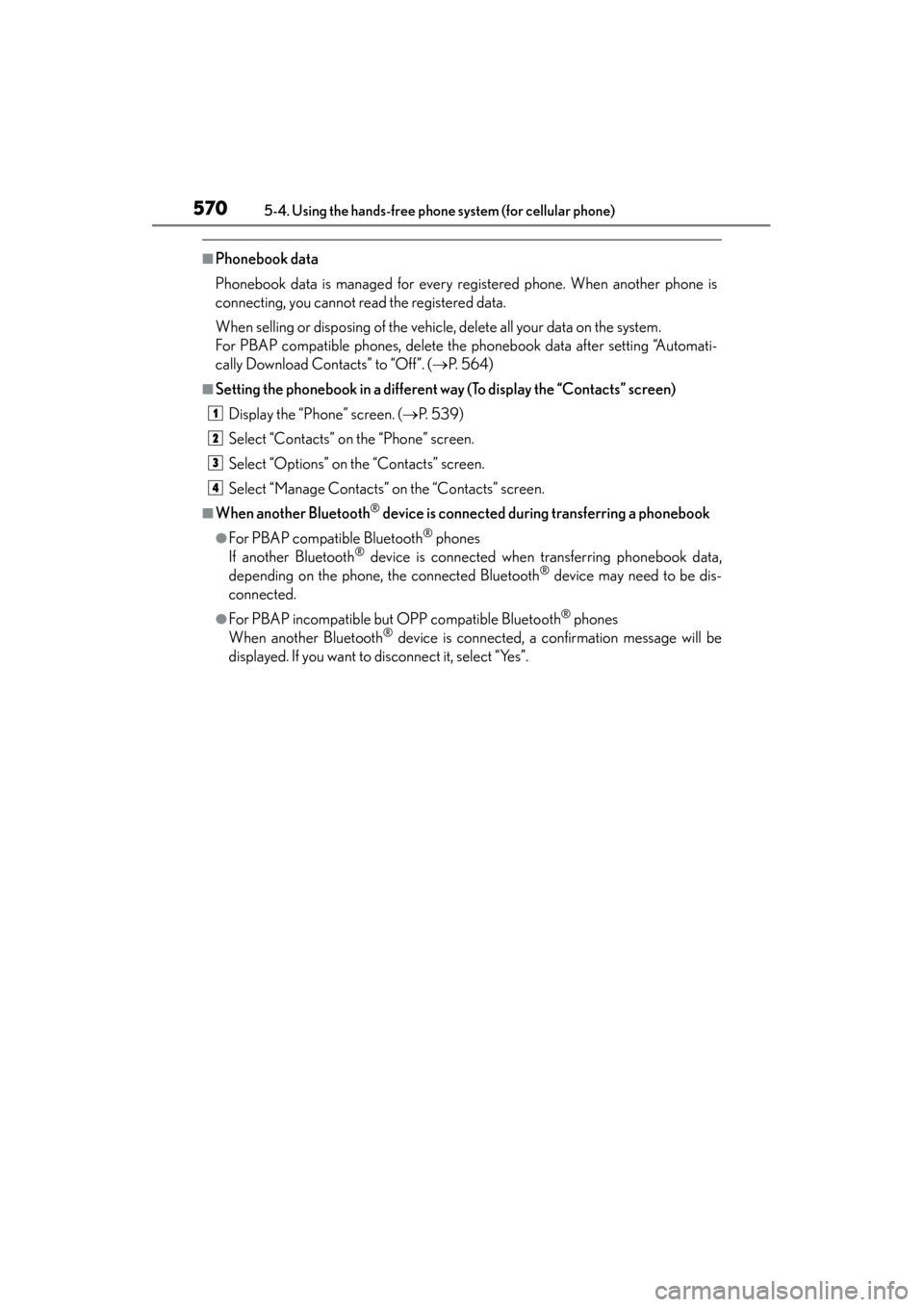

■Phonebook data
Phonebook data is managed for every registered phone. When another phone is
connecting, you cannot read the registered data.
When selling or disposing of the vehicle, delete all your data on the system.
For PBAP compatible phones, delete the phonebook data after setting “Automati-
cally Download Contacts” to “Off”. (→P. 5 6 4 )
■Setting the phonebook in a different way (To display the “Contacts” screen)
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Select “Options” on the “Contacts” screen.
Select “Manage Contacts” on the “Contacts” screen.
■When another Bluetooth® device is connected during transferring a phonebook
●For PBAP compatible Bluetooth® phones
If another Bluetooth® device is connected when transferring phonebook data,
depending on the phone, the connected Bluetooth® device may need to be dis-
connected.
●For PBAP incompatible but OPP compatible Bluetooth® phones
When another Bluetooth® device is connected, a confirmation message will be
displayed. If you want to disconnect it, select “Yes”.
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 570 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5715-4. Using the hands-free phone system (for cellular phone)
5
Interior features

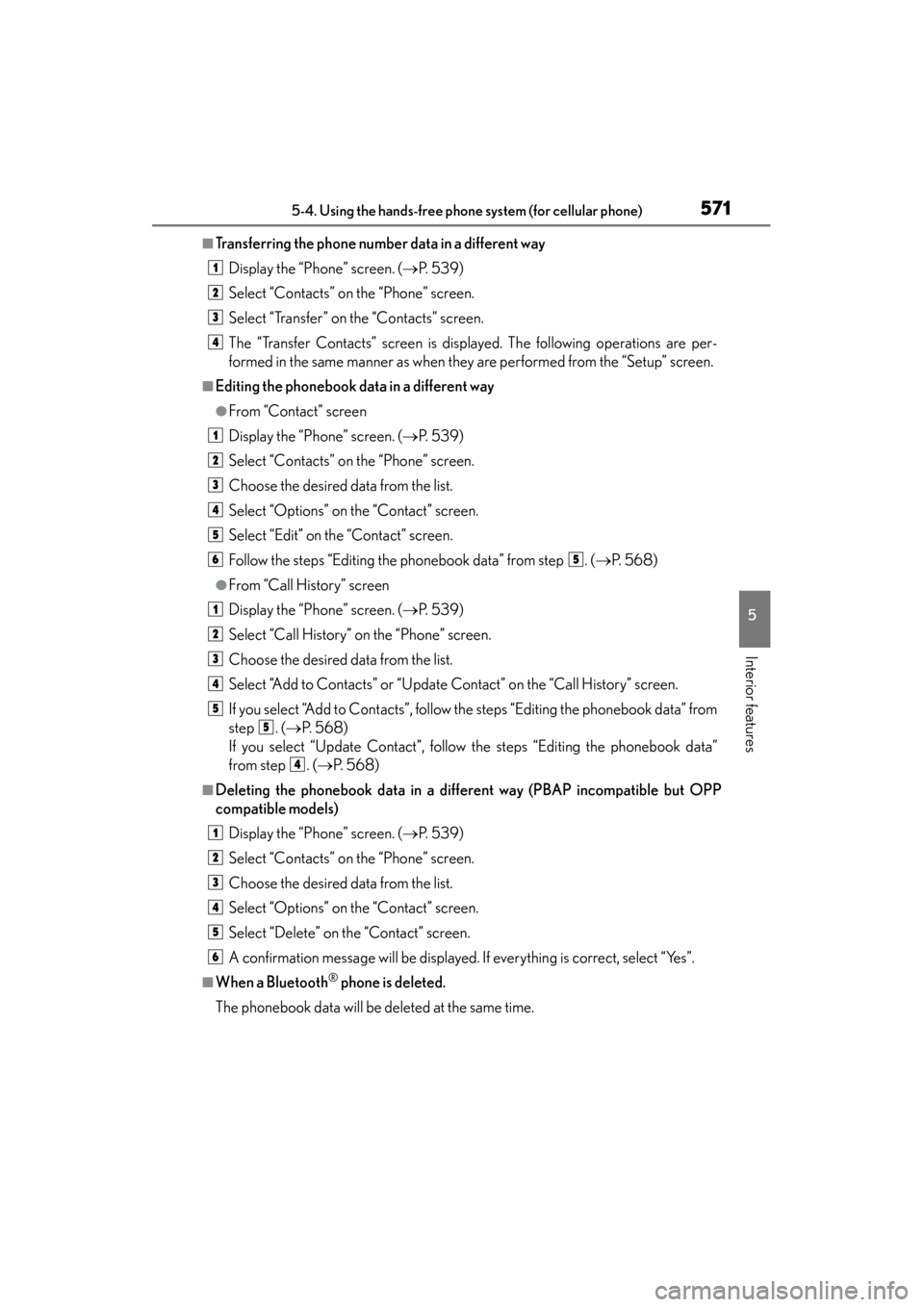

■Transferring the phone number data in a different way
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Select “Transfer” on the “Contacts” screen.
The “Transfer Contacts” screen is displayed. The following operations are per-
formed in the same manner as when they are performed from the “Setup” screen.
■Editing the phonebook da ta in a different way
●From “Contact” screen
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Choose the desired data from the list.
Select “Options” on the “Contact” screen.
Select “Edit” on the “Contact” screen.
Follow the steps “Editing the phonebook data” from step . ( →P. 5 6 8 )
●From “Call History” screen
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Call History” on the “Phone” screen.
Choose the desired data from the list.
Select “Add to Contacts” or “Update Contact” on the “Call History” screen.
If you select “Add to Contacts”, follow the steps “Editing the phonebook data” from
step . ( →P. 5 6 8 )
If you select “Update Contact”, follow the steps “Editing the phonebook data”
from step . ( →P. 5 6 8 )
■Deleting the phonebook data in a different way (PBAP incompatible but OPP
compatible models)
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Choose the desired data from the list.
Select “Options” on the “Contact” screen.
Select “Delete” on the “Contact” screen.
A confirmation message will be displayed. If everything is correct, select “Yes”.
■When a Bluetooth® phone is deleted.
The phonebook data will be deleted at the same time.
1
2
3
4
1
2
3
4
5
65
1
2
3
4
5
5
4
1
2
3
4
5
6
GS450h_OM_OM30D52U_(U).book Page 571 Monday, July 29, 2013 12:07 PM

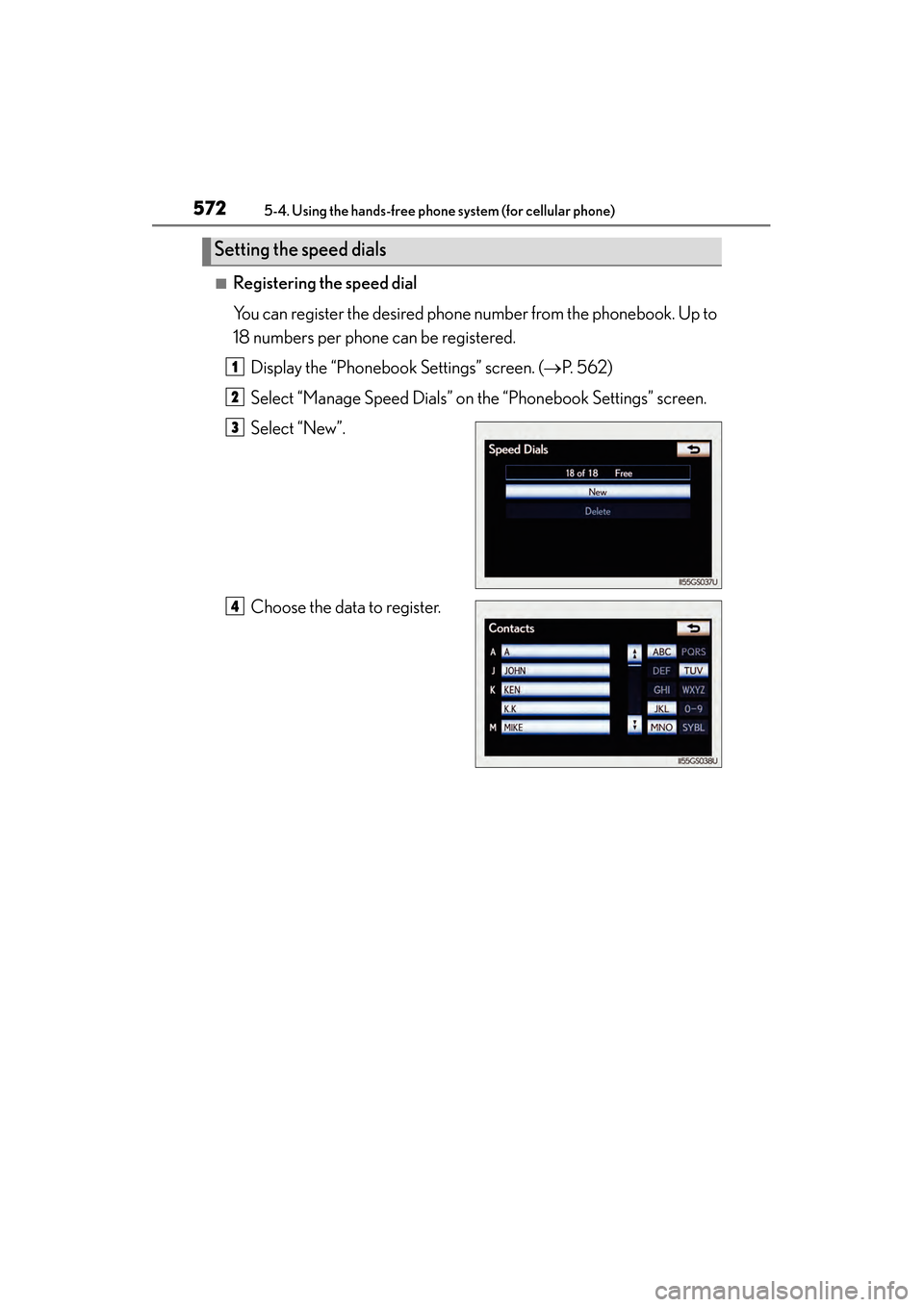

572
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)
■Registering the speed dial
You can register the desired phone number from the phonebook. Up to
18 numbers per phone can be registered.Display the “Phonebook Settings” screen. ( →P. 562)
Select “Manage Speed Dials” on the “Phonebook Settings” screen.
Select “New”.
Choose the data to register.
Setting the speed dials
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 572 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5735-4. Using the hands-free phone system (for cellular phone)
5
Interior features

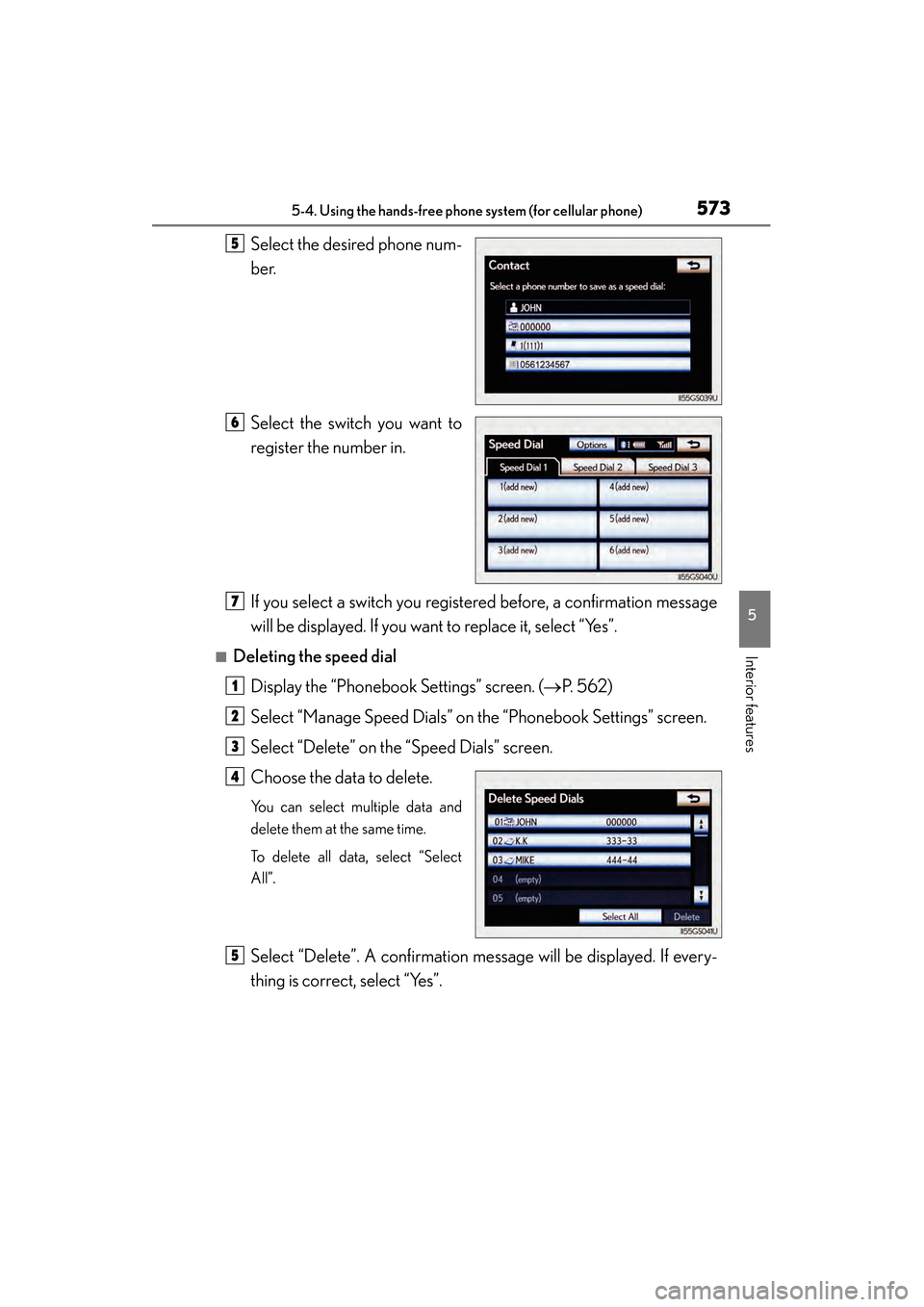

Select the desired phone num-
ber.
Select the switch you want to
register the number in.
If you select a switch you registered before, a confirmation message
will be displayed. If you want to replace it, select “Yes”.
■Deleting the speed dialDisplay the “Phonebook Settings” screen. ( →P. 562)
Select “Manage Speed Dials” on the “Phonebook Settings” screen.
Select “Delete” on the “Speed Dials” screen.
Choose the data to delete.
You can select multiple data and
delete them at the same time.
To delete all data, select “Select
All”.
Select “Delete”. A confirmation message will be displayed. If every-
thing is correct, select “Yes”.
5
6
7
1
2
3
4
5
GS450h_OM_OM30D52U_(U).book Page 573 Monday, July 29, 2013 12:07 PM

574
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

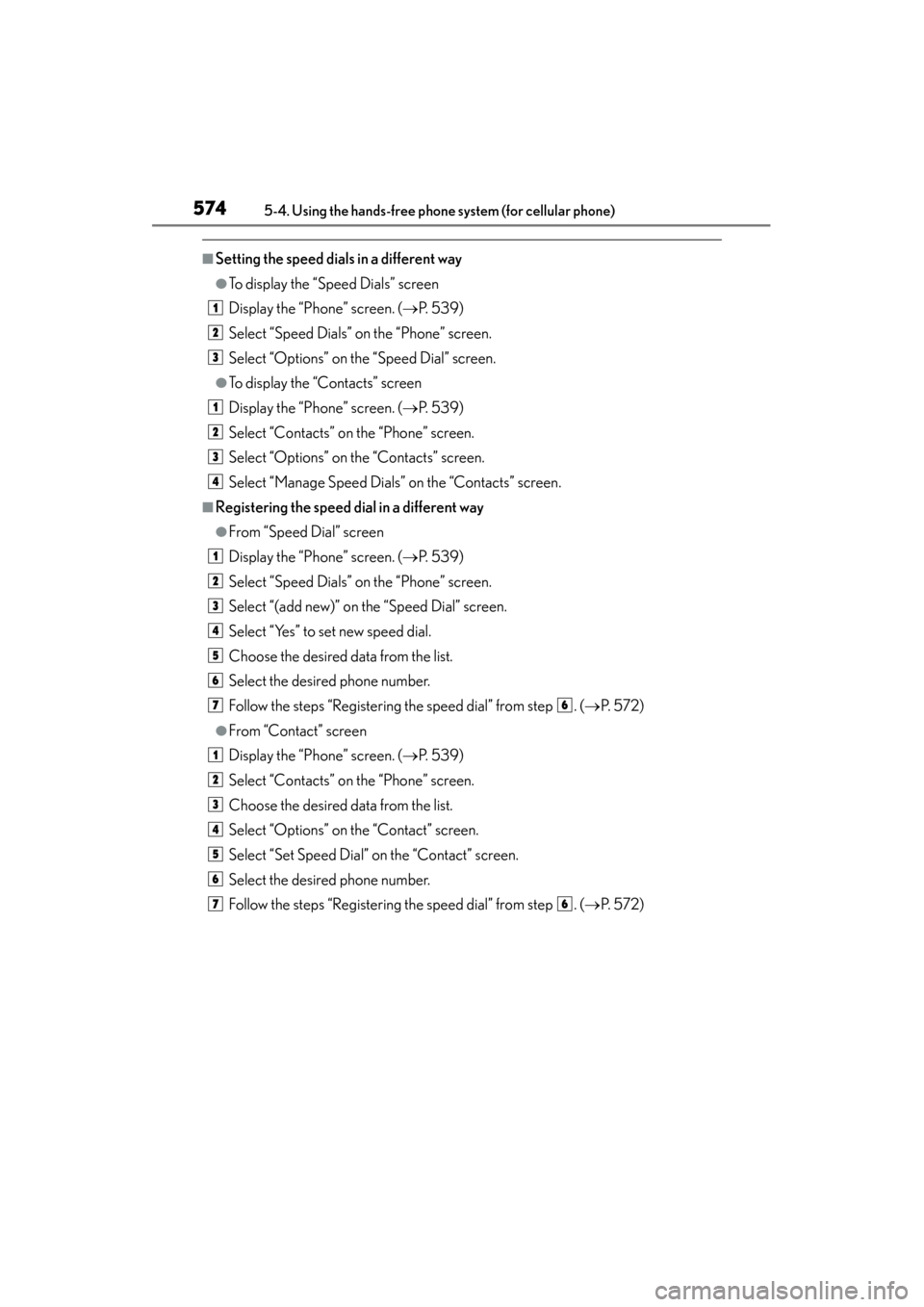

■Setting the speed dials in a different way
●To display the “Speed Dials” screen
Display the “Phone” screen. (→P. 5 3 9 )
Select “Speed Dials” on the “Phone” screen.
Select “Options” on the “Speed Dial” screen.
●To display the “Contacts” screen
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Select “Options” on the “Contacts” screen.
Select “Manage Speed Dials” on the “Contacts” screen.
■Registering the speed dial in a different way
●From “Speed Dial” screen
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Speed Dials” on the “Phone” screen.
Select “(add new)” on the “Speed Dial” screen.
Select “Yes” to set new speed dial.
Choose the desired data from the list.
Select the desired phone number.
Follow the steps “Registering the speed dial” from step . ( →P. 5 7 2 )
●From “Contact” screen
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Choose the desired data from the list.
Select “Options” on the “Contact” screen.
Select “Set Speed Dial” on the “Contact” screen.
Select the desired phone number.
Follow the steps “Registering the speed dial” from step . ( →P. 5 7 2 )
1
2
3
1
2
3
4
1
2
3
4
5
6
76
1
2
3
4
5
6
76
GS450h_OM_OM30D52U_(U).book Page 574 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5755-4. Using the hands-free phone system (for cellular phone)
5
Interior features

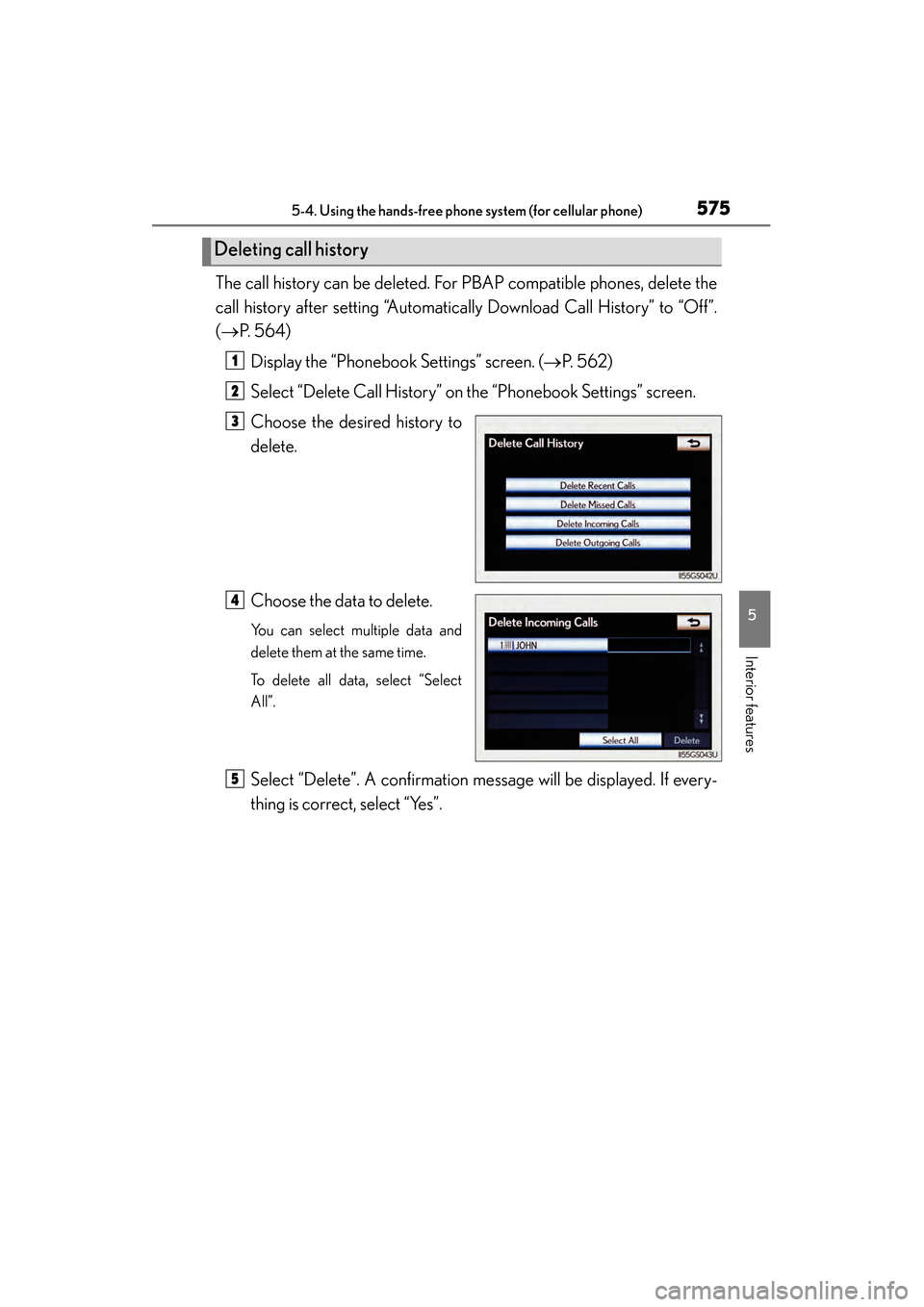

The call history can be deleted. For PBAP compatible phones, delete the
call history after setting “Automatically Download Call History” to “Off”.
(→ P. 564)
Display the “Phonebook Settings” screen. ( →P. 562)
Select “Delete Call History” on the “Phonebook Settings” screen.
Choose the desired history to
delete.
Choose the data to delete.
You can select multiple data and
delete them at the same time.
To delete all data, select “Select
All”.
Select “Delete”. A confirmation message will be displayed. If every-
thing is correct, select “Yes”.
Deleting call history
1
2
3
4
5
GS450h_OM_OM30D52U_(U).book Page 575 Monday, July 29, 2013 12:07 PM

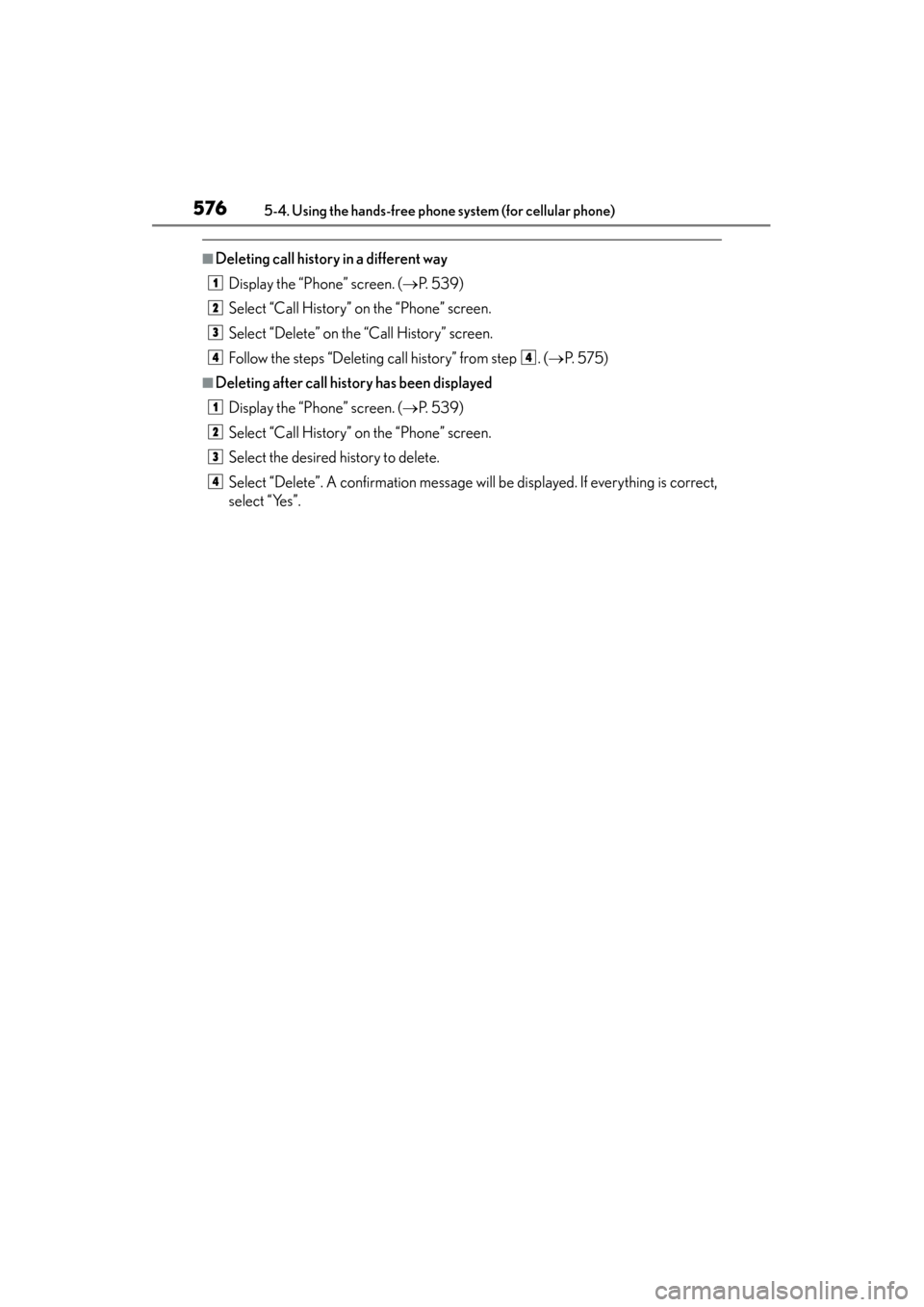

576
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)
■Deleting call history in a different wayDisplay the “Phone” screen. ( →P. 5 3 9 )
Select “Call History” on the “Phone” screen.
Select “Delete” on the “Call History” screen.
Follow the steps “Deleting call history” from step . ( →P. 5 7 5 )
■Deleting after call history has been displayed
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Call History” on the “Phone” screen.
Select the desired history to delete.
Select “Delete”. A confirmation message will be displayed. If everything is correct,
select “Yes”.
1
2
3
44
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 576 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5775-4. Using the hands-free phone system (for cellular phone)
5
Interior features

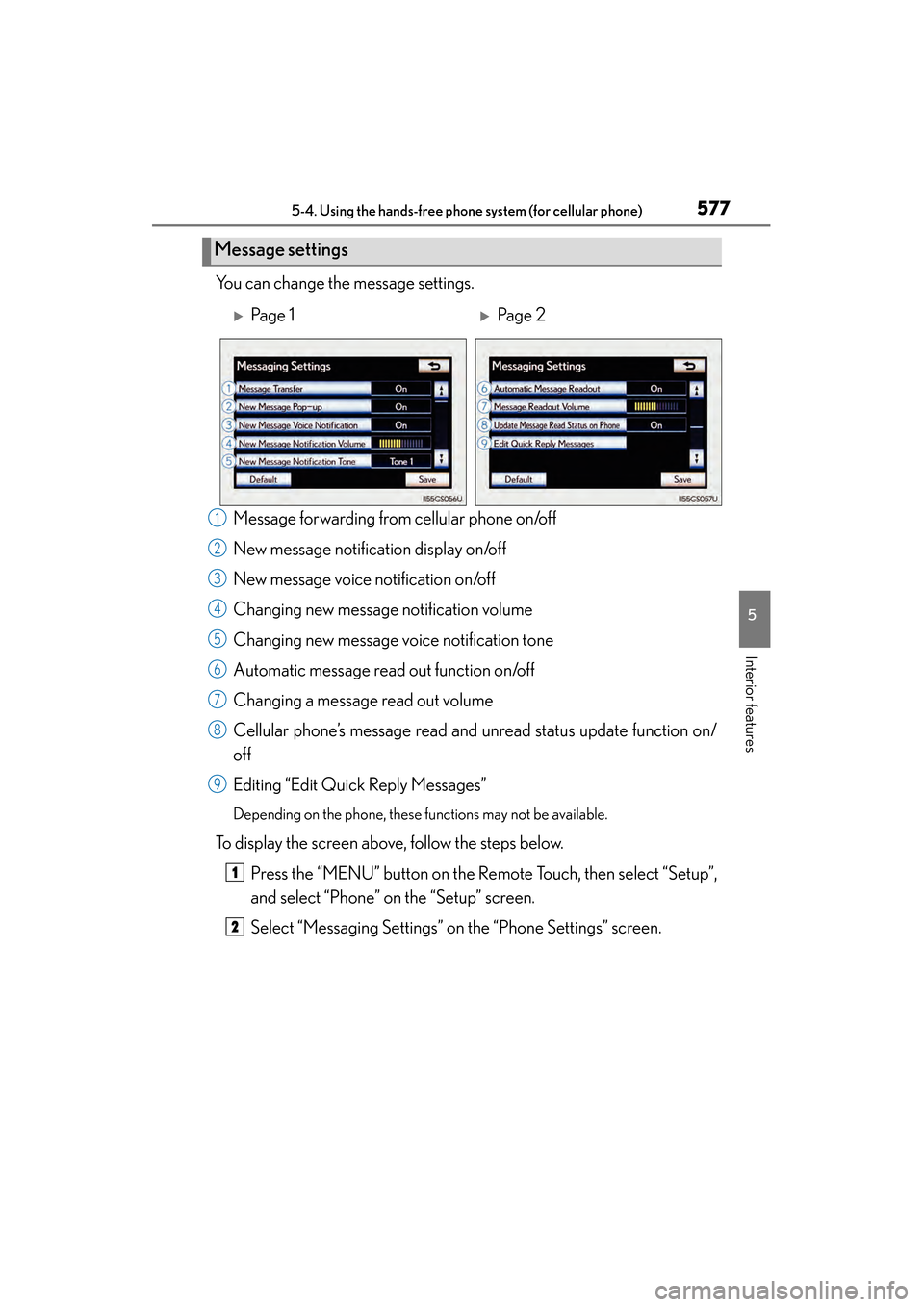

You can change the message settings.Message forwarding from cellular phone on/off
New message notification display on/off
New message voice notification on/off
Changing new message notification volume
Changing new message voice notification tone
Automatic message read out function on/off
Changing a message read out volume
Cellular phone’s message read and unread status update function on/
off
Editing “Edit Quick Reply Messages”
Depending on the phone, these functions may not be available.
To display the screen above, follow the steps below. Press the “MENU” button on the Remote Touch, then select “Setup”,
and select “Phone” on the “Setup” screen.
Select “Messaging Settings” on the “Phone Settings” screen.
Message settings
XPa g e 1XPa g e 2
1
2
3
4
5
6
7
8
9
1
2
GS450h_OM_OM30D52U_(U).book Page 577 Monday, July 29, 2013 12:07 PM

578
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

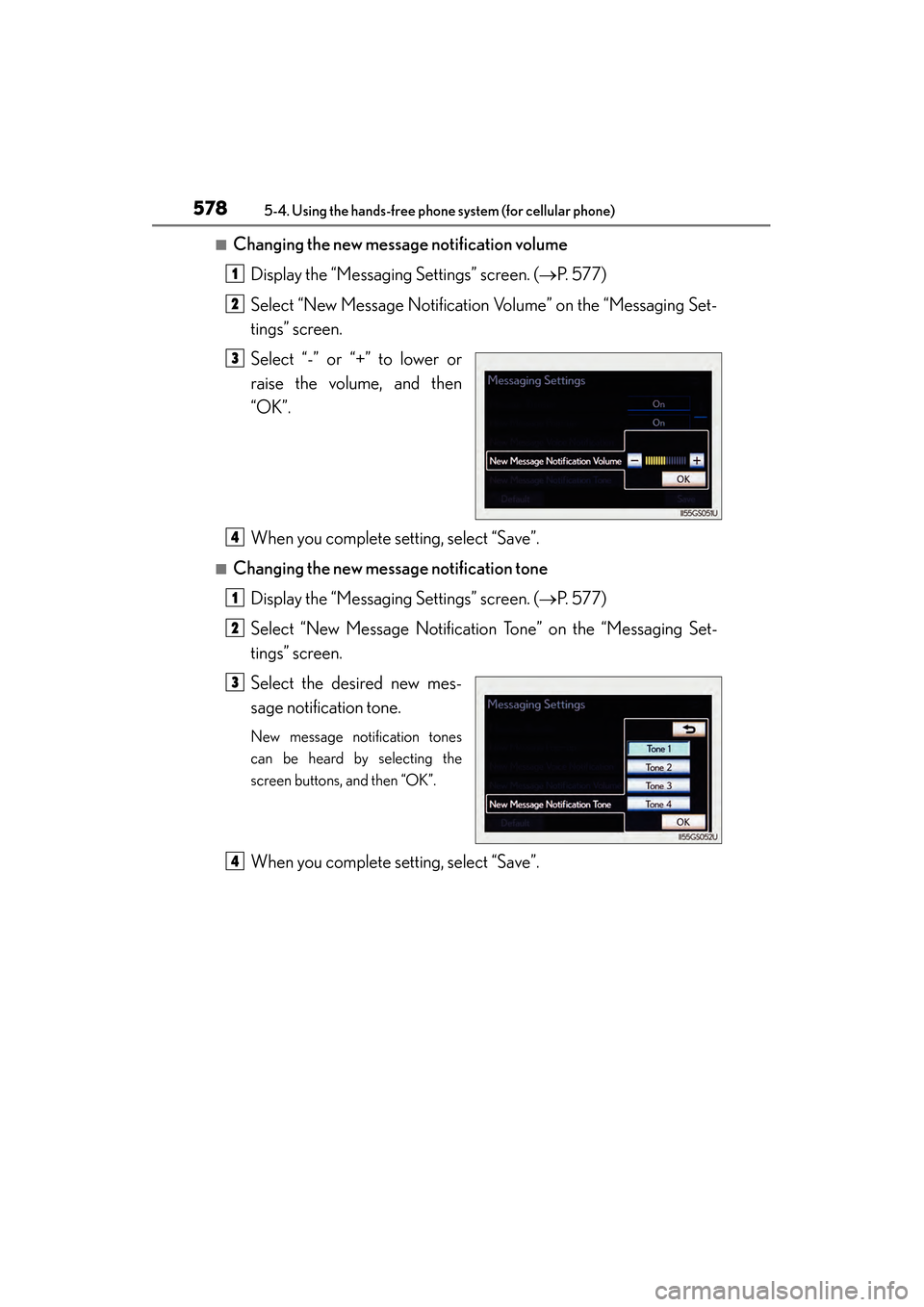

■Changing the new message notification volumeDisplay the “Messaging Settings” screen. ( →P. 577)
Select “New Message Notification Volume” on the “Messaging Set-
tings” screen.
Select “-” or “+” to lower or
raise the volume, and then
“OK”.
When you complete setting, select “Save”.
■Changing the new message notification tone Display the “Messaging Settings” screen. ( →P. 577)
Select “New Message Notification Tone” on the “Messaging Set-
tings” screen.
Select the desired new mes-
sage notification tone.
New message notification tones
can be heard by selecting the
screen buttons, and then “OK”.
When you complete setting, select “Save”.
1
2
3
4
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 578 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5795-4. Using the hands-free phone system (for cellular phone)
5
Interior features

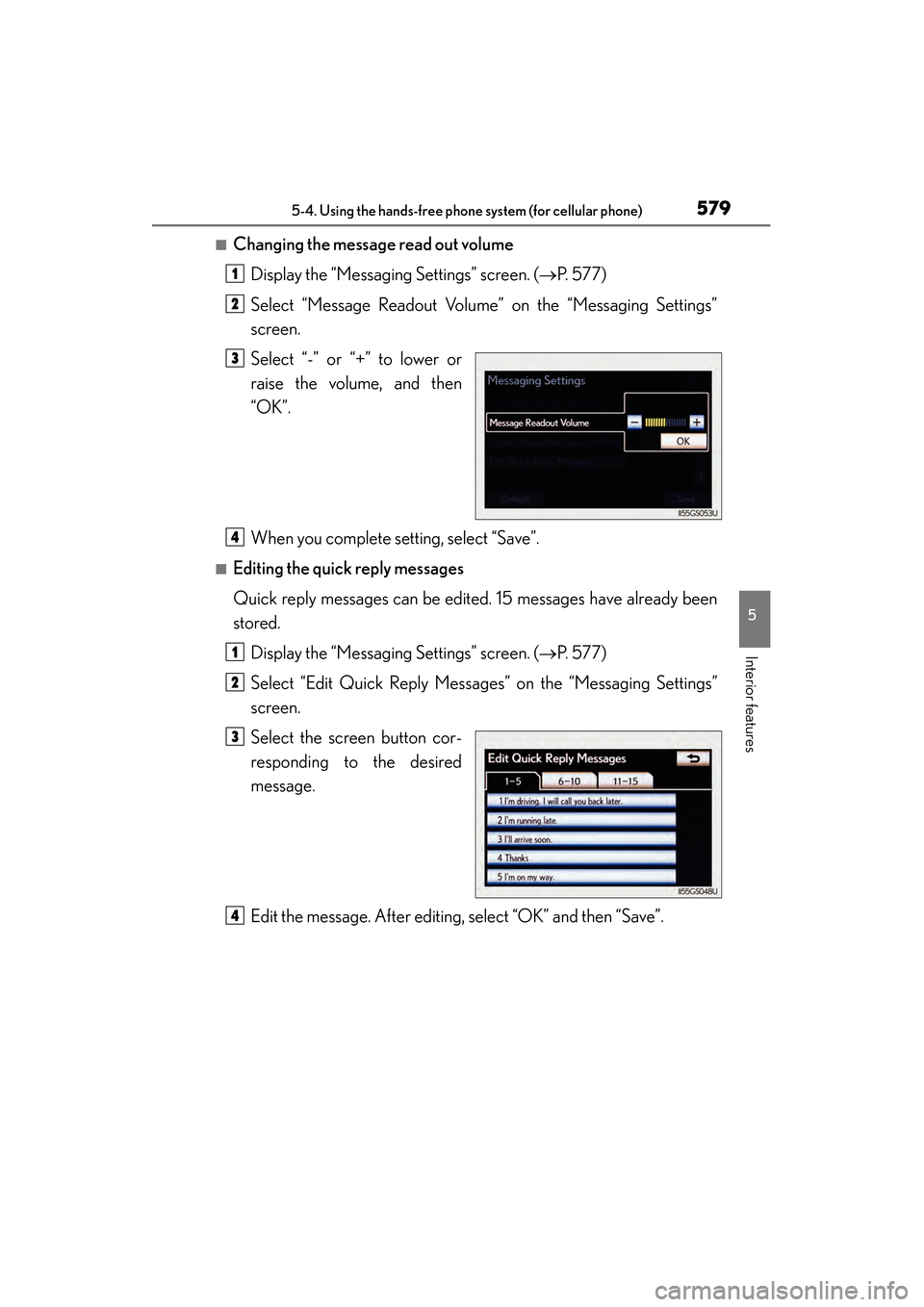

■Changing the message read out volumeDisplay the “Messaging Settings” screen. ( →P. 577)
Select “Message Readout Volume” on the “Messaging Settings”
screen.
Select “-” or “+” to lower or
raise the volume, and then
“OK”.
When you complete setting, select “Save”.
■Editing the quick reply messages
Quick reply messages can be edited. 15 messages have already been
stored. Display the “Messaging Settings” screen. ( →P. 577)
Select “Edit Quick Reply Messages” on the “Messaging Settings”
screen.
Select the screen button cor-
responding to the desired
message.
Edit the message. After editing, select “OK” and then “Save”.
1
2
3
4
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 579 Monday, July 29, 2013 12:07 PM
