Lexus GX460 2010 Navigation Manual

AUDIO/VIDEO SYSTEM
270
1Turning on DVD changer mode
2Selecting a disc
DSelecting a disc
Push“”or “”of “DISC·CH” until the
desired disc number appears on the
screen.
DAudio CD, CD text 270
............
DMP3/WMA disc 271
..............
DDVD video/audio 271
.............
DVideo CD 281
....................
DSelecting a track
Push “”or “”of “TUNE” until the de-
sired track number appears on the screen.
DFast forwarding or reversing a track
Push and hold “
”or “”of “TUNE” .
GX460 Navi (U)
OM60E73U
Finish
09.09.24
— Using the DVD changer — Playing an audio CD/CD
text

AUDIO/VIDEO SYSTEM
271
D

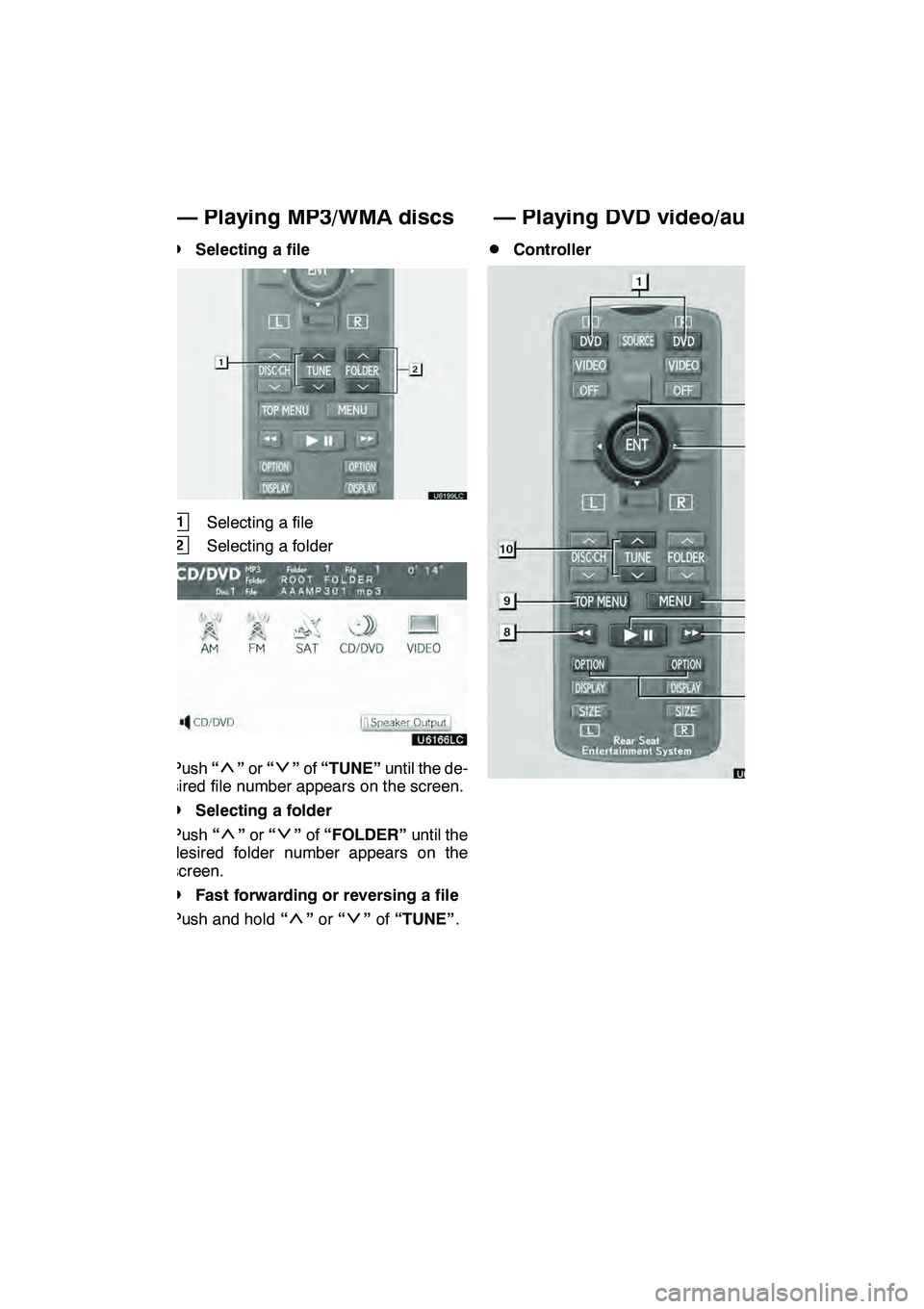

Selecting a file
1Selecting a file
2Selecting a folder
Push
“”or “”of “TUNE” until the de-
sired file number appears on the screen.
DSelecting a folder
Push “
”or “”of “FOLDER” until the
desired folder number appears on the
screen.
DFast forwarding or reversing a file
Push and hold “
”or “”of “TUNE” .
DController
GX460 Navi (U)
OM60E73U
Finish
09.09.24
— Playing MP3/WM
Adiscs
7
— Playing DVD video/audio

AUDIO/VIDEO SYSTEM
272
1Turning on the DVD mode
2Inputting the selected icon
3Selecting an icon
4Turning on the menu screen
5Playing/pausing a disc
6Fast forwarding a disc
7Turning on the control icon screen
8Reversing a disc
9Turning on the title selection screen
10Push to select a chapter/trackPush and hold to fast forwarding or
reversing a chapter/track
DDVD video and DVD audio
Push “OPTION” if no icons are shown
while watching a DVD video or DVD audio,
and following screens appear.
" DVD video
"DVD audio
“Settings”: Selecting this will display set-
ting screen.
“Hide Buttons”: Selecting this will turn off
the icons from the screen.
If “
” appears on the screen when you se-
lect a control, the operation relevant to the
control is not permitted.
GX460 Navi (U)
OM60E73U
Finish
09.09.30

AUDIO/VIDEO SYSTEM
273
DESCRIPTION OF DVD VIDEO CON-
TROLS
“Menu” and “Top Menu”:If you select
any of the above controls, the menu
screen for DVD video appears. (For the
operation, see the manual that come with
the DVD video disc provided separately.)
: Selecting this will fast reverse
during playback.
: Selecting this will stop the video
screen.
:Selecting this will pause/resume
the video screen.
: Selecting this will fast forward
during playback and forward
frame by frame during pause. DESCRIPTION OF DVD AUDIO CON-
TROLS
“Top Menu”:
If you select this button, the
menu screen for DVD audio appears. (For
the operation, see the manual that come
with the DVD audio disc provided sepa-
rately.)
“Audio”: The audio changing screen ap-
pears. (See page 278.)
: Selecting this will fast reverse
during playback.
: Selecting this will stop the disc.
:Selecting this will pause/resume
the disc.
: Selecting this will fast forward
during playback and forward
frame by frame during pause.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
7

AUDIO/VIDEO SYSTEM
274
DVD SETTINGS
When“Settings” is selected on the con-
trol icon screens, the following screens will
appear according to audio mode.
" DVD video
"DVD audio DESCRIPTION OF DVD VIDEO SET-
TINGS
“Setup”:
The initial set up screen ap-
pears. (See page 279.)
“Search”: The title search screen ap-
pears. (See page 275.)
“Return”: Selecting this will display the
predetermined scene and start playing
from there.
“Audio”: The audio changing screen ap-
pears. (See page 278.)
“Subtitle”: The subtitle changing screen
appears. (See page 277.)
“Angle”: The angle selection screen ap-
pears. (See page 279.)
When you select
, the previous
screen returns.
GX460 Navi (U)
OM60E73U
Finish
09.09.24

AUDIO/VIDEO SYSTEM
275
DESCRIPTION OF DVD AUDIO SET-
TINGS
“Setup”:The initial set up screen ap-
pears. (See page 279.)
“Select Number”: The track or number
search screen appears. (See page 277.)
“Search”: The group search screen ap-
pears. (See page 276.)
“Return”: Selecting this will display the
predetermined scene and start playing
from there.
“Prev. Page”: Select this button to re-
verse the pages.
“Next Page”: Select this button to forward
the pages.
“Subtitle”: The subtitle changing screen
appears. (See page 277.)
“Angle”: The angle selection screen ap-
pears. (See page 279.)
When you select
, the previous
screen returns. SEARCHING BY TITLE
DVD video only—
Select “Search” on the settings screen.
Enter the title number and select “OK”.
The player starts playing video for that
title number.
When you push
“
”or “”of “TUNE” ,
you can select a chapter.
If you enter the wrong numbers, select
to delete the numbers.
When you select
, the previous
screen returns.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
7

AUDIO/VIDEO SYSTEM
276
SEARCHING BY GROUP
DVD audio only —
Select “Search” on the settings screen.
Enter the group number and select
“OK”. The player starts playing the
disc for that group number.
When you push“
”or “”of “TUNE” ,
you can select a track.
If you enter the wrong numbers, select
to delete the numbers.
When you select
, the previous
screen returns. SELECTING THE BONUS GROUP
DVD audio only —
Select “Search” on the settings screen.
Enter the bonus group number on the
searching group screen and select
“OK”.
The “Enter Key Code” screen will appear.
To enter the number of the group you want
to play, select the group number.
If you enter the wrong numbers, select
to delete the numbers.
When you select
, the previous
screen returns.
Select “OK” on the screen.
The player starts playing the disc from the
selected bonus group number.
GX460 Navi (U)
OM60E73U
Finish
09.09.24

AUDIO/VIDEO SYSTEM
277
SELECTING THE MENU NUMBER
DVD audio only —
Select “Select Number” on the settings
screen.
Enter the menu number and select
“OK”.
If you enter the wrong numbers, select
to delete the numbers.
When you select
, the previous
screen returns. CHANGING THE SUBTITLE
LANGUAGE
Select “Subtitle” on the settings
screen.
Each time you select “Subtitle”, the lan-
guage is selected from the ones stored
in the discs and changed.
When you select
“Hide”, the subtitle can
be hidden.
When you select
, the previous
screen returns.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
7

AUDIO/VIDEO SYSTEM
278
CHANGING THE AUDIO LANGUAGE
DVD video only —
Select “Audio” on the settings screen.
Each time you select “Audio”, the lan-
guage is selected from the ones stored
in the discs and changed.
When you select
, the previous
screen returns. CHANGING THE AUDIO FORMAT
DVD audio only —
Select “Audio” on the control icon
screen.
Each time you select “Audio”, another
audio format stored on the disc is se-
lected.
When you select
, the previous
screen returns.
GX460 Navi (U)
OM60E73U
Finish
09.09.24

AUDIO/VIDEO SYSTEM
279
CHANGING THE ANGLE
Select “Angle” on the settings screen.
The angle can be selected for discs that
are multi−angle compatible when the
angle mark appears on the screen.
Each time you select “Angle”, the angle
is selected from the ones stored in the
discs and changed.
When you select
, and the previous
screen returns. SETUP MENU
Select “Setup” on the settings screen.
There are initial setting buttons on the
“Setup Menu” screen.
After you change the initial setting, select
“OK”
. The initial setting screen will be
turned off and return to the picture
previously.
When “Default” is selected, all menus are
initialized.
The initial setting can be changed.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
7
