Lexus GX460 2010 Owner's Manual

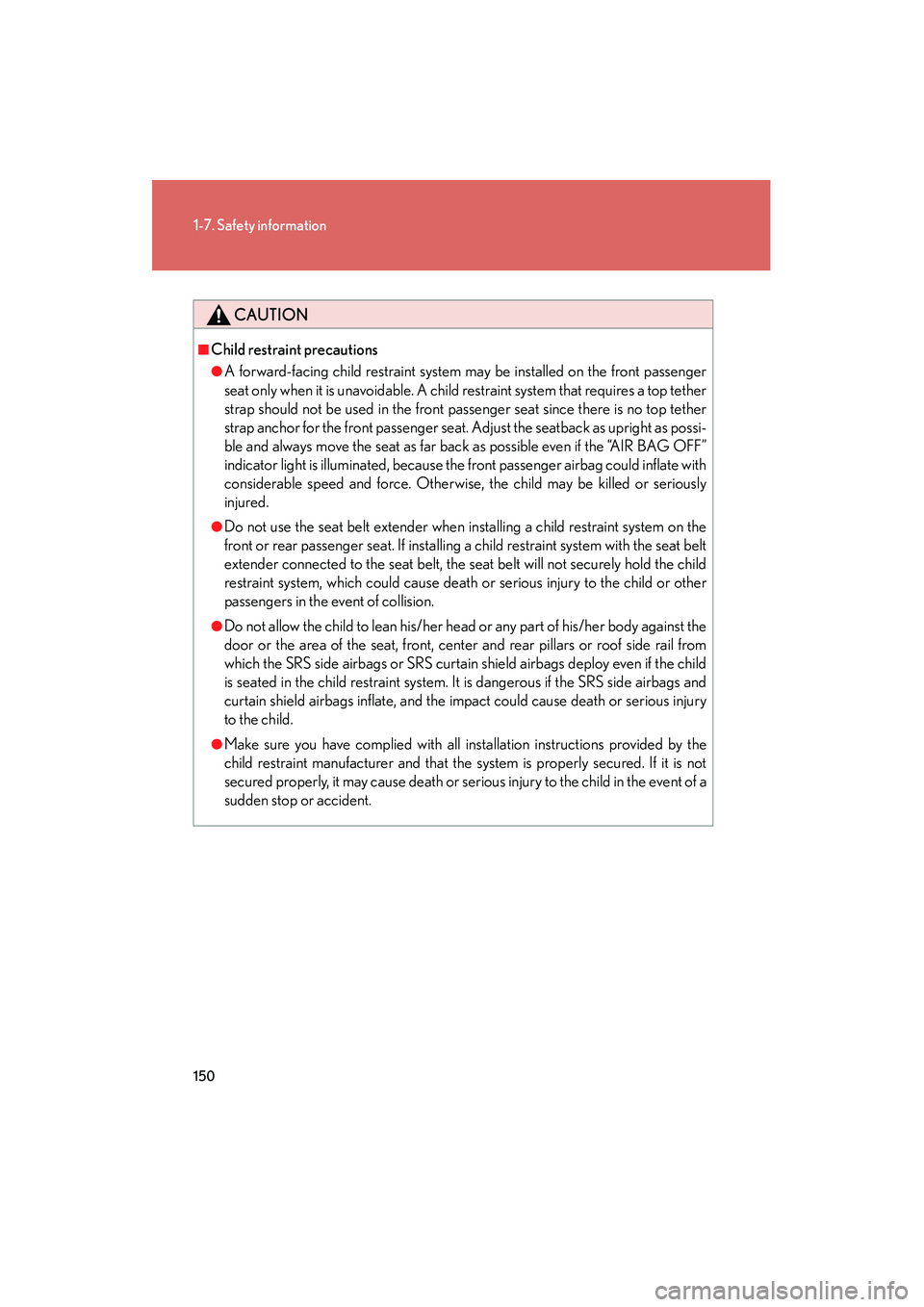

150
1-7. Safety information
GX460_CANADA (OM60F29U)
CAUTION
■Child restraint precautions
●A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top tether
strap should not be used in the front passenger seat since there is no top tether
strap anchor for the front passenger seat. Adjust the seatback as upright as possi-
ble and always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seriously
injured.
●Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of collision.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, center and rear pillars or roof side rail from
which the SRS side airbags or SRS curtain shield airbags deploy even if the child
is seated in the child restraint system. It is dangerous if the SRS side airbags and
curtain shield airbags inflate, and the impact could cause death or serious injury
to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.
GX460_CANADA.book Page 150 Thursday, February 4, 2010 11:54 AM

151
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
CAUTION
■Child restraint lock function belt precaution
Do not allow children to play with the child restraint lock function belt. If the belt
becomes twisted around a child’s neck, it will not be possible to pull the belt out
leading to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment. This will prevent it from injuring
passengers in the event of a sudden stop or accident.
GX460_CANADA.book Page 151 Thursday, February 4, 2010 11:54 AM

152
1-7. Safety information
GX460_CANADA (OM60F29U)
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchors and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the right side second seat
and between the center and left
side second seats. (Buttons dis-
playing the location of the
anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 8 8 )
GX460_CANADA.book Page 152 Thursday, February 4, 2010 11:54 AM

153
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
Installation with LATCH systemFold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). (→P. 6 8 )
Anchor bracket (for top tether
strap)
Anchor brackets are provided
for each second seats.
STEP1
GX460_CANADA.book Page 153 Thursday, February 4, 2010 11:54 AM

154
1-7. Safety information
GX460_CANADA (OM60F29U)Ty p e A
Flip the cover (vehicles with third
seats), and latch the hooks of lower
straps onto the LATCH anchors. If
the child restraint has a top tether
strap, the top tether strap should
be latched onto the top tether
strap anchor. (→P. 1 6 1 )
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower anchorage system.
Ty p e B Flip the cover (vehicles with third
seats), and latch the buckles onto
the LATCH anchors. If the child
restraint has a top tether strap, the
top tether strap should be latched
onto the top tether strap anchor.
(→P. 161)
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower anchorage system.
Canada only
STEP2
Canada only
STEP2
GX460_CANADA.book Page 154 Thursday, February 4, 2010 11:54 AM

155
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
Installing child restraints using a seat belt (child restraint lock function
belt)
■ Rear facing  Infant seat/convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). (→P. 6 8 )
Place the child restraint system on
the rear seat facing the rear of the
vehicle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
STEP1
STEP2
STEP3
GX460_CANADA.book Page 155 Thursday, February 4, 2010 11:54 AM

156
1-7. Safety information
GX460_CANADA (OM60F29U)Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
STEP4
STEP5
GX460_CANADA.book Page 156 Thursday, February 4, 2010 11:54 AM

157
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)■
Forward facing  Convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). (→P. 6 8 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
STEP1
STEP2
STEP3
GX460_CANADA.book Page 157 Thursday, February 4, 2010 11:54 AM

158
1-7. Safety information
GX460_CANADA (OM60F29U)Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (
→P. 161)
STEP4
STEP5
STEP6
GX460_CANADA.book Page 158 Thursday, February 4, 2010 11:54 AM

159
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)■
Booster seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). (→P. 6 8 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.
STEP1
STEP2
