3-1. Using the air conditioning system and defogger
GX460_CANADA (OM60F29U)Vehicles with a rear automatic air conditioning system
To turn on the air conditioning system and adjust the fan speed,
press “∧” on to increase the fan speed and “ ∨” to
decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, press “ ∧” on the temperature
control button on the driver’s side to increase the temperature
and “ ∨” to decrease the temperature.
The air conditioning system switch es between individual and simulta-
neous modes each time the “3ZONE” button is pressed.
When the “3ZONE” button is pressed (the indicator on the “3ZONE”
button is on), the front passenger’s side temperature control button is
pressed or the “REAR/TEMP” button is pressed, the temperature for
the driver’s, front passenger’s and rear seats ( →P. 4 0 0 ) c a n b e
adjusted separately.
To change the air outlets, press “ <” or “ >” on .
The air outlets used are switched each time either side of the button is
pressed. The air flow shown on the display indicates the following:
STEP1
STEP2
STEP3
GX460_CANADA.book Page 390 Thursday, February 4, 2010 11:54 AM

391
3-1. Using the air conditioning system and defogger
3
Interior features

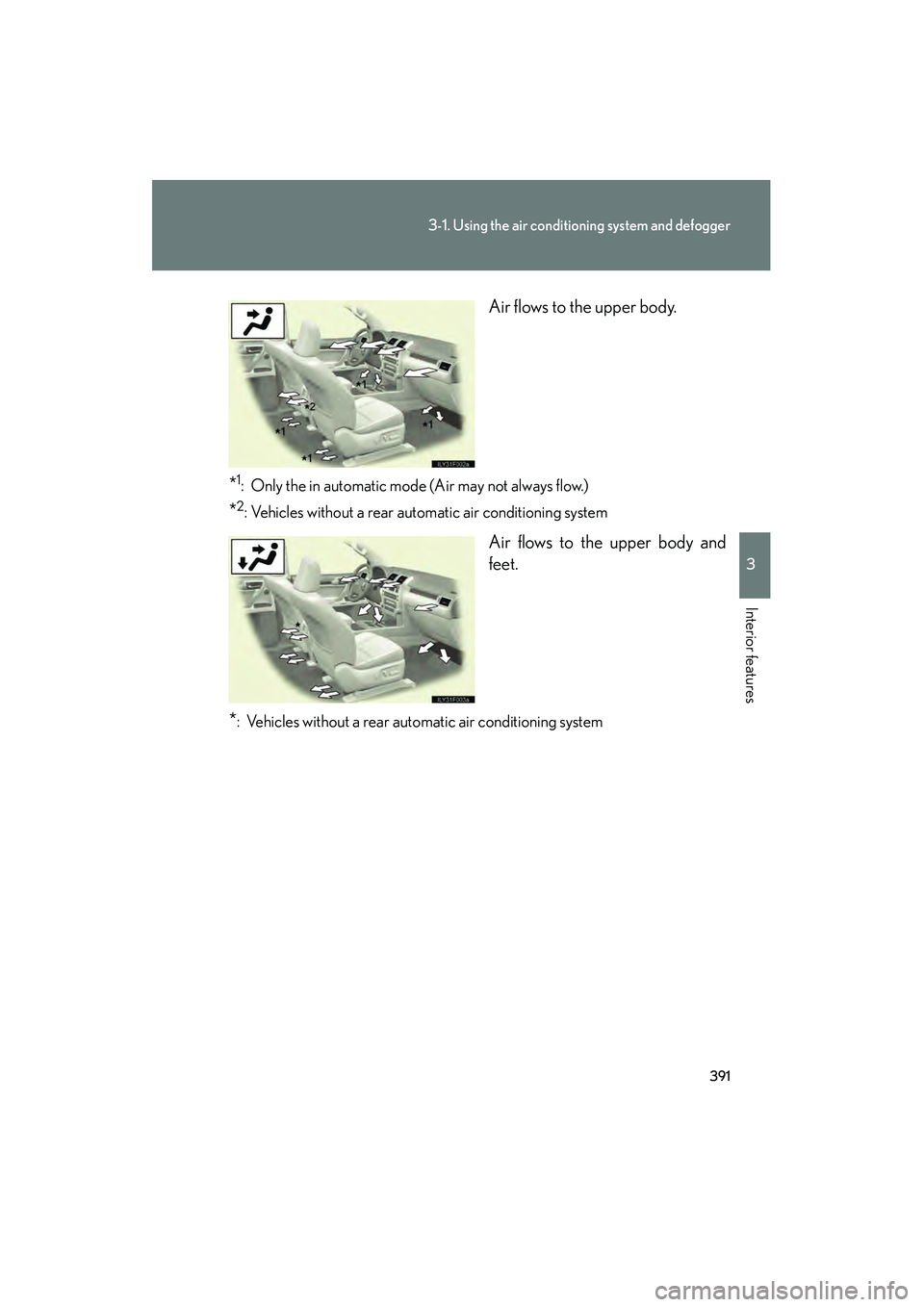

GX460_CANADA (OM60F29U) Air flows to the upper body.
*1: Only the in automatic mode (Air may not always flow.)
*2: Vehicles without a rear automatic air conditioning system
Air flows to the upper body and
feet.
*: Vehicles without a rear automatic air conditioning system
GX460_CANADA.book Page 391 Thursday, February 4, 2010 11:54 AM

392
3-1. Using the air conditioning system and defogger

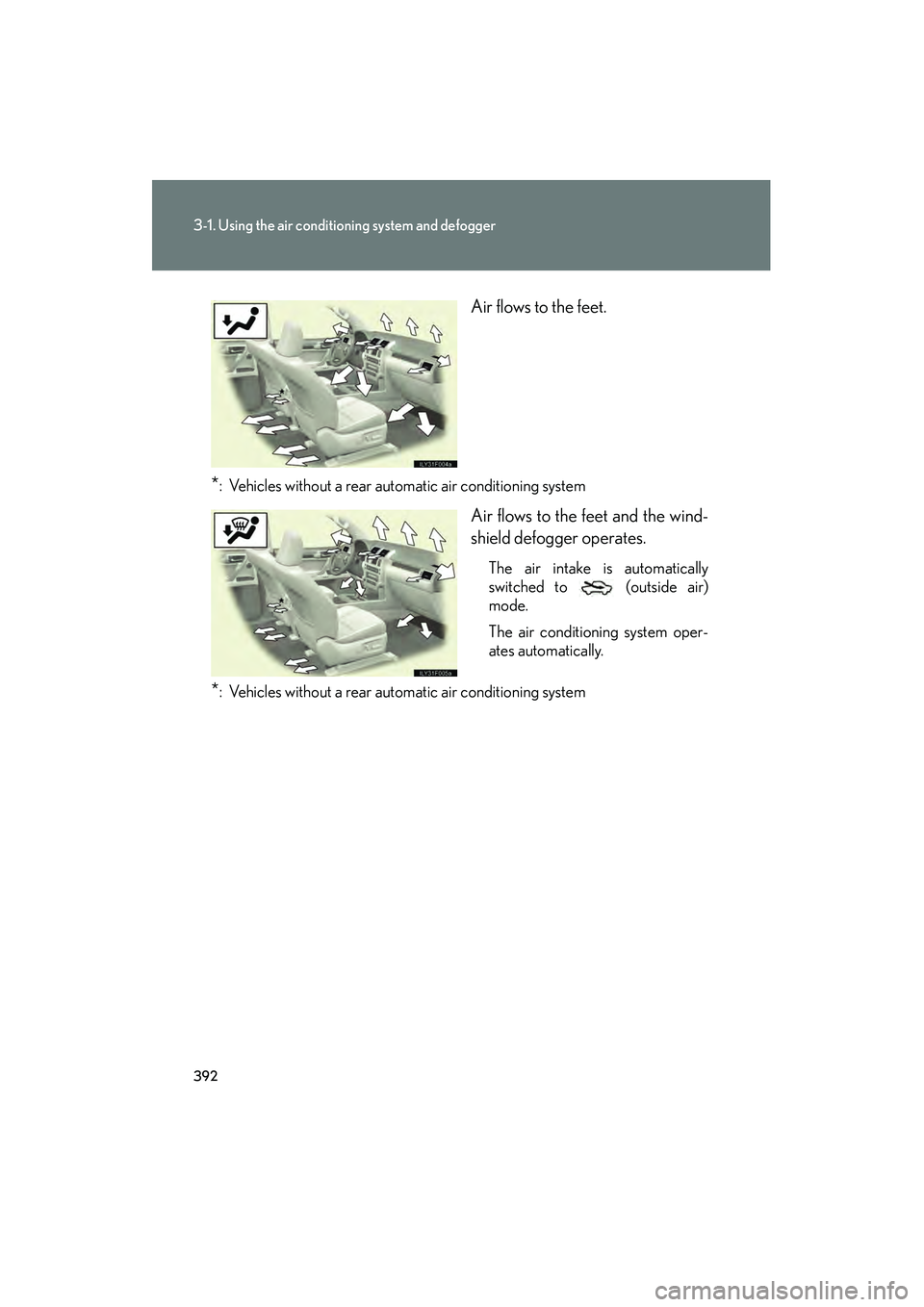

GX460_CANADA (OM60F29U)Air flows to the feet.
*: Vehicles without a rear automatic air conditioning system
Air flows to the feet and the wind-
shield defogger operates.
The air intake is automatically
switched to (outside air)
mode.
The air conditioni
ng system oper-
ates automatically.
*: Vehicles without a rear automatic air conditioning system
GX460_CANADA.book Page 392 Thursday, February 4, 2010 11:54 AM

393
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)■

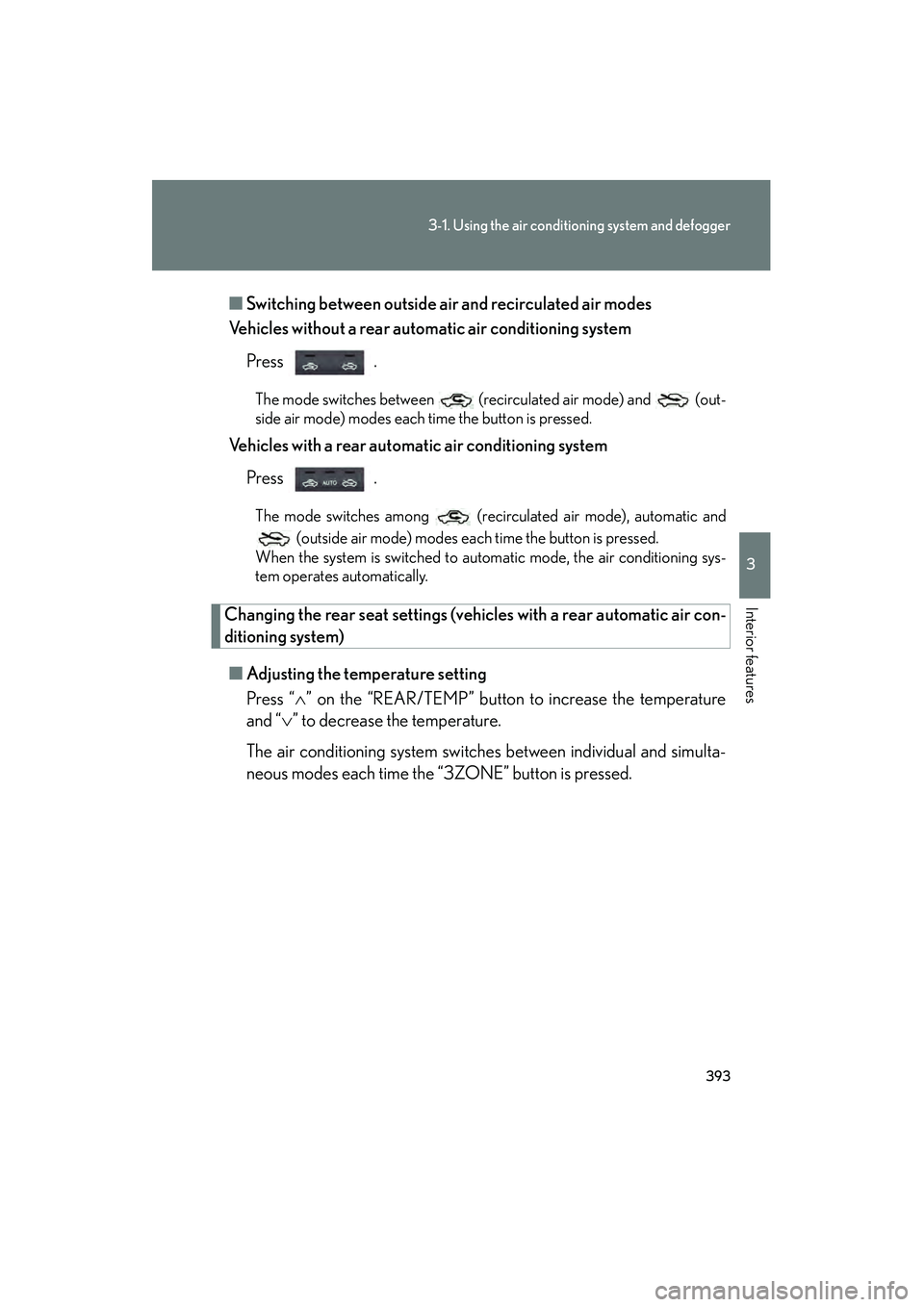

Switching between outside air and recirculated air modes
Vehicles without a rear autom atic air conditioning system
Press .
The mode switches between (recirculated air mode) and (out-
side air mode) modes each time the button is pressed.
Vehicles with a rear automat ic air conditioning system
Press .
The mode switches among (recirculated air mode), automatic and (outside air mode) modes each time the button is pressed.
When the system is switched to automatic mode, the air conditioning sys-
tem operates automatically.
Changing the rear seat settings (veh icles with a rear automatic air con-
ditioning system)
■ Adjusting the temperature setting
Press “ ∧” on the “REAR/TEMP” button to increase the temperature
and “ ∨” to decrease the temperature.
The air conditioning system switches between individual and simulta-
neous modes each time the “3ZONE” button is pressed.
GX460_CANADA.book Page 393 Thursday, February 4, 2010 11:54 AM

394
3-1. Using the air conditioning system and defogger
GX460_CANADA (OM60F29U)

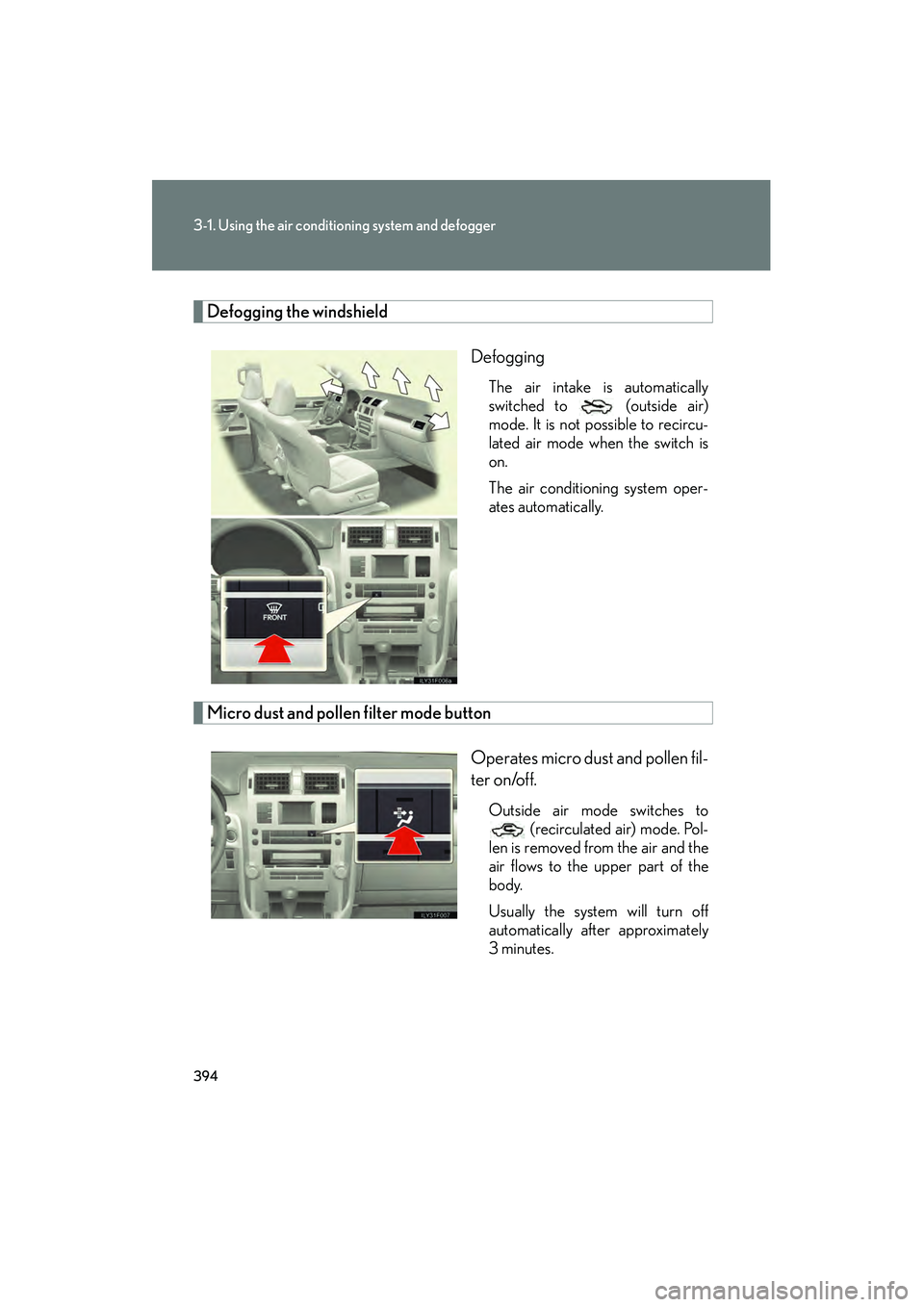

Defogging the windshieldDefogging
The air intake is automatically
switched to (outside air)
mode. It is not possible to recircu-
lated air mode when the switch is
on.
The air conditioning system oper-
ates automatically.
Micro dust and pollen filter mode button
Operates micro dust and pollen fil-
ter on/off.
Outside air mode switches to (recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately
3 minutes.
GX460_CANADA.book Page 394 Thursday, February 4, 2010 11:54 AM

395
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)
Adjusting the sensitivity of the air intake control in automatic mode
(vehicles with a rear automat ic air conditioning system)
Press for 2 or more
seconds.
Press “∧” (increase) or “ ∨”
(decrease) on the temperature
control button on the driver’s side.
From - 3 (low) to 3 (high) can be
set.
STEP1
STEP2
GX460_CANADA.book Page 395 Thursday, February 4, 2010 11:54 AM

396
3-1. Using the air conditioning system and defogger
GX460_CANADA (OM60F29U)

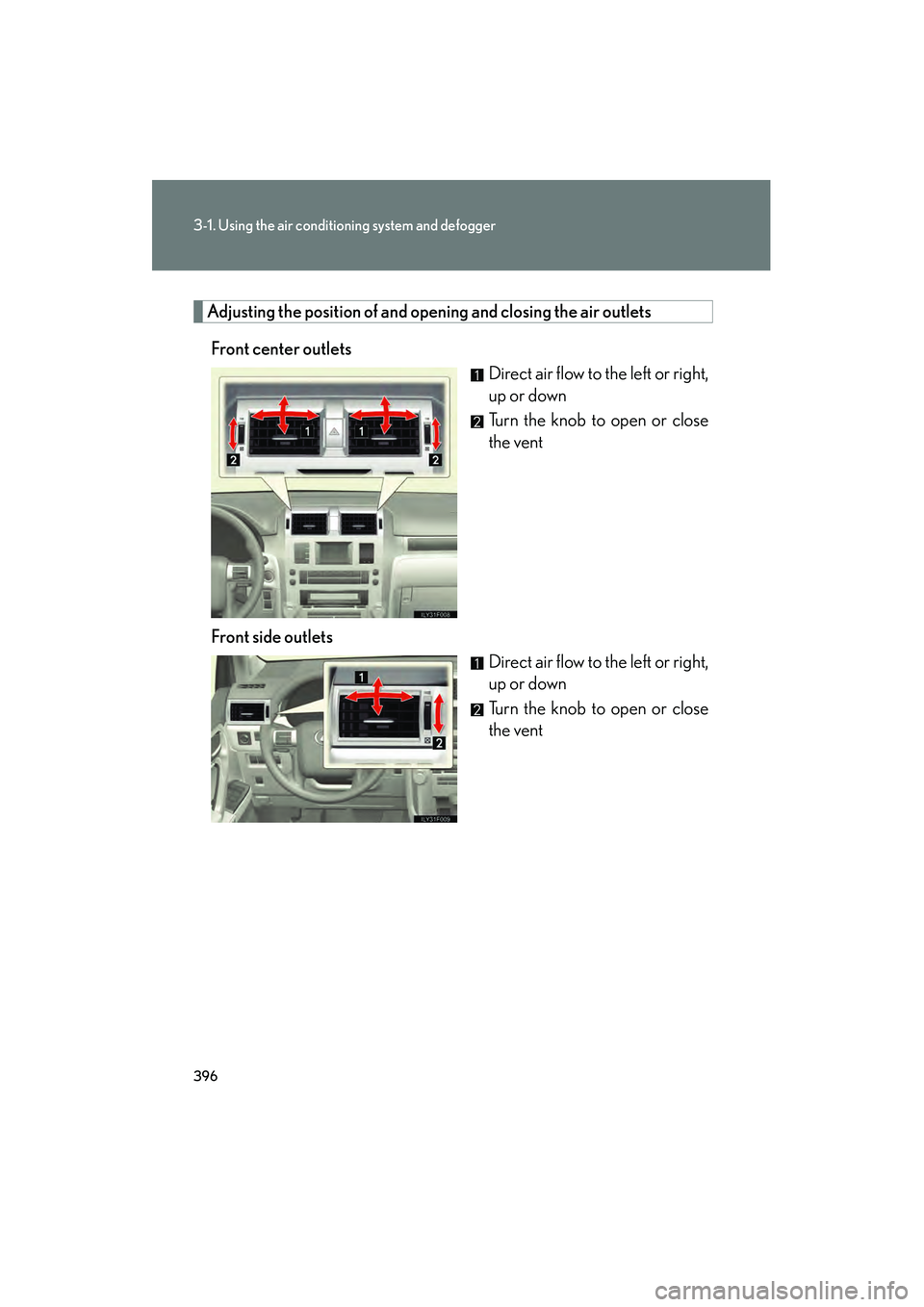

Adjusting the position of and opening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
Front side outlets Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
GX460_CANADA.book Page 396 Thursday, February 4, 2010 11:54 AM

397
3-1. Using the air conditioning system and defogger
3
Interior features

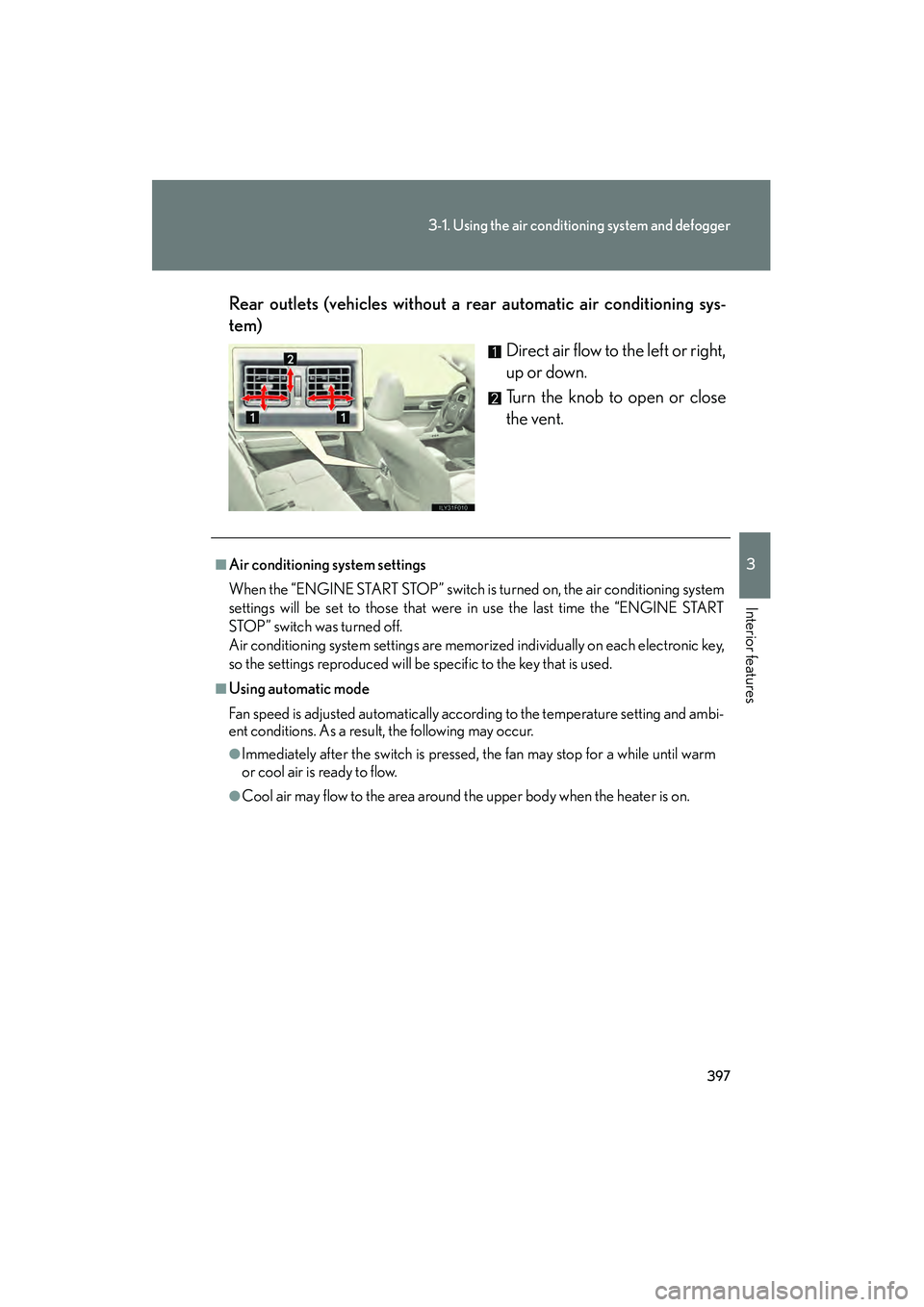

GX460_CANADA (OM60F29U)Rear outlets (vehicles without a rear automatic air conditioning sys-
tem)
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
■Air conditioning system settings
When the “ENGINE START STOP” switch is turned on, the air conditioning system
settings will be set to those that were in use the last time the “ENGINE START
STOP” switch was turned off.
Air conditioning system settings are memorized individually on each electronic key,
so the settings reproduced will be specific to the key that is used.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and ambi-
ent conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
GX460_CANADA.book Page 397 Thursday, February 4, 2010 11:54 AM

398
3-1. Using the air conditioning system and defogger
GX460_CANADA (OM60F29U)
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to in
accordance with the temperature setting, the inside temperature, outside tempera-
ture, etc.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■Automatic mode for air intake control (vehicles with a rear automatic air condi-
tioning system)
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the air conditioning is off, and the fan is operating, turning automatic mode
on will activate the air conditioning system.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to (recirculated air) mode.
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
■When outside air temperature is below 32 °F (0 °C)
The cooling and dehumidification function may not operate even when the “A/C”
button is pressed.
■When the “A/C ON” in the multi-information display (accessory meter) flashes
Press
the “A/C” button and turn off the cooling and dehumidification function and
turn it on again. There may be a problem in the air conditioning system if the indica-
tor light continues to flash. Turn the air conditioning system off and have it inspected
by your Lexus dealer.
GX460_CANADA.book Page 398 Thursday, February 4, 2010 11:54 AM

399
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)

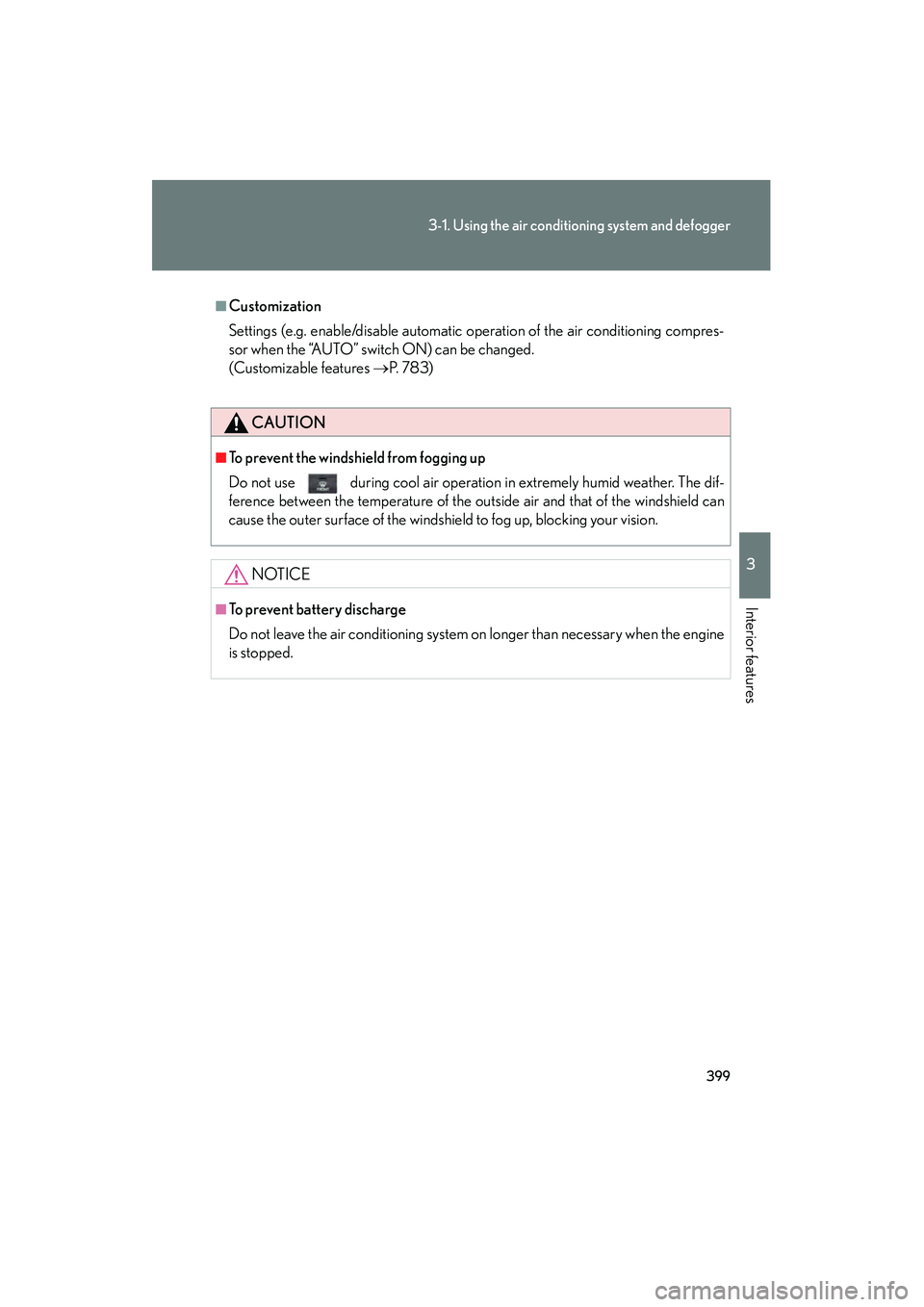

■Customization
Settings (e.g. enable/disable automatic operation of the air conditioning compres-
sor when the “AUTO” switch ON) can be changed.
(Customizable features →P. 7 8 3 )
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The dif-
ference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditio ning system on longer than necessary when the engine
is stopped.
