Lexus GX460 2010 Owner's Manual

400
3-1. Using the air conditioning system and defogger
GX460_CANADA (OM60F29U)
Rear automatic air conditioning system∗
Using automatic air conditioning systemPress the “AUTO” button.
The air conditioning system will operate, and air outlets and fan
speed will be adjusted automatically.
Press “∧” on the “TEMP” button to increase the temperature and
“ ∨ ” to decrease the temperature.
∗: If equipped
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Fan speed display Air outlet display
Temperature display
Temperature control
button
Air outlet selector button
Off button
Automatic mode button
Fan speed control button
STEP1
STEP2
GX460_CANADA.book Page 400 Thursday, February 4, 2010 11:54 AM

401
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)
Adjusting the settings manually
■ Adjusting the temperature setting
Press “ ∧” on the “TEMP” button to increase the temperature and “ ∨”
to decrease the temperature.
■ Changing the air outlets
Press the air outlet selector button.
The air outlets used are switched each time either side of the button is
pressed. The air flow shown on the display indicates the following:
Air flows to the upper body.
GX460_CANADA.book Page 401 Thursday, February 4, 2010 11:54 AM

402
3-1. Using the air conditioning system and defogger

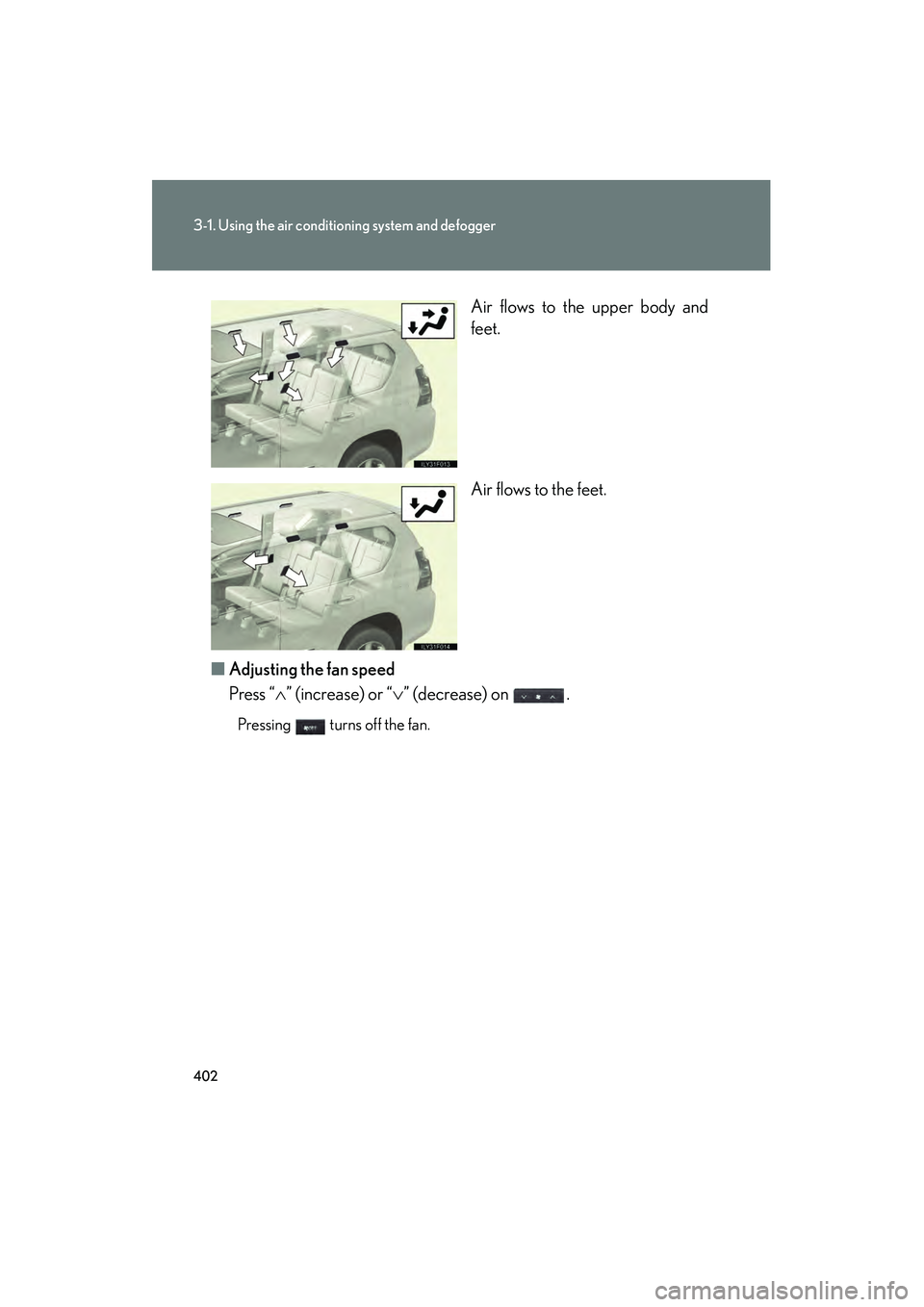

GX460_CANADA (OM60F29U)Air flows to the upper body and
feet.
Air flows to the feet.
■ Adjusting the fan speed
Press “ ∧” (increase) or “∨ ” (decrease) on .
Pressing turns off the fan.
GX460_CANADA.book Page 402 Thursday, February 4, 2010 11:54 AM

403
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)

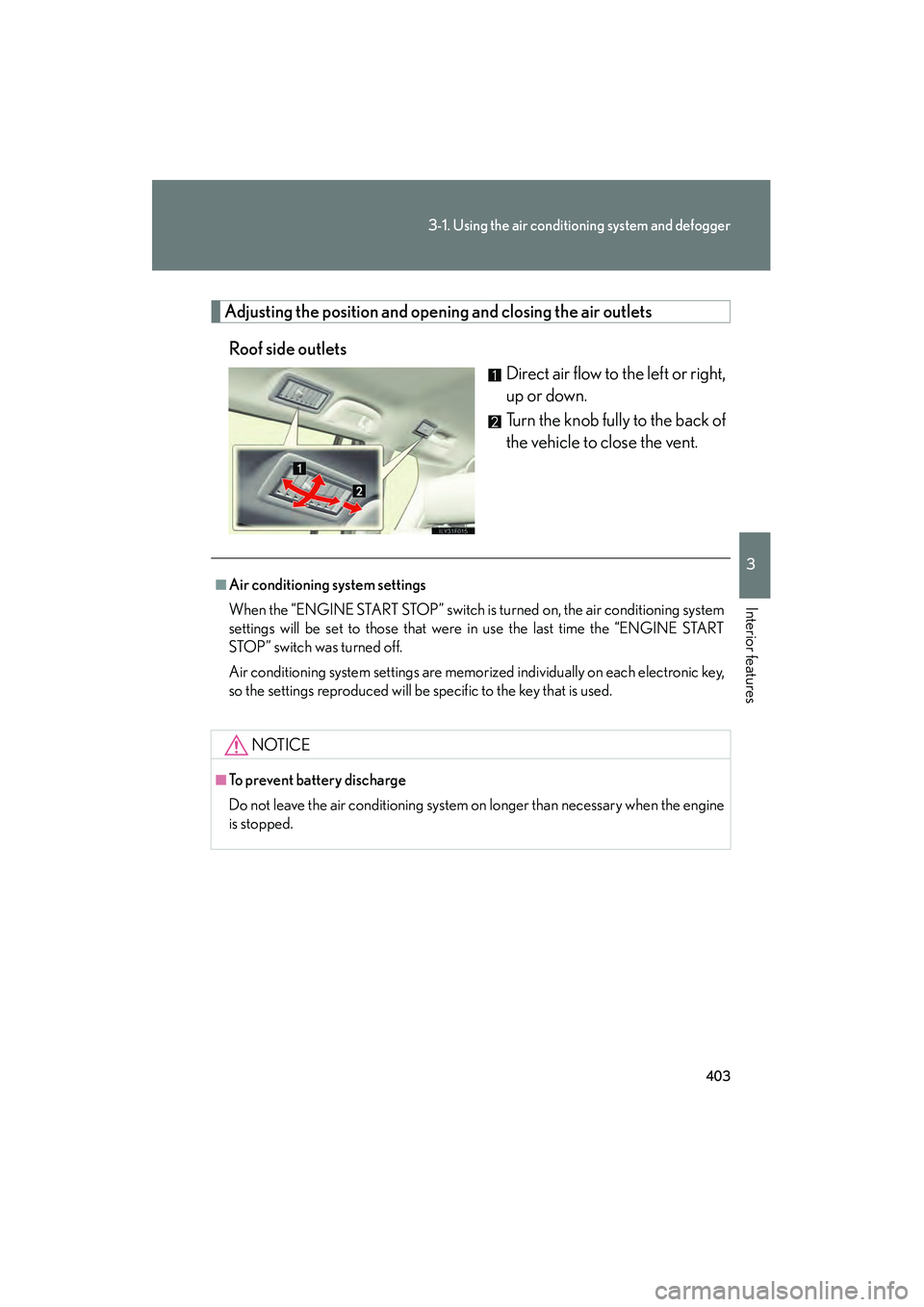

Adjusting the position and open ing and closing the air outlets
Roof side outlets Direct air flow to the left or right,
up or down.
Turn the knob fully to the back of
the vehicle to close the vent.
■Air conditioning system settings
When the “ENGINE START STOP” switch is turned on, the air conditioning system
settings will be set to those that were in use the last time the “ENGINE START
STOP” switch was turned off.
Air conditioning system settings are memorized individually on each electronic key,
so the settings reproduced will be specific to the key that is used.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine
is stopped.
GX460_CANADA.book Page 403 Thursday, February 4, 2010 11:54 AM

404
3-1. Using the air conditioning system and defogger
GX460_CANADA (OM60F29U)
Rear window defogger switch
■The defoggers can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror defog-
gers on.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can become very
hot and burn you.
Defoggers are used to defog the rear window, and to remove raindrops,
dew and frost from the outside rear view mirrors.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation systemTurns the rear window and out-
side rear view mirror defoggers
on/off.
The defoggers will automatically
turn off after their operation
time. The operation time varies
depending on the ambient tem-
perature and vehicle speed.
GX460_CANADA.book Page 404 Thursday, February 4, 2010 11:54 AM

405
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)
Windshield wiper de-icer
■The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars, as the
surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the windshield and
wiper blades.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation systemTurns the windshield wiper de-
icer on/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
GX460_CANADA.book Page 405 Thursday, February 4, 2010 11:54 AM

406
GX460_CANADA (OM60F29U)
3-2. Using the audio system
Audio system
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
CD player with a changer and AM/FM radio
Ti t l ePa g e
Using the radioP. 4 0 8
Using the CD playerP. 4 1 6
Playing MP3 and WMA discsP. 4 2 4
Operating an iPod®P. 4 3 3
Operating a USB memoryP. 4 4 0
Optimal use of the audio systemP. 4 4 9
Using the AUX adapterP. 4 5 1
Using the steering wheel audio switchesP. 4 5 2
GX460_CANADA.book Page 406 Thursday, February 4, 2010 11:54 AM

407
3-2. Using the audio system
3
Interior features
GX460_CANADA (OM60F29U)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
■Certification
●Pa r t 1 5 o f t h e FCC Ru l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes by yourself. This is an intricate unit that uses a laser pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
GX460_CANADA.book Page 407 Thursday, February 4, 2010 11:54 AM

408
3-2. Using the audio system
GX460_CANADA (OM60F29U)
Using the radio
Traffic information button
Station selector
Changing the program type
Seeking the frequency
Displaying text message
AM•FM/SAT mode buttons Po w e r Vo l u m e
Scanning for receivable stationsAdjusting the frequency
GX460_CANADA.book Page 408 Thursday, February 4, 2010 11:54 AM

409
3-2. Using the audio system
3
Interior features
GX460_CANADA (OM60F29U)

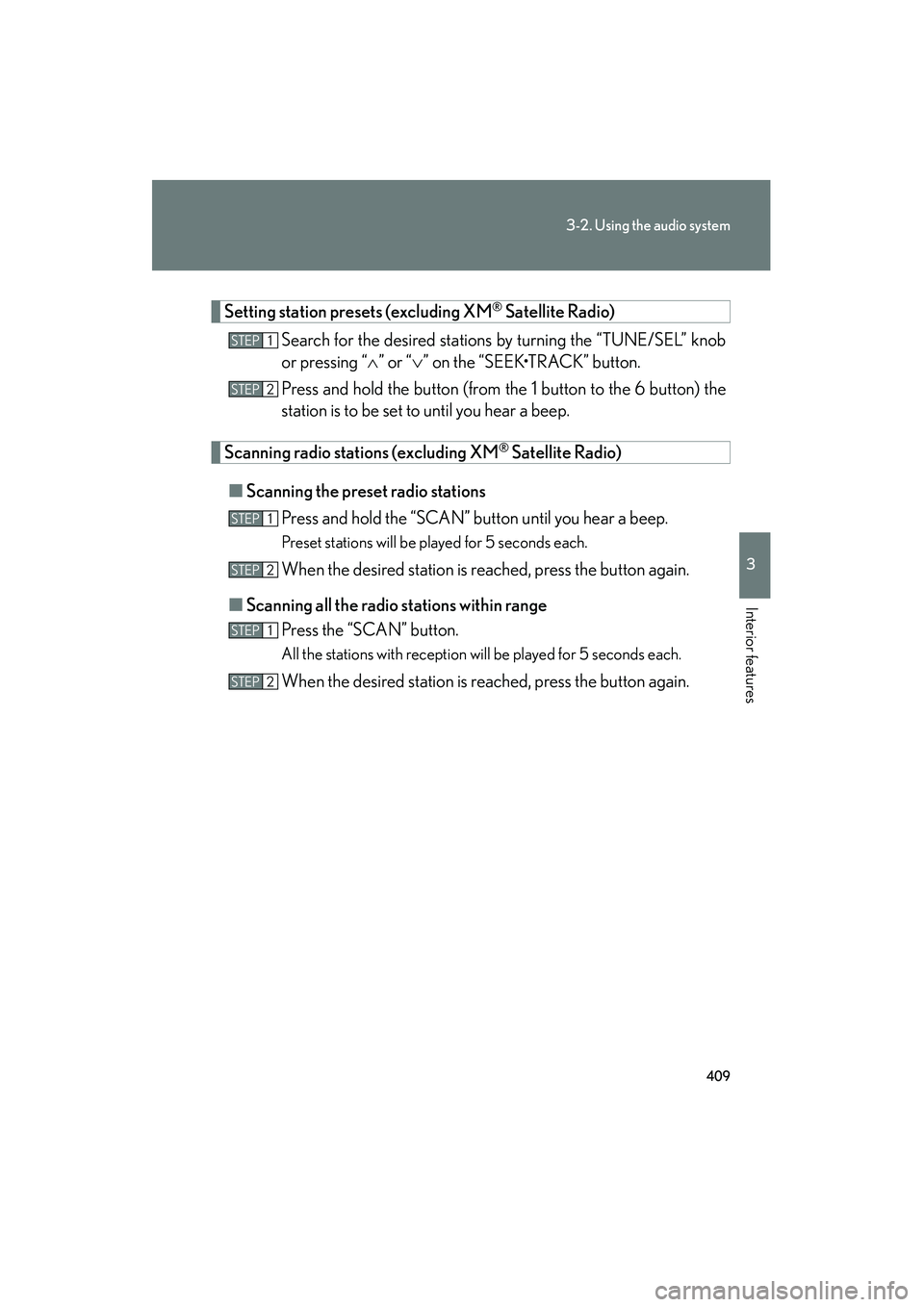

Setting station presets (excluding XM® Satellite Radio)
Search for the desired stations by turning the “TUNE/SEL” knob
or pressing “ ∧” or “ ∨” on the “SEEK•TRACK” button.
Press and hold the button (from the 1 button to the 6 button) the
station is to be set to until you hear a beep.
Scanning radio stations (excluding XM® Satellite Radio)
■ Scanning the preset radio stations
Press and hold the “SCAN” button until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the button again.
■ Scanning all the radio st ations within range
Press the “SCAN” button.
All the stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
GX460_CANADA.book Page 409 Thursday, February 4, 2010 11:54 AM
