500
3-4. Using the hands-free system (for cellular phone)
GX460_CANADA (OM60F29U)

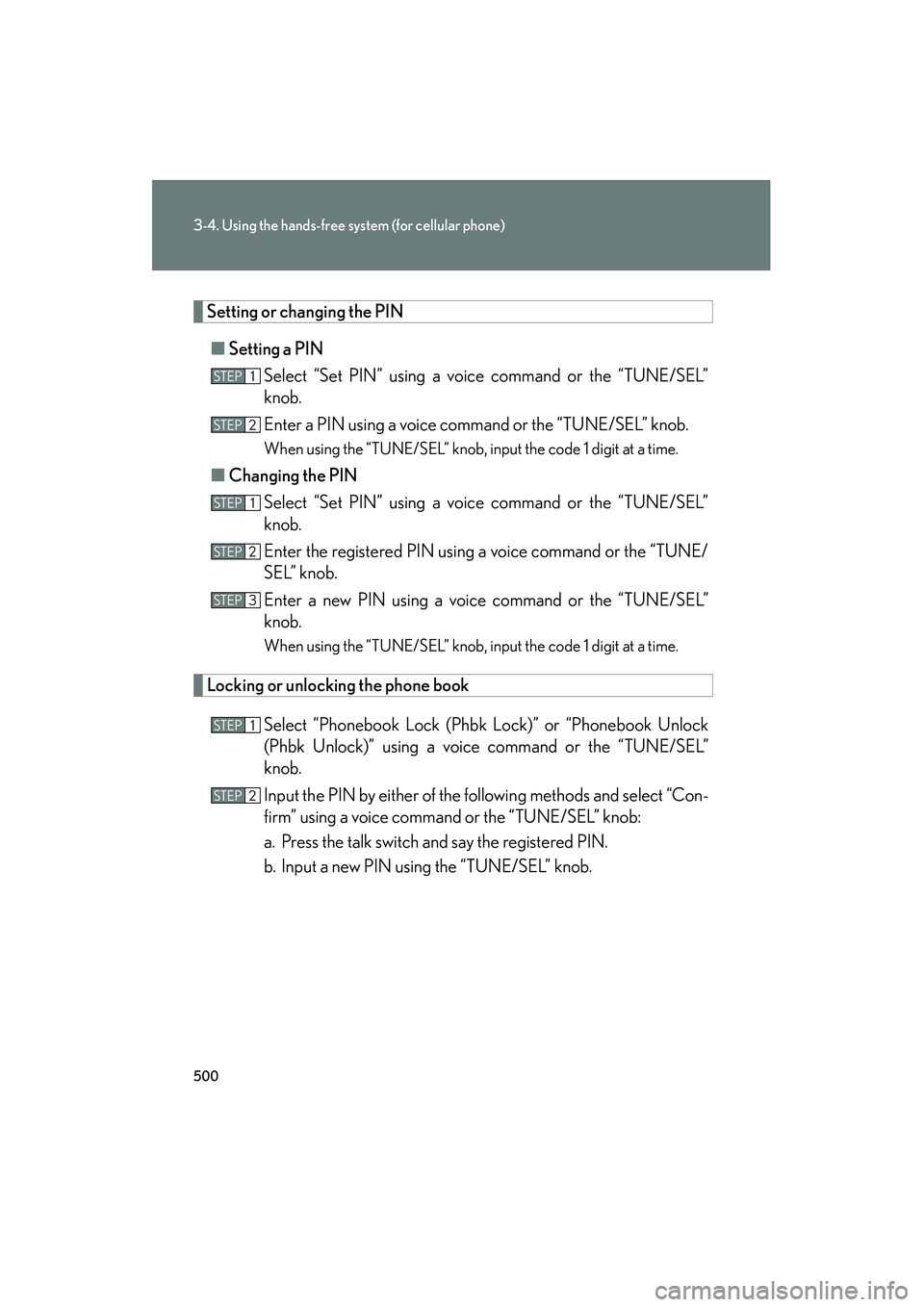

Setting or changing the PIN
■ Setting a PIN
Select “Set PIN” using a voice command or the “TUNE/SEL”
knob.
Enter a PIN using a voice command or the “TUNE/SEL” knob.
When using the “TUNE/SEL” knob, input the code 1 digit at a time.
■Changing the PIN
Select “Set PIN” using a voice command or the “TUNE/SEL”
knob.
Enter the registered PIN using a voice command or the “TUNE/
SEL” knob.
Enter a new PIN using a voice command or the “TUNE/SEL”
knob.
When using the “TUNE/SEL” knob, input the code 1 digit at a time.
Locking or unlocking the phone book
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock
(Phbk Unlock)” using a voic e command or the “TUNE/SEL”
knob.
Input the PIN by either of the following methods and select “Con-
firm” using a voice command or the “TUNE/SEL” knob:
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using the “TUNE/SEL” knob.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2
GX460_CANADA.book Page 500 Thursday, February 4, 2010 11:54 AM
Page 502 of 830

501
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_CANADA (OM60F29U)
Setting voice guidance volumeSelect “Guidance Vol” using the “TUNE/SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the “TUNE/SEL” knob counterclockwise.
To increase the volume: Turn the “TUNE/SEL” knob clockwise.
Displaying the Bluetooth® device address and name
Select “Device Name” using the “TUNE/SEL” knob.
Turn the “TUNE/SEL” knob to display the Bluetooth
® device
address and name.
Select “Go Back” using the “TUNE/ SEL” knob to return to “Sys-
tem Setup”.
Initializing the system
Select “Initialize” and then “Confirm” using the “TUNE/SEL”
knob.
Select “Confirm” again using the “TUNE/SEL” knob.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2
GX460_CANADA.book Page 501 Thursday, February 4, 2010 11:54 AM
Page 503 of 830

502
3-4. Using the hands-free system (for cellular phone)
GX460_CANADA (OM60F29U)

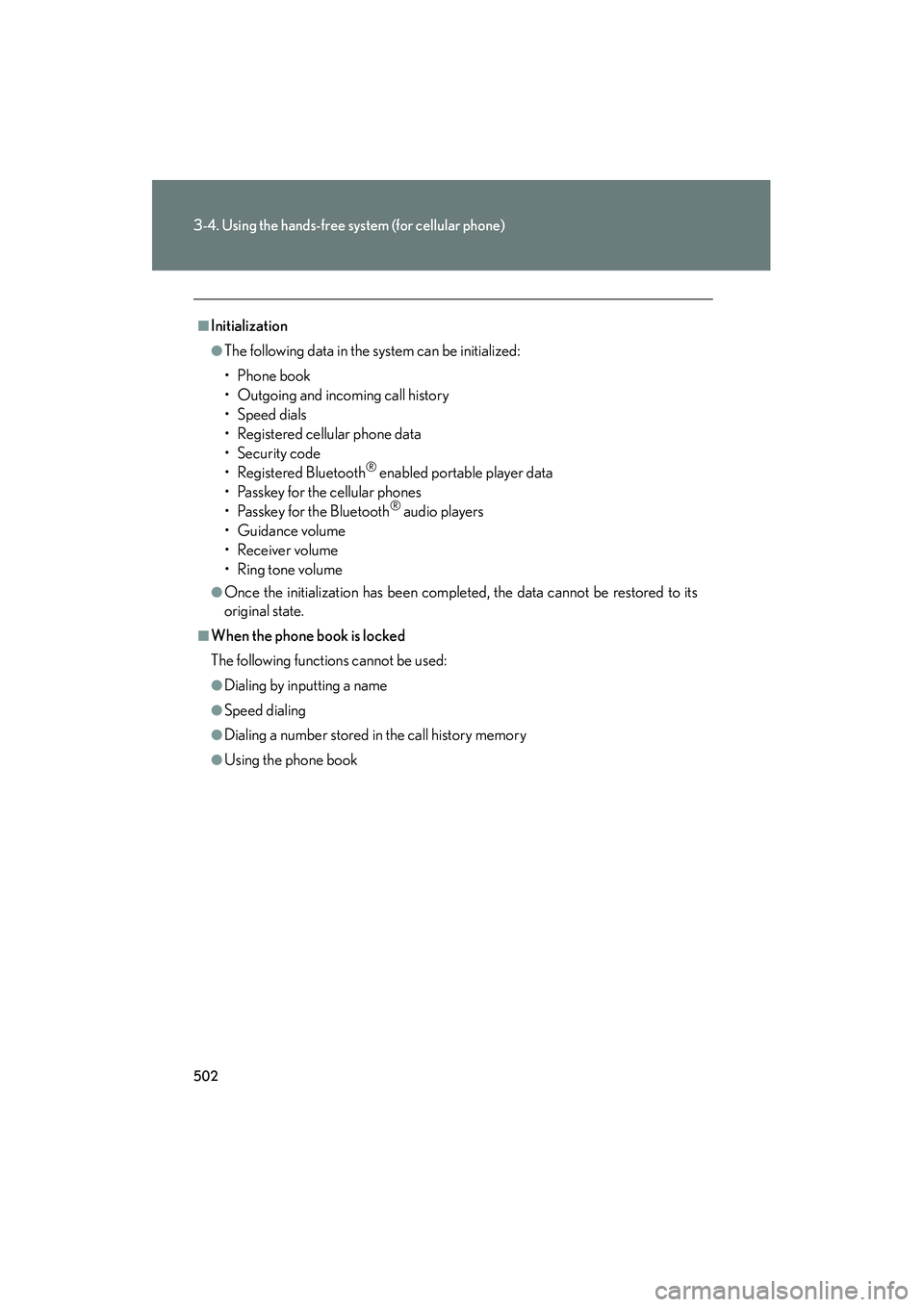

■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
• Guidance volume
• Receiver volume
•Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its
original state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book
GX460_CANADA.book Page 502 Thursday, February 4, 2010 11:54 AM
Page 504 of 830

503
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_CANADA (OM60F29U)

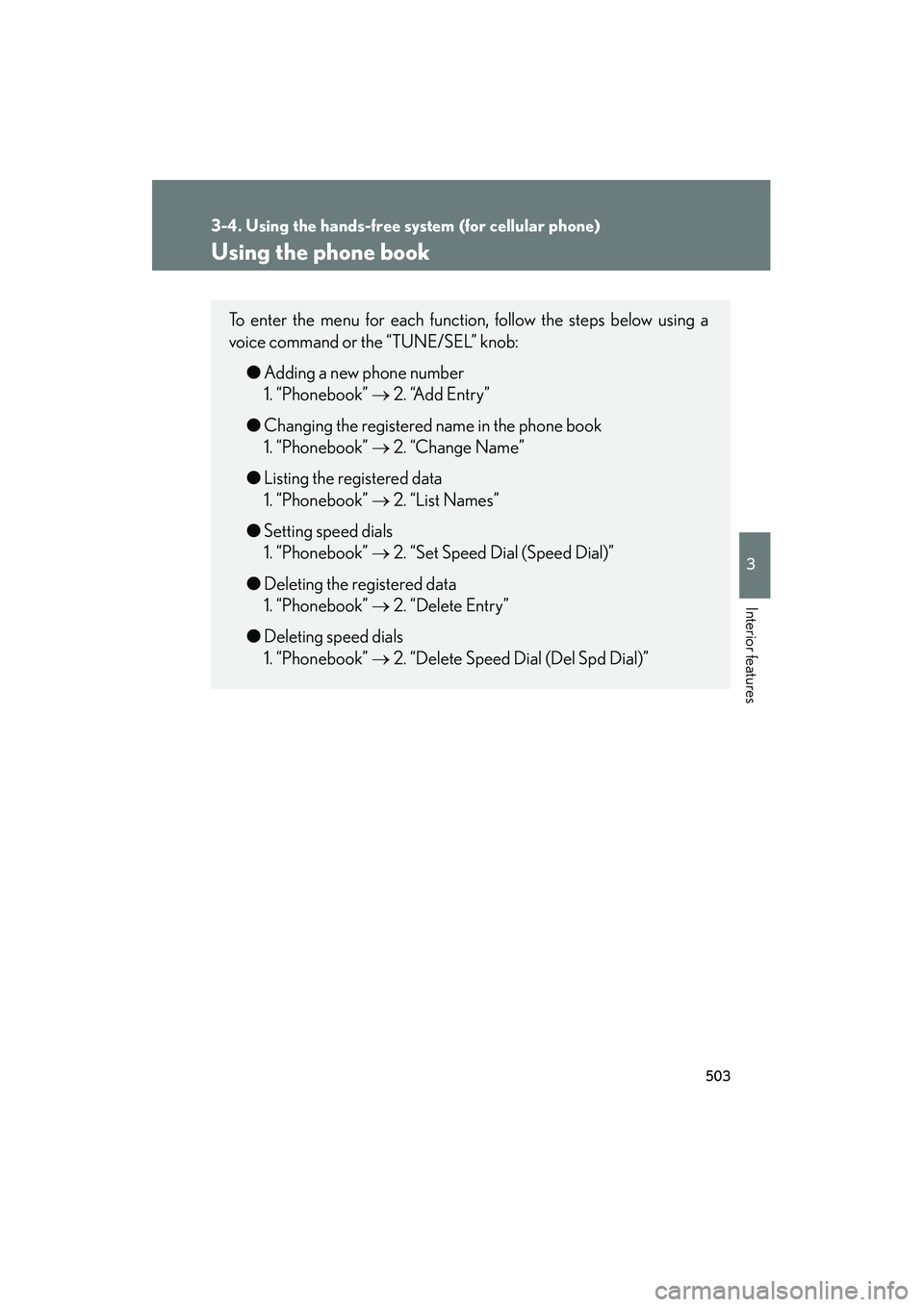

Using the phone book
To enter the menu for each function, follow the steps below using a
voice command or the “TUNE/SEL” knob:● Adding a new phone number
1. “Phonebook” → 2. “Add Entry”
● Changing the registered name in the phone book
1. “Phonebook” → 2. “Change Name”
● Listing the registered data
1. “Phonebook” → 2. “List Names”
● Setting speed dials
1. “Phonebook” → 2. “Set Speed Dial (Speed Dial)”
● Deleting the registered data
1. “Phonebook” → 2. “Delete Entry”
● Deleting speed dials
1. “Phonebook” → 2. “Delete Speed Dial (Del Spd Dial)”
GX460_CANADA.book Page 503 Thursday, February 4, 2010 11:54 AM
Page 505 of 830

504
3-4. Using the hands-free system (for cellular phone)
GX460_CANADA (OM60F29U)

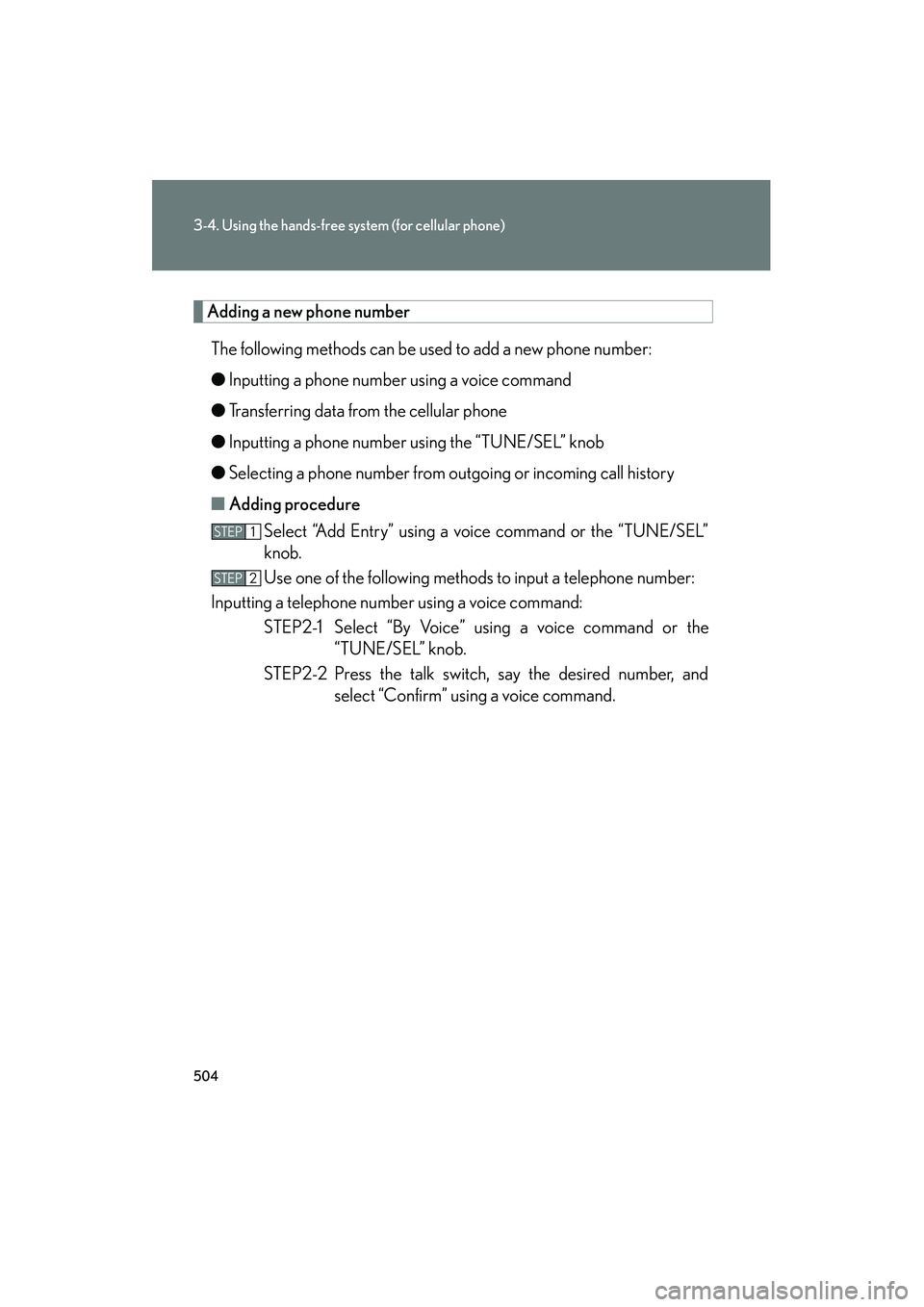

Adding a new phone number
The following methods can be used to add a new phone number:
● Inputting a phone number using a voice command
● Transferring data from the cellular phone
● Inputting a phone number using the “TUNE/SEL” knob
● Selecting a phone number from outgoing or incoming call history
■ Adding procedure
Select “Add Entry” using a voice command or the “TUNE/SEL”
knob.
Use one of the following methods to input a telephone number:
Inputting a telephone number using a voice command:
STEP2-1 Select “By Voice” using a voice command or the “TUNE/SEL” knob.
STEP2-2 Press the talk switch, say the desired number, and select “Confirm” using a voice command.
STEP1
STEP2
GX460_CANADA.book Page 504 Thursday, February 4, 2010 11:54 AM
Page 506 of 830

505
3-4. Using the hands-free system (for cellular phone)
3
Interior features

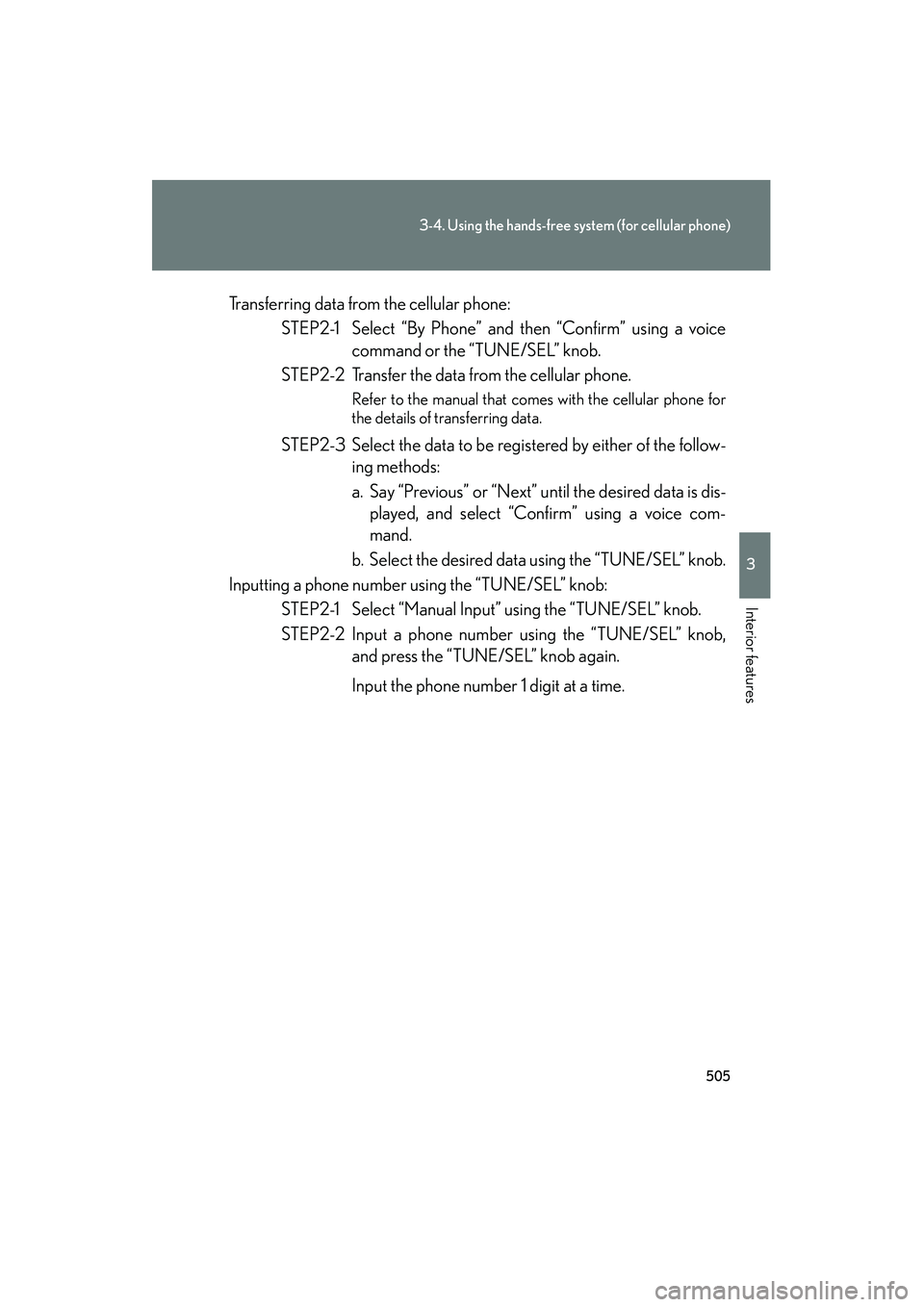

GX460_CANADA (OM60F29U)Transferring data from the cellular phone:
STEP2-1 Select “By Phone” and then “Confirm” using a voice command or the “TUNE/SEL” knob.
STEP2-2 Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone for
the details of transferring data.
STEP2-3 Select the data to be registered by either of the follow- ing methods:
a. Say “Previous” or “Next” until the desired data is dis-played, and select “Confirm” using a voice com-
mand.
b. Select the desired data using the “TUNE/SEL” knob.
Inputting a phone number using the “TUNE/SEL” knob: STEP2-1 Select “Manual Input” using the “TUNE/SEL” knob.
STEP2-2 Input a phone number using the “TUNE/SEL” knob, and press the “TUNE/SEL” knob again.
Input the phone number 1 digit at a time.
GX460_CANADA.book Page 505 Thursday, February 4, 2010 11:54 AM
Page 507 of 830

506
3-4. Using the hands-free system (for cellular phone)
GX460_CANADA (OM60F29U)Selecting a phone number from outgoing or incoming call history:
STEP2-1 Select “Call History” using a voice command or the “TUNE/SEL” knob.
STEP2-2 Select “Outgoing” or “Incoming” using a voice com- mand or the “TUNE/SEL” knob.
STEP2-3 Select the data to be registered by either of the follow- ing methods:
a. Say “Previous” or “Go back” until the desired data isdisplayed, and select “Confirm” using a voice com-
mand.
b. Select the desired data using the “TUNE/SEL” knob.
Select the name to be registered by either of the following meth-
ods, and select “Confirm” using a voice command or the “TUNE/
SEL” knob:
a. Press the talk switch and say the desired name.
b. Select “Record Name” using the “TUNE/SEL” knob, and say the desired name.
Select “Confirm” using a voice command or the “TUNE/SEL”
knob.
In , selecting “Set Speed Dial (Speed Dial)” instead of “Con-
firm” registers the newly added phone number as a speed dial.
STEP3
STEP4
STEP4
GX460_CANADA.book Page 506 Thursday, February 4, 2010 11:54 AM
Page 508 of 830

507
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_CANADA (OM60F29U)

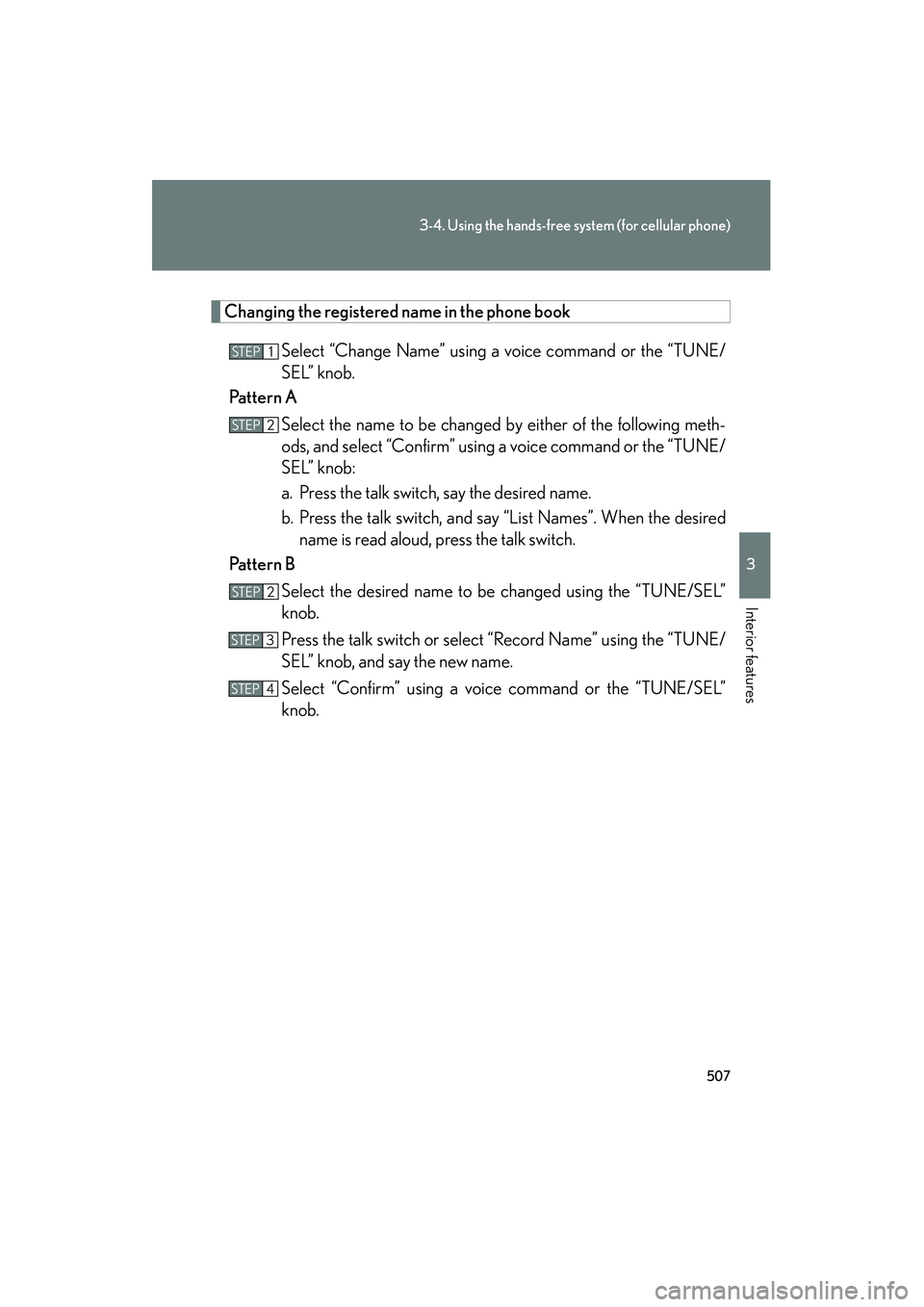

Changing the registered name in the phone bookSelect “Change Name” using a voice command or the “TUNE/
SEL” knob.
Pattern A
Select the name to be changed by either of the following meth-
ods, and select “Confirm” using a voice command or the “TUNE/
SEL” knob:
a. Press the talk switch, say the desired name.
b. Press the talk switch, and say “List Names”. When the desiredname is read aloud, press the talk switch.
Pattern B
Select the desired name to be changed using the “TUNE/SEL”
knob.
Press the talk switch or select “Record Name” using the “TUNE/
SEL” knob, and say the new name.
Select “Confirm” using a voice command or the “TUNE/SEL”
knob.
STEP1
STEP2
STEP2
STEP3
STEP4
GX460_CANADA.book Page 507 Thursday, February 4, 2010 11:54 AM
Page 509 of 830

508
3-4. Using the hands-free system (for cellular phone)
GX460_CANADA (OM60F29U)

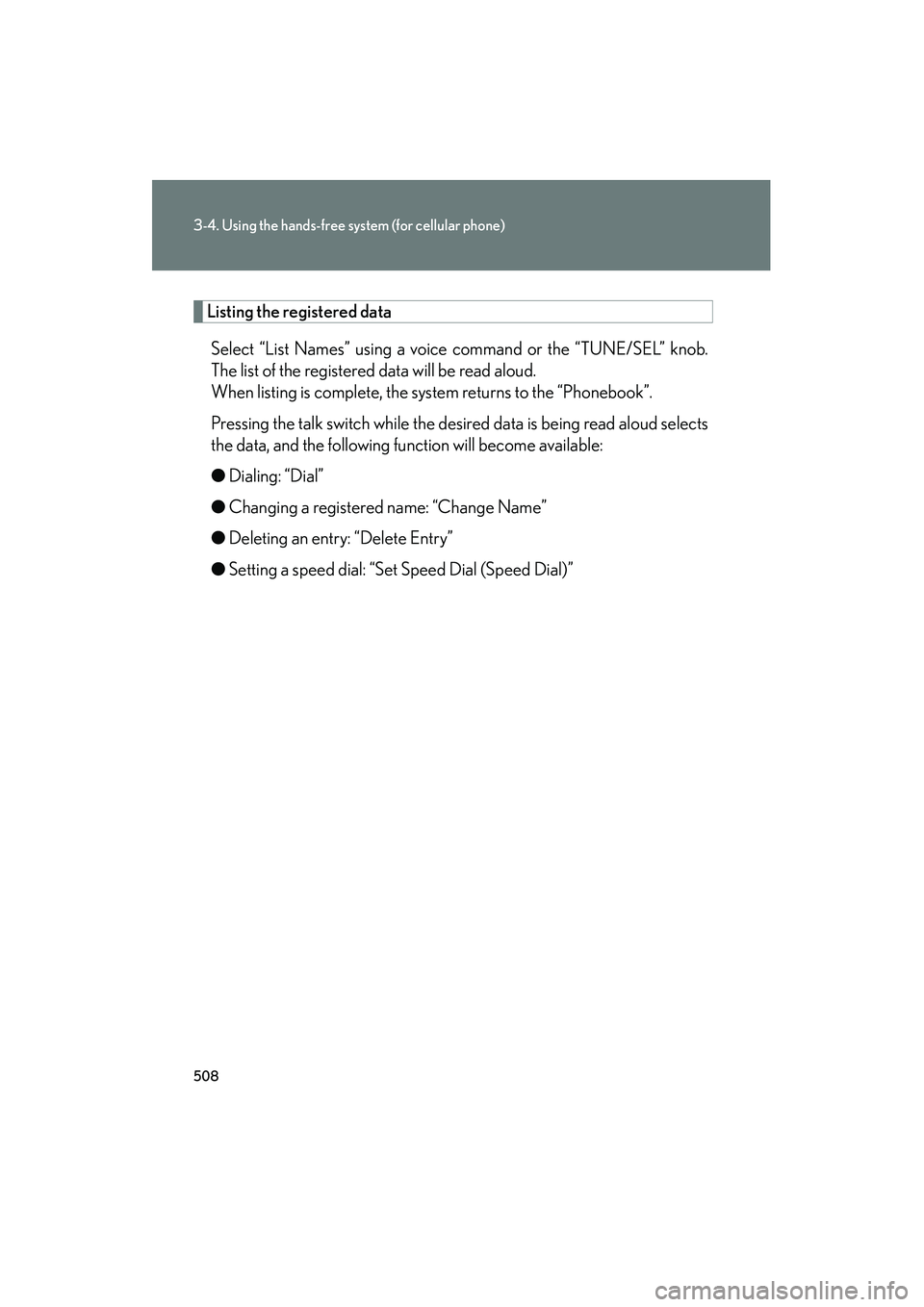

Listing the registered data
Select “List Names” using a voice command or the “TUNE/SEL” knob.
The list of the registered data will be read aloud.
When listing is complete, the system returns to the “Phonebook”.
Pressing the talk switch while the desired data is being read aloud selects
the data, and the following function will become available:
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting a speed dial: “Set Speed Dial (Speed Dial)”
GX460_CANADA.book Page 508 Thursday, February 4, 2010 11:54 AM
Page 510 of 830

509
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_CANADA (OM60F29U)

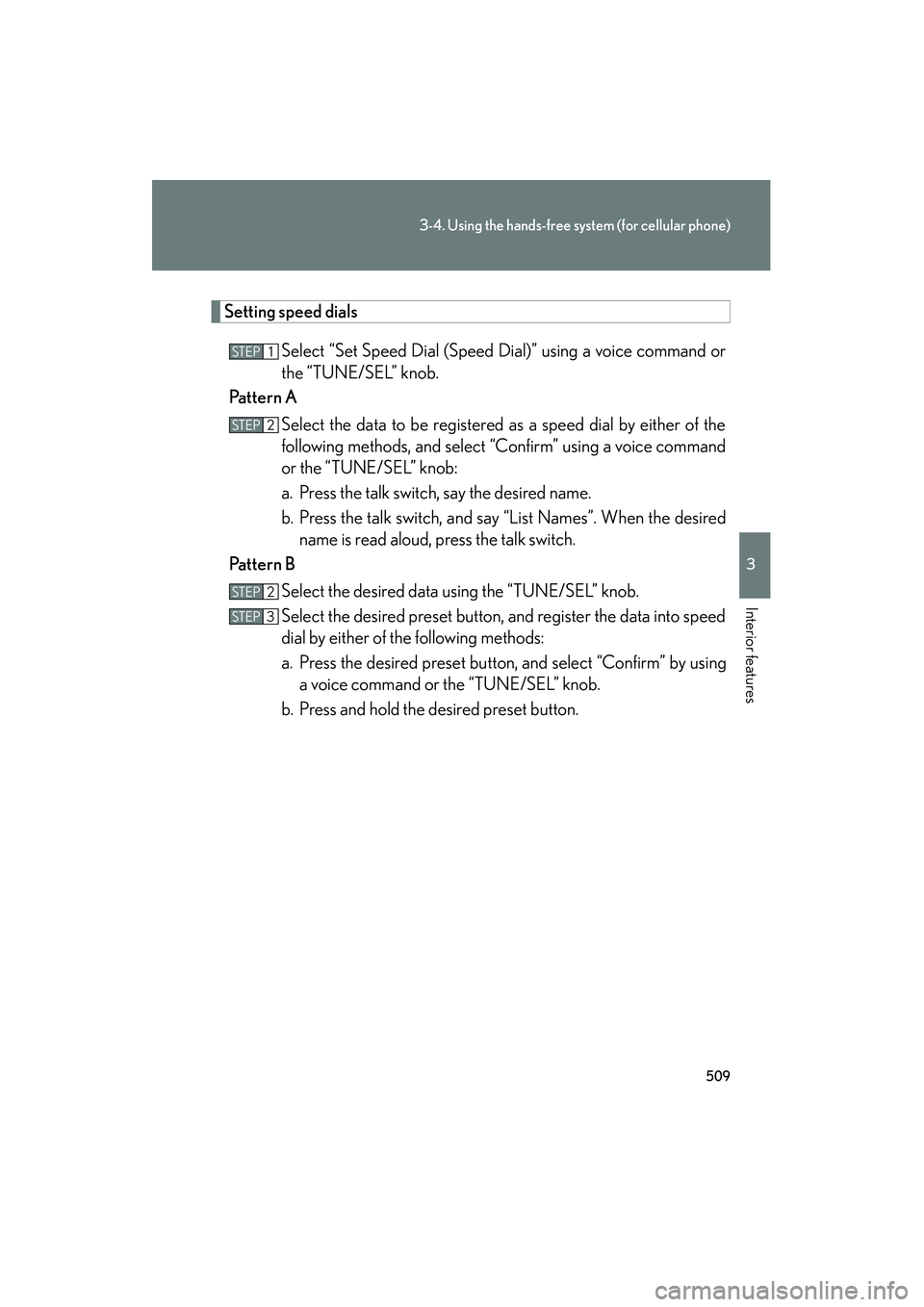

Setting speed dialsSelect “Set Speed Dial (Speed Dial)” using a voice command or
the “TUNE/SEL” knob.
Pattern A
Select the data to be registered as a speed dial by either of the
following methods, and select “Confirm” using a voice command
or the “TUNE/SEL” knob:
a. Press the talk switch, say the desired name.
b. Press the talk switch, and say “List Names”. When the desiredname is read aloud, press the talk switch.
Pattern B
Select the desired data using the “TUNE/SEL” knob.
Select the desired preset button, and register the data into speed
dial by either of the following methods:
a. Press the desired preset button, and select “Confirm” by usinga voice command or the “TUNE/SEL” knob.
b. Press and hold the desired preset button.
STEP1
STEP2
STEP2
STEP3
