Lexus GX460 2012 Owner's Manual

109
1
Before driving
GX460_U.S.A. (OM60J00U)
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “ENGINE START STOP” switch off and ensure that all the
doors and windows are closed.
■ Opening the fuel tank cap
Press the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
STEP1
STEP2

110
1-5. Refueling
GX460_U.S.A. (OM60J00U)
Closing the fuel tank capAfter refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Hang the fuel tank cap on the
back of the fuel filler door.STEP3

111
1-5. Refueling
1
Before driving
GX460_U.S.A. (OM60J00U)
■If the fuel filler door opener is inoperable
■Fuel types
Use premium unleaded gasoline. (Octane Rating 91 [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 23.0 gal. (87 L, 19.1 Imp. gal.)The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch.

112
1-5. Refueling
GX460_U.S.A. (OM60J00U)
■Use of ethanol blended gasoline in a gasoline engine
●Make sure that the ethanol blended gasoline to be used has a suitable Research
Octane Number. (→P. 766)
●Use only gasoline containing a maximum
of 10 % ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10 % etha-
nol, including from any pump labeled E15,
E30, E50, E85 (which are only some
examples of fuel containing more than
10 % ethanol).
DO NOT use gasoline con-
taining more than 10 % etha-
nol.
(15 % ethanol)
(50 % ethanol)
(85 % ethanol)

113
1-5. Refueling
1
Before driving
GX460_U.S.A. (OM60J00U)
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted
metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.

114
1-5. Refueling
GX460_U.S.A. (OM60J00U)
CAUTION
■When refueling
Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with the nozzle
slightly lifted away from the fuel filler neck, the automatic shut off function may not
operate, resulting in fuel overflowing from the tank.
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control systems to
operate abnormally or damaging fuel system components or the vehicle’s painted
surface.

115
1
Before driving
GX460_U.S.A. (OM60J00U)
1-6. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles without a navigation systemThe indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
Vehicles with a navigation system The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

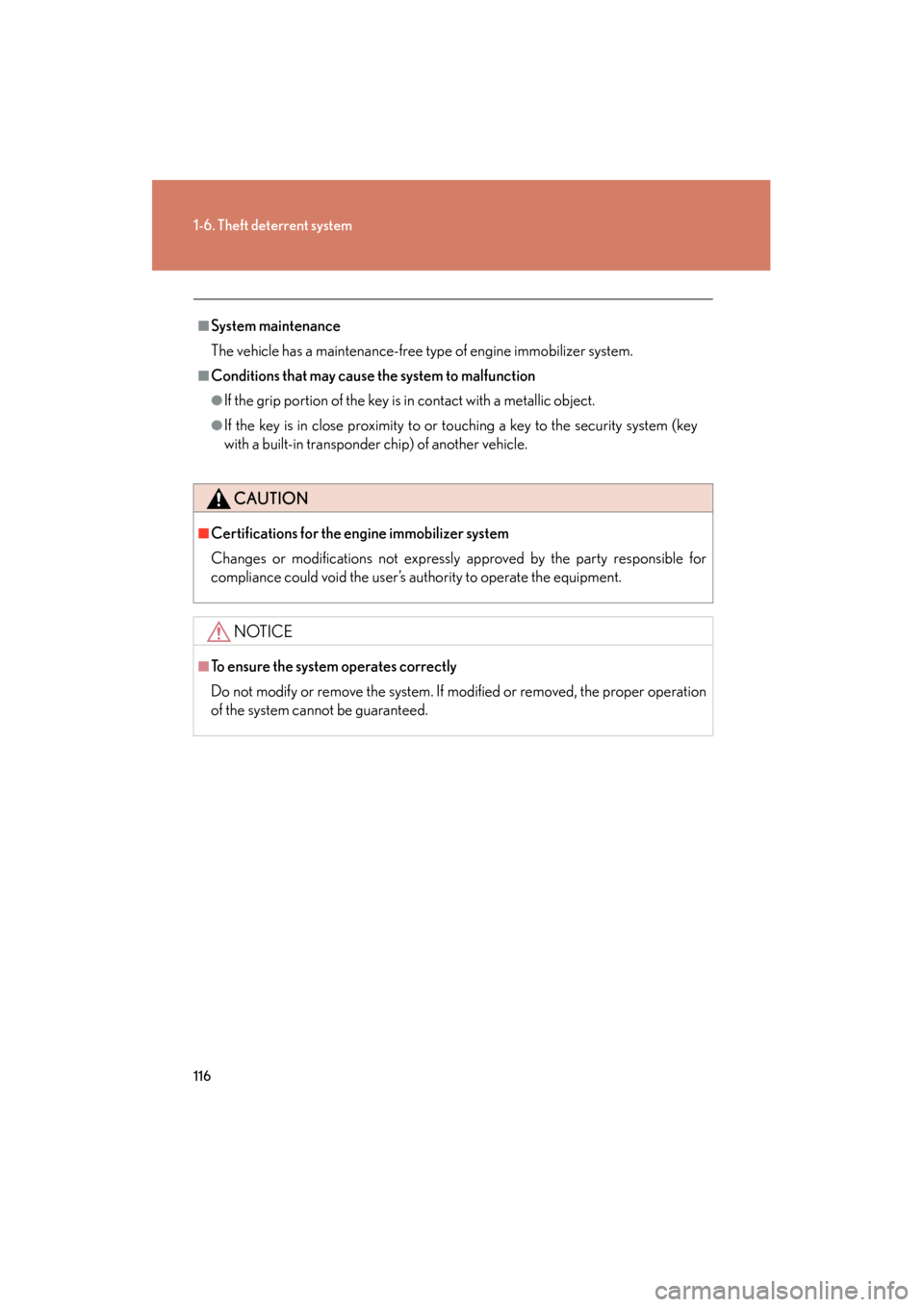

116
1-6. Theft deterrent system
GX460_U.S.A. (OM60J00U)
■System maintenance
The vehicle has a maintenance-free type of engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
CAUTION
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.

117
1
1-6. Theft deterrent system
Before driving
GX460_U.S.A. (OM60J00U)
Alarm
The system sounds the alarm and flashes the lights when forced entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or glass hatch is unlocked or opened in any way
other than using the entry function, wireless remote control or
mechanical key. (The doors will lock again automatically.)
● The hood is opened.
■ Setting the alarm system
Vehicles without a navigation system Close the doors, glass hatch
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.

118
1-6. Theft deterrent system
GX460_U.S.A. (OM60J00U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Vehicles with a navigation systemClose the doors, glass hatch
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to de activate or stop the alarms:
● Unlock the doors.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
