Lexus GX460 2012 Owner's Manual

399
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_U.S.A. (OM60J00U) Air flows to the feet.
*: Vehicles without a rear automatic air conditioning system
Air flows to the feet and the wind-
shield defogger operates.
The air intake is automatically
switched to (outside air)
mode.
The air conditioning system oper-
ates automatically.
*: Vehicles without a rear automatic air conditioning system

400
3-1. Using the air conditioning system and defogger
GX460_U.S.A. (OM60J00U)■
Switching between outside air and recirculated air modes
Vehicles without a rear auto matic air conditioning system
Press .
The mode switches between (recirculated air mode) and (out-
side air mode) modes each time the button is pressed.
Vehicles with a rear automatic air conditioning system Press .
The mode switches among (recirculated air mode), automatic and (outside air mode) modes each time the button is pressed.
When the system is switched to automatic mode, the air conditioning sys-
tem operates automatically.
Changing the rear seat settings (vehicles with a rear automatic air con-
ditioning system)
■ Adjusting the temperature setting
Press “ ∧” on the “REAR/TEMP” button to increase the temperature
and “ ∨” to decrease the temperature.
The air conditioning system switch es between individual and simulta-
neous modes each time the “3ZONE” button is pressed.

401
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_U.S.A. (OM60J00U)
Defogging the windshield
Defogging
The air intake is automatically
switched to (outside air)
mode. It is not possible to recircu-
lated air mode when the switch is
on.
The air conditioning system oper-
ates automatically.
Micro dust and pollen filter mode buttonOperates micro dust and pollen fil-
ter on/off.
Outside air mode switches to (recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately
3 minutes.

402
3-1. Using the air conditioning system and defogger
GX460_U.S.A. (OM60J00U)
Adjusting the sensitivity of the air intake control in automatic mode
(vehicles with a rear automatic air conditioning system)
Press for 2 or more
seconds.
Press “ ∧” (increase) or “ ∨”
(decrease) on the temperature
control button on the driver’s side.
From - 3 (low) to 3 (high) can be
set.
STEP1
STEP2

403
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_U.S.A. (OM60J00U)
Adjusting the position of and op ening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
Front side outlets Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent

404
3-1. Using the air conditioning system and defogger
GX460_U.S.A. (OM60J00U)Rear outlets (vehicles without a re
ar automatic air conditioning sys-
tem)
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
■Air conditioning system settings
When the “ENGINE START STOP” switch is turned on, the air conditioning system
settings will be set to those that were in use the last time the “ENGINE START
STOP” switch was turned off.
Air conditioning system settings are memorized individually on each electronic key,
so the settings reproduced will be specific to the key that is used.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and ambi-
ent conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.

405
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_U.S.A. (OM60J00U)

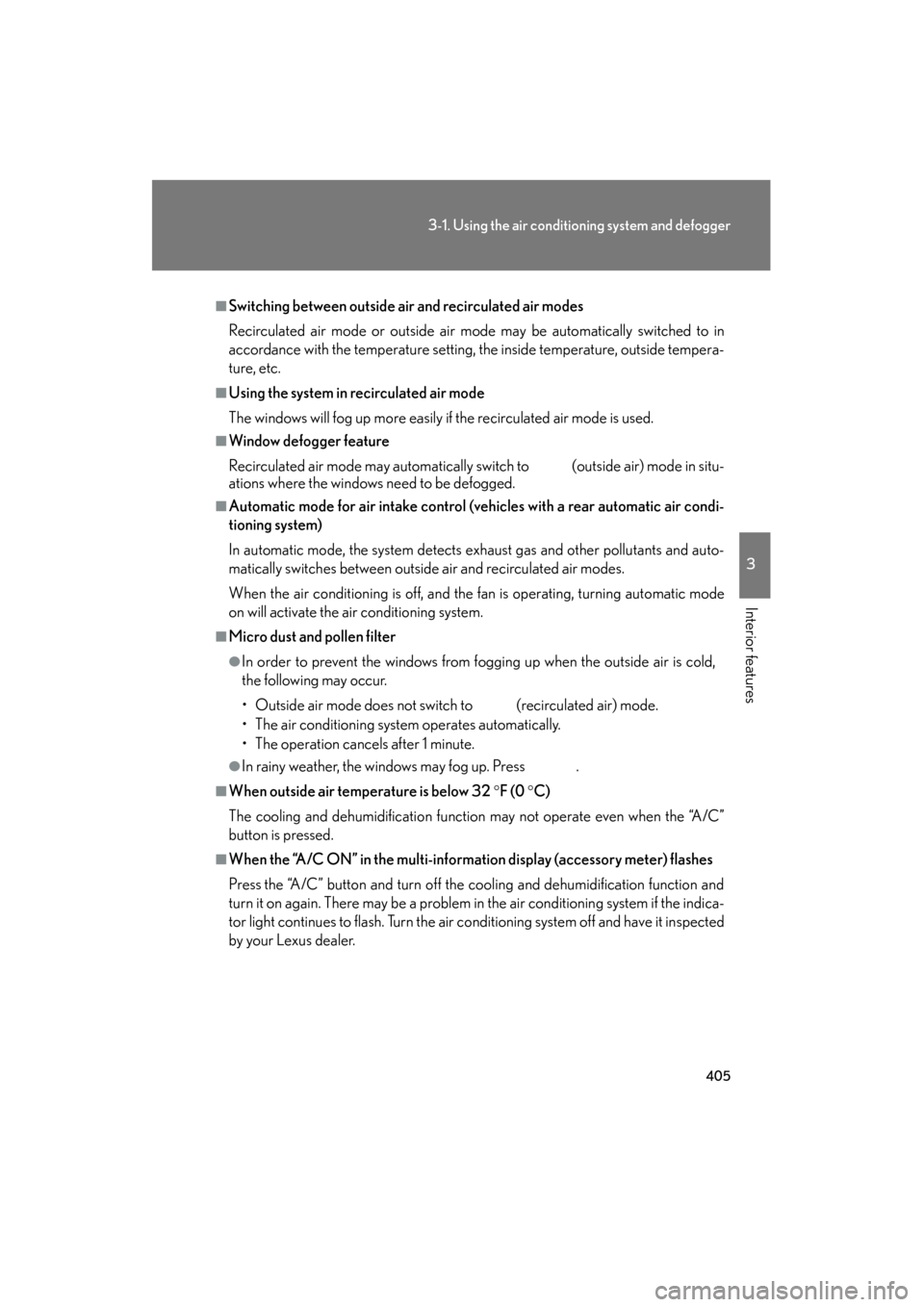

■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to in
accordance with the temperature setting, the inside temperature, outside tempera-
ture, etc.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■Automatic mode for air intake control (vehicles with a rear automatic air condi-
tioning system)
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the air conditioning is off, and the fan is operating, turning automatic mode
on will activate the air conditioning system.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to (recirculated air) mode.
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
■When outside air temperature is below 32 °F (0 °C)
The cooling and dehumidification function may not operate even when the “A/C”
button is pressed.
■When the “A/C ON” in the multi-information display (accessory meter) flashes
Press
the “A/C” button and turn off the cooling and dehumidification function and
turn it on again. There may be a problem in the air conditioning system if the indica-
tor light continues to flash. Turn the air co nditioning system off and have it inspected
by your Lexus dealer.

406
3-1. Using the air conditioning system and defogger
GX460_U.S.A. (OM60J00U)
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in AUTO mode.
■Customization
Settings (e.g. enable/disable automatic operation of the air conditioning compres-
sor when the “AUTO” switch ON) can be changed.
(Customizable features →P. 7 8 2 )
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The dif-
ference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine
is stopped.

407
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_U.S.A. (OM60J00U)
Rear automatic air conditioning system∗
Using automatic air conditioning systemPress the “AUTO” button.
The air conditioning system will operate, and air outlets and fan
speed will be adjusted automatically.
Press “∧” on the “TEMP” button to increase the temperature and
“ ∨ ” to decrease the temperature.
∗: If equipped
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Fan speed display Air outlet display
Temperature display
Temperature control
button
Air outlet selector button
Off button
Automatic mode button
Fan speed control button
STEP1
STEP2

408
3-1. Using the air conditioning system and defogger
GX460_U.S.A. (OM60J00U)
Adjusting the settings manually■ Adjusting the temperature setting
Press “ ∧” on the “TEMP” button to increase the temperature and “ ∨”
to decrease the temperature.
■ Changing the air outlets
Press the air outlet selector button.
The air outlets used are switched each time either side of the button is
pressed. The air flow shown on the display indicates the following:
Air flows to the upper body.
