Lexus GX460 2013 Owner's Manual

100
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
Adjusting the height of rear view mirrorAdjust the height of the rear view
mirror by moving it up and down.
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and may cause an accident, result-
ing in death or serious injury.
To ensure that the sensors operate properly,
do not touch or cover them.
GX460_OM_OM60J63U_(U).book Page 100 Thursday, March 29, 2012 9:10 AM

101
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_OM_OM60J63U_(U)
Outside rear view mirrors
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
LeftSTEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 101 Thursday, March 29, 2012 9:10 AM

102
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
Folding the mirrorsManual type Push the mirror back in the direc-
tion of the vehicle’s rear.
Auto type Extends the mirrors
Folds the mirrors
GX460_OM_OM60J63U_(U).book Page 102 Thursday, March 29, 2012 9:10 AM

103
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
■Mirror angle can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. (→P. 4 1 7 )
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 8 2 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light.
GX460_OM_OM60J63U_(U).book Page 103 Thursday, March 29, 2012 9:10 AM

104
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)

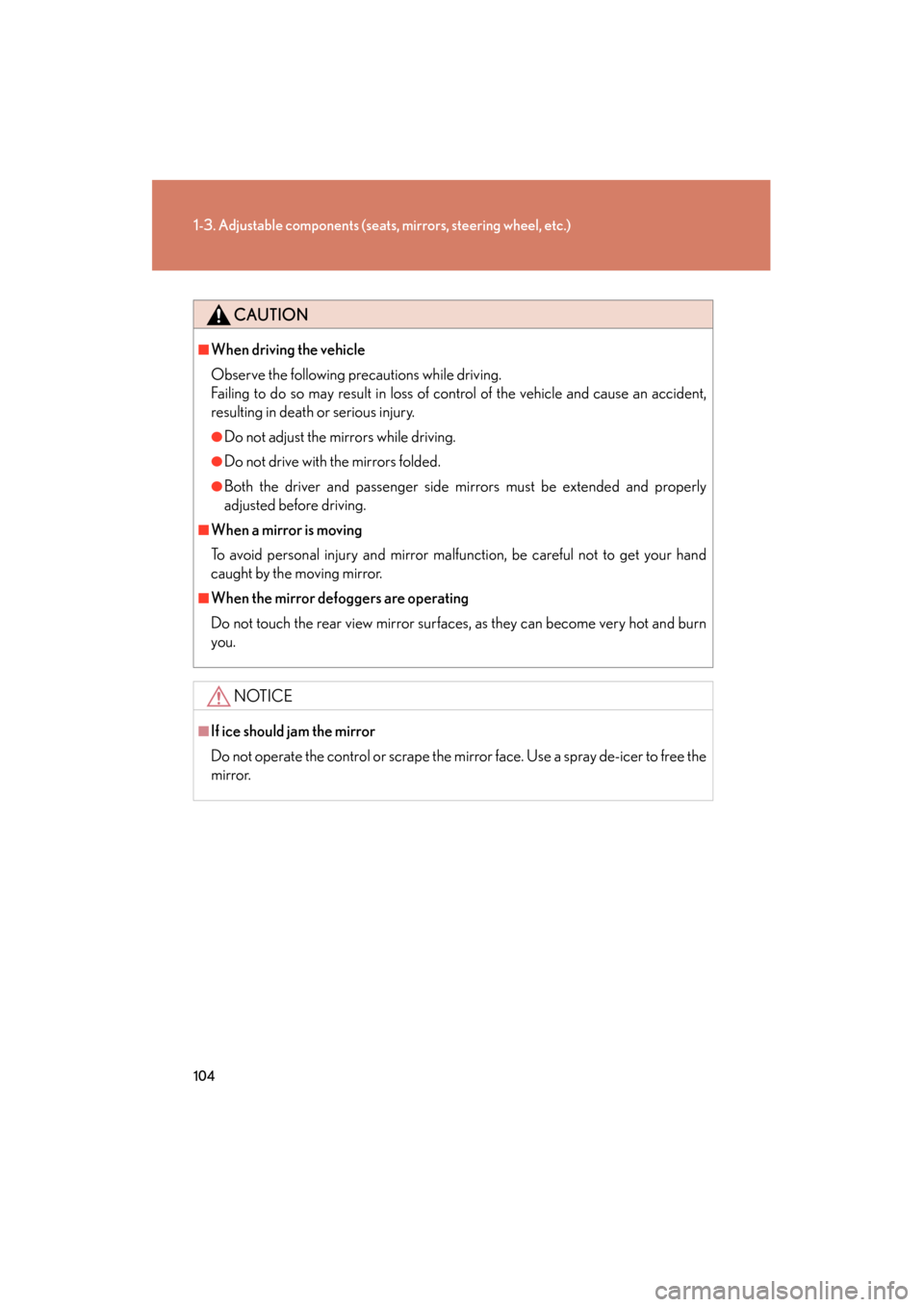

CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to free the
mirror.
GX460_OM_OM60J63U_(U).book Page 104 Thursday, March 29, 2012 9:10 AM

105
1
Before driving
GX460_OM_OM60J63U_(U)
1-4. Opening and closing the windows and moon roof
Power windows
Window lock switchPress the switch down to lock the
passenger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The passenger windows can still be
opened and closed using the
power window switches on the
driver’s side even if the lock switch
is on.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pushing the switch in the opposite direction will stop
window travel partway.
GX460_OM_OM60J63U_(U).book Page 105 Thursday, March 29, 2012 9:10 AM

106
1-4. Opening and closing the windows and moon roof
GX460_OM_OM60J63U_(U)
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned off.
They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door.
●After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the “ENGINE START
STOP” switch is turned to IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer.
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 106 Thursday, March 29, 2012 9:10 AM

107
1-4. Opening and closing the windows and moon roof
1
Before driving
GX460_OM_OM60J63U_(U)

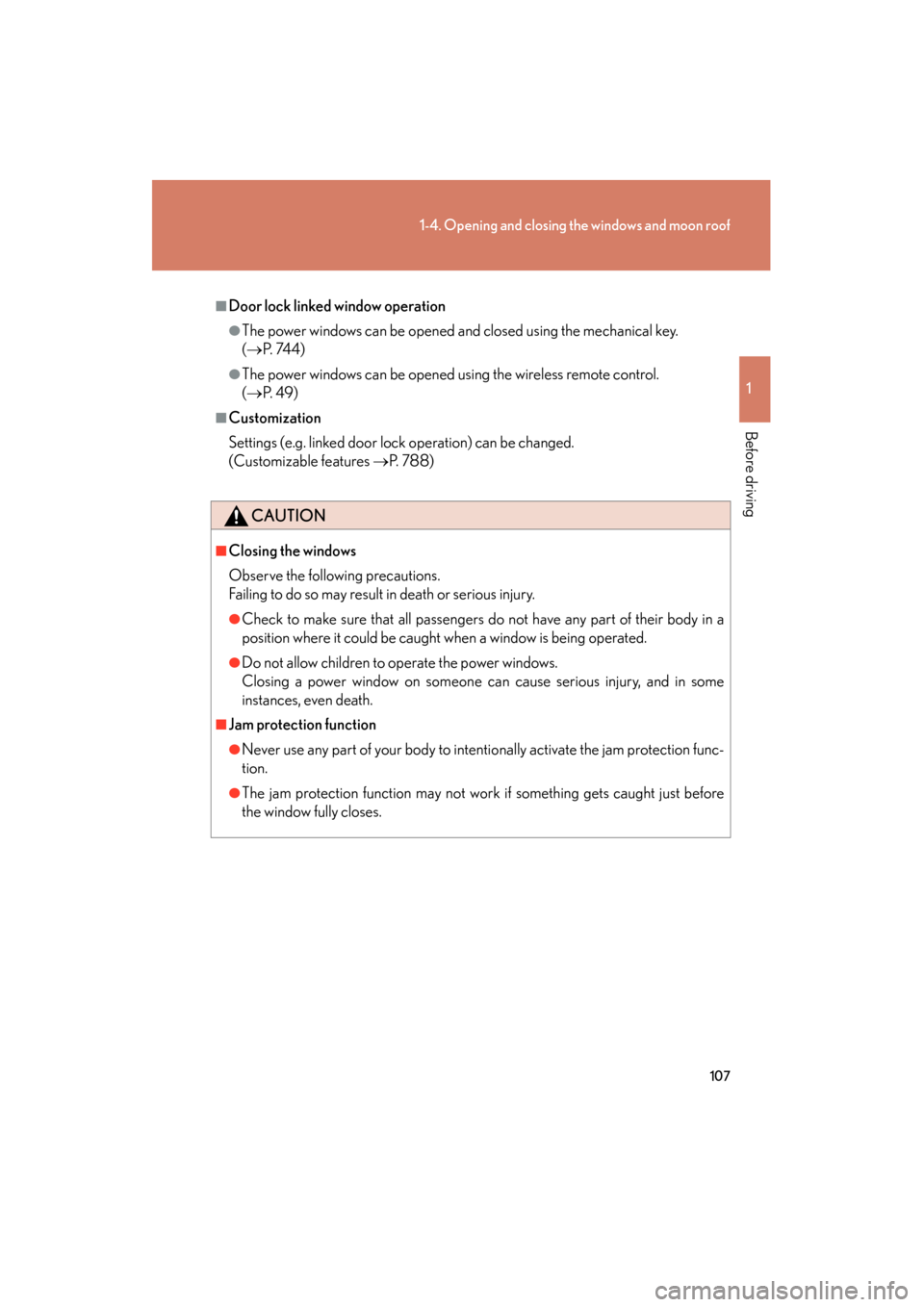

■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 74 4 )
●The power windows can be opened using the wireless remote control.
(→ P. 4 9 )
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 7 8 8 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone ca n cause serious injury, and in some
instances, even death.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.
GX460_OM_OM60J63U_(U).book Page 107 Thursday, March 29, 2012 9:10 AM

108
1-4. Opening and closing the windows and moon roof
GX460_OM_OM60J63U_(U)
Moon roof
Use the overhead switches to open and close the moon roof and tilt it up
and down.
■Opening and closing
Opens the moon roof
*
The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof*
*
: Lightly press either of the moon roof switches to stop
the moon roof partway.
■ Tilting up and down
Tilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either of the roof switches to stop the moon
roof partway.
GX460_OM_OM60J63U_(U).book Page 108 Thursday, March 29, 2012 9:10 AM

109
1-4. Opening and closing the windows and moon roof
1
Before driving
GX460_OM_OM60J63U_(U)
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. It
cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Door lock linked moon roof operation
The moon roof can be opened and closed using the mechanical key. (→ P. 74 4 )
