Lexus GX460 2013 Owner's Manual

220
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)●

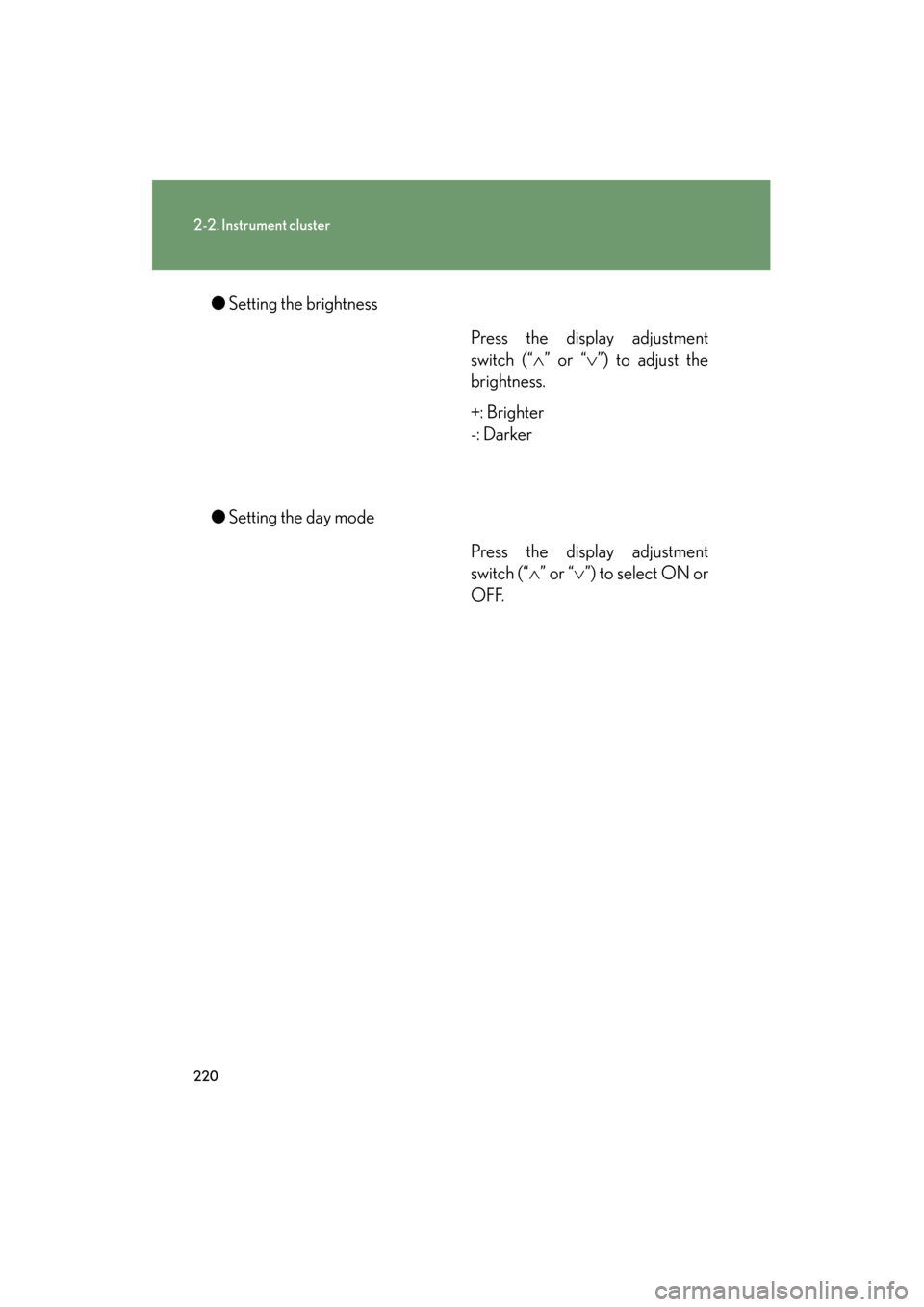

Setting the brightness
Press the display adjustment
switch (“∧” or “ ∨”) to adjust the
brightness.
+: Brighter
-: Darker
● Setting the day mode
Press the display adjustment
switch (“∧” or “ ∨”) to select ON or
OFF.
GX460_OM_OM60J63U_(U).book Page 220 Thursday, March 29, 2012 9:10 AM

221
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)■

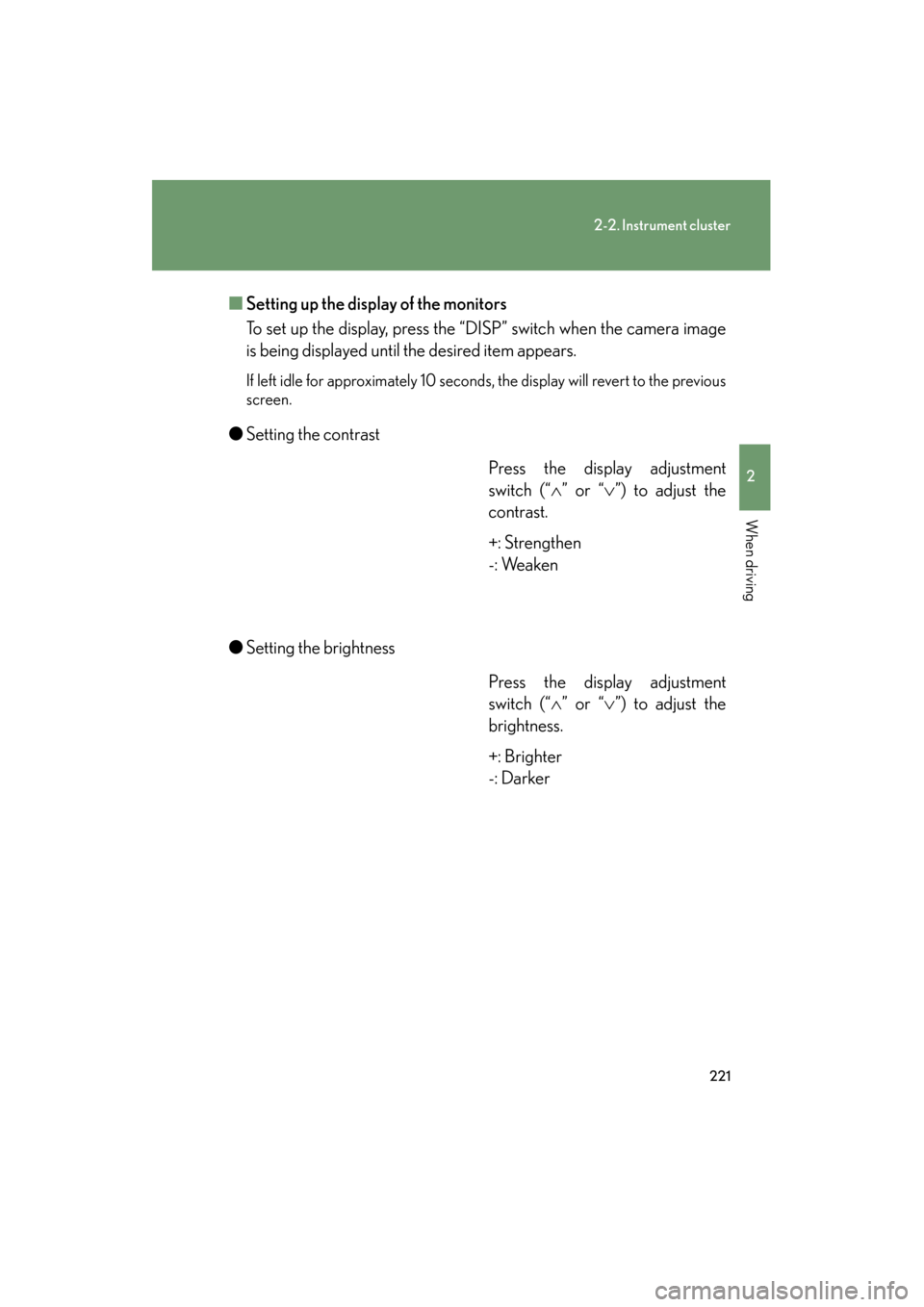

Setting up the display of the monitors
To set up the display, press the “DISP” switch when the camera image
is being displayed until the desired item appears.
If left idle for approximately 10 seconds, the display will revert to the previous
screen.
●Setting the contrast
Press the display adjustment
switch (“∧” or “ ∨”) to adjust the
contrast.
+: Strengthen
-: Weaken
● Setting the brightness
Press the display adjustment
switch (“∧” or “ ∨”) to adjust the
brightness.
+: Brighter
-: Darker
GX460_OM_OM60J63U_(U).book Page 221 Thursday, March 29, 2012 9:10 AM

222
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■When “--” or “E” is displayed on the outside temperature display
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
■When disconnecting and reconnecting battery terminals
The following information data and settings will be reset:
●Average fuel consumption after refueling
●Average fuel consumption
●Average vehicle speed
●Elapsed time
■Customization
Setting of available languages can be changed.
(Customizable features →P. 788)
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
GX460_OM_OM60J63U_(U).book Page 222 Thursday, March 29, 2012 9:10 AM

223
2
When driving
GX460_OM_OM60J63U_(U)
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e AThe daytime running
lights turn off.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
the lights listed above
turn on.
GX460_OM_OM60J63U_(U).book Page 223 Thursday, March 29, 2012 9:10 AM

224
2-3. Operating the lights and windshield wipers
GX460_OM_OM60J63U_(U)
Ty p e BThe daytime running
lights turn off.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
the lights listed above
turn on.
GX460_OM_OM60J63U_(U).book Page 224 Thursday, March 29, 2012 9:10 AM

225
2-3. Operating the lights and windshield wipers
2
When driving
GX460_OM_OM60J63U_(U)
Ty p e CThe daytime running
lights turn on.
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
lights listed above
turn on.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
GX460_OM_OM60J63U_(U).book Page 225 Thursday, March 29, 2012 9:10 AM

226
2-3. Operating the lights and windshield wipers
GX460_OM_OM60J63U_(U)

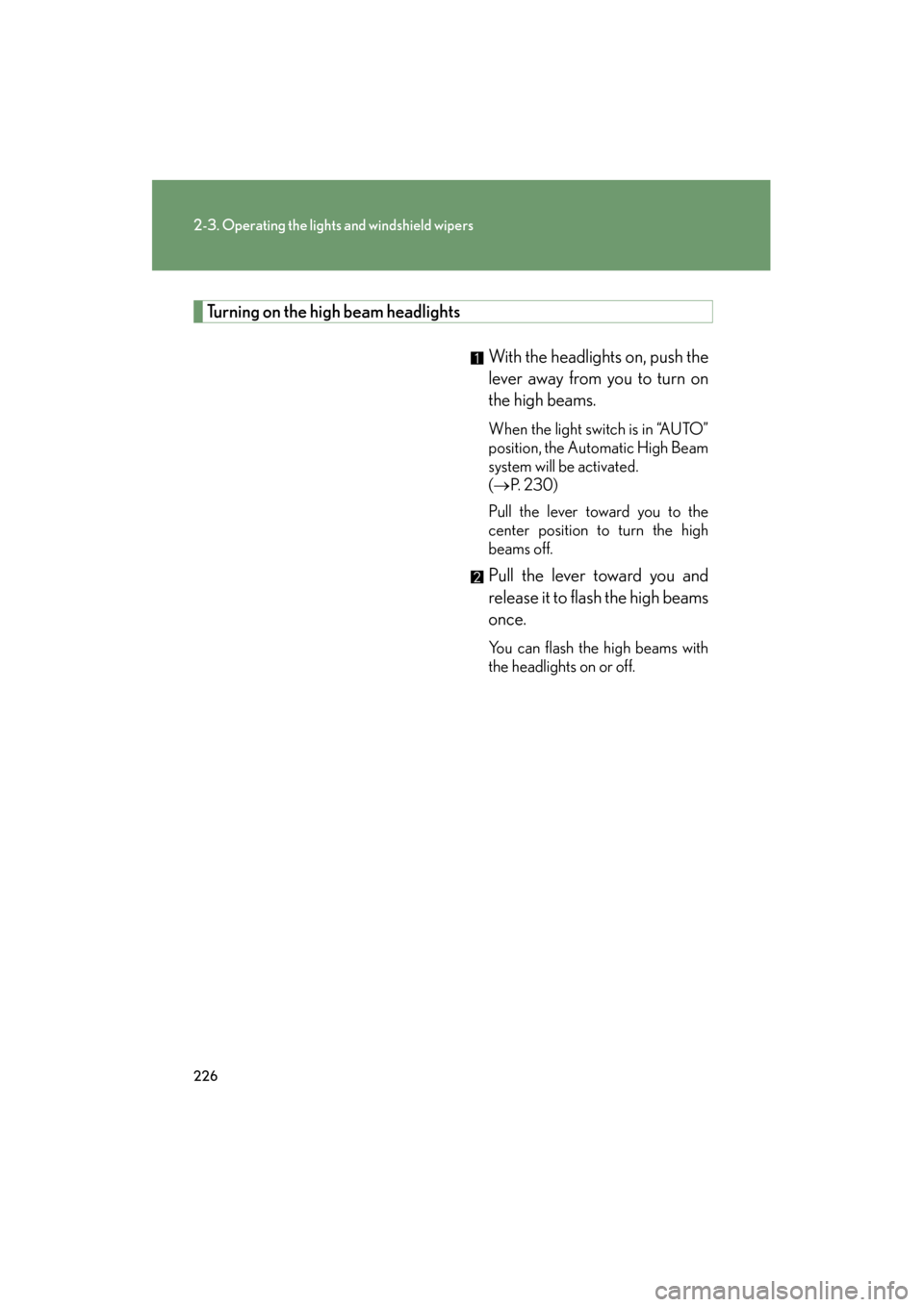

Turning on the high beam headlightsWith the headlights on, push the
lever away from you to turn on
the high beams.
When the light switch is in “AUTO”
position, the Automatic High Beam
system will be activated.
(→ P. 2 3 0 )
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with
the headlights on or off.
GX460_OM_OM60J63U_(U).book Page 226 Thursday, March 29, 2012 9:10 AM

227
2-3. Operating the lights and windshield wipers
2
When driving
GX460_OM_OM60J63U_(U)

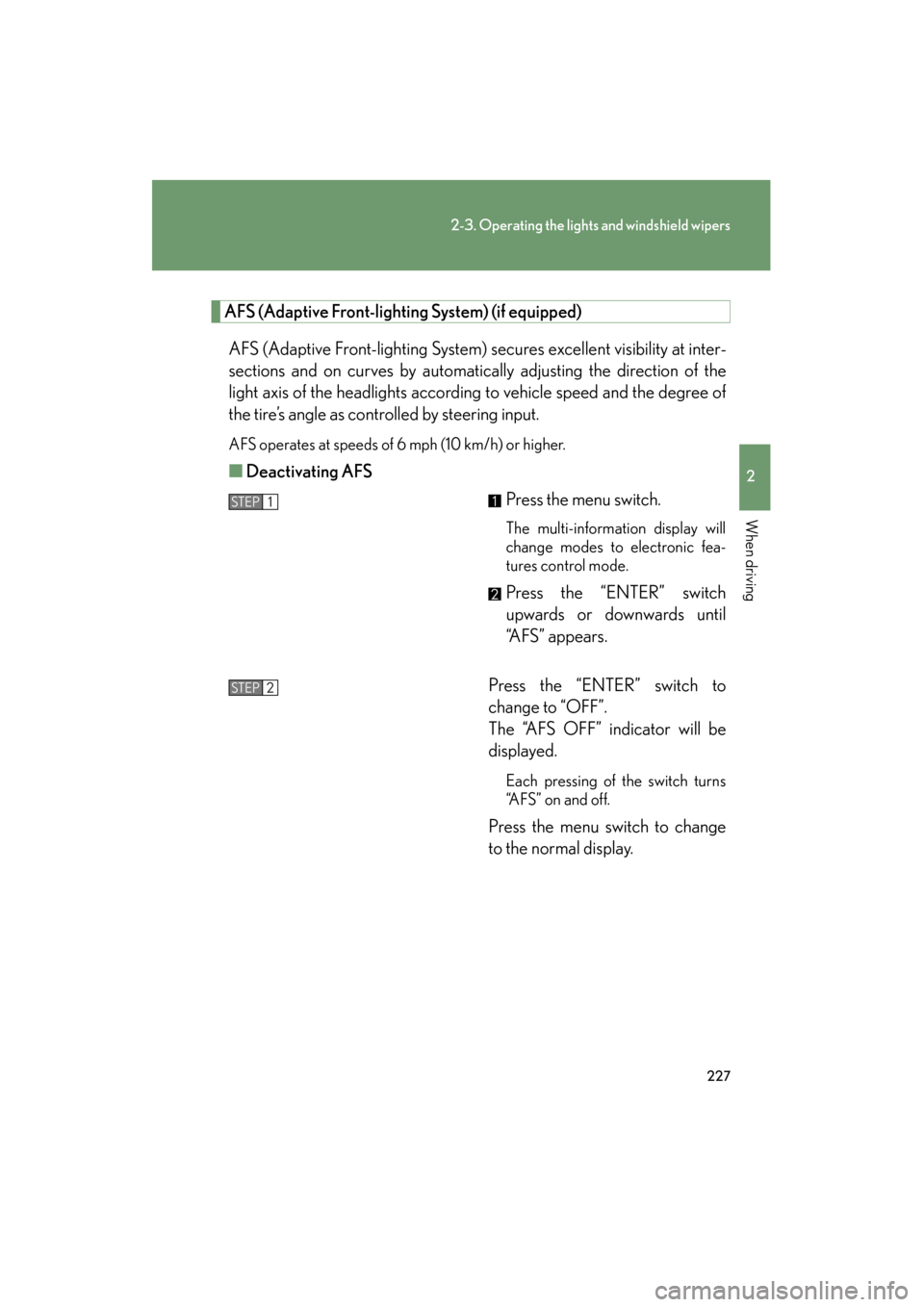

AFS (Adaptive Front-lighting System) (if equipped)AFS (Adaptive Front-lighting System) secures excellent visibility at inter-
sections and on curves by automatically adjusting the direction of the
light axis of the headlights according to vehicle speed and the degree of
the tire’s angle as controlled by steering input.
AFS operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the menu switch.
The multi-information display will
change modes to electronic fea-
tures control mode.
Press the “ENTER” switch
upwards or downwards until
“AFS” appears.
Press the “ENTER” switch to
change to “OFF”.
The “AFS OFF” indicator will be
displayed.
Each pressing of the switch turns
“AFS” on and off.
Press the menu switch to change
to the normal display.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 227 Thursday, March 29, 2012 9:10 AM

228
2-3. Operating the lights and windshield wipers
GX460_OM_OM60J63U_(U)
■Daytime running light system
●To make your vehicle more visible to other drivers, the headlights turn on auto-
matically (at a reduced intensity) whenever the engine is started and the parking
brake is released. Daytime running lights are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
●Compared to the headlights, the daytime running light system offers greater
durability and consumes less electricity, so it can help fuel economy.
■Headlight control sensor
■Automatic light off system
●When only the tail lights come on: The parking/front side marker, tail, license
plate and fog lights turn off if the “ENGINE START STOP” switch is turned to
ACCESSORY mode or turned off and the driver’s door is opened.
●When the headlights come on: The headlights, parking/front side marker, tail,
license plate and fog lights turn off 30 seconds after a door or the glass hatch is
opened and closed. (The lights turn off immediately if on the key is
pressed after all the doors are locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNITION
ON mode, or turn the light switch off once and then back to
or .
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GX460_OM_OM60J63U_(U).book Page 228 Thursday, March 29, 2012 9:10 AM

229
2-3. Operating the lights and windshield wipers
2
When driving
GX460_OM_OM60J63U_(U)
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the “AFS OFF” indicator flashes (if equipped)
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 788)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
GX460_OM_OM60J63U_(U).book Page 229 Thursday, March 29, 2012 9:10 AM
