Lexus GX460 2017 Navigation Manual

199
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
1Select “Options” .
2The following screen is displayed.
DVD OPTIONSNo.FunctionPage
Select to display the title
search screen.200
Select to display the prede-
termined scene on the
screen and start playing.
Select to display the audio
selection screen.200
Select to display the subtitle
selection screen.200
Select to display the angle
selection screen.200
Select to change the screen
size. 166
Select to display the image
quality adjustment screen.166
GX_Navi_OM60N98U_(U).book Page 199 Monday, May 30, 2016 2:28 PM

200
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Select “Search” .
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ” .
2Each time “Change” is selected, the au-
dio language is changed.
z The languages available are restricted to
those available on the DVD disc.
1Select “Subtitle” .
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
z The languages available are restricted to
those available on the DVD disc.
z When “Hide” is selected, the subtitles can
be hidden.
1Select “A n g l e ” .
2Each time “Change” is selected, the an-
gle is changed.
z The angles available are restricted to those
available on the DVD disc.
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE
CHANGING THE SUBTITLE
LANGUAGE
CHANGING THE ANGLE
The angle can be selected for discs that
are multi-angle compatible when the an-
gle mark appears on the screen.
GX_Navi_OM60N98U_(U).book Page 200 Monday, May 30, 2016 2:28 PM

201
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
XVehicles with rear seat entertainment
system
zFront passengers can cancel this setup
operation by touching “Play”. The player
will resume normal play.
z Likewise, a rear passenger can cancel a
front passenger’s sele ction of the setup
menu.
z To lock the rear seat entertainment system,
see “OPERATION FROM THE FRONT
SEATS” on page 234.
SETUP OPERATION FROM
THE REAR SEAT
This screen appears when a rear pas-
senger selects the setup menu.
GX_Navi_OM60N98U_(U).book Page 201 Monday, May 30, 2016 2:28 PM

202
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
3. USB MEMORY
■CONTROL SCREEN
OVERVIEW
The USB memory operation screen can be reached by the following methods:
X Connecting a USB memory ( →P.163)
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “USB”.
GX_Navi_OM60N98U_(U).book Page 202 Monday, May 30, 2016 2:28 PM

203
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
■CONTROL PANEL
GX_Navi_OM60N98U_(U).book Page 203 Monday, May 30, 2016 2:28 PM

204
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
No.Function
Select to select a folder/album.
Select to display the audio source selection screen.
•Displays cover art
• Select to display a file/track list.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the sound setting screen.
Select to display the audio settings screen.
Select to set random playback.
Select to set repeat playback.
Shows progress
Select to play/pause.
•Turn to select a track/file.
• Turn to move the cursor up/down on the list.
• Press to select the list.
•Press to select a track/file.
• Press and hold to fast forward/rewind.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
GX_Navi_OM60N98U_(U).book Page 204 Monday, May 30, 2016 2:28 PM

205
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM

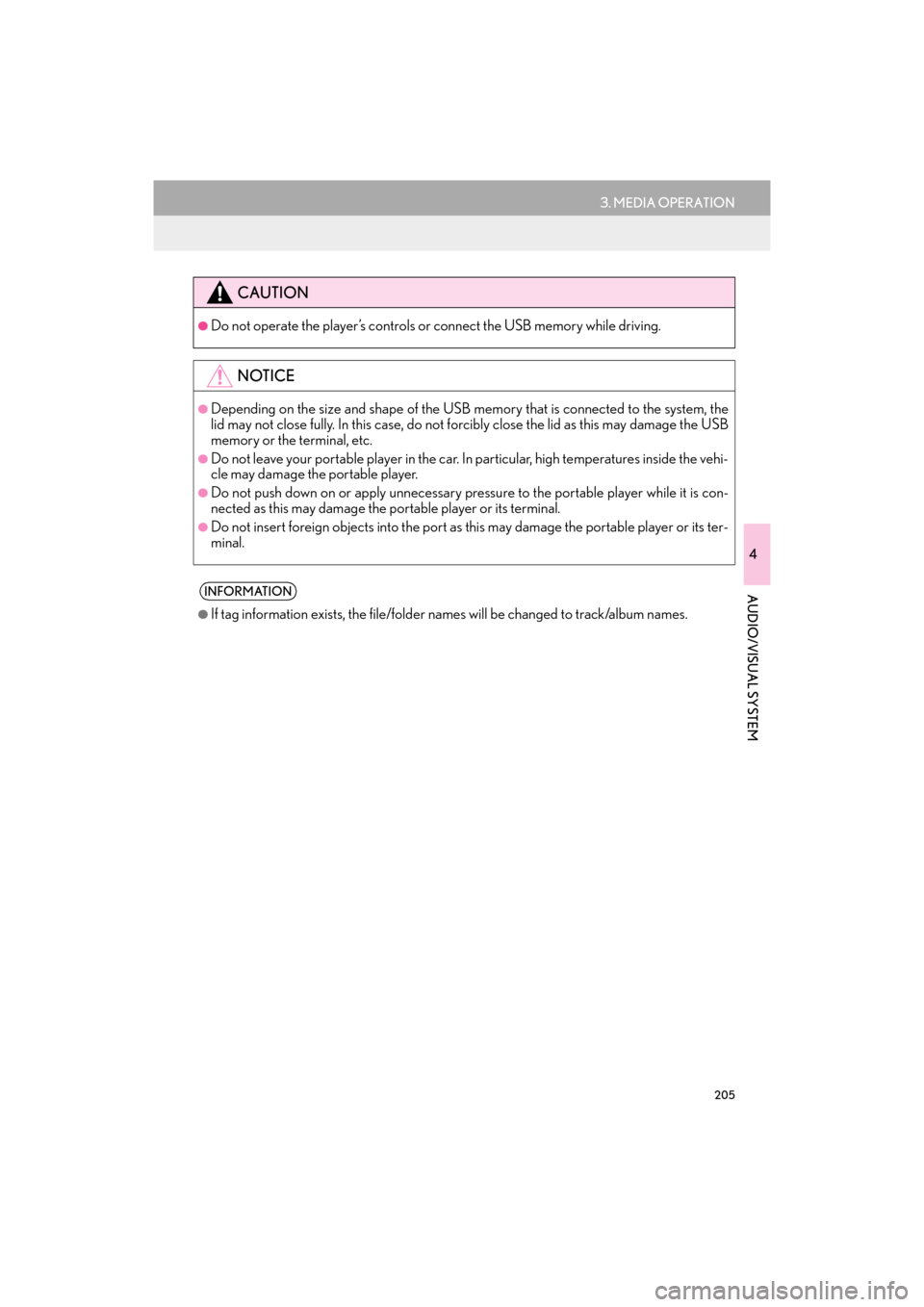

CAUTION
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Depending on the size and shape of the USB memory that is connected to the system, the
lid may not close fully. In this case, do not forcibly close the lid as this may damage the USB
memory or the terminal, etc.
●Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
●Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
●
If tag information exists, the file/folder names will be changed to track/album names.
GX_Navi_OM60N98U_(U).book Page 205 Monday, May 30, 2016 2:28 PM

206
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Select .
zEach time is selected, the mode
changes as follows:
X When random playback is off
• file/track repeat → folder/album
repeat → off
X When random playback is on
• file/track repeat → off
1Select .
zEach time is selected, the mode
changes as follows:
• random (1 folder/album random) →
folder/album random (all folder/album
random) → off
USB AUDIO
REPEATING
The file/track or folder/album currently
being listened to can be repeated.
INFORMATION
●
Each time is selected, “RPT”/
“FLD.RPT” appears on the screen.
RANDOM ORDER
Files/tracks or folders/albums can be
automatically and randomly selected.
INFORMATION
●
Each time is selected, “RAND”/
“FLD.RAND” appears on the screen.
GX_Navi_OM60N98U_(U).book Page 206 Monday, May 30, 2016 2:28 PM

207
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
4. iPod
■CONTROL SCREEN
OVERVIEW
The iPod operation screen can be reached by the following methods:
X Connecting an iPod ( →P.163)
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “iPod (DEVICE NAME)”.
XiPod audio
XiPod video
GX_Navi_OM60N98U_(U).book Page 207 Monday, May 30, 2016 2:28 PM

208
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
■CONTROL PANEL
GX_Navi_OM60N98U_(U).book Page 208 Monday, May 30, 2016 2:28 PM
