711-1. For safe use
GX460_OM_OM60Q09U_(U)
1
For safety and security
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
CAUTION
Exhaust gases include harmful carbon monoxi de (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the back door closed.
●If you smell exhaust gases in the vehicle even when the back door is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle while the engine is running, exhaust gases
may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.

721-2. Theft deterrent system
GX460_OM_OM60Q09U_(U)
Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touchi ng a key to the security system (key with a
built-in transponder ch ip) of another vehicle
■Certifications for the en gine immobilizer system
For vehicles sold in the U.S.A., Hawaii , NATO Germany, Guam, Saipan and Puerto
Rico
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

731-2. Theft deterrent system
GX460_OM_OM60Q09U_(U)
1
For safety and security
For vehicles sold in Canada
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

741-2. Theft deterrent system
GX460_OM_OM60Q09U_(U)
Alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or glass hatch is unlocked or opened in any way other than
using the entry function, wireless remo te control or mechanical key. (The
doors will lock again automatically.)
●The hood is opened.
Close the doors, glass hatch and hood,
and lock all the doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors.
●Start the engine. (The alarm will be de activated or stopped after a few sec-
onds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

751-2. Theft deterrent system
GX460_OM_OM60Q09U_(U)
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing.
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, depending on the si tuation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle un locks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the battery.
■Alarm memory function
After the alarm is activated, when you unlock any door using a entry function, wireless
remote control or mechanical key, the tail lights turn on for about 2 seconds to inform
you that the system was activated.
●A person inside the vehicle opens a door or
hood.
●The battery is recharged or replaced when the
vehicle is locked. (→P. 562)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

761-2. Theft deterrent system
GX460_OM_OM60Q09U_(U)

77
GX460_OM_OM60Q09U_(U)
Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................ 78
Gauges and meters .....................83
Multi-information display .......... 86
Fuel consumption information ................................... 92

78
GX460_OM_OM60Q09U_(U)2. Instrument cluster

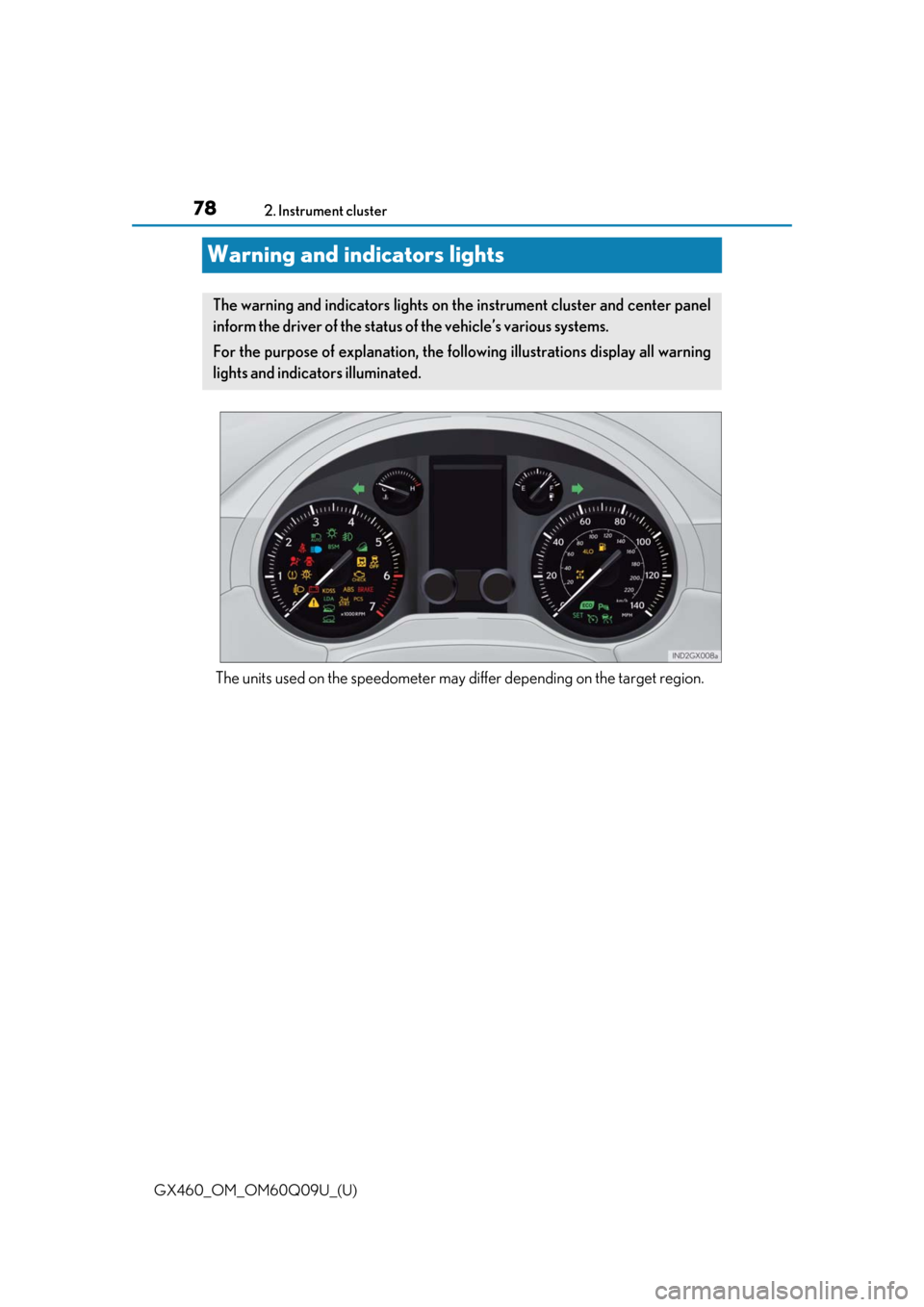

Warning and indicators lights
The units used on the speedometer may di
ffer depending on the target region.
The warning and indicators lights on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

GX460_OM_OM60Q09U_(U)
792. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
(→ P. 520)*1LED headlight warning light
(→ P. 521)
*1
(Canada)
Brake system warning light
(→ P. 520)*1, 2Automatic headlight
leveling system warning
light ( →P. 521)
*1Charging system warning
light ( →P. 520)*1Kinetic dynamic suspension
system warning light
(→ P. 521)
*1
(U.S.A.)
Malfunction indicator lamp
(→ P. 520)*2Low speed four-wheel
drive indicator light
(→ P. 522)
*1
(Canada)
Malfunction indicator lamp
(→ P. 520)*2Center differential lock
indicator light ( →P. 522)
*1SRS warning light
(→ P. 520) Open door warning light
(
→ P. 522)
*1
(U.S.A.)
ABS warning light
(→ P. 520) Low fuel level warning light
(
→ P. 522)
*1
(Canada)
ABS warning light
(→ P. 520) Seat belt reminder light
(
→ P. 522)
*1, 2
(if equipped)
Pre-collision system
warning light ( →P. 521)*1Master warning light
(→ P. 522)
*1Slip indicator light
(→ P. 521)*1Tire pressure warning light
(→ P. 522)

80
GX460_OM_OM60Q09U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
( → P. 200) “SET” indicator
(
→ P. 225, 228)
(U.S.A.)
Headlight indicator
(→ P. 202)
(if equipped)
Dynamic radar cruise
control indicator
(→ P. 228)
(Canada)
Tail light indicator
(→ P. 202)
(if equipped)
“LDA” (Lane Departure
Alert) indicator ( →P. 239)
Headlight high beam
indicator ( →P. 203)
*1, 2
Slip indicator ( →P. 352)
(if equipped)
Automatic High Beam
indicator ( →P. 206)*1VSC OFF indicator
(→ P. 353)
(if equipped)
Fog light indicator
(→ P. 211)
(if equipped)
Multi-terrain Select
indicator ( →P. 308)
*1
Eco Driving Indicator
Light ( →P. 90)
*1
(if equipped)
Crawl Control indicator
(→ P. 346)
Cruise control indicator
( → P. 225, 228)
*1
(if equipped)
Downhill assist control
system indicator
(→ P. 349)
