Lexus GX460 2021 Owner's Manual / LEXUS 2021 GX460 MULTIMEDIA OWNER'S MANUAL (OM60T29U)

121
1. VOICE COMMAND SYSTEM OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
4
VOICE COMMAND SYSTEM
2. CASUAL SPEECH RECOGNIZATION
Due to natural language speech recog-
nition technology, this system enables
recognition of a command when spoken
naturally. However, the system cannot
recognize every variation of each com-
mand. In some situations, it is possible to
omit the command for the procedure
and directly state the desired operation.
Not all voice commands are displayed in
the short cut menu.
INFORMATION
●If the command cannot be recognized
completely, the command input screen
will be displayed. (Search results will be
shown based on the part of the command
that was recognized.)
EXPRESSION EXAMPLES FOR
EACH FUNCTION
CommandExpression examples
“Call
”
Get me Brown>.
Contact the Brown> phone of
.
“Dial ”
Can you get me
<3334445555>.
Ring <3334445555>.
“Play Artist
”Play the artist .
I want to hear the band
.
“Play Album
”Play album .
Switch to the album
.

122
1. VOICE COMMAND SYSTEM OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
3. COMMAND LIST
Frequently used commands are listed in the following tables.
 For devices that are not installed in the vehicle, the related commands will not be dis-
played in the shortcut menu screen. Also, according to condit ions, other commands
may not be displayed in the shortcut menu screen.
 Basic
 Phone
Recognizable voice commands and their actions are shown below.
 Voice recognition langua ge can be changed. (P.44)
CommandAction
“Help”Prompts voice guidance to offer examples of commands
or operation methods
“Go Back”Returns to the previous screen
“Next Page”Displays the next page
“Previous Page”Displays the previous page
“Go to ”Displays the command list of the selected tab
CommandAction
“Redial”Places a call to the phone numb er of the latest outgoing
call
“Call Back”Places a call to the phone numb er of latest incoming call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call ”Place a call to the said phone type of the contact from the
phone book

123
1. VOICE COMMAND SYSTEM OPERATION
4
VOICE COMMAND SYSTEM
GX460_MM_OM60T29U_(U)20.03.27 13:49
Audio
 Info
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from th e selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
CommandAction
“Show Forecast”Displays weather information
“Show Traffic”Displays traffic information
INFORMATION
●Commands relating to operation of the audio/visual systems can only be performed when
the audio/visual systems are turned on.

124
GX460_MM_OM60T29U_(U)20.03.27 13:49
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold this switch until you hear
the beeps.
2The Mobile Assistant can be used only
when the “Mobile Assistant” screen is
displayed.
 To cancel the Mobile Assistant, select
“Cancel”, or press and hold the on the
steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice com-
mand. • After some phone and music commands,
the Mobile Assistant feature will automat-
ically end to complete the requested
action.
The Mobile Assistant feature will
activate Apple’s Siri
® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this system
via Bluetooth
®. (  P.31)
The volume of the Mo bile Assistant can
be adjusted using the “PWR/VOL” knob
or steering wheel volume control
switches. The Mob ile Assistant and
phone call volumes are synchronized.
INFORMATION
●The available features and functions may
vary based on the iOS version installed
on the connected device.
●Some Siri features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri will inform you
that the function is not available.
●If Siri is not enabled on the cellular phone
connected via Bluetooth®, an error mes-
sage will be displayed on the screen.
●While a phone call is active, the Mobile
Assistant cannot be used.
●If using the navigation feature of the cellu-
lar phone, ensure the active audio source
is Bluetooth
® audio or iPod in order to
hear turn by turn direction prompts.

125
2. MOBILE ASSISTANT OPERATION
4
VOICE COMMAND SYSTEM
GX460_MM_OM60T29U_(U)20.03.27 13:49
MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location:
 P.116)
INFORMATION
●Wait for the listening beeps before using
the Mobile Assistant.
●The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while the Mobile Assistant is being used.
• The air conditioning speed is set high.
• The air conditioning vents are turned toward the microphone.

126
2. MOBILE ASSISTANT OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49

5
127
1
2
3
4
5
6
GX460_MM_OM60T29U_(U)20.03.27 13:49
7

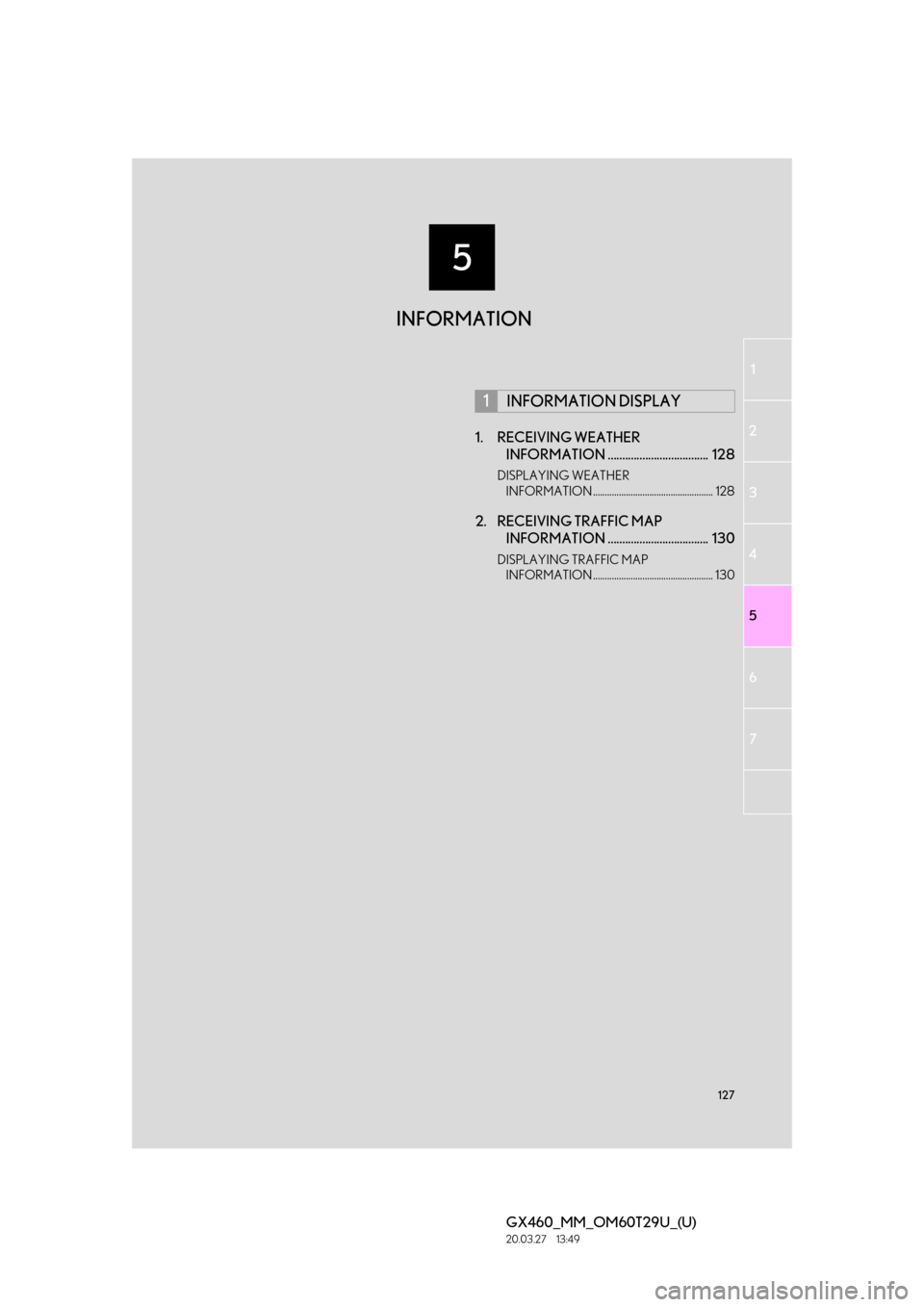

1. RECEIVING WEATHER INFORMATION ................................... 128
DISPLAYING WEATHER
INFORMATION ................................................... 128
2. RECEIVING TRAFFIC MAP INFORMATION ................................... 130
DISPLAYING TRAFFIC MAP
INFORMATION ................................................... 130
1INFORMATION DISPLAY
INFORMATION

128
GX460_MM_OM60T29U_(U)20.03.27 13:49
1. INFORMATION DISPLAY
1. RECEIVING WEATHER INFORMATION
1Press the “APPS” button.
2Select “Weather”.
3Check that the “Weather” screen is dis-
played.Weather radar information can be re-
ceived via the HD radio.
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. (P.129)
Select to display the weather of a de-
sired location in the recently
checked locations list.
Select to display the weather of a de-
sired location in the national cities
list.
Select to display the weather of a de-
sired location in the other local cities
list.

129
1. INFORMATION DISPLAY
5
INFORMATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
1Display the “Weather” screen.
( P.128)
2Select “Current Weather” .
3Select the desired tab to be displayed.
 When the “Current” tab is selected
 When the “3 Day” tab is selected
When a specific day is selected, weather
information for that day will be displayed.
 When the “6/12 Hour” tab is selectedDISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
●If weather is set to the home screen, the
weather screen of the current location
will be displayed.

130
1. INFORMATION DISPLAY
GX460_MM_OM60T29U_(U)20.03.27 13:49
2. RECEIVING TRAFFIC MAP INFORMATION
1Press the “APPS” button.
2Select “Traffic” .
3Check that the “Traffic Map” screen is
displayed.
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing trafficTraffic information can be received via
the HD radio.
DISPLAYING TRAFFIC MAP
INFORMATION
