For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viiiPage
1Driving position memory switches
171
. . . . . . . . . . .
2Power window switches 33
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 20
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 34
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 116 . . . . . . .
6Side vents 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and fog light switch 24 . . . . . .
8Wiper and washer switch 27
. . . . . . . . . . . . . . . . . . . . . .
9Center vents 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 36
. . . . . . . . . . . . . . . . . . . . .
11Car audio 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multiinformation display 53
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 179
. . . . . . . . . .
14Rear window defogger switch 31
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 46 . . . . . .
16Glove box 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
18Cigarette lighter 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 37
. . . . . . . . . . . . . . . . . . . . . . . . . . Page
20Fourwheel drive control lever
309
. . . . . . . . . . . . . . .
21Automatic transmission selector lever 303 . . . . . . . .
22Parking brake lever 301
. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 309
. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 68
. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 326
. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 315. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29“2nd STRT” switch 309
. . . . . . . . . . . . . . . . . . . . . . . . . .
30Cruise control switch 312
. . . . . . . . . . . . . . . . . . . . . . .
31Steering pad switches 214
. . . . . . . . . . . . . . . . . . . . . . .
32Hood lock release lever 83
. . . . . . . . . . . . . . . . . . . . . . .
33Fuel filler door opener 84
. . . . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 60
. . . . . . . . . . . . . .
35Outside rear view mirror defogger switch 32 . . . . . . .
36Power outlet (115 VAC) main switch 68
. . . . . . . . . . . .

KEYS AND DOORS
8
KEYS
1Master keys (black) These keys work in every lock.
For your Lexus dealer to make a new key with builtin
transponder chip, your dealer will need one of them.
2Sub key (gray) This key will not open the glove box.
3Key number plate Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for the engine immobiliser system has been
placed in the head of the master and sub keys. These chips
are required for the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect items locked in the glove box when using valet
parking, leave the sub key with the attendant. Since the side doors and back door can be locked without a
key, you should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

Finish
SECTION 1 – 4
61
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Interior lights 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Personal lights 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Illuminated entry system 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Glove box 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Rear console box 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Garage door opener 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Cup holders 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Overhead console box 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Auxiliary box 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Floor mat 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Warning reflector holder 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coat hooks 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Luggage cover 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Tie −down hooks 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Luggage stowage precautions 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Finish
INTERIOR EQUIPMENT
70
GLOVE BOX
 1 Unlock2 Open3 Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
REAR CONSOLE BOX
To access the rear console box, push the center of the lid.
The rear console box light comes on when the tail lights are
turned on.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the rear console box closed
while driving.

AIR CONDITIONING
190
(e) Checking and replacing the airconditioning filter
The air conditioning filter is behind the glove box.
The air conditioning filter may clog after long use. The filter
may need to be replaced if the air flow of the air conditioner and
heater experiences extreme reductions in operating ef ficiency,
or if the windows become to fog up easily.
To maintain the air conditioning efficiency, inspect and replace
the air conditioning filter according to the maintenance
schedule. (For scheduled maintenance information, please
refer to the “Owner’s Manual Supplement / Scheduled
Maintenance”.)
1. Open the glove box and unhook the cip as shown
above.
2. Push each side of the glove box to disconnect the
claws.

DRIVING TIPS
351
Brakes and safety chains
Lexus recommends trailers with brakes that conform to
any applicable federal and state/provincial regulations.
 A safety chain must always be used between the towing
vehicle and the trailer. Leave sufficient slack in the
chain for turns. The chain should cross under the
trailer tongue to prevent the tongue from dropping to
the ground in case it becomes damaged or separated.
For correct safety chain procedures, consult your
Lexus dealer.
CAUTION
If the total trailer weight exceeds 453 kg (1000 lb.),
trailer brakes are required.
 Never tap into your vehicle’s hydraulic system as it
will lower its braking effectiveness.
 Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If damage occurs to the coupling unit or hitch ball,
there is possible danger of the trailer wandering over
into another lane.

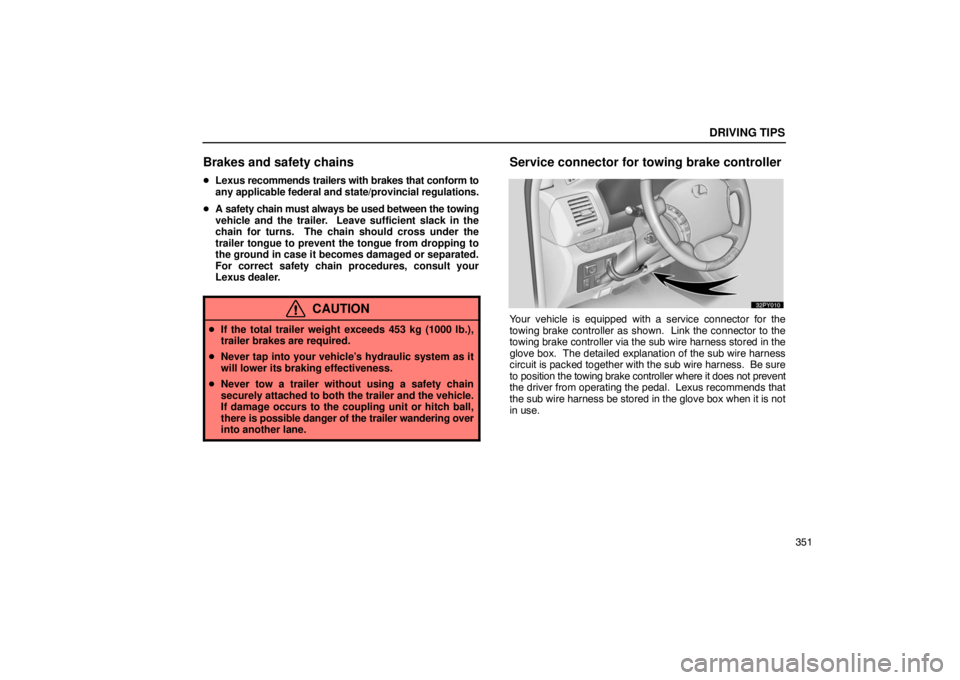

Service connector for towing brake controller
Your vehicle is equipped with a service connector for the
towing brake controller as shown. Link the connector to the
towing brake controller via the sub wire harness stored in the
glove box. The detailed explanation of the sub wire harness
circuit is packed together with the sub wire harness. Be sure
to position the towing brake controller where it does not prevent
the driver from operating the pedal. Lexus recommends that
the sub wire harness be stored in the glove box when it is not
in use.

ELECTRICAL COMPONENTS
456
Light Bulbs Bulb No. W Type
7Running board lights 194 3.8 C
8Rear turn signal lights 7440 21 C
9Stop/tail lights7443 21/5 C
10Stop/tail and rear side
marker lights7443 21/5 C
11Back−
up lights 7440 21 C
12License plate lights 168 5 C
Light Bulbs Bulb No. W Type
13Vanity lights −−2F
14Personal lights −−8G
15Interior lights −−8F
16Door courtesy lights −−3.8 G
17Glove box light −−1.2 C
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H3 halogen bulbs
F: Double end bulbs
G: Single end bulbs
