OCCUPANT RESTRAINT SYSTEMS
194
A forward-facing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.
On vehicles with side airbags and curtain shield
airbags, do not allow the child to lean his/her head or
any part of his/her body against the door or the area
of the seat, front or rear pillar, or roof side rail from
which the side airbags or curtain shield airbags
deploy even if the child is seated in the child restraint
system. It is dangerous if the side airbag and curtain
shield airbag inflate, and the impact could cause
death or serious injury to the child.

OCCUPANT RESTRAINT SYSTEMS
195
If the driver's seat position does not allow sufficient
space for safe installation, install the child restraint
system on the second right seat.
Align both third seatbacks at the same angle
When installing a child restraint system in the third
center position, align both seatbacks at the same
angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or
serious injuries in a collision.

OCCUPANT RESTRAINT SYSTEMS
196
1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and insert the tab into the buckle taking care not
to twist the belt. Keep the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.

OCCUPANT RESTRAINT SYSTEMS
197
3. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.

OCCUPANT RESTRAINT SYSTEMS
198
4. To remove the convertible seat, press the buckle-release
button and allow the belt to retract completely. The belt will
move freely again and be ready to work for an adult or older
child passenger.(C) Booster seat installation
A booster seat must be used in forward-facing position
only.

OCCUPANT RESTRAINT SYSTEMS
199

Move seat fully back
CAUTION
A forward-facing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.
On vehicles with side airbags and curtain shield
airbags, do not allow the child to lean his/her head or
any part of his/her body against the door or the area
of the seat, front or rear pillar, or roof side rail from
which the side airbags or curtain shield airbags
deploy even if the child is seated in the child restraint
system. It is dangerous if the side airbag and curtain
shield airbag inflate, and the impact could cause
death or serious injury to the child.

OCCUPANT RESTRAINT SYSTEMS
200

Align both third seatbacks at the same angle
When installing a child restraint system in the third
center position, align both seatbacks at the same
angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or
serious injuries in a collision.
1. Sit the child on a booster seat. Run the lap and shoulder belt
through or around the booster seat and child following the
instructions provided by its manufacturer and insert the tab into
the buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly across the child's
shoulder and that the lap belt is positioned as low as possible
on child's hips. See Seat beltsº on page 139 for details.
CAUTION
Always make sure the shoulder belt is positioned
across the center of child's shoulder. The belt should
be kept away from child's neck, but not falling off
child's shoulder. Otherwise, the child may be killed
or seriously injured in case of sudden braking or a
collision.

OCCUPANT RESTRAINT SYSTEMS
201
Both high-positioned lap belts and loose-fitting
belts could cause death or serious injuries due to
sliding under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on a child's hips as possible.
For child's safety, do not place the shoulder belt
under child's arm.
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.

OCCUPANT RESTRAINT SYSTEMS
202

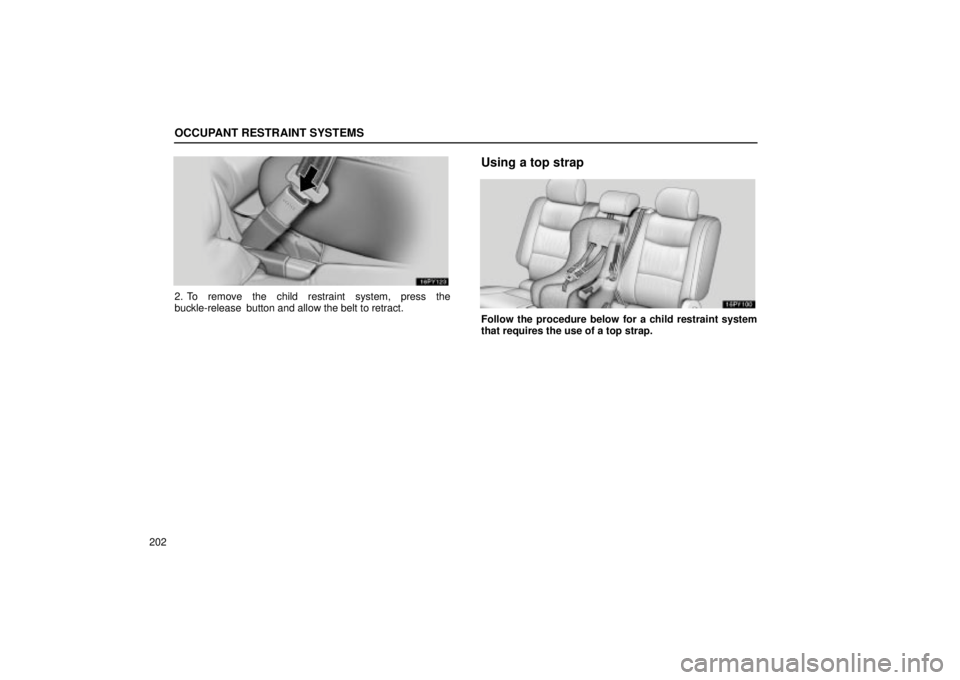

2. To remove the child restraint system, press the
buckle-release button and allow the belt to retract.
Using a top strap
Follow the procedure below for a child restraint system
that requires the use of a top strap.

OCCUPANT RESTRAINT SYSTEMS
203

1Anchor brackets2Symbol mark
Use the anchor brackets on the back of the second seatback
to attach the top strap.
Anchor brackets are installed for each second seating
positions.
This symbol mark indicates the location of the anchor brackets.
1. Remove the head restraint.
2. Open the cover of the anchor bracket.
