Lexus HS250h 2011 Hybrid system / LEXUS 2011 HS250H OWNERS MANUAL (OM75037U)

5
When trouble arises
511
5-2. Steps to take in an emergency
Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message goes off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed with the
“POWER” switch ON
mode
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph
(5 km/h), a buzzer
sounds to indicate that
the door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closed with the
“POWER” switch ON
mode
Close the hood.
Indicates that the trunk is
not fully closed with the
“POWER” switch ON
mode
Close the trunk.

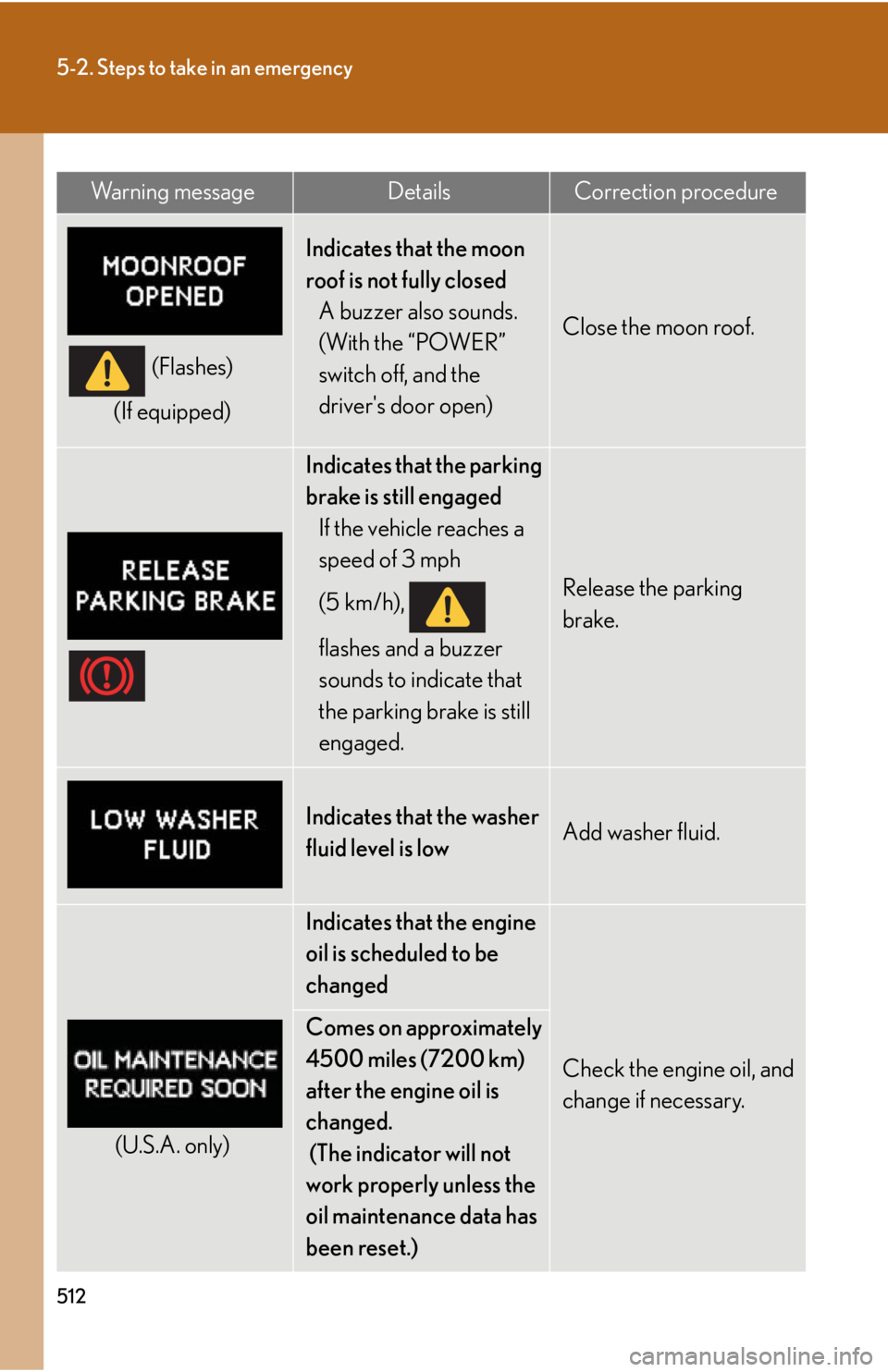

512
5-2. Steps to take in an emergency
(Flashes)
(If equipped)
Indicates that the moon
roof is not fully closed A buzzer also sounds.
(With the “POWER”
switch off, and the
driver's door open)
Close the moon roof.
Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is still
engaged.
Release the parking
brake.
Indicates that the washer
fluid level is lowAdd washer fluid.
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed.
(The indicator will not
work properly unless the
oil maintenance data has
been reset.)
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises

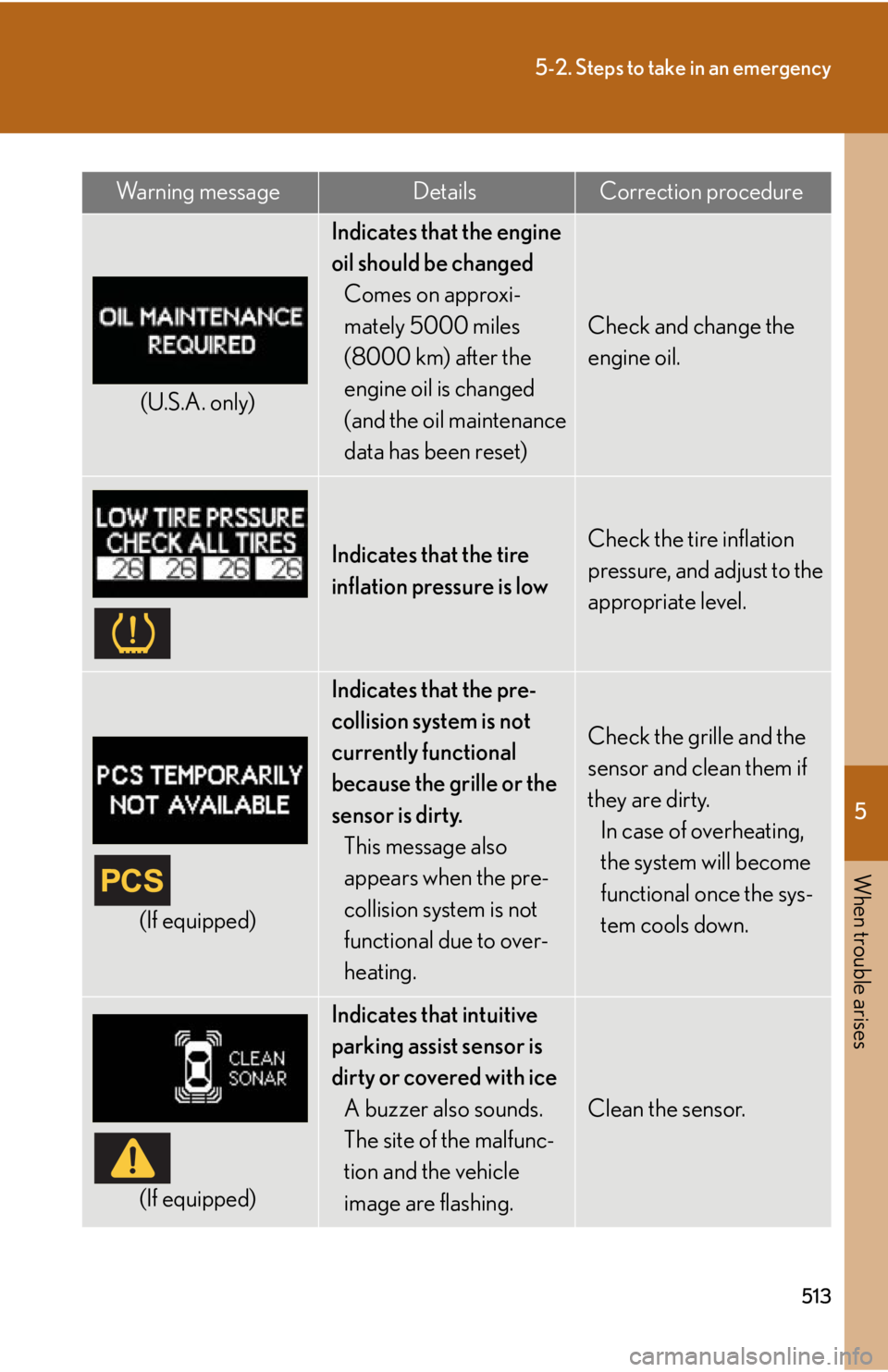

513
5-2. Steps to take in an emergency
(U.S.A. only)
Indicates that the engine
oil should be changedComes on approxi-
mately 5000 miles
(8000 km) after the
engine oil is changed
(and the oil maintenance
data has been reset)
Check and change the
engine oil.
Indicates that the tire
inflation pressure is lowCheck the tire inflation
pressure, and adjust to the
appropriate level.
(If equipped)
Indicates that the pre-
collision system is not
currently functional
because the grille or the
sensor is dirty.
This message also
appears when the pre-
collision system is not
functional due to over-
heating.
Check the grille and the
sensor and clean them if
they are dirty.In case of overheating,
the system will become
functional once the sys-
tem cools down.
(If equipped)
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
A buzzer also sounds.
The site of the malfunc-
tion and the vehicle
image are flashing.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

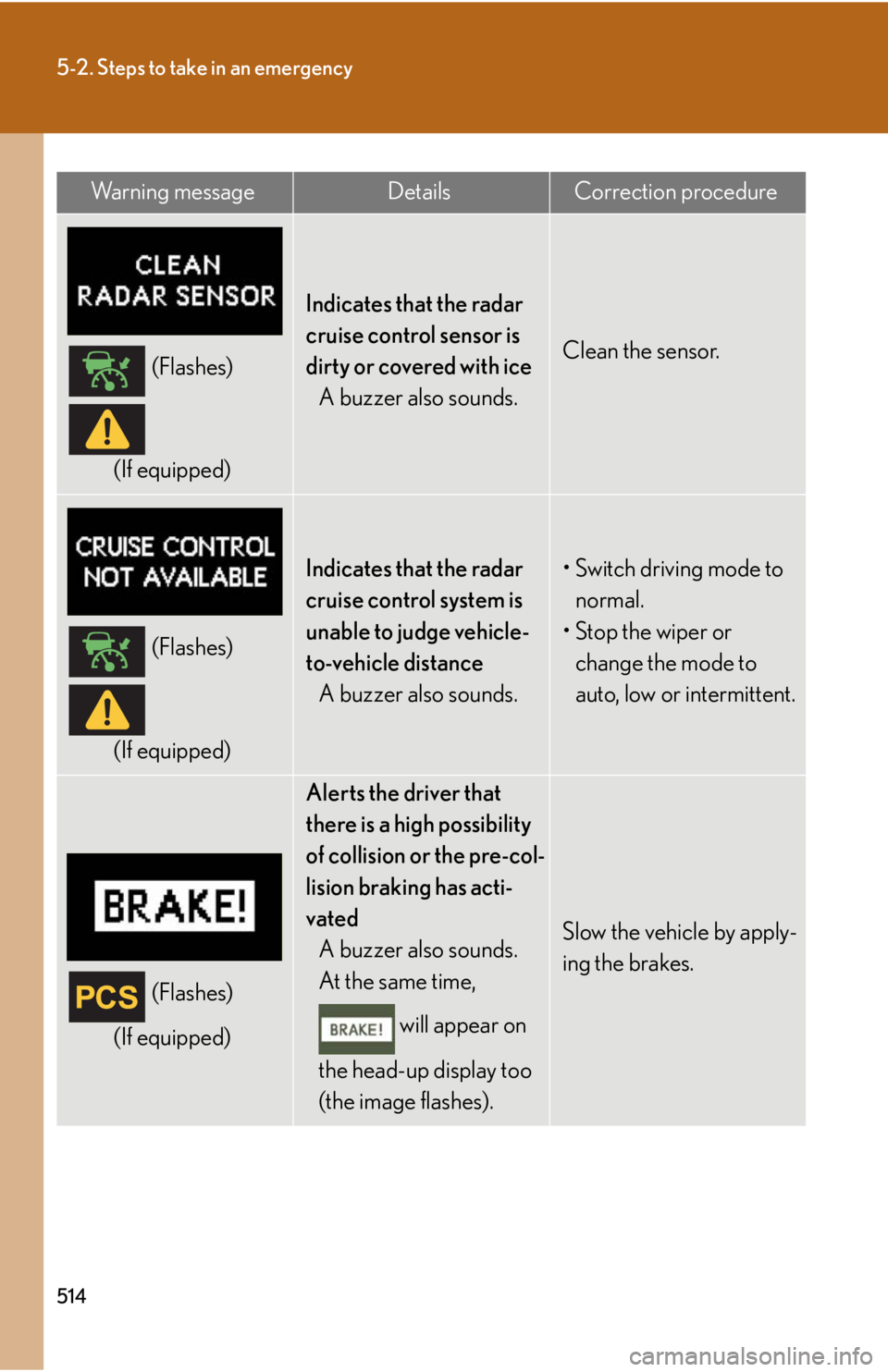

514
5-2. Steps to take in an emergency
(Flashes)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice A buzzer also sounds.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance A buzzer also sounds.• Switch driving mode to normal.
•Stop the wiper or change the mode to
auto, low or intermittent.
(Flashes)
(If equipped)
Alerts the driver that
there is a high possibility
of collision or the pre-col-
lision braking has acti-
vated A buzzer also sounds.
At the same time,
will appear on
the head-up display too
(the image flashes).
Slow the vehicle by apply-
ing the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises

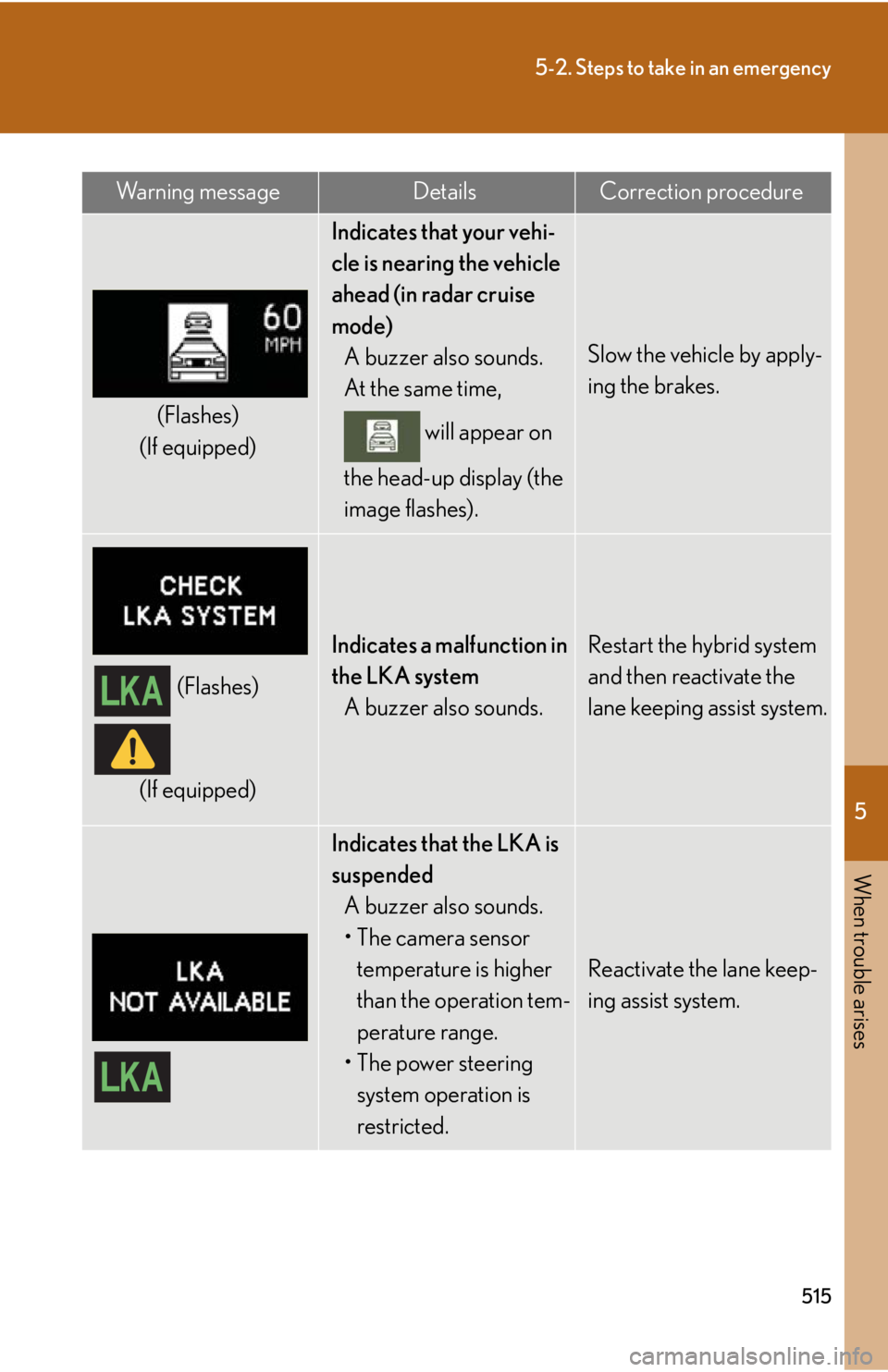

515
5-2. Steps to take in an emergency
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode) A buzzer also sounds.
At the same time,
will appear on
the head-up display (the
image flashes).
Slow the vehicle by apply-
ing the brakes.
(Flashes)
(If equipped)
Indicates a malfunction in
the LKA system A buzzer also sounds.Restart the hybrid system
and then reactivate the
lane keeping assist system.
Indicates that the LKA is
suspendedA buzzer also sounds.
• The camera sensor temperature is higher
than the operation tem-
perature range.
• The power steering system operation is
restricted.
Reactivate the lane keep-
ing assist system.
Wa r n i n g m e s s a g eDetailsCorrection procedure

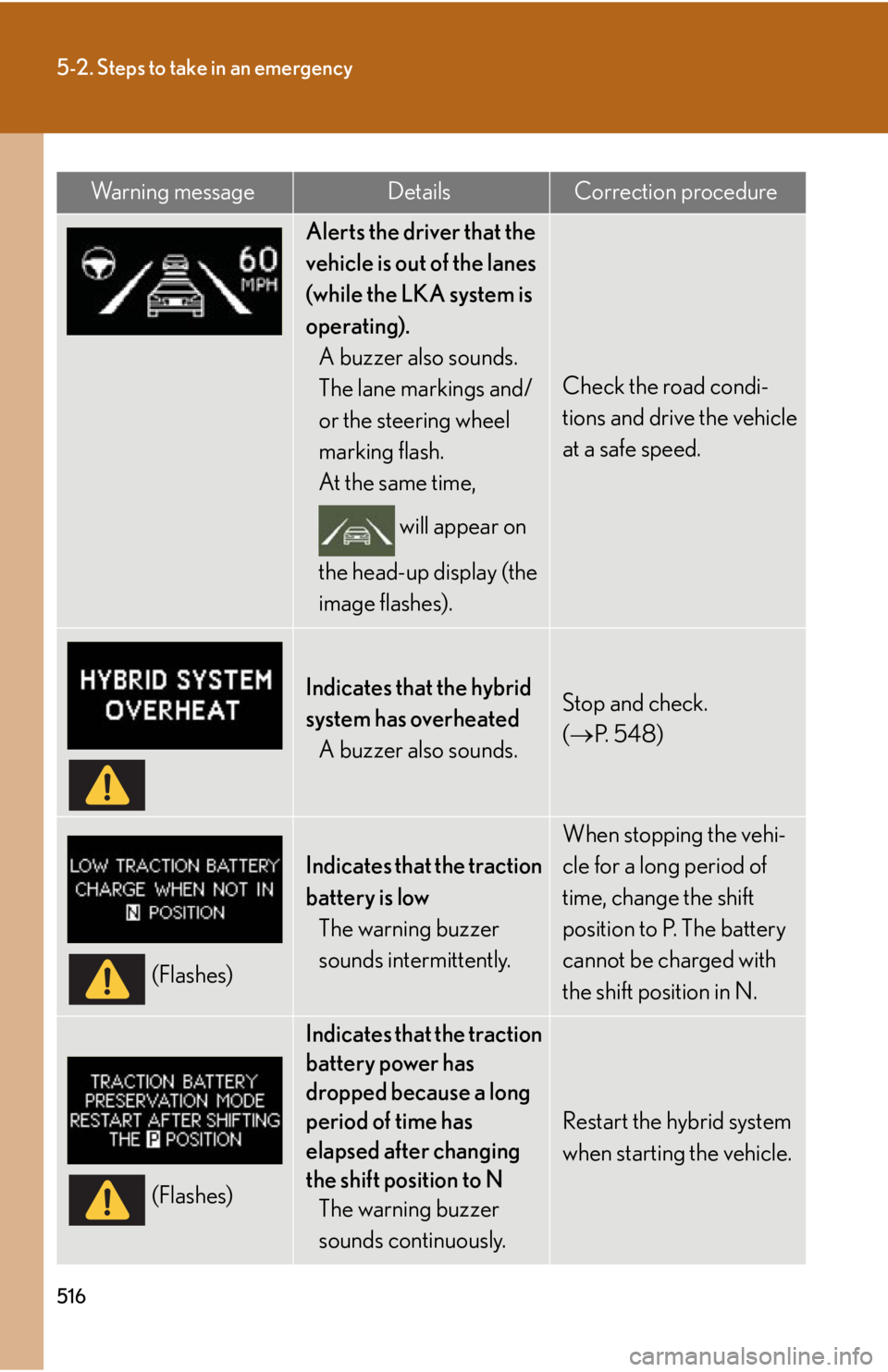

516
5-2. Steps to take in an emergency
Alerts the driver that the
vehicle is out of the lanes
(while the LKA system is
operating).A buzzer also sounds.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear on
the head-up display (the
image flashes).
Check the road condi-
tions and drive the vehicle
at a safe speed.
Indicates that the hybrid
system has overheated A buzzer also sounds.Stop and check.
( P. 5 4 8 )
(Flashes)
Indicates that the traction
battery is low
The warning buzzer
sounds intermittently.
When stopping the vehi-
cle for a long period of
time, change the shift
position to P. The battery
cannot be charged with
the shift position in N.
(Flashes)
Indicates that the traction
battery power has
dropped because a long
period of time has
elapsed after changing
the shift position to NThe warning buzzer
sounds continuously.
Restart the hybrid system
when starting the vehicle.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises

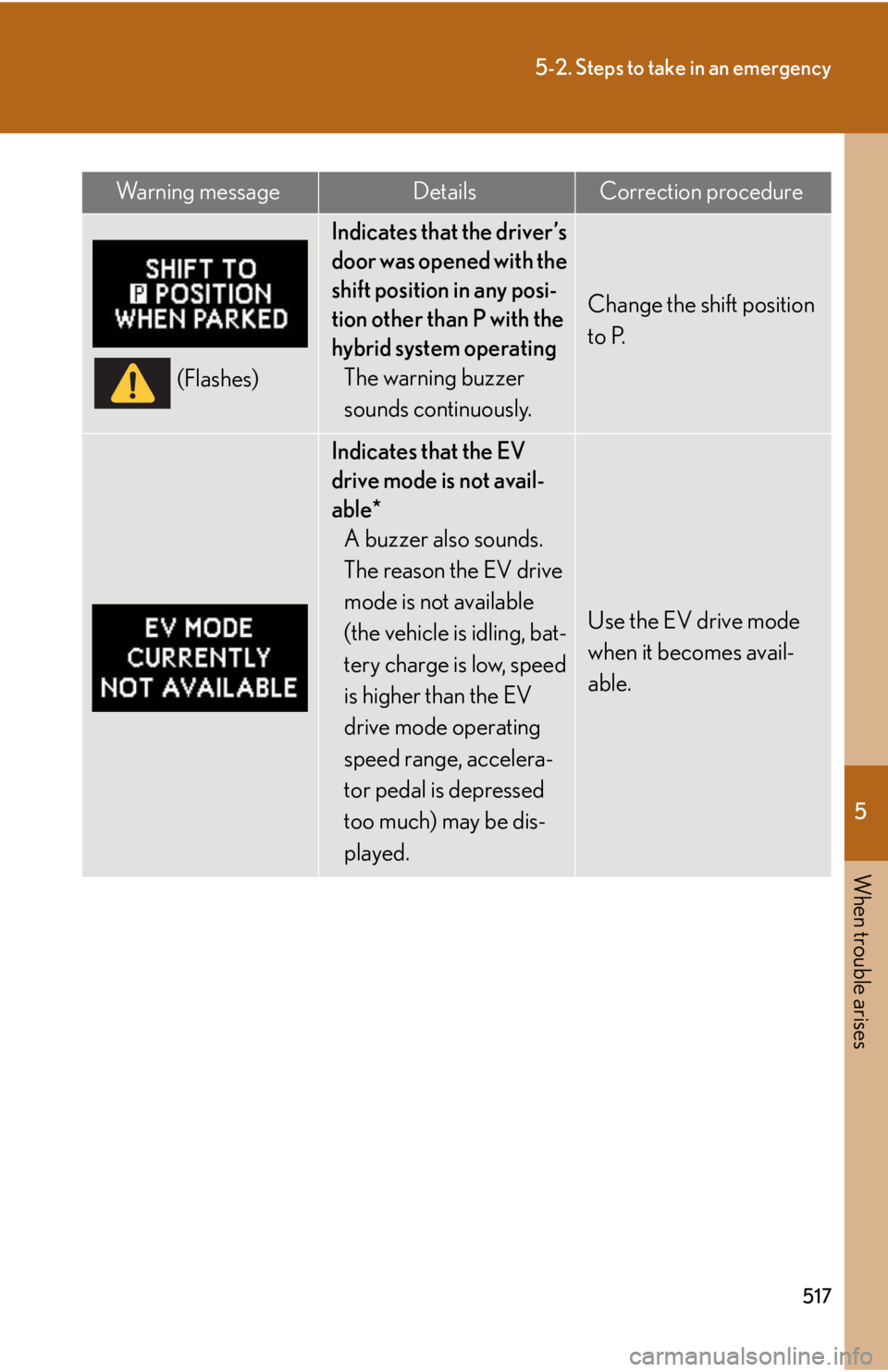

517
5-2. Steps to take in an emergency
(Flashes)
Indicates that the driver’s
door was opened with the
shift position in any posi-
tion other than P with the
hybrid system operatingThe warning buzzer
sounds continuously.
Change the shift position
to P.
Indicates that the EV
drive mode is not avail-
able*A buzzer also sounds.
The reason the EV drive
mode is not available
(the vehicle is idling, bat-
tery charge is low, speed
is higher than the EV
drive mode operating
speed range, accelera-
tor pedal is depressed
too much) may be dis-
played.
Use the EV drive mode
when it becomes avail-
able.
Wa r n i n g m e s s a g eDetailsCorrection procedure

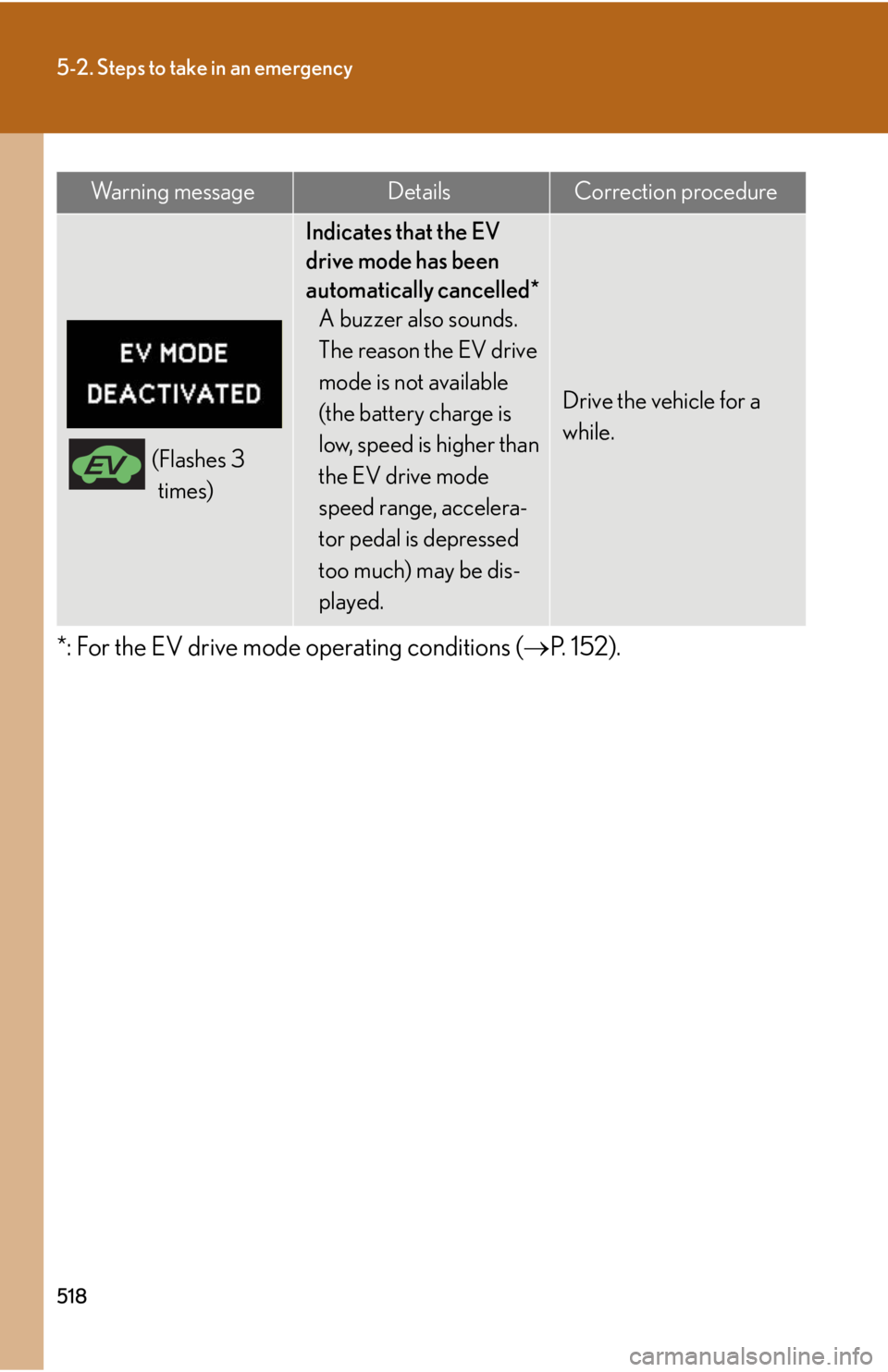

518
5-2. Steps to take in an emergency
*: For the EV drive mode operating conditions (P. 152).
(Flashes 3
times)
Indicates that the EV
drive mode has been
automatically cancelled* A buzzer also sounds.
The reason the EV drive
mode is not available
(the battery charge is
low, speed is higher than
the EV drive mode
speed range, accelera-
tor pedal is depressed
too much) may be dis-
played.
Drive the vehicle for a
while.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises
519
5-2. Steps to take in an emergency
Have the malfunction repaired immediatelyAfter taking the specified steps to co rrect the suspected problem, check
that the warning message and light go off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the hybrid system.Start the hybrid
system with the
electronic key
present.
Once3 times
(Flashes)
The electronic key
was carried out-
side the vehicle
and a door other
than the driver's
door was opened
and closed while
the “POWER”
switch was in a
mode other than
off.
Bring the elec-
tronic key back
into the vehicle.
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
the shift position P
was selected with-
out turning off the
“POWER” switch.
Tu r n t h e
“POWER” switch
off or bring the
electronic key
back into the vehi-
cle.

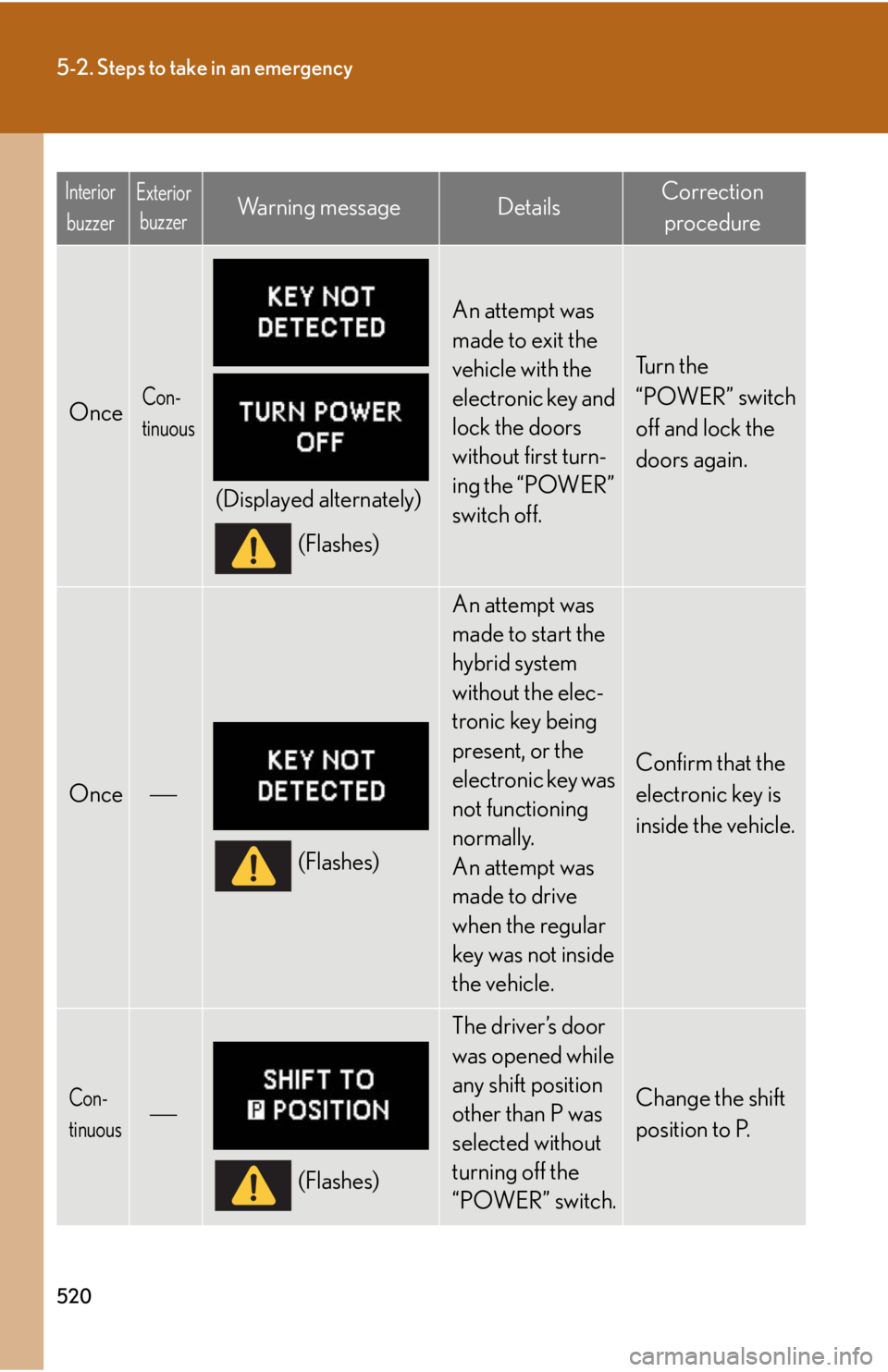

520
5-2. Steps to take in an emergency
OnceCon-
tinuous
(Displayed alternately)(Flashes)
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the “POWER”
switch off.
Tu r n t h e
“POWER” switch
off and lock the
doors again.
Once
(Flashes)
An attempt was
made to start the
hybrid system
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.
Confirm that the
electronic key is
inside the vehicle.
Con-
tinuous
(Flashes)
The driver’s door
was opened while
any shift position
other than P was
selected without
turning off the
“POWER” switch.
Change the shift
position to P.
Interior buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
