5
When trouble arises
541
5-2. Steps to take in an emergency
HS250h_U_75050U

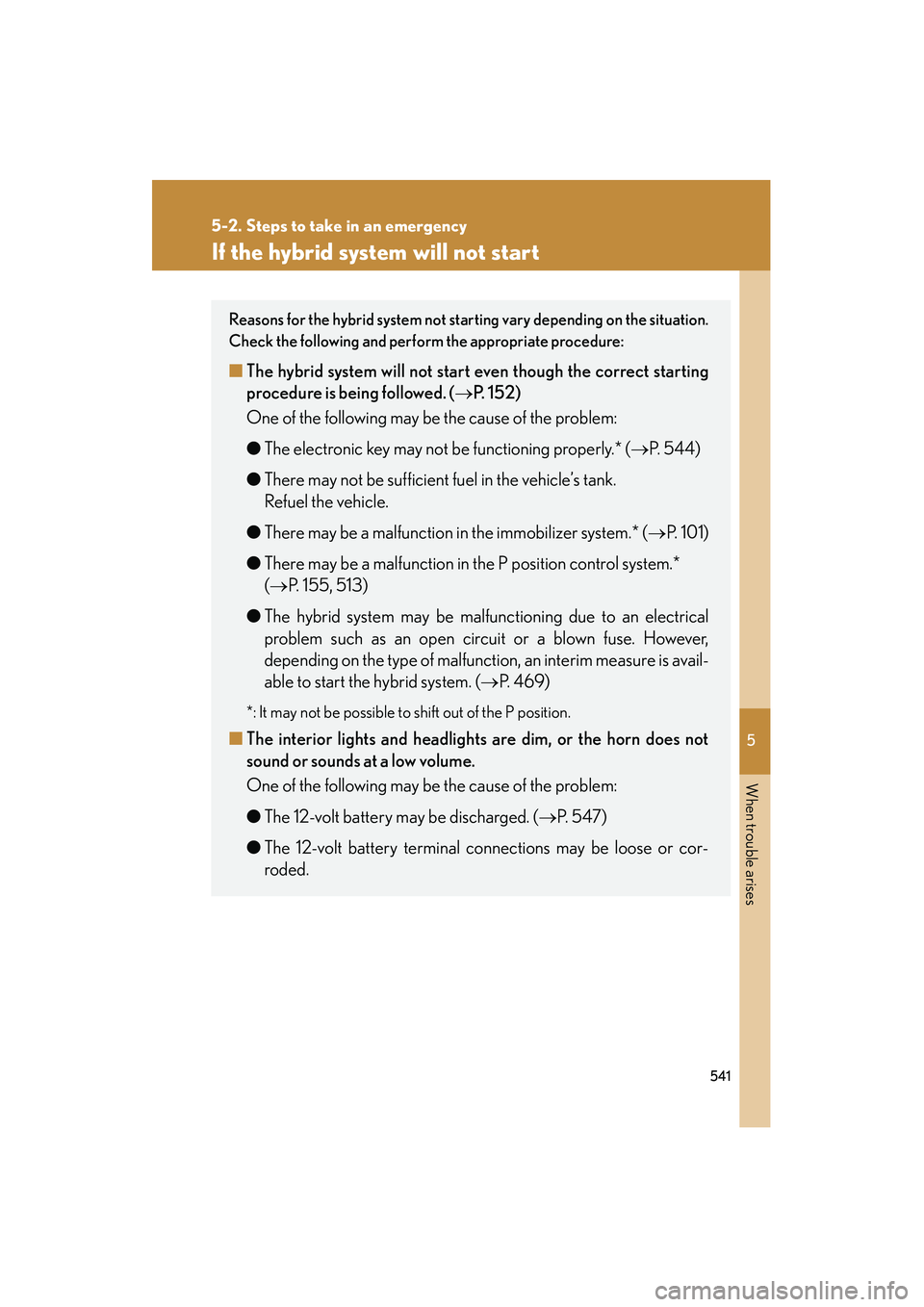

If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the situation.
Check the following and perform the appropriate procedure:
■ The hybrid system will not star t even though the correct starting
procedure is being followed. ( →P. 152)
One of the following may be the cause of the problem:
● The electronic key may not be functioning properly.* ( →P. 544)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● There may be a malfunction in the immobilizer system.* ( →P. 1 0 1 )
● There may be a malfunction in the P position control system.*
(→ P. 155, 513)
● The hybrid system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However,
depending on the type of malfunction, an interim measure is avail-
able to start the hybrid system. ( →P. 4 6 9 )
*: It may not be possible to shift out of the P position.
■The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( →P. 547)
● The 12-volt battery terminal connections may be loose or cor-
roded.

5
When trouble arises
543
5-2. Steps to take in an emergency
HS250h_U_75050U

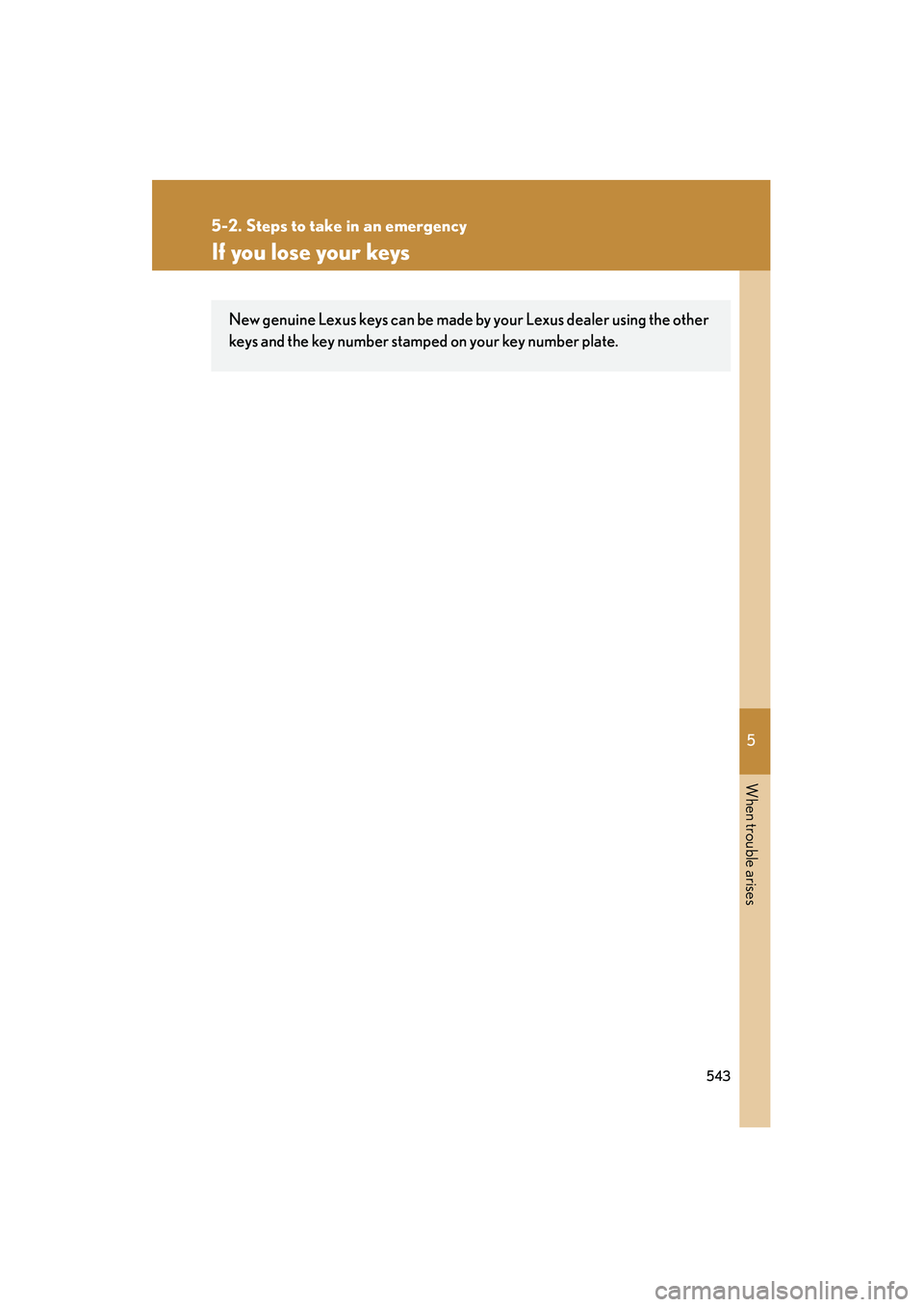

If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
keys and the key number stamped on your key number plate.

544
5-2. Steps to take in an emergency
HS250h_U_75050U
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
DoorsUse the mechanical key (→P. 4 2 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 52) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened and the hybrid system can be started by following the procedure
below.

5
When trouble arises

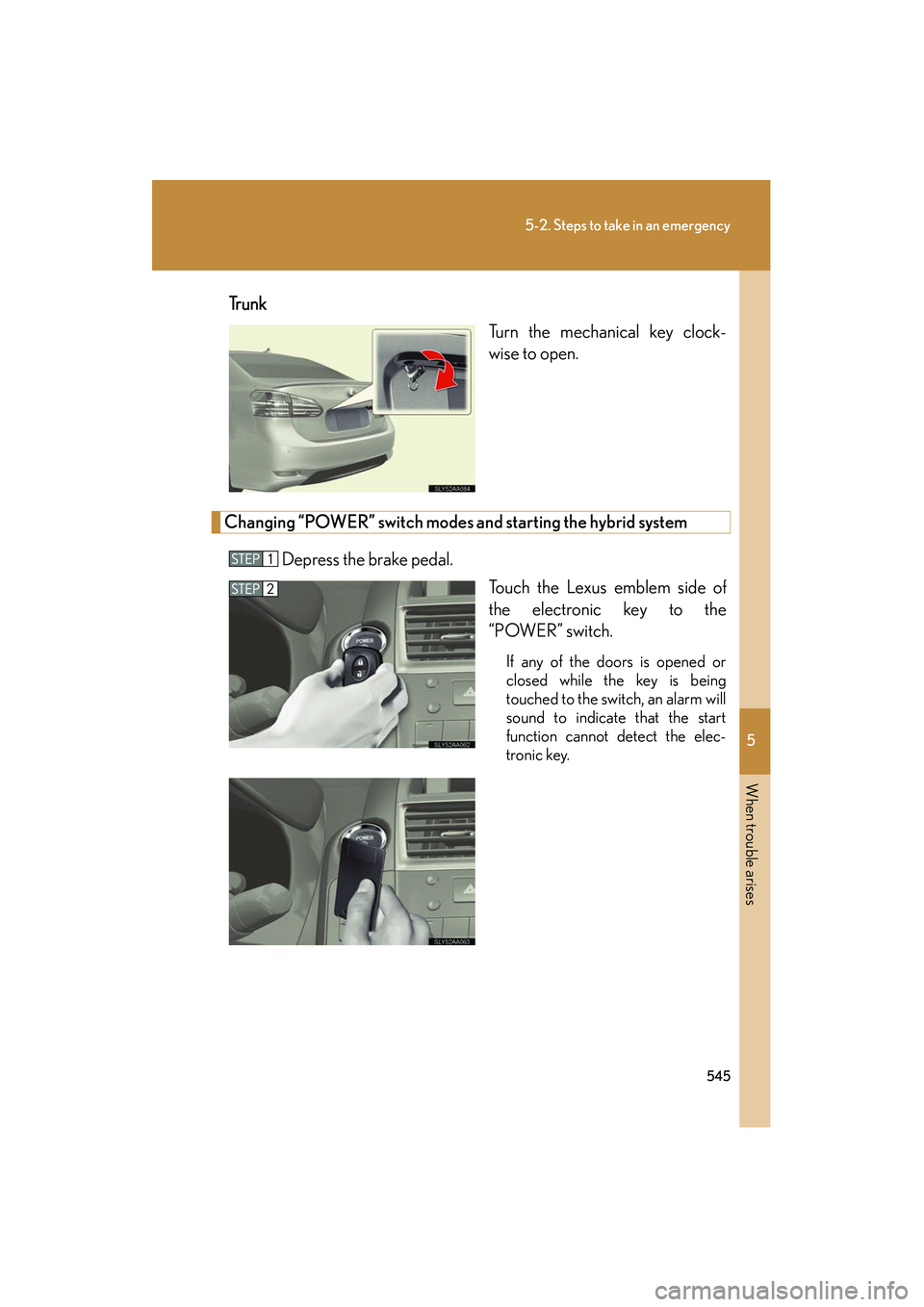

545
5-2. Steps to take in an emergency
HS250h_U_75050UTr u n k
Turn the mechanical key clock-
wise to open.
Changing “POWER” switch modes and starting the hybrid system
Depress the brake pedal. Touch the Lexus emblem side of
the electronic key to the
“POWER” switch.
If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm will
sound to indicate that the start
function cannot detect the elec-
tronic key.

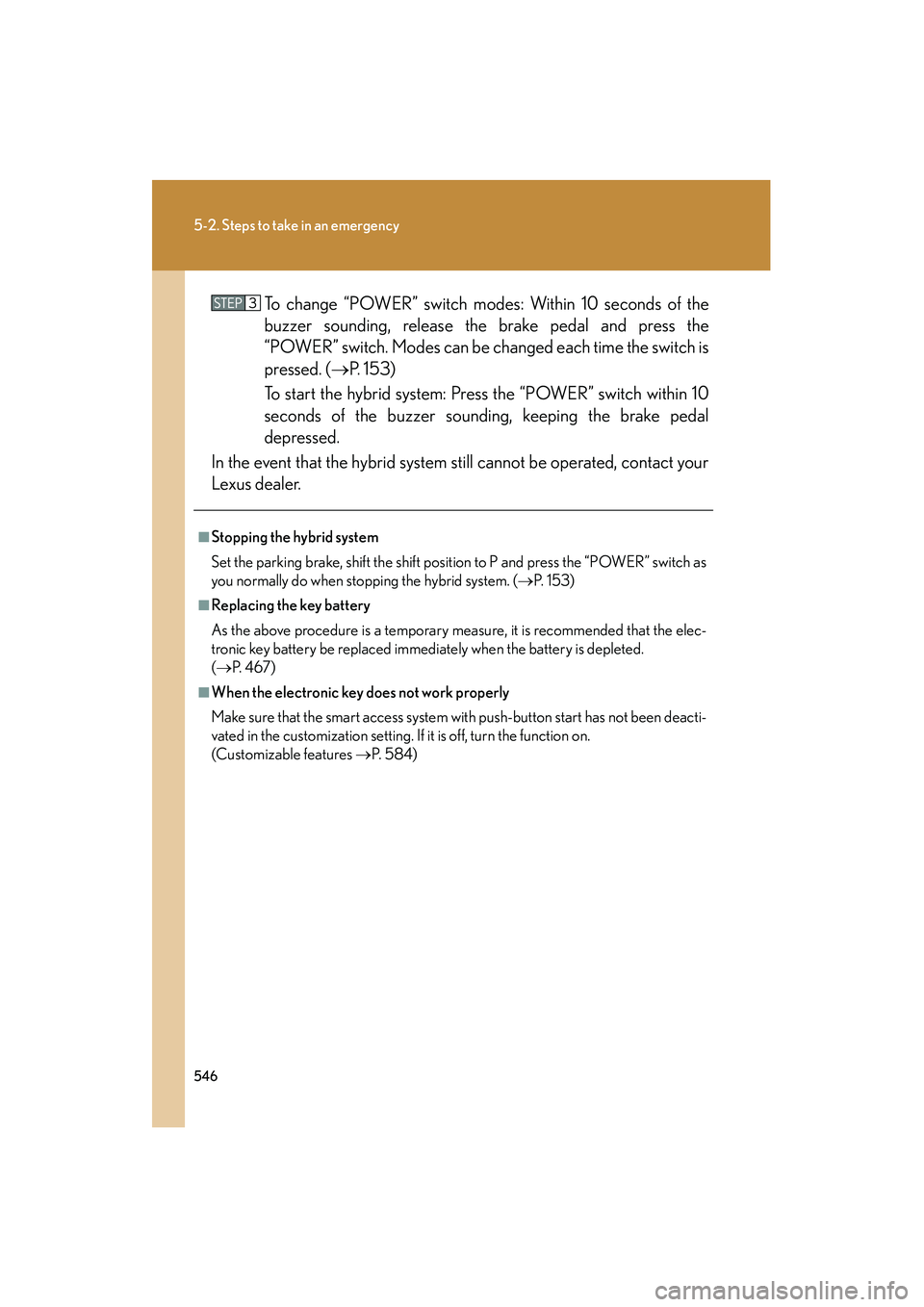

546
5-2. Steps to take in an emergency
HS250h_U_75050UTo change “POWER” switch modes: Within 10 seconds of the
buzzer sounding, release the brake pedal and press the
“POWER” switch. Modes can be ch
anged each time the switch is
pressed. (→ P. 153)
To start the hybrid system: Press the “POWER” switch within 10
seconds of the buzzer sounding, keeping the brake pedal
depressed.
In the event that the hybrid system still cannot be operated, contact your
Lexus dealer.
■Stopping the hybrid system
Set the parking brake, shift the shift position to P and press the “POWER” switch as
you normally do when stopping the hybrid system. ( →P. 1 5 3 )
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted.
(→ P. 4 6 7 )
■When the electronic key does not work properly
Make sure that the smart access system with push-button start has not been deacti-
vated in the customization setting. If it is off, turn the function on.
(Customizable features →P. 5 8 4 )

586
6-2. Customization
HS250h_U_75050U
Customizable FeaturesVehicles with a navigation system: Settings that can be changed using
the screen of the navigation system
Vehicles with a navigation system: Settings that can be changed using
the multi-information switches
Vehicles without a navigation system: Settings that can be changed
using the multi-information switches
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
ItemFunctionDefault settingCustom- ized
setting
Door lock
(
→P. 6 1 ,
544)
Unlocking using
a key
Driver’s
door
unlocked
in one step,
all doors
unlocked
in two
steps
All doors
unlocked
in one step
O——O
Speed-detect-
ing automatic
door lock func-
tion
OffOnO—OO
Selecting other
than P position
locks all doors
OnOffO—OO
Pressing the P
position switch
unlocks all doors
OnOffO—OO

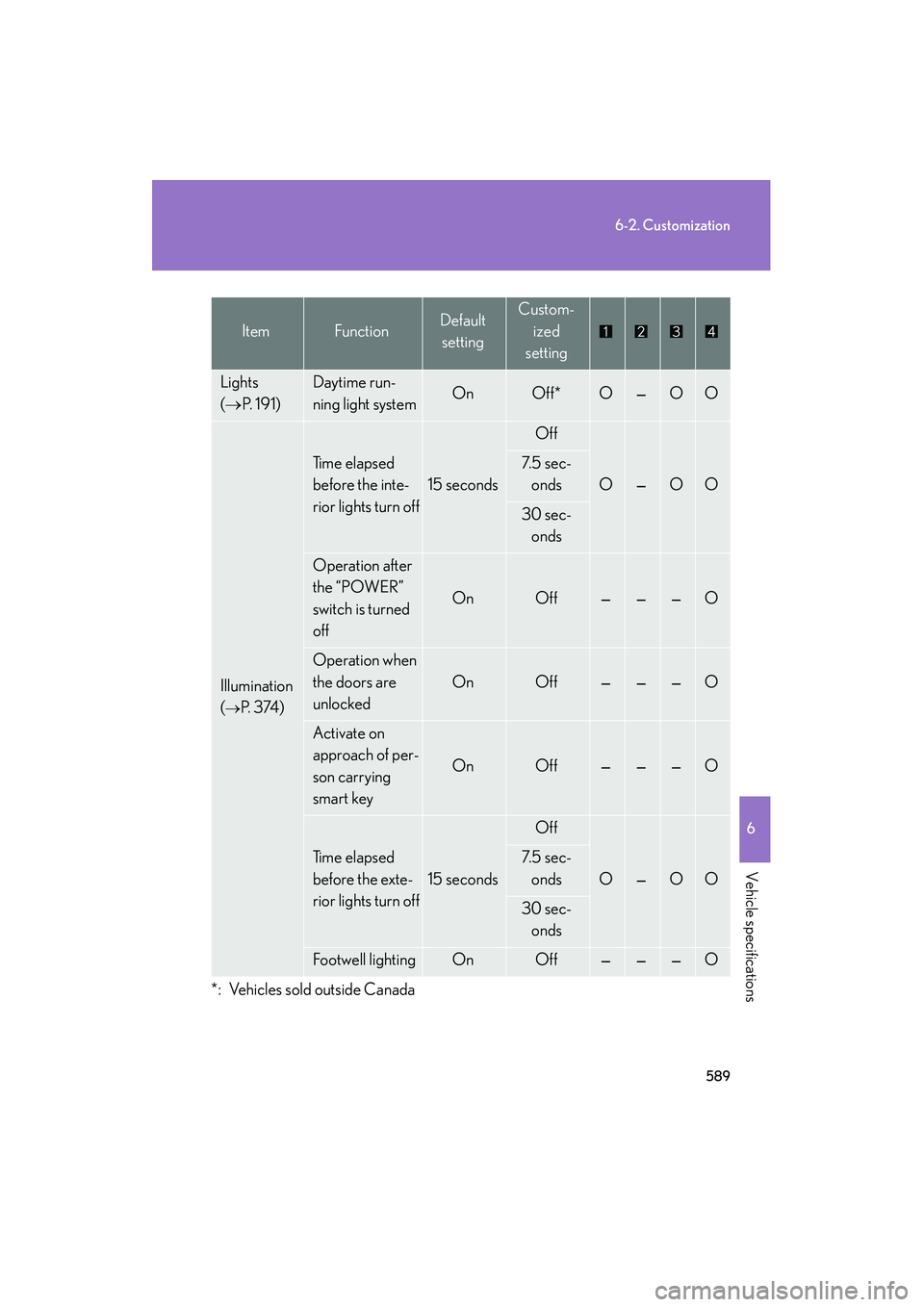

589
6-2. Customization
6
Vehicle specifications
HS250h_U_75050U
Lights
(→ P. 1 9 1 )Daytime run-
ning light systemOnOff*O—OO
Illumination
(
→P. 3 74 )
Ti m e e l a p s e d
before the inte-
rior lights turn off
15 seconds
Off
O—OO
7. 5 s e c -
onds
30 sec-onds
Operation after
the “POWER”
switch is turned
off
OnOff———O
Operation when
the doors are
unlocked
OnOff———O
Activate on
approach of per-
son carrying
smart key
OnOff———O
Ti m e e l a p s e d
before the exte-
rior lights turn off
15 seconds
Off
O—OO
7. 5 s e c -
onds
30 sec-onds
Footwell lightingOnOff———O
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustom-
ized
setting

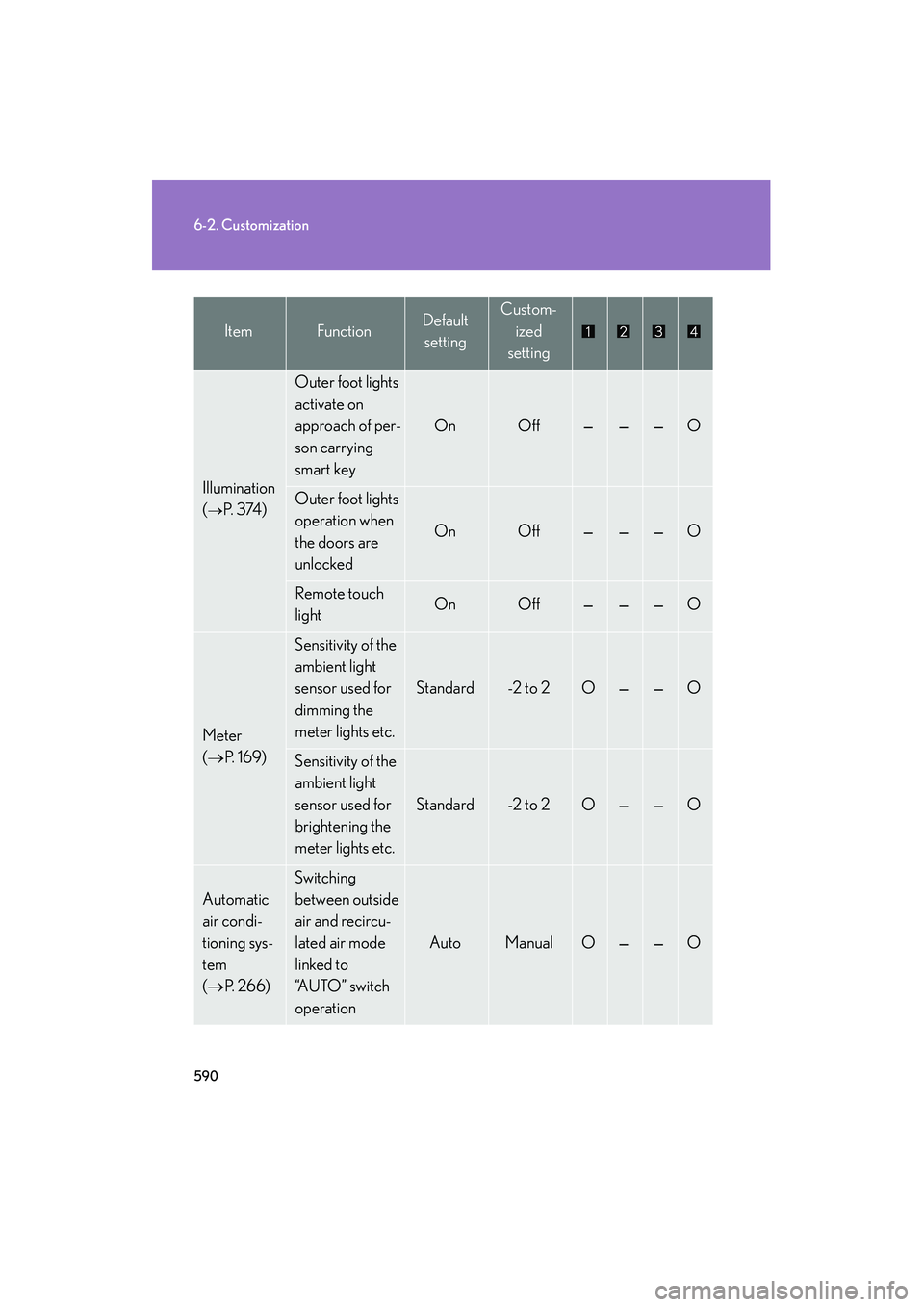

590
6-2. Customization
HS250h_U_75050U
Illumination
(
→P. 3 74 )
Outer foot lights
activate on
approach of per-
son carrying
smart key
OnOff———O
Outer foot lights
operation when
the doors are
unlocked
OnOff———O
Remote touch
lightOnOff———O
Meter
(→ P. 1 6 9 )
Sensitivity of the
ambient light
sensor used for
dimming the
meter lights etc.
Standard-2 to 2O——O
Sensitivity of the
ambient light
sensor used for
brightening the
meter lights etc.
Standard-2 to 2O——O
Automatic
air condi-
tioning sys-
tem
(→ P. 266)
Switching
between outside
air and recircu-
lated air mode
linked to
“A U T O ” s w i t c h
operation
AutoManualO——O
ItemFunctionDefault
settingCustom-
ized
setting

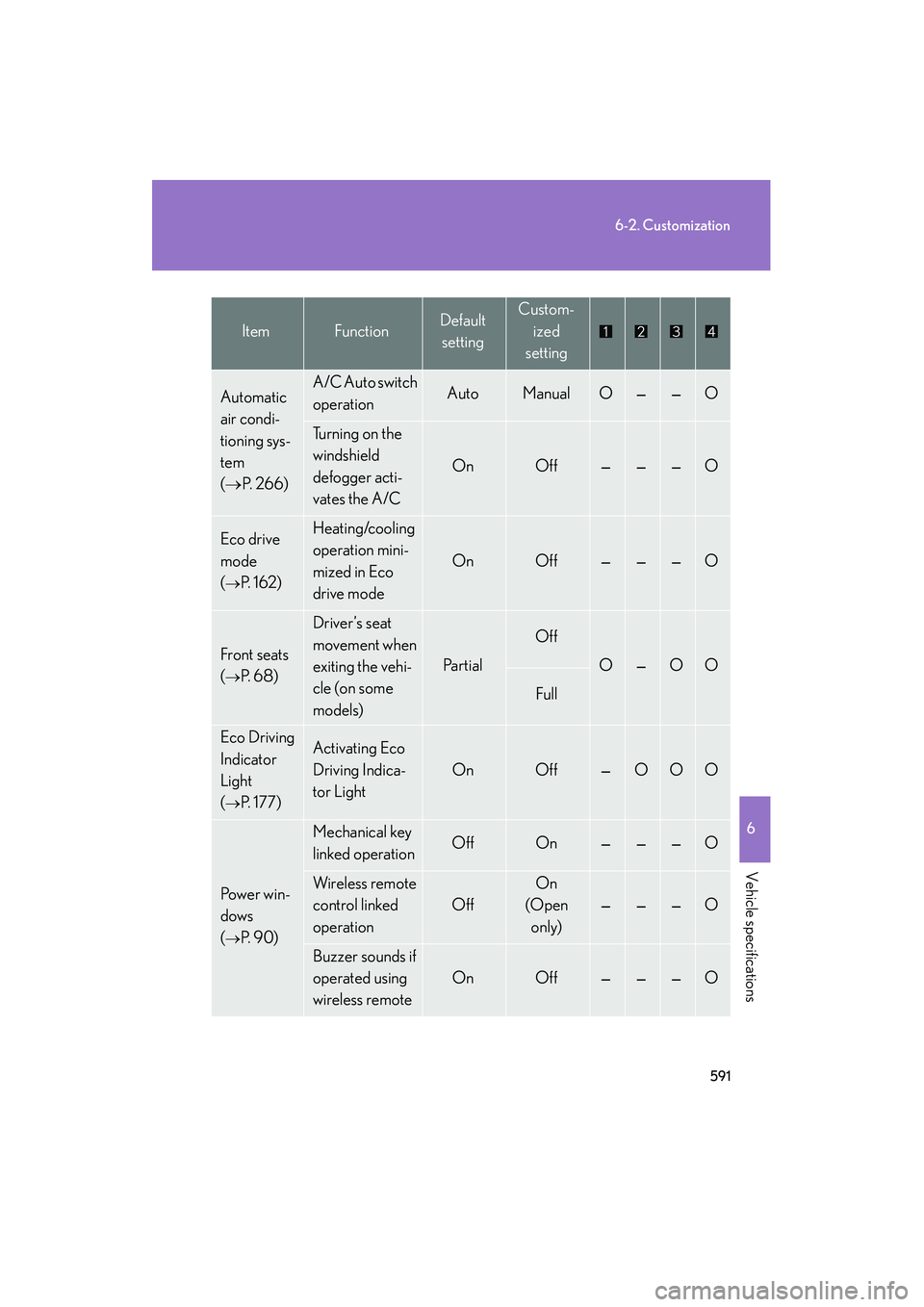

591
6-2. Customization
6
Vehicle specifications
HS250h_U_75050U
Automatic
air condi-
tioning sys-
tem
(→ P. 2 6 6 )A/C Auto switch
operationAutoManualO——O
Tu r n i n g o n t h e
windshield
defogger acti-
vates the A/C
OnOff———O
Eco drive
mode
(
→P. 1 6 2 )
Heating/cooling
operation mini-
mized in Eco
drive mode
OnOff———O
Front seats
(
→P. 6 8 )
Driver’s seat
movement when
exiting the vehi-
cle (on some
models)
Pa r t i a l
Off
O—OO
Full
Eco Driving
Indicator
Light
(
→P. 1 7 7 )
Activating Eco
Driving Indica-
tor Light
OnOff—OOO
Po w e r w i n -
dows
(
→P. 9 0 )
Mechanical key
linked operationOffOn———O
Wireless remote
control linked
operation
Off
On
(Open only)
———O
Buzzer sounds if
operated using
wireless remote
OnOff———O
ItemFunctionDefault settingCustom-
ized
setting

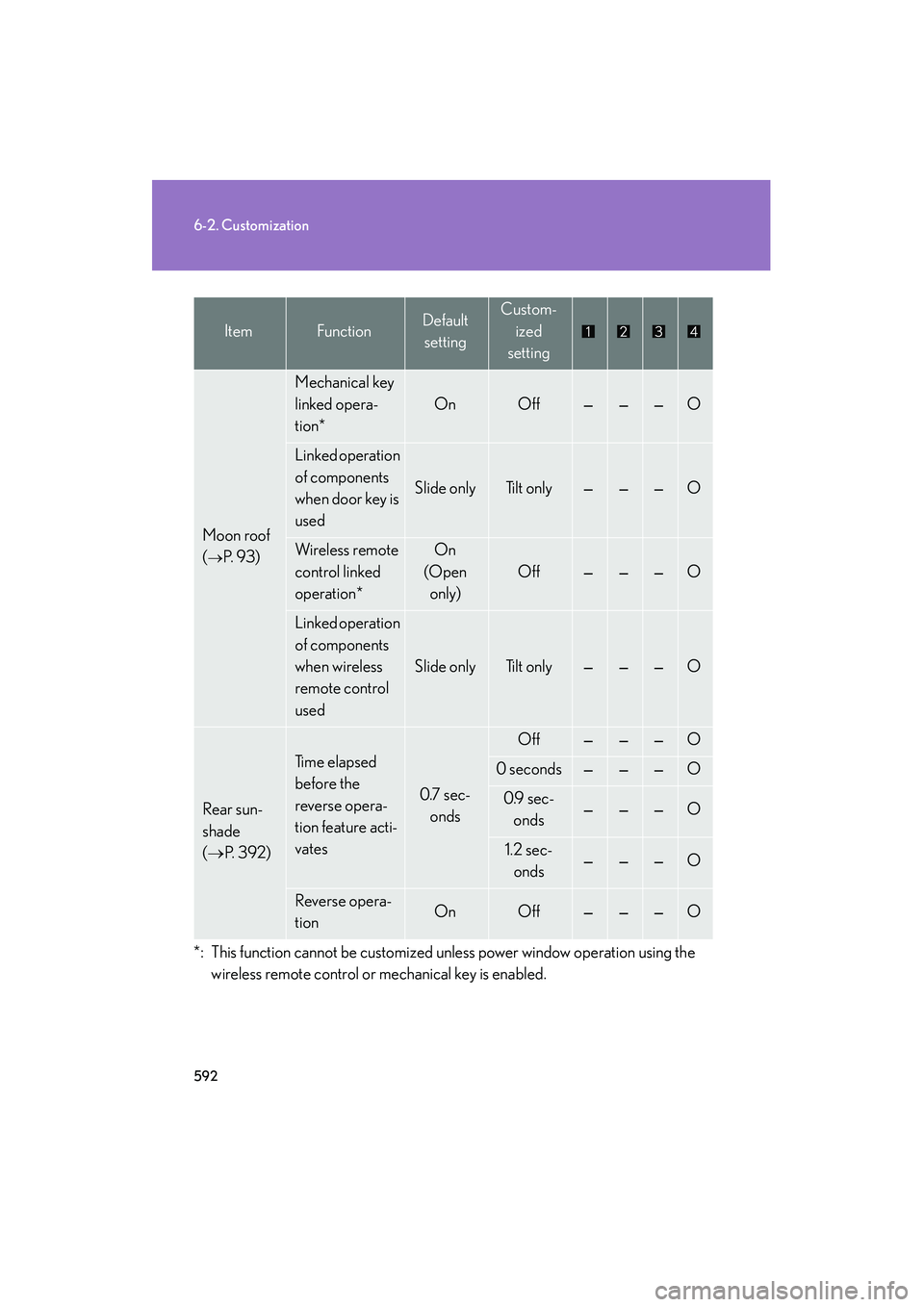

592
6-2. Customization
HS250h_U_75050U
Moon roof
(
→P. 9 3 )
Mechanical key
linked opera-
tion*
OnOff———O
Linked operation
of components
when door key is
used
Slide onlyTilt only———O
Wireless remote
control linked
operation*On
(Open only)
Off———O
Linked operation
of components
when wireless
remote control
used
Slide onlyTilt only———O
Rear sun-
shade
(→ P. 3 9 2 )
Ti m e e l a p s e d
before the
reverse opera-
tion feature acti-
vates
0.7 sec-
onds
Off———O
0 seconds———O
0.9 sec-onds———O
1.2 sec-onds———O
Reverse opera-
tionOnOff———O
*: This function cannot be customized unless power window operation using the wireless remote control or mechanical key is enabled.
