key Lexus HS250h 2012 Service Manual

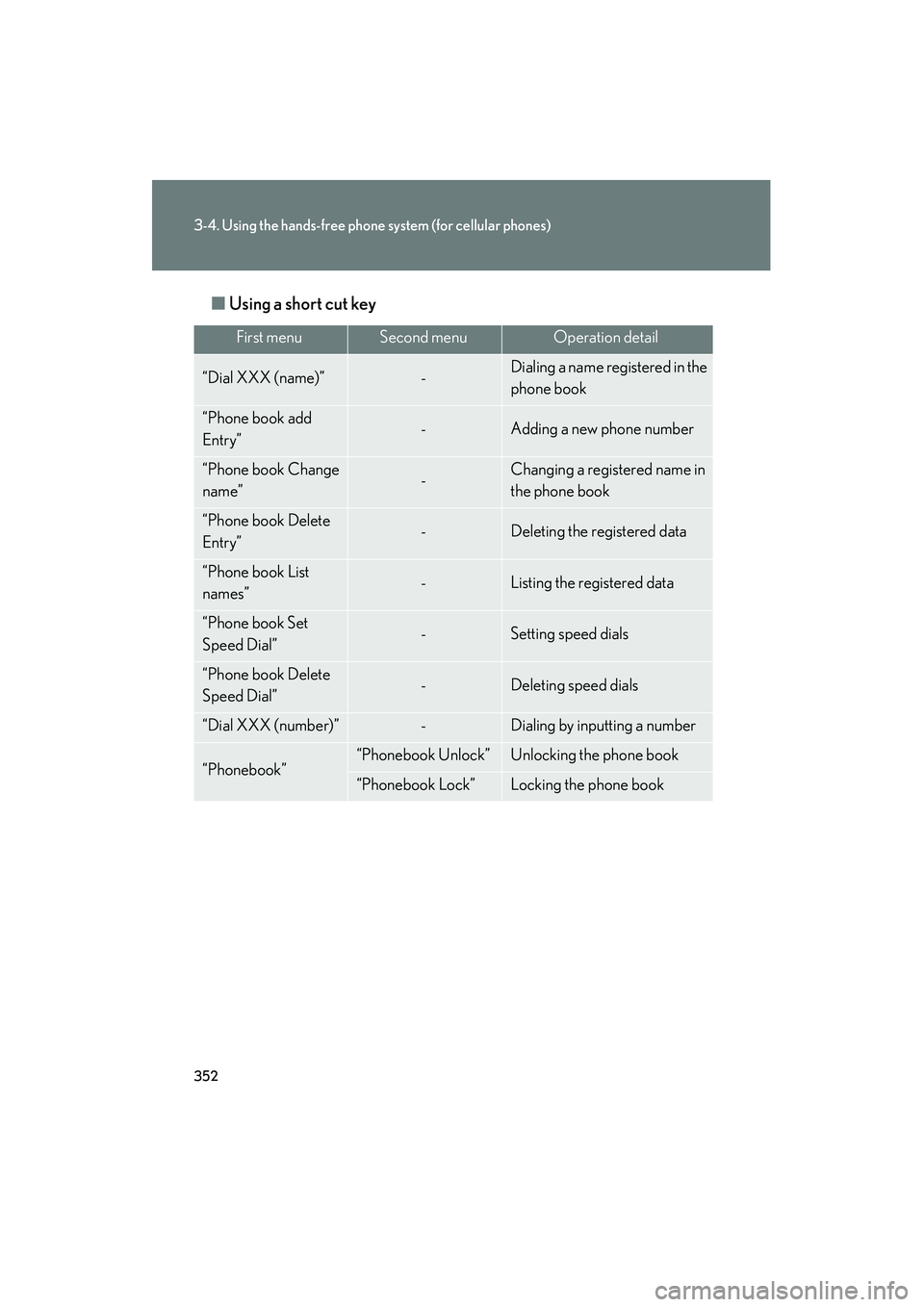

352
3-4. Using the hands-free phone system (for cellular phones)
HS250h_U_75050U■
Using a short cut key
First menuSecond menuOperation detail
“Dial XXX (name)”-Dialing a name registered in the
phone book
“Phone book add
Entry”-Adding a new phone number
“Phone book Change
name”-Changing a registered name in
the phone book
“Phone book Delete
Entry”-Deleting the registered data
“Phone book List
names”-Listing the registered data
“Phone book Set
Speed Dial”-Setting speed dials
“Phone book Delete
Speed Dial”-Deleting speed dials
“Dial XXX (number)”-Dialing by inputting a number
“Phonebook”“Phonebook Unlock”Unlocking the phone book
“Phonebook Lock”Locking the phone book

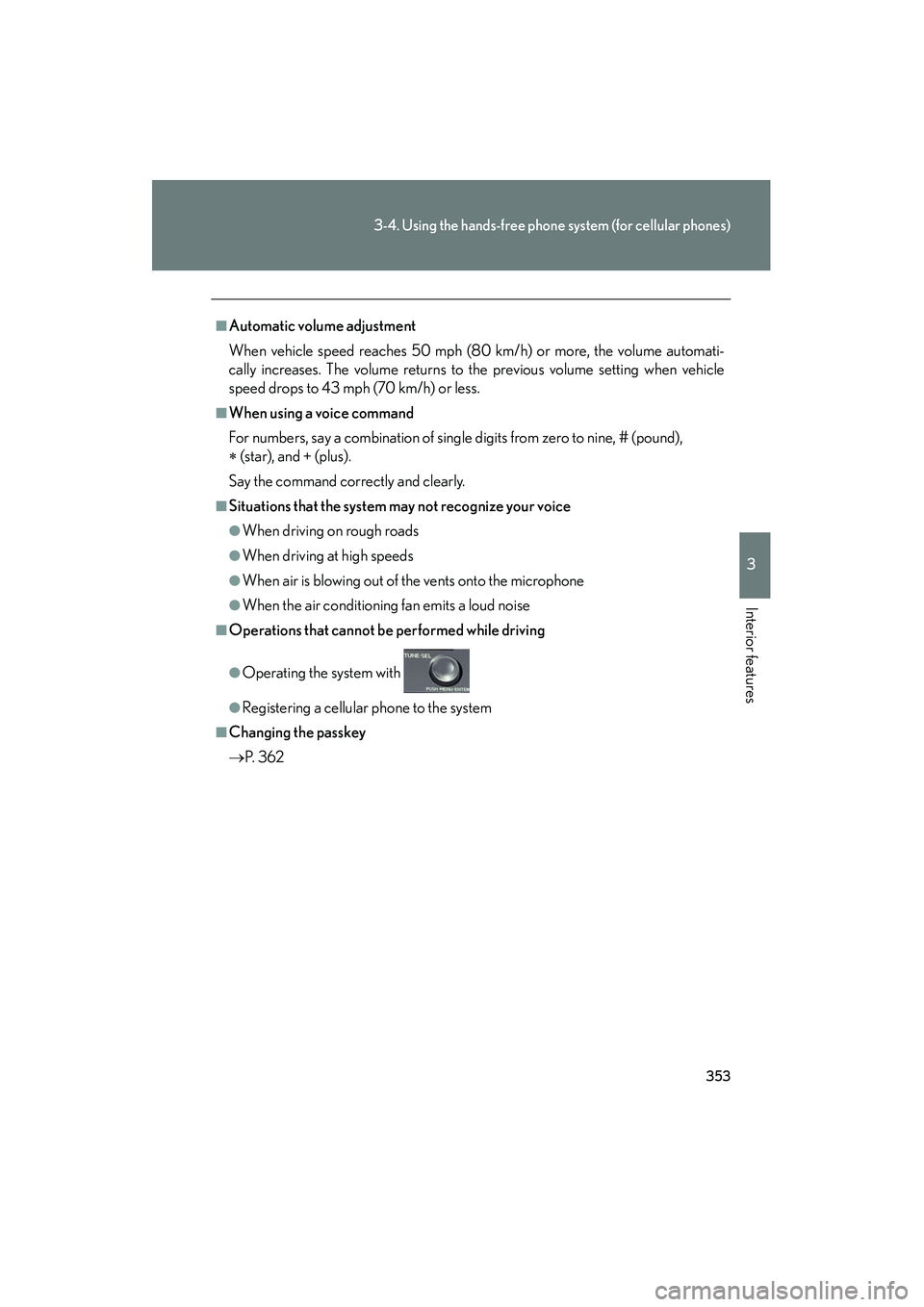

353
3-4. Using the hands-free phone system (for cellular phones)
3
Interior features
HS250h_U_75050U
■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automati-
cally increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a cellular phone to the system
■Changing the passkey
→ P. 3 6 2

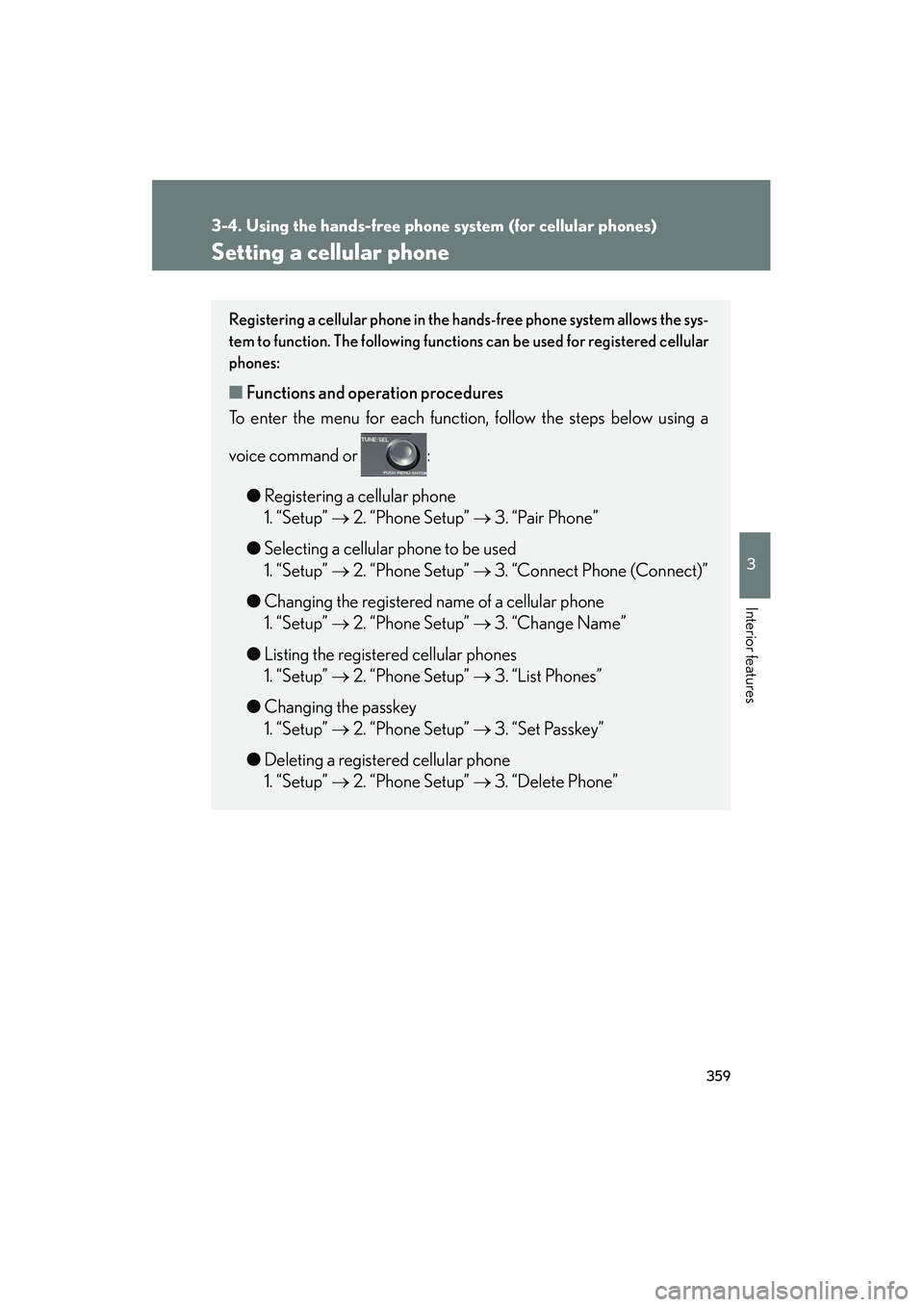

359
3-4. Using the hands-free phone system (for cellular phones)
3
Interior features
HS250h_U_75050U
Setting a cellular phone
Registering a cellular phone in the hands-free phone system allows the sys-
tem to function. The following functions can be used for registered cellular
phones:
■Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or :
● Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
● Selecting a cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Connect Phone (Connect)”
● Changing the registered name of a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
● Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
● Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”
● Deleting a registered cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete Phone”

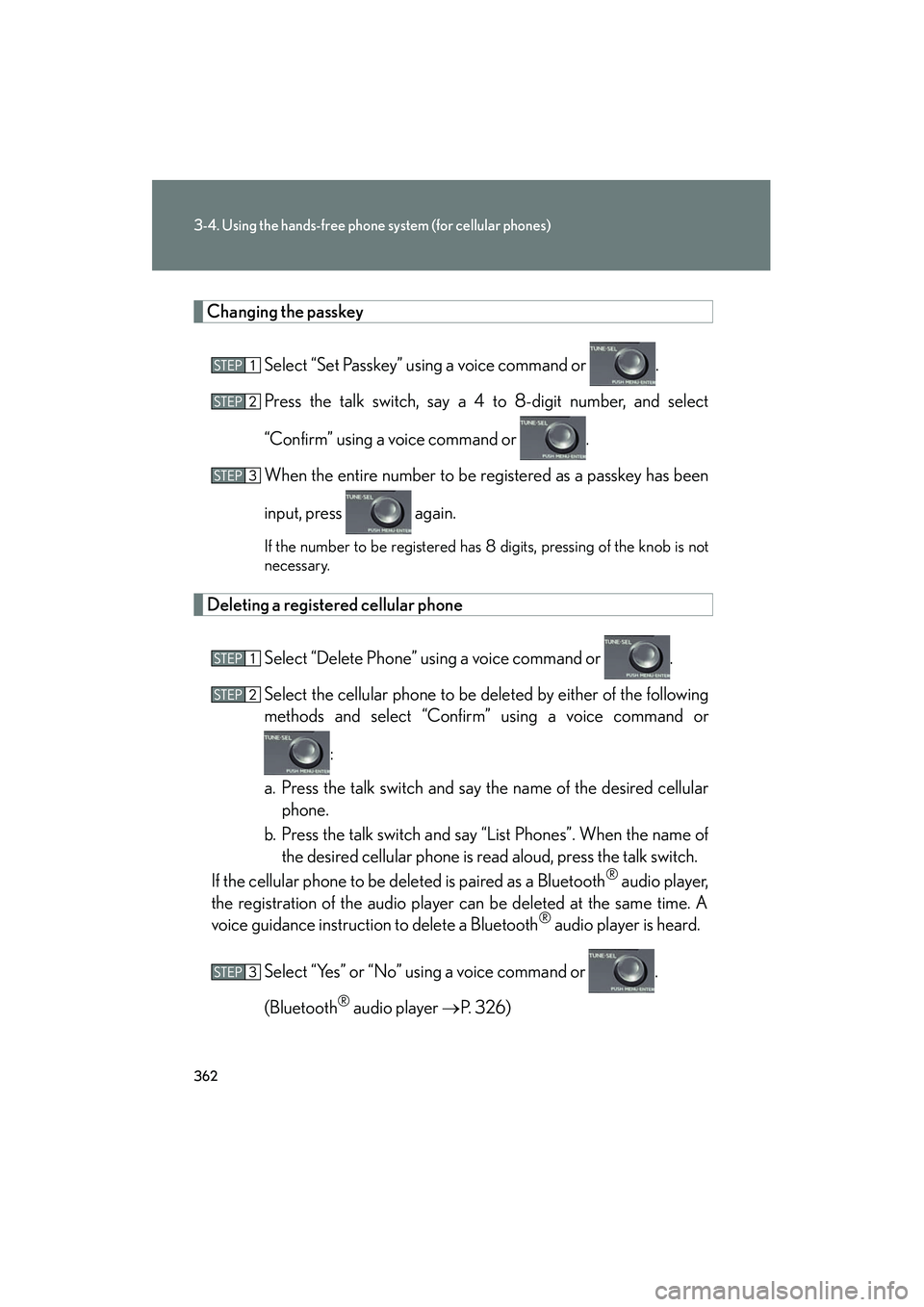

362
3-4. Using the hands-free phone system (for cellular phones)
HS250h_U_75050U
Changing the passkeySelect “Set Passkey” using a voice command or .
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
When the entire number to be registered as a passkey has been
input, press again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
Deleting a registered cellular phoneSelect “Delete Phone” using a voice command or .
Select the cellular phone to be deleted by either of the following
methods and select “Confirm” using a voice command or :
a. Press the talk switch and say the name of the desired cellular phone.
b. Press the talk switch and say “List Phones”. When the name of the desired cellular phone is read aloud, press the talk switch.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player,
the registration of the audio player can be deleted at the same time. A
voice guidance instruction to delete a Bluetooth
® audio player is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® audio player → P. 326)

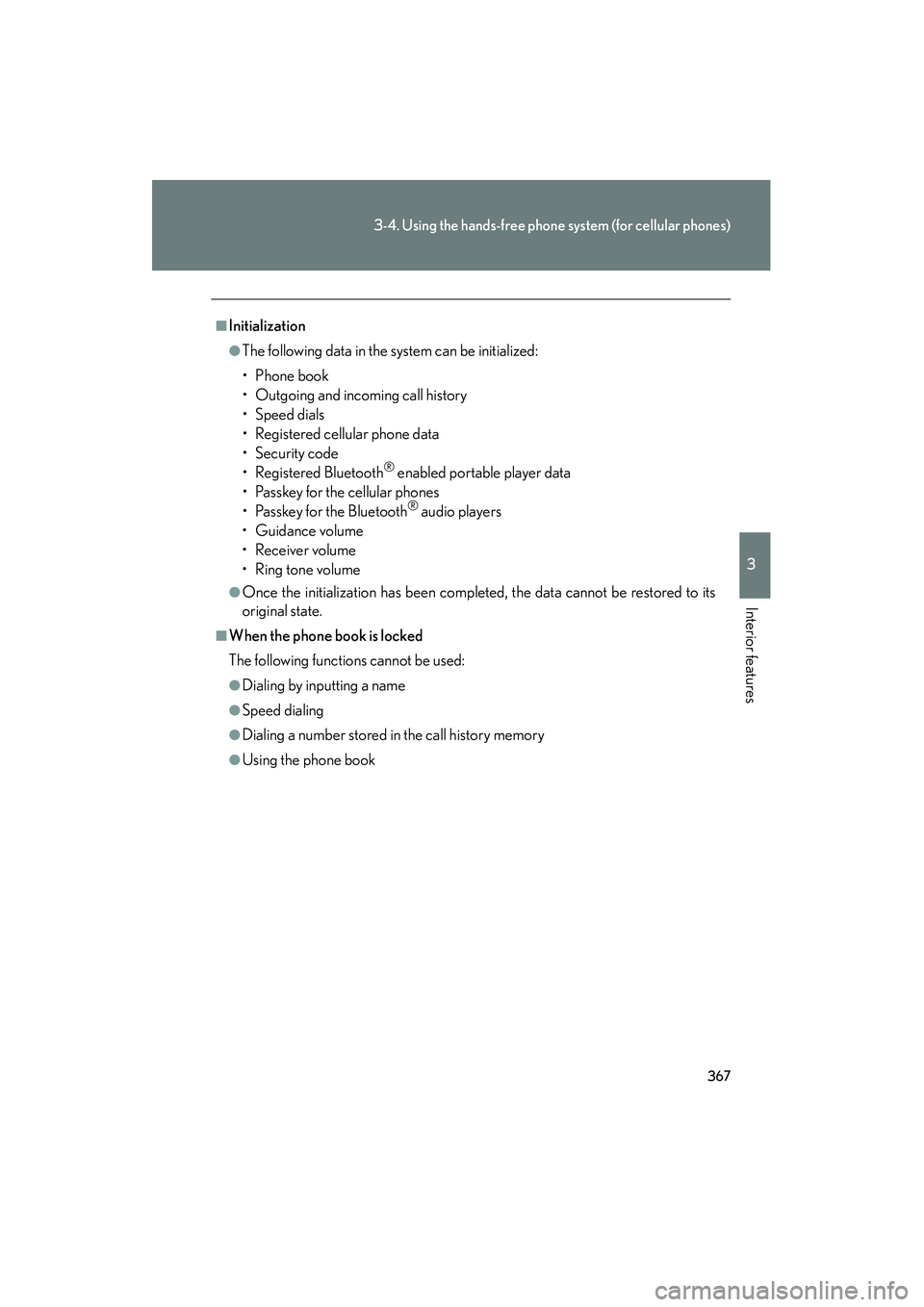

367
3-4. Using the hands-free phone system (for cellular phones)
3
Interior features
HS250h_U_75050U
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
•Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
•Guidance volume
• Receiver volume
•Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its
original state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book

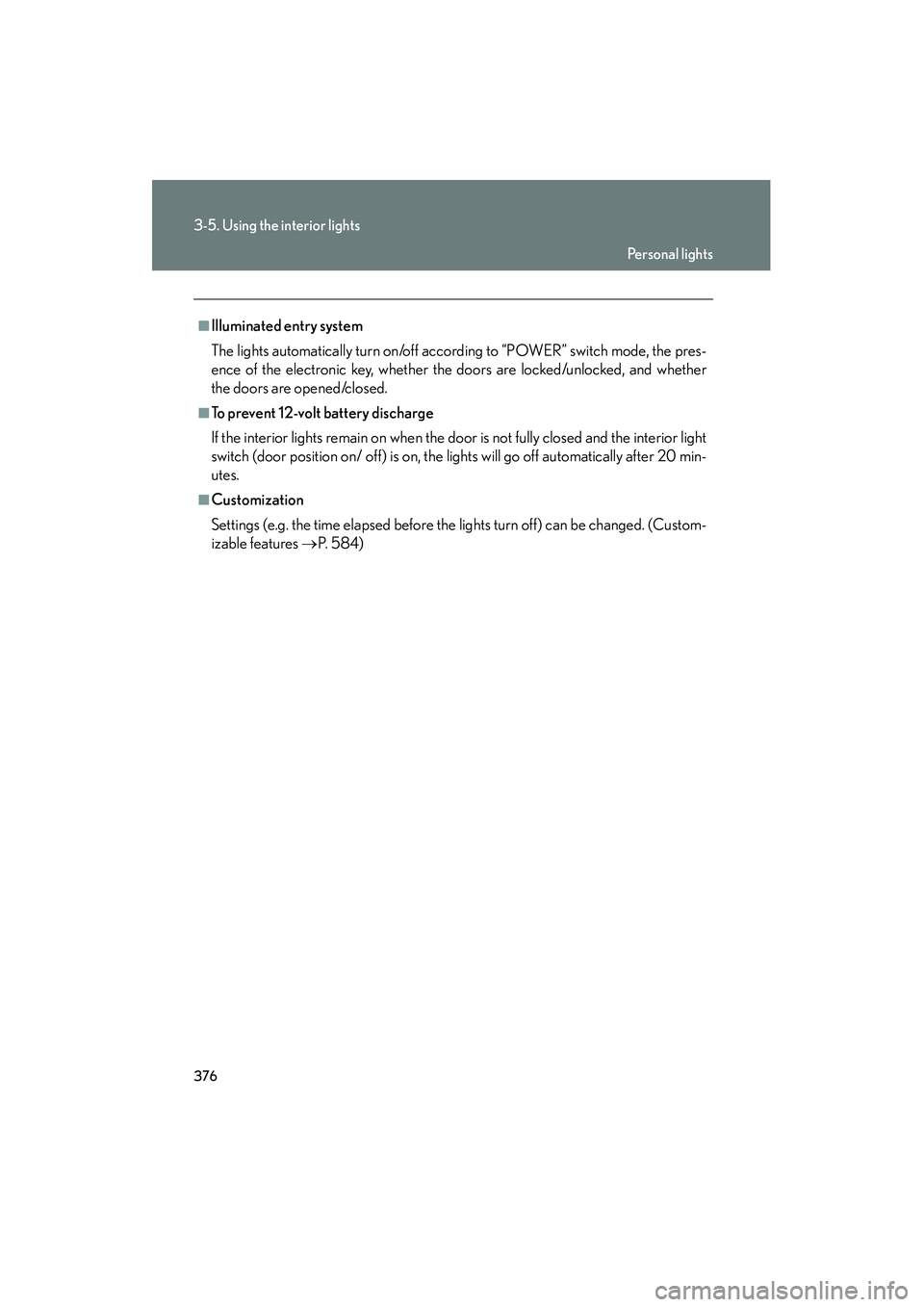

376
3-5. Using the interior lights
HS250h_U_75050U
■Illuminated entry system
The lights automatically turn on/off according to “POWER” switch mode, the pres-
ence of the electronic key, whether the doors are locked/unlocked, and whether
the doors are opened/closed.
■To prevent 12-volt battery discharge
If the interior lights remain on when the door is not fully closed and the interior light
switch (door position on/ off) is on, the lights will go off automatically after 20 min-
utes.
■Customization
Settings (e.g. the time elapsed before the lights turn off) can be changed. (Custom-
izable features →P. 5 8 4 )
Personal lights

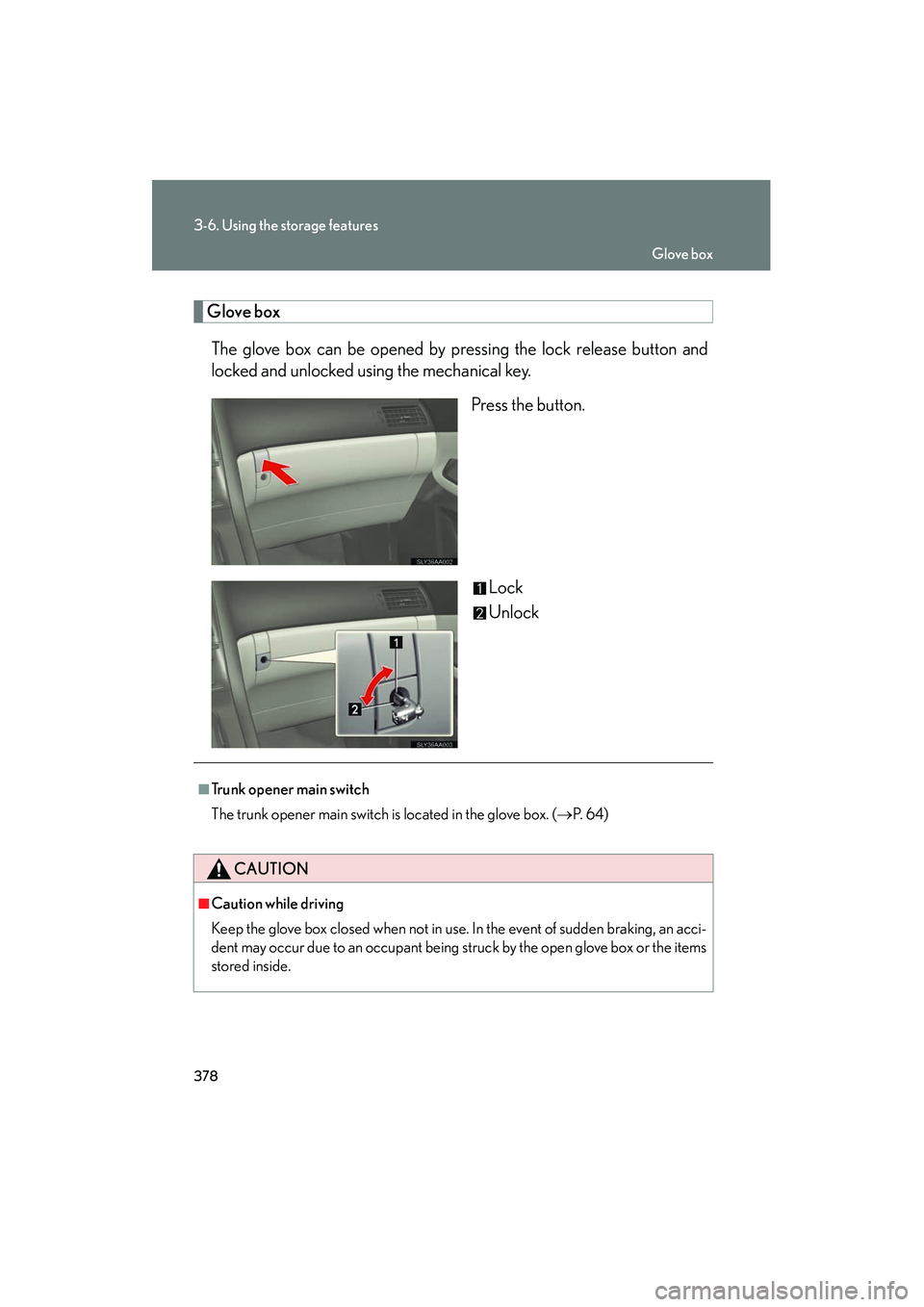

378
3-6. Using the storage features
HS250h_U_75050U
Glove boxThe glove box can be opened by pressing the lock release button and
locked and unlocked using the mechanical key. Press the button.
Lock
Unlock
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( →P. 6 4 )
CAUTION
■Caution while driving
Keep the glove box closed when not in use. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by the open glove box or the items
stored inside.
Glove box

Maintenance and care4
415
HS250h_U_75050U
4-1. Maintenance and careCleaning and protecting the vehicle exterior.............. 416
Cleaning and protecting the vehicle interior .............. 420
4-2. Maintenance Maintenance requirements ........................ 423
General maintenance .......... 426
Emission inspection and maintenance (I/M)
programs............................... 430 4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ............................ 431
Hood .......................................... 434
Positioning a floor jack ......... 435
Engine compartment ........... 437
12-volt battery ........................ 447
Tires............................................. 451
Tire inflation pressure........... 459
Wheels ...................................... 462
Air conditioning filter ........... 464
Electronic key battery........... 467
Checking and replacing fuses ........................................ 469
Light bulbs................................. 481

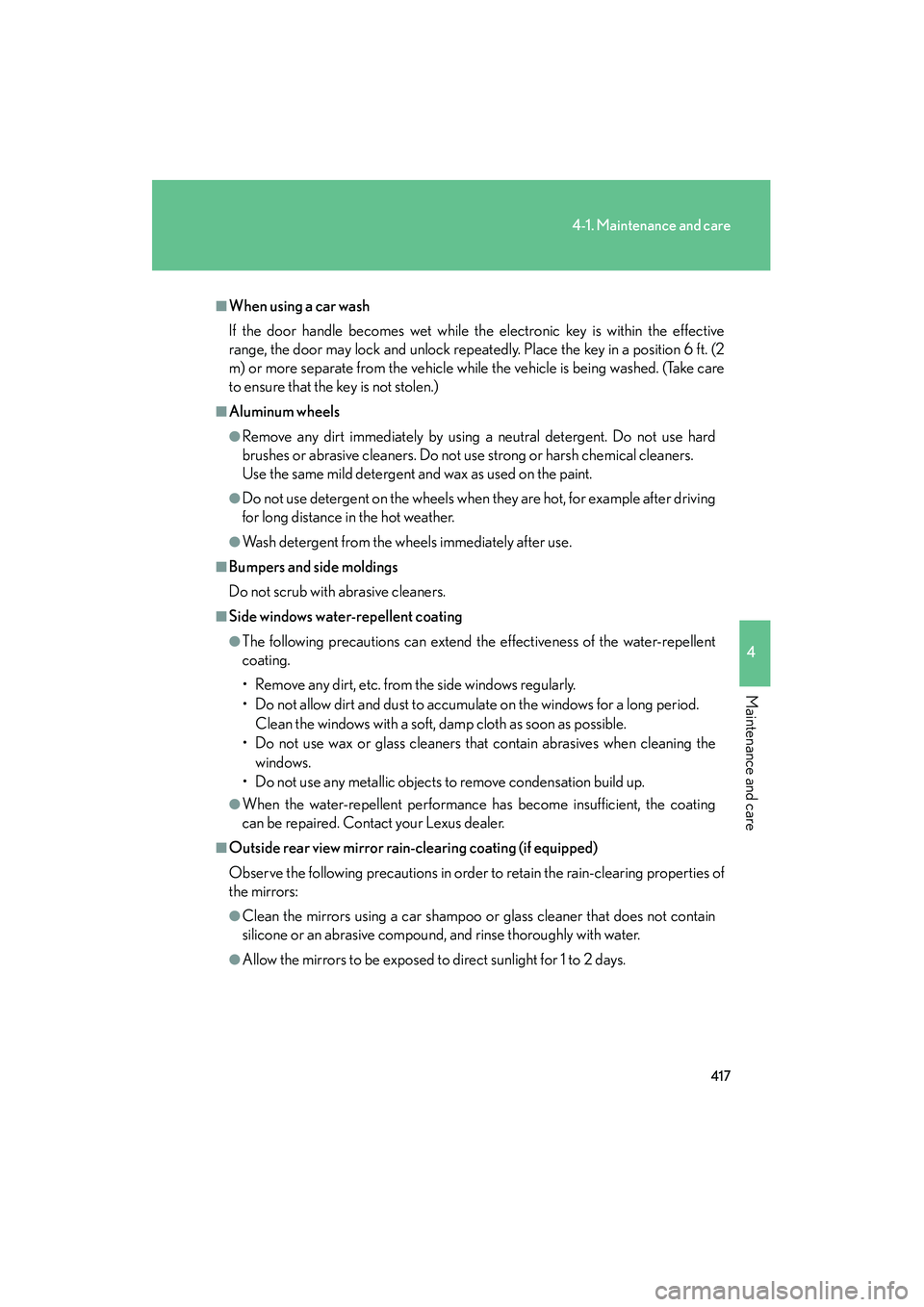

417
4-1. Maintenance and care
4
Maintenance and care
HS250h_U_75050U
■When using a car wash
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 6 ft. (2
m) or more separate from the vehicle while the vehicle is being washed. (Take care
to ensure that the key is not stolen.)
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving
for long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers and side moldings
Do not scrub with abrasive cleaners.
■Side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent
coating.
• Remove any dirt, etc. from the side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the windows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating
can be repaired. Contact your Lexus dealer.
■Outside rear view mirror rain-clearing coating (if equipped)
Observe the following precautions in order to retain the rain-clearing properties of
the mirrors:
●Clean the mirrors using a car shampoo or glass cleaner that does not contain
silicone or an abrasive compound, and rinse thoroughly with water.
●Allow the mirrors to be exposed to direct sunlight for 1 to 2 days.

448
4-3. Do-it-yourself maintenance
HS250h_U_75050U
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flammable
and explosive. Therefore, observe the following precautions before recharging:
●If recharging with the 12-volt battery installed on the vehicle, be sure to discon-
nect the ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the 12-volt battery.
■After recharging/reconnecting the 12-volt battery
●Unlocking the doors using the smart key system may not be possible immedi-
ately after reconnecting the 12-volt battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.
●Start the hybrid system with the “POWER” switch in ACCESSORY mode. The
hybrid system may not start with the “POWER” switch turned OFF. However,
the hybrid system will operate normally from the second attempt.
●The “POWER” switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the “POWER” switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the power before
disconnect the battery. Take extra care when connecting the battery if the
“POWER” switch mode prior to discharge is unknown.
■Exterior
Make sure that the 12-volt battery terminals are not corroded and
that there are no loose connections, cracks or loose clamps.
Te r m i n a l s
Hold-down clamp
