ignition Lexus IS F 2011 Owner's Guide

179
2-3. Operating the lights and windshield wipers
2
When driving
IS F_EE
Headlight cleaner switch
The headlight cleaner can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the
headlight switch is turned on.
Windshield washer linked operation
Only for the first time when the windshield washer is operated after the
“ENGINE START STOP” switch is turned to IGNITION ON mode with the
headlights on, the headlight cleaners will also operate once. (P. 176)
NOTICE
When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

191
2-4. Using other driving systems
2
When driving
IS F_EE
Selecting conventional constant speed control mode
Constant speed control mode differs from vehicle-to-vehicle dis-
tance control mode. When constant speed control mode is selected,
your vehicle will maintain a set speed regardless of whether or not
there are other vehicles in the lane ahead.
Press the “ON-OFF” button
to activate the cruise control.
Cruise control indicator will
come on.
Press the button again to deacti-
vate the cruise control.
Switch to constant speed
control mode.
(Push the lever forward and
hold for approximately one
second.)
When in constant speed control
mode, to return to vehicle-to-
vehicle distance control mode,
push the lever forward again
and hold for approximately 1
second.
After the desired speed has been
set, it is not possible to return to
vehicle-to-vehicle distance con-
trol mode.
If the “ENGINE START STOP”
switch is turned off and then
turned to IGNITION ON mode
again, the vehicle will automati-
cally return to vehicle-to-vehi-
cle distance control mode.

236
3-1. Using the air conditioning system and defogger
IS F_EE
Rear window and outside rear view mirror defoggers
The defogger can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirror, as it can become
very hot and burn you.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system
On/off
The defoggers will automati-
cally turn off after 15 to 60
minutes. The operation time
changes according to the
ambient temperature and
vehicle speed.

237
3-1. Using the air conditioning system and defogger
3
Interior features
IS F_EE
Windshield wiper de-icer
The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
When the windshield wiper de-icer is on
The surface of the glass at the lower part and sides of the windshield
become very hot. To prevent burning yourself, do not touch these areas.
This feature is used to prevent ice from building up on the windshield
and wiper blades.
On/off
The windshield wiper de-icer
will automatically turn off
after approximately 15 min-
utes.
: If equipped

290
3-3. Using the Bluetooth® audio system
IS F_EE
Registering a portable player
Select “Pair Audio” using , and , and perform
the procedure for registering a portable player. (P. 284)
Selecting a portable player to be used
Select “Select Audio” using , and .
Select the portable player to be used using , and
.
Select “From Car” or “From Audio” using ,
and .
If “From Car” is selected, the portable player will be automati-
cally connected whenever the “ENGINE START STOP” switch
is in either ACCESSORY or IGNITION ON mode.
Changing the registered name of a portable player
Select “Change Name” using , and .
Select the desired portable player name to be changed using
, and .
Select “Record Name” using , and , and
say the new name after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using , and .
Listing the registered portable players
Select “List Audios” using , and . The list of reg-
istered portable players will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP4

320
IS F_EE
3-5. Using the interior lights

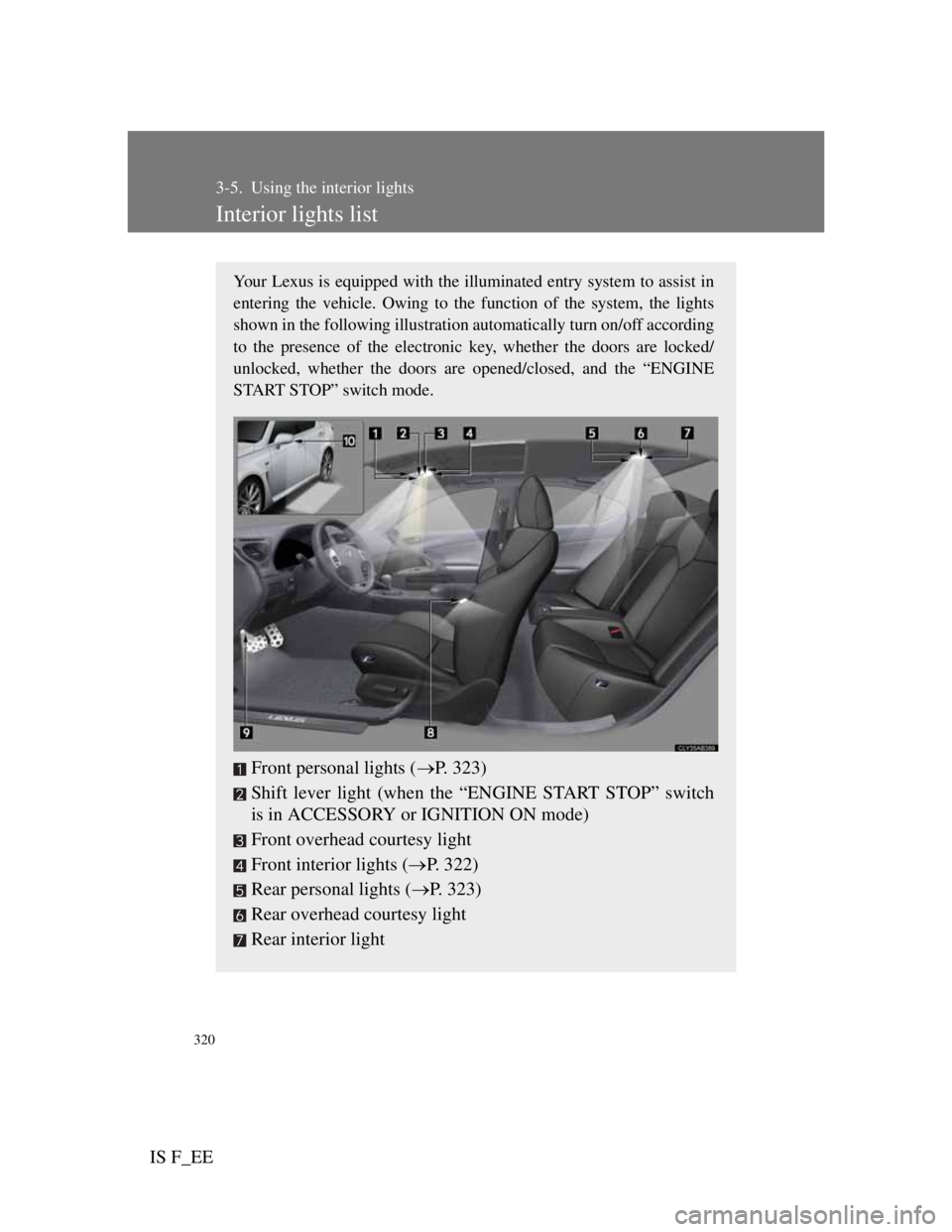

Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in
entering the vehicle. Owing to the function of the system, the lights
shown in the following illustration automatically turn on/off according
to the presence of the electronic key, whether the doors are locked/
unlocked, whether the doors are opened/closed, and the “ENGINE
START STOP” switch mode.
Front personal lights (P. 323)
Shift lever light (when the “ENGINE START STOP” switch
is in ACCESSORY or IGNITION ON mode)
Front overhead courtesy light
Front interior lights (P. 322)
Rear personal lights (P. 323)
Rear overhead courtesy light
Rear interior light

325
3-6. Using the storage features
3
Interior features
IS F_EE
Glove box
Open (push button)
Lock with the mechanical
key
Unlock with the mechanical
key
Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is
in IGNITION ON mode.
Trunk opener main switch
The trunk opener main switch is located in the glove box. (P. 5 9 )
CAUTION
Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

326
3-6. Using the storage features
IS F_EE
Console box
Pull up the knob to release
the lock.
Slide the armrest.
Pull up the knob to release
the lock.
Lift the armrest to open.
Console box light
The console box light turns on when the “ENGINE START STOP” switch is
in IGNITION ON mode.
Using the console box to store CD cases
CAUTION
Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Store a CD case with the hinged portion
facing either the front or back of the con-
sole box.
Console box

332
3-7. Other interior features
IS F_EE
Clock
The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.
*
*: e.g. 1:00 to 1:29 1:00
1:30 to 1:592:00

335
3-7. Other interior features
3
Interior features
IS F_EE
Changing the settings
Each item is displayed and its setting can be changed only in the following
conditions:
Intrusion sensor: When the “ENGINE START STOP” switch is off and
the auto alarm is not set.
Lexus parking assist-sensor: When the “ENGINE START STOP” switch
is in IGNITION ON mode.
Items other than the above: When the “ENGINE START STOP” switch
is in IGNITION ON mode and the vehicle is stopped.
Display
The display will return to the original display if the satellite switches are not
operated for an extended period.
Even if the display is in satellite switch mode, it will switch in the event of a
warning or when the radar cruise control (if equipped) is used. If this occurs,
press any of the satellite switches or “DISP” switch on the steering wheel to
return the display to satellite switch mode.
