ignition Lexus IS F 2011 Service Manual

337
3-7. Other interior features
3
Interior features
IS F_EE
Cigarette lighter
The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
CAUTION
When not in use
Keep the lid closed.
Injuries may result in the event of an accident or sudden braking.
To avoid burns or fires
Do not touch the metal parts of the cigarette lighter.
Do not hold the cigarette lighter down. It could overheat and cause a fire.
Do not insert anything other than the cigarette lighter into the outlet.
Push the back part of the lid
to open, and push the ciga-
rette lighter down.
The cigarette lighter will pop
up when it is ready for use.
: If equipped

338
3-7. Other interior features
IS F_EE
Power outlet
The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
The power outlet can be used for 12 V accessories that run on less than
10 A.

339
3-7. Other interior features
3
Interior features
IS F_EE
Seat heaters
The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
When not in use
Set the dial to “0”. The indicator light turns off.
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.Left
front seatRight
front seat

361
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment:
Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience discomfort, see a doctor.
When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the
electric cooling fan may automatically start to run if the air conditioning is
on and/or the coolant temperature is high. (P. 374)
CAUTION
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in the eyes.

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
13IG210 AIgnition system
14EFI NO. 210 A
Fuel system, exhaust system, mul-
tiport fuel injection system/sequen-
tial multiport fuel injection system
15H-LP R LWR15 AHeadlight low beam (right)
16H-LP L LWR15 AHeadlight low beam (left)
17F/PMP25 AFuel system
18EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO. 2
19INJ25 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20H-LP UPR20 AHeadlight high beams
21HORN10 AHorns
22WASHER20 AWindshield washer
23FR TAIL10 AFront position lights
24FR FOG15 AFront fog lights
FuseAmpereCircuit

418
5-1. Essential information
IS F_EETowing eyelet
Emergency towing procedure
Release the parking brake.
Shift the shift lever to N.
Put the “ENGINE START STOP” switch in ACCESSORY mode
(engine off) or IGNITION ON mode (engine running).
CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cables or chains. Always be
cautious of the surroundings and other vehicles while towing.
If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
To prevent causing serious damage to the transmission
Never tow this vehicle from the rear with four wheels on the ground. This
may cause serious damage to the transmission.
STEP1
STEP2
STEP3

456
5-2. Steps to take in an emergency
IS F_EE

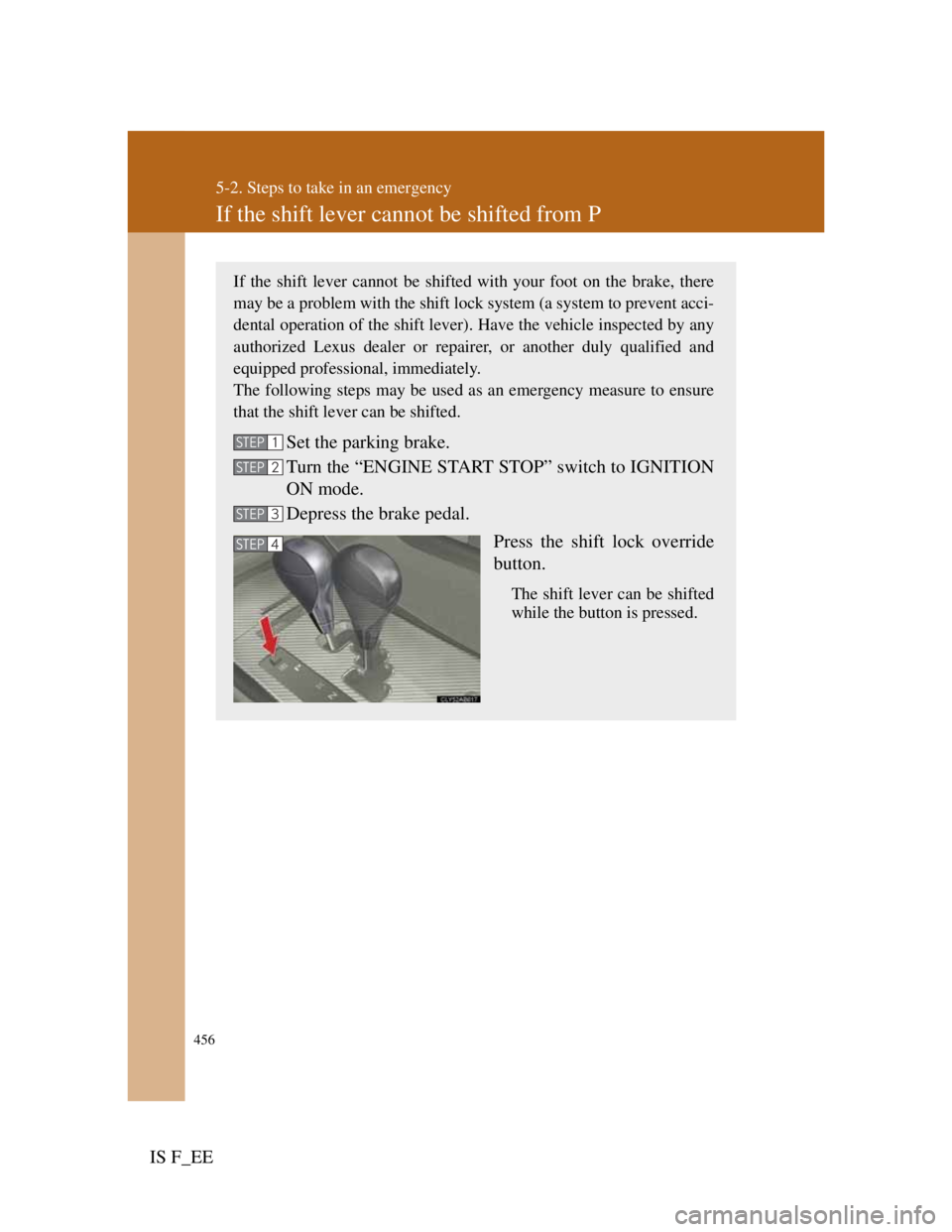

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent acci-
dental operation of the shift lever). Have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, immediately.
The following steps may be used as an emergency measure to ensure
that the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to IGNITION
ON mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4

5
463
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
To prevent battery discharge
Turn off the headlights and the audio system while the engine is off.
Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Charging the battery
The electricity stored in the battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects
of certain electrical appliances. If the vehicle is left for a long time, the
battery may discharge, and the engine may be unable to start. (The bat-
tery recharges automatically during driving.)
Start the engine of the second vehicle. Increase the
engine speed slightly and maintain at that level for
approximately 5 minutes to recharge the battery of your
vehicle.
Open and close any of the doors with the “ENGINE
START STOP” switch OFF.
Maintain the engine speed of the second vehicle and turn
the “ENGINE START STOP” switch to IGNITION ON
mode, then start the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at any autho-
rized Lexus dealer or repairer, or another duly qualified and
id fil iblSTEP2
STEP3
STEP4
STEP5

478
6-1. Specifications
IS F_EE
Ignition system
Electrical system
Differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil”
at the factory. Use Lexus approved “Toyota Genuine Differential Gear
Oil” or an equivalent of matching quality to satisfy the above specifica-
Spark plug
Make
GapDENSO FK20HBR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning the
engine.
Battery
Open voltage* at
20C (68F):12.6 12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes
after the engine and all the lights are
turned off)
Charging rates5 A max.
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential Gear
Oil LX 75W-85 GL-5 or equivalent

494
Alphabetical index
IS F_EE
Electric power steering ..............206
Electronic key
If the electronic key does not
operate properly .................458
Emergency, in case of
If a warning message is
displayed ............................431
If the engine will not start.....454
If the shift lever cannot be
shifted from P .....................456
If the vehicle has a discharged
battery.................................462
If the warning buzzer sounds425
If the warning light turns on .425
If you have a flat tire ...........444
If you lose your keys ............457
If you think something is
wrong .................................423
If your electronic key does not
operate properly .................458
If your vehicle becomes stuck ....
468
If your vehicle has to be
stopped in an emergency ....469
If your vehicle needs to be
towed ..................................417
If your vehicle overheats ......465
Emergency flashers
Switch ...................................416Engine
ACCESSORY mode ............ 146
Compartment ....................... 366
Engine switch ...................... 146
Hood .................................... 363
How to start the engine ........ 146
Identification number .......... 473
If the engine will not start .... 454
Ignition switch ..................... 146
Overheating ......................... 465
Engine compartment cover....... 367
Engine coolant
Capacity ............................... 477
Checking .............................. 372
Preparing and checking before
winter................................. 222
Engine coolant temperature
gauge ...................................... 161
Engine immobilizer system ........ 92
Engine oil
Capacity ............................... 475
Checking .............................. 369
Preparing and checking before
winter................................. 222
EPS ........................................... 206E
