ignition Lexus IS F 2011 Owner's Guide

147
2-1. Driving procedures
2
When driving
IS F_EE
Changing “ENGINE START STOP” switch mode
Modes can be changed by pressing the “ENGINE START
STOP” switch with the brake pedal released. (The mode changes
each time the switch is pressed.)
OFF
*
The emergency flashers can
be used.
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
The “ENGINE START
STOP” switch indicator turns
amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START
STOP” switch indicator turns
amber.
*:If the shift lever is in a posi-
tion other than P when turning
off the engine, the “ENGINE
START STOP” switch will be
d

149
2-1. Driving procedures
2
When driving
IS F_EE
CAUTION
When starting the engine
Always start the engine while sitting in the driver's seat. Do not press the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
push and hold the “ENGINE START STOP” switch for more than 3 sec-
onds.
However, do not touch the “ENGINE START STOP” switch while driving
except in an emergency. Turning the engine off while driving will not cause
loss of steering or braking control, but the power assist to these systems will
be lost. This will make it more difficult to steer and brake, so you should
pull over and stop the vehicle as soon as it is safe to do so.
NOTICE
To prevent battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or
IGNITION ON mode for long periods without the engine running.
When starting the engine
Do not race a cold engine.
If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

150
2-1. Driving procedures
IS F_EE

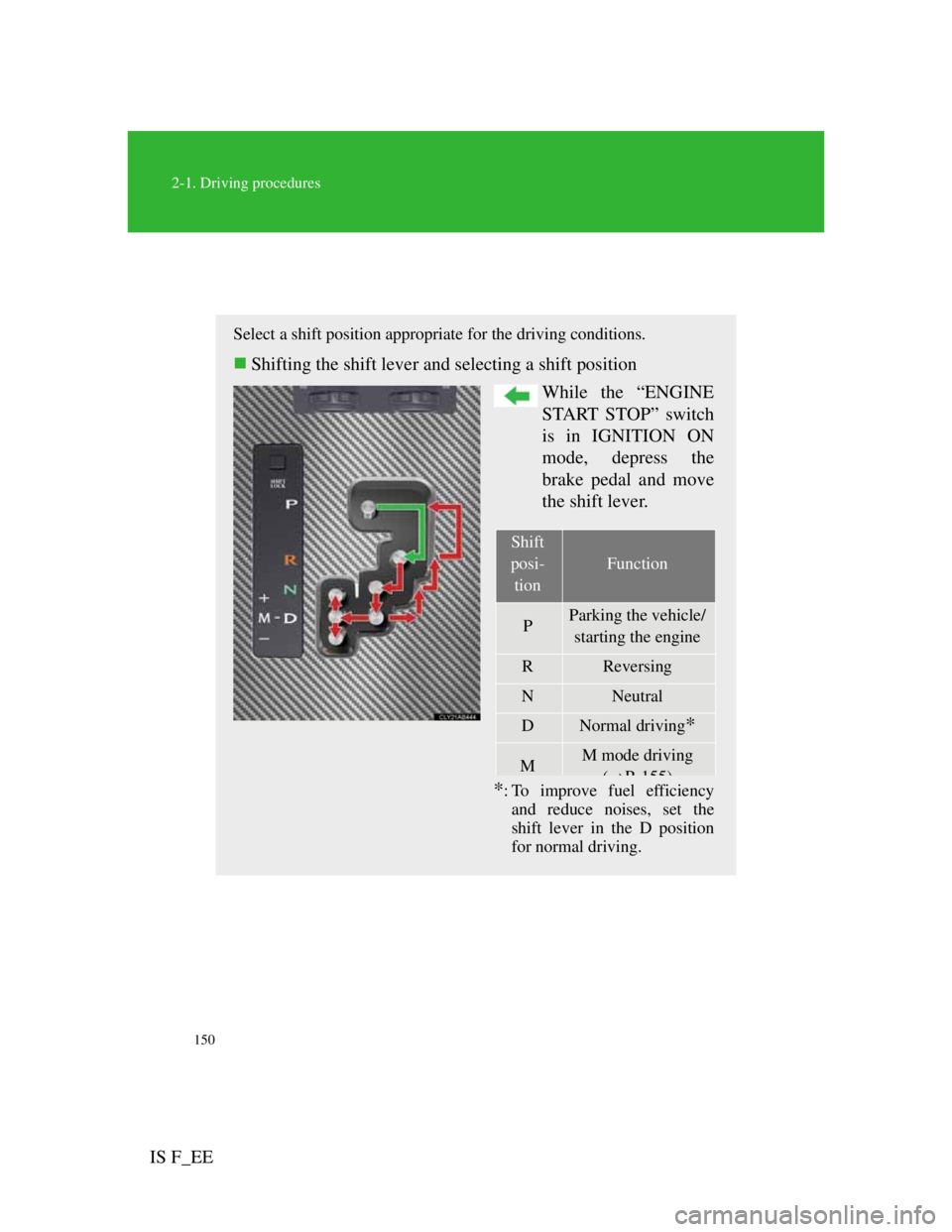

Automatic transmission
Select a shift position appropriate for the driving conditions.
Shifting the shift lever and selecting a shift position
While the “ENGINE
START STOP” switch
is in IGNITION ON
mode, depress the
brake pedal and move
the shift lever.
*: To improve fuel efficiency
and reduce noises, set the
shift lever in the D position
for normal driving.
Shift
posi-
tion
Function
PParking the vehicle/
starting the engine
RReversing
NNeutral
DNormal driving*
MM mode driving
(P155)

159
2-1. Driving procedures
2
When driving
IS F_EE
Turn signal lever
Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change
The right hand signal will
flash until you release the
lever.
Move and hold the lever
partway to signal a lane
change
The left hand signal will flash
until you release the lever.

161
2
When driving
IS F_EE
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer, tachometer gauge display and
multi-information display may differ depending on the model/type.
The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.
Engine coolant temperature gauge
Displays the engine coolant temperature. If the temperature is too
high, the display will flash.
Engine oil temperature gauge
Displays the engine oil temperature. If the temperature is too high,
the display will flash.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter:Displays the distance the vehicle has been driven since
the meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances inde-
pendently.
Multi-information display
P. 167
Tachometer

165
2-2. Instrument cluster
2
When driving
IS F_EE
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1:These lights turn on when the “ENGINE START STOP” switch
is turned to IGNITION ON mode to indicate that a system check
is being performed. They will turn off after the engine is started,
or after a few seconds. There may be a malfunction in a system if
a light does not come on, or if the lights do not turn off. Have the
vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, for details.
*2Th li ht fl h t i di t th t th t i ti
Turn signal indicator
(P. 159)Cruise control indicator
(P. 180, 184)
Headlight high beam
indicator (P. 172)
(if
equipped)
Lexus parking assist-
sensor indicator (P.
199)
Tail light indicator
(P. 172)Slip indicator (P.
206)
Front fog light indicator
(P. 175)VSC off indicator
(P. 206)
Rear fog light indicator
(P. 175)“TRC OFF” indicator
(P. 206)
“SNOW” indicator
(P. 152)SRS airbag on-off indi-
cator (P. 135)
“SPORT” indicator
(P. 152, 207)“DRL OFF” indicator
(P. 173)
*1,
*
*
*

166
2-2. Instrument cluster
IS F_EE
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional, immedi-
ately if this occurs.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 425)
*:These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the
vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional for details
(if equipped)(for
driver)(for front
passen-
ger)
*****
****

172
IS F_EE
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on
the high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release to turn them off. You
can flash the high beams with
the headlights on or off.
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights, front
position lights and
other lights turn on
and off automatically.
(When the “ENGINE
START STOP” switch
is in IGNITION ON
mode)

173
2-3. Operating the lights and windshield wipers
2
When driving
IS F_EE
Daytime running light system
To make your vehicle more visible to other drivers, the front posi-
tion lights turn on automatically (at a increased intensity) when-
ever the engine is started. Daytime running lights are not designed
for use at night.
Deactivating daytime running light
How to switch: P. 333
“DRL OFF” turns on when the daytime running light is deacti-
vated.
Headlight control sensor
Automatic light off system
When the light switch is in : The headlights turn off automatically
if the “ENGINE START STOP” switch is switched to ACCESSORY
mode or turned OFF.
When the light switch is in “AUTO”: The headlights and tail lights turn
off automatically if the “ENGINE START STOP” switch is switched to
ACCESSORY mode or turned OFF and the driver's door is opened.
To turn the lights on again, switch to IGNITION ON mode, or turn the light
switch off once and then back to
or .
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction

177
2-3. Operating the lights and windshield wipers
2
When driving
IS F_EE
The windshield wipers and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
Effects of vehicle speed on wiper operation
With the settings other than “AUTO” also, the time until drip prevention
wiper sweep occurs is changed depending on vehicle speed.
Low speed wiper operation selected, wiper operation will be switched from
low speed to intermittent wiper operation only when the vehicle is station-
ary.
“AUTO” mode
If the wiper switch is turned to the “AUTO” position while the
“ENGINE START STOP” switch is in IGNITION ON mode, the wiper
will operate once to show that auto mode is activated.
If the temperature of the raindrop sensor is 90C (194F) or higher, or -
30C (-22F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
Outside rear view mirror defogger activation linked to windshield wiper
operation
The outside rear view mirror defogger automatically turns on when you
operate the windshield wipers.
The raindrop sensor judges the
amount of raindrops.
The sensitivity of sensor can be
adjusted by turning the knob.
Increases the sensitivity
Decreases the sensitivity
