Lexus IS F 2011 Owner's Manual

448
5-2. Steps to take in an emergency
IS F_EE
Installing the spare tire
Remove any dirt or foreign
matter from the wheel contact
surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown
in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
STEP1
STEP2Tapered portion
Disc wheel
seat
STEP3
STEP4

5
449
5-2. Steps to take in an emergency
When trouble arises
IS F_EEStow the flat tire, tire jack and all tools.
The compact spare tire
The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
Make sure to check the tire inflation pressure of the compact spare tire.
(
P. 480)
If you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on the front of the vehicle. Perform the follow-
ing steps and fit tire chains to the rear tires.
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the
vehicle.
Fit tire chains to the rear tires.
STEP5
STEP1
STEP2
STEP3

450
5-2. Steps to take in an emergency
IS F_EE

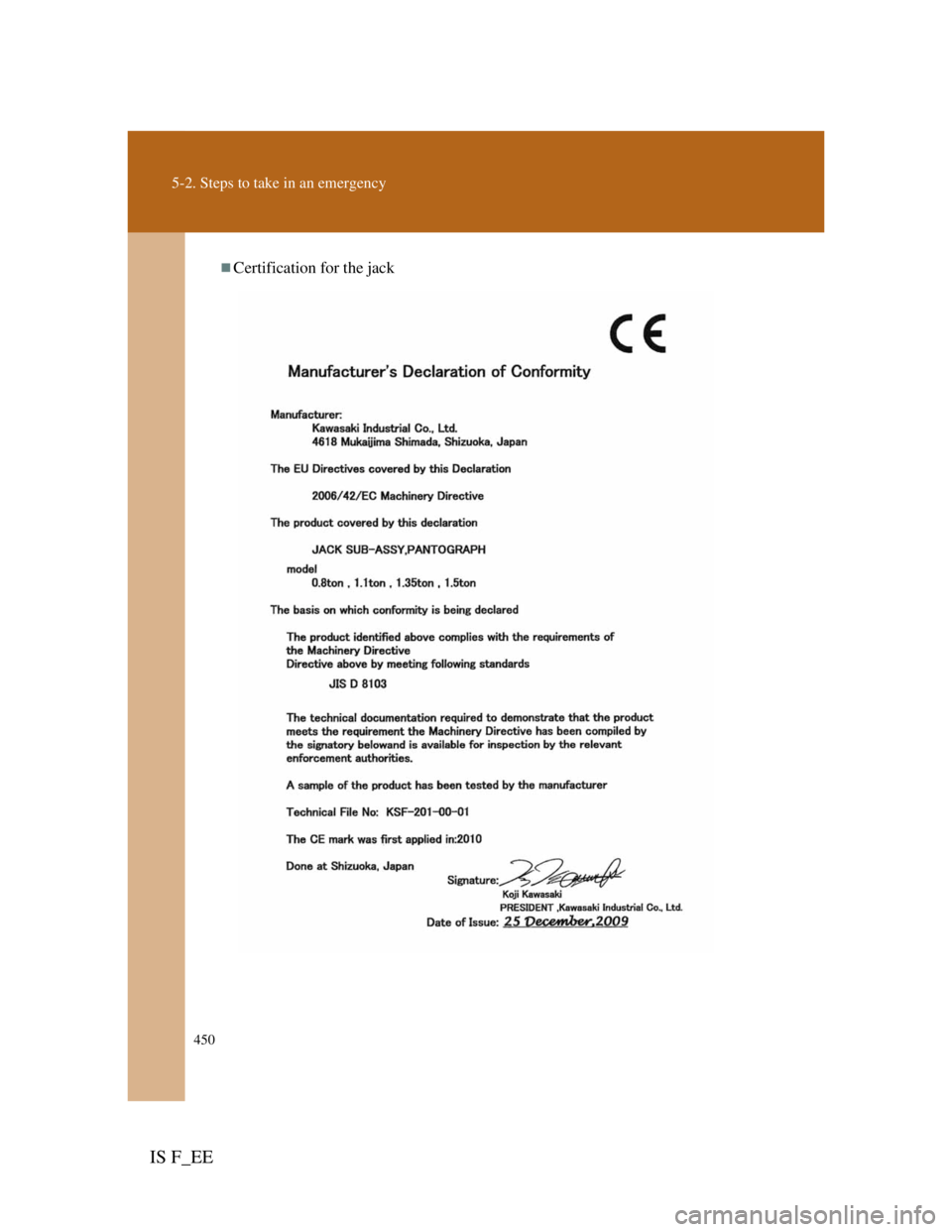

Certification for the jack

5
451
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle while it is supported
by the jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace the
tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle may be injured.
Replacing a flat tire
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a
serious accident. Remove any oil or grease from the wheel bolts or
wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 N
•m (10.5
kgf
•m, 76 ft•lbf) as soon as possible after changing wheels.

452
5-2. Steps to take in an emergency
IS F_EE
CAUTION
When using the compact spare tire
Remember that your spare tire is specifically designed for use with your
vehicle. Do not use your spare tire on another vehicle.
Do not use more than one spare tire simultaneously.
Do not use the compact spare tire as a rear tire. If you have a flat rear tire,
replace a front tire with the compact spare tire first and then replace the
flat rear tire with the tire removed from the front.
Replace the spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.
When the spare tire is installed
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & brake assist
VSC
TRC
VDIM
Navigation system (if equipped)
Lexus parking assist-sensor (if equipped)
Dynamic radar cruise control (if equipped)
Cruise control (if equipped)
PCS (if equipped)
LSD
Automatic headlight leveling system

5
453
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Be careful when driving over bumps with the compact spare tire installed on
the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

454
5-2. Steps to take in an emergency
IS F_EE
If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (P. 146), consider each of the following points.
The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine once more following correct start-
ing procedures. (P. 146)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at a
low volume.
One of the following may be the cause of the problem.
The battery may be discharged. (P. 462)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 462)
There may be a malfunction in the engine immobilizer sys-
tem. (P. 92)
There may be a malfunction in the steering lock system.
Contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional, if the problem can-
not be repaired, or if repair procedures are unknown.

5
455
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
Emergency start function
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START
STOP” switch is functioning normally:
Set the parking brake.
Put the shift lever in P.
Set the “ENGINE START STOP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch for
about 15 seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by any autho-
rized Lexus dealer or repairer, or another duly qualified and
equipped professional.
STEP1
STEP2
STEP3
STEP4

456
5-2. Steps to take in an emergency
IS F_EE
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent acci-
dental operation of the shift lever). Have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, immediately.
The following steps may be used as an emergency measure to ensure
that the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to IGNITION
ON mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4

5
457
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
If you lose your keys
New genuine Lexus keys can be made by any authorized Lexus dealer
or repairer, and another duly qualified and equipped professional,
using the other key and the key number stamped on your key number
plate.
