5-2. Steps to take in an emergency
IS F_EE
If the vehicle becomes stuck
CAUTION
When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the wheels and do not rev the engine.
If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow, or sand from around the stuck
tire.
Place wood, stones or some other material to help pro-
vide traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position, release the
parking brake and carefully apply the accelerator to free
the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5

5
469
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
If your vehicle has to be stopped in an emergency
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake
pedal harder to depress and the steering wheel heavier to turn. Decelerate as
much as possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following proce-
dure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase
the effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by
the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by pressing
and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 3 seconds or
STEP4

470
5-2. Steps to take in an emergency
IS F_EE

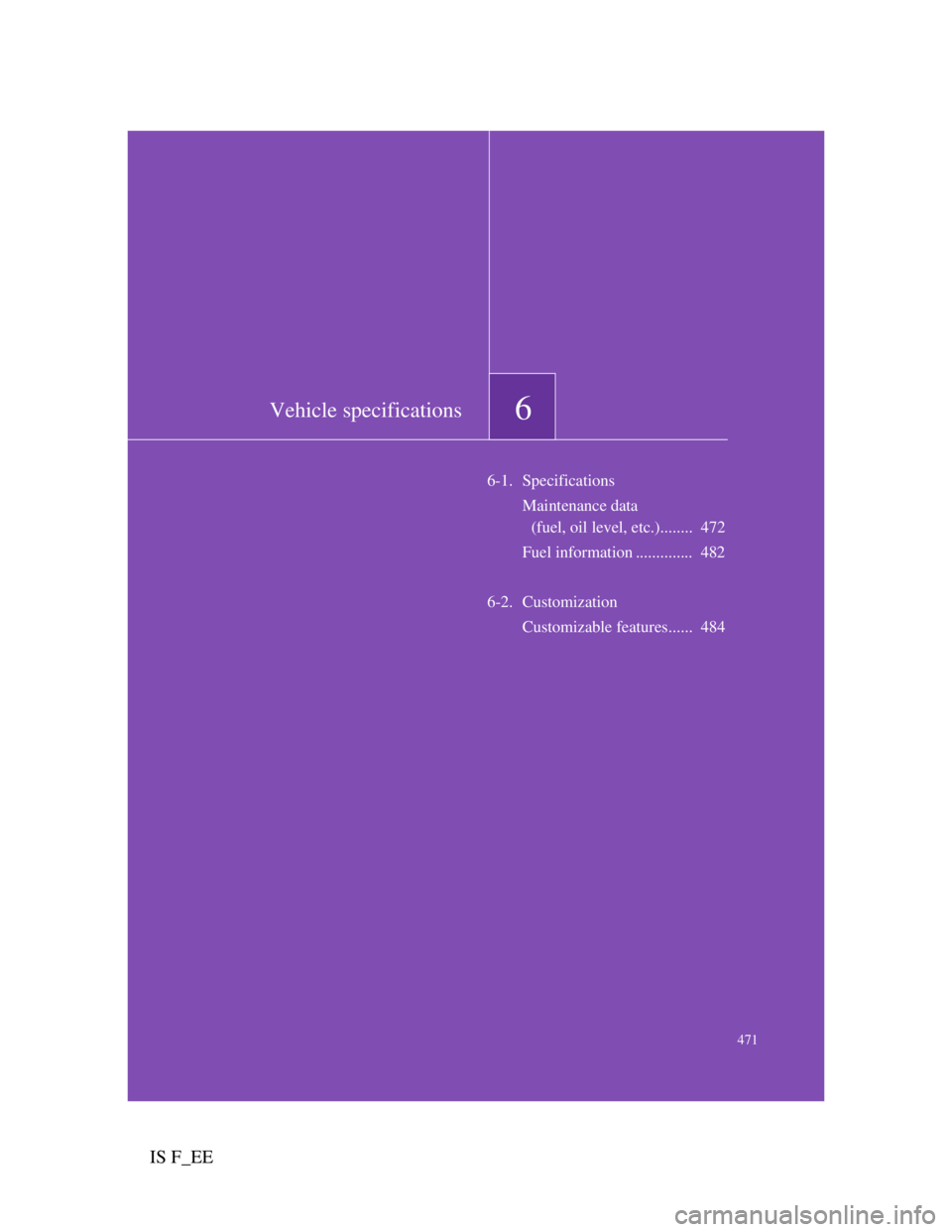

6Vehicle specifications
471
IS F_EE
6-1. Specifications
Maintenance data
(fuel, oil level, etc.)........ 472
Fuel information .............. 482
6-2. Customization
Customizable features...... 484

472
IS F_EE
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1:Unladen vehicle
*2:Vehicles with a rear wheel size of 19 × 9J
*3:Vehicles with a rear wheel size of 19 × 9 1/2J
Overall length4660 mm (183.4 in.)
Overall width1815 mm (71.4 in.)
Overall height*11415 mm (55.7 in.)
Wheelbase2730 mm (107.4 in.)
Tread
Front1560 mm (61.4 in.)
Rear1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Gross vehicle mass2120 kg (4673 lb.)
Maximum permissible axle
capacity1115 kg (2458 lb.)

473
6-1. Specifications
6
Vehicle specifica-
IS F_EE
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Lexus. It is used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel or in
the engine compartment.
This number is also on the man-
ufacturer’s label.

474
6-1. Specifications
IS F_EEEngine number
The engine number is stamped on the engine block as shown.
Engine
Fuel
Model2UR-GSE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  89.5 mm (3.70 3.52 in.)
Displacement4969 cm3 (303.2 cu. in.)
Drive belt tensionAutomatic adjustment
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)64 L (16.9 gal., 14.0 Imp. gal.)

475
6-1. Specifications
6
Vehicle specifica-
IS F_EE
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchang-
ing. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”,
SN “Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Oil capacity
(Drain and refill 
reference*)
without filter
with filter
8.2 L (8.7 qt., 7.2 Imp. qt.)
9.3 L (9.8 qt., 8.2 Imp. qt.)

476
6-1. Specifications
IS F_EERecommended viscosity (SAE):
SAE 5W-30 is filled into your
Lexus vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become diffi-
cult to start, so SAE 5W-30
engine oil is recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
Preferred
Temperature range anticipated
before next oil change.

477
6-1. Specifications
6
Vehicle specifica-
IS F_EEHow to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality des-
ignation by API (American
Petroleum Institute) (SN)
Center portion: The SAE vis-
cosity grade (SAE 5W-30)
Lower portion: “Resource-Con-
serving” means that the oil has
fuel saving and environmental
protection.
ILSAC Certification mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certifica-
tion Mark is displayed on the
front of the container.
Cooling system
Capacity11.9 L (12.6 qt., 10.5 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
