Lexus IS200 1999 Towing hitch
Trending: oil, lock, transmission oil

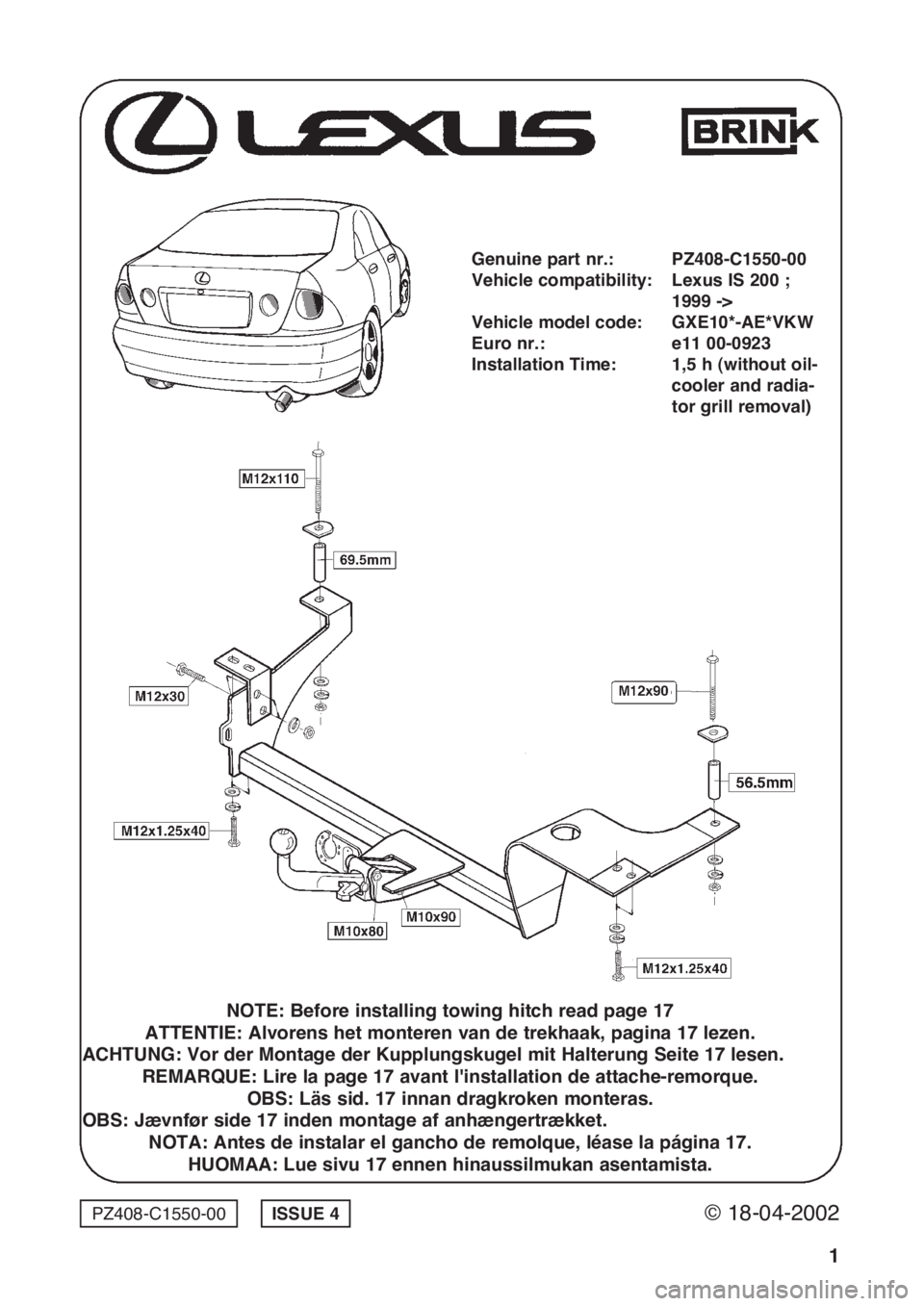

Page 1 of 20
© 18-04-2002PZ408-C1550-00
1
ISSUE 4
Genuine part nr.: PZ408-C1550-00
Vehicle compatibility: Lexus IS 200 ;
1999 ->
Vehicle model code: GXE10*-AE*VKW
Euro nr.: e11 00-0923
Installation Time: 1,5 h (without oil-
cooler and radia-
tor grill removal)
NOTE: Before installing towing hitch read page 17
ATTENTIE: Alvorens het monteren van de trekhaak, pagina 17 lezen.
ACHTUNG: Vor der Montage der Kupplungskugel mit Halterung Seite 17 lesen
.REMARQUE: Lire la page 17 avant l'installation de attache-remorque.
OBS: Läs sid. 17 innan dragkroken monteras.
OBS: Jævnfør side 17 inden montage af anhængertrækket.
NOTA: Antes de instalar el gancho de remolque, léase la página 17.
HUOMAA: Lue sivu 17 ennen hinaussilmukan asentamista.

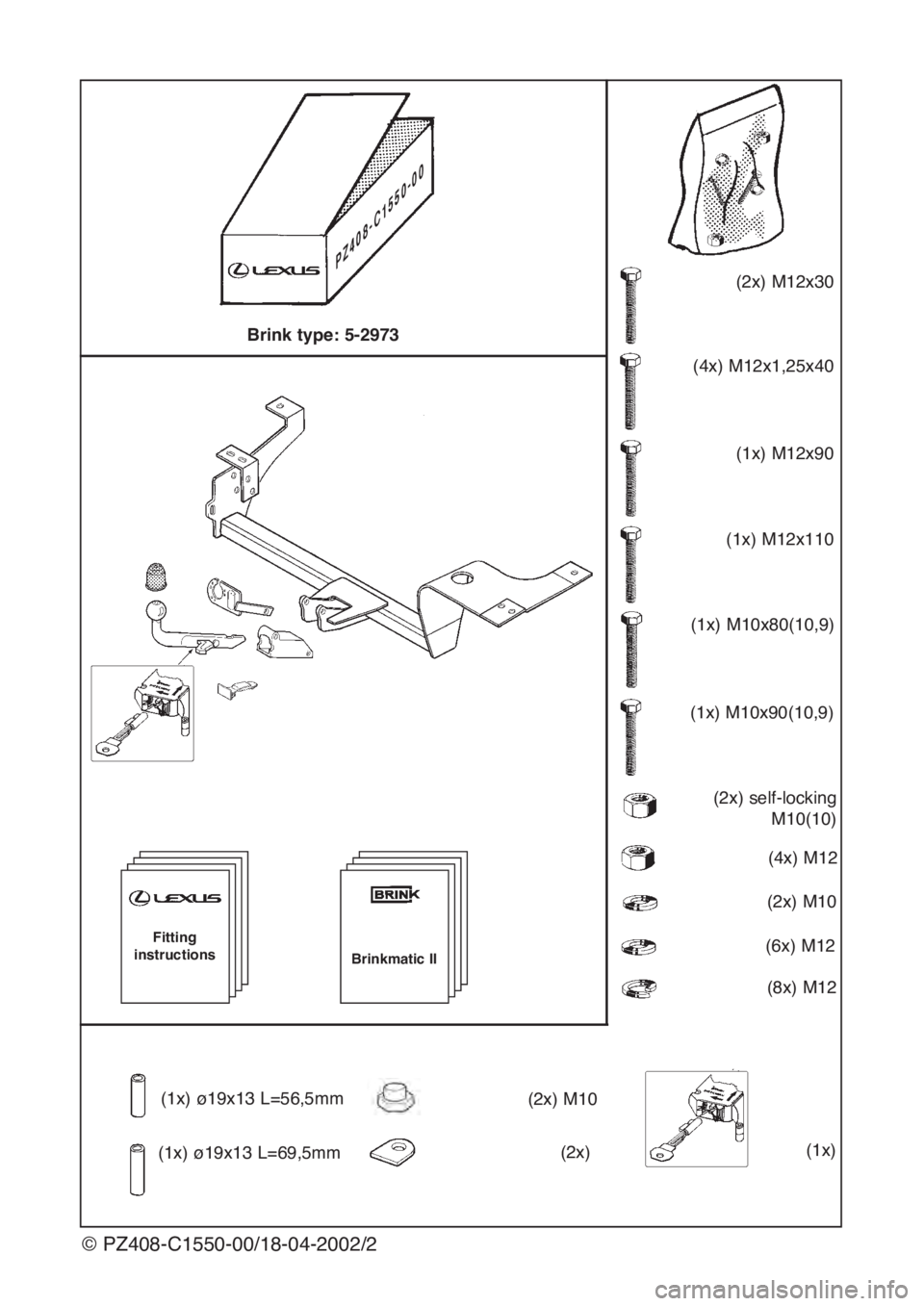

Page 2 of 20
© PZ408-C1550-00/18-04-2002/2
PZ408-C1550-00
Fitting
instructions
(1x) M12x90
(2x) M10
(2x) self-locking
M10(10)
(2x) M12x30
(4x) M12x1,25x40
(4x) M12
(8x) M12
Brink type: 5-2973
Brinkmatic II
(1x) M12x110
(1x) M10x80(10,9)
(1x) ø19x13 L=69,5mm(2x)
(6x) M12
(1x) ø19x13 L=56,5mm(2x) M10
(1x) M10x90(10,9)
(1x)

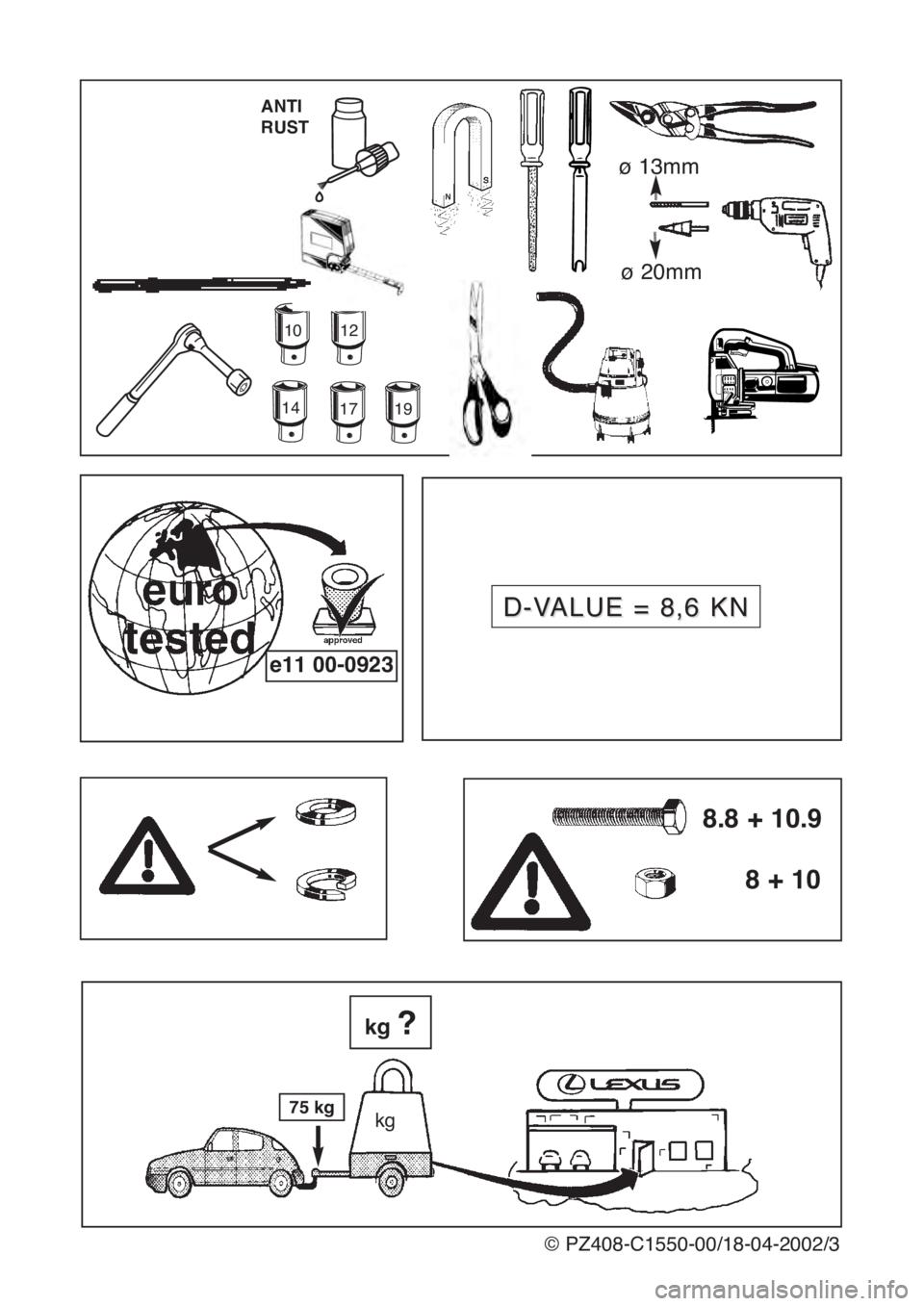

Page 3 of 20
8.8 + 10.9
8 + 10
kg
kg?
© PZ408-C1550-00/18-04-2002/3
75 kg
e11 00-0923
141719
ANTI
RUST
ø 20mm
ø 13mm
1012
D-V D-V
ALUE = 8,6 KN ALUE = 8,6 KN

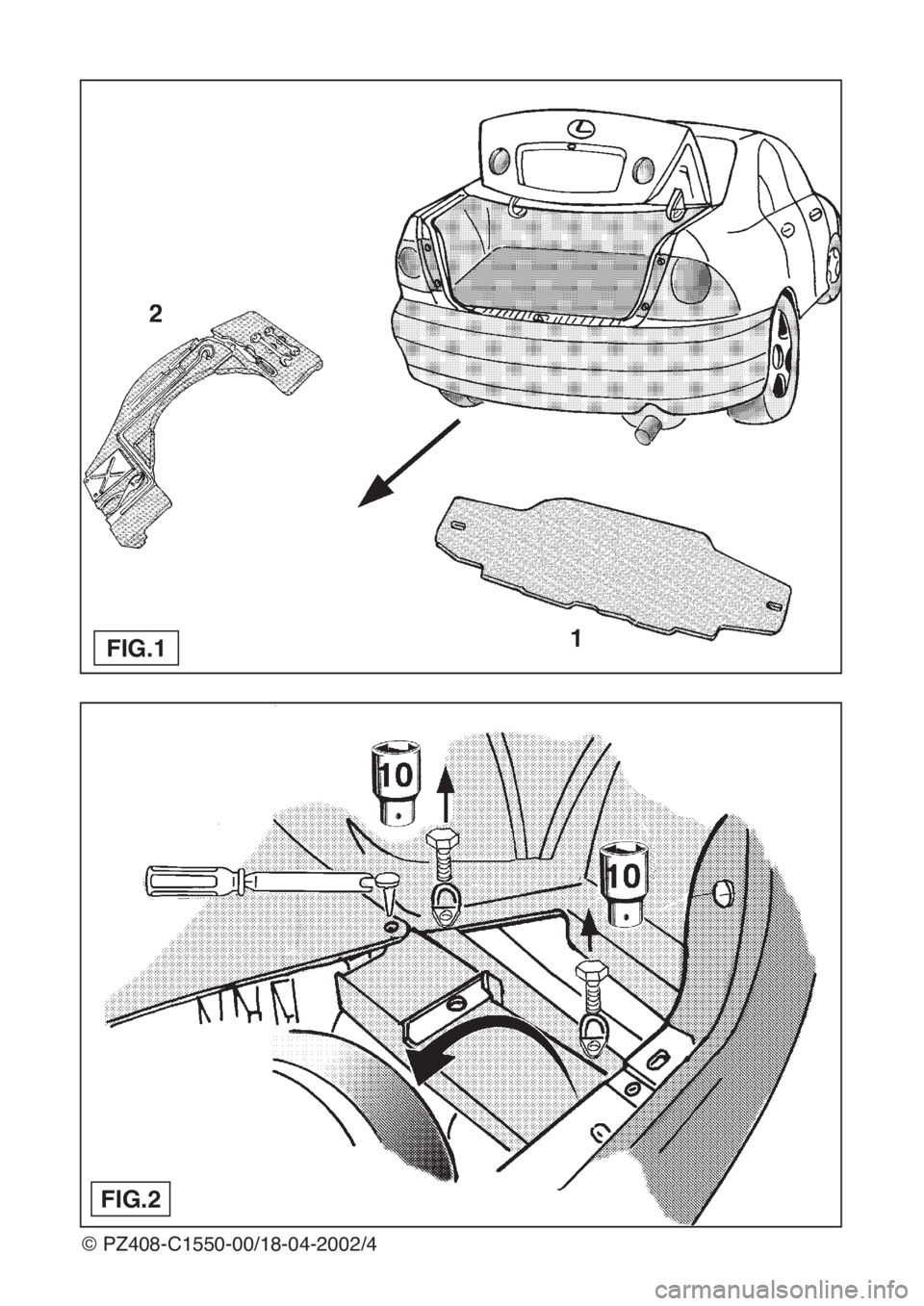

Page 4 of 20
© PZ408-C1550-00/18-04-2002/4
FIG.1
FIG.2

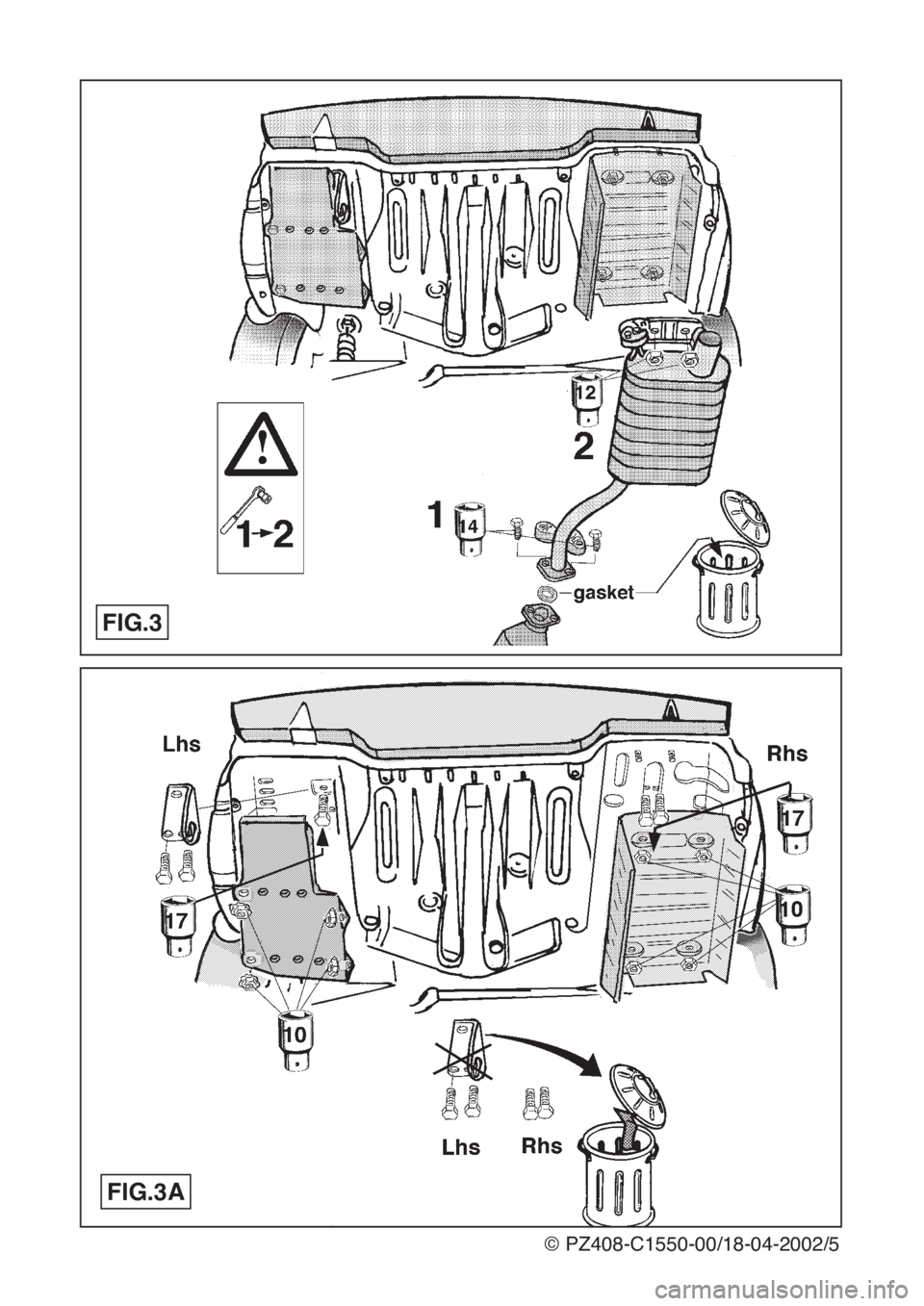

Page 5 of 20
© PZ408-C1550-00/18-04-2002/5
FIG.3
FIG.3A

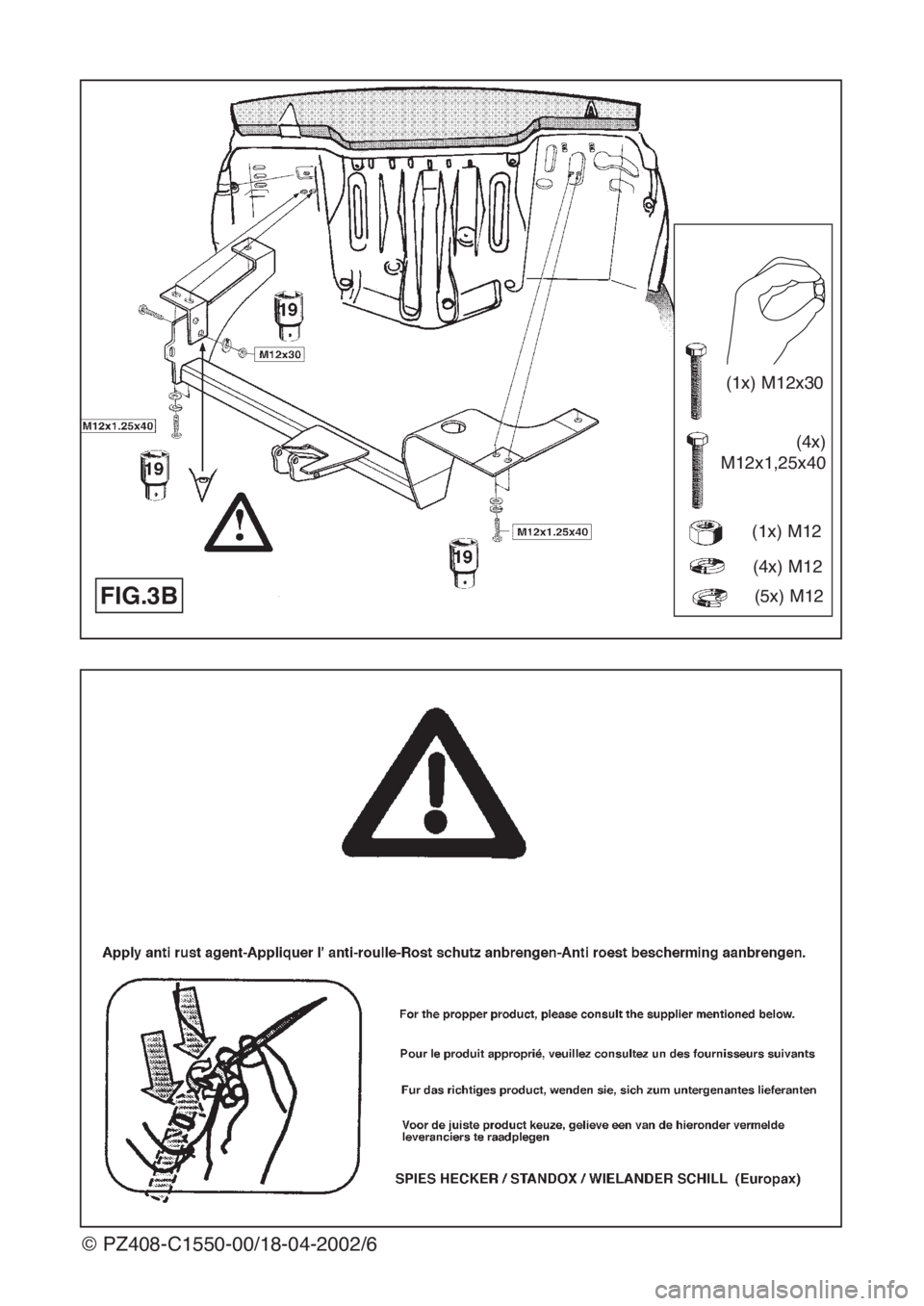

Page 6 of 20
© PZ408-C1550-00/18-04-2002/6
FIG.3B
(1x) M12x30
(4x)
M12x1,25x40
(1x) M12
(4x) M12
(5x) M12
Page 7 of 20
© PZ408-C1550-00/18-04-2002/7
FIG.3C

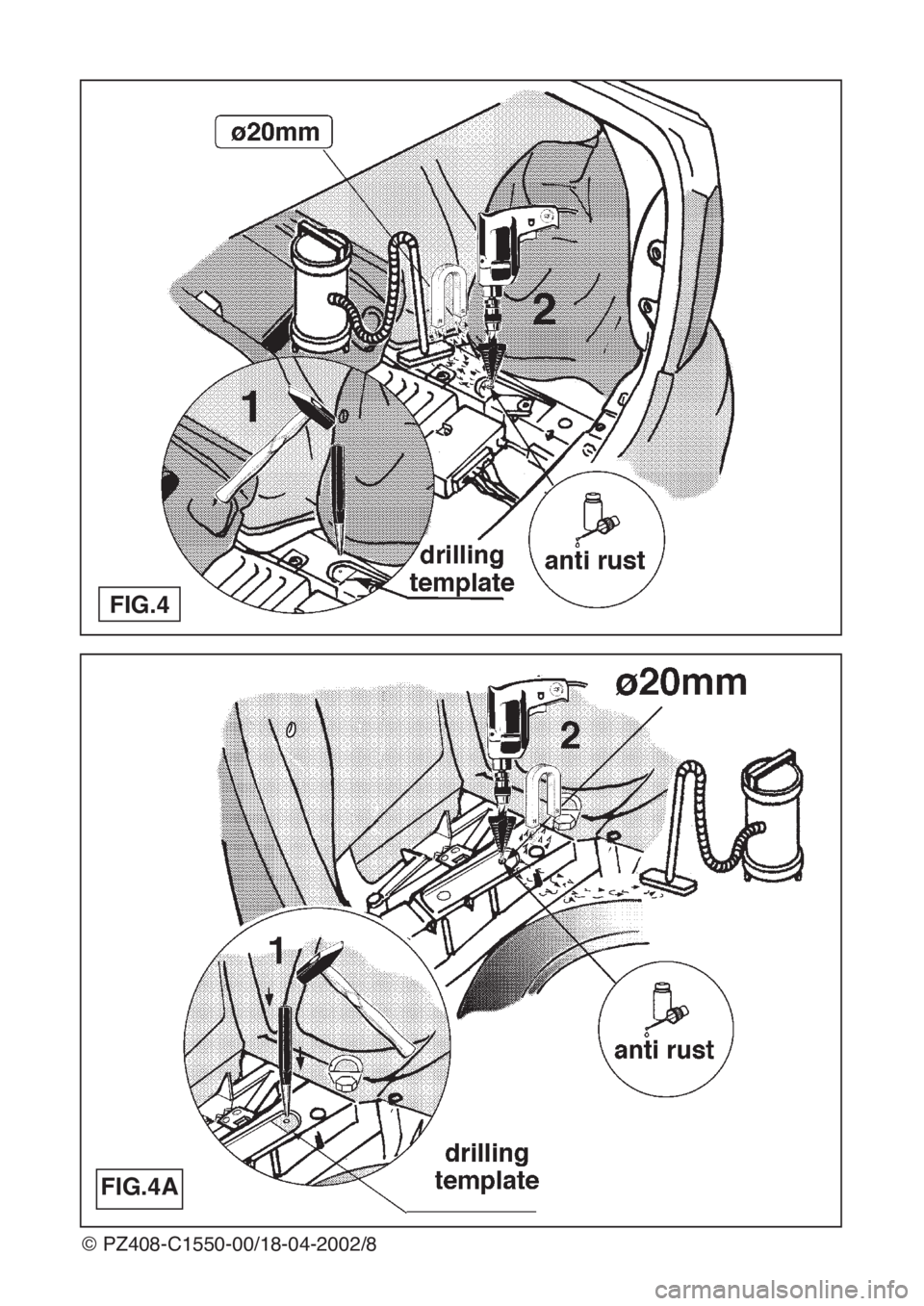

Page 8 of 20
© PZ408-C1550-00/18-04-2002/8
FIG.4
FIG.4A

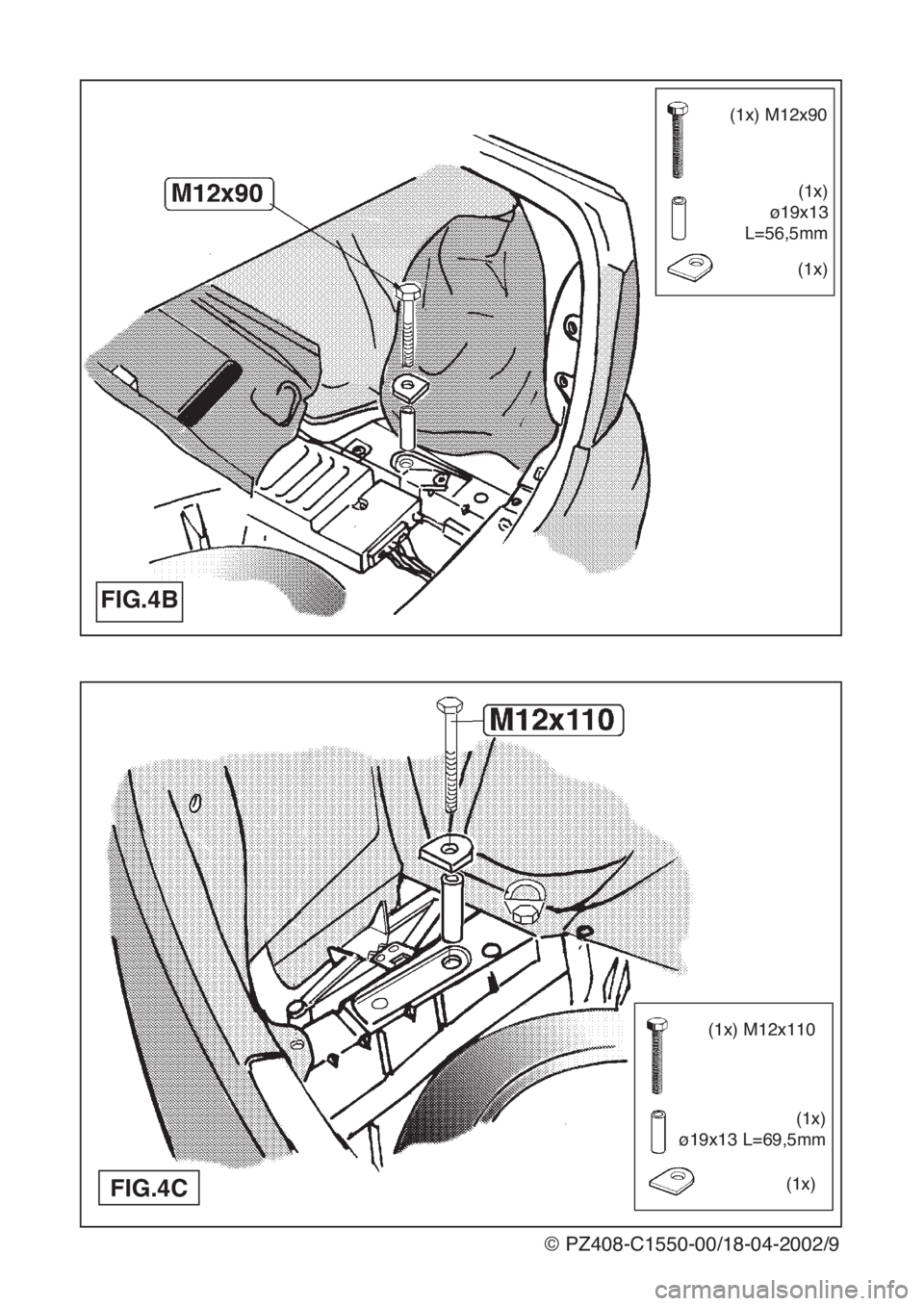

Page 9 of 20
FIG.4B
(1x) M12x90
(1x)
ø19x13
L=56,5mm
(1x)
FIG.4C
(1x) M12x110
(1x)
ø19x13 L=69,5mm
(1x)
© PZ408-C1550-00/18-04-2002/9
Page 10 of 20
© PZ408-C1550-00/18-04-2002/10
FIG. 5
(2x) M12
(2x) M12
(2x) M12
(4x) M12
79 Nm
19
(4x)
M12x1,25
95 Nm
19
FIG.6
FIG.7
(1x) M12
(1x) M12
(1x) M12x30
