Lexus IS200t 2015 Owner's Manual

4817-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)
■Outer foot lightsPress the upper part of the out-
side rear view mirror to tilt the
mirror face upward, and apply
protective tape to the lower part
of the mirror cover.
Insert 2 flathead screwdrivers
wrapped in protective tape, and
disconnect the tabs behind the
mirror.
Pry the mirror out toward you, dis-
connecting the tabs 2 at a time.
Work carefully, ensuring that you do
not drop the mirror.
Disconnect the connectors
behind the mirror, and remove
the mirror.
When removing the thin connectors,
make sure to mark one of the con-
nectors with a piece of tape, to avoid
mixing them up when reinstalling.
Work carefully, ensuring that you do
not drop the mirror.
When handling the mirror, do not touch the parts applied with grease.
The number of connectors equipped differs by vehicle specification.
Remove the 5 screws and take off
the mirror’s outer cover and the
cover behind the mirror.
1
2
3
4

4827-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)

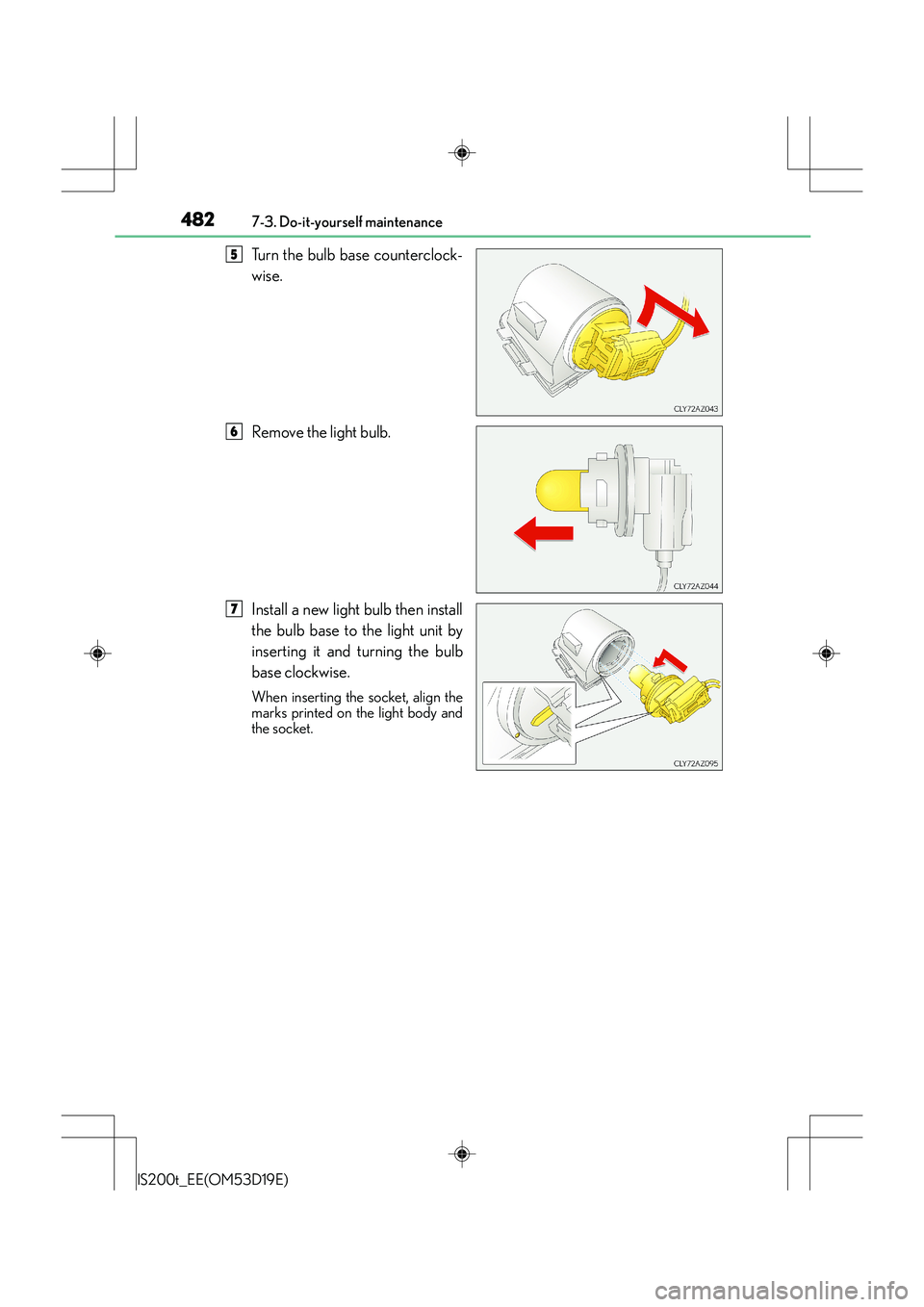

Turn the bulb base counterclock-
wise.
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
When inserting the socket, align the
marks printed on the light body and
the socket.
5
6
7

4837-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)

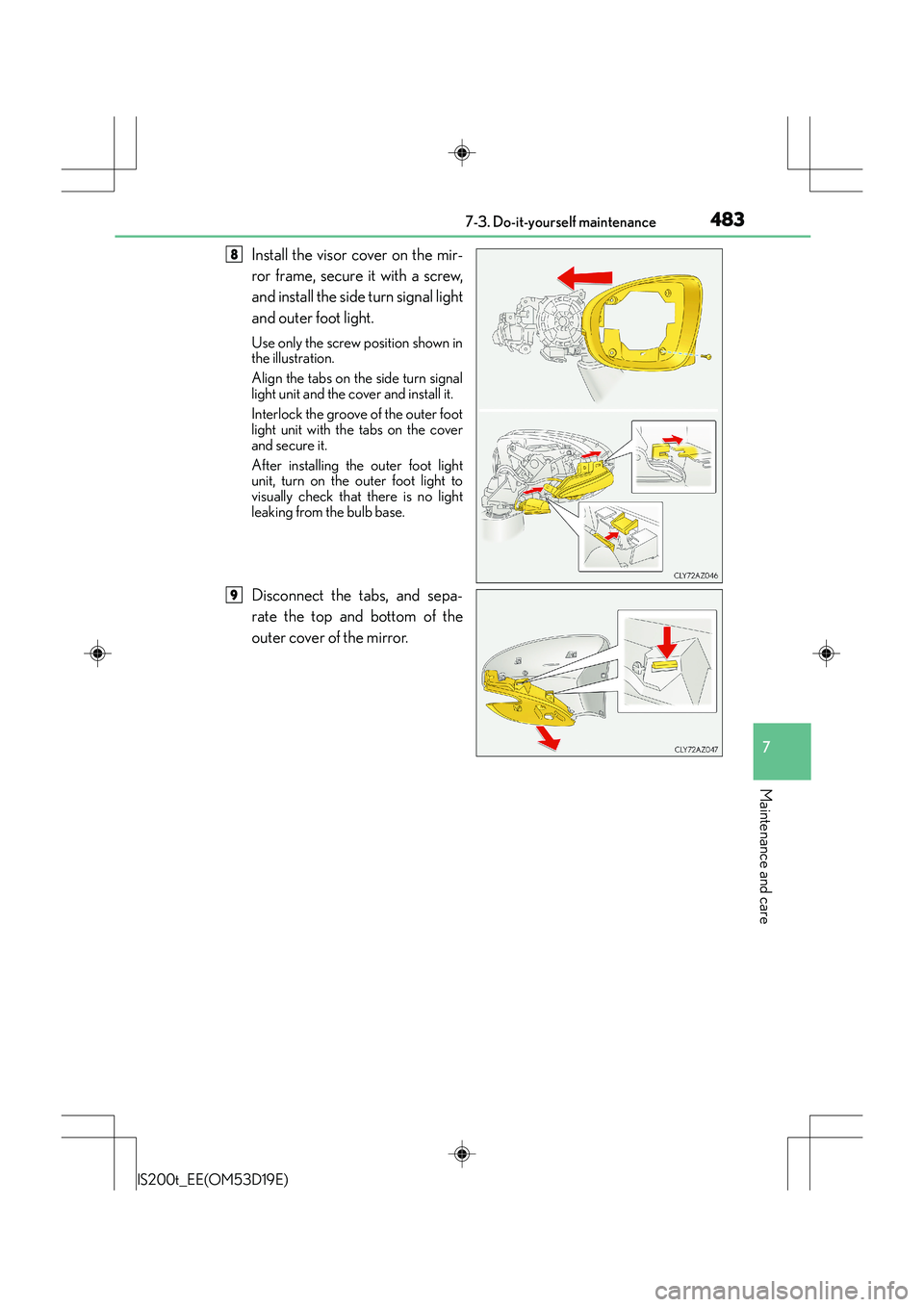

Install the visor cover on the mir-
ror frame, secure it with a screw,
and install the side turn signal light
and outer foot light.
Use only the screw position shown in
the illustration.
Align the tabs on the side turn signal
light unit and the cover and install it.
Interlock the groove of the outer foot
light unit with the tabs on the cover
and secure it.
After installing the outer foot light
unit, turn on the outer foot light to
visually check that there is no light
leaking from the bulb base.
Disconnect the tabs, and sepa-
rate the top and bottom of the
outer cover of the mirror.
8
9

4847-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)

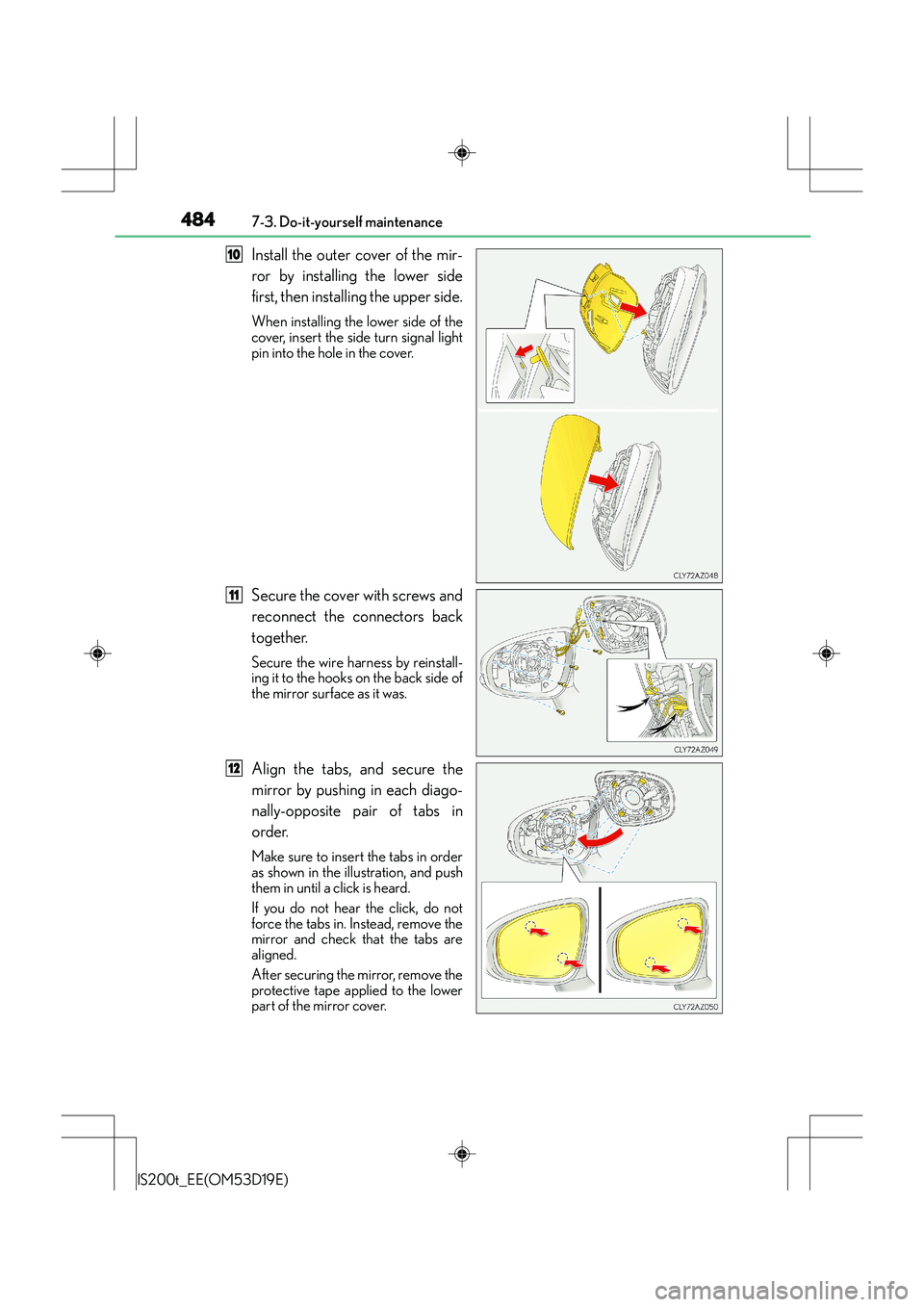

Install the outer cover of the mir-
ror by installing the lower side
first, then installing the upper side.
When installing the lower side of the
cover, insert the side turn signal light
pin into the hole in the cover.
Secure the cover with screws and
reconnect the connectors back
together.
Secure the wire harness by reinstall-
ing it to the hooks on the back side of
the mirror surface as it was.
Align the tabs, and secure the
mirror by pushing in each diago-
nally-opposite pair of tabs in
order.
Make sure to insert the tabs in order
as shown in the illustration, and push
them in until a click is heard.
If you do not hear the click, do not
force the tabs in. Instead, remove the
mirror and check that the tabs are
aligned.
After securing the mirror, remove the
protective tape applied to the lower
part of the mirror cover.
10
11
12

4857-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)

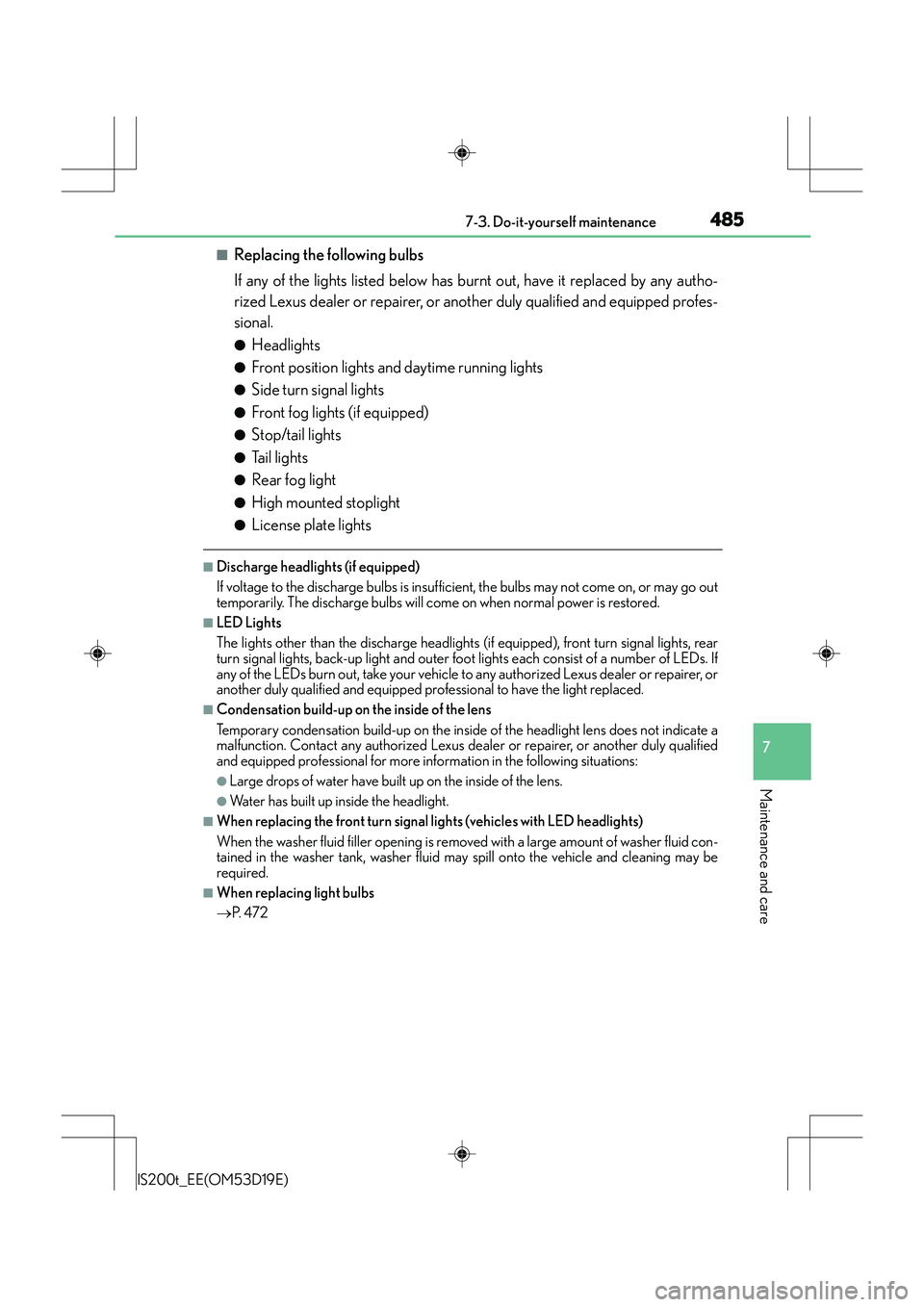

■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
●Headlights
●Front position lights and daytime running lights
●Side turn signal lights
●Front fog lights (if equipped)
●Stop/tail lights
●Tail lights
●Rear fog light
●High mounted stoplight
●License plate lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go out
temporarily. The discharge bulbs will come on when normal power is restored.
■LED Lights
The lights other than the discharge headlights (if equipped), front turn signal lights, rear
turn signal lights, back-up light and outer foot lights each consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing the front turn signal lights (vehicles with LED headlights)
When the washer fluid filler opening is remove d with a large amount of washer fluid con-
tained in the washer tank, washer fluid may spill onto the vehicle and cleaning may be
required.
■When replacing light bulbs
→ P. 4 7 2

4867-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bu lb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering th e headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional before replacing the discharge headlights (including light
bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights are
turned on.
An extremely high voltage of 30000 V will be discharged and could result in death
or serious injury by electric shock.
●Do not attempt to take apart or repair the headlight bulbs, connectors, power supply
circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.
●Vehicles with discharge headlights: While the
headlights are turned on, and for a short time
after they have been turned off, metal compo-
nents at the rear of the headlight assembly will
be extremely hot. To prevent burns, do not
touch these metal components until you are
certain they have cooled down.
Metal components

4877-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D19E)

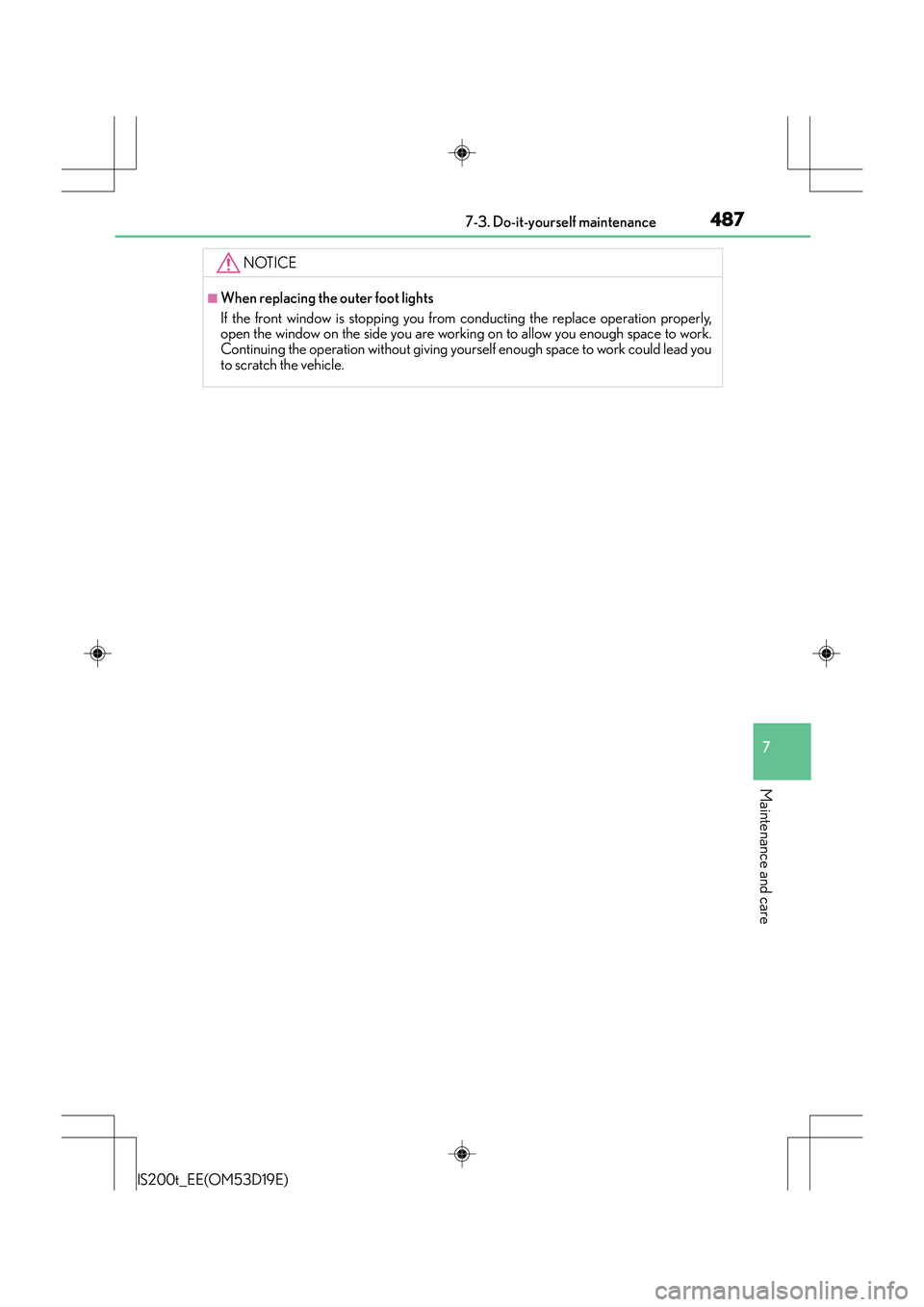

NOTICE
■When replacing the outer foot lights
If the front window is stopping you from conducting the replace operation properly,
open the window on the side you are working on to allow you enough space to work.
Continuing the operation without giving yourself enough space to work could lead you
to scratch the vehicle.

4887-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)

489
8When trouble arises
IS200t_EE(OM53D19E)
8-1. Essential informationEmergency flashers...................490
If your vehicle has to be stopped
in an emergency ....................... 491 8-2. Steps to take
in an emergency
If your vehicle needs to be towed................................ 492
If you think something is wrong....................................... 498
Fuel pump shut off system ...... 499
If a warning light turns on or a warning buzzer
sounds......................................... 500
If a warning message is displayed ................................506
If you have a flat tire (vehicles with
a spare tire)................................ 522
If you have a flat tire (vehicles with emergency
tire puncture repair kit)......... 533
If the engine will not start ........ 547
If the shift lever cannot be shifted from P ..................... 549
If the electronic key does not operate properly .............550
If the vehicle battery is discharged ............................. 553
If your vehicle overheats ......... 557
If the vehicle becomes stuck ...............................................561

490
IS200t_EE(OM53D19E)8-1. Essential information

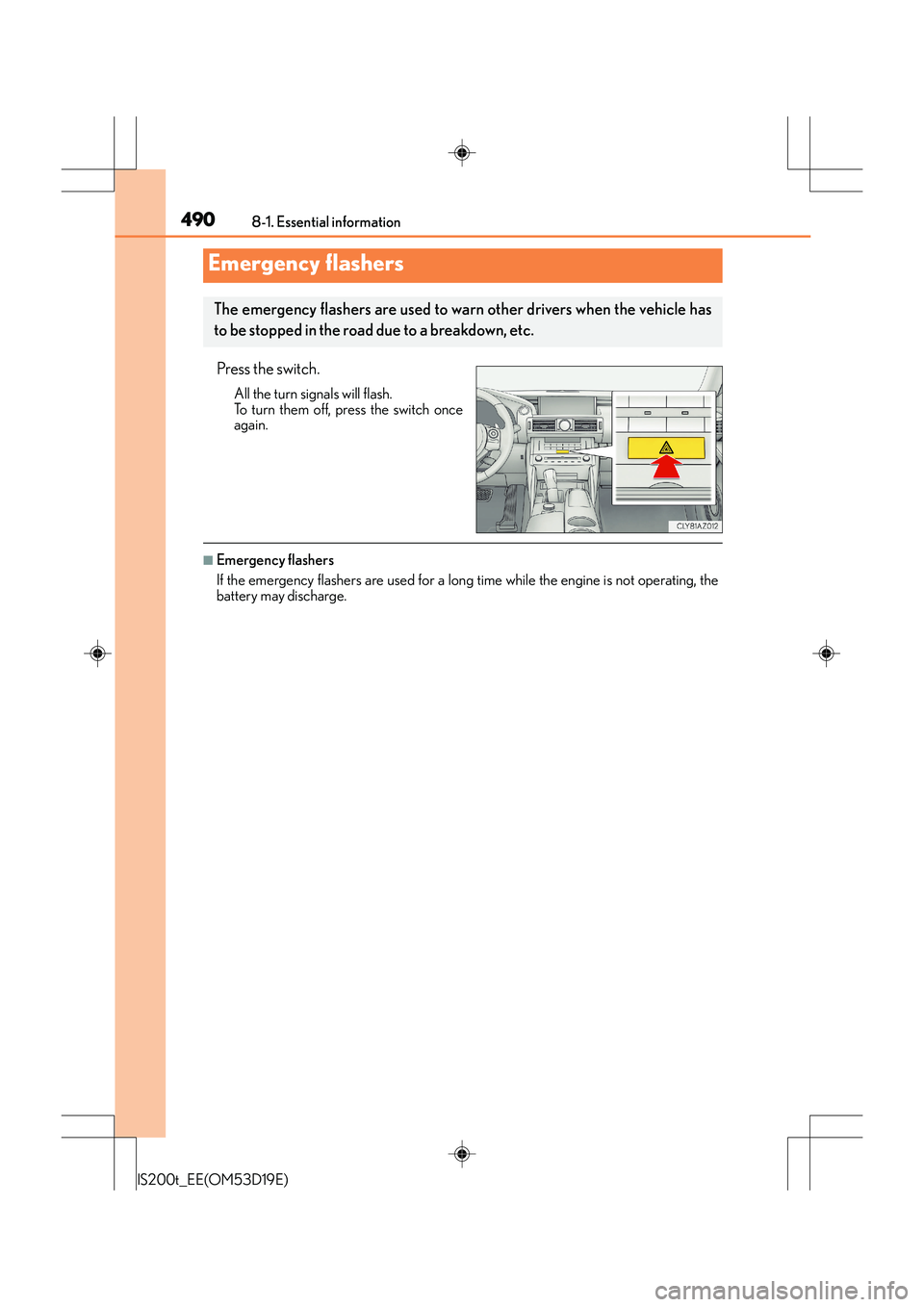

Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.
