Page 581 of 612

581
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Outside rear view mirrors (
→P. 1 6 5 )
*: If equipped
■Powe r w i n d ows ( →P. 1 6 9 )
■Moon roof* (→ P. 1 7 3 )
*: If equipped
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operation*
Linked to the
locking/
unlocking of
the doorsOff
——OLinked to operation
of the engine switch
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked
operationOffOn——O
Wireless remote control linked
operation signal (buzzer)OnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Linked operation of components
when mechanical key is used
(open only)
Slide onlyTilt only——O
Wireless remote control linked
operationOffOn——O
Linked operation of components
when wireless remote control is
used (open only)
Slide onlyTilt only——O
Wireless remote control linked
operation signal (buzzer)OnOff——O
123

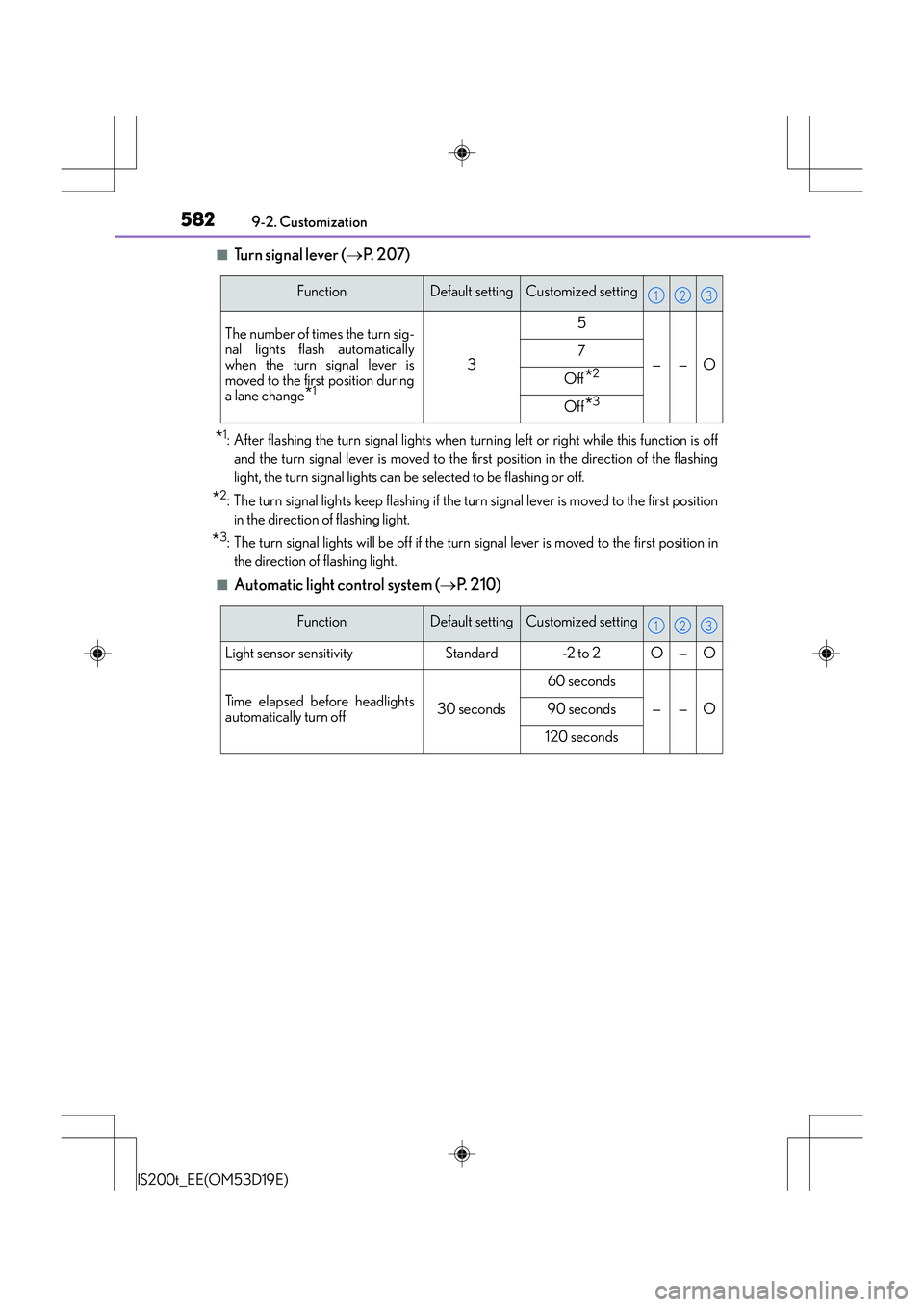

Page 582 of 612

5829-2. Customization
IS200t_EE(OM53D19E)
■Tu r n s i g n a l l e v e r ( →P. 2 0 7 )
*1: After flashing the turn signal lights when turn ing left or right while this function is off
and the turn signal lever is moved to the first position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the turn signal lever is moved to the first position in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position inthe direction of flashing light.
■Automatic light control system ( →P. 2 1 0 )
FunctionDefault settingCustomized setting
The number of times the turn sig-
nal lights flash automatically
when the turn signal lever is
moved to the first position during
a lane change
*1
3
5
——O7
Off*2
Off*3
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before headlights
automatically turn off30 seconds
60 seconds
——O90 seconds
120 seconds
123
Page 583 of 612

583
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Stop & Start system (Smart Stop)* (
→ P. 3 9 8 )
*: If equipped
■Lexus parking assist-sensor*1 (→ P. 2 6 6 )
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
■Automatic air conditioning system ( →P. 3 9 8 )
■Seat heaters* (→ P. 409)
*:If equipped
FunctionDefault settingCustomized setting
Change the Stop & Start system
duration when the A/C is onStandardExtended—O—
123
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting*2All sensors
displayedDisplay offO—O
123
FunctionDefault settingCustomized setting
Switching between outside air
and recirculated air mode linked
to “AUTO” switch operationOnOffO—O
A/C Auto switch operationOnOffO—O
123
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnO—O
123
Page 584 of 612

5849-2. Customization
IS200t_EE(OM53D19E)
■Illumination ( →P. 4 1 1 )
FunctionDefault settingCustomized setting
Time elapsed before the interior
lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff——O
Inside door handle lightsOnOff——O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation of the outer foot lights
when you approach the vehicle
with the electronic key on your
person
OnOff——O
Operation of the outer foot lights
when the doors are unlocked
with the power door lock switchOnOff——O
123
Page 585 of 612

585
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock
are both on, the door lock operates as follows.
• When shifting the shift lever to any position
other than P, all the doors will be locked.
• If the vehicle is started with all doors locked, the speed-detecting automatic door lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door
lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-
ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signal s will be generated in accordance with the
operation buzzer volume and operational signal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the ch anged setting will not be reflected on the audio system
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller (if
equipped)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.
Page 586 of 612

586

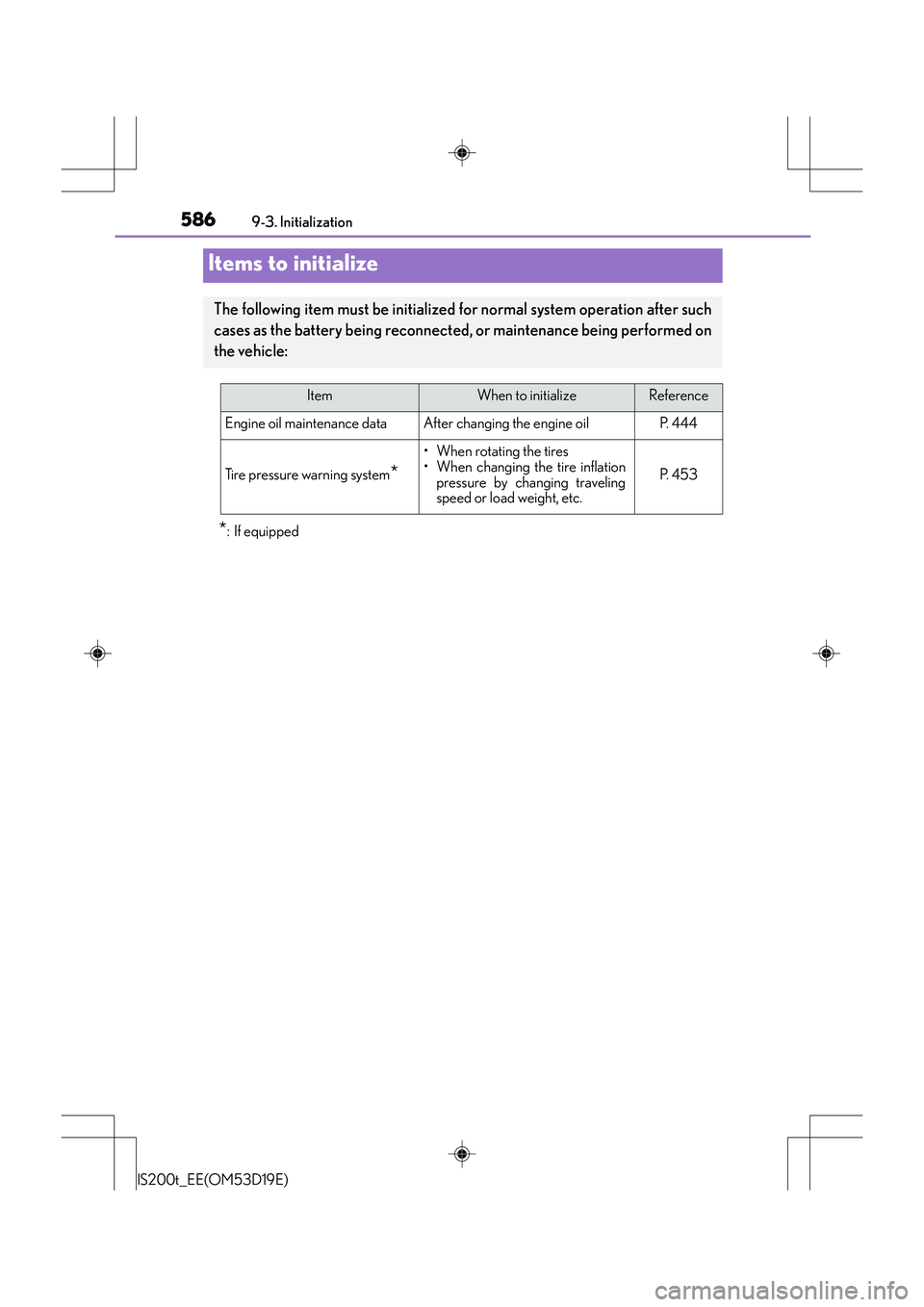

IS200t_EE(OM53D19E)9-3. Initialization
*: If equipped
Items to initialize
The following item must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Engine oil maintenance dataAfter changing the engine oilP. 444
Tire pressure warning system*
• When rotating the tires
• When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
P. 4 5 3
Page 587 of 612

587
Index
IS200t_EE(OM53D19E)
What to do if... (Troubleshooting)............................... 588
Alphabetical index................................. 592
For vehicles with a navigation or multimedia system, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL” for information regarding the equipment listed below.
•Navigation system
• Audio/video system • Lexus parking assist-sensor
• Lexus parking assist monitor
Page 588 of 612

588
IS200t_EE(OM53D19E)What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. (
→P. 118)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. ( →P. 1 2 1 )
●Is the electronic key battery weak or depleted? ( →P. 466)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 1 9 7 )
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
(→ P. 136)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( → P. 1 2 6 )
If you have a problem, check the foll owing before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
Page 589 of 612

589What to do if... (Troubleshooting)
IS200t_EE(OM53D19E)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk.
(→ P. 131)
●Did you press the engine switch while firmly depressing the brake pedal?
(→ P. 1 9 6 )
●Is the shift lever in P? ( →P. 1 9 8 )
●Is the electronic key anywhere detectable inside the vehicle? ( →P. 1 3 4 )
●Is the steering wheel unlocked? ( →P. 1 9 8 )
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( →P. 5 5 1 )
●Is the battery discharged? ( →P. 5 5 3 )
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( →P. 549)
●It is locked automatically to prevent theft of the vehicle. ( →P. 1 9 8 )
The trunk lid is closed with the electronic key left inside
If you think som
ething is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
Page 590 of 612

590What to do if... (Troubleshooting)
IS200t_EE(OM53D19E)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( →P. 1 6 9 )
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 1 9 8 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 5 0 2 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 0 9 )
Depending on the situation, other types of warning buzzer may also sound.
( → P. 500, 506)
●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( →P. 8 3 )
Do one of the following to deactivate or stop the alarm:
• Unlock the doors or open the trunk using th e entry function or wireless remote con-
trol.
• Start the engine.
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th e horn sounds (if equipped)
